5718-1. Specifications
8
Vehicle specifications
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number fo r your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the front
right frame.
This number is also stamped on the
top left of the instrument panel.
This number is also on the Certifica-
tion label on the left-hand side cen-
ter pillar.
Vehicle identification

572
GX460_OM_OM60Q09U_(U)8-1. Specifications

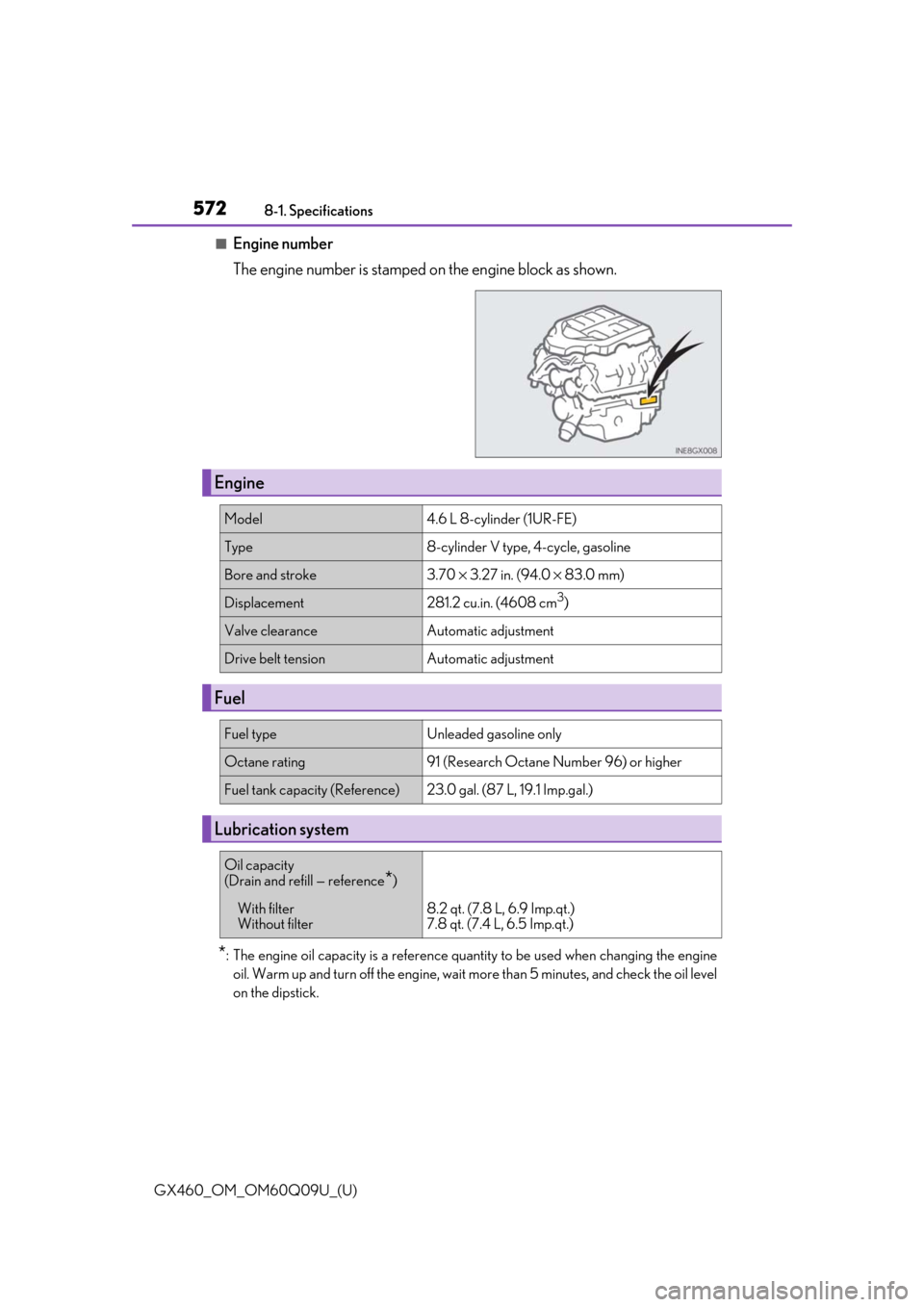

■Engine number
The engine number is stamped on the engine block as shown.
*: The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
Engine
Model4.6 L 8-cylinder (1UR-FE)
Type8-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70 × 3.27 in. (94.0 × 83.0 mm)
Displacement281.2 cu.in. (4608 cm3)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane rating91 (Research Octane Number 96) or higher
Fuel tank capacity (Reference)23.0 gal. (87 L, 19.1 Imp.gal.)
Lubrication system
Oil capacity
(Drain and refill — reference*)
With filter
Without filter8.2 qt. (7.8 L, 6.9 Imp.qt.)
7.8 qt. (7.4 L, 6.5 Imp.qt.)

GX460_OM_OM60Q09U_(U)
5738-1. Specifications
8
Vehicle specifications
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.
Oil viscosity (0W-20 is explained here as an example): • The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value be fore the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscos ity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme lo ad conditions.
How to read oil container label:
The International Lubricant Specifi-
cation Advisory Co mmittee (ILSAC)
Certification Mark is added to some
oil containers to help you select the
oil you should use.
Outside temperature

574
GX460_OM_OM60Q09U_(U)8-1. Specifications

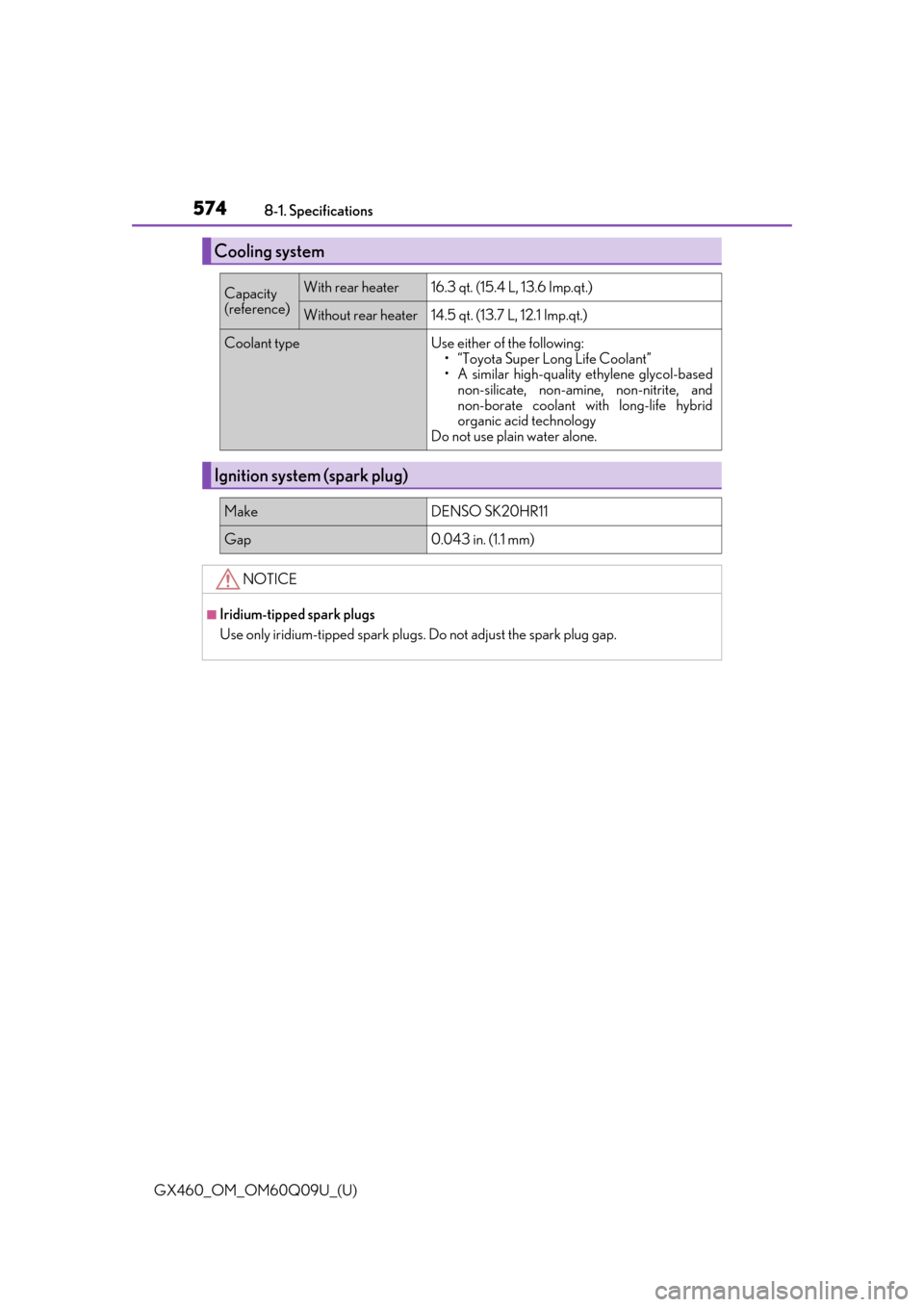

Cooling system
Capacity
(reference)With rear heater16.3 qt. (15.4 L, 13.6 Imp.qt.)
Without rear heater14.5 qt. (13.7 L, 12.1 Imp.qt.)
Coolant typeUse either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-basednon-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeDENSO SK20HR11
Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

GX460_OM_OM60Q09U_(U)
5758-1. Specifications
8
Vehicle specifications
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.Use Lexus approved “Toyota Genuine Differ ential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus dealer
for further details.
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory. Use Lexus approved “Toyota Genuine Differ ential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus dealer
for further details.
Electrical system (battery)
Specific gravity reading at
68 °F (20 °C):12.6 ⎯ 12.8 V Fully charged
12.2 ⎯ 12.4 V Half charged
11.8 ⎯ 12.0 V Discharged
Voltage is checked 20 minutes after the engine
and all the lights are turned off.
Charging rates5 A max.
Front differential
Oil capacity1.48 qt. (1.40 L, 1.23 Imp.qt.)
Oil type and viscosity*Toyota Genuine Differential Gear Oil LT 75W-85
GL-5 or equivalent
Rear differential
Oil capacity2.85 qt. (2.70 L, 2.38 Imp.qt.)
Oil type and viscosity*Toyota Genuine Differential Gear Oil LT 75W-85
GL-5 or equivalent

576
GX460_OM_OM60Q09U_(U)8-1. Specifications
*: The fluid capacity is a reference quantity
. If replacement is necessary, contact your
Lexus dealer.
*: Your Lexus vehicle is filled with “Toyota Ge nuine Transfer Gear oil LF” at the factory.
Use Lexus approved “Toyota Genuine Transf er Gear oil LF” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus dealer
for further details.

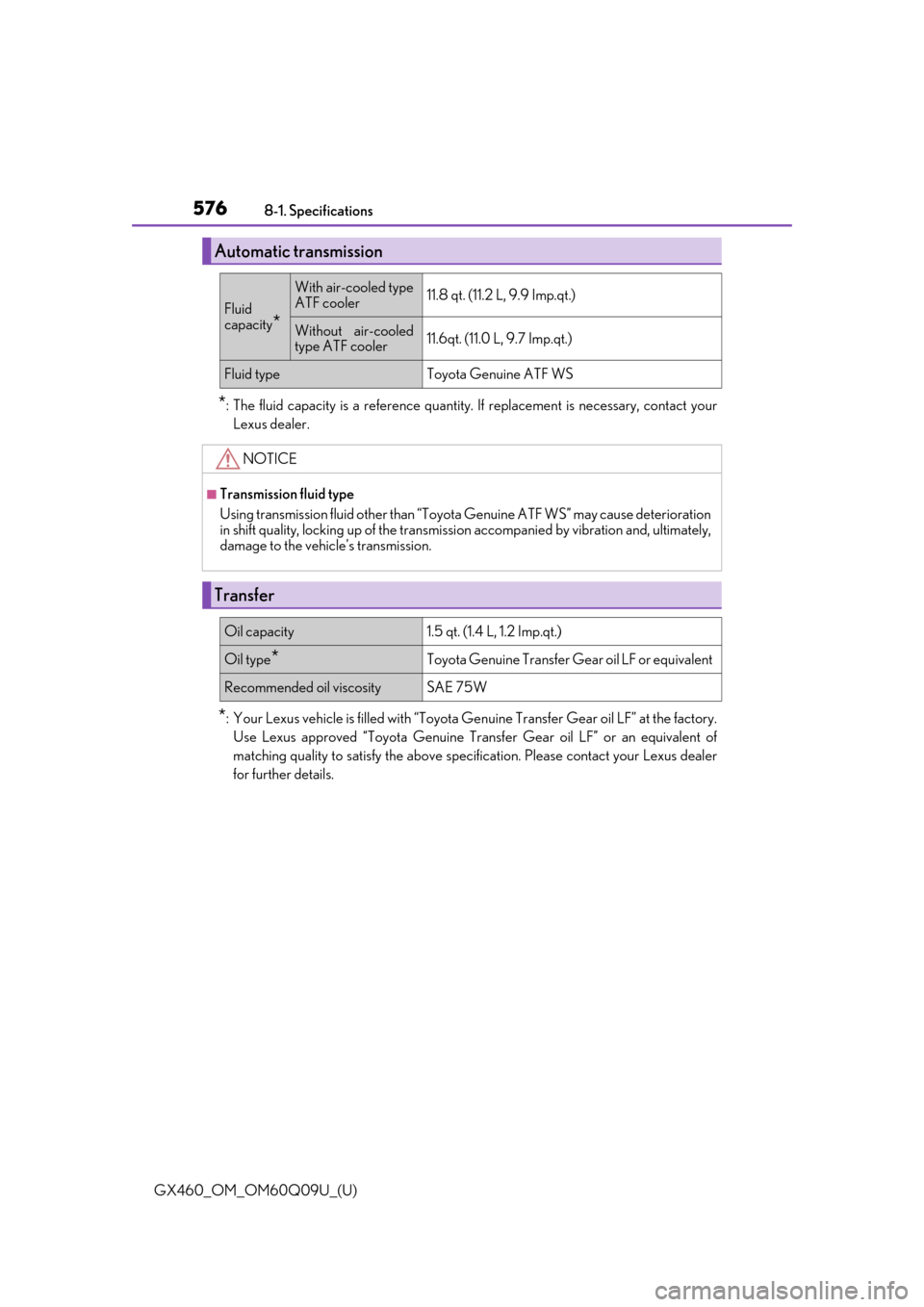

Automatic transmission
Fluid
capacity
*
With air-cooled type
ATF cooler11.8 qt. (11.2 L, 9.9 Imp.qt.)
Without air-cooled
type ATF cooler11.6qt. (11.0 L, 9.7 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration
in shift quality, locking up of the transmissi on accompanied by vibration and, ultimately,
damage to the vehicle’s transmission.
Transfer
Oil capacity1.5 qt. (1.4 L, 1.2 Imp.qt.)
Oil type*Toyota Genuine Transfer Gear oil LF or equivalent
Recommended oil viscositySAE 75W

GX460_OM_OM60Q09U_(U)
5778-1. Specifications
8
Vehicle specifications
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50 kgf)
while the engine is running
*2: Parking brake pedal travel when pulled up with a force of 44.1 lbf (196 N, 20.0 kgf)

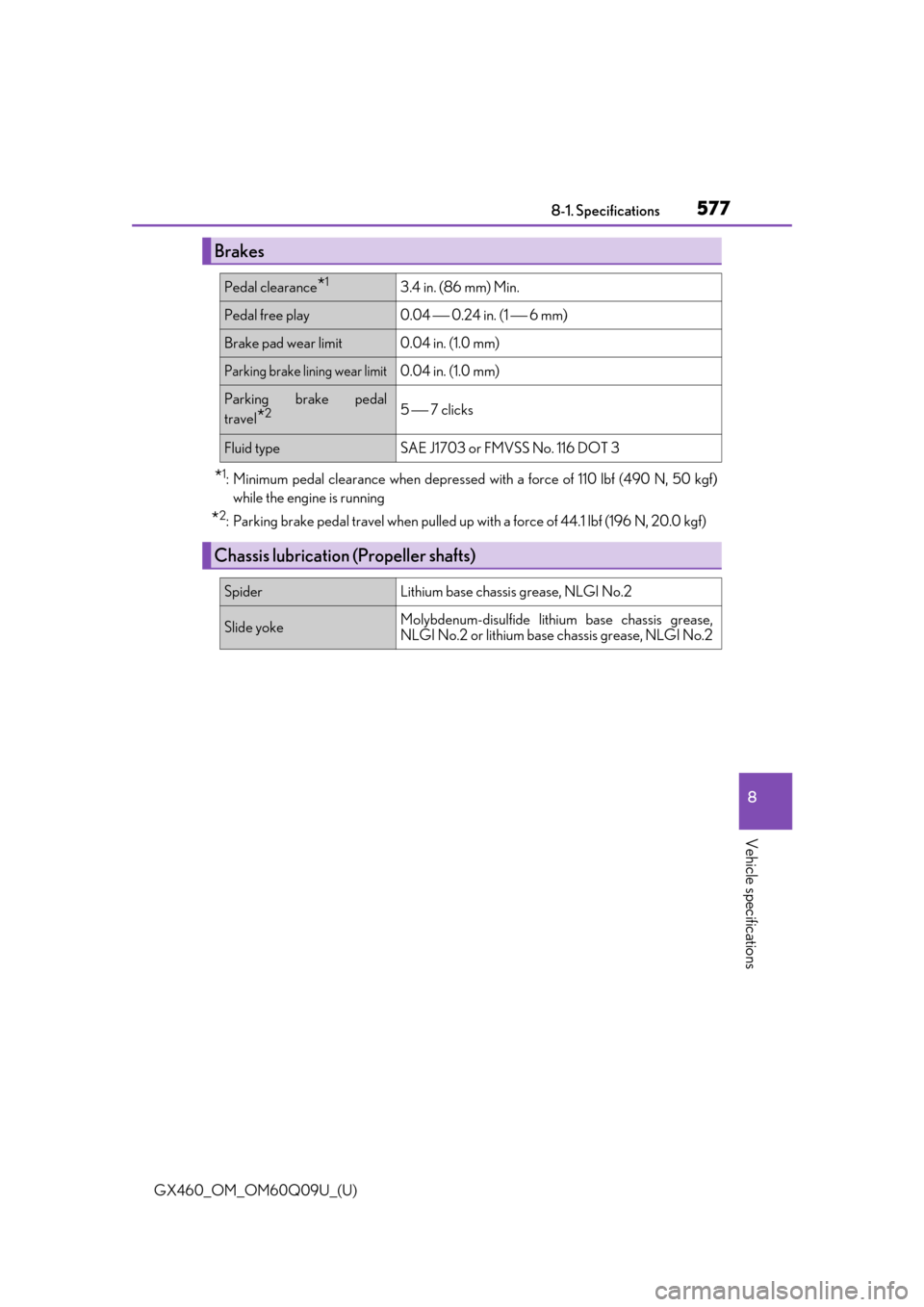

Brakes
Pedal clearance*13.4 in. (86 mm) Min.
Pedal free play0.04 ⎯ 0.24 in. (1 ⎯ 6 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake pedal
travel
*25 ⎯ 7 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Chassis lubrication (Propeller shafts)
SpiderLithium base chassi s grease, NLGI No.2
Slide yokeMolybdenum-disulfide lith ium base chassis grease,
NLGI No.2 or lithium base chassis grease, NLGI No.2

578
GX460_OM_OM60Q09U_(U)8-1. Specifications

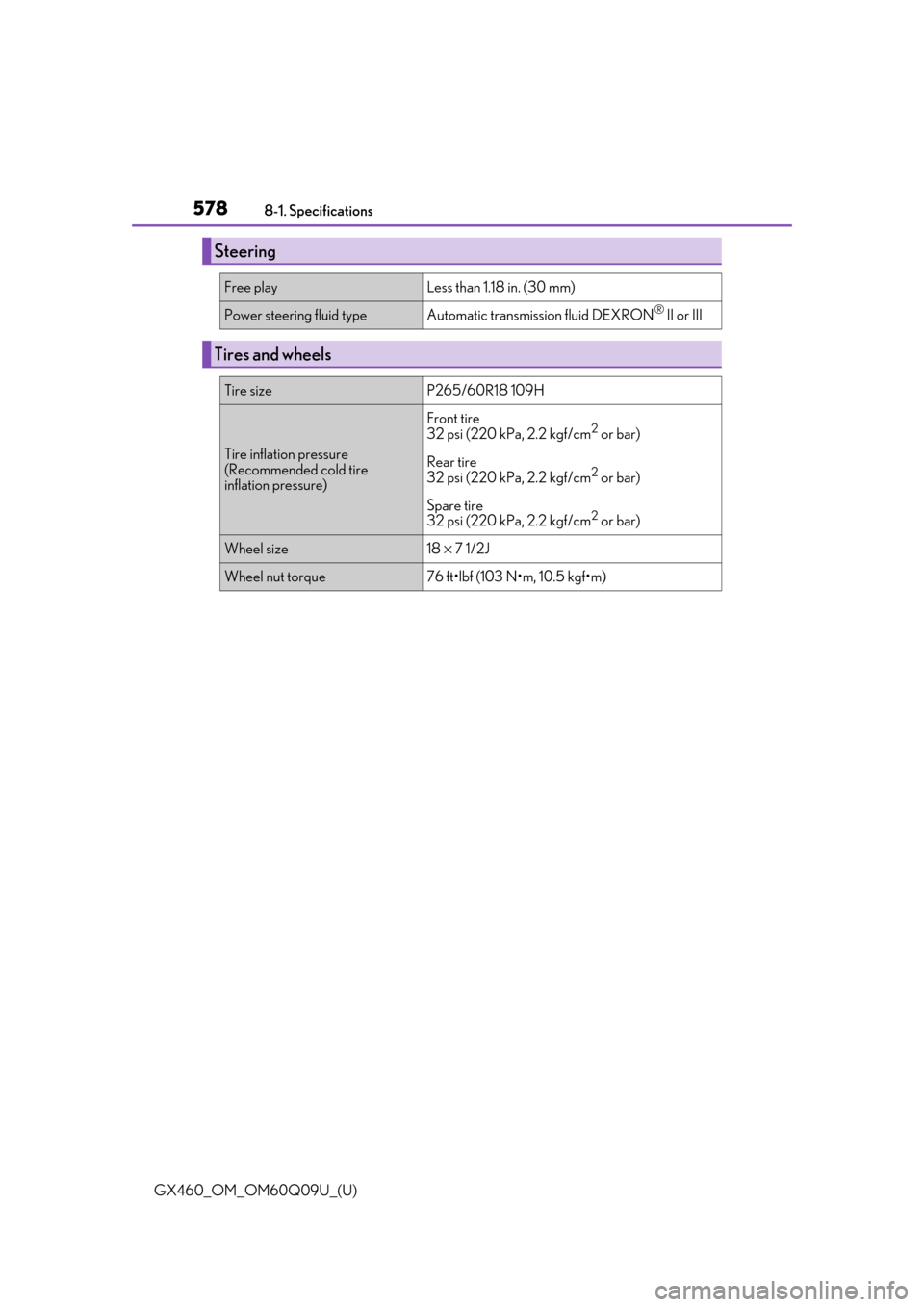

Steering
Free playLess than 1.18 in. (30 mm)
Power steering fluid typeAutomatic transmission fluid DEXRON® II or III
Tires and wheels
Tire sizeP265/60R18 109H
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front tire
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Rear tire
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Spare tire
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Wheel size18
× 7 1/2J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

GX460_OM_OM60Q09U_(U)
5798-1. Specifications
8
Vehicle specifications

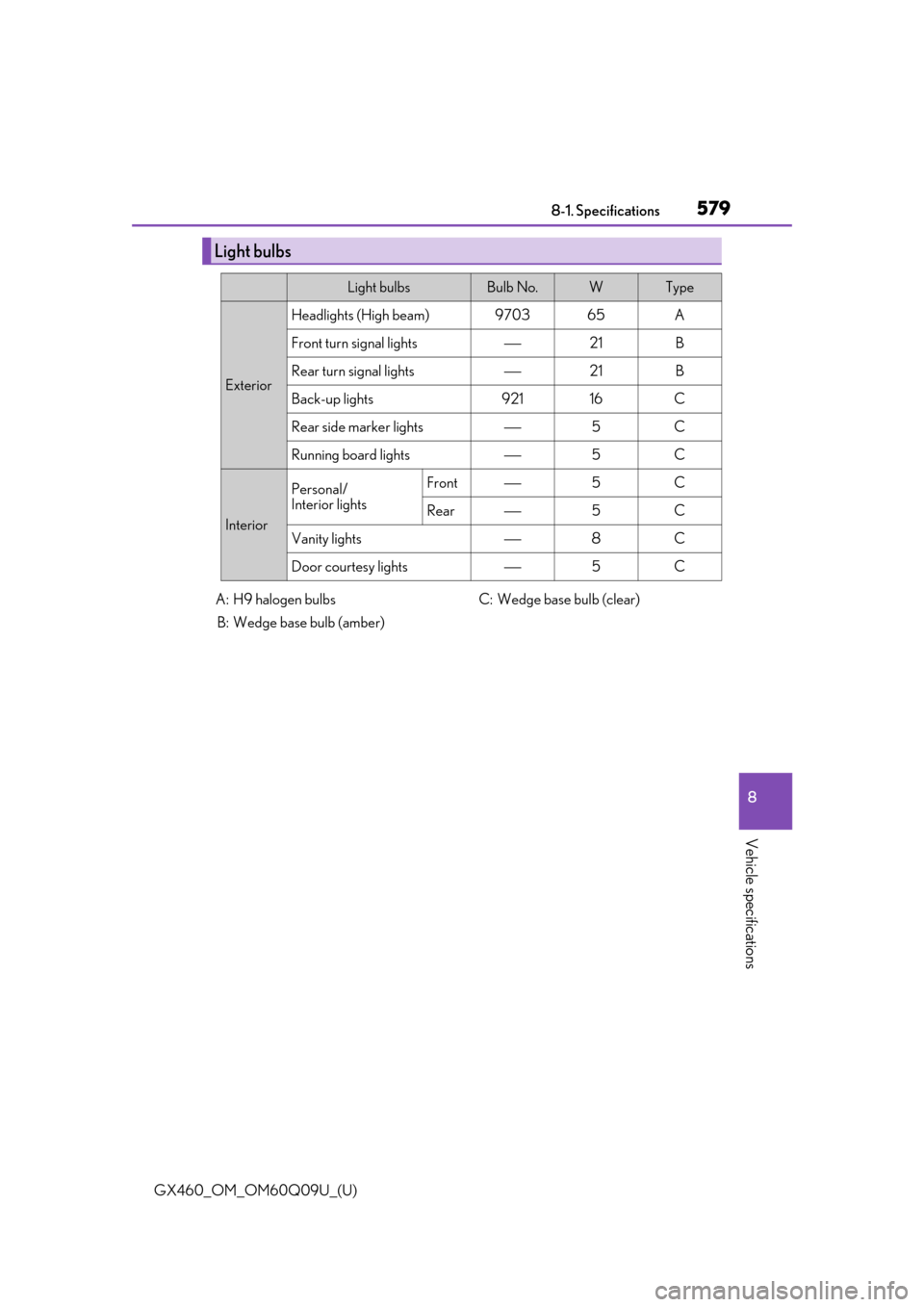

Light bulbs
Light bulbsBulb No.WType
Exterior
Headlights (High beam)970365A
Front turn signal lights⎯21B
Rear turn signal lights⎯21B
Back-up lights92116C
Rear side marker lights⎯5C
Running board lights⎯5C
Interior
Personal/
Interior lightsFront⎯5C
Rear⎯5C
Vanity lights⎯8C
Door courtesy lights⎯5C
A: H9 halogen bulbsB: Wedge base bulb (amber) C: Wedge base bulb (clear)

580
GX460_OM_OM60Q09U_(U)8-1. Specifications
Fuel information
■Gasoline quality
In very few cases, driveabilit
y problems may be caused by th e brand of gasoline you are
using. If driveability problems persist, try ch anging the brand of gasoline. If this does not
correct the problem, consult your Lexus dealer.
■Gasoline quality standards
●Automotive manufacturers in the U.S.A., Europe and Japan have developed a specifi-
cation for fuel quality calle d the World-Wide Fuel Charte r (WWFC), which is expected
to be applied worldwide.
●The WWFC consists of four categories that are based on required emission levels. In
the U.S., category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and improves
customer satisfaction th rough better performance.
You must only use unleaded gasoline.
Select premium unleaded gasoline with an octane rating of 91 (Research
Octane Number 96) or higher requir ed for optimum engine performance
and fuel economy. If the octane rating is less than 91, damage to the engine
may occur and may void the vehicle warranty.
At minimum, the gasoline you use shou ld meet the specifications of ASTM
D4814 in the U.S.A..
