Lexus GX460 2018 Owner's Manual / LEXUS 2018 GX460 OWNER'S MANUAL (OM60Q09U)

GX460_OM_OM60Q09U_(U)
5918-1. Specifications
8
Vehicle specifications

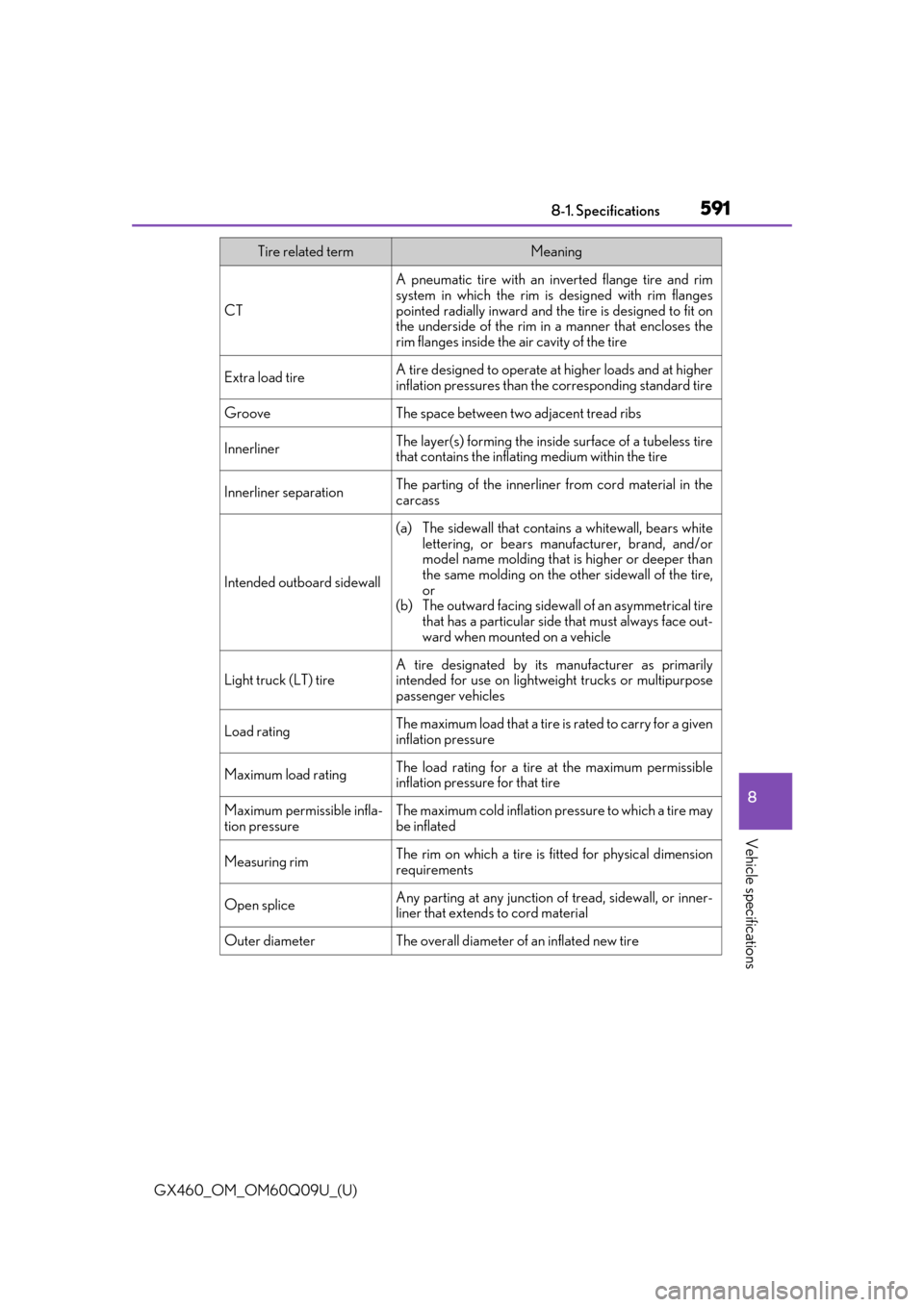

CT
A pneumatic tire with an inverted flange tire and rim
system in which the rim is designed with rim flanges
pointed radially inward and the tire is designed to fit on
the underside of the rim in a manner that encloses the
rim flanges inside the air cavity of the tire
Extra load tireA tire designed to operate at higher loads and at higher
inflation pressures than the corresponding standard tire
GrooveThe space between two adjacent tread ribs
InnerlinerThe layer(s) forming the insi de surface of a tubeless tire
that contains the inflating medium within the tire
Innerliner separationThe parting of the innerliner from cord material in the
carcass
Intended outboard sidewall
(a) The sidewall that contains a whitewall, bears white
lettering, or bears manufacturer, brand, and/or
model name molding that is higher or deeper than
the same molding on the ot her sidewall of the tire,
or
(b) The outward facing sidewa ll of an asymmetrical tire
that has a particular side that must always face out-
ward when mounted on a vehicle
Light truck (LT) tire
A tire designated by its manufacturer as primarily
intended for use on lightweig ht trucks or multipurpose
passenger vehicles
Load ratingThe maximum load that a tire is rated to carry for a given
inflation pressure
Maximum load ratingThe load rating for a tire at the maximum permissible
inflation pressure for that tire
Maximum permissible infla-
tion pressureThe maximum cold inflation pr essure to which a tire may
be inflated
Measuring rimThe rim on which a tire is fitted for physical dimension
requirements
Open spliceAny parting at any junction of tread, sidewall, or inner-
liner that extends to cord material
Outer diameterThe overall diameter of an inflated new tire
Tire related termMeaning

592
GX460_OM_OM60Q09U_(U)8-1. Specifications
Overall widthThe linear distance between the exteriors of the side-
walls of an inflated
tire, including elev ations due to label-
ing, decorations, or protective bands or ribs
Passenger car tire
A tire intended for use on passenger cars, multipurpose
passenger vehicles, and trucks, that have a gross vehicle
weight rating (GVWR) of 10,000 lb. or less.
PlyA layer of rubber-coat ed parallel cords
Ply separationA parting of rubber compou nd between adjacent plies
Pneumatic tire
A mechanical device made of rubber, chemicals, fabric
and steel or other materials, that, when mounted on an
automotive wheel, provides the traction and contains
the gas or fluid that sustains the load
Radial ply tire
A pneumatic tire in which the ply cords that extend to
the beads are laid at substa ntially 90 degrees to the
centerline of the tread
Reinforced tire A tire designed to operate at higher loads and at higher
inflation pressures than the corresponding standard tire
Section width
The linear distance between the exteriors of the side-
walls of an inflated tire, excluding elevations due to
labeling, decoration, or protective bands
SidewallThat portion of a tire between the tread and bead
Sidewall separationThe parting of the rubber compound from the cord
material in the sidewall
Snow tire
A tire that attains a traction index equal to or greater
than 110, compared to the ASTM E-1136 Standard Ref-
erence Test Tire, when using the snow traction test as
described in ASTM F-1805-00, Standard Test Method
for Single Wheel Driving Traction in a Straight Line on
Snow-and Ice-Covered Surfaces, and which is marked
with an Alpine Symbol ( ) on at least one sidewall
Tire related termMeaning

GX460_OM_OM60Q09U_(U)
5938-1. Specifications
8
Vehicle specifications
*:Table 1 ⎯ Occupant loading and distribution for vehicle normal load for various des-
ignated seating capacities

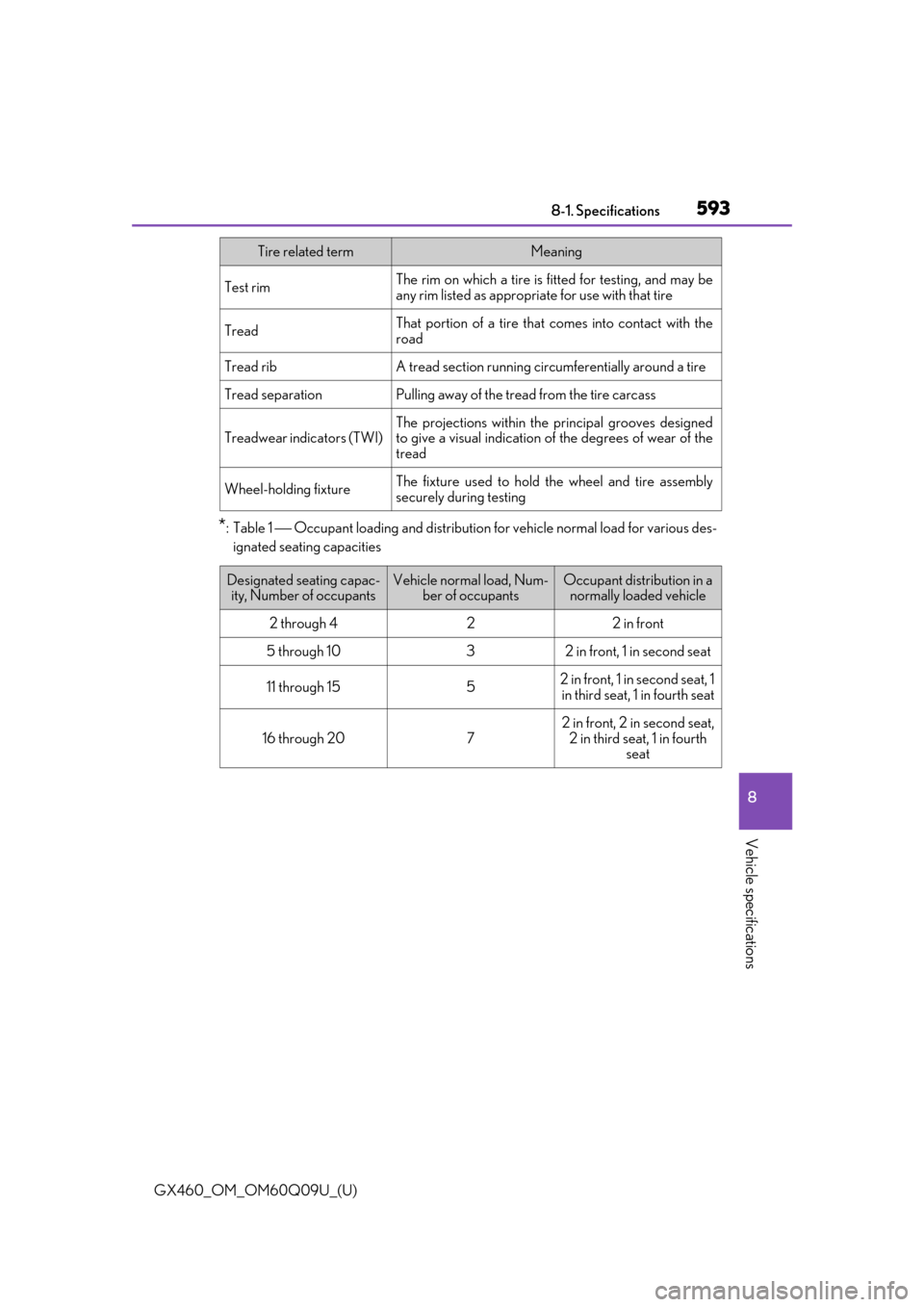

Test rimThe rim on which a tire is fitted for testing, and may be
any rim listed as appropriate for use with that tire
TreadThat portion of a tire that comes into contact with the
road
Tread ribA tread section running circ umferentially around a tire
Tread separationPulling away of the tread from the tire carcass
Treadwear indicators (TWI)
The projections within the principal grooves designed
to give a visual indication of the degrees of wear of the
tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire assembly
securely during testing
Tire related termMeaning
Designated seating capac- ity, Number of occupantsVehicle normal load, Num- ber of occupantsOccupant distribution in a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second seat
11 through 1552 in front, 1 in second seat, 1
in third seat, 1 in fourth seat
16 through 207
2 in front, 2 in second seat, 2 in third seat, 1 in fourth seat

594
GX460_OM_OM60Q09U_(U)8-2. Customization
Customizable features
■Changing by using the menu switch and the “ENTER” switch
When customizing vehicle features, ensure that the vehicle is parked in a safe
place with the shift lever in
P and the parking brake set.
Press and hold the menu switch to display customization mode. (→ P. 87)
Press the “ENTER” switch upwards or downwards to select the item to be
customized.
Press the “ENTER” switch to confirm.
Press the “ENTER” switch upwards or downwards to select the desired set-
ting for the item being customized.
Press the “ENTER” switch to confirm.
When customization is completed, pre ss the menu switch to clear the cus-
tomization screen.
■Changing by using the multimedia system or navigation system
Press the “SETUP” button on the multim edia system or navigation system.
Select “Vehicle” on the “Setup” screen and select “Vehicle Customization”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
Your vehicle includes a variety of elec tronic features that can be personalized
to suit your preferences. The settings of these features can be changed by
using the steering wheel switches, the multimedia system or navigation sys-
tem or at your Lexus dealer.
It is also possible to customize certain vehicle features yourself using the
menu switch and the “ENTER” switch.
Customizing vehicle features
1
2
3
1
2

GX460_OM_OM60Q09U_(U)
5958-2. Customization
8
Vehicle specifications
Some function settings are changed simultaneously with other functions being
customized. Contact your Lexus dealer for further details.
Settings that can be changed using th e menu switch and the “ENTER” switch
Settings that can be changed using the multimedia system or navigation sys-
tem
Settings that can be changed by your Lexus dealer
Definition of symbols: O = Available, – =Not available
■Multi-information display ( →P. 86)
*: The default setting varies according to countries.
Customizable features
1
2
3
FunctionDefault settingCustomized
setting
Language*EnglishFrenchOOOSpanish
Units*miles (MPG US)km (km/L)O—Okm (L/100km)
Eco Driving Indicator LightOnOffO—O
123

596
GX460_OM_OM60Q09U_(U)8-2. Customization

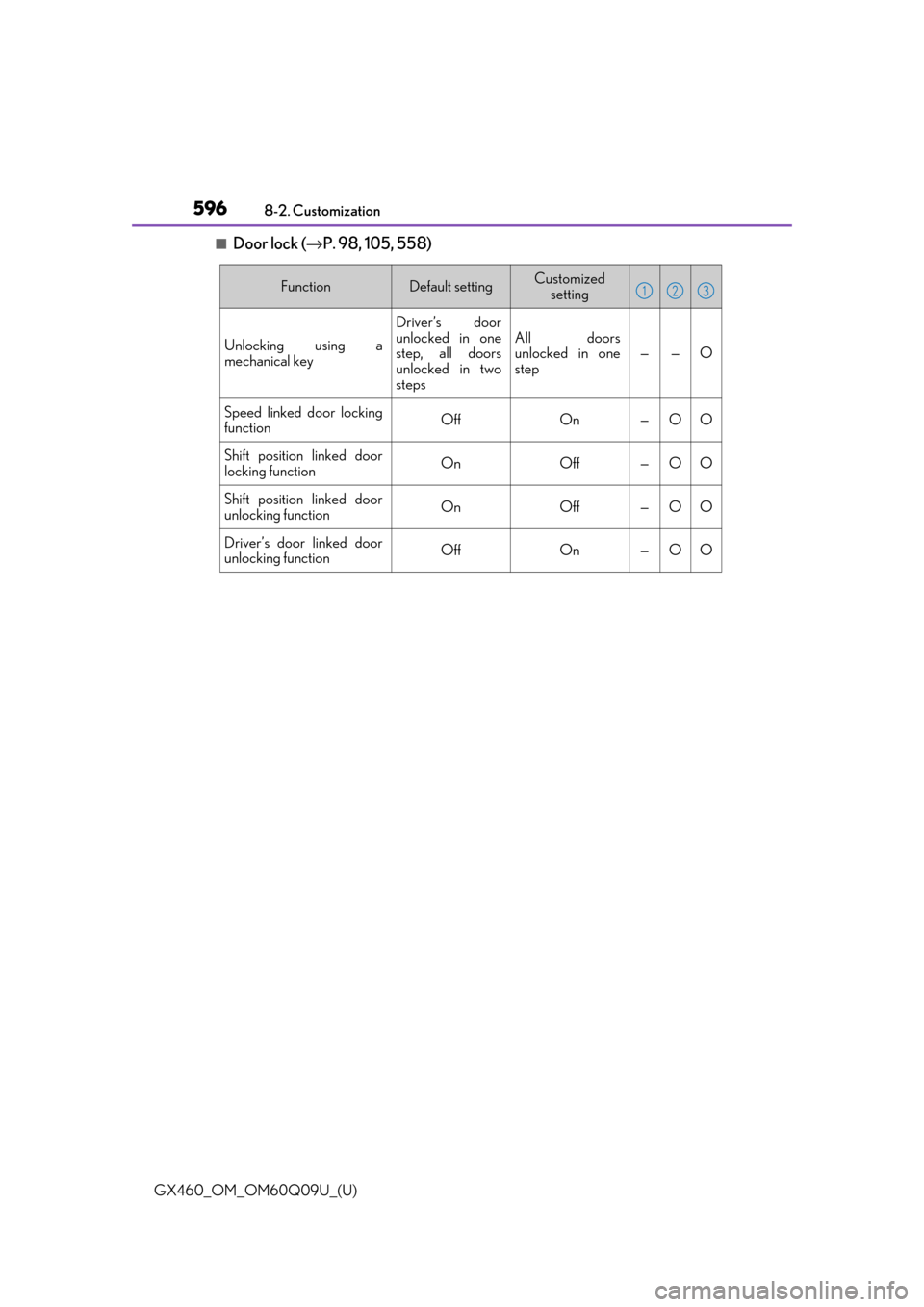

■Door lock (
→P. 98, 105, 558)
FunctionDefault settingCustomized
setting
Unlocking using a
mechanical key
Driver’s door
unlocked in one
step, all doors
unlocked in two
steps
All doors
unlocked in one
step——O
Speed linked door locking
functionOffOn—OO
Shift position linked door
locking functionOnOff—OO
Shift position linked door
unlocking functionOnOff—OO
Driver’s door linked door
unlocking functionOffOn—OO
123

GX460_OM_OM60Q09U_(U)
5978-2. Customization
8
Vehicle specifications

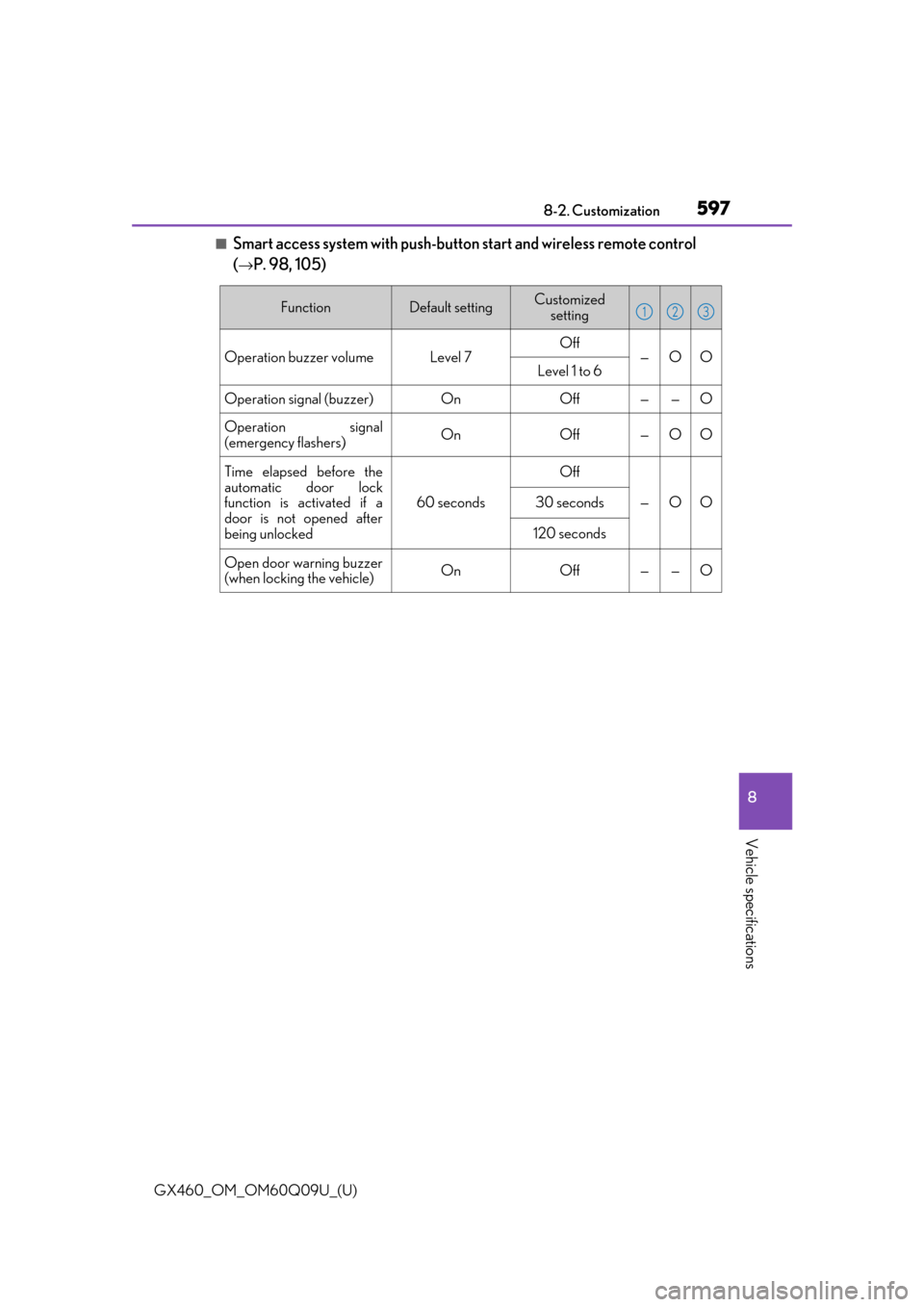

■Smart access system with push-button start and wireless remote control
(
→P. 98, 105)
FunctionDefault settingCustomized setting
Operation buzzer volumeLevel 7Off—OOLevel 1 to 6
Operation signal (buzzer)OnOff——O
Operation signal
(emergency flashers)OnOff—OO
Time elapsed before the
automatic door lock
function is activated if a
door is not opened after
being unlocked
60 seconds
Off
—OO30 seconds
120 seconds
Open door warning buzzer
(when locking the vehicle)OnOff——O
123

598
GX460_OM_OM60Q09U_(U)8-2. Customization
■Smart access system with push-button start (→P. 98, 105, 115)
■Wireless remote control (→P. 94, 98)
FunctionDefault settingCustomized
setting
Smart door unlockingDriver’s doorAll the doors—OO
Smart access system with
push-button startOnOff—OO
Number of consecutive
door lock operations2 timesAs many as desired——O
123
FunctionDefault settingCustomized
setting
Wireless remote controlOnOff——O
Unlocking operation
Driver’s door
unlocked in one
step, all doors
unlocked in two
stepsAll doors
unlocked in one
step
—OO
Panic functionOnOff——O
Glass hatch opening
operationPush and hold (Short)
Push twice
——O
One short push
Push and hold (Long)
Off
123

GX460_OM_OM60Q09U_(U)
5998-2. Customization
8
Vehicle specifications

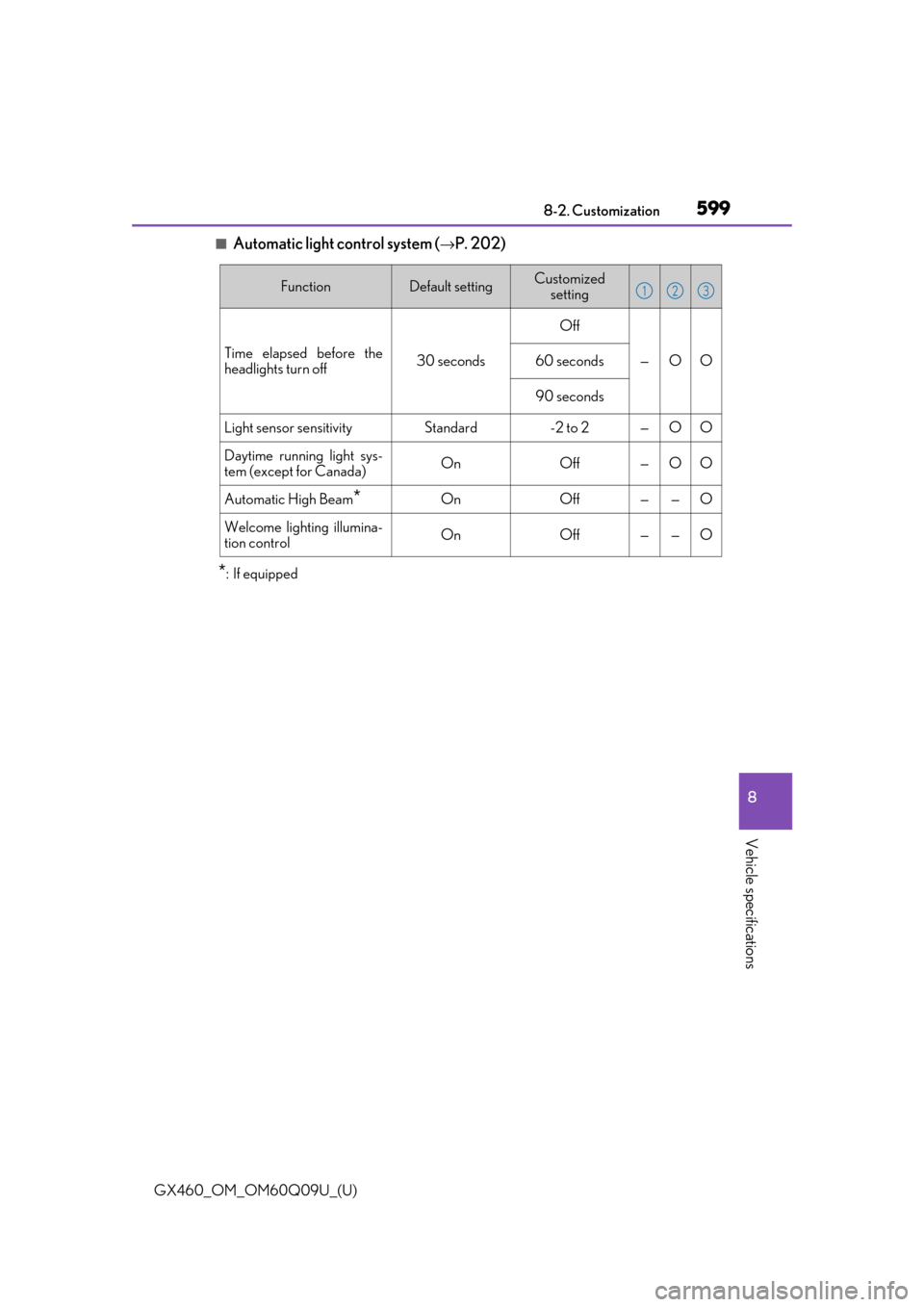

■Automatic light control system (→P. 202)
*: If equipped
FunctionDefault settingCustomized setting
Time elapsed before the
headlights turn off30 seconds
Off
—OO60 seconds
90 seconds
Light sensor sensitivityStandard-2 to 2—OO
Daytime running light sys-
tem (except for Canada)OnOff—OO
Automatic High Beam*OnOff——O
Welcome lighting illumina-
tion controlOnOff——O
123

600
GX460_OM_OM60Q09U_(U)8-2. Customization

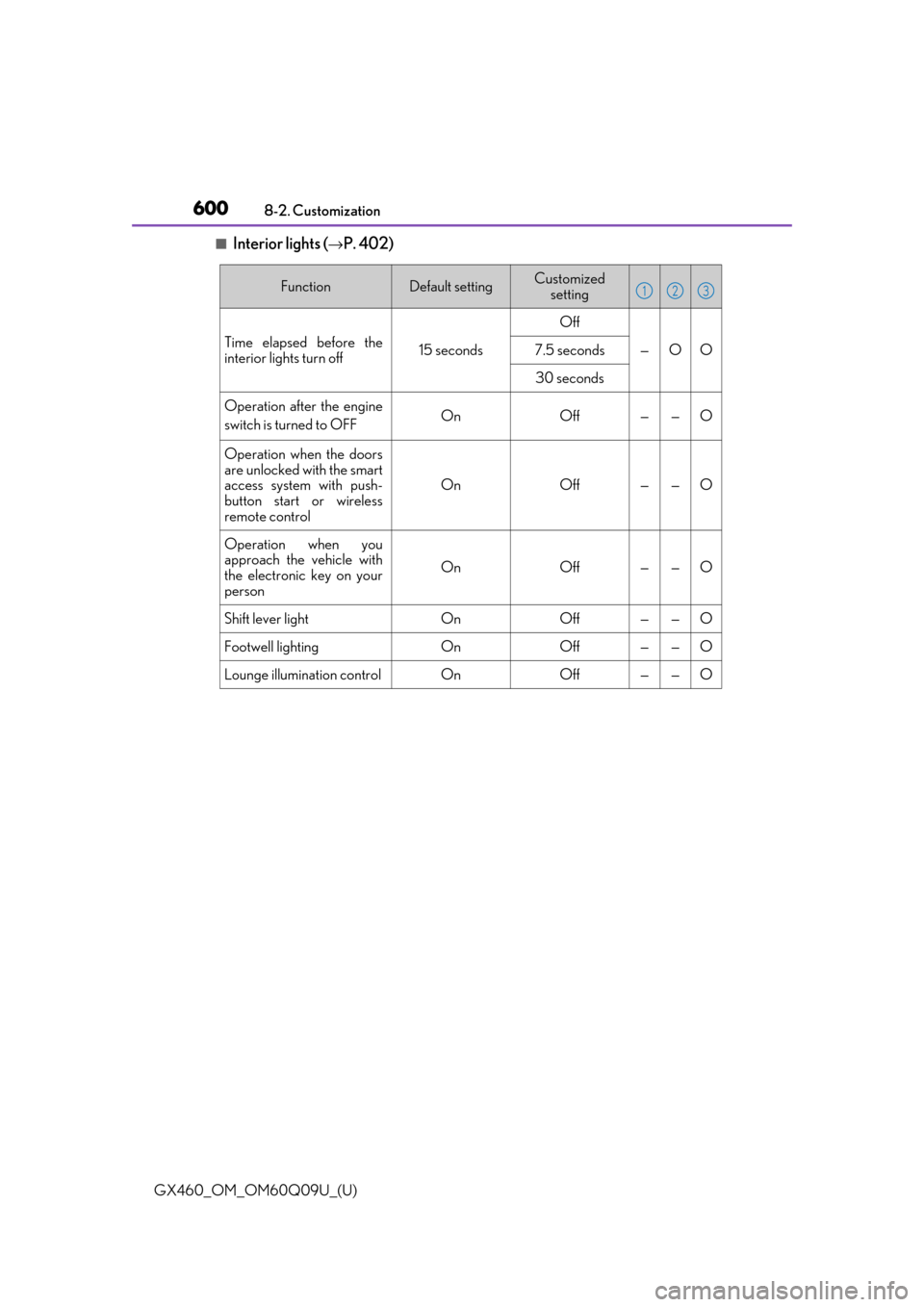

■Interior lights (→P. 402)
FunctionDefault settingCustomized
setting
Time elapsed before the
interior lights turn off15 seconds
Off
—OO7.5 seconds
30 seconds
Operation after the engine
switch is turned to OFFOnOff——O
Operation when the doors
are unlocked with the smart
access system with push-
button start or wireless
remote control
OnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person
OnOff——O
Shift lever lightOnOff——O
Footwell lightingOnOff——O
Lounge illumination controlOnOff——O
123
