611-1. For safe use
GX460_OM_OM60Q84U_(U)
1
For safety and security
Fold the seatback forward. Then
return the seatback and secure it at
the first lock position (most upright
position). ( P. 128)
Type A
Flip the cover, and latch the hooks of
the lower straps onto the LATCH
anchors. If the child restraint has a
top tether strap, the top tether strap
should be latched onto the top
tether strap anchor. ( P. 67)
For owners in Canada:
The symbol on a child restraint sys-
tem indicates the presence of a
lower connector system.

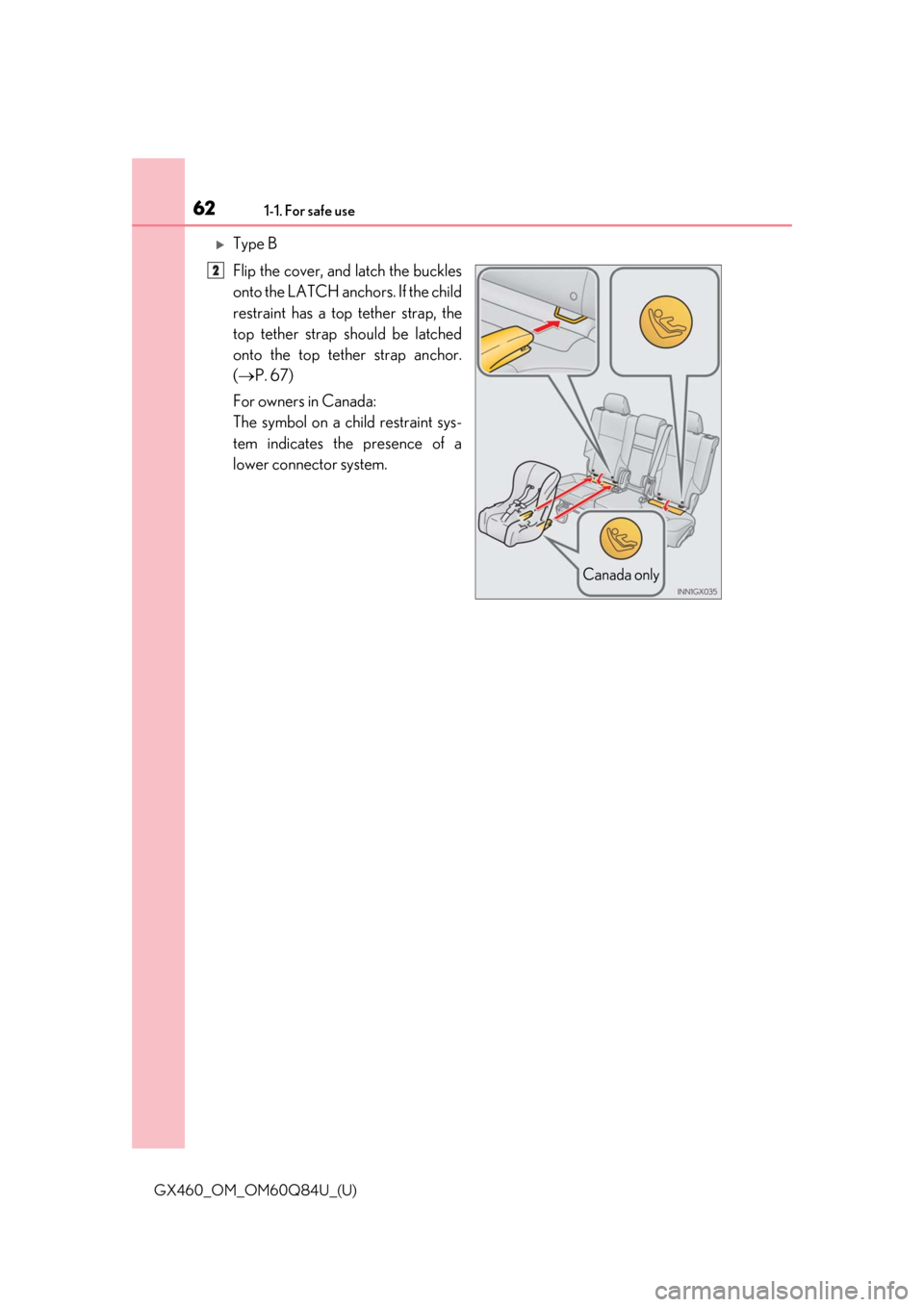

Installation with LATCH system
1
Canada only
2

621-1. For safe use
GX460_OM_OM60Q84U_(U)
Type B
Flip the cover, and latch the buckles
onto the LATCH anchors. If the child
restraint has a top tether strap, the
top tether strap should be latched
onto the top tether strap anchor.
(P. 67)
For owners in Canada:
The symbol on a child restraint sys-
tem indicates the presence of a
lower connector system.
Canada only
2

631-1. For safe use
GX460_OM_OM60Q84U_(U)
1
For safety and security

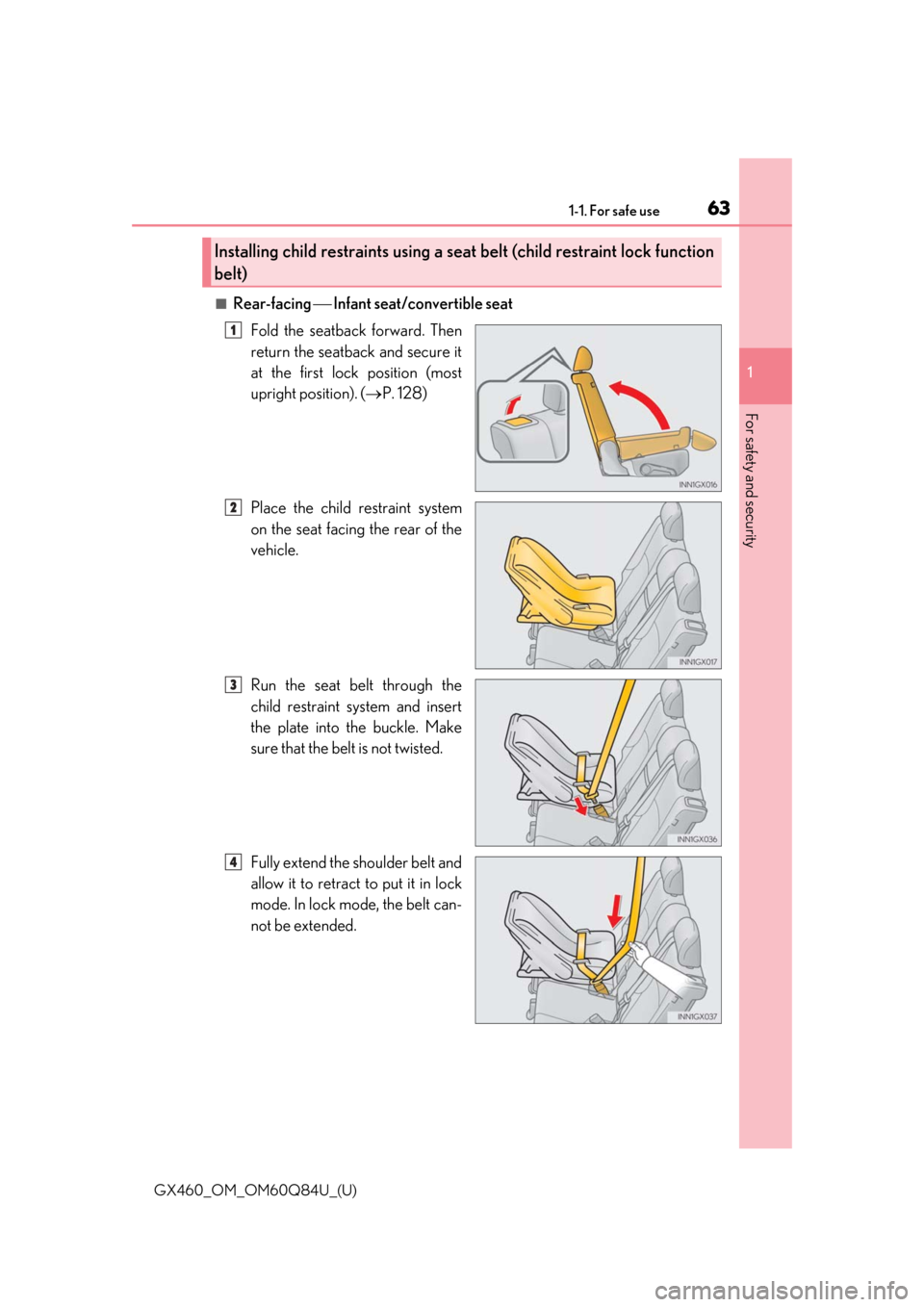

■Rear-facing  Infant seat/convertible seat
Fold the seatback forward. Then
return the seatback and secure it
at the first lock position (most
upright position). ( P. 128)
Place the child restraint system
on the seat facing the rear of the
vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt can-
not be extended.
Installing child restraints using a seat belt (child restraint lock function
belt)
1
2
3
4

641-1. For safe use
GX460_OM_OM60Q84U_(U)

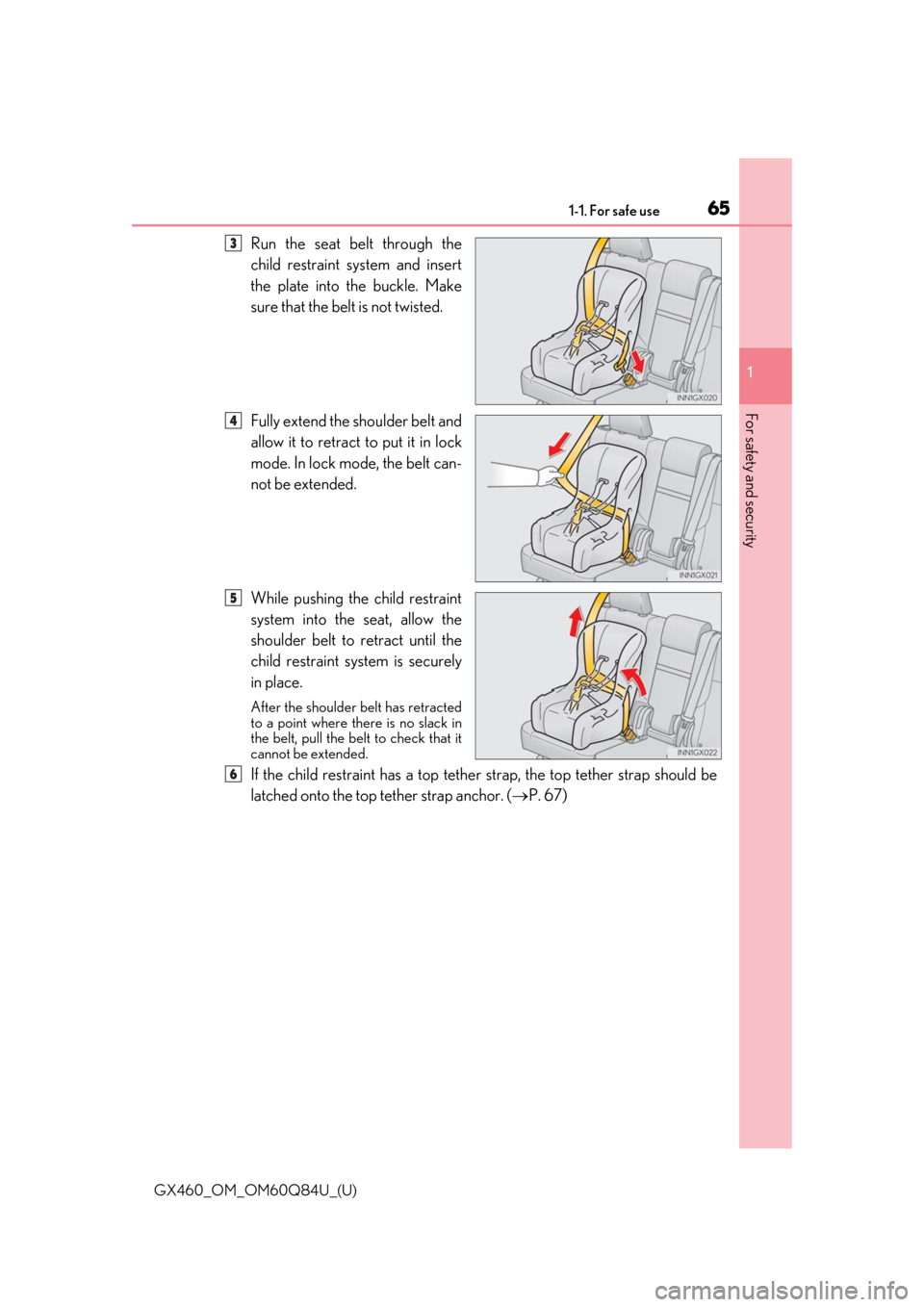

While pushing the child restraint
system down into the seat, allow
the shoulder belt to retract until
the child restraint system is
securely in place.
After the shoulder belt has retracted
to a point where there is no slack in
the belt, pull the belt to check that it
cannot be extended.
■Forward-facing Convertible seat
Fold the seatback forward. Then
return the seatback and secure it
at the first lock position (most
upright position). ( P. 128)
Place the child restraint system
on the seat facing the front of the
vehicle.
5
1
2

651-1. For safe use
GX460_OM_OM60Q84U_(U)
1
For safety and security
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt can-
not be extended.
While pushing the child restraint
system into the seat, allow the
shoulder belt to retract until the
child restraint system is securely
in place.
After the shoulder belt has retracted
to a point where there is no slack in
the belt, pull the belt to check that it
cannot be extended.
If the child restraint has a top tether strap, the top tether strap should be
latched onto the top tether strap anchor. ( P. 67)
3
4
5
6

661-1. For safe use
GX460_OM_OM60Q84U_(U)

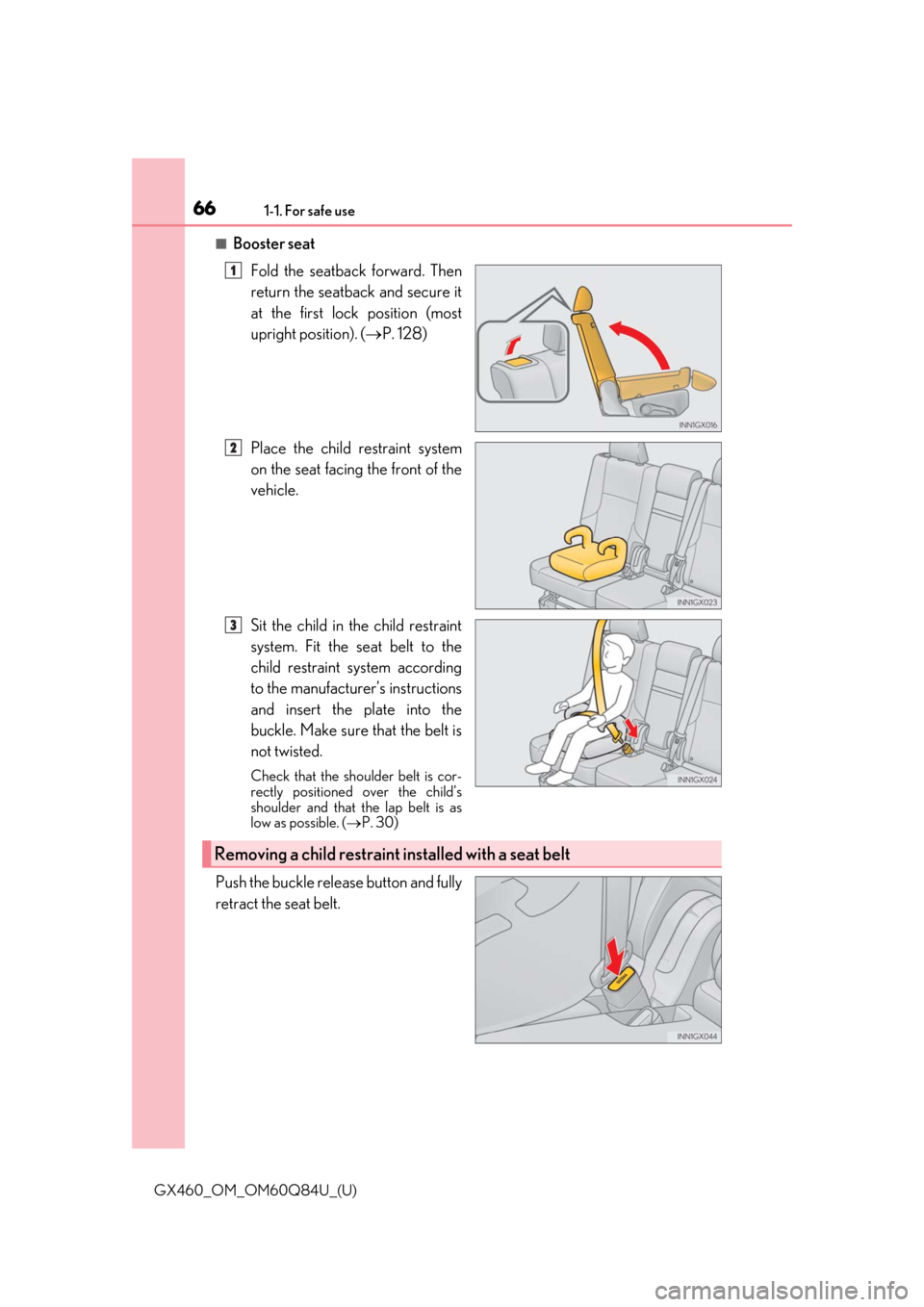

■Booster seatFold the seatback forward. Then
return the seatback and secure it
at the first lock position (most
upright position). ( P. 128)
Place the child restraint system
on the seat facing the front of the
vehicle.
Sit the child in the child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer’s instructions
and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is cor-
rectly positioned over the child’s
shoulder and that the lap belt is as
low as possible. ( P. 30)
Push the buckle release button and fully
retract the seat belt.
1
2
3
Removing a child restraint installed with a seat belt

671-1. For safe use
GX460_OM_OM60Q84U_(U)
1
For safety and security
Secure the child restraint system
using the seat belt or LATCH
anchors and move the head restraint
in place at the upmost position.
7-passenger models
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is
securely latched.
6-passenger models
Latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is
securely latched.
Child restraint systems with a top tether strap (second seats)
1
2
2

681-1. For safe use
GX460_OM_OM60Q84U_(U)
Lift up the head restraint system until
it locks and secure the child restraint
system using the seat belt.
Latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is
securely latched.
■Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifications can be
used.
This vehicle is designed to conform to the SAE J1819.

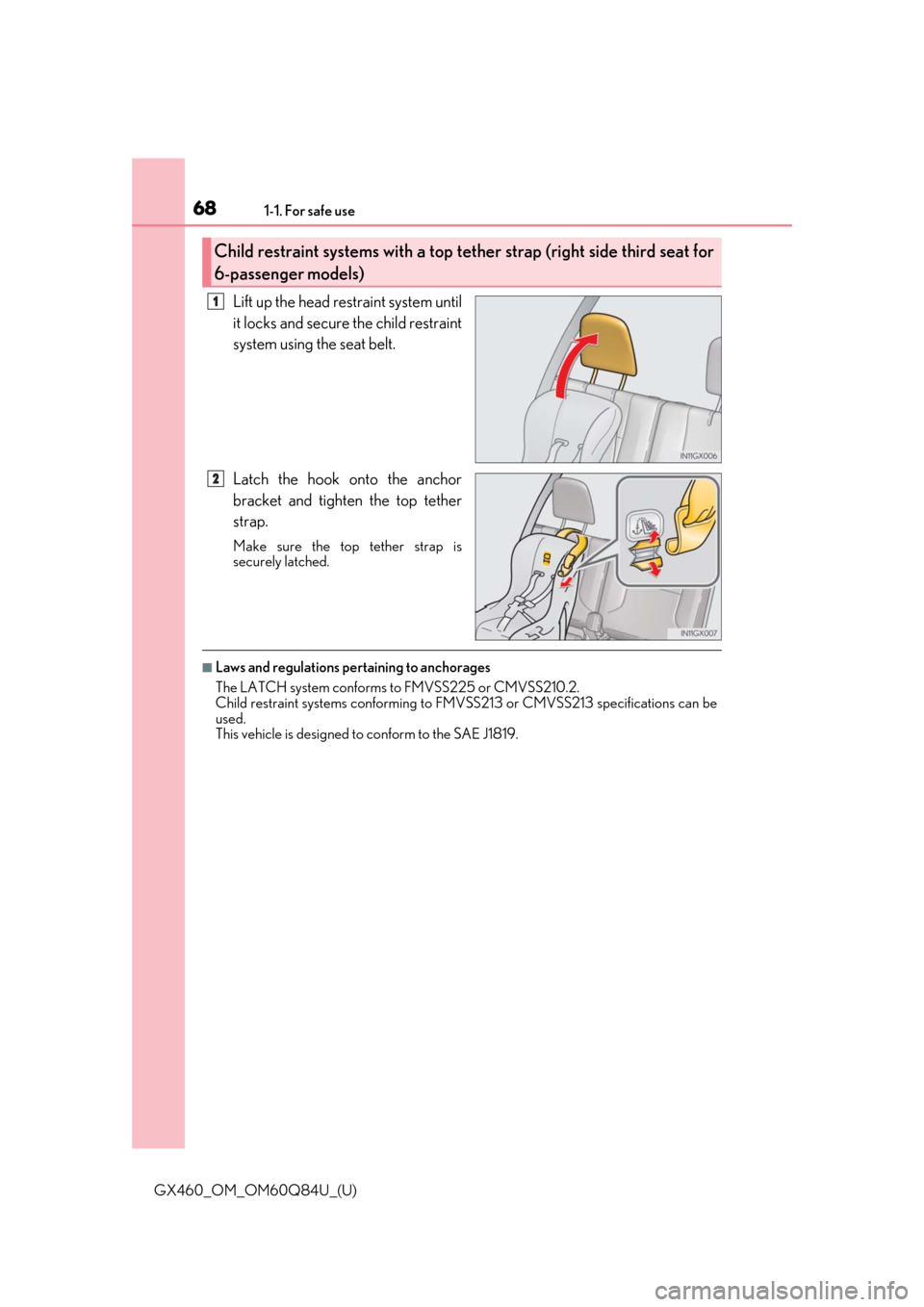

Child restraint systems with a top teth er strap (right side third seat for
6-passenger models)
1
2

691-1. For safe use
GX460_OM_OM60Q84U_(U)
1
For safety and security

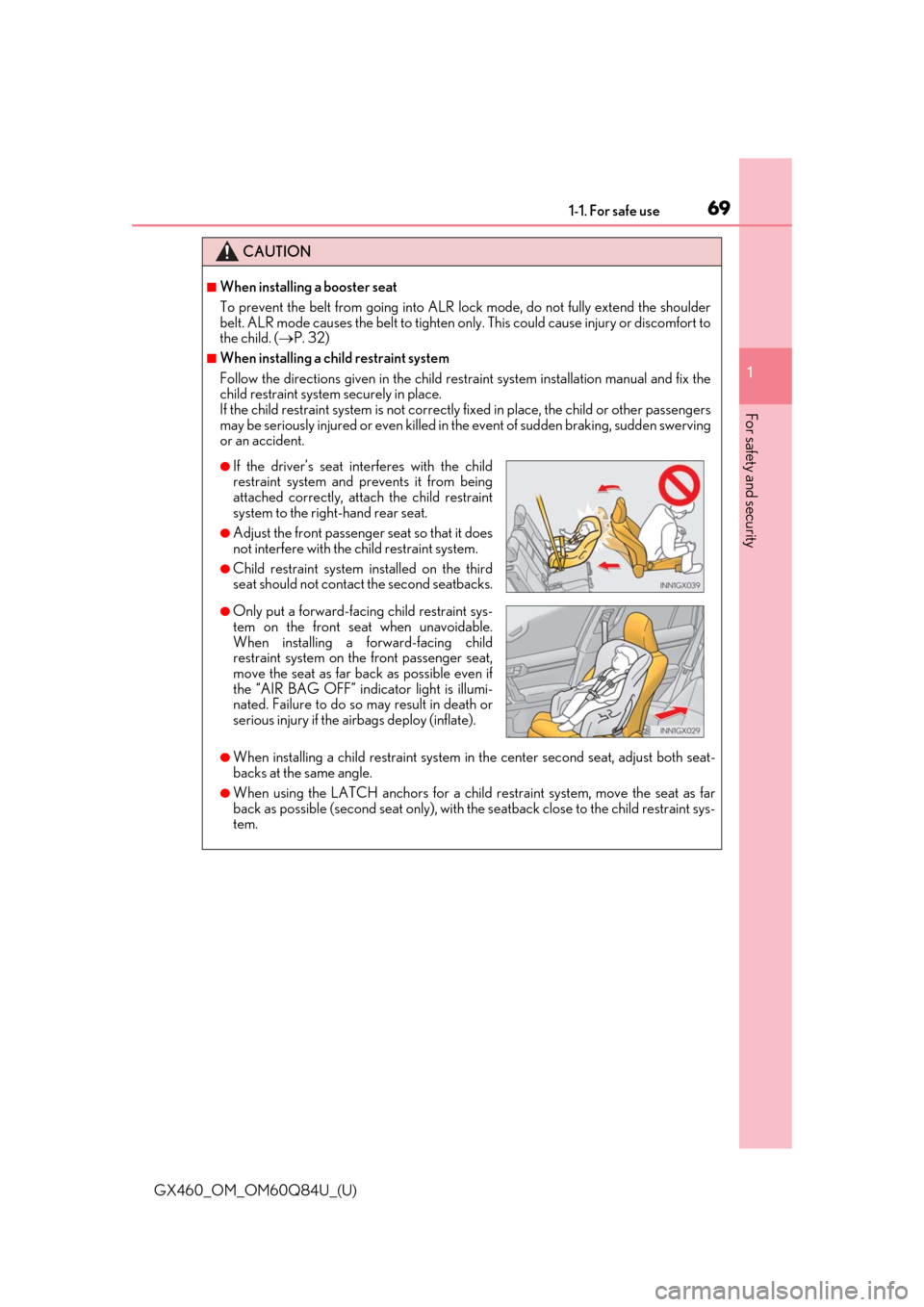

CAUTION
■When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the shoulder
belt. ALR mode causes the belt to tighten only. This could cause injury or discomfort to
the child. ( P. 32)
■When installing a child restraint system
Follow the directions given in the child rest raint system installation manual and fix the
child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other passengers
may be seriously injured or even killed in th e event of sudden braking, sudden swerving
or an accident.
●When installing a child restra int system in the center second seat, adjust both seat-
backs at the same angle.
●When using the LATCH anchors for a child restraint system, move the seat as far
back as possible (second seat only), with the seatback close to the child restraint sys-
tem.
●If the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, atta ch the child restraint
system to the right-hand rear seat.
●Adjust the front passenger seat so that it does
not interfere with the child restraint system.
●Child restraint system installed on the third
seat should not contact the second seatbacks.
●Only put a forward-faci ng child restraint sys-
tem on the front seat when unavoidable.
When installing a forward-facing child
restraint system on the front passenger seat,
move the seat as far back as possible even if
the “AIR BAG OFF” indicator light is illumi-
nated. Failure to do so may result in death or
serious injury if the airbags deploy (inflate).

701-1. For safe use
GX460_OM_OM60Q84U_(U)
CAUTION
■When installing a child restraint system
●When a booster seat is installed, always ensure that the shoulder belt is positioned
across the center of the child’s shoulder. The belt should be kept away from the child’s
neck, but not so that it could fall off the ch ild’s shoulder. Failing to do so may result in
death or serious injury in the event of sudden braking, sudden swerving or an acci-
dent.
●Ensure that the belt and plate are securely locked and the seat belt is not twisted.
●Shake the child restraint system left and right, and forward and backward to ensure
that it has been securely installed.
●After securing a child restraint system, never adjust the seat.
●Follow all installation instructions provided by the child restraint system manufacturer.
●When securing some types of child restrain systems in second or third row seats, it
may not be possible to properly use the se at belts in positions next to the child
restraint without interfering with it or affe cting seat belt effectiveness. Be sure your
seat belt fits snugly across your shoulder and low on your hips. If it does not, or if it
interferes with the child restraint, move to a different position. Failure to do so may
result in death or serious injury.
■Do not use a seat belt extender
If a seat belt extender is used when insta lling a child restraint system, the seat belt will
not securely hold the child restraint system , which could cause death or serious injury
to the child or other passengers in the event of sudden braking, sudden swerving or an
accident.
■To correctly attach a child re straint system to the anchors
When using the LATCH anchors, be sure that there are no foreign objects around the
anchors and that the seat belt is not caught behind the child restraint system. Make sure
the child restraint system is securely attached , or it may cause death or serious injury to
the child or other passengers in the event of a sudden stop, sudden swerve or accident.
