Instrument cluster2
2. Instrument clusterWarning and indicators lights ................................................ 82
Gauges and meters ..................... 87
Multi-information display .......... 90
Fuel consumption information ................................... 96

82
GX460_OM_OM60Q84U_(U)2. Instrument cluster
Warning and indicators lights
The units used on the speedometer may di
ffer depending on the target region.
The warning and indicators lights on the instrument cluster and center panel
inform the driver of the status of the vehicle’s various systems.
For the purpose of explanation, the following illustrations display all warning
lights and indicators illuminated.

GX460_OM_OM60Q84U_(U)
832. Instrument cluster
2
Instrument cluster

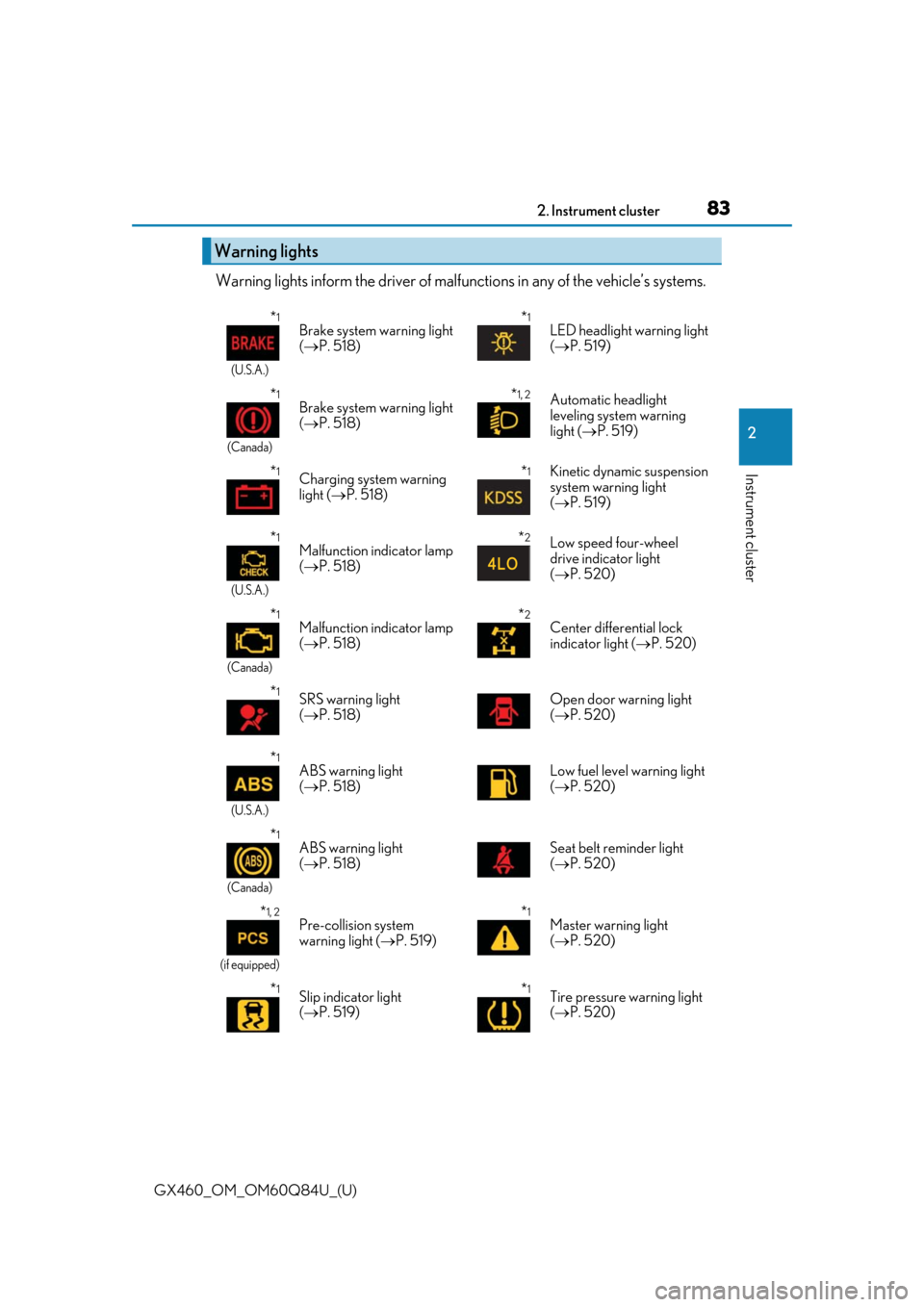

Warning lights inform the driver of malfunctions in any of the vehicle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning light
( P. 518)*1LED headlight warning light
( P. 519)
*1
(Canada)
Brake system warning light
( P. 518)*1, 2Automatic headlight
leveling system warning
light ( P. 519)
*1Charging system warning
light ( P. 518)*1Kinetic dynamic suspension
system warning light
( P. 519)
*1
(U.S.A.)
Malfunction indicator lamp
( P. 518)*2Low speed four-wheel
drive indicator light
( P. 520)
*1
(Canada)
Malfunction indicator lamp
( P. 518)*2Center differential lock
indicator light ( P. 520)
*1SRS warning light
( P. 518) Open door warning light
(
 P. 520)
*1
(U.S.A.)
ABS warning light
( P. 518) Low fuel level warning light
(
 P. 520)
*1
(Canada)
ABS warning light
( P. 518) Seat belt reminder light
(
 P. 520)
*1, 2
(if equipped)
Pre-collision system
warning light ( P. 519)*1Master warning light
( P. 520)
*1Slip indicator light
( P. 519)*1Tire pressure warning light
( P. 520)

84
GX460_OM_OM60Q84U_(U)2. Instrument cluster
*1: These lights turn on when the engine switch is turned to IGNITION ON mode to
indicate that a system check is being perfor med. They will turn off after the engine is
on, or after a few seconds. There may be a ma lfunction in a system if the lights do not
turn on, or turn off. Have the vehi cle inspected by your Lexus dealer.
*2: The light flashes to indicate a malfunction.

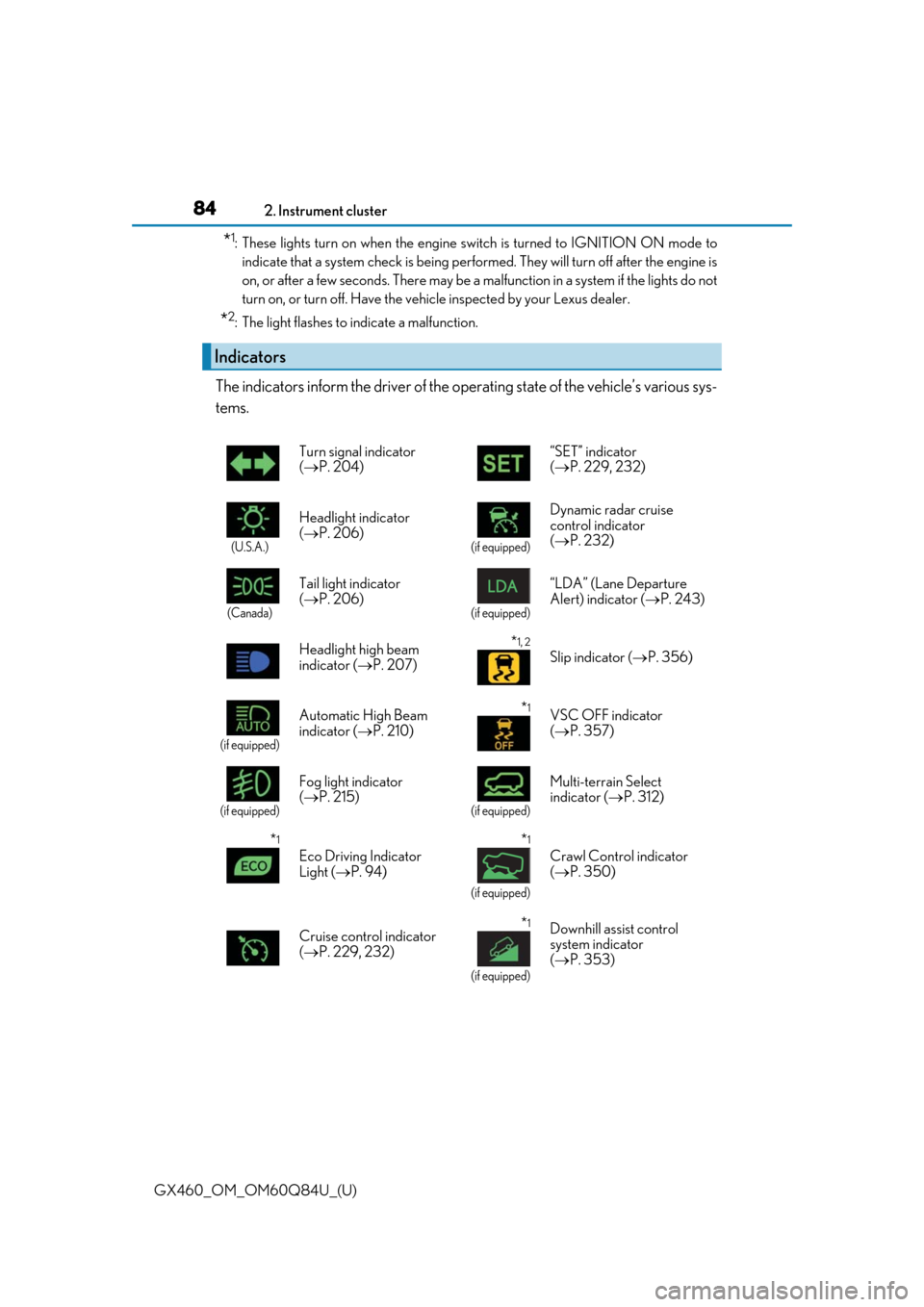

The indicators inform the driver of the op erating state of the vehicle’s various sys-
tems.
Indicators
Turn signal indicator
(  P. 204) “SET” indicator
(
 P. 229, 232)
(U.S.A.)
Headlight indicator
( P. 206)
(if equipped)
Dynamic radar cruise
control indicator
( P. 232)
(Canada)
Tail light indicator
( P. 206)
(if equipped)
“LDA” (Lane Departure
Alert) indicator ( P. 243)
Headlight high beam
indicator ( P. 207)
*1, 2
Slip indicator ( P. 356)
(if equipped)
Automatic High Beam
indicator ( P. 210)*1VSC OFF indicator
( P. 357)
(if equipped)
Fog light indicator
( P. 215)
(if equipped)
Multi-terrain Select
indicator ( P. 312)
*1
Eco Driving Indicator
Light ( P. 94)
*1
(if equipped)
Crawl Control indicator
( P. 350)
Cruise control indicator
(  P. 229, 232)
*1
(if equipped)
Downhill assist control
system indicator
( P. 353)

GX460_OM_OM60Q84U_(U)
852. Instrument cluster
2
Instrument cluster
*1: These lights turn on when the engine switch is turned to IGNITION ON mode toindicate that a system check is being perfor med. They will turn off after the engine is
on, or after a few seconds. There may be a ma lfunction in a system if the lights do not
turn on, or turn off. Have the vehi cle inspected by your Lexus dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light turns on when the system is turn ed off. The light flashes quickly to indicate
that the system is operating.
*4: In order to confirm operation, the BSM outside rear view mirror indicators illumi- nate in the following situations:
• When the engine switch is turned to IGNITION ON mode while the system is set to on.
• When the system is set to on while the engine switch is in IGNITION ON mode.
If the system is functioning correctly, th e BSM outside rear view mirror indicators
will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction with the system.
If this occurs, have the vehicle inspected by your Lexus dealer.
*5: This light illuminates on the outside rear view mirrors.

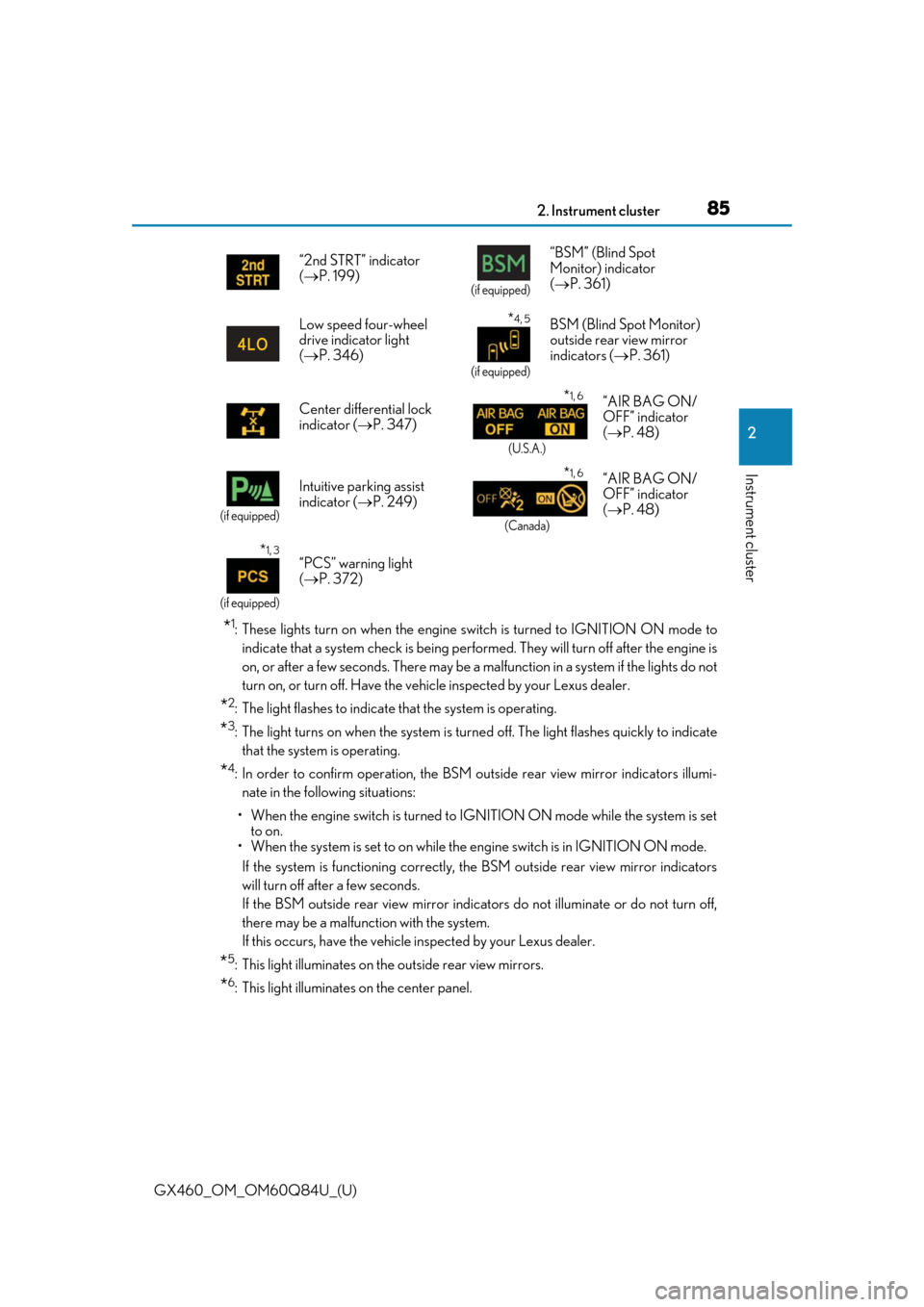

*6: This light illuminates on the center panel.“2nd STRT” indicator
(
 P. 199)
(if equipped)
“BSM” (Blind Spot
Monitor) indicator
( P. 361)
Low speed four-wheel
drive indicator light
(  P. 346)
*4, 5
(if equipped)
BSM (Blind Spot Monitor)
outside rear view mirror
indicators ( P. 361)
Center differential lock
indicator ( P. 347)
*1, 6
(U.S.A.)
“AIR BAG ON/
OFF” indicator
( P. 48)
(if equipped)
Intuitive parking assist
indicator ( P. 249)*1, 6
(Canada)
“AIR BAG ON/
OFF” indicator
( P. 48)
*1, 3
(if equipped)
“PCS” warning light
( P. 372)

86
GX460_OM_OM60Q84U_(U)2. Instrument cluster
CAUTION
■If a safety system warnin
g light does not come on
Should a safety system light such as th e ABS/Multi Terrain ABS and the SRS warning
light not come on when you start the engine, this could mean that these systems are not
available to help protect you in an accide nt, which could result in death or serious
injury. Have the vehicle inspected by your Lexus dealer immediately if this occurs.

87
GX460_OM_OM60Q84U_(U)2. Instrument cluster
2
Instrument cluster

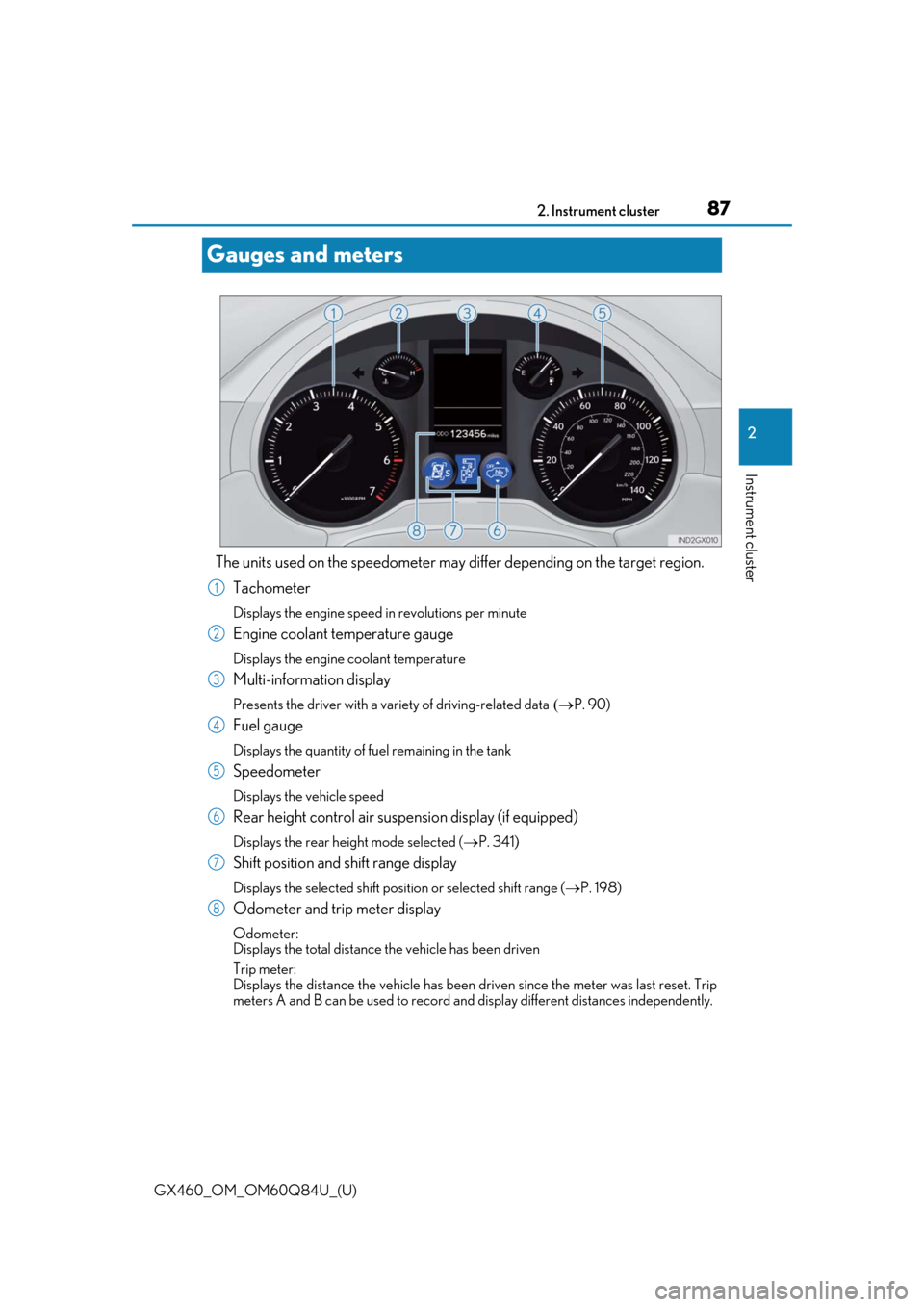

Gauges and meters
The units used on the speedometer may di
ffer depending on the target region.
Tachometer
Displays the engine speed in revolutions per minute
Engine coolant temperature gauge
Displays the engine coolant temperature
Multi-information display
Presents the driver with a variety of driving-related data P. 90)
Fuel gauge
Displays the quantity of fuel remaining in the tank
Speedometer
Displays the vehicle speed
Rear height control air suspension display (if equipped)
Displays the rear height mode selected ( P. 341)
Shift position and shift range display
Displays the selected shift posi tion or selected shift range (P. 198)
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehi cle has been driven since the meter was last reset. Trip
meters A and B can be used to record an d display different distances independently.
1
2
3
4
5
6
7
8

88
GX460_OM_OM60Q84U_(U)2. Instrument cluster
Switches between odometer and trip
meter displays. When the trip meter is
displayed, pressing and holding the
button will reset the trip meter.
The brightness of the instrument
cluster lights can be adjusted.
Brighter
Darker

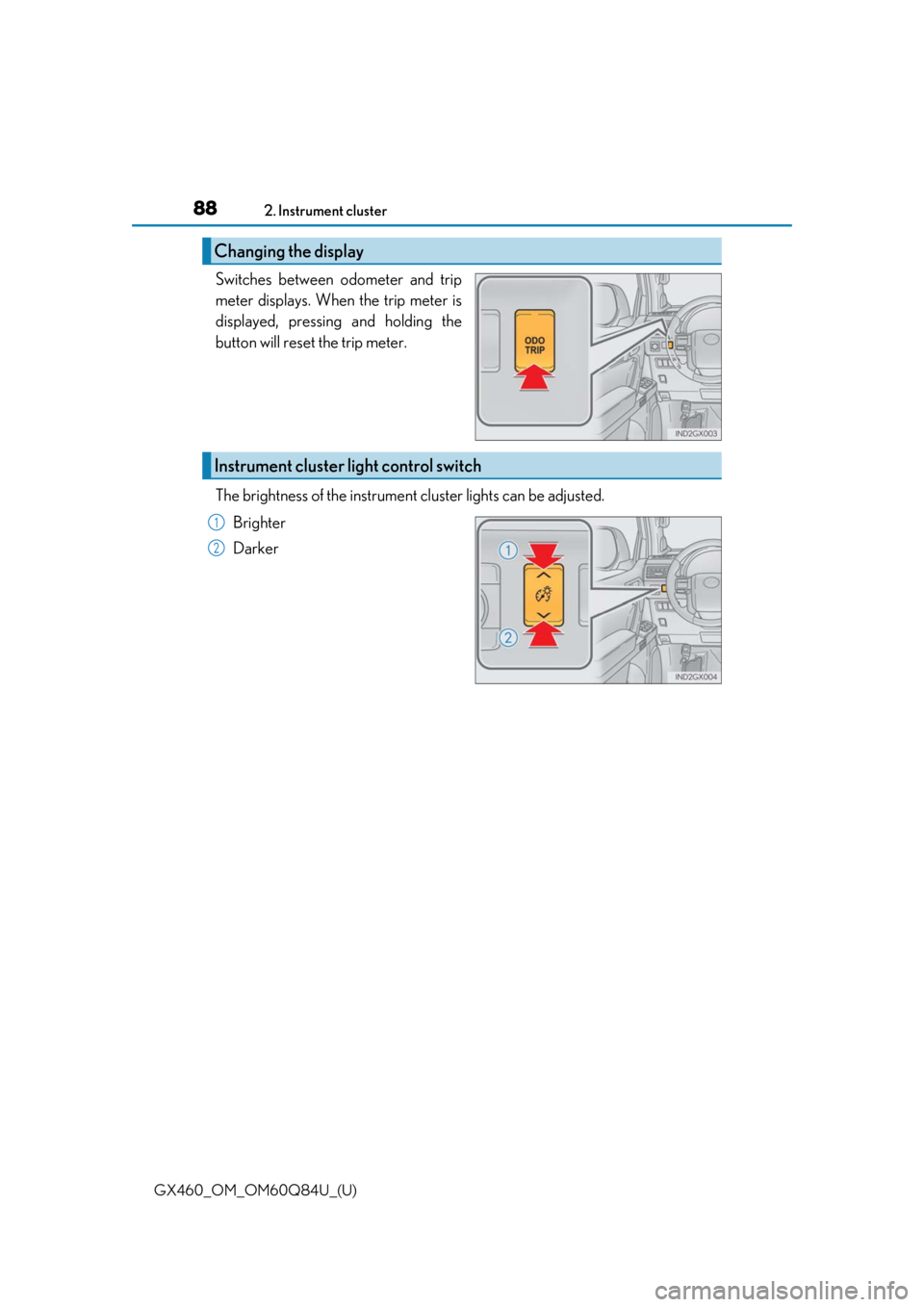

Changing the display
Instrument cluster light control switch
1
2

GX460_OM_OM60Q84U_(U)
892. Instrument cluster
2
Instrument cluster
■The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■Instrument cluster brightness adjustment
The instrument cluster brightness levels when the tail lights are on and off can be
adjusted.
■The brightness of the in strument cluster lights
When the tail lights are on, the brightness will change. Ho wever, when the surroundings
are bright (daytime, etc.) turn ing on the tail lights will not change the instrument cluster
brightness.
In addition, the brightness of the instrument cluster lights is automatically adjusted based
on the light sensor detecting ho w bright the surroundings are.
■When disconnecting and reconnecting battery terminals
The trip meter data will be reset.
If the trip meter was displayed last, the od ometer will be displayed after resetting.
■Customization
Setting of sensitivity of the ambient light sensor used for dimming the meter lights can be
changed. (Customizable features: P. 592)
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indicates
the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the red
zone (H). In this case, immediately stop the vehicle in a safe place, and check the
engine after it has cooled completely. ( P. 562)

90
GX460_OM_OM60Q84U_(U)2. Instrument cluster

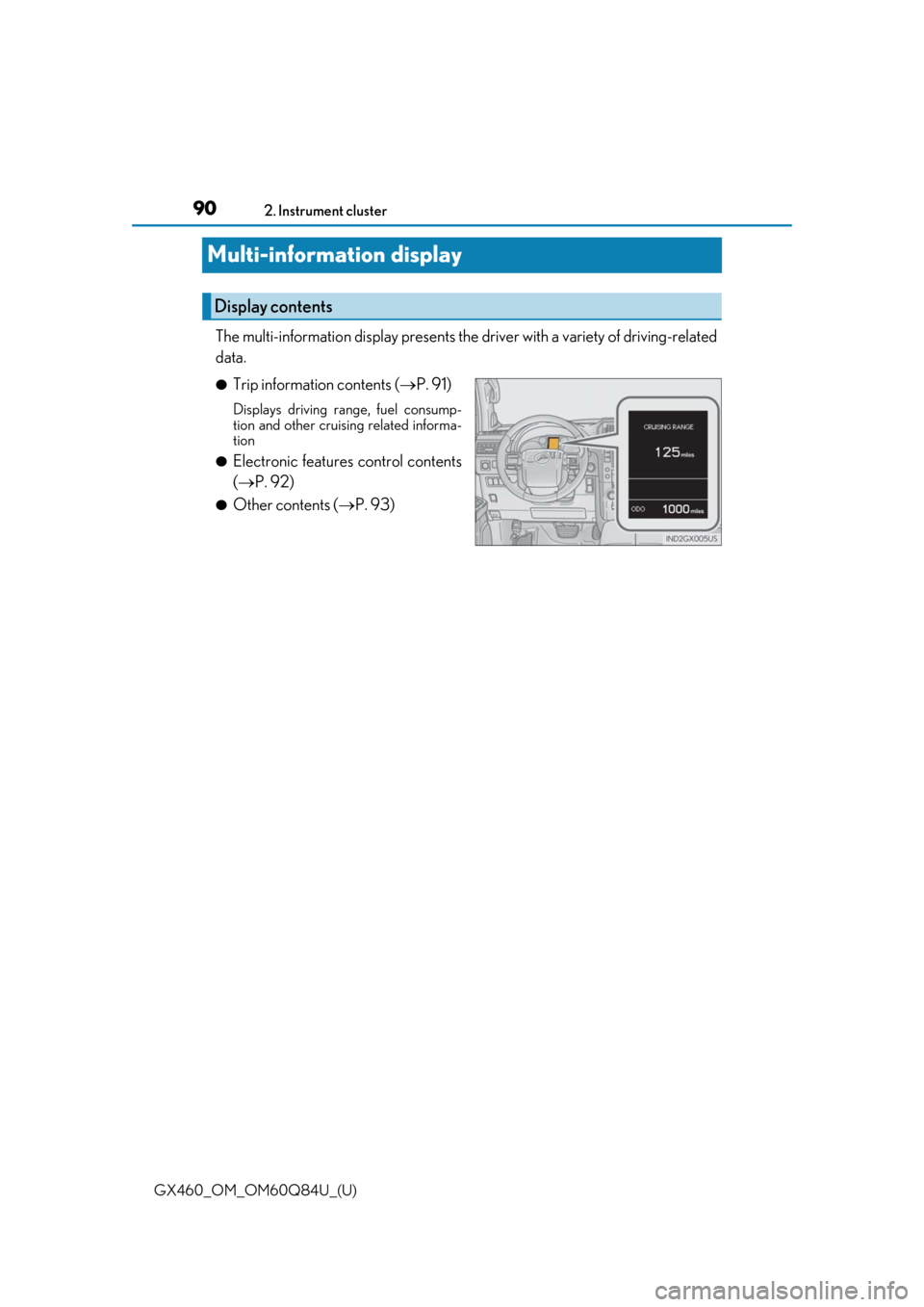

Multi-information display
The multi-information display
presents the driver with a variety of driving-related
data.
●Trip information contents ( P. 91)
Displays driving range, fuel consump-
tion and other cruising related informa-
tion
●Electronic features control contents
(P. 92)
●Other contents ( P. 93)
Display contents
