1013-1. Key information
3
Operation of each component
For vehicles sold in the Canada
NOTICE
■To prevent key damage
●Do not drop the keys, subject them to strong shocks or bend them.
●Do not expose the keys to high temp eratures for long periods of time.
●Do not get the keys wet or wash them in an ultrasonic washer etc.
●Do not attach metallic or magnetic materials to the keys or place the keys close to
such materials.
●Do not disassemble the keys.
●Do not attach a sticker or anything else to the surface of the electronic key.
●Do not place the keys near objects that pr oduce magnetic fields, such as TVs, audio
systems and induction cookers, or medical electrical equipment, such as low-fre-
quency therapy equipment.
■Carrying the electronic key on your person
Carry the electronic key 3.9 in. (10 cm) or mo re away from electric appliances that are
turned on. Radio waves emitted from electric appliances within 3.9 in. (10 cm) of the
electronic key may interfere with the key, causing the key to not function properly.
■In case of a smart access system with push-button start malfunction or other key-
related problems
Take your vehicle with all the electronic keys provided with your vehicle to your Lexus
dealer.
■When an electronic key is lost
If the electronic key re mains lost, the risk of vehicle th eft increases significantly. Visit
your Lexus dealer immediately with all rema ining electronic keys that were provided
with your vehicle.

102
GX460_OM_OM60Q84U_(U)3-2. Opening, closing and locking the doors
Side doors
◆Smart access system with push-button start
Carry the electronic key to enable this function.
Grip the driver’s door handle to
unlock the door. Grip the passen-
ger’s door handle to unlock all the
doors.
*
Make sure to touch the sensor on the
back of the handle.
The doors cannot be unlocked for
3 seconds after the doors are locked.
*: The door unlock settings can be changed. ( P. 107)
Touch the lock sensor (the indentatio n on the upper part or lower part of
the front door handle) to lock the doors.
Check that the door is securely locked.
◆Wireless remote control
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
Pressing the button unlocks the
driver’s door. Pressing the button
again within 3 seconds unlocks the
other doors.
Press and hold to open the windows
and moon roof.
*
*
: These settings must be cust omized at your Lexus dealer.
The vehicle can be locked and unlock ed using the entry function, wireless
remote control, key or door lock switch.
Locking and unlocking the doors from the outside
1
2
1
2

GX460_OM_OM60Q84U_(U)
1033-2. Opening, closing and locking the doors
3
Operation of each component
■Operation signals
Doors: A buzzer sounds and the emergency flas hers flash to indicate that the doors have
been locked/unlocked. (Loc ked: once; Unlocked: twice)
Windows and moon roof: A buzzer sounds to indicate that the windows and moon roof
are operating.
■Security feature
If a door or the glass hatch is not opened within approximately 60 seconds after the vehi-
cle is unlocked, the security feature automatically locks the vehicle again.
■When the door cannot be locked by the lock sensor on the upper part of the door han-
dle
■Door lock buzzer
If an attempt to lock the doors is made when a door and/or the glass hatch is not fully
closed, a buzzer sounds continuously. Fully close the door and/or the glass hatch to stop
the buzzer, and lock the vehicle once more.
■Setting the alarm
Locking the doors will set the alarm system. ( P. 79)
■If the smart access system with push-button start or the wireless remote control does
not operate properly
Use the mechanical key to lock and unlock the doors. ( P. 556)
Replace the battery with a new one if it is depleted. ( P. 489)
If the door will not lock even when the topside
sensor area is touched, try touching both the
topside and underside sensor areas at the same
time.
CAUTION
■When closing the windows or moon
roof using wireless remote control
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body in a posi-
tion where it could be caught when a wi ndow or moon roof is being operated.
●To prevent inadvertent power windows and moon roof operation, never let a small
child have and use the wireless remote control.
■Jam protection function
●Never try jamming any part of your body to activate the jam protection function
intentionally.
●The jam protection function may not work if something gets caught just before the
window or moon roof fully closes.

104
GX460_OM_OM60Q84U_(U)3-2. Opening, closing and locking the doors
◆Door lock switches
Locks all the doors
Unlocks all the doors
◆Inside lock buttonsLocks the door
Unlocks the door
The front doors can be opened by
pulling the inside handle even if the
lock button is in the lock position.
Locking and unlocking the doors from the inside
1
2
1
2

GX460_OM_OM60Q84U_(U)
1053-2. Opening, closing and locking the doors
3
Operation of each component
Move the inside lock button to the lock position.
Close the door.
The door cannot be locked if the engine switch is in ACCESSORY or IGNITION
ON mode, or the electronic key is left inside the vehicle. However, the key may not be
detected correctly and the door may be locked.
The door cannot be opened from inside
the vehicle when the lock is set.
Unlock
Lock
These locks can be set to prevent chil-
dren from opening the rear doors. Push
down on each rear door switch to lock
both rear doors.
Locking the front doors from the outside without a key
Rear door child-protector lock
1
2
1
2

106
GX460_OM_OM60Q84U_(U)3-2. Opening, closing and locking the doors

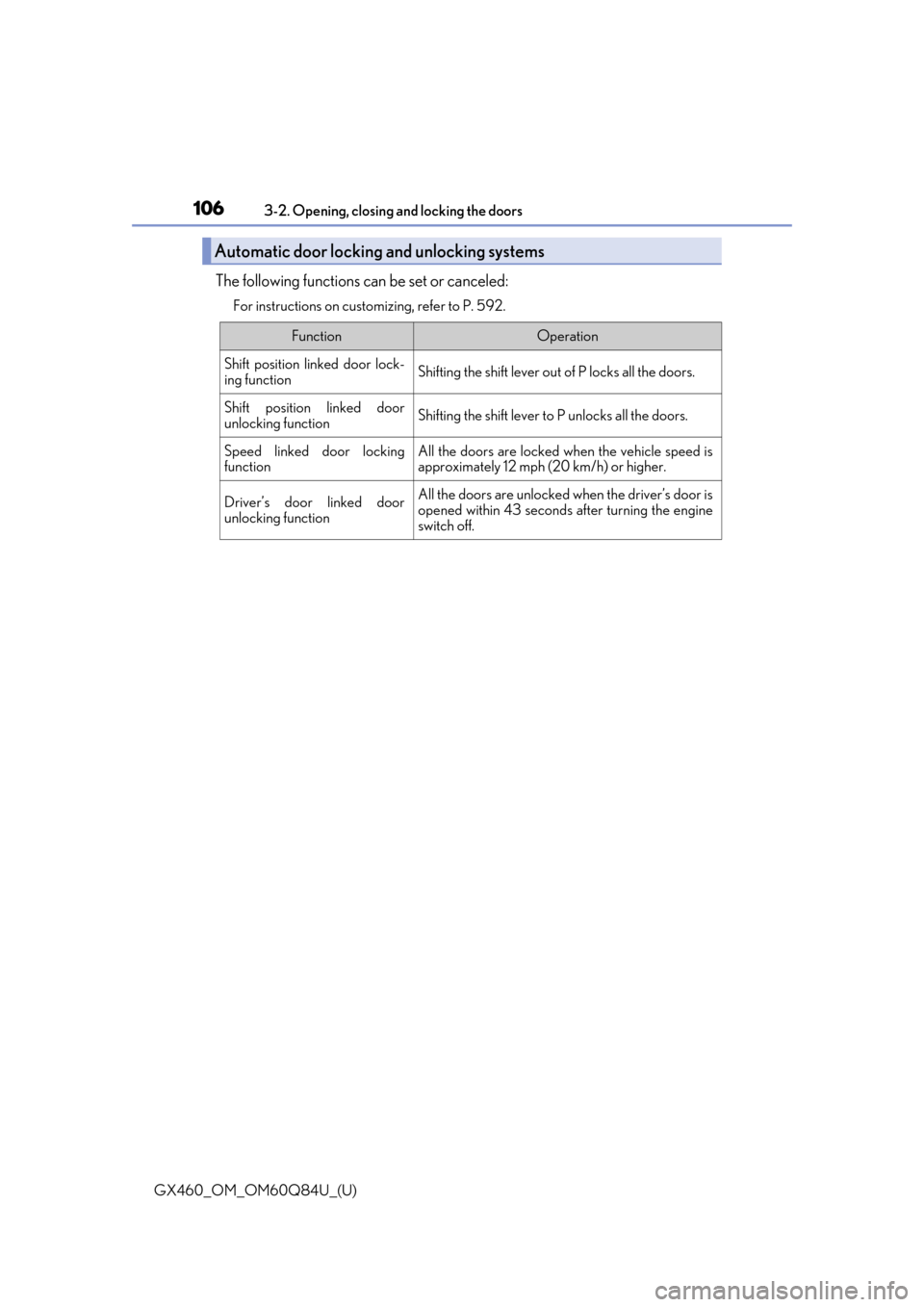

The following functions can be set or canceled:
For instructions on customizing, refer to P. 592.
Automatic door locking and unlocking systems
FunctionOperation
Shift position linked door lock-
ing functionShifting the shift lever ou
t of P locks all the doors.
Shift position linked door
unlocking functionShifting the shift lever to P unlocks all the doors.
Speed linked door locking
functionAll the doors are locked when the vehicle speed is
approximately 12 mph (20 km/h) or higher.
Driver’s door linked door
unlocking functionAll the doors are unlocked when the driver’s door is
opened within 43 seconds after turning the engine
switch off.

GX460_OM_OM60Q84U_(U)
1073-2. Opening, closing and locking the doors
3
Operation of each component

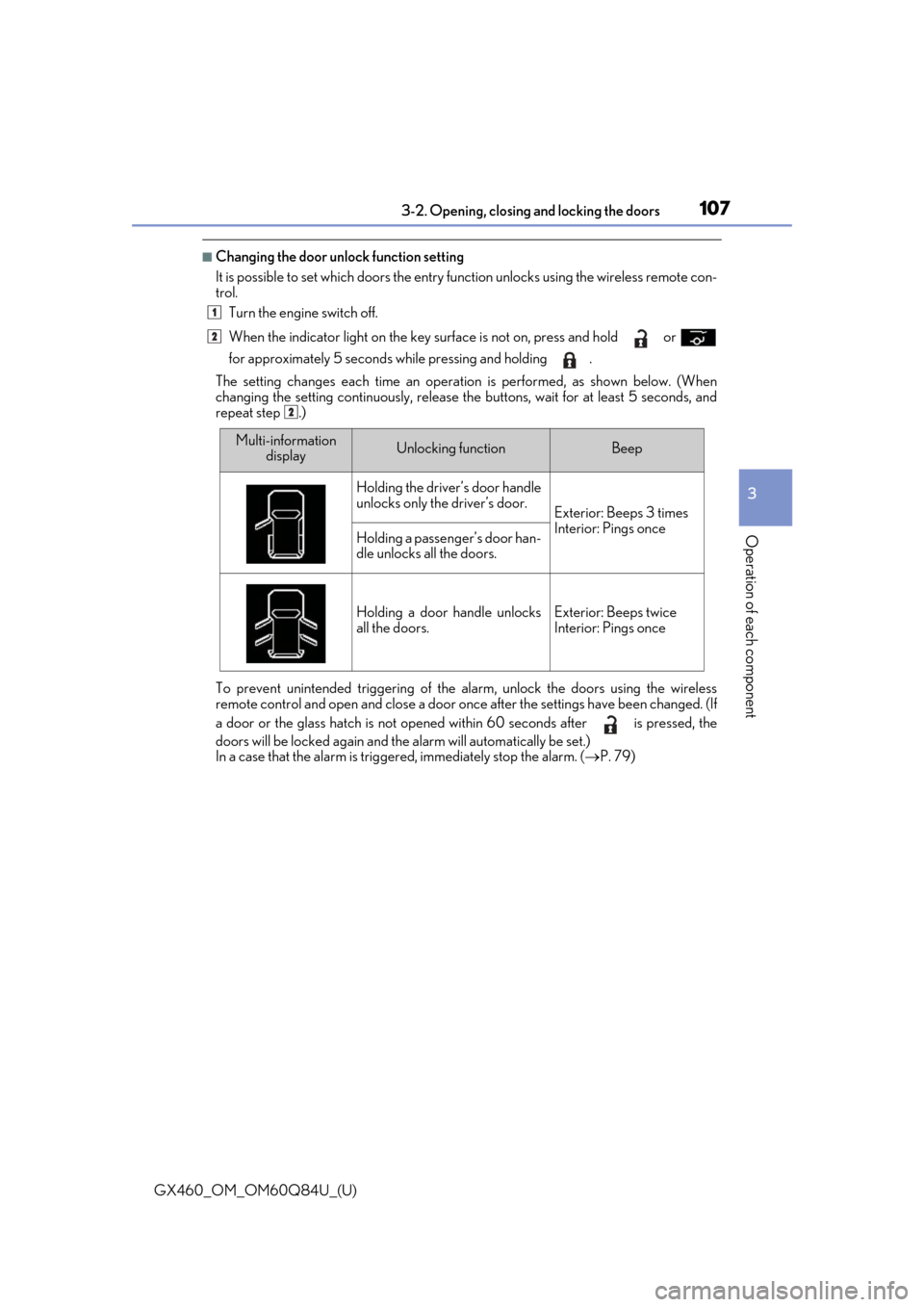

■Changing the door unlock function setting
It is possible to set which doors the entry function unlock s using the wireless remote con-
trol.
Turn the engine switch off.
When the indicator light on the key su rface is not on, press and hold or
for approximately 5 seconds while pressing and holding .
The setting changes each time an operation is performed, as shown below. (When
changing the setting continuously, release the buttons, wait for at least 5 seconds, and
repeat step .)
To prevent unintended triggering of the alarm, unlock the doors using the wireless
remote control and open and close a door once after the settings have been changed. (If
a door or the glass hatch is not opened within 60 seconds after is pressed, the
doors will be locked again and the alarm will automatically be set.)
In a case that the alarm is triggered, immediately stop the alarm. ( P. 79)
1
2
2
Multi-information
displayUnlocking functionBeep
Holding the driver’s door handle
unlocks only the driver’s door.
Exterior: Beeps 3 times
Interior: Pings once
Holding a passeng er’s door han-
dle unlocks all the doors.
Holding a door handle unlocks
all the doors.Exterior: Beeps twice
Interior: Pings once

108
GX460_OM_OM60Q84U_(U)3-2. Opening, closing and locking the doors
■Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are unlocked.
Depending on the force of the
impact or the type of accident, however, the system may
not operate.
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key. ( P. 556)
■Conditions affecting the oper ation of the smart access system with push-button start
or wireless remote control
 P. 121
■Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features: P. 592)
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door open ing and an occupant being thrown out of the
vehicle, resulting in death or serious injury.
●Ensure that all doors are properly closed and locked.
●Do not pull the inside handle of the doors while driving.
Be especially careful for the front doors, as the doors may be opened even if the
inside lock buttons are in locked position.
●Set the rear door child-protector locks when children are seated in the rear seats.
■When using the wireless remote control and operating the power windows or moon
roof
Operate the power window or moon roof afte r checking to make sure that there is no
possibility of any passenger having any of their body parts caught in the window or
moon roof. Also, do not allow children to operate the wireless remote control. It is pos-
sible for children and other passengers to get caught in the power window or moon
roof.

109
GX460_OM_OM60Q84U_(U)3-2. Opening, closing
and locking the doors
3
Operation of each component
Back door
◆Smart access system with push-button start
Carry the electronic key to enable this function.
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
The doors cannot be unlocked for 3
seconds after the doors are locked.
◆Wireless remote control
P. 102
◆Door lock switch
Locks all the doors
Unlocks all the doors
The back door can be locked/unlocke d and opened by the following proce-
dures.
Locking and unlocking the back door from the outside
1
2
Locking and unlocking the back door from the inside
1
2

110
GX460_OM_OM60Q84U_(U)3-2. Opening, closing and locking the doors
Pull the handle
Open the back door
The back door can be kept open at a
desired position.
Unlocks the back door stopper
Locks the back door stopper
The back door stopper can only be
operated when the back door is fully
open.
When closing the back door, check that
the back door stopper is unlocked.
Close the back door using the back
door handle, and make sure to push the
back door from the outside to close it.
Opening the back door from the outside
1
2
Keeping the back door open
1
2
When closing the back door
