■The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■Instrument cluster brightness adjustment
The instrument cluster brig
htness levels when the tail lights are on and off can be
adjusted.
■The brightness of the in strument cluster lights
When the tail lights are on, the brightness will change. Ho wever, when the surroundings
are bright (daytime, etc.) turn ing on the tail lights will not change the instrument cluster
brightness.
In addition, the brightness of the instrument cluster lights is automatically adjusted based
on the light sensor detecting ho w bright the surroundings are.
■Customization
The meter display can be customized on the multi-information display. (P. 576)
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, th e information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the dr iver’s shifting and the new gear number
appearing on the display. This lag could ca use the driver to downshift again, causing
rapid and excessive engine braking and possibly an accident resulting in death or
injury.
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indicates
the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the red
zone (H). In this case, immediately stop the vehicle in a safe place, and check the
engine after it has cooled completely. ( P. 546)

91
GX460_OM_OM60R27U_(U)2. Instrument cluster
2
Instrument cluster
Multi-information display
The following information will be dis-
played when a menu icon is selected.
(
P. 92)
Some of the information may be dis-
played automatically depending on the
situation.
Drive information
Select to display various drive data. ( P. 93)
Vehicle information display
Select to display the vehicle information. ( P. 94)
Driving assist system information
Select to display the operational status of the following systems:
• Dynamic radar cruise control ( P. 254)
• LDA (Lane Departure Alert) ( P. 246)
Warning message display
Select to display warning messages and measures to be taken if a malfunction is
detected. ( P. 520)
Settings display
Select to change the meter display settings and the operation settings of some
vehicle functions. ( P. 95)
Display contents

92
GX460_OM_OM60R27U_(U)2. Instrument cluster

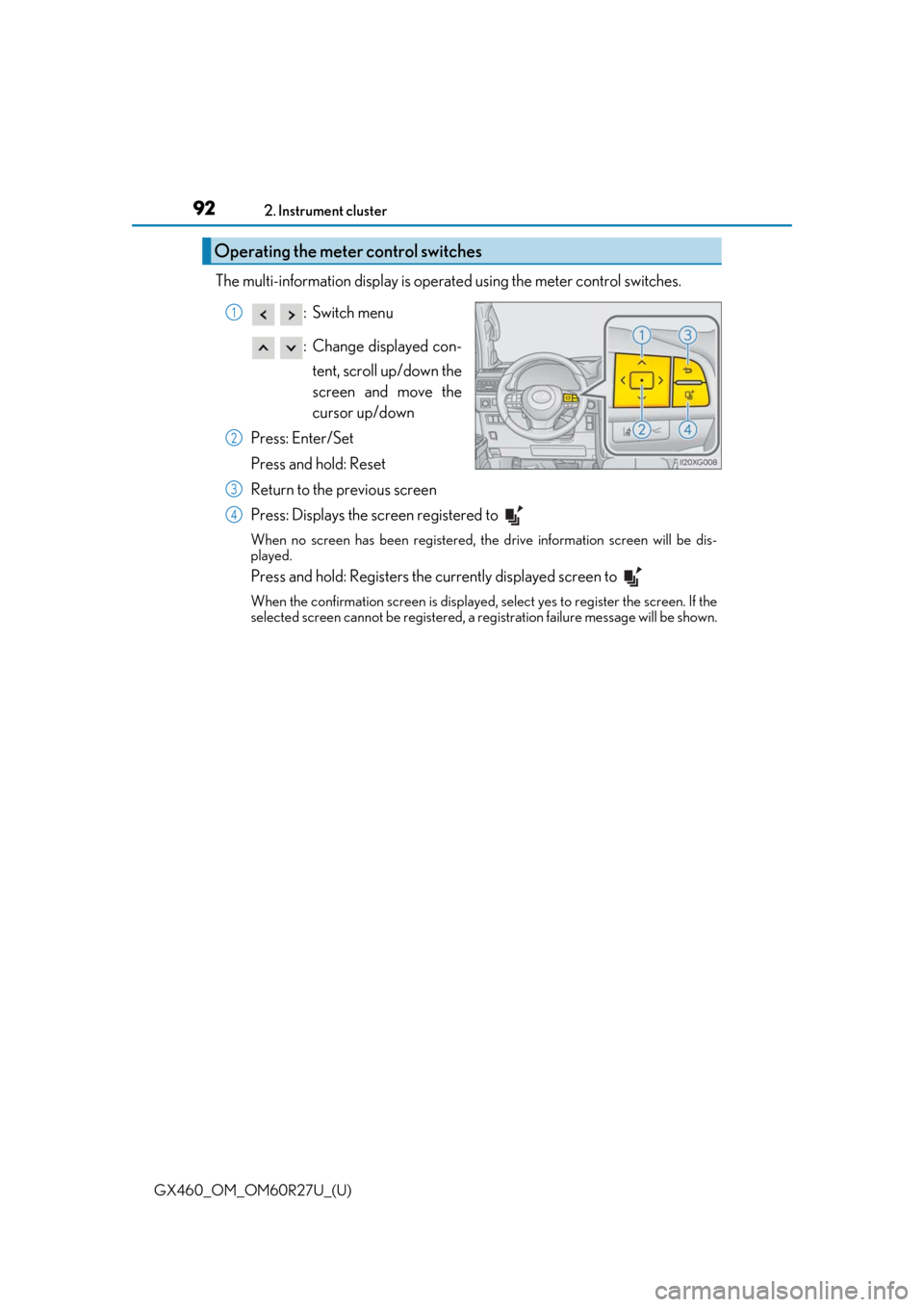

The multi-information display is operated using the meter control switches.
:Switch menu
: Change displayed con-tent, scroll up/down the
screen and move the
cursor up/down
Press: Enter/Set
Press and hold: Reset
Return to the previous screen
Press: Displays the screen registered to
When no screen has been registered, th e drive information screen will be dis-
played.
Press and hold: Registers the currently displayed screen to
When the confirmation screen is displayed, select yes to register the screen. If the
selected screen cannot be registered, a registration failure me ssage will be shown.
Operating the meter control switches
1
2
3
4

GX460_OM_OM60R27U_(U)
932. Instrument cluster
2
Instrument cluster
●Current fuel consumption (bar type)
Displays the current rate of fuel consumption.
●Average fuel consumption (after reset*2/after start/after refuel)*1
Displays the average fuel consumption since the function was reset, the
engine was started, and the vehicle was refueled, respectively.
●Average vehicle speed (after reset*2/after start)
Displays the average vehicle speed since the function was reset and the
engine was started, respectively.
●Elapsed time (after reset*2/after start)
Displays the elapsed time since the function was reset and the engine was
started, respectively.
●Distance (driving range)
Displays the estimated maximum distance that can be driven with the quantity
of fuel remaining. • This distance is computed based on your average fuel consumption.
As a result, the actual distance that ca n be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may not
be updated.
When refueling, turn the engine switch off. If the vehicle is refueled without
turning the engine switch off, the display may not be updated.
*1: Use the displayed average fuel consumption as a reference.
*2: The function can be reset by pressing for longer than 1 second when the item to
reset is displayed. If there is more than on e item that can be reset, the item selection
screen will appear.
Drive information

94
GX460_OM_OM60R27U_(U)2. Instrument cluster
■Eco Indicator (Eco Driving Indicator Zone Display)

P. 96
■Speed
Displays the vehicle speed.
■Sway warning
Detects the sway of the vehicle within a lane, which is often associated with a
decrease in the driver’s at tention level, and displays the decrease in attention
using a bar display.
The shorter the bar length, the more the driver may need to rest.
This display is a part of the LDA (Lane Departure Alert) system. The display is
enabled when the operating conditions of the vehicle sway warning function are
met. ( P. 246)
■Blank screen (display off)
Drive information is not displayed.
■Front tire angle
Displays the direction of the front tires.
The tire direction is displaye d in 3 stages for both left and right, in accordance with
the angle of the tire.
If a battery terminal is disconnected an d reconnected, the display may be disabled
temporarily. After driving the vehicle for a while, the display will be enabled.
■Tire inflation pressure
Displays inflation pressure of each tire.
The inflation pressure of the spare tire will also be displayed.
Vehicle information

GX460_OM_OM60R27U_(U)
952. Instrument cluster
2
Instrument cluster
The settings of the following items can be changed. (P. 576)
For functions that can be enabled or disabled, the function switches between on and
off each time is pressed.
■LDA (Lane Departure Alert) ( P. 246)
■BSM (Blind Spot Monitor)* ( P. 357)
■PCS (Pre-Collision System) ( P. 235)
■Intuitive parking assist* ( P. 266)
■Vehicle settings
●Tire pressure warning system (P. 465)
●Scheduled maintenance* (P. 441)
●Oil maintenance (P. 454)
■Meter settings
Select to set the following items.
●Language
Select to change the language on the display.
●Units
Select to change the unit for measure.
● Eco Driving Indicator Light
Select to activate/deactivate th e Eco Driving Indicator Light.
● Switch settings
You can register 1 screen as the top screen. To register, press and hold
while the desired screen is displayed.
●Initialization
Registered or changed meter settings w ill be deleted or returned to their
default setting.
*: If equipped
Settings display

96
GX460_OM_OM60R27U_(U)2. Instrument cluster

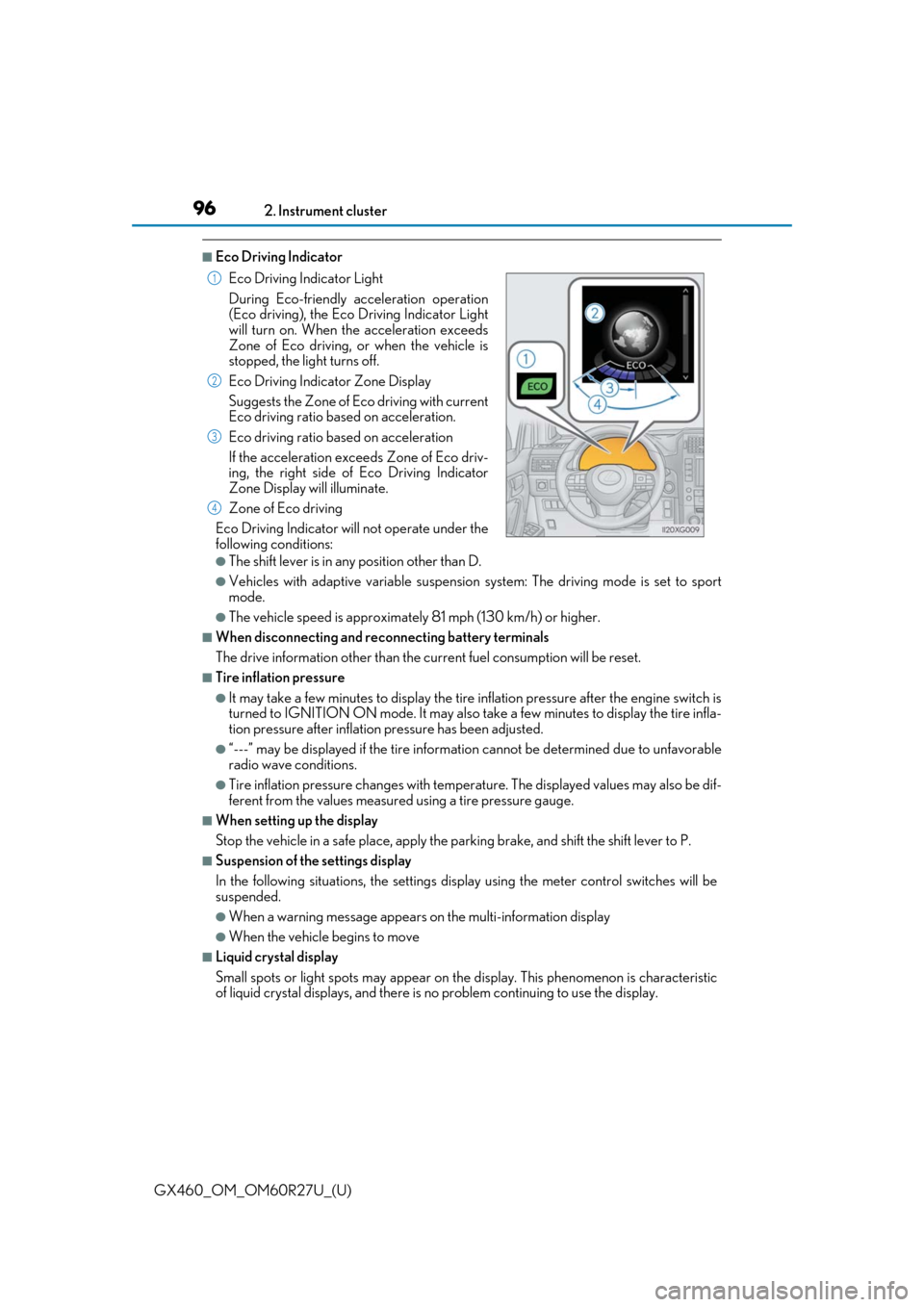

■Eco Driving Indicator
●The shift lever is in any position other than D.
●Vehicles with adaptive variable suspension
system: The driving mode is set to sport
mode.
●The vehicle speed is approximately 81 mph (130 km/h) or higher.
■When disconnecting and reconnecting battery terminals
The drive information other than the cu rrent fuel consumption will be reset.
■Tire inflation pressure
●It may take a few minutes to display the tire inflation pressure after the engine switch is
turned to IGNITION ON mode. It may also take a few minutes to display the tire infla-
tion pressure after inflation pressure has been adjusted.
●“---” may be displayed if the tire information cannot be determined due to unfavorable
radio wave conditions.
●Tire inflation pressure changes with temperat ure. The displayed values may also be dif-
ferent from the values measured using a tire pressure gauge.
■When setting up the display
Stop the vehicle in a safe place, apply the pa rking brake, and shift the shift lever to P.
■Suspension of the settings display
In the following situations, the settings display using the meter control switches will be
suspended.
●When a warning message appears on the multi-information display
●When the vehicle begins to move
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display.
Eco Driving Indicator Light
During Eco-friendly ac
celeration operation
(Eco driving), the Eco Driving Indicator Light
will turn on. When the acceleration exceeds
Zone of Eco driving, or when the vehicle is
stopped, the light turns off.
Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with current
Eco driving ratio based on acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds Zone of Eco driv-
ing, the right side of Eco Driving Indicator
Zone Display will illuminate.
Zone of Eco driving
Eco Driving Indicator will not operate under the
following conditions:
1
2
3
4

GX460_OM_OM60R27U_(U)
972. Instrument cluster
2
Instrument cluster
WARNING
■Caution for use while driving
For safety, avoid operating the meter control switch while driving as much as possible,
and do not look continuously at the multi- information display while driving. Stop the
vehicle and operate the meter control switch . Failure to do so may cause a steering
wheel operation error, resultin g in an unexpected accident.
■Cautions while setting up the display
As the engine needs to be running during sett ing up the display, ensure that the vehicle
is parked in a place with adequate ventilation. In a closed area such as a garage,
exhaust gases including harmful carbon mo noxide (CO) may collect and enter the
vehicle. This may lead to death or a serious health hazard.
NOTICE
■While setting up the display
To prevent battery discharge, ensure that the engine is running while setting up the dis-
play features.

98
GX460_OM_OM60R27U_(U)2. Instrument cluster

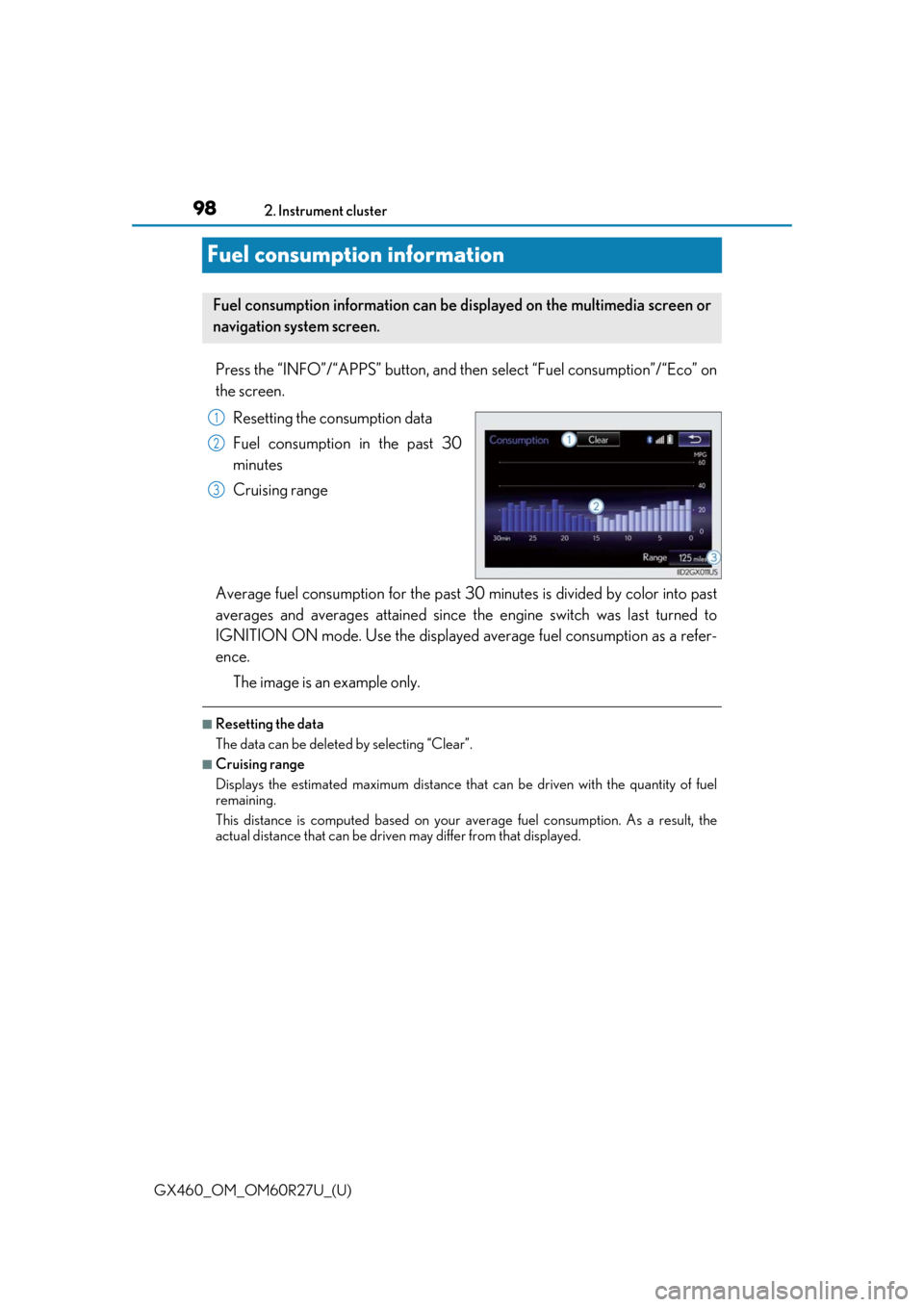

Fuel consumption information
Press the “INFO”/“APPS” button, and then
select “Fuel consumption”/“Eco” on
the screen.
Resetting the consumption data
Fuel consumption in the past 30
minutes
Cruising range
Average fuel consumption for the past 30 minutes is divided by color into past
averages and averages attained since the engine switch was last turned to
IGNITION ON mode. Use the displayed average fuel consumption as a refer-
ence.
The image is an example only.
■Resetting the data
The data can be deleted by selecting “Clear”.
■Cruising range
Displays the estimated maximum distance that can be driven with the quantity of fuel
remaining.
This distance is computed based on your average fuel consumption. As a result, the
actual distance that can be driven may differ from that displayed.
Fuel consumption information can be di splayed on the multimedia screen or
navigation system screen.
1
2
3

GX460_OM_OM60R27U_(U)
1093-2. Opening, closing and locking the doors
3
Operation of each component

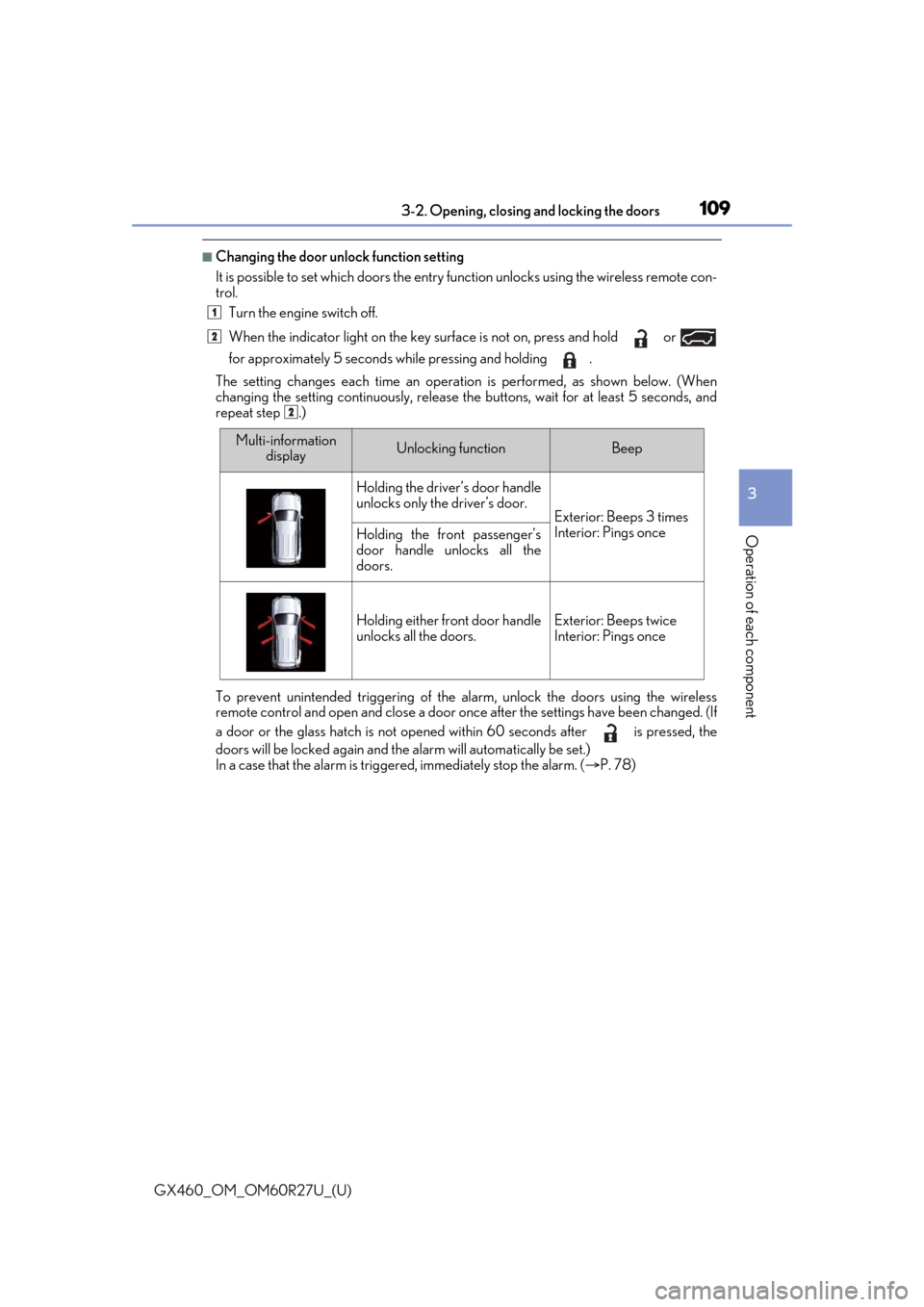

■Changing the door unlock function setting
It is possible to set which doors the entry function unlock s using the wireless remote con-
trol.
Turn the engine switch off.
When the indicator light on the key su rface is not on, press and hold or
for approximately 5 seconds while pressing and holding .
The setting changes each time an operation is performed, as shown below. (When
changing the setting continuously, release the buttons, wait for at least 5 seconds, and
repeat step .)
To prevent unintended triggering of the alarm, unlock the doors using the wireless
remote control and open and close a door once after the settings have been changed. (If
a door or the glass hatch is not opened within 60 seconds after is pressed, the
doors will be locked again and the alarm will automatically be set.)
In a case that the alarm is triggered, immediately stop the alarm. ( P. 78)
1
2
2
Multi-information
displayUnlocking functionBeep
Holding the driver’s door handle
unlocks only the driver’s door.
Exterior: Beeps 3 times
Interior: Pings once
Holding the front passenger’s
door handle unlocks all the
doors.
Holding either front door handle
unlocks all the doors.Exterior: Beeps twice
Interior: Pings once
