display Lexus GX460 2020 Owner's Manual / LEXUS 2020 GX460 OWNER'S MANUAL (OM60R27U)

TABLE OF CONTENTS2
GX460_OM_OM60R27U_(U)
For your information................................... 8
Reading this manual................................... 12
How to search ..............................................13
Pictorial index............................................... 14
1-1. For safe useBefore driving ................................ 26
For safe driving .............................. 28
Seat belts .......................................... 30
SRS airbags ..................................... 36
Front passenger occupant classification system ..................47
Safety information for children .......................................... 53
Child restraint systems ............... 54
Installing child restraints............. 58
Exhaust gas precautions............ 70
1-2. LEXUS Enform LEXUS Enform Safety Connect........................................... 71
1-3. Theft deterrent system Engine immobilizer system........76
Alarm ................................................. 78
2. Instrument cluster Warning and indicators lights ................................................ 82
Gauges and meters .....................88
Multi-information display ............91
Fuel consumption information ................................... 98 3-1. Key information
Keys .................................................. 100
3-2. Opening, closing and locking the doors
Side doors...................................... 104
Back door ..........................................111
Glass hatch ..................................... 116
Smart access system with push-button start........................ 121
3-3. Adjusting the seats Front seats ..................................... 128
Rear seats ...................................... 130
Driving position memory........... 141
Head restraints .............................146
3-4. Adjusting the steering wheel and mirrors
Steering wheel ..............................149
Inside rear view mirror ............... 151
Outside rear view mirrors .......153
3-5. Opening, closing the windows and moon roof
Power windows ............................156
Moon roof.......................................159
1For safety and security
2Instrument cluster
3Operation of each
component

5
1
8 7
6
5
4
3
2
GX460_OM_OM60R27U_(U)
9
6-1. Maintenance and care Cleaning and protecting the vehicle exterior ................ 434
Cleaning and protecting the vehicle interior.................. 437
6-2. Maintenance Maintenance requirements ............................ 440
General mainte nance.............. 443
Emission inspection and maintenance (I/M)
programs.................................... 446
6-3. Do-it-yourself maintenance Do-it-yourself service precautions................................ 447
Hood ............................................... 450
Engine compartment .................451
Tires ................................................. 464
Tire inflation pressure .............. 476
Wheels ...........................................480
Air conditioning filter ............... 482
Electronic key battery.............. 484
Checking and replacing fuses.............................................. 486
Headlight aim .............................. 489
Light bulbs ......................................491 7-1. Essential information
Emergency flashers ..................500
If your vehicle has to be stopped in
an emergency ........................... 501
If the vehicle is trapped in rising water ................................ 502
7-2. Steps to take in an emergency If your vehicle needs to be towed ............................... 503
If you think something is wrong........................................... 509
Fuel pump shut off system....... 510
If a warning light turns on or a warning buzzer
sounds ............................................ 511
If a warning message is displayed .................................... 520
If you have a flat tire .................. 524
If the engine will not start ........538
If the electronic key does not operate properly ............. 540
If the vehicle battery is discharged................................. 543
If your vehicle overheats......... 546
If the vehicle becomes stuck ............................................. 549
6Maintenance and care7When trouble arises

17Pictorial index
GX460_OM_OM60R27U_(U)
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 91
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 91
When the warning messages are displayed . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 520
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 20 8
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 2 08
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 368
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 208, 512
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 2 07
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 209
Headlights/parking lights/tail lights/daytime running lights . . . . . . . . . . . . P. 209
Fog lights
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 2 17
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218
Rear window wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 222
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218, 222
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 46 3
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 463
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 500
Fuel filler door opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 227
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 450
Tilt and telescopic steering contro l switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 149
Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 149
Driving position memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 141
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 376
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 376
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 381
Audio system*2
Hands-free system*2
*1: If equipped
*2: Refer to “NAVIGATION SY STEM OWNER’S MANUAL” or
“MULTIMEDIA OWNER’S MANUAL”.
4
5
6
7
8
9
10
11
12
13

581-1. For safe use
GX460_OM_OM60R27U_(U)
Installing child restraints
Child restraint LATCH anchors
7-passenger models
LATCH anchors are provided for the
right side second seat and between the
center and left side second seats. (But-
tons displaying the location of the
anchors are attached to the seats.)
6-passenger models
LATCH anchors are provided for both
second seats. (Butto ns displaying the
location of the anchors are attached to
the seats.)
Seat belts equipped with a child
restraint locking mechanism (ALR/
ELR belts except driver’s seat belt)
( P. 32)
Follow the child restraint system manu facturer’s instructions. Firmly secure
child restraints to the seat s using the LATCH anchors or a seat belt. Attach the
top tether strap when installing a child restraint.
The lap/shoulder belt can be used if yo ur child restraint system is not compati-
ble with the LATCH (Lower Anchor s and Tethers for Children) system.

81
GX460_OM_OM60R27U_(U)
Instrument cluster2
2. Instrument clusterWarning and indicators lights ................................................ 82
Gauges and meters .....................88
Multi-information display ............91
Fuel consumption information ...................................98

82
GX460_OM_OM60R27U_(U)2. Instrument cluster

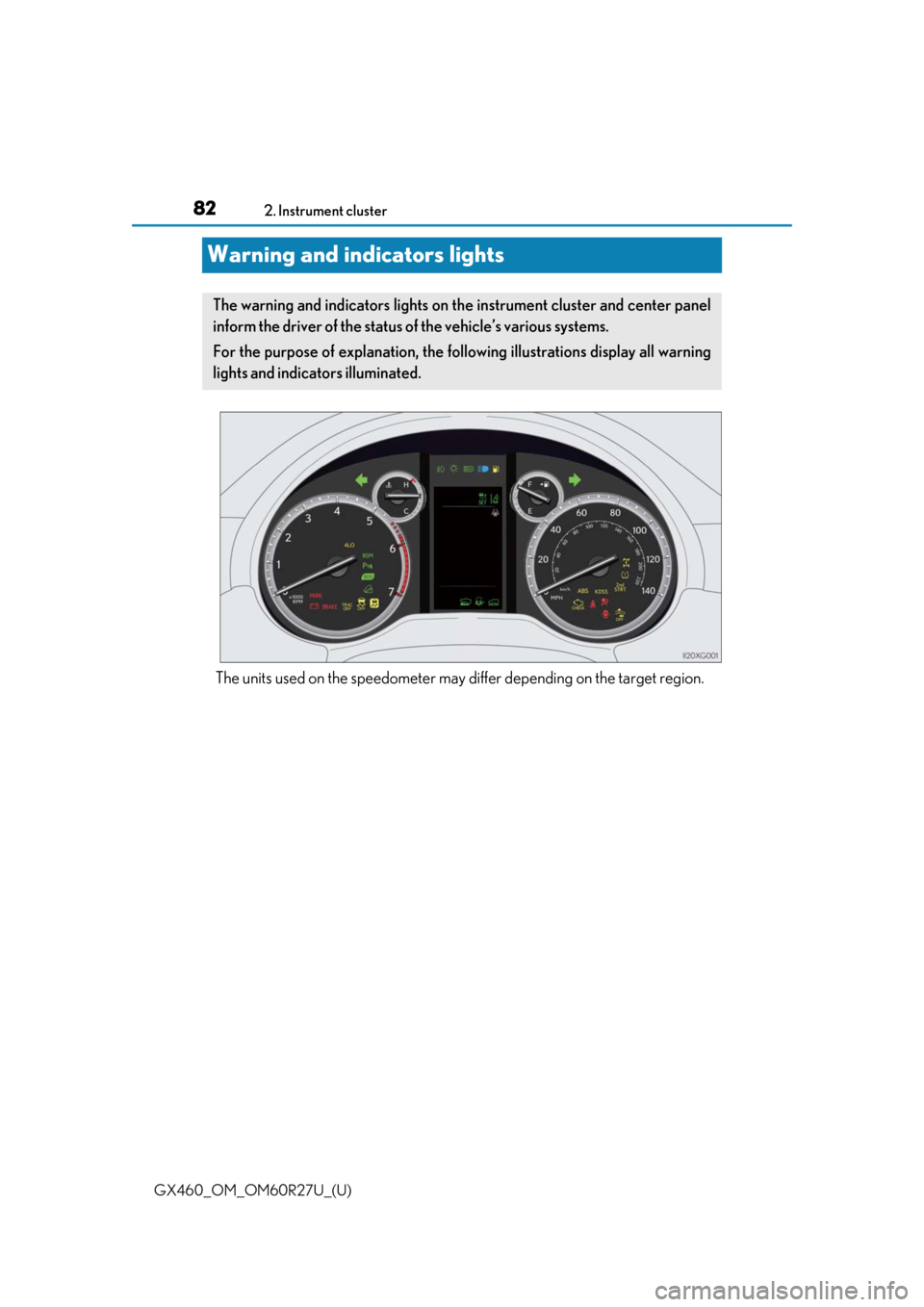

Warning and indicators lights
The units used on the speedometer may di
ffer depending on the target region.
The warning and indicators lights on the instrument cluster and center panel
inform the driver of the status of the vehicle’s various systems.
For the purpose of explanation, the following illustrations display all warning
lights and indicators illuminated.

84
GX460_OM_OM60R27U_(U)2. Instrument cluster
*1: These lights turn on when the engine switch is turned to IGNITION ON mode to
indicate that a system check is being perfor med. They will turn off after the engine is
on, or after a few seconds. There may be a ma lfunction in a system if the lights do not
turn on, or turn off. Have the vehicle inspected by your Lexus dealer.
*2: This light is displayed on the multi-information display.
(flashes)
(U.S.A.)
Parking brake indicator
(  P. 512)*2Brake Override System
warning light /Drive-Start
Control warning light
( P. 514)
(flashes)
(Canada)
Parking brake indicator
(  P. 512)

GX460_OM_OM60R27U_(U)
872. Instrument cluster
2
Instrument cluster
*1: This light is displayed on the multi-information display.
*2: These lights turn on when the engine switch is turned to IGNITION ON mode toindicate that a system check is being perfor med. They will turn off after the engine is
on, or after a few seconds. There may be a ma lfunction in a system if the lights do not
turn on, or turn off. Have the vehicle inspected by your Lexus dealer.
*3: The light flashes to indicate that the system is operating.
*4: The light comes on when the system is turned off.
*5: In order to confirm operation, the BSM outside rear view mirror indicators illumi-
nate in the following situations:
• When the engine switch is turned to IGNITION ON mode while the system is set to on.
• When the system is set to on while the engine switch is in IGNITION ON mode.
If the system is functioning correctly, th e BSM outside rear view mirror indicators
will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction with the system.
If this occurs, have the vehicle inspected by your Lexus dealer.
*6: This light illuminates on the outside rear view mirrors.
*7: When the outside temperature is approximately 37°F (3°C) or lower, the indicator
will flash for approximately 10 seconds, then stay on.
*8: This light illuminates on the center panel.
WARNING
■If a safety system warning light does not come on
Should a safety system light such as th e ABS/Multi Terrain ABS and the SRS warning
light not come on when you start the engine, this could mean that these systems are not
available to help protect you in an accide nt, which could result in death or serious
injury. Have the vehicle inspected by your Lexus dealer immediately if this occurs.

88
GX460_OM_OM60R27U_(U)2. Instrument cluster
Gauges and meters
The units used on the speedometer may di
ffer depending on the target region.
Tachometer
Displays the engine speed in revolutions per minute
Engine coolant temperature gauge
Displays the engine coolant temperature
Shift position and shift range
Displays the selected shift posi tion or selected shift range (P. 202)
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C). Low outside temperature indicator comes on when the ambient temperature
is 37°F (3°C) or lower.
Fuel gauge
Displays the quantity of fuel remaining in the tank
Speedometer
Displays the vehicle speed
Multi-information display
Presents the driver with a variety of driving-related data P. 91)
1
2
3
4
5
6
7

GX460_OM_OM60R27U_(U)
892. Instrument cluster
2
Instrument cluster
Odometer, trip meter and maintenance required information display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset. Trip
meters A and B can be used to record an d display different distances independently.
Maintenance required information: • Displays the maintenance requ ired information when the engine switch is in IGNI-
TION ON mode.
• It can be reset from of the multi-information display. ( P. 91)
Rear height control air suspension display (if equipped)
Displays the rear height mode selected ( P. 335)
Switches between odometer, trip meter
and maintenance required information
displays. When the trip meter is dis-
played, pressing and holding the button
will reset the trip meter.
The brightness of the instrument cluster lights can be adjusted.
Brighter
Darker
Changing the display
8
9
Instrument cluster light control switch
1
2
