2054-2. Driving procedures
4
Driving
NOTICE
■To prevent battery discharge
●Do not leave the engine switch in ACCESSORY or IGNITION ON mode for long
periods of time without the engine running.
●If the indicator on the engine switch is illu minated, the engine switch is not off. When
exiting the vehicle, always check that the engine switch is off.
●Do not stop the engine when the shift lever is in a position other than P. If the engine is
stopped in another shift lever position, the engine switch will not be turned off but
instead be turned to ACCESSORY mode. If the vehicle is left in ACCESSORY
mode, battery discharge may occur.
■When starting the engine
●Do not race a cold engine.
●If the engine becomes difficult to start or stalls frequently, have your vehicle checked
by your Lexus dealer immediately.
■Symptoms indicating a malfun ction with the engine switch
If the engine switch seems to be operating somewhat differen tly than usual, such as the
switch sticking slightly, ther e may be a malfunction. Contact your Lexus dealer immedi-
ately.

206
GX460_OM_OM60T19U_(U)4-2. Driving procedures

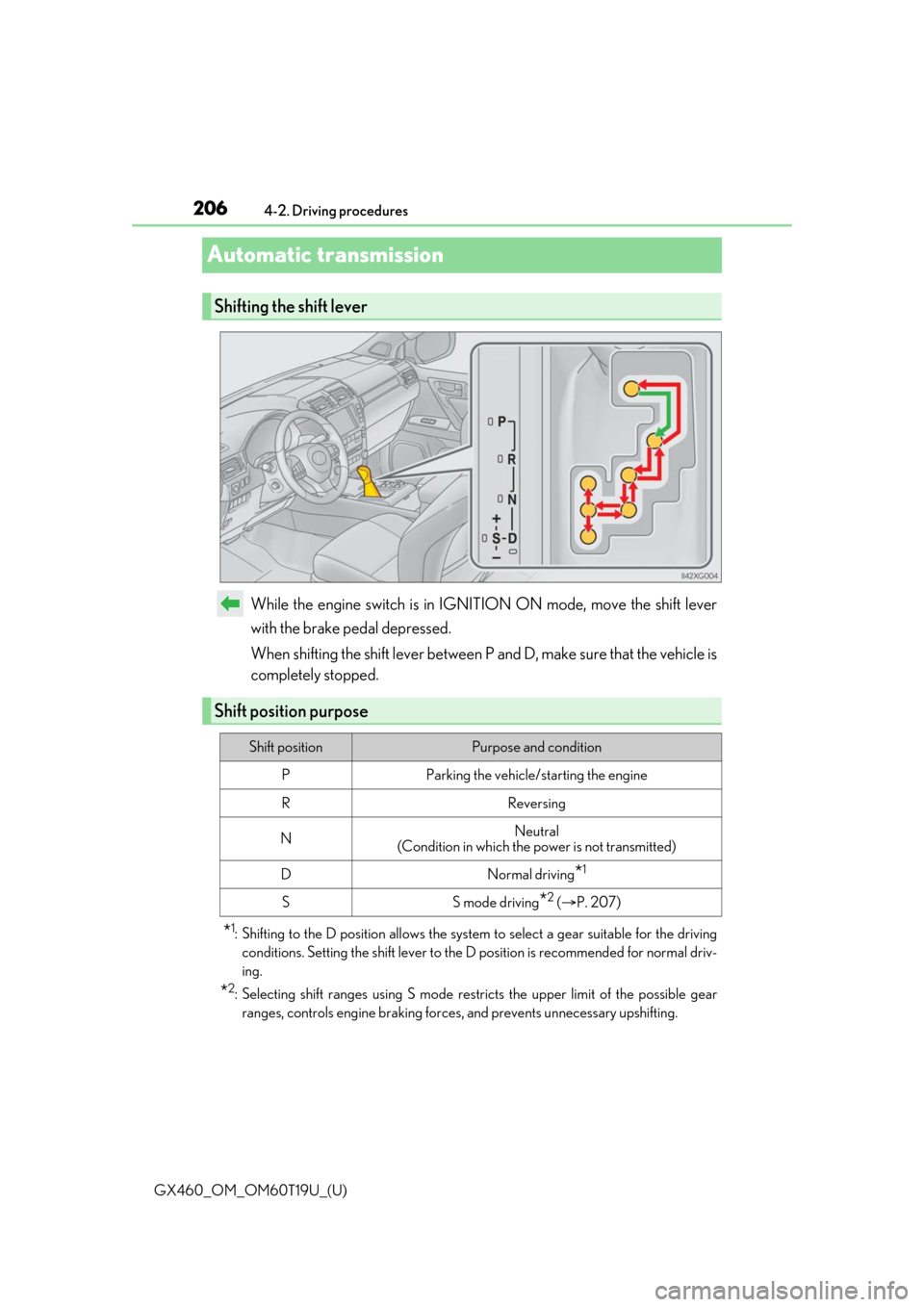

Automatic transmission
While the engine switch is in IGNITION ON mode, move the shift lever
with the brake pedal depressed.
When shifting the shift lever between P and D, make sure that the vehicle is
completely stopped.
*1: Shifting to the D position allows the system
to select a gear suitable for the driving
conditions. Setting the shift lever to the D position is recommended for normal driv-
ing.
*2: Selecting shift ranges using S mode rest ricts the upper limit of the possible gear
ranges, controls engine braking forces , and prevents unnecessary upshifting.
Shifting the shift lever
Shift position purpose
Shift positionPurpose and condition
PParking the vehicle/starting the engine
RReversing
NNeutral
(Condition in which the power is not transmitted)
DNormal driving*1
SS mode driving*2 (  P. 207)

290
GX460_OM_OM60T19U_(U)4-5. Using the driving support systems
When all of the following conditions are
satisfied, the Multi-terrain Select indica-
tor will come on, the mode select screen will be displayed on the multi-informa-
tion display, and Multi-terr ain Select control will begin.
●The four-wheel drive control switch is in “L4”.
●Both Active TRAC and VSC are not off.
Operate the Multi-terrain Select mode
selector switch du ring Multi-terrain
Select control to select a mode.
Once the mode is confirmed, the mode
name will be displayed and the control
will switch.
■Automatic system cancelation
In the following situations, the Multi-terrain Select indicator will go off, and Multi-terrain
Select will be canceled automatically.
●When the four-wheel drive control switch is in H4.
●When Active TRAC and VSC are off.
■When it is difficult to generate traction
MUD & SAND mode provides the largest amou nt of tire slippage, followed by LOOSE
ROCK, MOGUL, ROCK & DIRT and ROCK mode.
Drivability can be improved by selecting a mo de which provides a smaller amount of tire
slippage than the current mode when the amount of tire slippage is large, or conversely
selecting a mode which provides a larger amou nt of tire slippage than the current mode
when the amount of tire slippage is small.
■When the vehicle is stuck
Switching the transfer and differential
For the operation of the following func tions, refer to the following pages.
●Four-wheel drive system (P. 344)
●Center differential lock ( P. 345)
■When the brake system operates continuously
The brake system may overheat. In this case, a buzzer will sound, the TRAC OFF indica-
tor will flash, and Multi-terrain Select will be temporarily inoperable. In this event, stop
the vehicle immediately in a safe place, and allow the brake system to cool down suffi-
ciently. (There is no problem wi th continuing normal driving.)
After a short time, the TRAC OFF indicator will go off, and you will be able to use Multi-
terrain Select.
Multi-terrain Select control starting conditions
Switching modes

306
GX460_OM_OM60T19U_(U)4-5. Using the driving support systems
■Under vehicle terrain view & dual side view
●The screen can be displayed when
the shift lever is in D or N.
●While the under vehicle terrain view is di splayed, if the vehicle speed reaches or
exceeds approximately 3 mph (5 km/h), the screen automatically returns to the front
view display.
●In the following situations, the under vehi cle terrain view selection switch cannot be
operated.
• The vehicle is not completely stopped
• After the engine starts, a fixed distance or more has not been driven
• After the four-wheel drive control switch is shifted to L4, a fixed distance or more
has not been driven
●In the following situations, the system may no t operate normally, or it may not be possi-
ble to switch to the under vehicle terrain view.
• The road is covered with snow
• It is nighttime and the road has no illumination
• Dirt or foreign matter is adhering to the camera lens
• There is water in front of the vehicle (a river, puddle, sea water, etc.)
WARNING
■Guide lines
The tire position indicator lines and vehicl e position indicator lines may differ from
actual vehicle positions depending on the number of passengers, cargo weight, road
grade, road surface conditions, brightness of the surrounding environment, etc. Always
drive the vehicle while confirming the safety of your surroundings.
■Under vehicle terrain view display
The image displayed is one that was previous ly taken at a point approximately 10 ft.
(3 m) behind the current vehicle position. In cases such as when objects move after the
image is taken, the image displayed on the screen may differ from the actual state.

GX460_OM_OM60T19U_(U)
3414-5. Using the driving support systems
4
Driving
■When HI mode is selected
The vehicle height will change to N mode when driving at the speeds of 18 mph (30 km/h).
Even if vehicle speed is then reduced to un der 18 mph (30 km/h), height will not return to
HI mode.
■When LO mode is selected
The vehicle height will change to N mode when vehicle speed exceeds 7 mph (12 km/h).
Even if vehicle speed is then reduced to un der 7 mph (12 km/h), height will not return to
LO mode.
■Automatic leveling function
Regardless of the number of occupants and the luggage load, vehicle height in any mode
is always adjusted to a fixed height by the automatic leveling function.
■The rear height control air suspension will not operate in the following cases:
●The underbody of the vehicle is touching the surface of the road.
●The area around the suspension is covered with ice.
■Even if you hear an operating noise
This does not indicate a problem in th e rear height control air suspension.
■Parking and stopping tips
●If you immediately stop the engine after off- road driving, or park the vehicle for a long
time, the vehicle height may gradually lower. When parking, make sure there is nothing
under the vehicle that may come in contact with the underbody. The vehicle will return
to the set height when the engine is started.
●The vehicle height may change as the temperature changes when the engine is
stopped. The vehicle will return to the set height when the engine is started.
■When lowering the vehicle
In order to prevent the vehicle height from rising as occupants leave the vehicle, lowering
control will occur for a short while after the engine has been stopped.
■The rear height control air suspension failure warning
●If a malfunction occurs in the rear height control air suspension, N mode is automati-
cally selected. However, the system may not switch to N mode depending on the loca-
tion of the malfunction.
●The “CHECK AIR SUSPENSION SYSTEM”/“C heck air suspension system” is dis-
played on the multi-information display, and the rear height control air suspension can-
not be activated until the malfunction is corrected.
Stop the engine and start it again. If the warning message turns off, the system is operat-
ing correctly. If the warning message continues to be displayed, have your vehicle
inspected by your Lexus dealer as soon as possible.

350
GX460_OM_OM60T19U_(U)4-5. Using the driving support systems
■The Crawl Control can be operated when
●The shift lever is in any
gear other than P or N.
●The four-wheel drive control switch is in L4.
●The driver’s door is closed.
■Automatic system cancelation
In the following situations, the system is canceled automatically:
At that time, the buzzer will sound, the slip indicator turns off, and the Crawl Control indi-
cator flashes.
A notification will be displa yed on the multi-information display for several seconds.
(  P. 527)
●When the shift lever is moved to P or N.
●When the four-wheel drive control switch is in H4.
●When the driver’s door is opened.
When turning off Crawl Control while travelin g, stop the vehicle before the Crawl Con-
trol indicator turns off, or drive extremely carefully.
■Function limit
●In the following situations, you will be able to use brake control to drive downhill at a
fixed low speed, but you will be unable to use engine control to drive uphill at a fixed low
speed.
• When the driving mode is set to second start mode.
• When the vehicle speed is higher than 6 mph (10 km/h).
●When the vehicle speed is higher than 15 mph (25 km/h), engine control and brake
control will stop temporarily. At that time, the Crawl Control indicator flashes.

GX460_OM_OM60T19U_(U)
3514-5. Using the driving support systems
4
Driving
■When the Crawl Control system is operated continuously
This may cause the brake actuator to overheat . In this case, the Crawl Control system will
stop operating, a buzzer will sound, the Crawl Control indicator will turn off after flashing
and the “TRAC OFF” indicator will come on. In this case, quickly stop the vehicle in a safe
place and give the actuator adequate time to cool off. Refrain from using the system until
the “TRAC OFF” indicator turns off. (The ve hicle can be driven normally during this
time.)
■When depressing the accelerator pedal while the Crawl Control is operating
Multi-terrain Select operates in AUTO mode. ( P. 288)
■If the automatic transmission system overheats
The system will cease operation, a buzzer w ill sound and a warning message will be dis-
played to alert the driver. Stop the vehicle in a safe place until the warning message turns
off. ( P. 528)
■Sounds and vibrations caused by the Crawl Control system
●A sound may be heard from the engine compartment when the engine is started or just
after the vehicle begins to move. This soun d does not indicate that a malfunction has
occurred in Crawl Control system.
●Either of the following conditions may occu r when the Crawl Control system is operat-
ing. None of these are indicators that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard afte r the vehicle comes to a stop.
■If the slip indicator comes on...
It may indicate a malfunction in the system. Cons ult your Lexus dealer.
WARNING
■When using Crawl Control
Do not rely solely on the Crawl Control. This function does not extend the vehicle’s
performance limitations. Always thoroughly check the road conditions, and drive
safely.
■These conditions may cause the system not to operate properly
When driving on the following surfaces, the sy stem may not be able to maintain a fixed
low speed, which may re sult in an accident:
●Extremely steep inclines.
●Extremely uneven surfaces.
●Snow-covered roads, or other slippery surfaces.

352
GX460_OM_OM60T19U_(U)4-5. Using the driving support systems
Downhill assist control system
Shift the “DAC” switch to ON. The
downhill assist control system indicator
will comes on and the system will oper-
ate.
When the system is in operation, the slip
indicator will flash, and the stop lights/
high mounted stop lights will be lit. A
sound may also occur during the opera-
tion. This does not indicated a malfunc-
tion.
Shift the “DAC” switch to OFF while the
system is in operation. The downhill
assist control system indicator will flash as the system gradually ceases operation,
and will turn off when the system is fully off.
Shift the “DAC” switch to ON while the do wnhill assist control system indicator is
flashing to start the system again.
: If equipped
The downhill assist control system helps to prevent excessive speed on steep
downhill slopes.
The system will operate when the vehicl e is traveling under 15 mph (25 km/h)
with the accelerator and brake pedals released and the transfer mode is in L4.
System operation
Turning off the system

GX460_OM_OM60T19U_(U)
3534-5. Using the driving support systems
4
Driving
■Operating tips
The system will operate when the shift lever is in a position other than P, however to make
effective use of the system it is recommended to select a lower shift range.
■The system will not operate when
The transfer mode is in H4.
■If the downhill assist control system indicator flashes
●In the following situations, the indicator flashes and the system will not operate:
• The transfer mode is not in L4.
• The shift lever is in P.
• The accelerator or brake pedal is depressed.
• The vehicle speed exceeds approximately 15 mph (25 km/h).
• The brake system overheats.
●In the following situations, the indicator flas hes to alert the driver, but the system will
operate:
• The shift lever is in N.
• The “DAC” switch is turned of f while the system is operating.
The system will gradually ceas es operation. The indicator will flash during operation,
and then go off when the system is fully off.
■When the downhill assist control system is operated continuously
This may cause the brake actuator to overheat. In this case, the downhill assist control
system will stop operating, a buzzer will sound and the downhill assist control system
indicator will start flashing, and the “TRAC OFF” indicator light will come on. Refrain
from using the system until the downhill assi st control system indicator stays on and
“TRAC OFF” indicator light turns off. (The vehicle can be driven normally during this
time.)
■Sounds and vibrations caused by the downhill assist control system
●A sound may be heard from the engine compartment when the engine is started or just
after the vehicle begins to move. This soun d does not indicate that a malfunction has
occurred in downhill assist control system.
●Either of the following conditions may occur when the do wnhill assist control system is
operating. None of these are indicators that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard afte r the vehicle comes to a stop.
■System malfunction
In the following cases, have your vehicle checked by your Lexus dealer.
●The downhill assist control system indicator does not come on when the engine switch
is turned to IGNITION ON mode.
●The downhill assist control system indicator does not come on when the “DAC” switch
is shifted to ON.
●The slip indicator comes on.

355
GX460_OM_OM60T19U_(U)4-5. Using the driving support systems
4
Driving
Driving assist systems
◆ABS (Anti-lock Brake System)
Helps to prevent wheel lock when the brakes are applied suddenly, or if the brakes are
applied while driving on a slippery road surface
◆Multi Terrain ABS (Anti-lock Brake System)
Helps to prevent wheel lock when the brakes are applied suddenly, or if the brakes are
applied while driving on a slippery road su
rface, or in off-road conditions (such as
rough roads, sand and mud)
Vehicles with Multi-terrain Select system: The Multi Terrain ABS operates in synchro-
nization with the Multi-terrain Select
◆Brake assist
Generates an increase d level of braking force after the brake pedal is depressed
when the system detects a panic stop situation
◆VSC (Vehicle Stability Control)
Helps the driver to control skidding when swerving suddenly or turning on slippery
road surfaces
◆TRAC (Traction Control) for H4 position
Helps to maintain drive power and prevent the drive wheels from spinning when start-
ing the vehicle or accelera ting on slippery roads
To keep driving safety and performance, the following systems operate auto-
matically in response to various drivin g situations. Be aware, however, that
these systems are supplementary and shou ld not be relied upon too heavily
when operating the vehicle.
