For detailed information, refer to the description given in each section\
.
PICTORIAL INDEX
viiiPage
1Driving position memory switches
171
. . . . . . . . . . .
2Power window switches 33
. . . . . . . . . . . . . . . . . . . . . . .
3Power door lock switch 20
. . . . . . . . . . . . . . . . . . . . . . .
4Window lock switch 34
. . . . . . . . . . . . . . . . . . . . . . . . . . .
5Power rear view mirror control switches 116 . . . . . . .
6Side vents 189
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7Headlight, turn signal and fog light switches 24 . . . .
8Wiper and washer switch 27
. . . . . . . . . . . . . . . . . . . . . .
9Center vents 189
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10Emergency flasher switch 36
. . . . . . . . . . . . . . . . . . . . .
11Car audio 195
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12Multiinformation display 53
. . . . . . . . . . . . . . . . . . . . . .
13Automatic air conditioning controls 179
. . . . . . . . . .
14Rear window defogger switch 31
. . . . . . . . . . . . . . . . . .
15Front passenger’s seat belt reminder light 46 . . . . . .
16Glove box 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17Ashtray 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
18Cigarette lighter 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19Seat heater switches 37
. . . . . . . . . . . . . . . . . . . . . . . . . . Page
20Fourwheel drive control lever
309
. . . . . . . . . . . . . . .
21Automatic transmission selector lever 303 . . . . . . . .
22Parking brake lever 301
. . . . . . . . . . . . . . . . . . . . . . . . .
23Center differential lock switch 309
. . . . . . . . . . . . . . .
24Power outlet (12 VDC) 68
. . . . . . . . . . . . . . . . . . . . . . . . .
25Downhill assist control switch 326
. . . . . . . . . . . . . . .
26Electronic modulated suspension
control switch 320 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27Rear height control air suspension
switches 315. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28Ignition switch 300
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29“2nd STRT” switch 309
. . . . . . . . . . . . . . . . . . . . . . . . . .
30Cruise control switch 312
. . . . . . . . . . . . . . . . . . . . . . .
31Steering pad switches 214
. . . . . . . . . . . . . . . . . . . . . . .
32Hood lock release lever 83
. . . . . . . . . . . . . . . . . . . . . . .
33Fuel filler door opener 84
. . . . . . . . . . . . . . . . . . . . . . . . .
34Instrument panel light control dial 60
. . . . . . . . . . . . . .
35Outside rear view mirror defogger switch 32 . . . . . . .
36Power outlet (115 VAC) main switch 68
. . . . . . . . . . . .

PPY003
PICTORIAL INDEX
xii

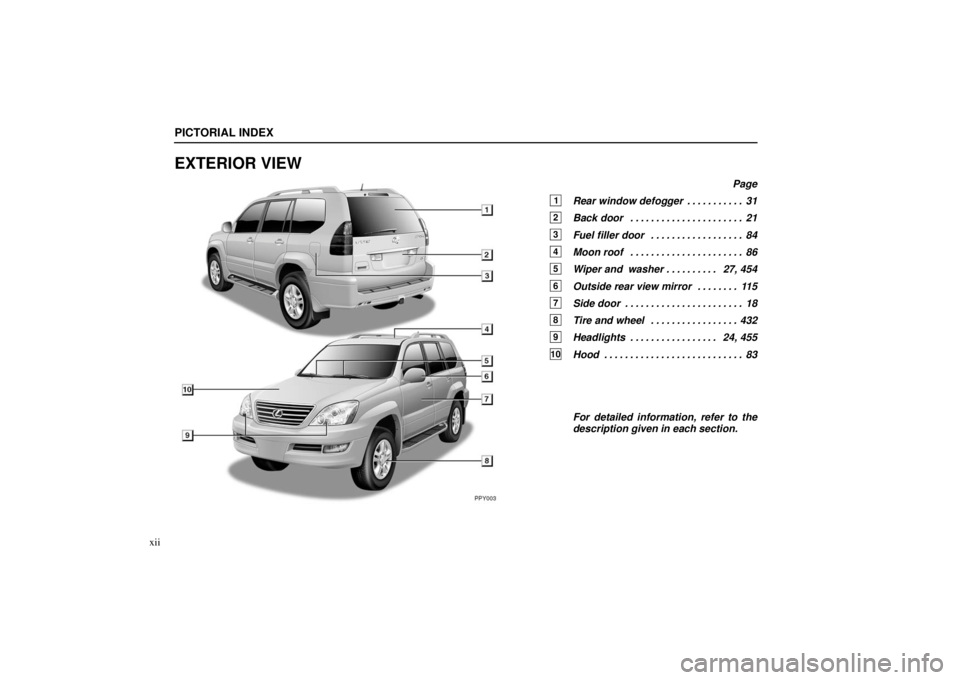

EXTERIOR VIEW
Page
1Rear window defogger31
. . . . . . . . . . .
2Back door 21
. . . . . . . . . . . . . . . . . . . . . .
3Fuel filler door 84
. . . . . . . . . . . . . . . . . .
4Moon roof 86
. . . . . . . . . . . . . . . . . . . . . .
5Wiper and washer 27, 454
. . . . . . . . . .
6Outside rear view mirror 115 . . . . . . . .
7Side door 18
. . . . . . . . . . . . . . . . . . . . . . .
8Tire and wheel 432
. . . . . . . . . . . . . . . . .
9Headlights 24, 455
. . . . . . . . . . . . . . . . .
10Hood 83
. . . . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the
description given in each section.

SECTION 1 – 2
23
INSTRUMENTS AND CONTROLS
Switches
Headlight switch24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Headlight dimmer and turn signal switch 25
. . . . . . . . . . . . . . . . . . . . .
Fog light switch 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Windshield wiper and washer switch 27
. . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer switch 30
. . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger switch 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirror defogger switch 32
. . . . . . . . . . . . . . . . . . . . .
Power window switches 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat heater switches 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.

SWITCHES
26
For signaling turns, move the lever up or down in the
conventional manner.
The ignition key must be in the “ON” position.
The turn signal is self−cancelling after a turn, but after a lane
change, you may have to cancel it by hand. You can also signal
a lane change by moving the turn signal lever partway and
holding it there.
If the green light in the instrument cluster flashes faster than
normal, it indicates that the front or rear turn signal bulb has
burned out. If this indicator light does not come on, the fuse
or the indicator light itself has probably failed.
FOG LIGHT SWITCH
To turn on the fog lights, turn the switch to the “ON”
position. The fog lights come on only when the headlights
are on low beam.

SWITCHES
31
To make the washer squirt while operating in “ON”
position, twist the knob upward to position 1.
The knob automatically returns from these positions after you
release it.
The low washer fluid warning light in the instrument cluster
comes on when the fluid level in the tank becomes nearly
empty. For information on adding washer fluid, see “Adding
washer fluid” on page 454.
NOTICE
Do not operate the rear window wiper if the rear window
is dry. It may scratch the glass.
REAR WINDOW DEFOGGER
SWITCH
 Vehicles with navigation system
 Vehicles without navigation system

SWITCHES
32To turn the electric rear window defogger on, push the
switch.
The ignition key must be in the “ON” position.
The thin heater wires on the inside of the rear window will
quickly clear the surface. An indicator light will illuminate to
indicate the defogger is operating.
The system will automatically shut off when the defogger has
operated about 15 minutes.
If further defrosting or defogging is desired, simply actuate the
switch again. When the
surface has cleared, push the switch
once again to turn the defogger of f. Continuous use may cause
the battery to discharge, especially during stop −and−go
driving. The defogger is not designed to dry rain water or to
melt snow.
NOTICE
 When cleaning the inside of the rear window, be
careful not to scratch or damage the heater wires or
connectors.
 To prevent the battery from being discharged, turn
the switch off when the engine is not running.
OUTSIDE REAR VIEW MIRROR
DEFOGGER SWITCH
To turn the electric outside rear view mirror defogger on,
push the switch.
The ignition key must be in the “ON” position.
The thin heater wires on the heater panels in the outside rear
view mirrors will quickly clear the surface. Keep your hands off
the mirror faces when the switch is on. An indicator light will
illuminate to indicate the defogger is operating.
The system will automatically shut off when the defogger has
operated about 5 minutes.

AIR CONDITIONING
184If quick heating or cooling is desired
Push the “TEMP” or “PASSENGER TEMP” button on either
side
and hold it until “MAX. HOT” or “MAX. COLD” appears on
the display.
If manual fan speed control is desired

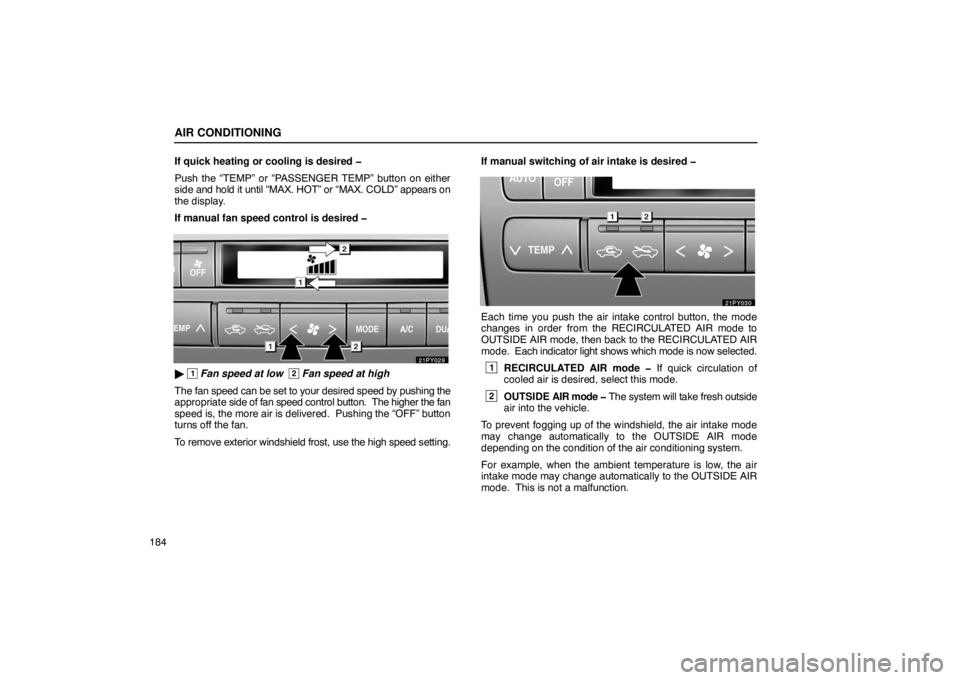

 1 Fan speed at low 2 Fan speed at high
The fan speed can be set to your desired speed by pushing the
appropriate side of fan speed control button. The higher the fan
speed is, the more air is delivered. Pushing the “OFF” button
turns off the fan.
To remove exterior windshield frost, use the high speed setting. If manual switching of air intake is desired
Each time you push the air intake control button, the mode
changes in order from the RECIRCULATED AIR mode to
OUTSIDE AIR mode, then back to the RECIRCULATED AIR
mode. Each indicator light shows which mode is now
selected.
1RECIRCULATED AIR mode If quick circulation of
cooled air is desired, select this mode.
2OUTSIDE AIR mode The system will take fresh outside
air into the vehicle.
To prevent fogging up of the windshield, the air intake mode
may change automatically to the OUTSIDE AIR mode
depending on the condition of the air conditioning system.
For example, when the ambient temperature is low, the air
intake mode may change automatically to the OUTSIDE AIR
mode. This is not a malfunction.

AIR CONDITIONING
185
If quick circulation of cooled air is desired, push the air intake
control
button for RECIRCULATED AIR. The indicator light will
come on.
For normal use, it is best to keep the air intake control button
set to the OUTSIDE AIR mode. If recirculated air is used during
heating, the windows will fog up more easily.
If manual onoff of the air conditioning is desired
Push the “A/C” button to turn the air conditioning on and push
it again to turn the air conditioning off.
The air conditioning does not work if the outside temperature
is lowered down to around 0 C (32F).
If the system is used for ventilation, heating in dry weather or
removing frost or exterior fog on the windshield, turn the air
conditioning off once it is no longer required. This will improve
fuel economy. The air conditioning can be used for year −round
automatic temperature control including cooling and
dehumidifying operation.
If the air conditioning compressor does not operate, the
indicator of the “A/C” button will blink. If the indicator of the
“A/C” button blinks even when the “A/C” button is pushed
again, have the compressor checked by your nearest Lexus
dealer.
(b) Windshield defogging and defrosting
To remove interior fog on the windshield
Push the windshield air flow button.
To remove frost or exterior fog on the windshield
1. Push the “TEMP” button to set the maximum temperature.
2. Push the windshield air flow button.
3. Push the fan speed control button on the right side to obtain
a maximum air flow.
4. Leave the “A/C” button off.
When the windshield air flow button is pushed, air flows mainly
from the windshield vents and turns on the defogging function
with the purpose of clearing the front view.
Pushing this button once again returns the air flow mode to the
last one used.

ELECTRICAL COMPONENTS
444
 Driver’s side instrument panel
No.FUSEAMPERECIRCUIT
1 SPARE10Spare fuse
2 ALT140
Charging system and all
components in “AM1”,
“HEATER”, “CDS FAN”, “FR
FOG”, “DEFOG”, “AIR SUS”,
“AC115V INV”, “SEAT HEATER”,
“BATT CHG”, “TOWING BRK”
and “TOWING” fuses
3 SPARE15Spare fuse
4 HEATER50Air conditioning system
5 AIR
SUS50Rear height control air suspen-
sion
6 AM150
All components in “ACC”, “CIG”,
“IG1”, “FR WIP −WSH”, “RR
WIP”, “RR WSH”, “DIFF”,
“TEMS” and “STA” fuses
7 TOWING
BRK30Trailer brake controller
8 J/B50
All components in “P FR P/W”,
“P RR P/W”, “D RR P/W”, “D
P/SEAT”, “P P/SEAT”, “TAIL”,
“PANEL” and “POWER OR
TI&TE” fuses
9 BATTCHG30Trailer sub battery
10 TOWING40Trailer lights
11 CDS FAN20Electric cooling fan
12 RR A/C30Rear air conditioning system

ELECTRICAL COMPONENTS
445
No.FUSEAMPERECIRCUIT
13 MIR
HEATER10Outside rear view mirror defog-
ger
14 STOP10
Stop lights, high m ounted
stoplight, shift lock control
system, vehicle skid control
system, electronic m odulated
suspension, rear height control
air suspension, multiport fuel
injection system/sequential
multiport fuel injection system
15 AC115V
INV15Power outlet (115 VAC)
16 FR FOG15Front fog lights
17 OBD7.5On −board diagnosis system
18 HEAD
(LO RH)10Right− hand headlight (low beam)
19 HEAD
(LO LH)10Left− hand headlight (low beam)
20 HEAD
(HI RH)10Right− hand headlight (high
beam)
21 HEAD
(HI LH)10Left− hand headlight (high beam)
22 EFI NO.210Multiport fuel injection system/
sequential multiport fuel injection
system
23 HEATER
NO.27.5Air conditioning system
24 DEFOG30Rear window defogger
No.FUSEAMPERECIRCUIT
25 AIRSUSNO.210Rear height control air suspen-
sion
26 SEAT
HEATER20Seat heaters
27 DOME10
Ignition switch light, interior
lights, personal lights, foot
lights, running board lights,
door courtesy lights, inside
door handle lights,
multi− information display
28 RADIO
NO.120Car audio system, navigation
system
29 ECUB10
Multiplex communication
system, vehicle skid control
system, wireless remote
control system, inside rear
view mirror, air conditioning
system, electronic modulated
suspension, driving position
memory system, power
windows, moon roof
30 ECUB NO.210Theft deterrent system
31 ABS
MTR40
Anti −lock brake system,
vehicle skid control system,
active traction control system,
brake assist system
32 AM230Starting system, all components
in “IGN”, “SRS”, “GAUGE” and
“ST2” fuses
