STARTING AND DRIVING
316
NOTICE
Use the “LO” mode when the vehicle is stopped.
Otherwise, when the vehicle speed exceeds about 12
km/h (7 mph), “N” mode is selected automatically. So
be careful when you drive in any place where the
overhead height is limited.
(b) Vehicle height mode changing condition
To change the vehicle height, it is necessary to meet the
following conditions.
The engine should be running.
 The height control “OFF” indicator light should go off.
 When selecting a mode, there is a vehicle speed limit. Refer
to the following table.
\f = The mode can be selected.
 = The mode cannot be selected.
“LO”
mode“N”
mode“HI”
mode
Under about
12 km/h (7 mph)\f\f\f
Under about
30 km/h (19 mph)\f\f
About 30 km/h
(19 mph) or over\f
In the following cases, the rear height control suspension
will not operate.
 The underbody of the vehicle has touched the surface on
bumpy roads.
 The area around the rear suspension is coated with ice.
If the vehicle is moved to its usual location or the ice is removed
and the height select switch is pressed, the vehicle height
control cannot be operated. In this case, turn off and restart the
engine, then push the control switches.

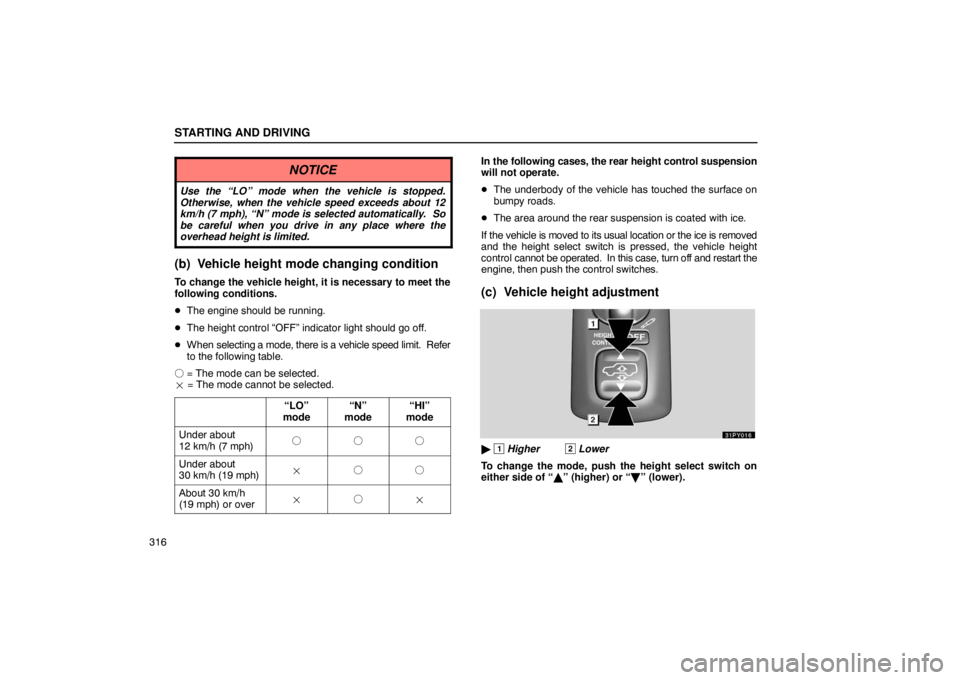

(c) Vehicle height adjustment
 1 Higher2 Lower
To change the mode, push the height select switch on
either side of “ ” (higher) or “
” (lower).

STARTING AND DRIVING
317
The height control indicator light indicates which mode is
selected. (See “(e) Height control indicator light” described
below.)

Selecting the “HI” mode
Push the height select switch on the “ ” side when the vehicle
speed is under about 30 km/h (19 mph).
To change the “N” mode to “HI”: Push the switch once.
To change the “LO” mode to “HI”: Push the switch twice.
It takes about 30 seconds until the “LO” mode changes to the
“HI” mode.
 Selecting the “N” mode
To change the “HI” mode to “N”: Push the height select
switch on the “
” side once.
To change the “LO” mode to “N”: Push the height select
switch on the “ ” side once.
 Selecting the “LO” mode
Push the height select switch on the “
” side while the vehicle
is stopped.
To change the “N” mode to “LO”: Push the switch once.
To change the “HI” mode to “LO”: Push the switch twice.
Even if the engine is stopped while the vehicle height is being
lowered, the operation continues for up to 25 seconds. If within
this 25 seconds, any of the side doors or the back door is
opened, operation will continue for a further 15 seconds.
NOTICE
 If the vehicle height is changed frequently when the
vehicle is heavily loaded, the compressor may
overheat causing the vehicle height adjustment
operation to stop.
 Before you lower the vehicle height with the height
select switch, check under the vehicle to make sure
nothing to damage the vehicle or no one to be injured
is there and that the underbody of the vehicle does
not touch the ground.
 After unloading, the height of a vehicle equipped with
the rear height control air suspension becomes
slightly higher than the normal vehicle height. Take
sufficient care where the overhead height is
restricted.
 Do not select the “LO” mode in the bumpy roads. If
the underbody of the vehicle touches the rugged
road surface, the vehicle may be damaged.

STARTING AND DRIVING
318
(d) Turning off the rear height control airsuspension
To turn off the rear height control air suspension with the
vehicle stopped, push the “HEIGHT CONTROL OFF”
switch. The height control “OFF” indicator light comes on
and the vehicle height is fixed in the same mode as the
height control switch is pushed.
This status is memorized in the system even after the engine
is stopped.
If you push the switch again, the height control “OFF” indicator
light goes out and the rear height control air suspension is
turned on.
Even after the rear height control air suspension is turned off
with the “HEIGHT CONTROL OFF” switch, if the vehicle speed
exceeds 30 km/h (19 mph), the rear height control air
suspension automatically selects the “N” mode.
CAUTION
If you drive through deep water over about 700 mm (28
in.) in depth, put the vehicle height in the “HI” mode with
the height select switch and then turn off the rear height
control air suspension by pushing the “HEIGHT
CONTROL OFF” switch.
NOTICE
 When jacking up or installing tire chains, be sure to
turn off the rear height control air suspension with
the “HEIGHT CONTROL OFF” switch and stop the
engine. Otherwise, the vehicle height may change
because of the automatic leveling function resulting
in accident.
 If your vehicle must be towed, put the vehicle height
in the “N” mode and turn off the rear height control air
suspension. Otherwise, the vehicle height may
change because of the automatic leveling function
resulting in accident.
 If your vehicle gets ditched, turn off the rear height
control air suspension with the “HEIGHT CONTROL
OFF” switch. Otherwise, the vehicle height may
change because of the automatic leveling function
resulting in accident.

STARTING AND DRIVING
320
(f) Parking and stopping tips
If you immediately stop the engine to park the vehicle after
off−road driving, the vehicle height is lowered slightly as the
vehicle becomes cool. When parking, make sure there is
nothing that will be in contact with the underbody of the vehicle.
When you start the engine, the vehicle returns to the previous
height.
If you park the vehicle for a long time, the vehicle height may
be gradually lowered. When parking for a long time, make sure
there is nothing that will be in contact with the underbody of the
vehicle. When you start the engine, the vehicle returns to the
previous height.
If you stop the engine, the vehicle height may change in
accordance with the change in the temperature. When you
start the engine, the vehicle returns to the previous height.
(g) Rear height control failure warning
If there is a problem somewhere in the rear height control air
suspension, the “N” mode is automatically selected. If this
occurs, the height control “OFF” indicator light blinks and the
vehicle height control cannot be activated until the malfunction
is corrected. If this is the case, bring your vehicle to your Lexus
dealer as soon as possible and have it checked.
ELECTRONIC MODULATED SUSPENSION
This electronic modulated suspension adjusts the
damping effect on the shock absorbers with the control
switch. Select one of the 4 modes which is suited to the
driving conditions with the control switch to provide good
riding comfort and stability.
1 For driving on a bumpy road
2 For ordinary driving such as in the city traffic
3 For moderate high speed driving
4 For sporty type driving such as on winding mountain
roads and high speed driving
5 Soft
6 Firm
We recommend you to select the mode
2
for ordinary
driving. The damping effect will be changed automatically to
provide good riding comfort.

STARTING AND DRIVING
323
Depressing the brake pedal repeatedly may turn on the light.
It is normal if it goes out after a few seconds.
The brake actuator temperature increases during continuous
operation of
the above mentioned systems such as on slippery
roads. If the brake actuator temperature becomes too high
while any of the systems is operating, a buzzer will start to
sound intermittently to indicate that the active traction control
system can no longer operate. In this case, immediately stop
your vehicle at a safe place.
If the system continues to operate, the buzzer sound changes
from intermittent to continuous. (The continuous buzzer
sounds for about 3 seconds.) At the time, the “VSC TRAC”
warning light will come on and the active traction control
system temporarily stops operating in order to protect the
brake actuator. (Although the active traction control system
does not operate, there is no problem to continue your driving.)
The system will be automatically restored after a short time and
the “VSC TRAC” warning light goes out.
If the light comes on while driving, the active traction control
system does not work. However, as normal braking operates
when being applied, there is no problem to continue your
driving.
In the following cases, contact your Lexus dealer:
 The warning light does not come on after the ignition key is
turned to “ON”.
 The warning light remains on after the ignition key is turned
to “ON”.
 The warning light comes on while driving.
VEHICLE SKID CONTROL SYSTEM
The vehicle skid control system helps provide integrated
control of the systems such as antilock brake system,
traction control, engine control, etc. This system
automatically controls t he output of the brakes or engine
to help prevent the vehicle from skidding when cornering
on a slippery road surface or operating steering wheel
abruptly.
The vehicle skid control activates when the vehicle speed is
more than following speed:
Four− wheel drive control lever in “H” 15 km/h (9 mph) . . .
Four−wheel drive control lever in “L” 30 km/h (19 mph) . . .
You may hear a sound in the engine compartment for a few
seconds when the engine is started or just after the vehicle
begins to move. This means that the system is in the
self−check mode, but does not indicate a malfunction.
CAUTION
 Do not rely excessively on the vehicle skid control
system. Even if the vehicle skid control system is
operating, you must always drive carefully and
attentively to avoid serious injury. Reckless driving
will result in an unexpected accident. If the slip
indicator light blinks and an alarm sounds, special
care should be taken while driving.

STARTING AND DRIVING
327
If the indicator light does not come on when the switch is
pushed, contact your Lexus dealer.

Slip indicator light
With the vehicle traveling at a speed of 25 km/h (15 mph) or
less, release your foot from the accelerator or brake pedal to
activate the system. The vehicle will descend the hill at a low
speed. While the system is operating, the slip indicator light on
the instrument panel will flash and the stop lights and high
mounted stoplight will be lit.
If you push the “DAC” switch to turn the system off while it is
in operation, the system will stop operating gradually. The
downhill assist control system indicator light will flash to alert
the driver. To continue driving at a low speed, push the “DAC”
switch to turn the system on.
The slip indicator light and downhill assist control system
indicator light come on for a few seconds when the ignition key
is turned to “ON”. If any of the indicator lights does not come
on when the ignition is turned on, contact your Lexus dealer. If the system is used frequently, the brake actuator
temperature
may become too high and a buzzer will sound
intermittently.
If this happens, the downhill assist control system indicator
light will flash and a buzzer will sound intermittently. When the
temperature of the brake actuator goes down, the system will
begin to operate again. Until it restarts, the active traction
control system and hill−start assist control system will not
operate; however, the conventional brake can be operated.

STARTING AND DRIVING
328
“VSC TRAC” warning light
If there is any abnormality in the system, the “VSC TRAC”
warning light will come on. When the “DAC” switch is
pushed, the downhill assist control system indicator light
also flash.
If the “VSC TRAC” warning light comes on, there may be an
abnormality in any of the following systems in addition to the
downhill assist control system.
Hill− start assist control system
 Active traction control system
 Vehicle skid control system
When the system is normal and the ignition key is turned to
“ON”, the warning light will come on and will go off after a few
seconds. It is not a malfunction that the warning light may stay
on for 60 seconds after the ignition key is turned to the “ON”
position. Depressing the brake pedal repeatedly may turn on the light.
It is normal if it goes out after a few seconds.
The brake actuator temperature increases during continuous
operation of
the above mentioned system on such as slippery
roads. If the brake actuator temperature becomes too high
while any of the systems is operating, a buzzer will start to
sound intermittently to indicate that the downhill assist control
system can no longer operate. In this case, stop your vehicle
immediately at a safe place.
If the system continues to operate, the buzzer sound changes
from intermittent to continuous. (The continuous buzzer
sounds for about 3 seconds.) At this time, the “VSC TRAC”
warning light will come on and the downhill assist control
system stops operating temporarily in order to protect the
brake actuator. (Although the downhill assist control system
does not operate, it is no problem to continue your driving.) The
system will be automatically restored after a short time and the
“VSC TRAC” warning light goes out.
If the warning light comes on while driving, the system does not
work. However, as normal braking operates when being
applied, it is no problem to continue your driving.
In the following cases, contact your Lexus dealer:
 The warning light does not come on after the ignition key is
turned to “ON”.
 The warning light remains on after the ignition key is turned
to “ON”.
 The warning light comes on while driving.

STARTING AND DRIVING
329
HILLSTART ASSIST CONTROLSYSTEM
The hillstart assist control system assists you in starting
to move up a steep or slippery hill. When you start to move
up the hill slope, the system helps to prevent the vehicle
from rolling backward in the interval while you move your
foot from the brake pedal to the accelerator pedal.
CAUTION
 Do not rely excessively on the hillstart assist control
system. The vehicle may not be able to start
smoothly on road surfaces or offroad surfaces such
as extremely steep slopes or icy roads, on which
sliding can occur very easily.
 Do not use the hillstart assist control system to stop
the vehicle. This system is not designed as a function
for stopping the vehicle on a uphill slope.
The hillstart assist control system will operate for 5
seconds maximally when all of the following conditions
apply.
When the transmission is in any of positions “D”, “4”,
“3”, “2” or “L”
 When the brake pedal is not depressed
The system is designed to operate when the vehicle is starting
on an uphill slope; therefore, if the transmission is in “P” or “\
N”
it will not operate. It will not operate either if the vehicle starts
to move in reverse on a slope with the transmission in the “R”.
 Slip indicator light
When the hill −start assist control system is operating, the slip
indicator light flashes and an alarm sounds intermittently. At
the same time, the stop lamps and high mounted stoplight are
lit.

STARTING AND DRIVING
330The slip indicator light comes on for a few seconds when the
ignition key is turned to “ON”. If the indicator light does not
come on when the ignition is turned on, contact your Lexus
dealer.
Keep in mind the following when driving.

The hill −start assist control system operates for 5 seconds
maximally. If both the brake and accelerator pedals remain
undepressed for longer than 5 seconds, the buzzer will
sound at more frequent intervals and the system will
gradually stop operating.
 The hill −start assist control system is not designed as a
function for stopping the vehicle on a uphill slope. When
stopping the vehicle, be sure to depress the brake pedal.
If the system is used frequently, the brake actuator
temperature may become too high and a buzzer will sound
intermittently.
In this case, a buzzer will sound intermittently. When the
temperature of the brake actuator goes down, the system will
begin to operate again. Until it restarts, the active traction
control system and downhill assist control system will not
operate; however, the conventional brake can be operated.
“VSC TRAC” warning light
If there is any abnormality in the system, the “VSC TRAC”
warning light will come on.
If the system malfunctions, the “VSC TRAC” warning light will
come on.
If the “VSC TRAC” warning light comes on, there may be an
abnormality in any of the following systems in addition to the
hill −start assist control system.
 Downhill assist control system
 Active traction control system
 Vehicle skid control system
When the system is normal and the ignition key is turned to
“ON”, the warning light will come on and will go off after a few
seconds. It is not a malfunction that the warning light may stay
on for 60 seconds after the ignition key is turned to the “ON”
position.

STARTING AND DRIVING
331
Depressing the brake pedal repeatedly may turn on the light.
It is normal if it goes out after a few seconds.
The brake actuator temperature increases during continuous
operation of
the above mentioned system on such as slippery
roads. If the brake actuator temperature becomes too high
while any of the systems is operating, a buzzer will start to
sound intermittently to indicate that the hill −start assist control
system can no longer operate. In this case, stop your vehicle
immediately at a safe place.
If the system continues to operate, the buzzer sound changes
from intermittent to continuous. (The continuous buzzer
sounds for about 3 seconds.) At this time, the “VSC TRAC”
warning light will come on and the hill −start assist control
system stops operating temporarily in order to protect the
brake actuator. (Although the hill −start assist control system
does not operate, it is no problem to continue your driving.) The
system will be automatically restored after a short time and the
“VSC TRAC” warning light goes out.
If the warning light comes on while driving, the system does not
work. However, as normal braking operates when being
applied, it is no problem to continue your driving.
In the following cases, contact your Lexus dealer:
 The warning light does not come on after the ignition key is
turned to “ON”.
 The warning light remains on after the ignition key is turned
to “ON”.
 The warning light comes on while driving.
BRAKE SYSTEM
This brake system has 2 independent hydraulic circuits. If
either circuit should fail, the o ther will still work. However, the
pedal will be harder to press, and your stopping distance will
be longer. Also, the brake system warning light may come on.
CAUTION
Do not drive your vehicle with only a single brake
system. Have your brakes fixed immediately.
Brake booster
The brake booster uses brake fluid pressurized by the pump
to power −assist the brakes. If the brake booster fails during
driving, the brake system warning light comes on and buzzer
sounds continuously. In this case, the brakes may not work
properly. If they do not work well, depress the brake pedal
firmly. If the brake system warning light comes on, immediately
stop your vehicle and contact your Lexus dealer.
The brake system warning light may stay on for about 60
seconds after the ignition key is turned to the “ON” position. It
is normal if the light turns off after a while.
Depressing the brake pedal repeatedly may turn on the brake
system warning light and buzzer. It is normal if the light goes
out and the buzzer stops sounding after a few seconds.
