EXTERIOR EQUIPMENT
92
CAUTION
When you load cargo on the roof luggage carrier,
observe the following:
Place the cargo so that its weight is distributed
evenly between the front and rear axles.
 If loading long or wide cargo, never exceed the
vehicle overall length or width. (See “Specifications”
on page 459 for information on your vehicle overall
length and width.
 Before driving, make sure the cargo is securely
fastened on the roof luggage carrier.
 Loading cargo on the roof luggage carrier will make
the center of the vehicle gravity higher. Avoid high
speeds, sudden starts, sharp turns, sudden braking
or abrupt maneuvers, otherwise it may result in loss
of control or vehicle rollover due to failure to operate
this vehicle correctly.
 If driving for a long distance, on rough roads, or at
high speeds, stop the vehicle now and then during
the trip to make sure the cargo remains in its place.
 Do not exceed 58 kg (130 lb.) cargo weight on the roof
luggage carrier.
NOTICE
When loading the luggages, be careful not to scratch
the surface of the moon roof.
REAR STEP BUMPER
The rear step bumper is for rear end protection and easier
stepup loading.
CAUTION
Do not allow more than one person to get on the rear
step bumper at a time. It is designed for only one
person.
 Never drive the vehicle with anyone on the rear step
bumper.

COMFORT ADJUSTMENT
172The beep sound means that the positions are recorded in the
computer’s memory.
By repeating these two steps and pressing the remaining
button,
the driving position for another driver can be recorded.
To set a new memorized position, select the desired position
and perform step 2. The previous memory will be erased and
the new position will be set.
To make only slight changes to an already memorized position,
the easiest way is to first activate the memorized position, then
make the desired changes and perform step 2 above.
Recalling the memorized position
When you push button “1” or “2”, the driving position will
be automatically adjusted to the position recorded for that
button. Conditions for memorized position activation

Ignition key “ON” and selector lever in “P” position.
All parts of the memorized positions can be activated.
 Key not in ignition switch and within 30 seconds of opening
driver’s door.
The memorized position can be activated, except for the tilt
and telescopic steering.
If any driving position memory switch is pushed while one of the
memorized driving position profiles is being activated, the
operation will stop.
To activate the system, push the desired button (“1” or “2”)\
again.
The driving position memory control system cannot be
operated while the vehicle is moving.
If the vehicle’s battery is disconnected, the computer’s
memory will be erased and the memorized positions will have
to be set again.
CAUTION
 Do not start the vehicle while the adjustments are
being made.
 Take care not to select the wrong button, or the seat
could strike the rear passenger or hit your body
against the steering wheel. If this happens, you can
stop the movement by pressing another driving
position memory switch.

THEFT DETERRENT
176
Cancelling the system
When you unlock any door using an ignition key or
wireless remote control, the system is cancelled.
If you unlock any door with wireless remote control, the turn
signals flash twice.
Activating the system
The alarm sounds for 60 seconds if any of the following are
operated:
Unlocking any door without using an ignition key or wireless
remote control.
 Opening the hood and any doors forcibly.
 Reconnecting the battery.
If the battery becomes discharged due to the vehicle being
unused for a long time, etc., when the battery is recharged or
replaced, the system will give the alarm. If this happens,
immediately unlock any of th e doors with the key or the
wireless remote control, and the alarm will stop.
If any door is unlocked and the ignition key is not in the ignition
switch during the alarm sounding, its door is automatically
locked.
To stop the alarm: Use either of the following methods.
 Unlock the door using an ignition key or wireless remote
control.
 Turn the ignition switch on.
Testing the system
1. Open all the windows.
2. Set the system as described above.
The front doors should be locked with the ignition key or
wireless remote control. Be sure to wait until the indicator light
starts flashing.
3. Unlock one of the doors from the inside.
The system should activate the alarm.
4. Unlock any of the doors with a key or the wireless
remote control to cancel the system.
5. Repeat this operation for the other doors and hood.
When testing the hood, also check that the system is activated
when the battery terminal is disconnected and then
reconnected.
If the system does not work properly, have it checked by your
Lexus dealer.
NOTICE
Disconnecting the battery may result in the erasure of
information you have set in the computer memory. After
reconnecting the battery, check that the memorized
data has been retained. If it has been erased, input it into
the computer once more.

AUDIO
205
To recall a radio text message, push the “TEXT” button. Each
time you push the button, the available message will be
displayed beginning with the newest one.
If there is no radio text message in memory and when no
message is received, “NO MESSAGE” appears on the display.
After this, the display returns to the previous mode.
Cassette tape player operation
(a) Playing a cassette tape
When you insert a ca
ssette tape, the exposed tape should
face to the right.
The player will automatically start when you insert a cassette
tape. At this time, “TAPE” appears on the display.
To stop or eject the cassette tape, push the “EJECT” button.
Autoreverse feature: After the cassette player reaches the
end of a tape, it automatically reverses and begins to play the
other side, regardless of whether the cassette was playing or
fast forwarding.

AUDIO
226(b) Selecting a station
Tune in the desired station using one of the following methods.
Seek tuning: Push and hold the “” or “” (TUNE/TRACK)
button. The radio will begin seeking up or down for a station
of the nearest frequency and will stop on reception. Each time
you push the button, the stations will be searched out one after
another.
Manual tuning: Quickly push and release the “
” or “”
(TUNE/TRACK) button. The radio will step up or down to
another frequency.
To scan the preset stations: Push the “
” or “”
(DISC/CH/PROG) button. The radio will tune in the next preset
station up the band, stay there for a few seconds, and then
move to the next preset station. To select a station, push the
“SCAN” button a second time.
You can scan only the preset stations for the band of the front
audio system. (For instructions, see “(b) Presetting a station”\
on page 201.)
Cassette tape player operation
(a) Playing a cassette tape
Push the “ON/SOURCE” button to choose tape mode.
The player will automatically start. At this time, “TAPE”
appears on the display.
You can play a cassette tape when a cassette tape is loaded
in the front audio system.
Autoreverse feature: After the cassette player reaches the
end of a tape, it automatically reverses and begins to play the
other side, regardless of whether the cassette was playing or
fast forwarding.

STARTING AND DRIVING
302
HOW TO START THE ENGINE
Cranking hold function
Once you turn the ignition key to “START” position and release
it, the cranking hold function continues to crank the engine in
“ON” position until it starts.
The function stops cranking the engine after about 25 seconds
maximum if the engine has not started yet. When you crank
the engine again, wait a few seconds and restart it.
If you hold the key in “START” position, the function will keep
cranking for about 30 seconds maximum.
Before cranking
1. Apply the parking brake firmly.
2. Turn off unnecessary lights and accessories.
3. Put the selector lever in “P”. If you need to restart the engine
while the vehicle is moving, put the selector lever in “N”. A
starter safety device will prevent the starter from operating if
the selector lever is in any drive position.
4. Depress the brake pedal and hold it to the floor until driving
off.
Starting the engine
Before starting the engine, be sure to follow the instructions in
“Before cranking”.
Normal starting procedure
The multiport fuel injection system/sequential multiport fuel
injection system in your engine automatically controls the
proper air −fuel mixture for starting. You can start a cold or hot
engine as follows:
1. With your foot off the acce lerator pedal, turn the ignition key
to “START” position, then release it.
2. After the engine runs for about 10 seconds, you are ready
to drive.
If the weather is below freezing, let the engine warm up for a
few minutes before driving. Do not leave the vehicle while the
engine is warming up.
If the engine stalls ...
Simply restart it , using the correct procedure given in normal
starting.
If the engine will not start ...
See “If your vehicle will not start” on page 359.
NOTICE
 Do not race a cold engine.
 If the engine becomes difficult to start or stalls
frequently, have the engine checked immediately.

STARTING AND DRIVING
307
(c) Using the “3”, “2” and “L” positions
The “3”, “2” and “L” positions are used for strong engine\
braking
as described previously.
With the selector lever in “3”, “2” or “L”, you can start the vehicle
in motion as with the lever in “D”.
With the selector lever in “3” or “2”, the vehicle will start in firs\
t
gear and automatically shift to second gear.
With the selector lever in “L”, the transmission is engaged in
first gear.
NOTICE
 Be careful not to overrev the engine. Watch the
tachometer to keep engine rpm from going into the
red zone. The approximate maximum allowable
speed for each position is given below for your
reference:
Transmission Transfer
“L” “H”
“3” 53 km/h (33 mph) 136 km/h (85 mph)
“2” 36 km/h (22 mph) 93 km/h (58 mph)
“L” 21 km/h (13 mph) 54 km/h (33 mph)
 Do not continue hill climbing or hard towing for a long
time in the “3”, “2” or “L” position. This may cause
severe automatic transmission damage from
overheating. To prevent such damage, “4” position
should be used in hill climbing or hard towing.
(d) Backing up
 1 Brake pedal 2 “R” (Reverse) position
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with your foot, shift the
selector lever to the “R” position.
NOTICE
Never shift into reverse while the vehicle is moving.
When the shift lever is shifted into “R” position, the outside rear
view mirrors automatically down to help backing up. For
details, see page 116.

STARTING AND DRIVING
308

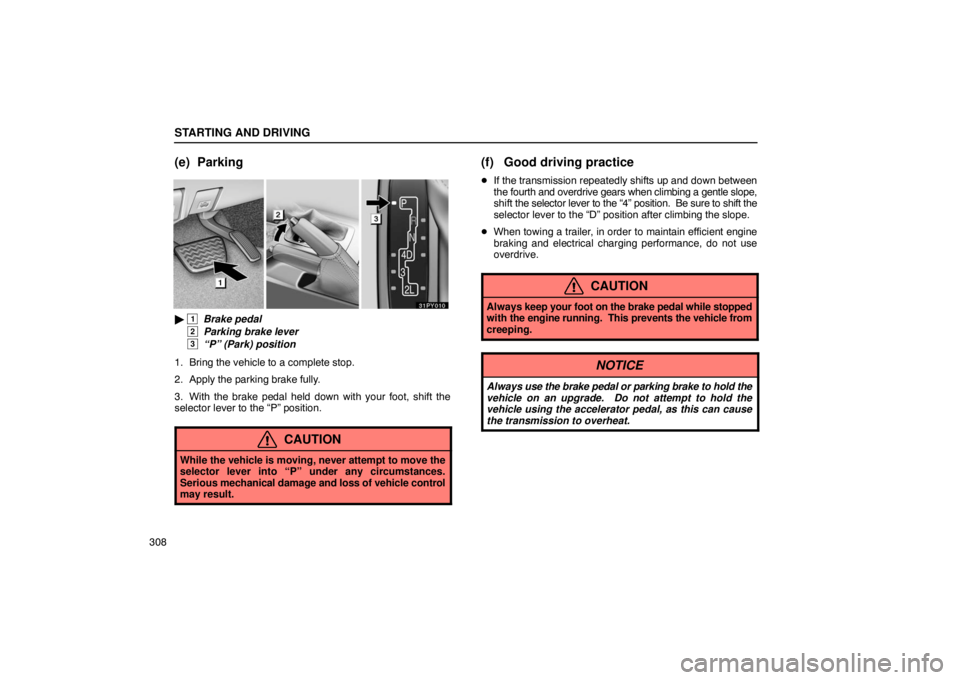

(e) Parking
 1 Brake pedal

2 Parking brake lever

3 “P” (Park) position
1. Bring the vehicle to a complete stop.
2. Apply the parking brake fully.
3. With the brake pedal held down with your foot, shift the
selector lever to the “P” position.
CAUTION
While the vehicle is moving, never attempt to move the
selector lever into “P” under any circumstances.
Serious mechanical damage and loss of vehicle control
may result.
(f) Good driving practice
 If the transmission repeatedly shifts up and down between
the fourth and overdrive gears when climbing a gentle slope,
shift the selector lever to the “4” position. Be sure to shift the
selector lever to the “D” position after climbing the slope.
 When towing a trailer, in order to maintain efficient engine
braking and electrical charging performance, do not use
overdrive.
CAUTION
Always keep your foot on the brake pedal while stopped
with the engine running. This prevents the vehicle from
creeping.
NOTICE
Always use the brake pedal or parking brake to hold the
vehicle on an upgrade. Do not attempt to hold the
vehicle using the accelerator pedal, as this can cause
the transmission to overheat.

STARTING AND DRIVING
310
NOTICE
As soon as the center differential lock switch is turned
on, the “VSC OFF” indicator light comes on. After the
wheels are out of the ditch or off the slippery or bumpy
surface, turn the center differential lock switch off.
Make sure the center differential lock indicator light and
vehicle skid control system off indicator light turn off.
“H” (high speed position, center differential unlocked):
Lever at “H”, center differential lock button left out
Use this for normal driving on all types of roads, from dry
hard−surfaced roads to wet, icy or snow −covered roads. This
position gives greater economy, quietest ride, least wear and
better vehicle control.
“H” (high speed position, center differential locked):
Lever at “H”, center differential lock button pushed in
Use this for greater traction when you experience a loss of
power, such as wheel slipping, in the center dif ferential unlock
mode.
“N” (neutral position): Lever at “N”
No power is delivered to the wheels. The vehicle must be
stopped. “L” (low speed position, center differential unlocked):
Lever at “L”, center differential lock button left out
Use this for maximum power and traction. Use this for climbing
or descending steep hills, off
−road driving, and hard pulling in
sand or mud.
In this mode, the braking feeling that occurs when the wheels
are negotiating a sharp corner is further reduced than in the “L”
(low position, center differential locked) mode.
“L” (low speed position, center differential locked): Lever
at “L”, center differential lock button pushed in
Use this for maximum power and traction. Use this for hard
pulling in situations the vehicle cannot negotiate even in the “L”
(low speed position, center differential unlocked) mode. Also,
using this mode when driving down steep off −road inclines will
help contribute to increased vehicle stability.
The indicator light tells when the differential lock is engaged.
Note that the differential is not still locked as long as the
indicator light remains off.
When the operation is not completed, the indicator blinks. If the
indicator light does not go off when you push out the center
differential lock switch, drive straight ahead while accelerating
or decelerating, or drive in reverse.
The center differential lock system operation is not completed
within 5 seconds while the cruise control system is set, cancel
the cruise control system. To cancel the cruise control system,
see “Cruise control” on page 312.
If the indicator light does not go off when you push out the
center differential lock button, drive straight ahead while
accelerating or decelerating, or drive in reverse.

STARTING AND DRIVING
311
See “(b) Shifting procedure” for further instructions.
Advice for driving on slippery roads in “L” (low speed
position) mode
If you shift the four−wheel drive control lever to “L”, the
automatic transmission lever to “2” when you drive in steep
off−road areas, the output of the brake can be controlled
effectively by the active traction control system, which assists
the driver to control the driving power of 4 wheels.
Use the “L” position of the automatic transmission lever for
maximum power and traction when your wheels get stuck or
when you drive down a steep incline. In the following cases,
the out put of the brake can be controlled by the active traction
control system if the engine speed is under 3,000 rpm
(normally engine speed is under 3,000 rpm when the wheels
get unstuck).
 The four− wheel drive control lever in the “L” position and the
automatic transmission lever in the “L” position or the
automatic transmission lever in the “D” or “2” with the
transmission downshifting to the first gear.
 The four− wheel drive control lever in the “L” position and the
automatic transmission lever in the “R” position
(As for the automatic transmission lever positions, see
“Automatic transmission” on page 303.)
(b) Shifting procedure
To shift between unlock and lock modes in “H”, push the
center differential lock button.
To shift between unlock and lock modes in “L”, push the
center differential lock button.
To shift between “H” and “L”, stop the vehicle, put the
transmission into “N” and move the four −wheel drive control
lever.
CAUTION
Never move the fourwheel drive control lever if wheels
are slipping. Stop the slipping or spinning before
shifting.
NOTICE
For normal driving on dry and hard surface roads,
unlock the center differential. To prevent damage to the
center differential lock system, do not push the center
differential lock button when the vehicle is cornering or
when its wheels are spinning freely of f the ground. If the
indicator light does not go off when unlocking the
center differential, drive straight ahead while
accelerating or decelerating, or drive in reverse.
