Lexus GX470 2004 Engine / LEXUS 2004 GX470 FROM JAN. 2004 THROUGH JUL. 2004 PROD. (OM60A87U) Owner's Guide

Seat position
Head restraint angle
Head restraint height Lumbar supportSeatback angle
Seat cushion height
Seat cushion angle


TILT STEERING WHEEL

TELESCOPIC STEERING WHEEL
To tilt the steering wheel up or down to the desired angle, push
the control switch in the required direction and release the
button when the steering wheel reaches the desired angle.
To move the steering wheel to the desired position, push the
control switch away from you or pull it toward you until the
steering wheel reaches the desired position.
BPY0 20
(7.2/5.5)
BPY0 21
(7.2/59.5)
QUICK REFERENCE
2
1. DRIVER'S SEAT 2. STEERING WHEEL

BPY011
BPY019

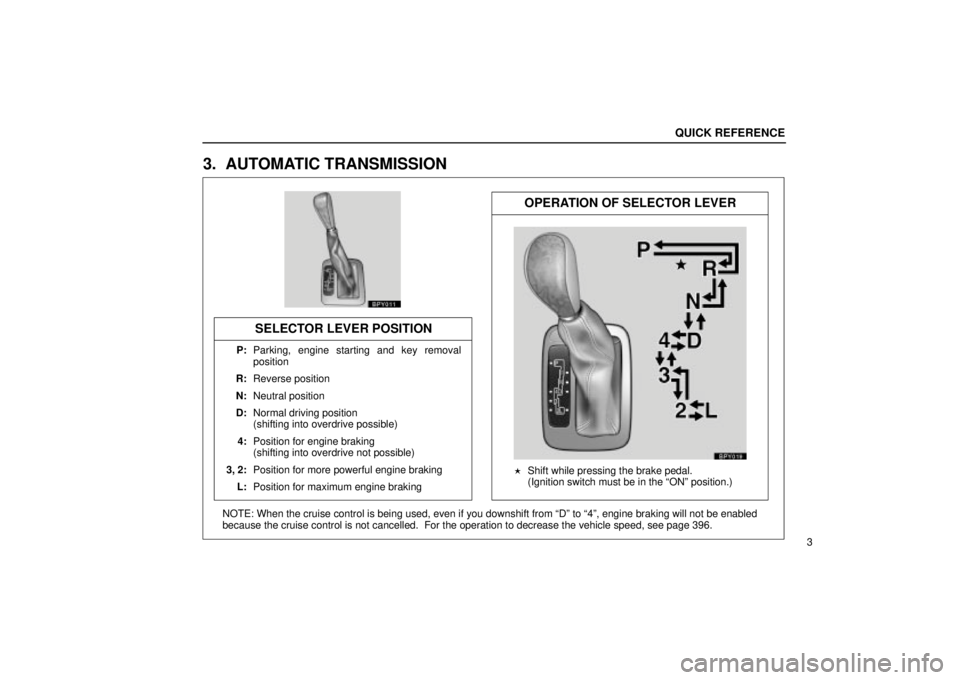

Shift while pressing the brake pedal.
(Ignition switch must be in the ONº position.)
OPERATION OF SELECTOR LEVER
SELECTOR LEVER POSITION
P: Parking, engine starting and key removal
position
R: Reverse position
N: Neutral position
D: Normal driving position
(shifting into overdrive possible)
4: Position for engine braking
(shifting into overdrive not possible)
3, 2: Position for more powerful engine braking
L: Position for maximum engine braking
NOTE: When the cruise control is being used, even if you downshift from \
Dº to 4º, engine braking will not be enabled
because the cruise control is not cancelled. For the operation to decre\
ase the vehicle speed, see page 396.
QUICK REFERENCE
3
3. AUTOMATIC TRANSMISSION

BPY006
BPY004
Parking, tail, license plate,
side marker and instrument
panel lights turn on.

HEADLIGHT SWITCH
Automatic light control Headlights also turn on.
High beam
Headlight flasher
Right or left turn
Lane change (right or left)

TURN SIGNAL SWITCH
QUICK REFERENCE
4
4. HEADLIGHT AND TURN SIGNAL
SWITCH

Front
Intermittent operation
Washer on
Intermittent operational type
1Low speed operation
2High speed operation
Automatic operation
Washer on
Raindrop detection type
1Low speed operation
2High speed operation
QUICK REFERENCE
5
5. WIPER SWITCH

Rear
3Wiper on
(intermittent operation)
4Wiper on
(normal operation)
5Washer also on
6Washer on
QUICK REFERENCE
6

SECTION 1 ± 1
7
INSTRUMENTS AND CONTROLS
Keys and doors
Keys8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobilizer system 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back door 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft deterrent system 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . .

KEYS AND DOORS
8
KEYS
1Master keys (black) Ð These keys work in every lock.
For your Lexus dealer to make a new key with a
built-in transponder chip, your dealer will need one
of them.
2Sub key (gray) Ð This key will not open the glove box.
3Key number plate Ð Keep the plate in a safe place
such as your wallet, not in the vehicle.
A transponder chip for the engine immobilizer system has been
placed in the head of the master and sub keys. These chips
are required for the system to function correctly, so be careful
not to lose these keys. If you make your own duplicate key, you
will not be able to cancel the system or start the engine.
To protect items locked in the glove box when using valet
parking, leave the sub key with the attendant. Since the side doors and back door can be locked without a
key, you should always carry a spare master key in case you
accidentally lock your keys inside the vehicle.
If you should lose your keys or if you need additional keys,
duplicates can be made by a Lexus dealer using the key
number.
We recommend writing down the key number and storing it in
a safe place.

KEYS AND DOORS
9
Flat key
As a transponder chip is built in its key case, you can start
the engine with this key.
The flat key works in every lock.
A transponder chip for the engine immobilizer system has been
placed in the key case of the flat key. This chip is required for
the system to function correctly, so be careful not to lose this
key. If you make your own duplicate key, you will not be able
to cancel the system or start the engine.
Insert your key plate in its key case as shown. We recommend
that you always carry this with you for emergency use. Do not
leave it in your vehicle.
Starting the engine using a flat key
1. Remove the key plate from the key case.
2. Insert the key plate into the ignition switch. The indicator
light keeps flashing.
3. Bring the key case closer to the ignition switch within 10
seconds as indicated by the arrow head. The indicator light
goes out. This means the engine immobilizer system is
automatically canceled. (For details, see Engine immobilizer
systemº on page 14.) You can put the key case away then. You
cannot cancel the engine immobilizer system if 10 seconds
have past after you inse rted the key plate. You need to remove
the key plate from the ignition switch and try it again from the
step 2.

KEYS AND DOORS
104. Start the engine within 60 seconds after the security
indicator light goes out. You cannot start the engine if 60
seconds
have passed after the security indicator went off. You
need to remove the key plate from the ignition switch and try
it again from the step 2.
NOTICE

Do not let the key case become bent as the key plate may fall out or become bent also.

The flat key is designed for emergency use only.

KEYS AND DOORS
11
When using a key containing a transponder chip,observe the following precautions:

When starting the engine, do not use the key with akey ring resting on the key grip and do not press thekey ring against the key grip. Doing so may preventthe engine from starting, or may cause the engine tostop soon after it starts.
