OCCUPANT RESTRAINT SYSTEMS
140
CAUTION
When folding up the third seats, fix the seats securely
by adjusting the length of the holding strap. Failure to
do so may cause an unexpected injury in the event of
emergency braking or collision.
When the third seat to its original position, stow the holding
straps into the holders facing the direction shown in the
illustration.
To return them to the original positions, reverse the steps
above.
CAUTION
When returning the seats to their original position,
observe the following precautions in order to prevent
personal injury in a collision or sudden stop:
Be careful not get your hands or feet pinched in the
seat.
 Make sure the seats are securely locked by pushing
forward and rearward on the top of the seatbacks or
by trying to pull up the edge of the bottom cushions.
Failure to do so will prevent the seat belt from
operating properly.
 Make sure the seat belts are not twisted or caught
under the seat and are arranged in their proper
position and are ready to use.

OCCUPANT RESTRAINT SYSTEMS
141
Removing third seats
Stow the rear seat belt buckles as shown above.

Seat belt hanger
For the outer seat belts, use the seat belt hangers to
prevent the belts from being tangled.
For the center seat belt, stow the seat belt tabs into the
cover of the roof as shown above.

OCCUPANT RESTRAINT SYSTEMS
142Make sure the tabs are securely locked in the cover.

OCCUPANT RESTRAINT SYSTEMS
143
To release the concave end tab, see page 156 for instructions.
NOTICE
The seat belts and the buckles must be stowed before
you remove the seats.
1. Lower the outboard head restraints to the lowest
position and remove the center head restraint.2. Unfasten the zippers behind the right side seatback and
stow the center head restraint into the seatback.

OCCUPANT RESTRAINT SYSTEMS
144
3. Unlock the seatbacks by pushing the lock release
levers forward and fold them down.
4. Unlock the seat legs by pulling the seat leg lock release
knobs, and lift the whole seats. Retract the seat legs, then
place the seats on the floor.

OCCUPANT RESTRAINT SYSTEMS
145
5. Remove the seat lock cover and push the seat lock
release knobs, then pull up the whole seats and remove
them. After removing the seats, reinstall the seat lock
cover.
NOTICE
Avoid putting heavy loads on the removed seats. Themetallic tips of the seat legs may be damaged and theseats cannot be reinstalled.

OCCUPANT RESTRAINT SYSTEMS
146To return them to the original positions, reverse the steps
above.
CAUTION
When removing or reinstalling the seats, observe the
following to prevent personal injury:

Do not remove or reinstall the seats while the vehicle
is moving.
 Be careful not to get your hands or feet pinched in the
seats.
 Be careful not to hit the removed seats against a
person or drop it on yourself.
 Do not try to sit on or place anything on the removed
seat.
To prevent personal injury in a collision or sudden stop:
Do not sit on or place anything on the folded seatback
while driving.
 Do not leave the removed seat loose in the vehicle.
 After reinstalling the seats, make sure the seats are
securely locked by pushing forward and rearward on
the top of the seatbacks or by trying to pull up the
edge of the bottom cushions. Failure to do so will
prevent the seat belt from operating properly.
 Install each seat in the same position from which it
was removed. Failure to do so will prevent third seat
occupants from using seat belts properly.
 Make sure the seat belts are not twisted or caught
under the seat and are arranged in their proper
position and are ready to use.

OCCUPANT RESTRAINT SYSTEMS
147
HEAD RESTRAINTS
For your safety and comfort, adjust the head restraint
before driving.

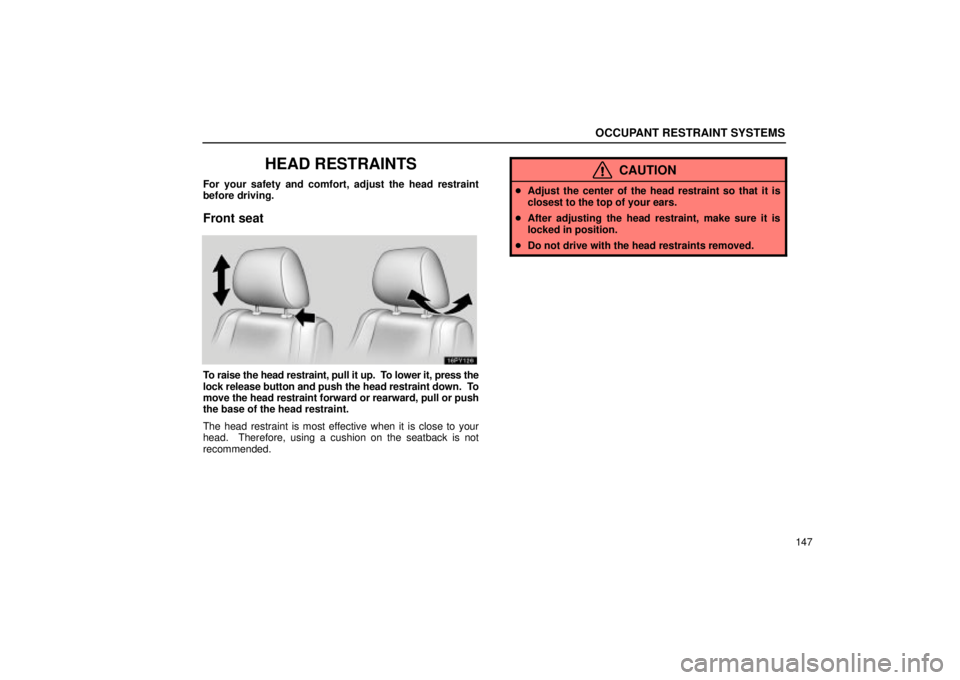

Front seat
To raise the head restraint, pull it up. To lower it, press the
lock release button and push the head restraint down. To
move the head restraint forward or rearward, pull or push
the base of the head restraint.
The head restraint is most effective when it is close to your
head. Therefore, using a cushion on the seatback is not
recommended.
CAUTION
Adjust the center of the head restraint so that it is
closest to the top of your ears.
 After adjusting the head restraint, make sure it is
locked in position.
 Do not drive with the head restraints removed.

OCCUPANT RESTRAINT SYSTEMS
148
Second and third seats
To raise the head restraint, pull it up. To lower it, press the
lock release button and push the head restraint down.
Second center head restraint: When an occupant sits on the
second center seat, always pull up the head restraint to the lock
position.
The head restraint is most effective when it is close to your
head. Therefore, using a cushion on the seatback is not
recommended.
CAUTION
 Adjust the center of the head restraint so that it is
closest to the top of your ears.
 After adjusting the head restraint, make sure it is
locked in position.
 Do not drive with the head restraints removed.
Stowing the third center head restraint
The third center head restraint can be stowed in the right
side third seatback when they are not in use.
To stow the head restraint, unfasten the zippers behind
the seatback and stow it into the seatback.

OCCUPANT RESTRAINT SYSTEMS
149
ARMRESTS
Front seats
To use the armrest, lower the armrest to the lowest
position and raise it to the desired angle. Raising the
armrest to the highest position unlocks the armrest to let
you return it to the lowest position.
NOTICE
To prevent damage to the armrest, avoid putting heavyloads on it.
