Lexus GX470 2005 Pictorial Index / LEXUS 2005 GX470 OWNER'S MANUAL (OM60B11U)

INTERIOR EQUIPMENT
11 0
TIE±DOWN HOOKSTo secure your luggage, use the tie±down hooks as shown
above.
See ªStowage precautionsº on page 485 for precautions when
loading luggage.
NOTICE
Do not use the third seat anchors instead of thetie±down hooks.

SECTION 1 ± 5
111
INSTRUMENTS AND CONTROLS
Exterior equipment
Hood11 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap 11 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Moon roof 11 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quarter windows 11 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Roof luggage carrier 120
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear step bumper 123
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

EXTERIOR EQUIPMENT
11 2
HOOD
1. To open the hood, pull the hood lock release lever under
the instrument panel. The hood will spring up slightly.
2. Insert your fingers under the hood, push up the
auxiliary catch lever and lift the hood.
Before closing the hood, check to see that you have not
forgotten any tools, rags, etc. Then lower the hood and make
sure it locks.
CAUTION
Before driving, be sure that the hood is closed and
securely locked. Otherwise, the hood may open
unexpectedly while driving and an accident may occur.

EXTERIOR EQUIPMENT
11 3
FUEL TANK CAP
This indicates that the fuel filler door is on the left side of
your vehicle.
1. To open the fuel filler door, pull the lever under the
instrument panel.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or allow open flames
when refuelling. The fumes are flammable.
 When opening the cap, do not remove the cap
quickly. In hot weather, fuel under pressure could
cause injury by spraying out of the filler neck if the
cap is suddenly removed.

EXTERIOR EQUIPMENT
11 4
2. To remove the fuel tank cap, turn the cap
counterclockwise by 90 degrees (to the pressure point
1), and then turn it an additional 30 degrees (to point
2). Pause slightly before removing it.
It is not unusual to hear a slight swoosh when the cap is
opened.
15PY017
3. The removed cap can be stored on the back side of the
fuel filler door.
Position the cap so that the hooks point to the left and right or
up and down, and set it in the receptacle on the back side of
the door.

EXTERIOR EQUIPMENT
11 5
When installing the cap, turn the cap clockwise until you
hear a click. When you hear the click, the cap is fully
closed.
If the cap is not tightened securely, the malfunction indicator
lamp comes on. Make sure the cap is tightened securely.
The indicator lamp goes off after driving several times. If the
indicator lamp does not go off, contact your Lexus dealer as
soon as possible.
CAUTION

Make sure the cap is installed securely to prevent fuel
spillage in the event of an accident.
 Use only a genuine Lexus fuel tank cap for
replacement. It is designed to regulate fuel tank
pressure.
NOTICE
To prevent damage to the cap, apply force only in the
turning direction to the cap. Do not pull or pry it.

EXTERIOR EQUIPMENT
11 6

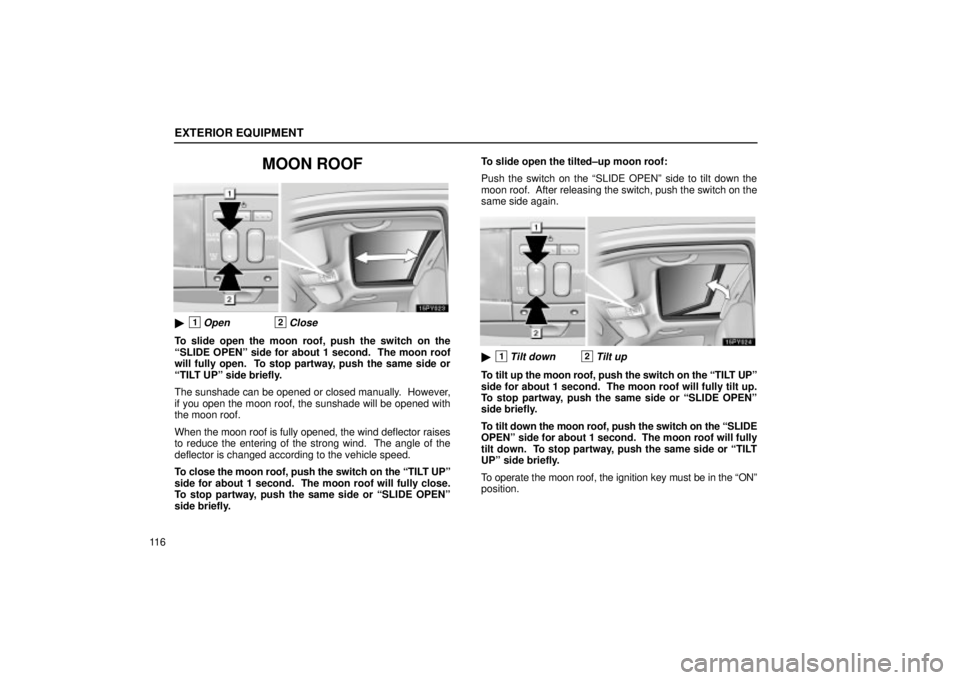

MOON ROOF

1Open2Close
To slide open the moon roof, push the switch on the
ªSLIDE OPENº side for about 1 second. The moon roof
will fully open. To stop partway, push the same side or
ªTILT UPº side briefly.
The sunshade can be opened or closed manually. However,
if you open the moon roof, the sunshade will be opened with
the moon roof.
When the moon roof is fully opened, the wind deflector raises
to reduce the entering of the strong wind. The angle of the
deflector is changed according to the vehicle speed.
To close the moon roof, push the switch on the ªTILT UPº
side for about 1 second. The moon roof will fully close.
To stop partway, push the same side or ªSLIDE OPENº
side briefly.To slide open the tilted±up moon roof:
Push the switch on the ªSLIDE OPENº side to tilt down the
moon roof. After releasing the switch, push the switch on the
same side again.

1Tilt down2Tilt up
To tilt up the moon roof, push the switch on the ªTILT UPº
side for about 1 second. The moon roof will fully tilt up.
To stop partway, push the same side or ªSLIDE OPENº
side briefly.
To tilt down the moon roof, push the switch on the ªSLIDE
OPENº side for about 1 second. The moon roof will fully
tilt down. To stop partway, push the same side or ªTILT
UPº side briefly.
To operate the moon roof, the ignition key must be in the ªONº
position.

EXTERIOR EQUIPMENT
11 7
Key off operation:
Even if the ignition key is turned to the
ªACCº or ªLOCKº position, the moon roof can be operated until
a front door is opened (or for 43 seconds).
To tilt up the slide±opened moon roof:
Push the switch on the ªTILT UPº side to close the moon roof
fully. After releasing the switch, push the switch on the same
side again.
Operating the moon roof from outside the
vehicle
The moon roof can be operated using an ignition key.*
NOTE: * This feature can be deactivate.Ask your Lexus dealer for details.

Close
Open
Insert the ignition key into the key hole on the driver's
door.
To close the moon roof: Turn the key in the locking direction
and hold it.
To open the moon roof: Turn the key in the unlocking
direction and hold it.
After the door is unlocked, the moon roof begins to open. To
stop in the middle, return the key.

EXTERIOR EQUIPMENT
11 8The moon roof also can be opened using the wireless remote
control. For details, see page 19.
Jam protection function

If something gets caught between the moon roof and frame
during slide closing operation, the moon roof stops and
opens half way, and the deflector stops and raises fully.
 If something gets caught between the moon roof and frame
during tilting down operation, the moon roof stops and
opens fully.
If the moon roof receives a strong impact, this function may
work even if nothing is caught.
If the battery is disconnected or run down
The moon roof may not operate automatically and the jam
protection function will not function correctly after you
reconnect, replace or recharge the battery. In any of these
cases, you should normalize the moon roof.
To normalize the moon roof, push and hold the switch on the
ªTILT UPº side until the moon roof tilts all the way up and then
tilts down a little automatically.
Make sure that the moon roof opens and closes automatically.
If the moon roof cannot be operated properly, have it checked
by your Lexus dealer.
CAUTION
To avoid serious personal injury, you must do the
following.
 While the vehicle is moving, always keep the heads,
hands and other parts of the bodies of all occupants
away from the roof opening. Otherwise, they could
be seriously injured if the vehicle stops suddenly or
if the vehicle is involved in an accident.
 Before you close the moon roof, always make sure
there is nobody around the moon roof. You must also
make sure nobody places his or her head, hands and
other parts of the body in the roof opening. If
someone's neck, head or hands get caught in the
closing roof, it could result in death or serious injury.
When anyone closes the moon roof, first make sure
it is safe to do so.
 Be sure to remove the ignition key when you leave
your vehicle.
 Never leave anyone (particularly a small child) alone
in your vehicle, especially with the ignition key still
inserted. Otherwise, he/she could use the moon roof
switch and get trapped in the roof opening.
Unattended p erson (particularly a small child) can be
involved in a serious accident.
 Never sit on top of the vehicle around the roof
opening.

EXTERIOR EQUIPMENT
11 9
Never try jamming any part of your body to activate
the jam protection function intentionally.
 The jam protection function may not work if
something gets caught just before the moon roof
fully closed.QUARTER WINDOWS
To open the quarter windows, pull the latch handles
toward you and swing it fully out.
When closing the windows, make sure there are completely
closed.
