EXTERIOR EQUIPMENT
11 0

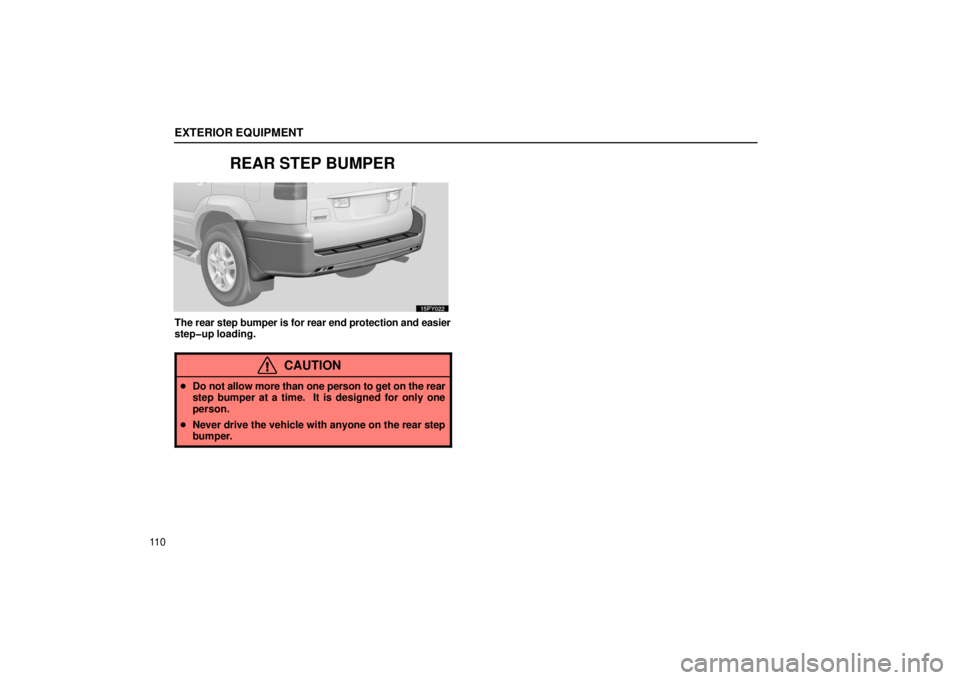

REAR STEP BUMPER
The rear step bumper is for rear end protection and easier
stepup loading.
CAUTION
Do not allow more than one person to get on the rear
step bumper at a time. It is designed for only one
person.
 Never drive the vehicle with anyone on the rear step
bumper.

SECTION 1 – 6
111
INSTRUMENTS AND CONTROLS
Occupant restraint systems
Seats11 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . .
Front seats 11 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Rear seats 11 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Head restraints 128
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Armrests 130
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Seat belts 131
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
SRS driver airbag and front passenger airbag 146
. . . . . . . . . . . . . . . .
SRS side airbags and curtain shield airbags 156
. . . . . . . . . . . . . . . . .
Front passenger occupant classification system 168
. . . . . . . . . . . . . .
Roll sensing of curtain shield airbags off switch 174
. . . . . . . . . . . . . .
Child restraint 175
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Driving position memory system 198
. . . . . . . . . . . . . . . . . . . . . . . . . . .

OCCUPANT RESTRAINT SYSTEMS
11 2
SEATS
While the vehicle is being driven, all vehicle occupants should
have the seatback upright, sit well back in the seat and properly
wear the seat belts provided.

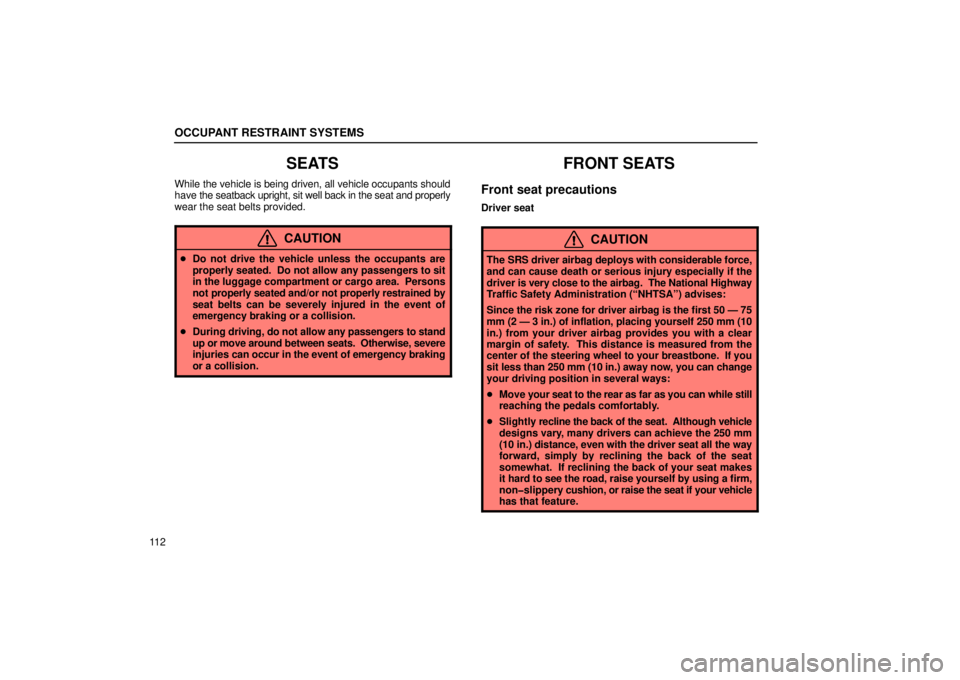

CAUTION
 Do not drive the vehicle unless the occupants are
properly seated. Do not allow any passengers to sit
in the luggage compartment or cargo area. Persons
not properly seated and/or not properly restrained by
seat belts can be severely injured in the event of
emergency braking or a collision.
 During driving, do not allow any passengers to stand
up or move around between seats. Otherwise, severe
injuries can occur in the event of emergency braking
or a collision.
FRONT SEATS
Front seat precautions
Driver seat
CAUTION
The SRS driver airbag deploys with considerable force,
and can cause death or serious injury especially if the
driver is very close to the airbag. The National Highway
Traffic Safety Administration (“NHTSA”) advises:
Since the risk zone for driver airbag is the first 50 — 75
mm (2 — 3 in.) of inflation, placing yourself 250 mm (10
in.) from your driver airbag provides you with a clear
margin of safety. This distance is measured from the
center of the steering wheel to your breastbone. If you
sit less than 250 mm (10 in.) away now, you can change
your driving position in several ways:
 Move your seat to the rear as far as you can while still
reaching the pedals comfortably.
 Slightly recline the back of the seat. Although vehicle
designs vary, many drivers can achieve the 250 mm
(10 in.) distance, even with the driver seat all the way
forward, simply by reclining the back of the seat
somewhat. If reclining the back of your seat makes
it hard to see the road, raise yourself by using a firm,
nonslippery cushion, or raise the seat if your vehicle
has that feature.

OCCUPANT RESTRAINT SYSTEMS
11 3

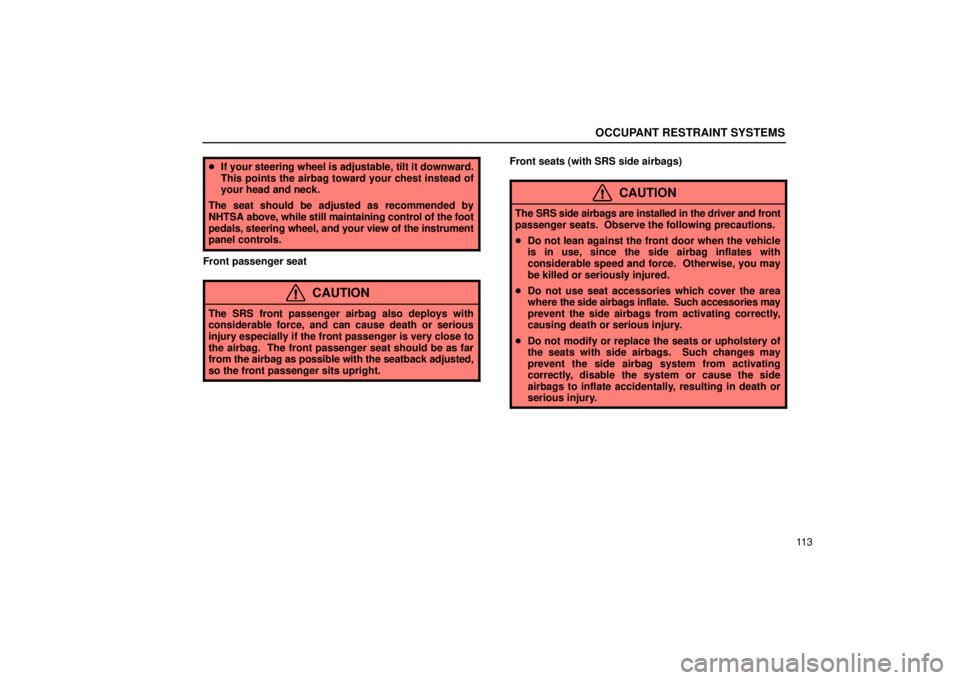

If your steering wheel is adjustable, tilt it downward.
This points the airbag toward your chest instead of
your head and neck.
The seat should be adjusted as recommended by
NHTSA above, while still maintaining control of the foot
pedals, steering wheel, and your view of the instrument
panel controls.
Front passenger seat
CAUTION
The SRS front passenger airbag also deploys with
considerable force, and can cause death or serious
injury especially if the front passenger is very close to
the airbag. The front passenger seat should be as far
from the airbag as possible with the seatback adjusted,
so the front passenger sits upright.
Front seats (with SRS side airbags)
CAUTION
The SRS side airbags are installed in the driver and front
passenger seats. Observe the following precautions.
 Do not lean against the front door when the vehicle
is in use, since the side airbag inflates with
considerable speed and force. Otherwise, you may
be killed or seriously injured.
 Do not use seat accessories which cover the area
where the side airbags inflate. Such accessories may
prevent the side airbags from activating correctly,
causing death or serious injury.
 Do not modify or replace the seats or upholstery of
the seats with side airbags. Such changes may
prevent the side airbag system from activating
correctly, disable the system or cause the side
airbags to inflate accidentally, resulting in death or
serious injury.

OCCUPANT RESTRAINT SYSTEMS
11 4
Seat adjustment precautions
CAUTION
Do not adjust the seat while the vehicle is moving as
the seat may unexpectedly move and cause the
driver to lose control of the vehicle.
 Be careful that the seat does not hit a passenger,
luggage or the rear seat.
NOTICE
Do not operate the control switch in more than one
dimension at a time. It may cause electrical overload.

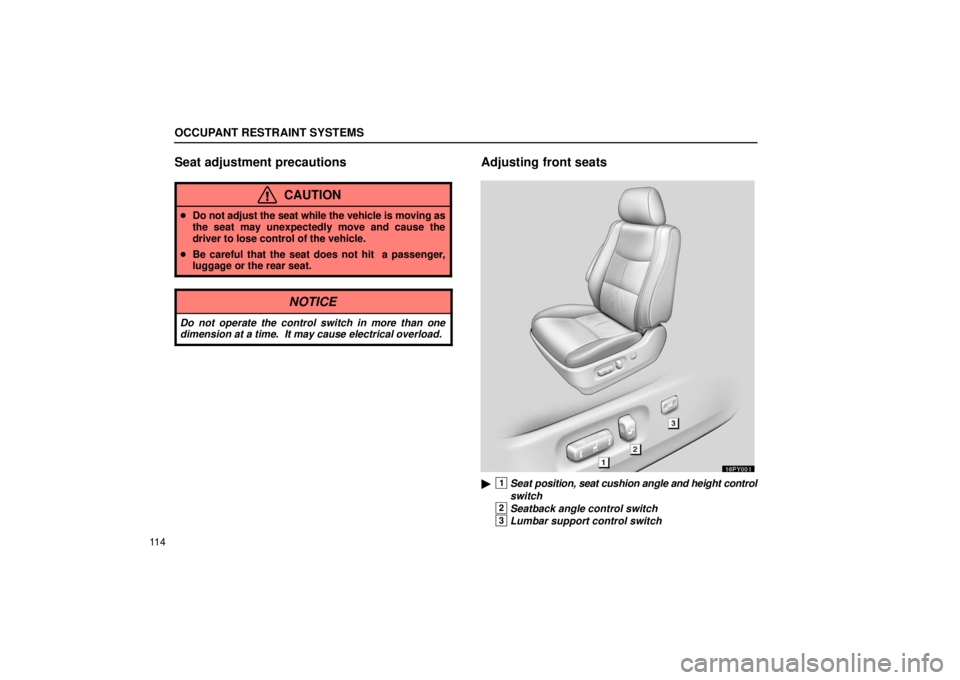

Adjusting front seats

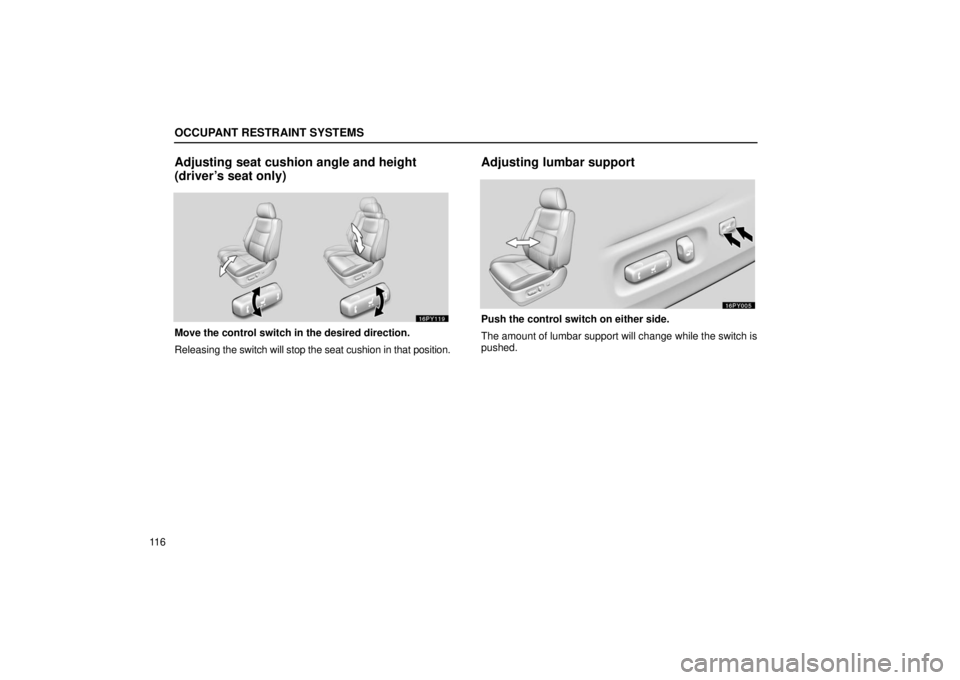

16PY001
1Seat position, seat cushion angle and height control
switch
2Seatback angle control switch
3Lumbar support control switch

OCCUPANT RESTRAINT SYSTEMS
11 5

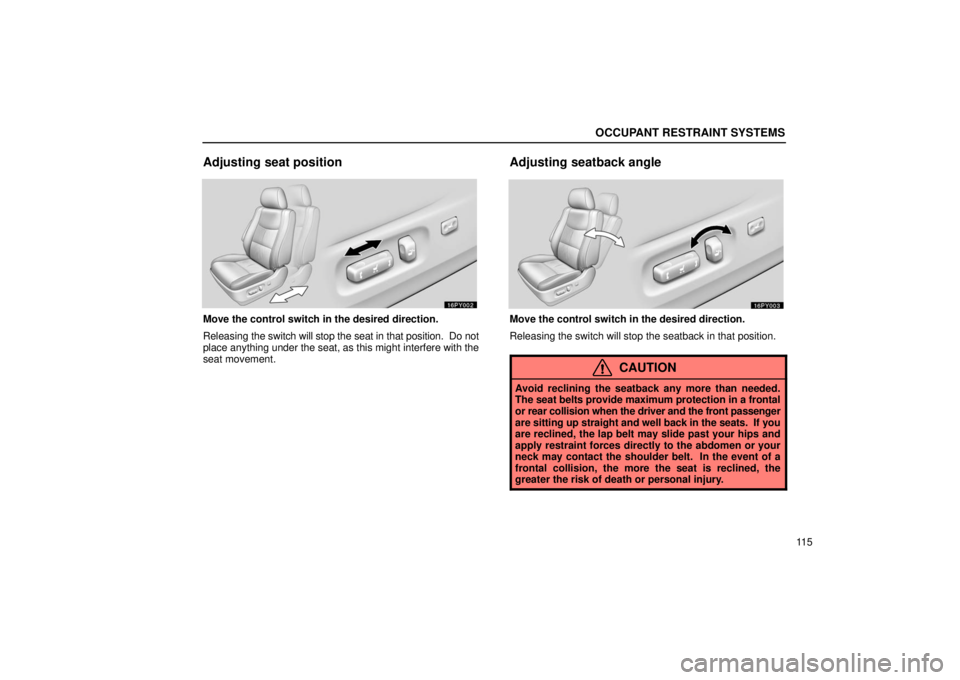

Adjusting seat position
Move the control switch in the desired direction.
Releasing the switch will stop the seat in that position. Do not
place anything under the seat, as this might interfere with the
seat movement.
Adjusting seatback angle
Move the control switch in the desired direction.
Releasing the switch will stop the seatback in that position.
CAUTION
Avoid reclining the seatback any more than needed.
The seat belts provide maximum protection in a frontal
or rear collision when the driver and the front passenger
are sitting up straight and well back in the seats. If you
are reclined, the lap belt may slide past your hips and
apply restraint forces directly to the abdomen or your
neck may contact the shoulder belt. In the event of a
frontal collision, the more the seat is reclined, the
greater the risk of death or personal injury.

OCCUPANT RESTRAINT SYSTEMS
11 6
Adjusting seat cushion angle and height
(driver’s seat only)
Move the control switch in the desired direction.
Releasing the switch will stop the seat cushion in that position.
Adjusting lumbar support
Push the control switch on either side.
The amount of lumbar support will change while the switch is
pushed.

OCCUPANT RESTRAINT SYSTEMS
11 7
REAR SEATS

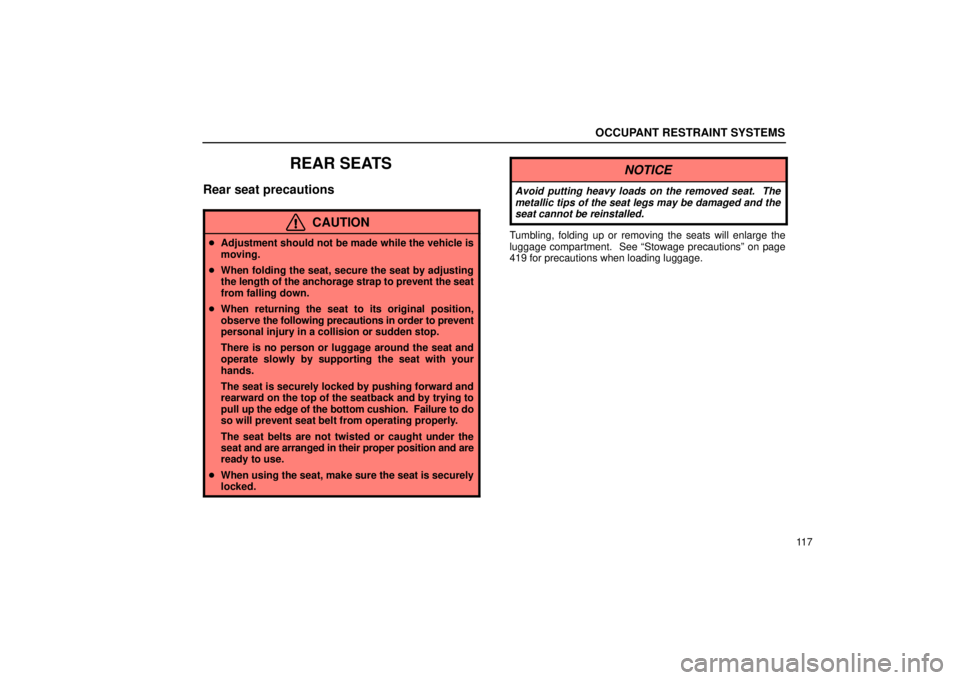

Rear seat precautions
CAUTION
Adjustment should not be made while the vehicle is
moving.
 When folding the seat, secure the seat by adjusting
the length of the anchorage strap to prevent the seat
from falling down.
 When returning the seat to its original position,
observe the following precautions in order to prevent
personal injury in a collision or sudden stop.
There is no person or luggage around the seat and
operate slowly by supporting the seat with your
hands.
The seat is securely locked by pushing forward and
rearward on the top of the seatback and by trying to
pull up the edge of the bottom cushion. Failure to do
so will prevent seat belt from operating properly.
The seat belts are not twisted or caught under the
seat and are arranged in their proper position and are
ready to use.
 When using the seat, make sure the seat is securely
locked.
NOTICE
Avoid putting heavy loads on the removed seat. The
metallic tips of the seat legs may be damaged and the
seat cannot be reinstalled.
Tumbling, folding up or removing the seats will enlarge the
luggage compartment. See “Stowage precautions” on page
419 for precautions when loading luggage.

OCCUPANT RESTRAINT SYSTEMS
11 8

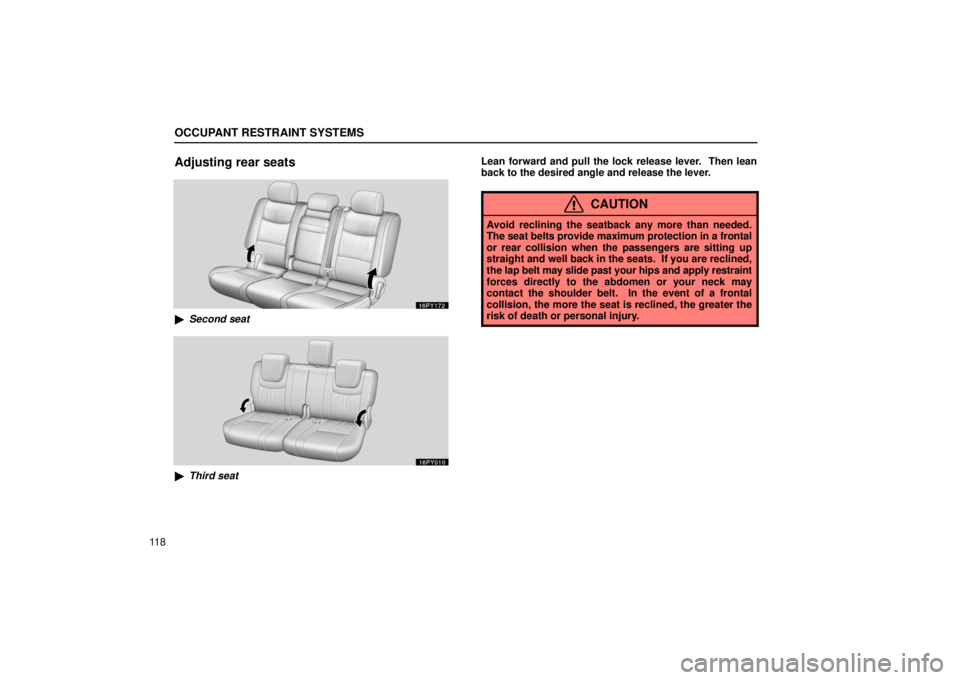

Adjusting rear seats
Second seat
Third seat Lean forward and pull the lock release lever. Then lean
back to the desired angle and release the lever.
CAUTION
Avoid reclining the seatback any more than needed.
The seat belts provide maximum protection in a frontal
or rear collision when the passengers are sitting up
straight and well back in the seats. If you are reclined,
the lap belt may slide past your hips and apply restraint
forces directly to the abdomen or your neck may
contact the shoulder belt. In the event of a frontal
collision, the more the seat is reclined, the greater the
risk of death or personal injury.

OCCUPANT RESTRAINT SYSTEMS
11 9
Tumbling second seat (for third seat entry)
Vehicles with third seat: For easy access to the third seat,
tumble the second seat in accordance with the following
procedure.

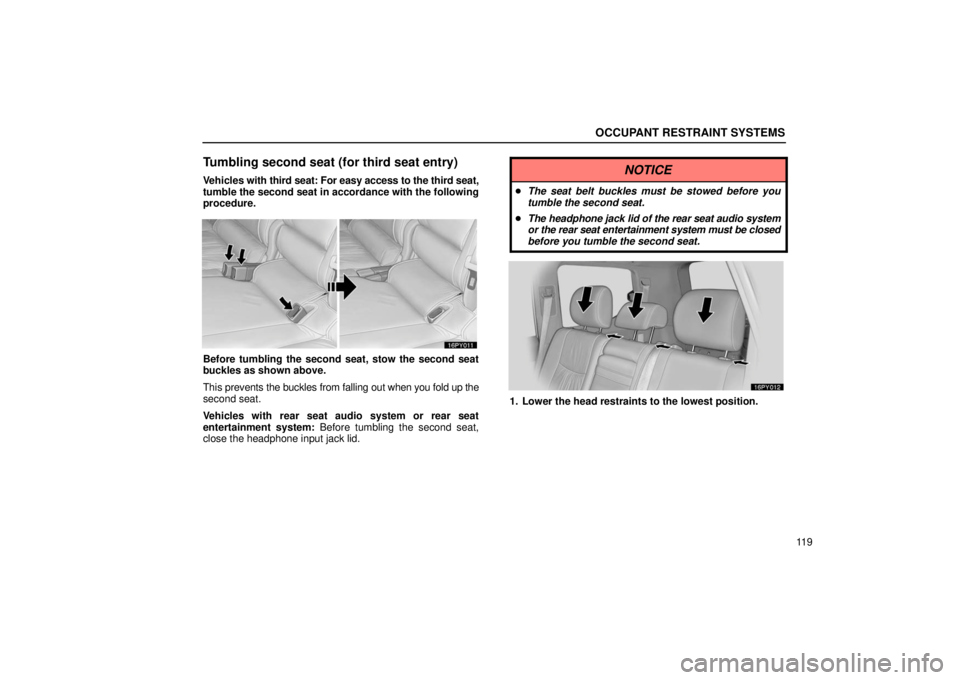

Before tumbling the second seat, stow the second seat
buckles as shown above.
This prevents the buckles from falling out when you fold up the
second seat.
Vehicles with rear seat audio system or rear seat
entertainment system: Before tumbling the second seat,
close the headphone input jack lid.
NOTICE
 The seat belt buckles must be stowed before you
tumble the second seat.
 The headphone jack lid of the rear seat audio system
or the rear seat entertainment system must be closed
before you tumble the second seat.
1. Lower the head restraints to the lowest position.
