TABLE OF CONTENTSIndex
ii
1-1. Key information .............................. 2Keys ......................................................... 2
1-2. Opening, closing and locking the doors......................................... 4
Wireless remote control ................. 4
Side doors ............................................. 6
Back door .............................................. 11
1-3. Adjustable components ............. 13 Front seats ........................................... 13
Rear seats ............................................ 15
Driving position memory system ............................................... 24
Head restraints................................. 26
Seat belts ............................................ 28
Steering wheel.................................. 35
Inside rear view mirror.................. 36
Outside rear view mirrors ........... 37
Roof luggage carrier ..................... 39
1-4. Opening and closing the windows and moon roof ........... 41
Power windows................................. 41
Moon roof .......................................... 43
1-5. Refueling ........................................ 46 Opening the fuel tank cap........... 46 1-6. Theft deterrent system............... 49
Engine immobilizer system ......... 49
Alarm..................................................... 51
Theft prevention labels (U.S.A.) ............................................. 53
1-7. Safety information ....................... 54 Correct driving posture ............... 54
SRS airbags ....................................... 56
Front passenger occupant classification system .................... 69
Child restraint sy stems ................. 74
Installing child restraints ............... 77
2-1. Driving procedures.................... 88 Driving the vehicle ......................... 88
Starting the engine ......................... 95
Automatic transmission................ 98
Turn signal lever.............................. 101
Parking brake ................................. 102
2-2. Instrument cluster ..................... 103 Gauges and meters ..................... 103
Indicators and warning lights................................................. 105
Trip information display .............. 108
1Before driving
2When driving

TABLE OF CONTENTSIndex
iv
Using the DVD player (MP3 discs) .................................. 215
Using the video mode ................. 217
Changing the initial setting ....... 218
3-4. Using the interior lights .......... 225 Interior lights list............................ 225
3-5. Using the storage features ..................................... 228
List of storage fe atures............... 228
3-6. Other interior features........... 233 Sun visors......................................... 233
Vanity mirror .................................. 234
Clock ................................................. 235
Outside temperature display ............................................ 236
Ashtrays ........................................... 237
Cigarette lighter .......................... 238
Power outlet ................................... 239
Seat heaters ..................................... 241
Armrest ............................................ 243
Floor mats........................................ 244
Luggage compartment features .......................................... 245
Garage door opener ................. 248
Compass.......................................... 253
Lexus Link System ....................... 257 4-1. Maintenance and care............ 272
Cleaning and protecting the vehicle exterior .......................... 272
Cleaning and protecting the vehicle interior............................ 274
4-2. Maintenance.............................. 277 Maintenance requirements ..... 277
General maintena nce ................ 279
Emission inspection and maintenance (I/M)
programs ...................................... 282
4-3. Do-it-yourself maintenance........................... 283
Do-it-yourself service precautions ................................. 283
Hood.................................................. 286
Engine compartment.................. 287
Tires .................................................. 302
Tire inflation pressure................ 309
Wheels............................................... 313
Air conditioning filter................... 315
Wireless remote control battery ............................................. 317
Rear seat entertainment system controller ........................ 319
Checking and replacing fuses ................................................. 321
Light bulbs ........................................ 331
4Maintenance and care

xiii
A
B
Audio remote control switches P. 198
Automatic transmission second start switch P. 99
Tire selector switch P. 304

Before driving1
1
1-1. Key information............................ 2Keys....................................................... 2
1-2. Opening, closing and locking the doors ...................................... 4
Wireless remote control............... 4
Side doors .......................................... 6
Back door ........................................... 11
1-3. Adjustable components ........... 13 Front seats ........................................ 13
Rear seats ......................................... 15
Driving position memory system ............................................ 24
Head restraints.............................. 26
Seat belts ......................................... 28
Steering wheel............................... 35
Inside rear view mirror ............... 36
Outside rear view mirrors ........ 37
Roof luggage carrier................... 39 1-4. Opening and closing the
windows and moon roof ........ 41
Power windows ............................... 41
Moon roof ....................................... 43
1-5. Refueling ..................................... 46 Opening the fuel tank cap ....... 46
1-6. Theft deterrent system............ 49 Engine immobilizer system ...... 49
Alarm .................................................. 51
Theft prevention labels (U.S.A.) .......................................... 53
1-7. Safety information .................... 54 Correct driving posture ............ 54
SRS airbags .................................... 56
Front passenger occupant classification system................. 69
Child restraint systems ............... 74
Installing child restraints ............. 77

4
1-2. Opening, closing and locking the doors
Wireless remote control
■2-step unlocking function
When you push the “UNLOCK” button, the driver's door is unlocked. Pushing the
button again within 3 seco nds unlocks the other doors.
■Operation indicator
●Doors: A buzzer sounds and the emergency flashers flash to indicate that the
doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)
●Windows and moon roof: A buzzer sounds when the windows and moon roof
begin to open.
■Door lock buzzer
If a door is not fully closed, a buzzer soun ds continuously if an attempt to lock the
door is made. Fully close the door to st op the buzzer, and lock the vehicle once
more.
■Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the theft deterrent system au tomatically locks the vehicle again.
■Low battery
If the wireless remote control does not function or if it only operates very close to
the vehicle, the battery may be low. (P. 3 1 7 )
The wireless remote control can be used to lock and unlock the vehicle.
Locks all doors
Unlocks all doors
Opens the windows and
moon roof (push and hold)
Sounds alarm
(push and hold) ( P. 5 2 )

5
1-2. Opening, closing and locking the doors
1
Before driving
■Customization
Settings (e.g. 2-step unlocking function, buzzer) can be changed. ( P. 3 9 8 )
■Certification for wireless remote control (for vehicles sold in the U.S.A.)
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
NOTICE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generate s, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful inter-
ference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful inter-
ference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
■Certification for wireless remote control (for vehicles sold in Canada)
NOTE:
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must a ccept any interference, including interfer-
ence that may cause undesired operation of the device.
FCC ID: MOZRI-20BTY

6
1-2. Opening, closing and locking the doors
Side doors
The vehicle can be locked and unlocked using the wireless remote control,
a key or door lock switch.
■ Key
Locks all doors
Closes the windows/moon
roof (turn and hold)
Unlocks all doors
Turning the key unlocks the
driver's door. Turning the key
once again unlocks the other
doors.
Opens the windows/moon
roof (turn and hold)
■ Wireless remote control
 P. 4
■ Door lock switch
Locks all doors
Unlocks all doors

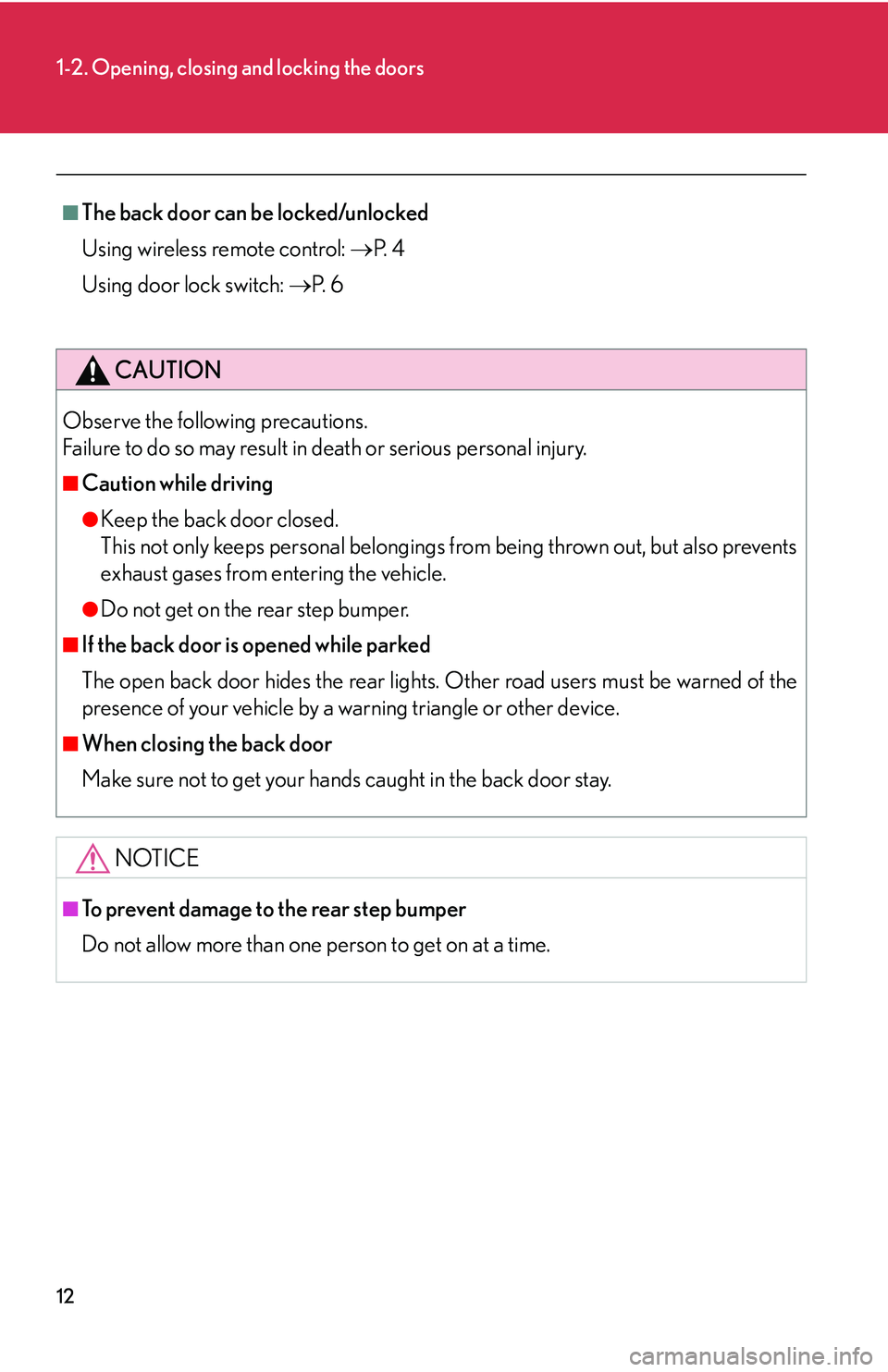

12
1-2. Opening, closing and locking the doors
■The back door can be locked/unlocked
Using wireless remote control: P. 4
Using door lock switch: P. 6
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious personal injury.
■Caution while driving
●Keep the back door closed.
This not only keeps personal belongings from being thrown out, but also prevents
exhaust gases from entering the vehicle.
●Do not get on the rear step bumper.
■If the back door is opened while parked
The open back door hides the rear lights. Other road users must be warned of the
presence of your vehicle by a warning triangle or other device.
■When closing the back door
Make sure not to get your hands caught in the back door stay.
NOTICE
■To prevent damage to the rear step bumper
Do not allow more than one person to get on at a time.

41
1
Before driving
1-4. Opening and closing the windows and moon roof
Power windows
Lock switch
Press the switch down to lock the
passenger window switches.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
The power windows can be opened and closed using the following
switches.
Closing
One-touch closing
*
Opening
One-touch opening
*
*: Pushing the switch in theopposite direction will stop
window travel partway.
■The power windows can be operated when
The ignition switch is in the “ON” position.
■Linked door lock window operation
●The power windows can be opened and closed using the key. ( P. 6 )
●The power windows can be opened using the wireless remote control. ( P. 4 )

44
1-4. Opening and closing the windows and moon roof
■The moon roof can be operated when
The ignition switch is in the “ON” position.
■Linked door lock moon roof operation
●The moon roof can be opened and closed using the key. ( P. 6 )
●The moon roof can be opened using the wireless remote control. ( P. 4 )
■Retained accessory power operation
The moon roof can be operated for approx imately 45 seconds even after the igni-
tion switch is turned to the “ACC” or “LOC K” position. It cannot, however, be oper-
ated once the driver’s door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while closing or tilting
down, travel is stopped and the moon roof opens slightly.
■If the moon roof cannot be closed automatically
Keep the switch depressed.
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will
open automatically when the moon roof is opened.
■When the battery is disconnected
The moon roof must be initialized in order to ensure proper operation.
Close the moon roof fully.
Hold down the “TILT UP” button until th e moon roof tilts all the way up and
then tilts down a little automatically.
To ensure initialization is complete, make sure automatic opening and
closing functions work properly.
■Customization
Settings (e.g. linked door lock operation) can be changed. ( P. 3 9 9 )
STEP1
STEP2
STEP3
