Lexus GX470 2007 Theft deterrent system /

Topic 5
Driving Comfort
41
Console Box
Console box
To open, push the center of the lid.
Overhead console box
To open, press the button.
Glove Box
Open
Lock
Unlock
The glove box can be locked and unlocked using
the master key.1
2
3

Topic 5
Driving Comfort
42
Entering and Exiting
When Driving
Rain and
Night Driving
Driving ComfortDriving Comfort
Opening and Closing
What to do if ...
Customizing
Yo u r L e x u s
Before Driving
Cup Holders
In front of the console box
To open, press the lid.
In the console box
To use, open the rear console box and pull down
the cup holder.
Second seat armrest
To open, press in and release the rear cup holder
on the armrest.
Beside the third seat

Topic 5
Driving Comfort
43
Pe r s o n a l L i g h t s
ON
OFF
The light comes on if a door is opened.
Compass
To display the compass, press and hold the button
for 3 or more seconds.
1
2
3

Topic 5
Driving Comfort
44
Entering and Exiting
When Driving
Rain and
Night Driving
Driving ComfortDriving Comfort
Opening and Closing
What to do if ...
Customizing
Yo u r L e x u s
Before Driving
Lexus Link System (If Equipped)
nButtons
Vo i c e k e y p a d b u t t o n
Sends number tones to an automated phone
system for example to access voicemail, dur-
ing a phone call
Vo l u m e c o n t r o l
Adjusts your Lexus Link System audio volume
Phone button
Makes or answers a phone call using the
hands-free personal calling service
Ends a call
“SERVICES” button
Contacts the Lexus Link Call Center for
information, directions or other services
Records a conversation for later playback
Emergency button
Makes a priority call to the Lexus Link Call
Center
nServices
The Lexus Link System offers the following services. For details about the services and sub-
scription, refer to the Owner’s Manual or call the Lexus Link Call Center at 1-800-25-
LEXUS (1-800-255-3987) (toll-free).
lAirbag deployment notification
If an airbag deploys, an emergency call is automatically placed to the Lexus Link Call
Center with your vehicle’s location. You do not need to press any buttons.
lEmergency assistance
When you press the Emergency button, a priority call is placed to the Lexus Link Call
Center with your vehicle’s location. At the Call Center, the Lexus Link Advisor can deter-
mine your vehicle’s location, communicate with you, and, if appropriate, contact the near-
est emergency service provider.
The Lexus Link System is a communication service that uses the GPS (Global Position-
ing System) data and cellular service to provide you with safety, security and conve-
nience. Button operation and voice commands are used to operate the system. To
operate the system, follow the voice guidance instructions.
1
2
3
4
5

Topic 5
Driving Comfort
45
lStolen vehicle location assistance
If your vehicle is stolen, call the Lexus Link Call Center and then select the option for
Lexus link.
lRemote horn/lights and remote door lock/unlock
The remote operations are performed by contacting the Lexus Link Call Center from the
outside of the vehicle. When necessary, call the Lexus Link Call Center and then select
the option for Lexus Link.
lAdvisor record
You can record a conversation with the Lexus Link Advisor.
lPersonal calling
A hands-free personal calling feature can be added to the Lexus Link System as an
option.
lOther services
Press the “SERVICES” button in the vehicle or call the Lexus Link Call Center and then
select the option for Lexus Link. The services provided will depend on the service plan
level.
The system is only operational in GPS (Global Positioning System) and cellular coverage
areas.

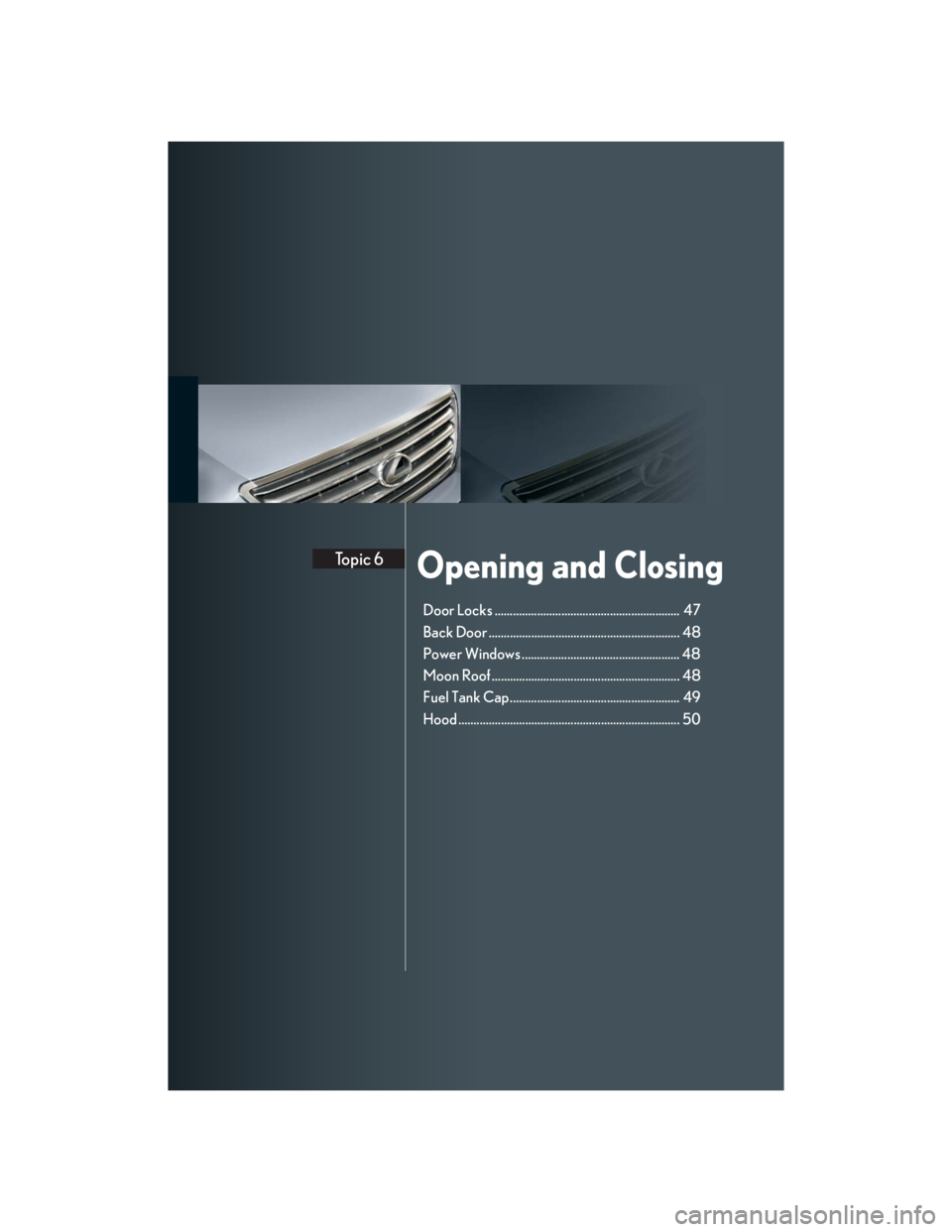

Opening and ClosingTopic 6
Door Locks ............................................................. 47
Back Door ............................................................... 48
Power Windows .................................................... 48
Moon Roof .............................................................. 48
Fuel Tank Cap........................................................ 49
Hood ......................................................................... 50

Topic 6
Opening and Closing
47
Door Locks
nLocking the vehicle from inside
Inside lock button
Lock
Unlock
Door lock switch
Locks/unlocks all doors.
Lock
Unlock
nLocking the vehicle from outside
Using the wireless remote control (P. 7 )
nRear door child-protector lock
Setting the switch to the lock position prevents
the rear doors from being opened from the inside.
1
2
1
2

Topic 6
Opening and Closing
48
Entering and Exiting
Before DrivingBefore Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and ClosingOpening and Closing
What to do if ...
Customizing
Yo u r L e x u s
Back Door
Pull the handle to open the back door.
Powe r Wi n d ows
Powe r w i n d ow s w i t c h e s
To o p e n : press the switch.
To c l o s e : pull the switch up.
To fully raise or lower a window automati-
cally, pull the switch all the way up or push it
all the way down.
Window lock switch
The window lock switch disables all win-
dows other than the driver’s door window.
Moon Roof
nOpening and closing
Open
Push the switch for approximately 1 second.
Close
Push the switch for approximately 1 second.
To stop operation partway, push either side of
the switch.
1
2
1
2

Topic 6
Opening and Closing
49
nTilt up and down
Ti l t d o w n
Push the switch for approximately 1 second.
Ti l t u p
Push the switch for approximately 1 second.
To stop operation partway, push either side of
the switch.
Fuel Tank Cap
Pull the lever to open the fuel filler door.
Turn the fuel tank cap counterclockwise by 90
degrees (to the pressure point), then turn it an
additional 30 degrees.
Pause briefly before removing the cap.
1
2

Topic 6
Opening and Closing
50
Entering and Exiting
Before DrivingBefore Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and ClosingOpening and Closing
What to do if ...
Customizing
Yo u r L e x u s
Hood
Pull the hood lock release lever.
Insert your fingers under the hood, push up the
auxiliary catch lever and lift the hood.
