Lexus GX470 2007 Theft deterrent system /

What to do if ...
51
List of Warning/Indicator Lights
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
(U.S.A.)
Brake system warning light
(Canada)
Stop the vehicle immediately.
Charging system warning lightLow engine oil pressure warn-
ing light
Have the vehicle inspected immediately.
(U.S.A.)Malfunction
indicator lampVSC/TRAC warning light
(Canada)Automatic transmission fluid
temperature warning light
SRS warning lightUnengaged “Park” warning
light
(U.S.A.)
ABS warning light
Kinetic dynamic suspension
system warning light
(if equipped)
(Canada)
For further information, refer to the Owner's Manual.

52
Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing
Yo u r L e x u s
Have the malfunction repaired immediately.
Open door warning lightTire pressure warning light
Low fuel level warning lightLow washer fluid warning light
aDriver’s seat belt
reminder lightEngine oil replacement
reminder light
(On the cen-
ter panel)
Front passenger’s seat belt
reminder light
See the Owner's Manual
Tu r n s i g n a l i n d i c a t o r“RSCA OFF” indicator
Headlight high beam indicatorCruise control indicator
Headlight indicator (U.S.A.)Downhill assist control system
indicator
Tail light indicator (Canada)“VSC OFF” indicator
Security indicatorCenter differential lock
indicator
Automatic transmission
second start indicatorSlip indicator
Shift position indicators
“A I R B A G O N ” i n d i c a t o r
“AIRBAG OFF” indicator
Height control indicator
For further information, refer to the Owner's Manual.

What to do if ...
53

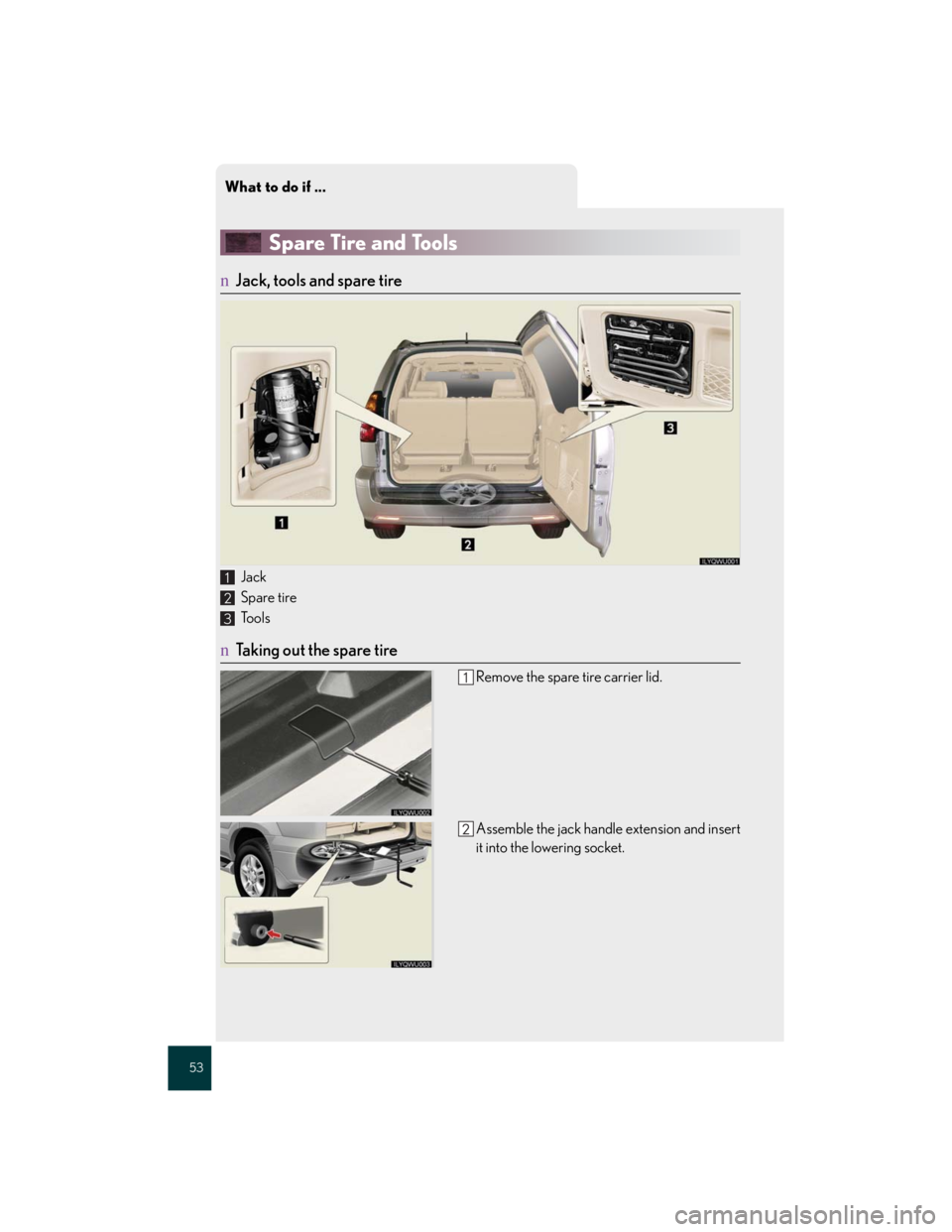

Spare Tire and Tools
nJack, tools and spare tire
Jack
Spare tire
Tools
nTaking out the spare tire
Remove the spare tire carrier lid.
Assemble the jack handle extension and insert
it into the lowering socket.
1
2
3

54
Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing
Yo u r L e x u s
Lower the spare tire completely to the ground.
Pull out the spare tire and remove the holding
bracket.
If the ignition switch does not turn easily
Turn the ignition switch while moving the steering
wheel slightly left and right.

Customizing Your Lexus
55
Your vehicle includes a variety of electronic features that can be personalized to your
preferences. Programming these preferences requires specialized equipment and may
be performed by an authorized Lexus dealership.
Some function settings are changed simultaneously with other functions being customized.
Contact your Lexus dealer for further details.
ItemFunctionDefault
settingCustomized
setting
Wireless remote
control
Wireless remote controlONOFF
Unlocking operation
Driver's door
locked in one
step, all doors
locked in two
steps
All doors
locked in one
step.
Time elapsed before auto-
matic door lock function is
activated if door is not opened
after being unlocked
30 seconds60 seconds
Operation indicator
(Emergency flashers)ONOFF
Operation indicator
(Buzzer)ONOFF
Panic functionONOFF
Door lock
Unlocking using a key
Driver's door
locked in one
step, all doors
locked in two
steps
All doors
locked in one
step.
Speed-detecting automatic
door lock functionOFFON
Opening driver's door unlocks
all doors OFFON
Shift the shift lever to P unlocks
all doors.ONOFF
Shift the shift lever to position
other than P locks all doors.ONOFF

56
Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing
Yo u r L e x u s
*: Vehicles sold outside Canada
ItemFunctionDefault
settingCustomized
setting
Pow e r w i n d o w s
Linked door lock operationONOFF
Linked door key operationOpen and
closeOpen only
Close only
Wireless remote control linked
operationONOFF
Moon roof
Linked door lock operationONOFF
Linked door key operationOpen and
closeOpen only
Close only
Linked operation of components
when door key is usedSlide onlyTi l t o n l y
Wireless remote control linked
operationONOFF
Linked operation of components
when wireless remote control
used
Slide onlyTi l t o n l y
Automatic light
control system
Light sensor sensitivityLevel 3Levels 1 to 5
Time elapsed before headlights
automatically turn off after
doors are closed
30 seconds
0 seconds
60 seconds
90 seconds
Day time running lightONOFF*
Illumination
Time elapsed before lights turn
off15 seconds7. 5 s e c o n d s
30 seconds
Operation when the doors are
unlockedONOFF
Operation after the ignition
switch is turned to the “ACC”
position
ONOFF

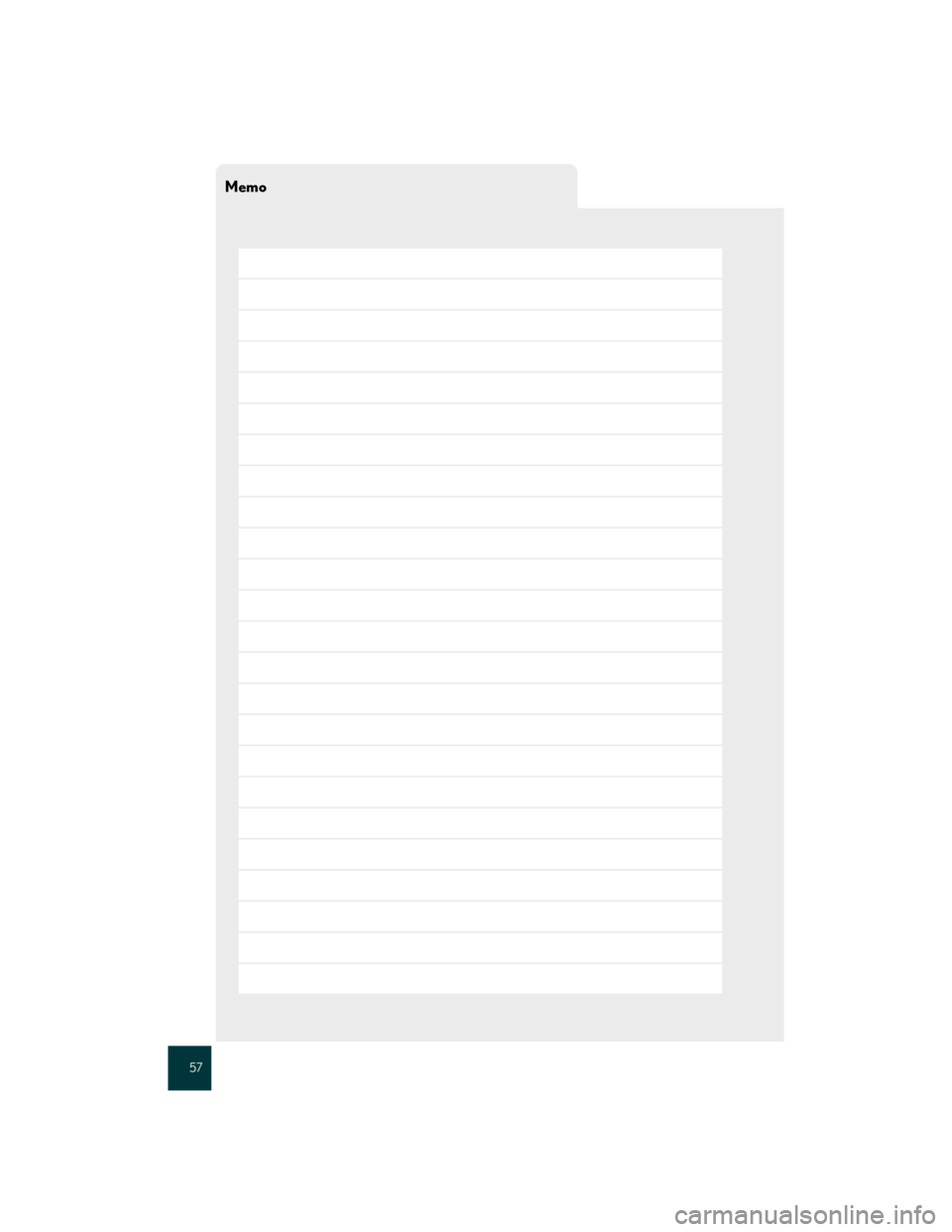

Memo
57

58
Your Lexus dealer
Your Lexus dealer will provide quality maintenance and any other assistance
you may require.
If there is not a Lexus dealer near you, please call the following number:
nU.S. OWNERS
lIn the U.S. mainland or Canada:
Lexus Roadside Assistance
1-800-25-LEXUS or 1-800-255-3987 (Toll-Free)
lIn Hawaii:
Servco Automotive Roadside Assistance/Customer Services
1-800-25-LEXUS or 1-800-255-3987 (Toll-Free)
nCANADIAN OWNERS
lIn Canada or the U.S. mainland:
Lexus Roadside Assistance/Customer Service
1-800-26-LEXUS or 1-800-265-3987 (Toll-Free)
Please access our websites for further information.
lThe U.S. mainland: www.lexus.com
lHawaii: www.servcolexus.com
lCanada: www.lexus.ca
