Light bulbs
You may replace the following bulbs by yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb replacement
seems difficult to perform, contact your Lexus dealer.
For more information about replacing other light bulbs, contact your Lexus
dealer.
■ Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. ( →P. 5 5 8 )
■ Remove the engine compartment covers
→ P. 4 2 3
■ Front bulb locations
Halogen headlights
Front side marker light Headlight low beam
Parking light
Front turn signal light
Front fog lightHeadlight high beam
and daytime running light
(if equipped)

470
4-3. Do-it-yourself maintenance
HS250h_U_75033U(Canada)
LED headlights
■Rear bulb locations
Front fog light
Front turn signal light
Parking lightFront side marker light
Headlight high beam and
daytime running light
(if equipped)
Rear turn signal light
Back-up light
License plate light

471
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75033U(Canada)
Replacing light bulbs■ Headlight high beams and daytime running lights
∗ (halogen head-
lights)
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
■ Headlight high beams and daytime running lights
∗ (LED headlights)
Turn the cover counterclockwise.
∗: If equipped

472
4-3. Do-it-yourself maintenance
HS250h_U_75033U(Canada)Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
■ Headlight low beams (halogen headlights)
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.

473
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75033U(Canada)■
Front turn signal lights (halogen headlights)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ Front turn signal lights (LED headlights)
Turn the bulb base counterclock-
wise.
Remove the light bulb.

474
4-3. Do-it-yourself maintenance
HS250h_U_75033U(Canada)■
Parking lights/front side marker lights (halogen headlights)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ Parking lights (LED headlights)
Turn the bulb base counterclock-
wise.
Remove the light bulb.

475
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75033U(Canada)■
Front side marker lights (LED headlights)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ Front fog lights
Remove the fender liner bolts, clip
and remove the fender liner.
Removing the clip
Installing the clip

476
4-3. Do-it-yourself maintenance

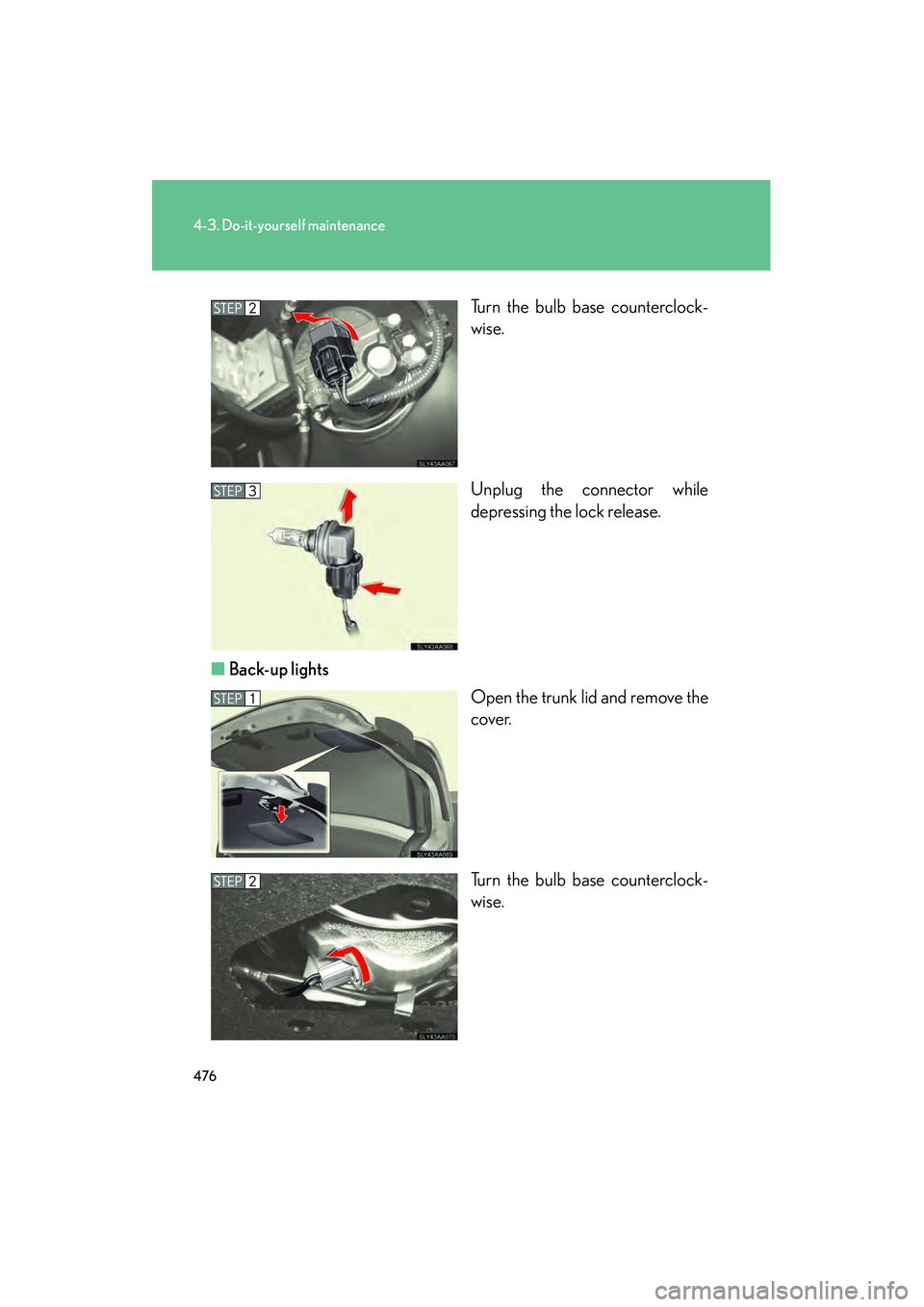

HS250h_U_75033U(Canada)Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
■ Back-up lights
Open the trunk lid and remove the
cover.
Turn the bulb base counterclock-
wise.

477
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75033U(Canada)Remove the light bulb.

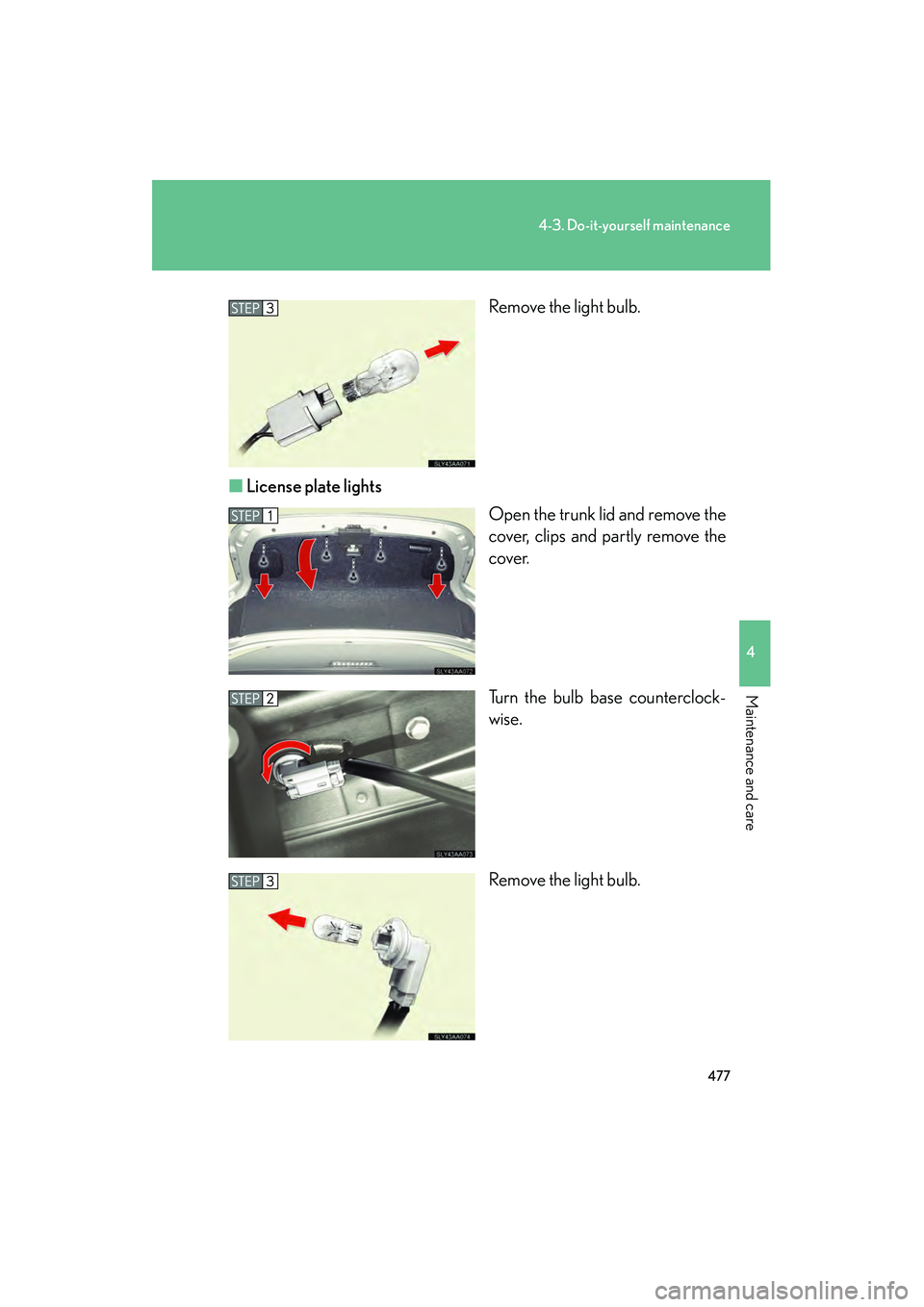

■ License plate lights
Open the trunk lid and remove the
cover, clips and partly remove the
cover.
Turn the bulb base counterclock-
wise.
Remove the light bulb.

478
4-3. Do-it-yourself maintenance
HS250h_U_75033U(Canada)■

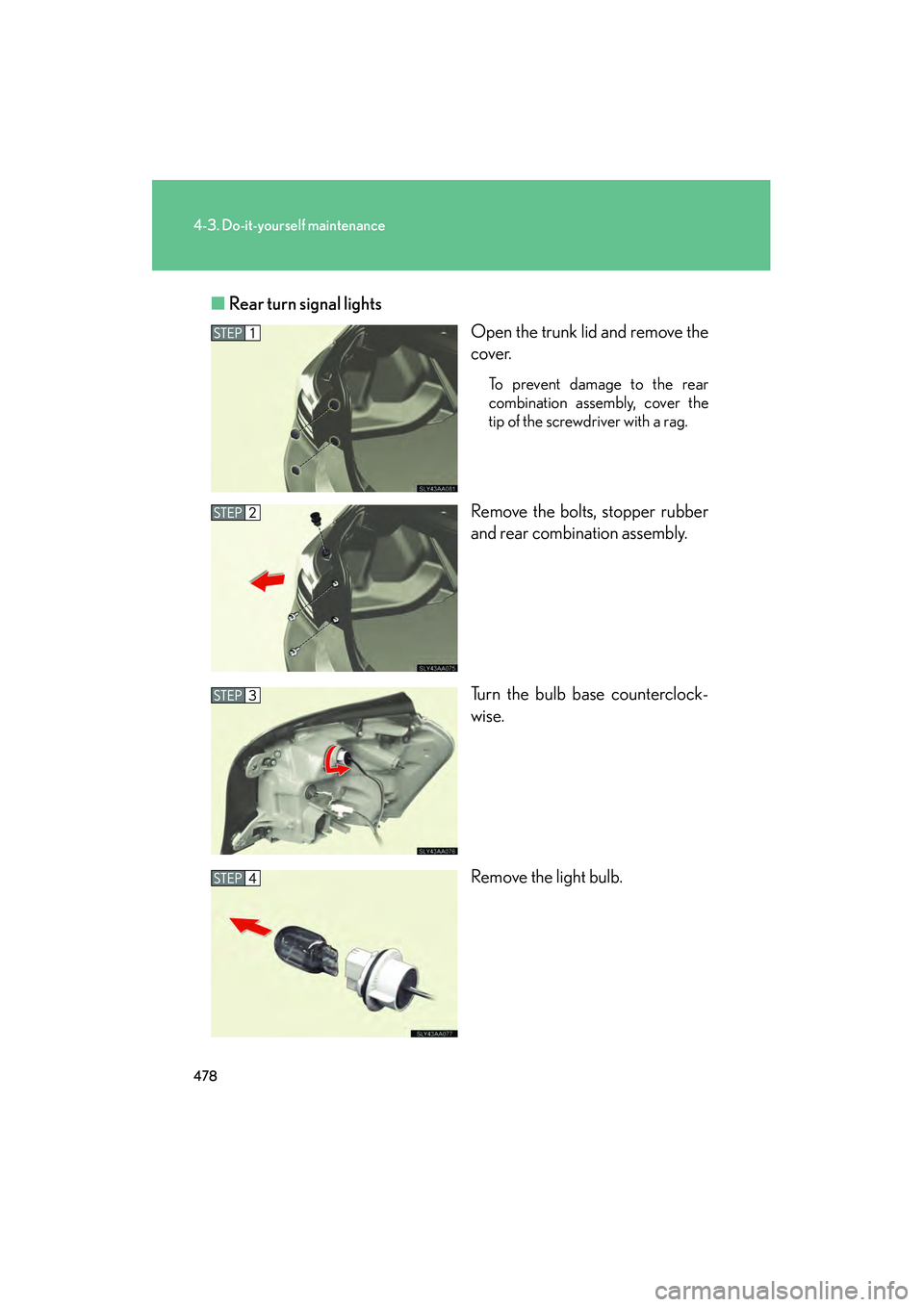

Rear turn signal lights
Open the trunk lid and remove the
cover.
To prevent damage to the rear
combination assembly, cover the
tip of the screwdriver with a rag.
Remove the bolts, stopper rubber
and rear combination assembly.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
