Lexus HS250h 2012 Owner's Manual

510
5-2. Steps to take in an emergency
HS250h_U_75050U
CAUTION
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold
and inflated to the inflation pressure recommended by the vehicle manufacturer on
the vehicle placard or tire inflation pressure label (tire and load information label).
(If your vehicle has tires of a different size than the size indicated on the vehicle
placard or tire inflation pressure label [tire and load information label], you should
determine the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure
monitoring system (TPMS-tire pressure warning system) that illuminates a low tire
pressure telltale (tire pressure warning light) when one or more of your tires is sig-
nificantly under-inflated. Accordingly, when the low tire pressure telltale (tire pres-
sure warning light) illuminates, you should stop and check your tires as soon as
possible, and inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life, and may affect the vehicle’s handling
and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a substitute for
proper tire maintenance, and it is the driver’s responsibility to maintain correct tire
pressure, even if under-inflation has not reached the level to trigger illumination of
the TPMS low tire pressure telltale (tire pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system)
malfunction indicator to indicate when the system is not operating properly. The
TPMS (tire pressure warning system) malfunction indicator is combined with the
low tire pressure telltale (tire pressure warning light). When the system detects a
malfunction, the telltale will flash for approximately one minute and then remain
continuously illuminated. This sequence will continue upon subsequent vehicle
start-ups as long as the malfunction exists. When the malfunction indicator is illumi-
nated, the system may not be able to detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a variety of rea-
sons, including the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS (tire pressure warning system) from functioning
properly. Always check the TPMS (tire pressure warning system) malfunction tell-
tale after replacing one or more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS (tire pressure warning
system) to continue to function properly.

5
When trouble arises

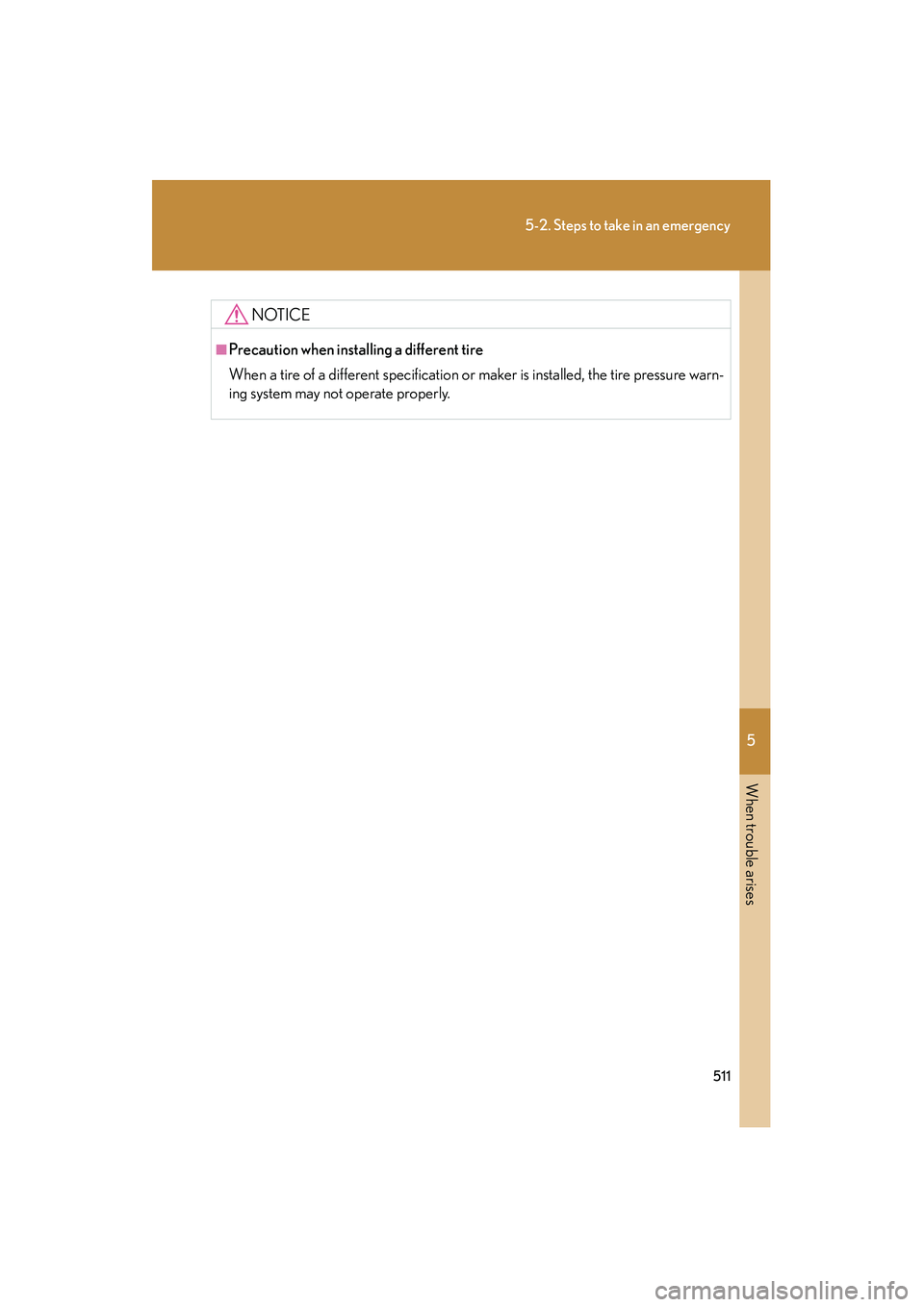

511
5-2. Steps to take in an emergency
HS250h_U_75050U
NOTICE
■Precaution when installing a different tire
When a tire of a different specification or maker is installed, the tire pressure warn-
ing system may not operate properly.

512
5-2. Steps to take in an emergency
HS250h_U_75050U
If a warning message is displayed
Stop the vehicle immediately.
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. The following warning indicates the possibility of damage to
the vehicle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Lexus dealer.
Wa r n i n g m e s s a g eDetails
Indicates abnormal engine oil pressure A buzzer also sounds.
The warning message is displayed if the engine oil
pressure is too low.
Indicates a malfunction in the hybrid system
A buzzer also sounds.
If a warning is shown on the multi-information display, stay calm and per-
form the following actions:
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
multi-information display.
Multi-information display
If any of the warning light comes on again after the following actions
have been performed, contact your Lexus dealer.

5
When trouble arises
513
5-2. Steps to take in an emergency
HS250h_U_75050U
Have the vehicle inspected by your Lexus dealer immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. Failure to investigate the cause of the following warnings may
lead to the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Lexus dealer immediately.
Wa r n i n g m e s s a g eDetails
Indicates a malfunction in the P position control A buzzer also sounds.
In this situation, there is a possibility that the parking
lock mechanism will not work.
When parking, park the vehicle on a flat surface and
apply the parking brake securely. Also, it may not be
possible to turn the “POWER” switch off. If this hap-
pens, applying the parking brake will enable the
switch to be turned off.
(Flashes)
(If equipped)
Indicates a malfunction in the LED headlight system A buzzer also sounds.
(Flashes)
(If equipped)
Indicates a malfunction in the pre-collision system A buzzer also sounds.

514
5-2. Steps to take in an emergency
HS250h_U_75050U
(If equipped)
Indicates a malfunction in the intuitive parking assistA buzzer also sounds.
The malfunctioning assist-sensor is flashing.
(Flashes)
Indicates a malfunction in the cruise control systemA buzzer also sounds.
Press the “ON-OFF” button once to deactivate the
system, and then press the button again to reactivate
the system.
(Flashes)
(If equipped)
Indicates a malfunction in the radar cruise control
system A buzzer also sounds.
Press the “ON-OFF” button once to deactivate the
system, and then press the button again to reactivate
the system.
Indicates a malfunction in the EPS systemA buzzer also sounds.
If the steering wheel becomes heavier than usual
when operating, hold firmly and operate using more
force than usual.
Wa r n i n g m e s s a g eDetails

5
When trouble arises

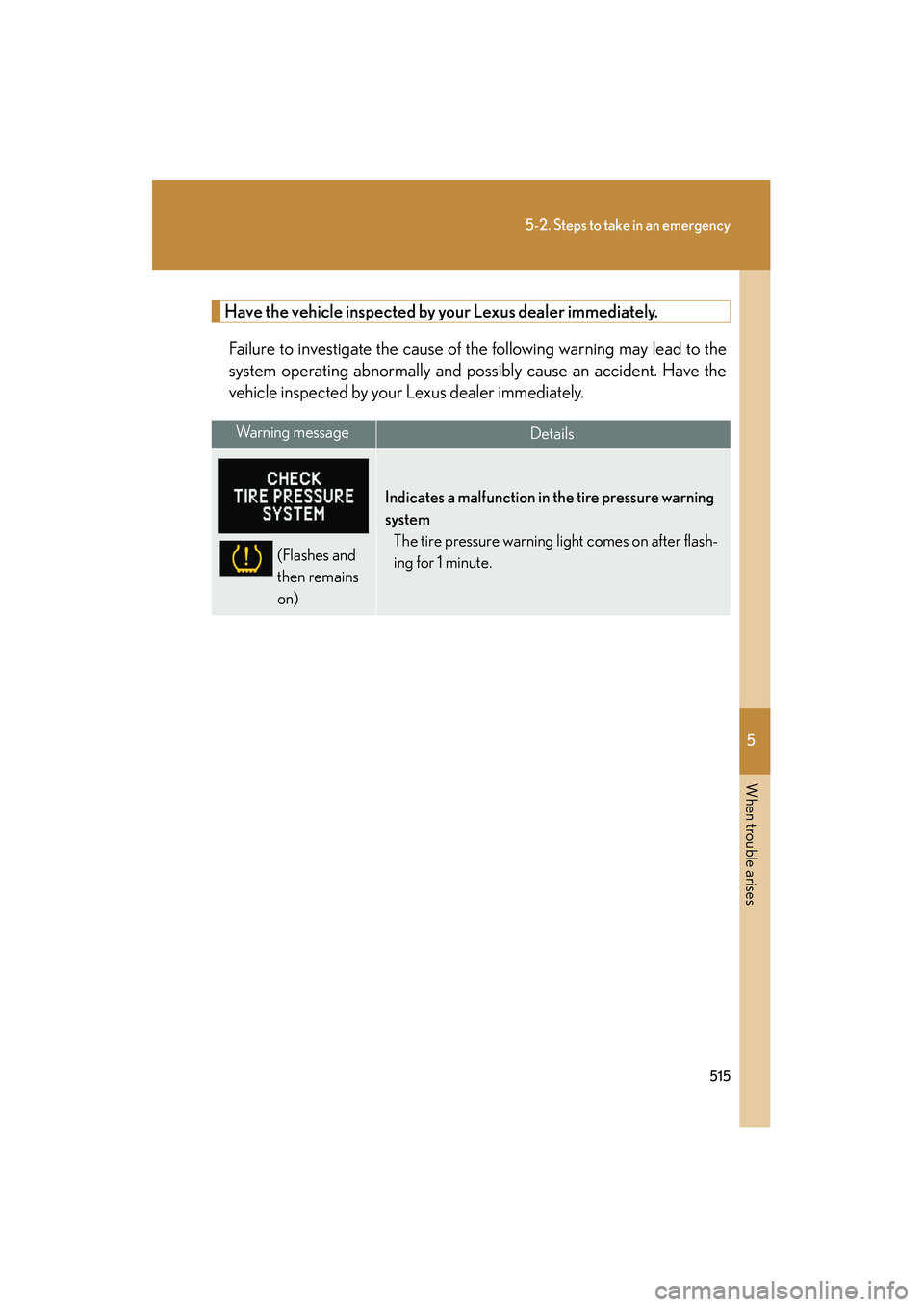

515
5-2. Steps to take in an emergency
HS250h_U_75050U
Have the vehicle inspected by your Lexus dealer immediately.Failure to investigate the cause of the following warning may lead to the
system operating abnormally and possibly cause an accident. Have the
vehicle inspected by your Lexus dealer immediately.
Wa r n i n g m e s s a g eDetails
(Flashes and
then remains
on)
Indicates a malfunction in the tire pressure warning
system The tire pressure warning light comes on after flash-
ing for 1 minute.

516
5-2. Steps to take in an emergency
HS250h_U_75050U
Follow the correction procedures.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. After taking the spec ified steps to correct the suspected
problem, check that the warning message goes off.
Wa r n i n g m e s s a g eDetailsCorrection procedure
Indicates that one or
more of the doors is not
fully closed with the
“POWER” switch ON
mode
The system also indi-
cates which doors are
not fully closed.
If the vehicle reaches a
speed of 3 mph
(5 km/h), a buzzer
sounds to in dicate that
the door(s) are not yet
fully closed.
Make sure that all the
doors are closed.
Indicates that the hood is
not fully closed with the
“POWER” switch ON
mode
Close the hood.
Indicates that the trunk is
not fully closed with the
“POWER” switch ON
mode
Close the trunk.

5
When trouble arises

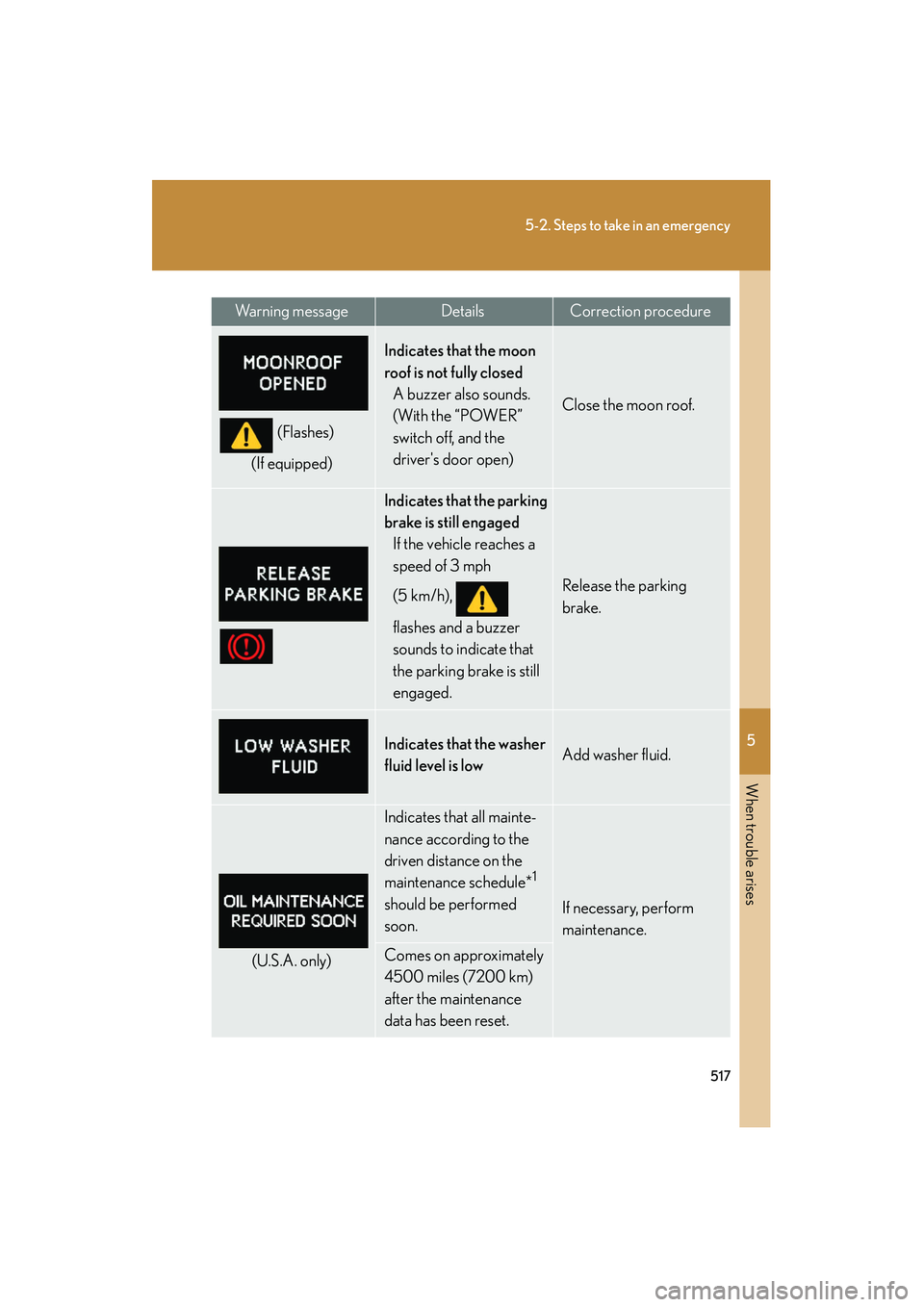

517
5-2. Steps to take in an emergency
HS250h_U_75050U
(Flashes)
(If equipped)
Indicates that the moon
roof is not fully closed A buzzer also sounds.
(With the “POWER”
switch off, and the
driver's door open)
Close the moon roof.
Indicates that the parking
brake is still engagedIf the vehicle reaches a
speed of 3 mph
(5 km/h),
flashes and a buzzer
sounds to indicate that
the parking brake is still
engaged.
Release the parking
brake.
Indicates that the washer
fluid level is lowAdd washer fluid.
(U.S.A. only)
Indicates that all mainte-
nance according to the
driven distance on the
maintenance schedule*
1
should be performed
soon.
If necessary, perform
maintenance.
Comes on approximately
4500 miles (7200 km)
after the maintenance
data has been reset.
Wa r n i n g m e s s a g eDetailsCorrection procedure

518
5-2. Steps to take in an emergency
HS250h_U_75050U
(U.S.A. only)
Indicates that all mainte-
nance is required to cor-
respond to the driven
distance on the mainte-
nance schedule*
1 .Pe r f o r m t h e n e c e s s a r y
maintenance.
Please reset the mainte-
nance data after the main-
tenance is performed
(→ P. 4 2 4 )
Comes on approximately
5000 miles (8000 km)
after the maintenance
data has been reset.
(The indicator will not
work properly unless the
maintenance data has
been reset.)
Indicates that the tire
inflation pressure is lowCheck the tire inflation
pressure, and adjust to the
appropriate level.
(If equipped)
Indicates that the pre-
collision system is not
currently functional
• The grille or the sensor is
dirty.
• The pre-collision system is not functional due to
overheating.
• Check the grille and the sensor and clean them if
they are dirty.
• Check that the system will become functional
after the system cools
down.
Wa r n i n g m e s s a g eDetailsCorrection procedure

5
When trouble arises
519
5-2. Steps to take in an emergency
HS250h_U_75050U
(If equipped)
Indicates that intuitive
parking assist sensor is
dirty or covered with iceA buzzer also sounds.
The site of the malfunc-
tion and the vehicle
image are flashing.
Clean the sensor.
(Flashes)
(If equipped)
Indicates that the radar
cruise control sensor is
dirty or covered with ice A buzzer also sounds.
Clean the sensor.
(Flashes)
(If equipped)
Indicates that the radar
cruise control system is
unable to judge vehicle-
to-vehicle distance A buzzer also sounds.• Switch driving mode to normal.
• Stop the wiper or change the mode to
auto, low or intermittent.
Wa r n i n g m e s s a g eDetailsCorrection procedure
