Lexus HS250h 2012 Owner's Manual

530
5-2. Steps to take in an emergency
HS250h_U_75050U
Once
(Flashes)
The driver's door
was opened and
closed with the
“POWER” switch
turned off and
then the
“POWER” switch
was put in
ACCESSORY
mode twice with-
out the hybrid sys-
tem being started.
Press the
“POWER” switch
while depressing
the brake pedal.
During a hybrid
system starting
procedure in the
event that the
electronic key was
not functioning
properly
(→ P. 544), the
“POWER” switch
was touched with
the electronic key.
Press the
“POWER” switch
within 10 seconds
of the buzzer
sounding.

Indicates remain-
ing fuel is approxi-
mately 2.2 gal.
(8.3 L, 1.8
Imp. gal.) or less.Refuel the vehicle
with at least 2.6
gal. (10 L, 2.1
Imp. gal.) of fuel.
( → P. 9 7 )
Interior
buzzerExterior buzzerWarning messageDetailsCorrection
procedure

5
When trouble arises
531
5-2. Steps to take in an emergency
HS250h_U_75050U*: When the screen of the multi-information display is set to display cruising
range, the above message will be shown.

Indicates remain-
ing fuel is approxi-
mately 1.7 gal.
(6.5 L, 1.4
Imp. gal.) or less.
*
Refuel the vehicle
with at least 2.6
gal. (10 L, 2.1
Imp. gal.) of fuel.
(→ P. 9 7 )
■Warning light display in radar cruise mode
In the following cases, the warning light may not be displayed even if vehicle-to-
vehicle distance decreases:
●When your vehicle and the vehicle ahead are traveling at the same speed or the
vehicle ahead is traveling more quickly than your vehicle
●When the vehicle ahead is traveling at an extremely low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed
Interior
buzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure

532
5-2. Steps to take in an emergency
HS250h_U_75050U
If you have a flat tire
Remove the flat tire and replace it with the spare provided.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Change the shift position to P.
● Stop the hybrid system.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
To o l t r a y
Towing eyelet
JackJack handle
Wr e n c h
Spare tire
Wheel nut wrench

5
When trouble arises
533
5-2. Steps to take in an emergency
HS250h_U_75050U

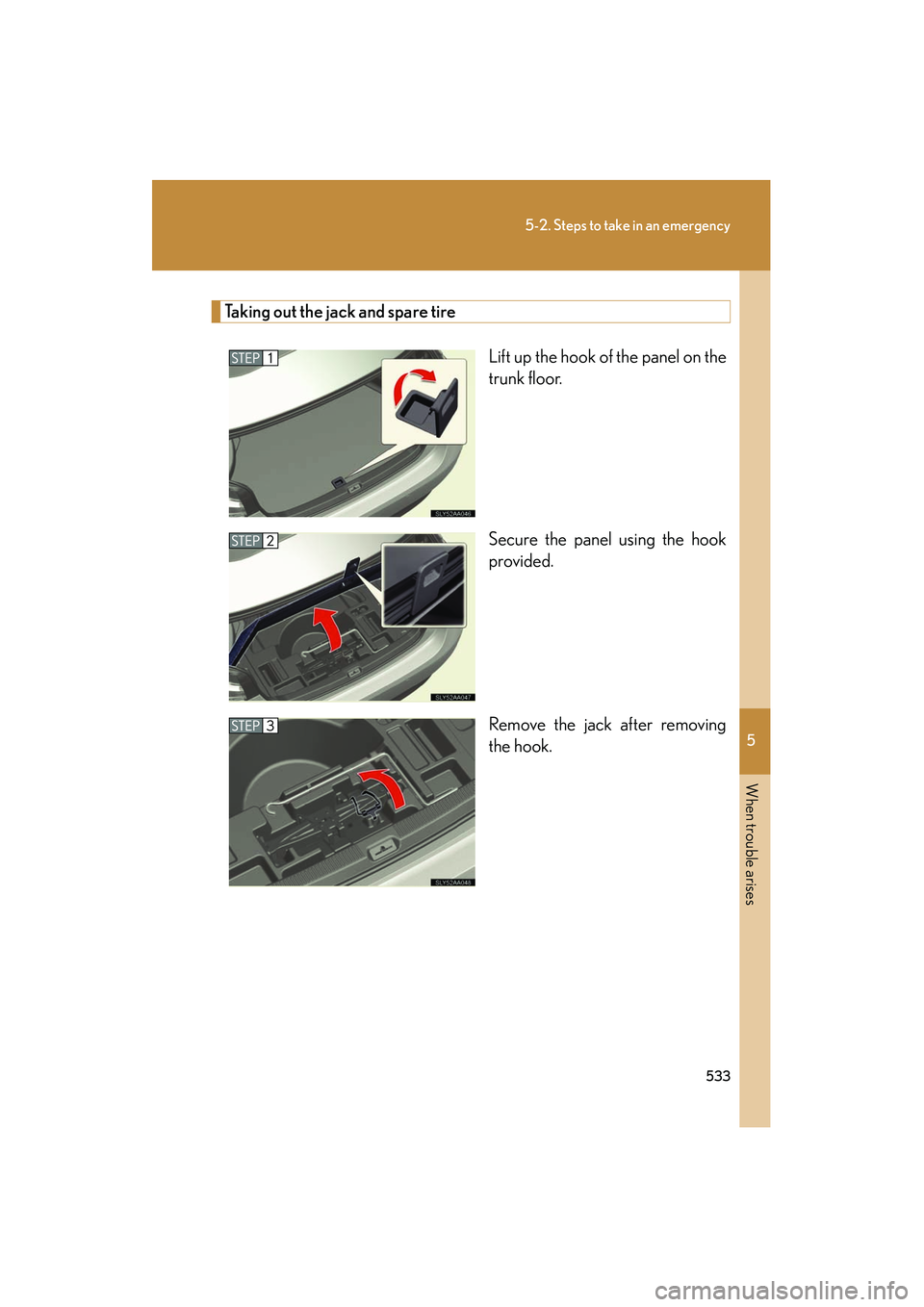

Taking out the jack and spare tireLift up the hook of the panel on the
trunk floor.
Secure the panel using the hook
provided.
Remove the jack after removing
the hook.

534
5-2. Steps to take in an emergency

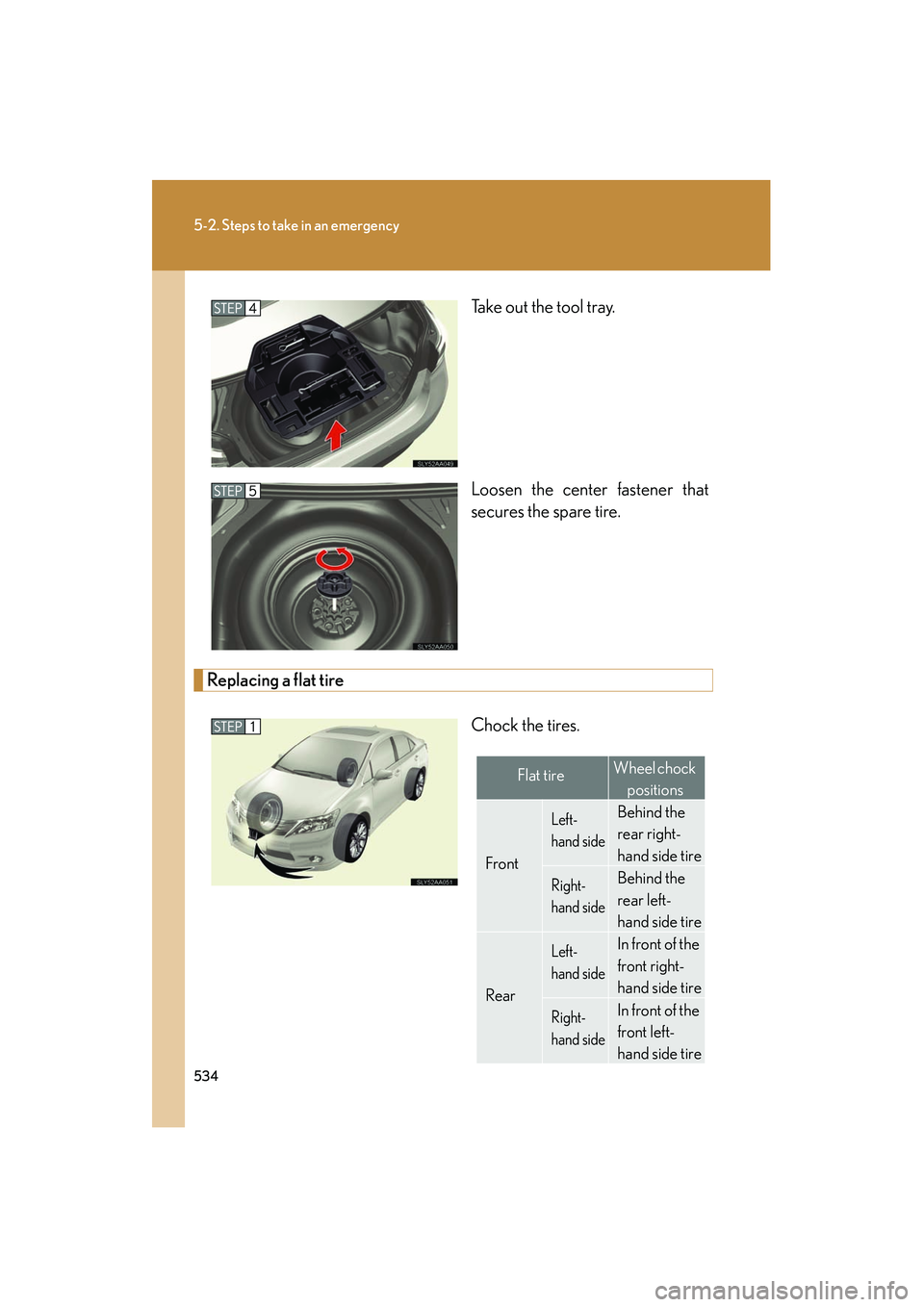

HS250h_U_75050UTake out the tool tray.
Loosen the center fastener that
secures the spare tire.
Replacing a flat tire
Chock the tires.
Flat tireWheel chock positions
Front
Left-
hand sideBehind the
rear right-
hand side tire
Right-
hand sideBehind the
rear left-
hand side tire
Rear
Left-
hand sideIn front of the
front right-
hand side tire
Right-
hand sideIn front of the
front left-
hand side tire

5
When trouble arises
535
5-2. Steps to take in an emergency

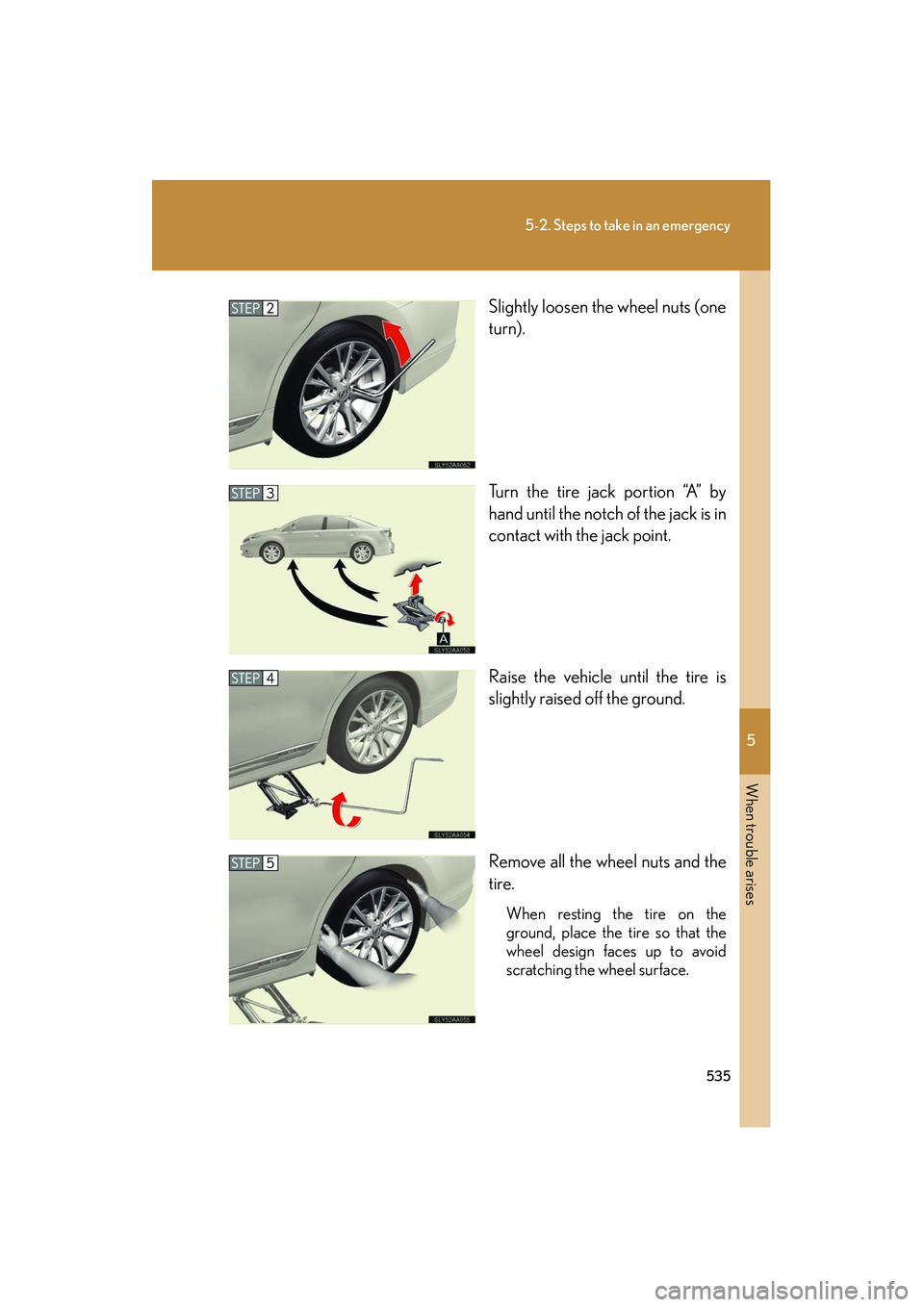

HS250h_U_75050USlightly loosen the wheel nuts (one
turn).
Turn the tire jack portion “A” by
hand until the notch of the jack is in
contact with the jack point.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and the
tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.

536
5-2. Steps to take in an emergency
HS250h_U_75050U

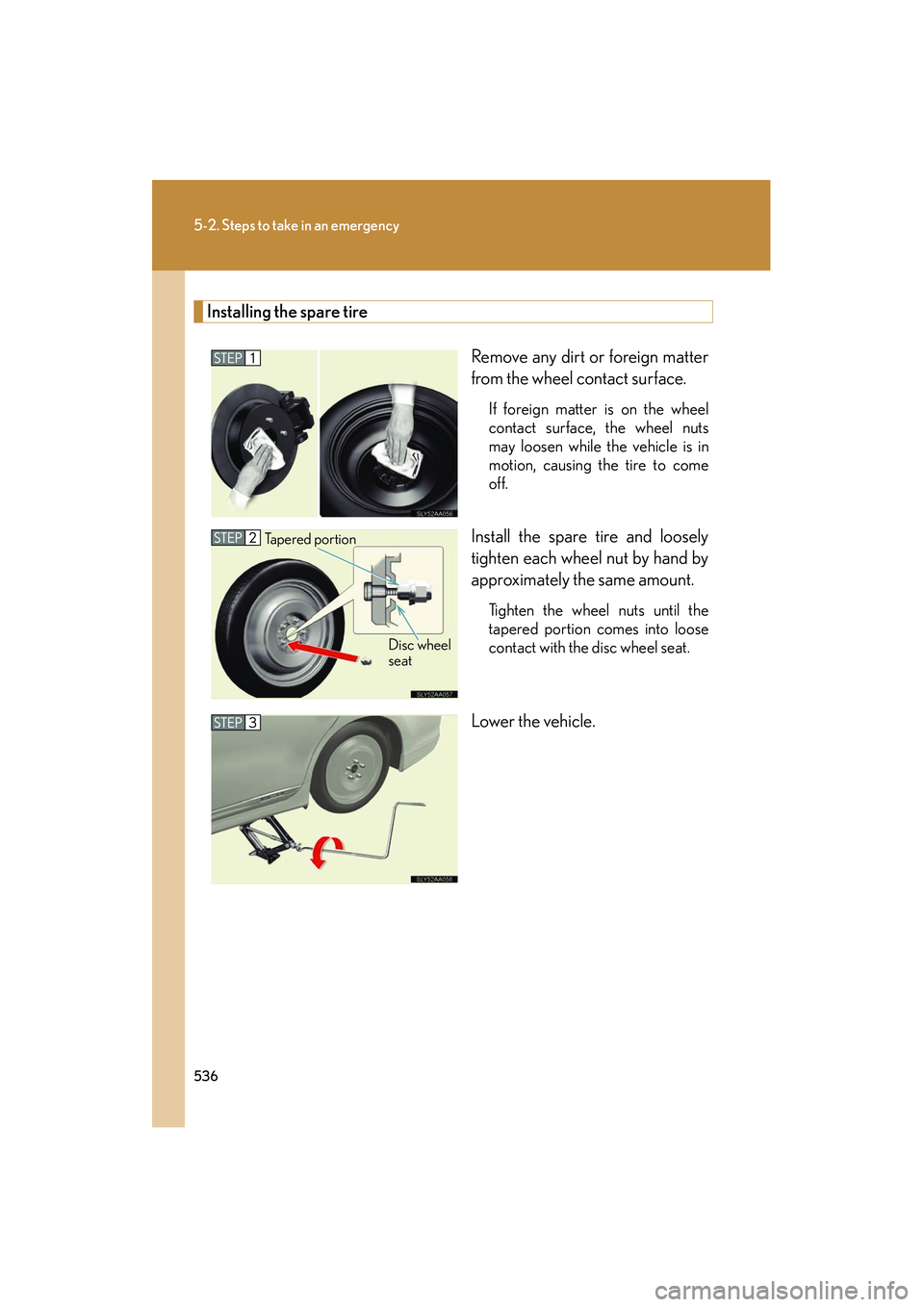

Installing the spare tireRemove any dirt or foreign matter
from the wheel contact surface.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
Install the spare tire and loosely
tighten each wheel nut by hand by
approximately the same amount.
Tighten the wheel nuts until the
tapered portion comes into loose
contact with the disc wheel seat.
Lower the vehicle.
Disc wheel
seat
Tapered portion

5
When trouble arises
537
5-2. Steps to take in an emergency

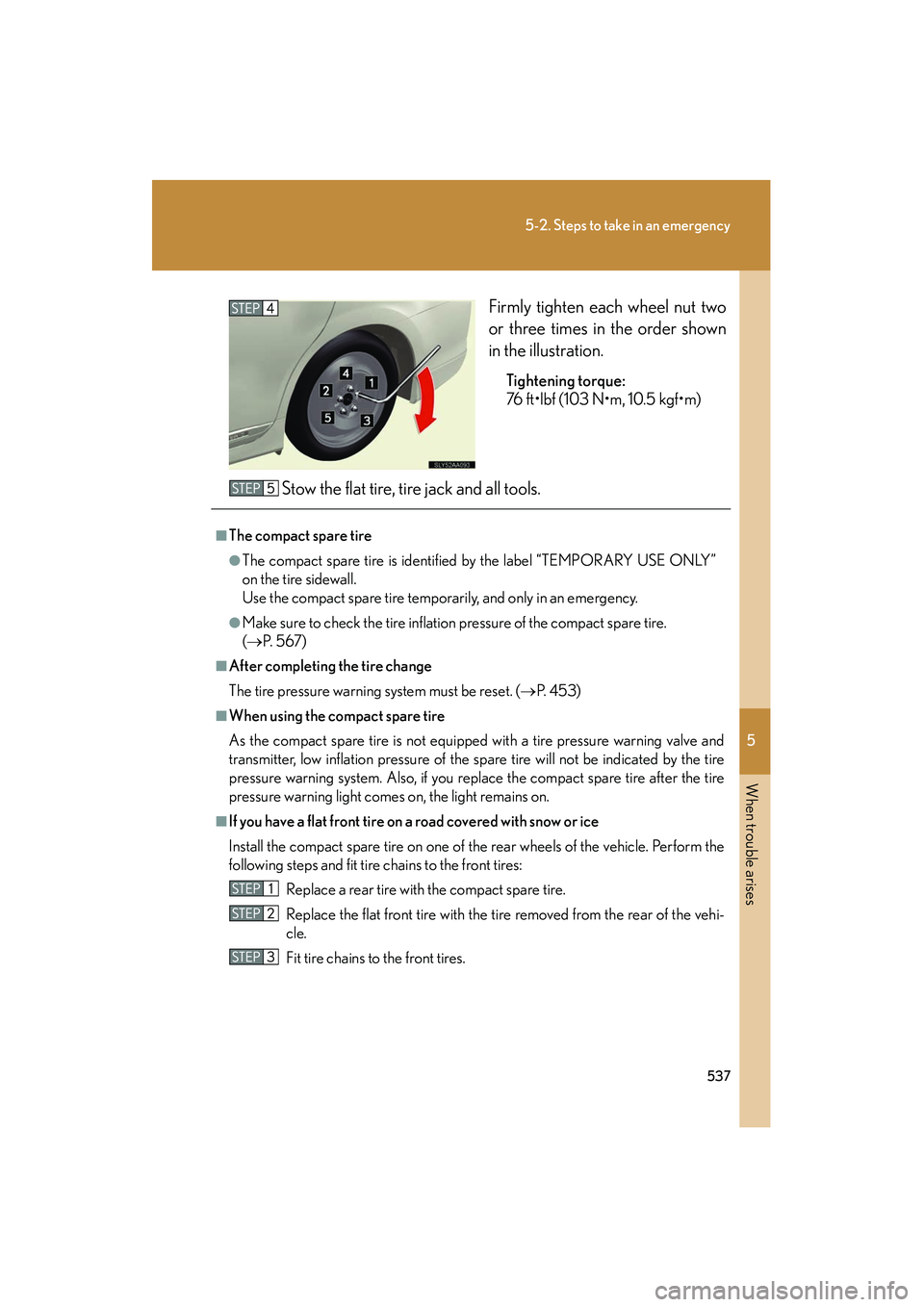

HS250h_U_75050UFirmly tighten each wheel nut two
or three times in the order shown
in the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, tire jack and all tools.
■The compact spare tire
●The compact spare tire is identified by the label “TEMPORARY USE ONLY”
on the tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
●Make sure to check the tire inflation pressure of the compact spare tire.
(
→ P. 5 6 7 )
■After completing the tire change
The tire pressure warning system must be reset. ( →P. 4 5 3 )
■When using the compact spare tire
As the compact spare tire is not equipped with a tire pressure warning valve and
transmitter, low inflation pressure of the spare tire will not be indicated by the tire
pressure warning system. Also, if you replace the compact spare tire after the tire
pressure warning light comes on, the light remains on.
■If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on one of the rear wheels of the vehicle. Perform the
following steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the vehi-
cle.
Fit tire chains to the front tires.

538
5-2. Steps to take in an emergency
HS250h_U_75050U
CAUTION
■When using the compact spare tire
●Remember that the compact spare tire provided is specifically designed for use
with your vehicle. Do not use your compact spare tire on another vehicle.
●Do not use more than one compact spare tire simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, deceleration and braking, as well as sharp cornering.
■When storing the compact spare tire
Be careful not to catch fingers or other body parts between the compact spare tire
and the body of the vehicle.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may
not operate correctly:
●ABS & Brake assist
●Enhanced VSC
●TRAC
●Cruise control system
●Dynamic radar cruise control system (if equipped)
●Lane-Keeping assist (if equipped)
●Adaptive Front-lighting System (if equipped)
●Intuitive parking assist (if equipped)
●Pre-collision system (if equipped)
●Navigation system (if equipped)
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact spare tire is
installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to observe
this precaution may lead to an accident causing death or serious injury.

5
When trouble arises
539
5-2. Steps to take in an emergency
HS250h_U_75050U

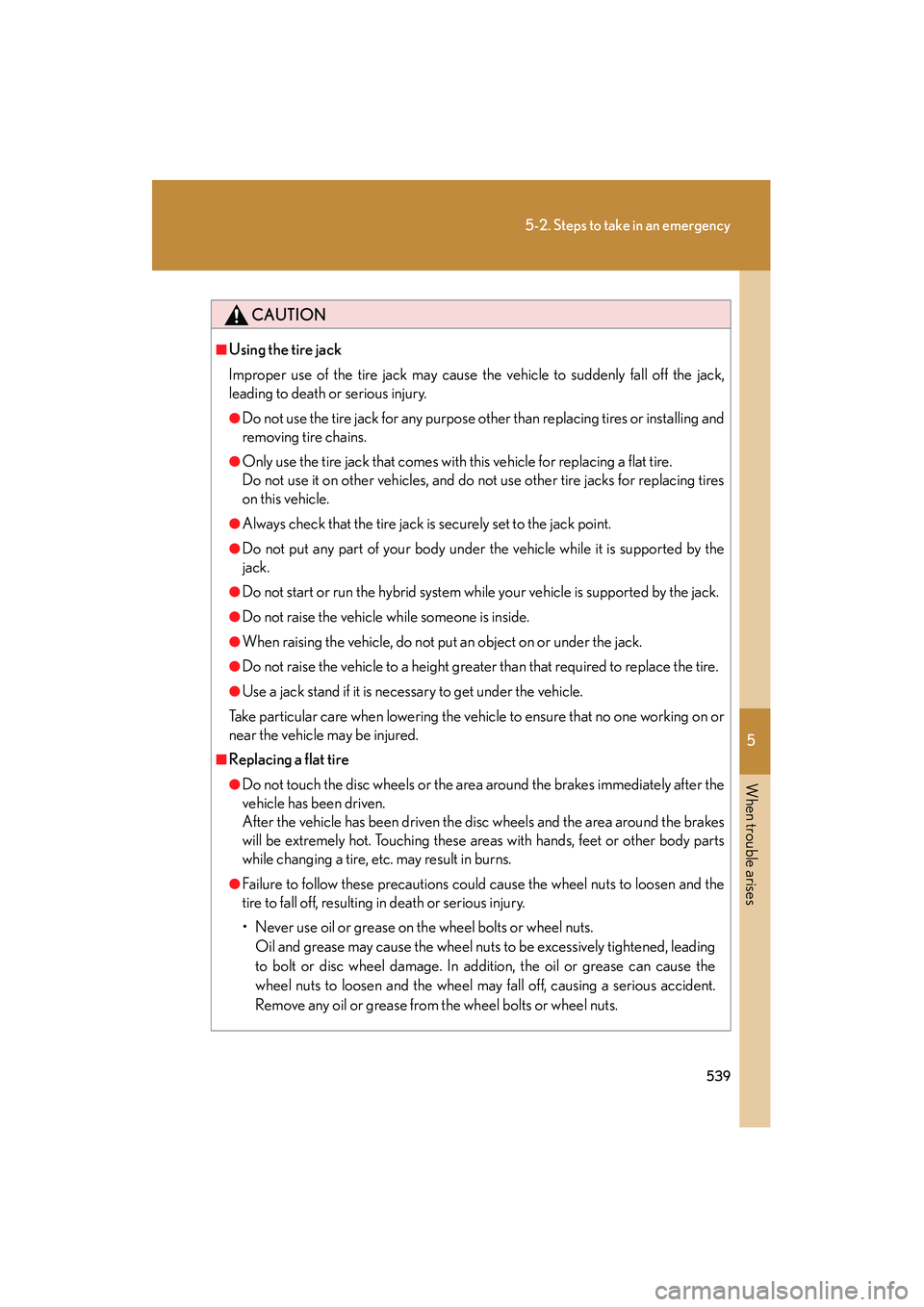

CAUTION
■Using the tire jack
Improper use of the tire jack may cause the vehicle to suddenly fall off the jack,
leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or installing and
removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replacing tires
on this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Do not put any part of your body under the vehicle while it is supported by the
jack.
●Do not start or run the hybrid system while your vehicle is supported by the jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one working on or
near the vehicle may be injured.
■Replacing a flat tire
●Do not touch the disc wheels or the area around the brakes immediately after the
vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the brakes
will be extremely hot. Touching these areas with hands, feet or other body parts
while changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to loosen and the
tire to fall off, resulting in death or serious injury.
• Never use oil or grease on the wheel bolts or wheel nuts. Oil and grease may cause the wheel nuts to be excessively tightened, leading
to bolt or disc wheel damage. In addition, the oil or grease can cause the
wheel nuts to loosen and the wheel may fall off, causing a serious accident.
Remove any oil or grease from the wheel bolts or wheel nuts.
