Lexus HS250h 2012 Owner's Manual

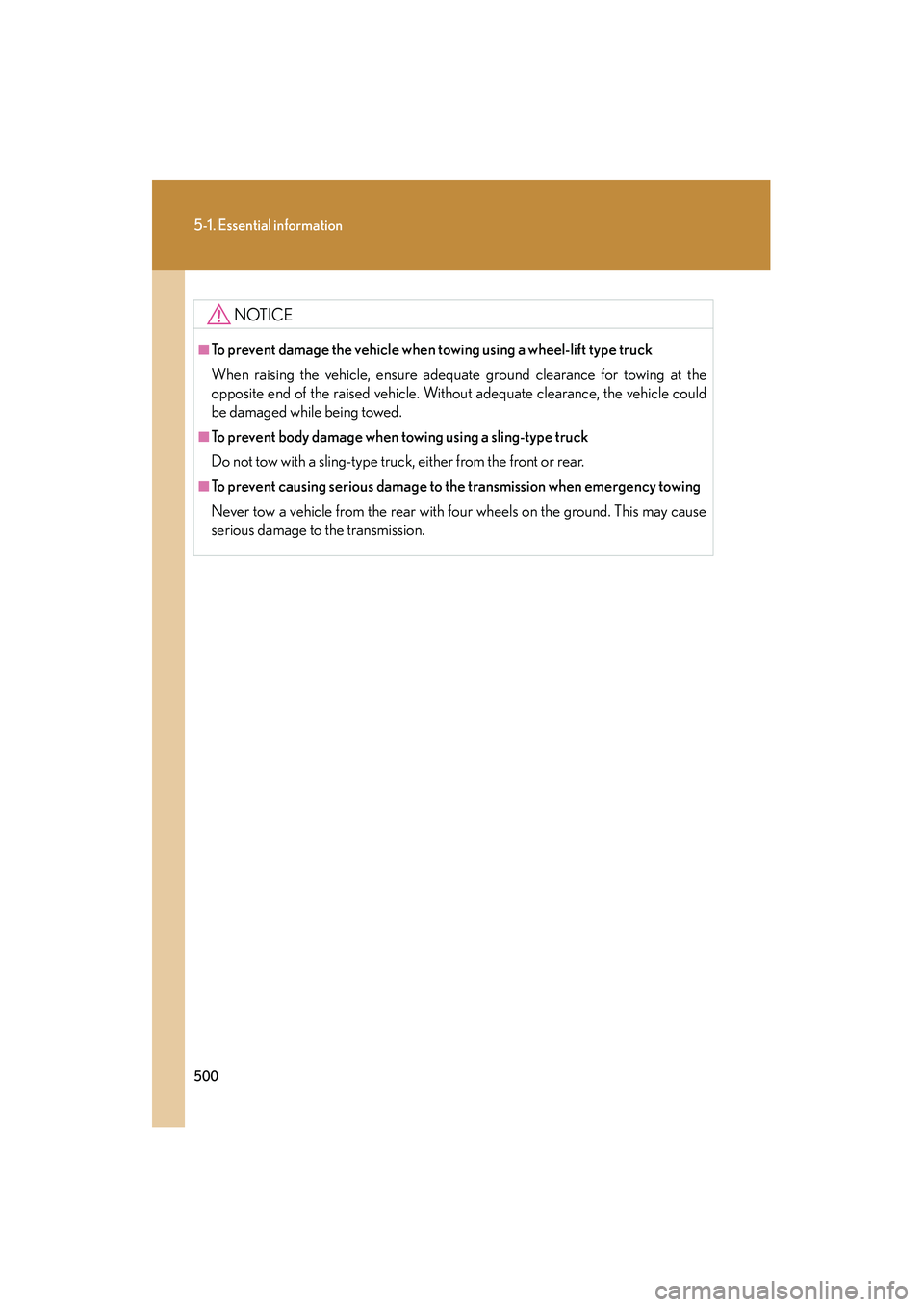

500
5-1. Essential information
HS250h_U_75050U
NOTICE
■To prevent damage the vehicle when towing using a wheel-lift type truck
When raising the vehicle, ensure adequate ground clearance for towing at the
opposite end of the raised vehicle. Without adequate clearance, the vehicle could
be damaged while being towed.
■To prevent body damage when towing using a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
■To prevent causing serious damage to the transmission when emergency towing
Never tow a vehicle from the rear with four wheels on the ground. This may cause
serious damage to the transmission.

5
When trouble arises
501
5-1. Essential information
HS250h_U_75050U
If you think something is wrong
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.
■Visible symptoms
● Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● High engine coolant temperature warning light flashes or comes
on
■ Audible symptoms
● Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the hybrid system
■ Operational symptoms
● Engine missing, stumbling or running rough
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road.
● Loss of brake effectiveness, spongy feeling, pedal almost touches
the floor

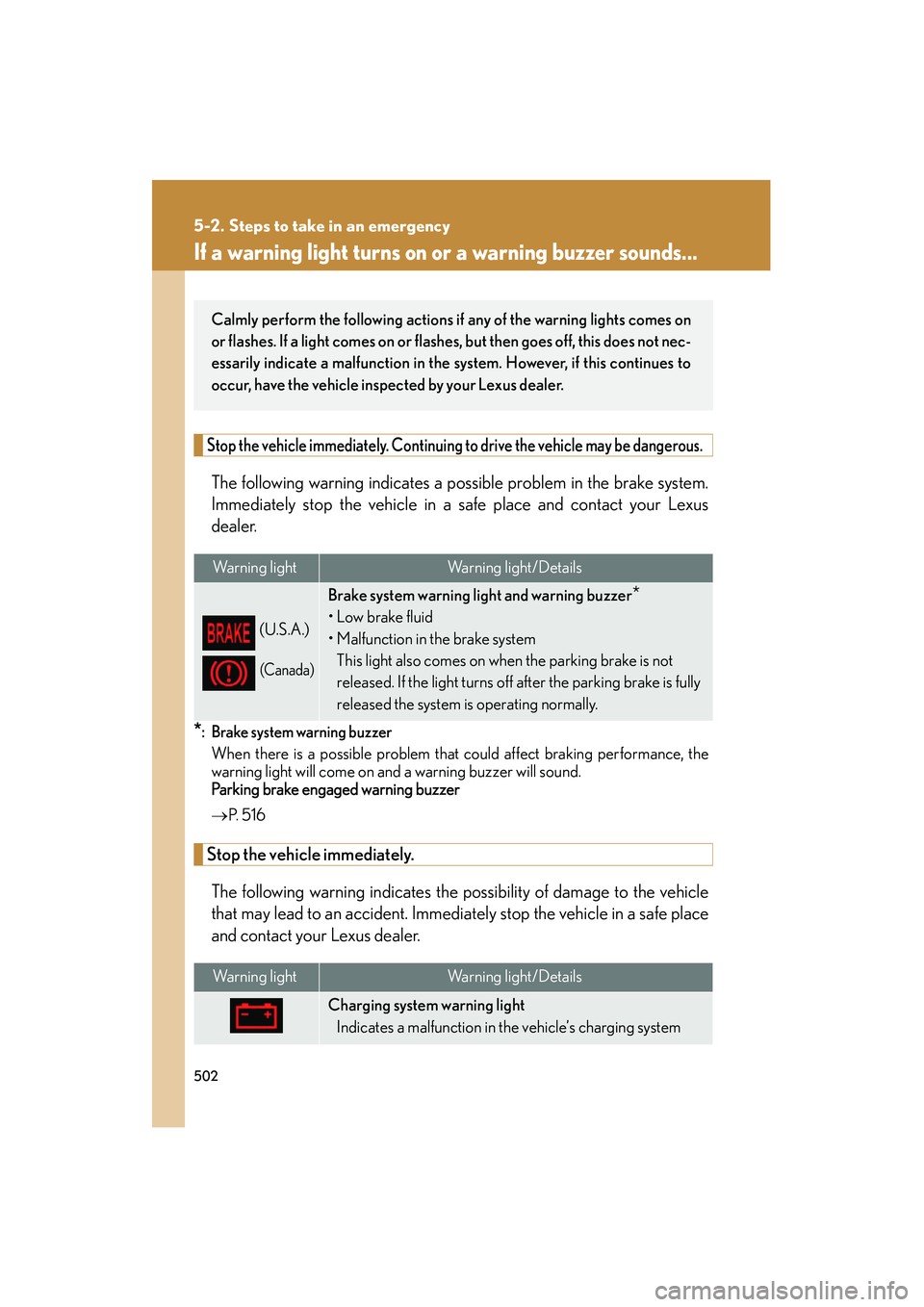

502
HS250h_U_75050U
5-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer sounds...
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
The following warning indicates a possible problem in the brake system.
Immediately stop the vehicle in a safe place and contact your Lexus
dealer.
*: Brake system warning buzzer
When there is a possible problem that could affect braking performance, the
warning light will come on and a warning buzzer will sound.
Parking brake engaged warning buzzer
→ P. 5 1 6
Stop the vehicl e immediately.
The following warning indicates the possibility of damage to the vehicle
that may lead to an accident. Immediately stop the vehicle in a safe place
and contact your Lexus dealer.
Warning lightWarning light/Details
(U.S.A.)

(Canada)
Brake system warning li ght and warning buzzer*
•Low brake fluid
• Malfunction in the brake system This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is fully
released the system is operating normally.
Warning lightWarning light/Details
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
Calmly perform the following actions if any of the warning lights comes on
or flashes. If a light comes on or flashes, but then goes off, this does not nec-
essarily indicate a malfunction in the system. However, if this continues to
occur, have the vehicle inspected by your Lexus dealer.

5
When trouble arises
503
5-2. Steps to take in an emergency
HS250h_U_75050U
Have the vehicle inspected by your Lexus dealer immediately.Failing to investigate the cause of the following warnings may lead to the
system operating abnormally and possibly cause an accident. Have the
vehicle inspected by your Lexus dealer immediately.
High engine coolant temperatur e warning light (flashes or
comes on)
Indicates that the engine is overheating →P. 552
• Flashes: Engine is overheating. Drive carefully.
• Comes on: Engine is overheated. Stop the vehicle.
Warning lightWarning light/Details
Brake system warning light Indicates a malfunction in:
• The regenerative brake system; or
• The electronically controlled brake system
(U.S.A.)

(Canada)
Malfunction indicator lampIndicates a malfunction in:
• The hybrid system;
• The electronic engine control system;
• The electronic throttle control system; or
• The hybrid transmission control system
SRS warning light
Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system
(U.S.A.)

(Canada)
“ABS” warning lightIndicates a malfunction in:
•The ABS; or
• The brake assist system
Warning lightWarning light/Details

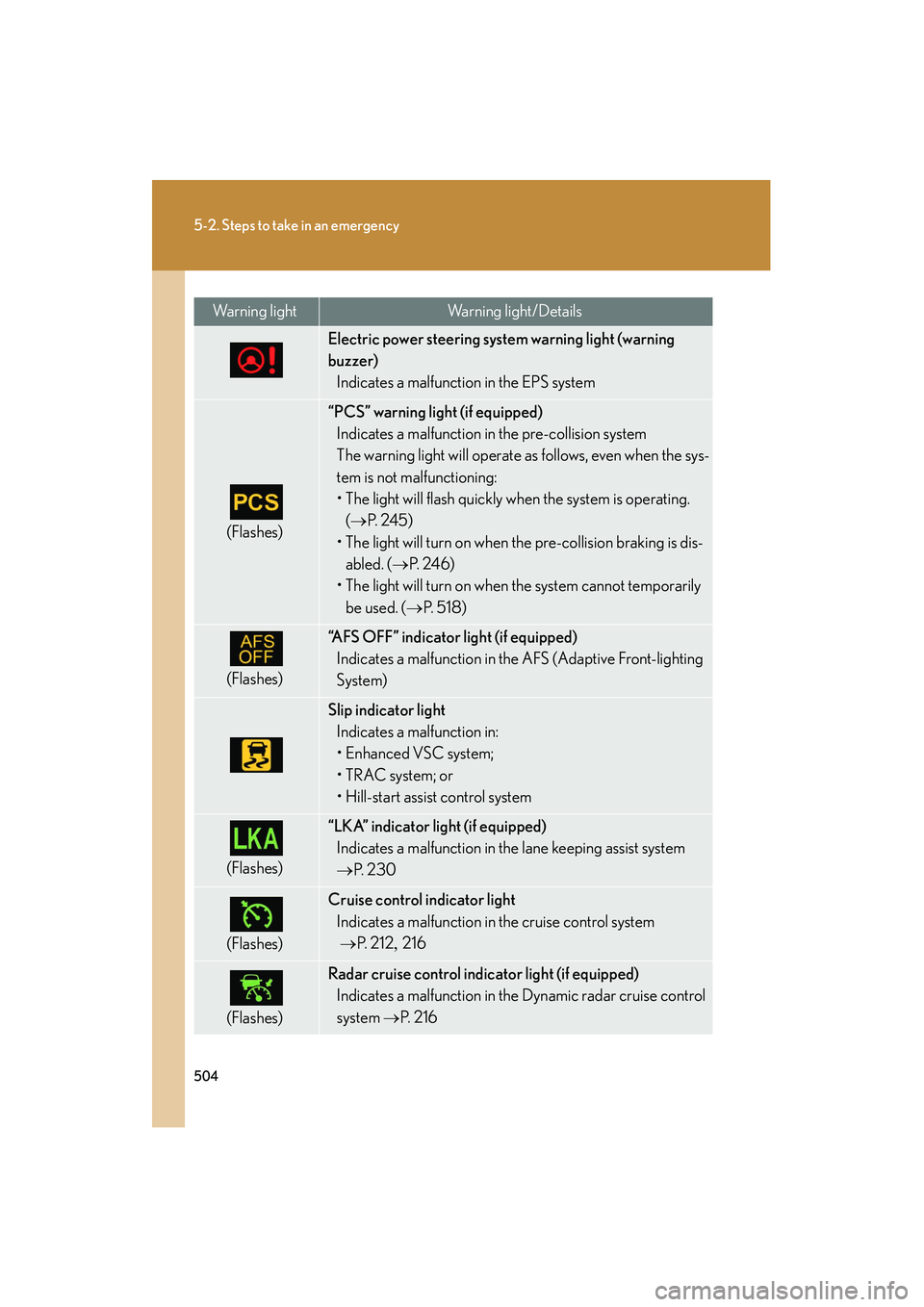

504
5-2. Steps to take in an emergency
HS250h_U_75050U
Electric power steering system warning light (warning
buzzer)Indicates a malfunction in the EPS system
(Flashes)
“PCS” warning light (if equipped)Indicates a malfunction in the pre-collision system
The warning light will operate as follows, even when the sys-
tem is not malfunctioning:
• The light will flash quickly when the system is operating.
(→ P. 2 4 5 )
• The light will turn on when the pre-collision braking is dis- abled. ( →P. 2 4 6 )
• The light will turn on when the system cannot temporarily be used. ( →P. 5 1 8 )
(Flashes)
“AFS OFF” indicator light (if equipped)
Indicates a malfunction in the AFS (Adaptive Front-lighting
System)
Slip indicator lightIndicates a malfunction in:
• Enhanced VSC system;
•TRAC system; or
• Hill-start assist control system
(Flashes)
“LKA” indicator light (if equipped)Indicates a malfunction in the lane keeping assist system
→ P. 2 3 0
(Flashes)
Cruise control indicator light
Indicates a malfunction in the cruise control system
→ P. 2 1 2 , 216
(Flashes)
Radar cruise control indicator light (if equipped)
Indicates a malfunction in the Dynamic radar cruise control
system →P. 2 1 6
Warning lightWarning light/Details

5
When trouble arises

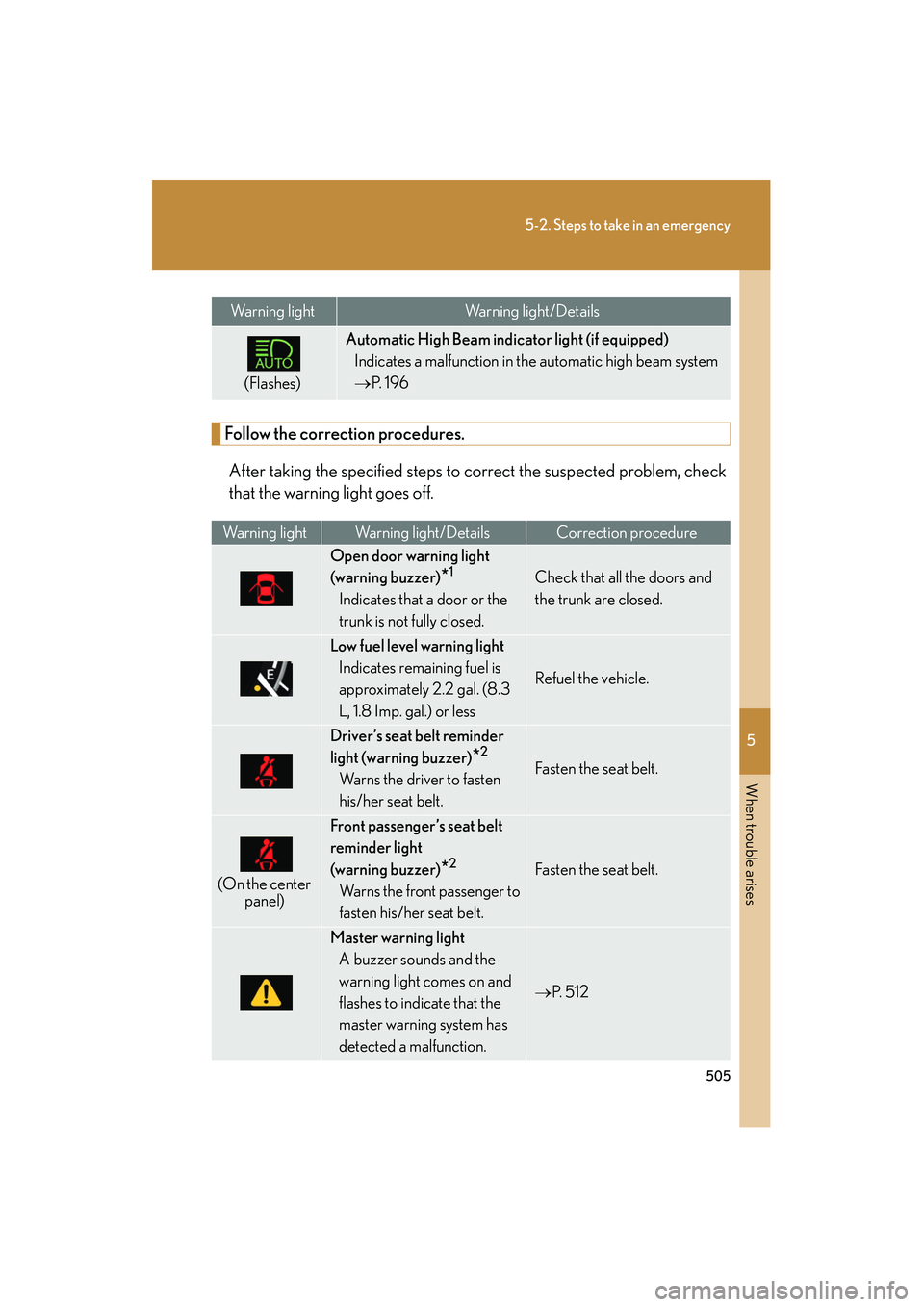

505
5-2. Steps to take in an emergency
HS250h_U_75050U
Follow the correction procedures.After taking the specified steps to co rrect the suspected problem, check
that the warning light goes off.
(Flashes)
Automatic High Beam indicator light (if equipped)
Indicates a malfunction in the automatic high beam system
→ P. 1 9 6
Warning lightWarning light/DetailsCorrection procedure
Open door warning light
(warning buzzer)
*1
Indicates that a door or the
trunk is not fully closed.
Check that all the doors and
the trunk are closed.
Low fuel level warning light
Indicates remaining fuel is
approximately 2.2 gal. (8.3
L, 1.8 Imp. gal.) or less
Refuel the vehicle.
Driver’s seat belt reminder
light (warning buzzer)
*2
Warns the driver to fasten
his/her seat belt.Fasten the seat belt.
(On the center panel)
Front passenger’s seat belt
reminder light
(warning buzzer)
*2
Warns the front passenger to
fasten his/her seat belt.
Fasten the seat belt.
Master warning light
A buzzer sounds and the
warning light comes on and
flashes to indicate that the
master warning system has
detected a malfunction.
→ P. 5 1 2
Warning lightWarning light/Details

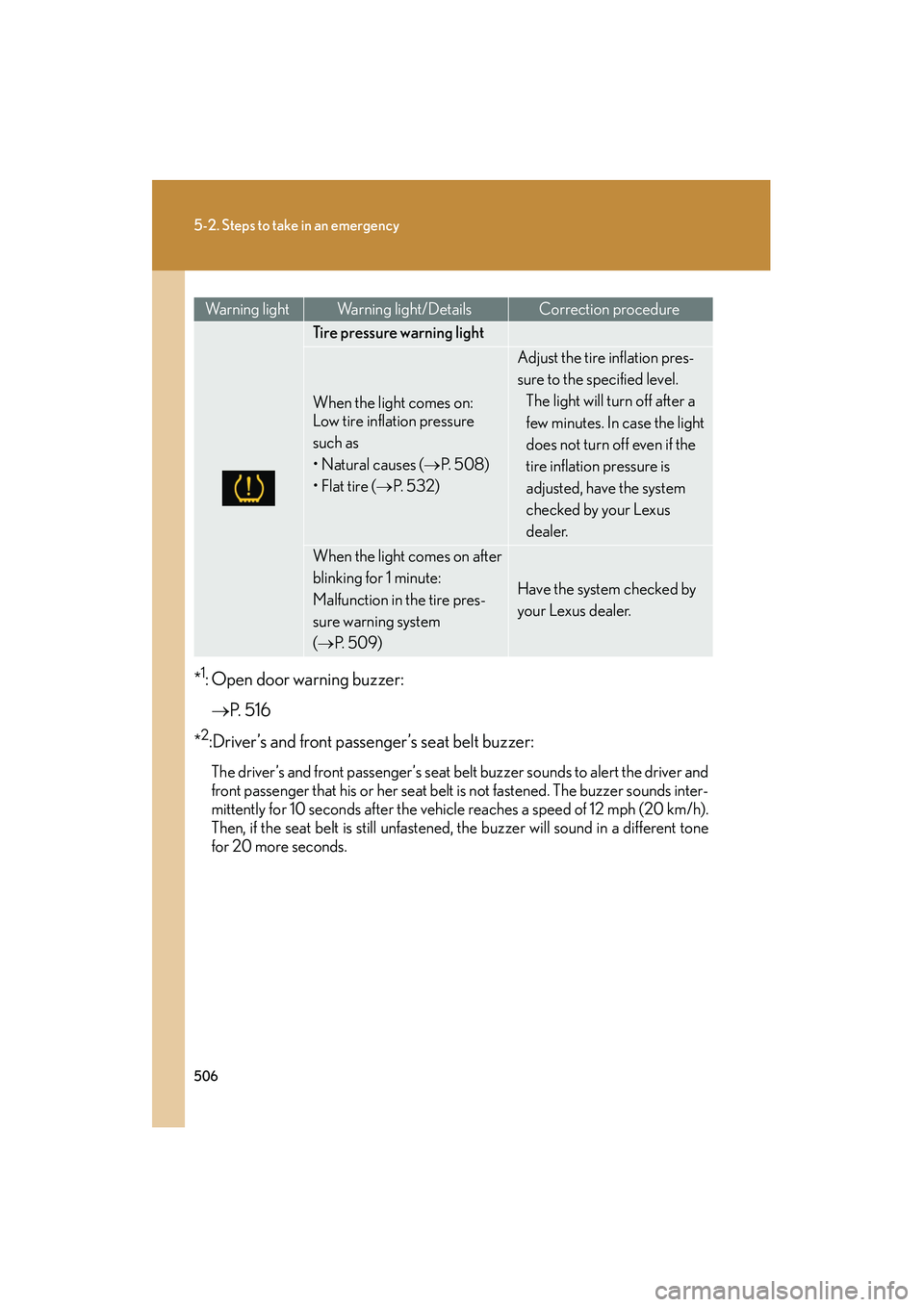

506
5-2. Steps to take in an emergency
HS250h_U_75050U*
1: Open door warning buzzer:
→ P. 5 1 6
*
2:Driver’s and front passenger’s seat belt buzzer:
The driver’s and front passenger’s seat belt buzzer sounds to alert the driver and
front passenger that his or her seat belt is not fastened. The buzzer sounds inter-
mittently for 10 seconds after the vehicle reaches a speed of 12 mph (20 km/h).
Then, if the seat belt is still unfastened, the buzzer will sound in a different tone
for 20 more seconds.
Tire pressure warning light
When the light comes on:
Low tire inflation pressure
such as
• Natural causes (→ P. 5 0 8 )
• Flat tire ( →P. 5 3 2 )
Adjust the tire inflation pres-
sure to the specified level.
The light will turn off after a
few minutes. In case the light
does not turn off even if the
tire inflation pressure is
adjusted, have the system
checked by your Lexus
dealer.
When the light comes on after
blinking for 1 minute:
Malfunction in the tire pres-
sure warning system
(→ P. 509)
Have the system checked by
your Lexus dealer.
Warning lightWarning light/DetailsCorrection procedure

5
When trouble arises
507
5-2. Steps to take in an emergency
HS250h_U_75050U
■SRS warning light
This warning light system monitors the airbag sensor assembly, front airbag sensors,
side and curtain shield airbag sensors, curtain shield and rear side airbag sensors,
driver’s seat position sensor, driver’s seat belt buckle switch, front passenger occu-
pant classification system (ECU and sensors), “AIR BAG ON” indicator light, “AIR
BAG OFF” indicator light, front passenger’s seat belt buckle switch, seat belt pre-
tensioner assemblies, inflators, interconnecting wiring and power sources. (→P.
109)
■Front passenger detection sensor, passen ger seat belt reminder and warning
buzzer
●If luggage is placed on the front passenger seat, the front passenger detection
sensor may cause the warning light to flash and the warning buzzer to sound
even if a passenger is not sitting in the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger, and the
warning light may not operate properly.
■Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient or the voltage temporarily
drops, the electric power steering system warning light may come on and the warn-
ing buzzer may sound.
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is the fuel tank empty?
If it is, fill the fuel tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after several driving trips.
If the light does not go off even after several trips, contact your Lexus dealer as soon
as possible.
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Pushing the tire
pressure warning reset switch will not turn off the tire pressure warning light.

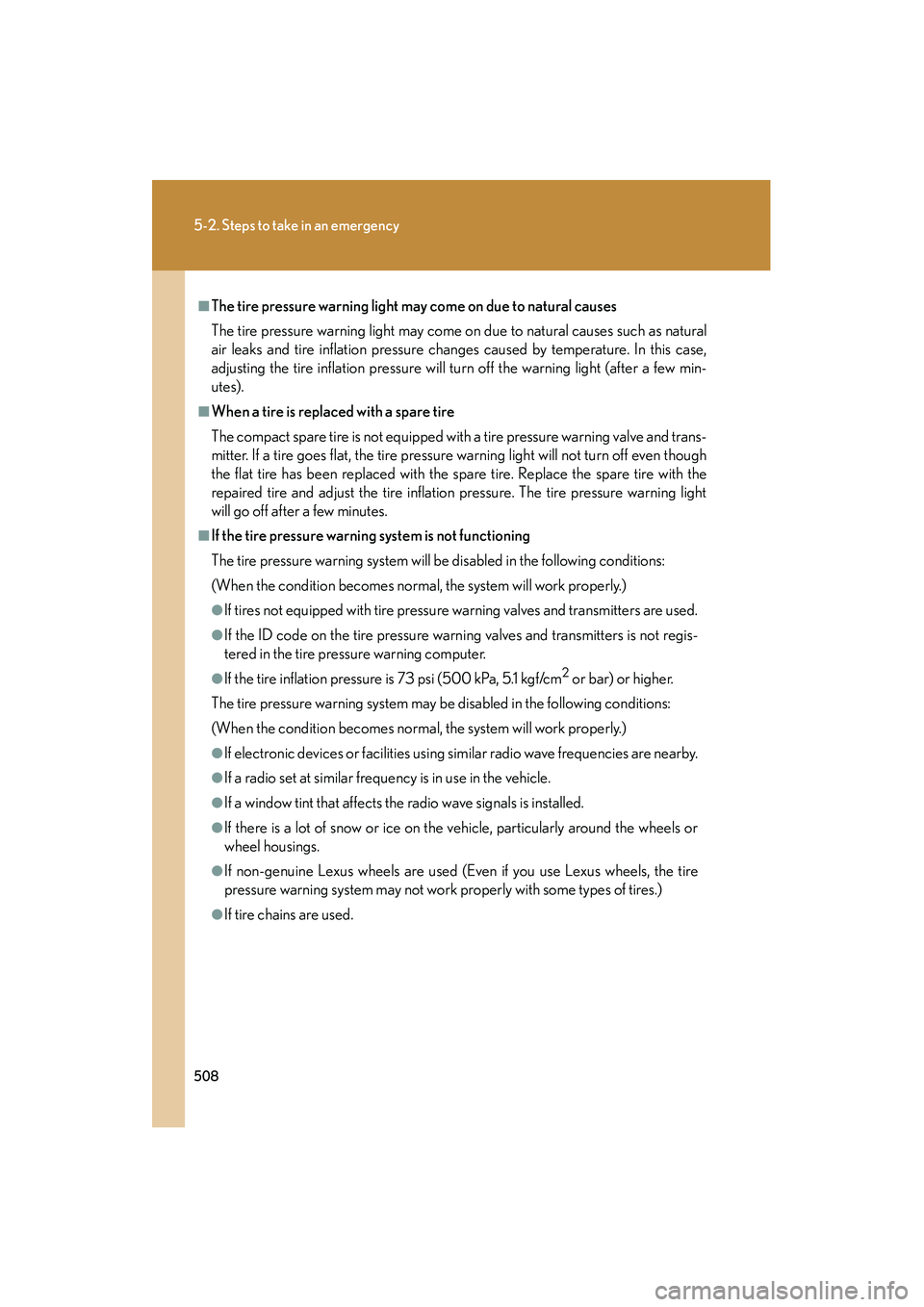

508
5-2. Steps to take in an emergency
HS250h_U_75050U
■The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as natural
air leaks and tire inflation pressure changes caused by temperature. In this case,
adjusting the tire inflation pressure will turn off the warning light (after a few min-
utes).
■When a tire is replaced with a spare tire
The compact spare tire is not equipped with a tire pressure warning valve and trans-
mitter. If a tire goes flat, the tire pressure warning light will not turn off even though
the flat tire has been replaced with the spare tire. Replace the spare tire with the
repaired tire and adjust the tire inflation pressure. The tire pressure warning light
will go off after a few minutes.
■If the tire pressure warning system is not functioning
The tire pressure warning system will be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
●If tires not equipped with tire pressure warning valves and transmitters are used.
●If the ID code on the tire pressure warning valves and transmitters is not regis-
tered in the tire pressure warning computer.
●If the tire inflation pressure is 73 psi (500 kPa, 5.1 kgf/cm2 or bar) or higher.
The tire pressure warning system may be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
●If electronic devices or facilities using similar radio wave frequencies are nearby.
●If a radio set at similar frequency is in use in the vehicle.
●If a window tint that affects the radio wave signals is installed.
●If there is a lot of snow or ice on the vehicle, particularly around the wheels or
wheel housings.
●If non-genuine Lexus wheels are used (Even if you use Lexus wheels, the tire
pressure warning system may not work properly with some types of tires.)
●If tire chains are used.

5
When trouble arises
509

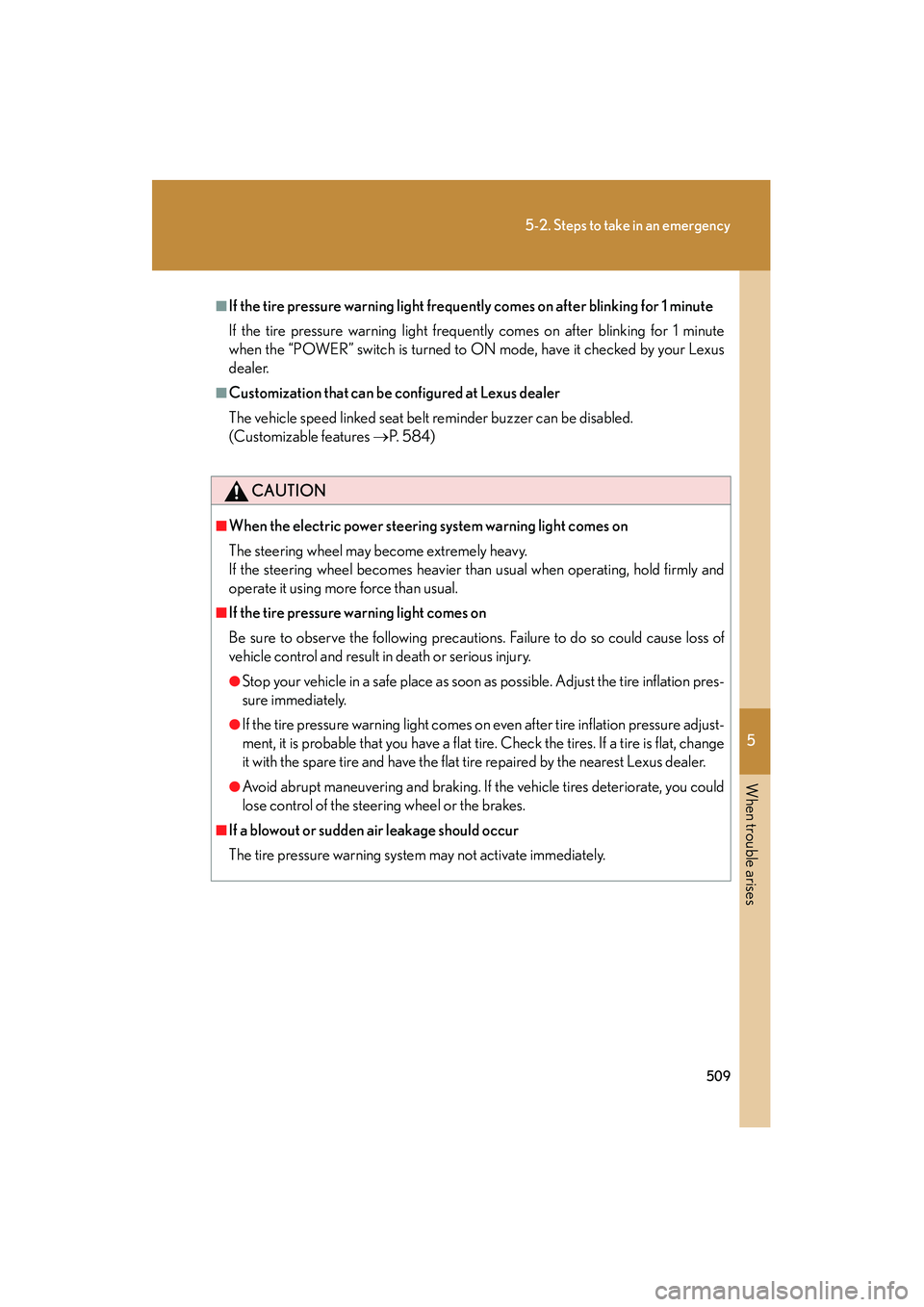

5-2. Steps to take in an emergency
HS250h_U_75050U
■If the tire pressure warning light frequently comes on after blinking for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1 minute
when the “POWER” switch is turned to ON mode, have it checked by your Lexus
dealer.
■Customization that can be configured at Lexus dealer
The vehicle speed linked seat belt reminder buzzer can be disabled.
(Customizable features →P. 5 8 4 )
CAUTION
■When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold firmly and
operate it using more force than usual.
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause loss of
vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pres-
sure immediately.
●If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you have a flat tire. Check the tires. If a tire is flat, change
it with the spare tire and have the flat tire repaired by the nearest Lexus dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could
lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.
