Lexus IS F 2011 Owner's Manual

220
2-4. Using other driving systems
IS F_EE

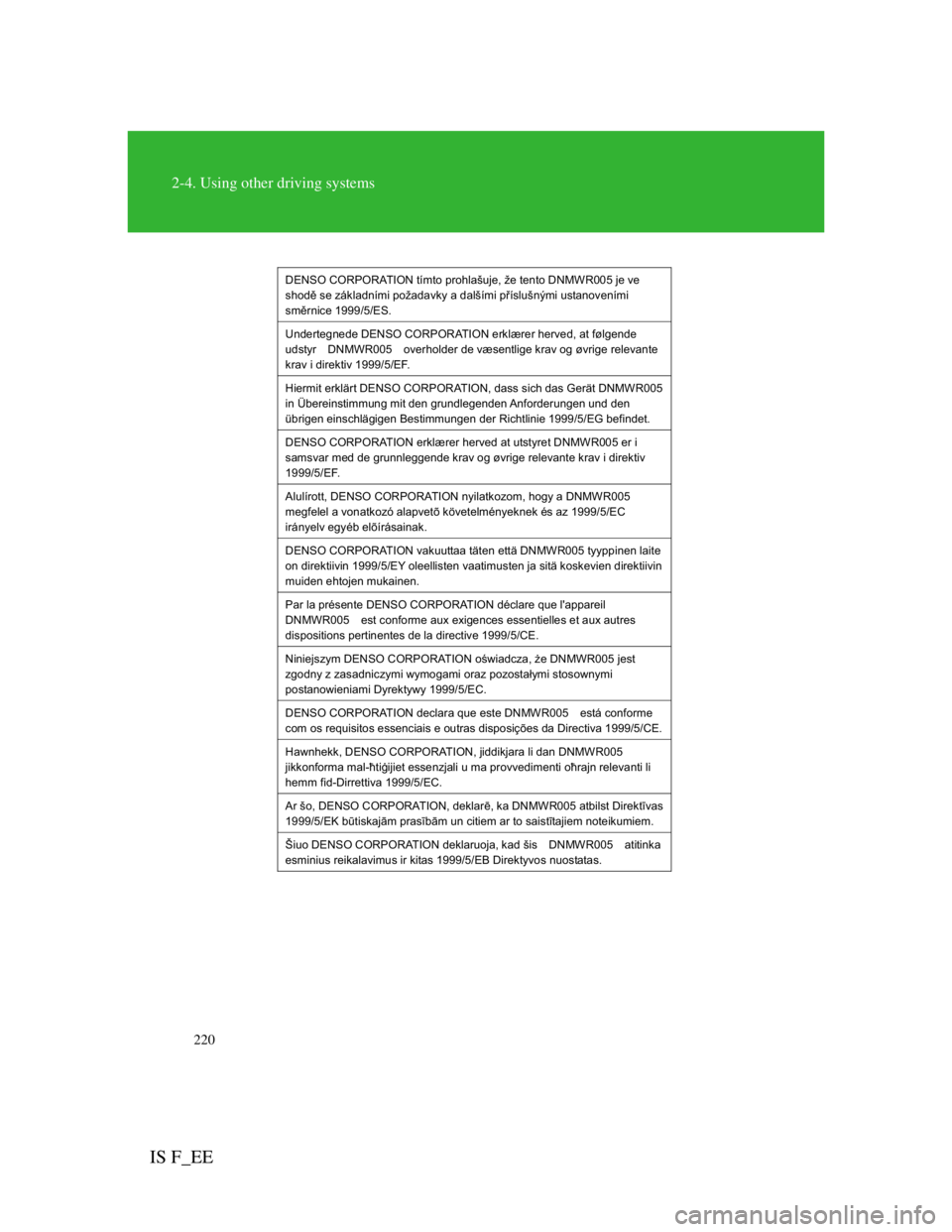

DENSO CORPORATION tímto prohlašuje, že tento DNMWR005 je ve
shod
 se základními požadavky a dalšími p
íslušnými ustanoveními
sm
rnice 1999/5/ES.
Undertegnede DENSO CORPORATION erklærer herved, at følgende
udstyrDNMWR005overholder de væsentlige krav og øvrige relevante
krav i direktiv 1999/5/EF.
Hiermit erklärt DENSO CORPORATION, dass sich das Gerät DNMWR005
in Übereinstimmung mit den grundlegenden Anforderungen und den
übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
DENSO CORPORATION erklærer herved at utstyret DNMWR005 er i
samsvar med de grunnleggende krav og øvrige relevante krav i direktiv
1999/5/EF.
Alulírott, DENSO CORPORATION nyilatkozom, hogy a DNMWR005
megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC
irányelv egyéb elõírásainak.
DENSO CORPORATION vakuuttaa täten että DNMWR005 tyyppinen laite
on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin
muiden ehtojen mukainen.
Par la présente DENSO CORPORATION déclare que l'appareil
DNMWR005est conforme aux exigences essentielles et aux autres
dispositions pertinentes de la directive 1999/5/CE.
Niniejszym DENSO CORPORATION o
wiadcza,
*e DNMWR005 jest
zgodny z zasadniczymi wymogami oraz pozostaáymi stosownymi
postanowieniami Dyrektywy 1999/5/EC.
DENSO CORPORATION declara que este DNMWR005está conforme
com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Hawnhekk, DENSO CORPORATION, jiddikjara li dan DNMWR005
jikkonforma mal-
«ti
¥ijiet essenzjali u ma provvedimenti o
«rajn relevanti li
hemm fid-Dirrettiva 1999/5/EC.
Ar šo, DENSO CORPORATION, deklar, ka DNMWR005 atbilst Direkt
¯vas
1999/5/EK b
Ìtiskaj
—m pras
¯b
—m un citiem ar to saist
¯tajiem noteikumiem.
Šiuo DENSO CORPORATION deklaruoja, kad šisDNMWR005atitinka
esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.

221
2-4. Using other driving systems
2
When driving
IS F_EE
CAUTION
Handling the radar sensor
Observe the following to ensure the pre-crash safety system can function
effectively.
Keep the sensor and front grille clean at all times.
Clean the sensor and front grille with a soft cloth so you do not mark or
damage them.
Do not subject the sensor or surrounding area to a strong impact.
If the sensor moves even slightly off position, the system may become
inaccurate or malfunction. If the sensor or surrounding area are subject to
a strong impact, always have the area inspected and adjusted by any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
Do not disassemble the sensor.
Do not attach accessories or stickers to the sensor, grille guard or sur-
rounding area.
Do not modify or paint the sensor and grille.
Limitations of the pre-crash safety system
Do not rely on the pre-crash safety system. Always drive safely, taking care
to observe your surroundings and checking for any obstacles or other road
hazards.
Failure to do so may cause an accident resulting in death or serious injury.

222
2-4. Using other driving systems
IS F_EE
CAUTION
Cautions regarding the assist contents of the system
By means of alarms and brake control, the pre-crash safety system is
intended to assist the driver in avoiding collisions through the process of
LOOK-JUDGE-ACT. There are limits to the degree of assistance the system
can provide, so please keep in mind the following important points.
Assisting the driver in watching the road
The pre-crash safety system is only able to detect obstacles directly in
front of the vehicle, and only within a limited range. It is not a mechanism
that allows careless or inattentive driving, and it is not a system that can
assist the driver in low-visibility conditions. It is still necessary for the
driver to pay close attention to the vehicle’s surroundings.
Assisting the driver in making correct judgment
When attempting to estimate the possibility of a collision, the only data
available to the pre-crash safety system is that from obstacles it has
detected directly in front of the vehicle. Therefore, it is absolutely neces-
sary for the driver to remain vigilant and to determine whether or not there
is a possibility of collision in any given situation.
Assisting the driver in taking action
The pre-crash safety system’s braking assist feature is designed to help
reduce the severity of a collision, and so only acts when the system has
judged that a collision is unavoidable. This system by itself is not capable
of automatically avoiding a collision or bringing the vehicle to a stop
safely. For this reason, when encountering a dangerous situation the driver
must take direct and immediate action in order to ensure the safety of all
involved.

220
IS F_EE
2-5. Driving information
Cargo and luggage
CAUTION
Things that must not be carried in the trunk
The following things may cause a fire if loaded in the trunk.
Receptacles containing gasoline
Aerosol cans
Storage precautions
Observe the following precautions.
Failing to do so may result in death or serious injury.
Do not place cargo or luggage in or on the following locations as the item
may get under the brake or accelerator pedal and prevent pedals from
being depressed properly, block the driver's vision, or hit the driver or pas-
sengers, causing an accident.
• Driver’s feet
• Front passenger or rear seats (when stacking items)
• Package tray
• Instrument panel
• Dashboard
Secure all items in the occupant compartment, as they may shift and injure
someone during sudden braking, sudden swerving or an accident.
Take notice of the following information about storage precautions,
cargo capacity and load.
Stow cargo and luggage in the trunk whenever possible.
Be sure all items are secured in place.
Be careful to keep the vehicle level. Placing the weight as far
forward as possible helps maintain vehicle balance.
For better fuel economy, do not carry unnecessary weight.

221
2-5. Driving information
2
When driving
IS F_EE
CAUTION
Luggage capacity and distribution
Observe the following precautions. Failure to do so will not only put load on
the tires, but also reduce steering and braking performance. This could lead
to an accident resulting in serious injury or even death.
Do not overload the vehicle.
Do not apply load to the vehicle unevenly.

222
2-5. Driving information
IS F_EE
Winter driving tips
Carry out the necessary preparations and inspections before driving
the vehicle in winter. Always drive the vehicle in a manner appropriate
to the prevailing weather conditions.
Pre-winter preparations
Use fluids that are appropriate to the prevailing outside
temperatures.
• Engine oil
• Engine coolant
• Washer fluid
Have a service technician inspect the level and specific
gravity of battery electrolyte.
Have the vehicle fitted with four snow tires.
Ensure that all tires are the specified size and the same brand.
Tire chains cannot be installed on 19-inch tires. Use the
specified type of tire chains and install them on the rear
tires only. Before installing the tire chains, change all four
tires and wheels to those of the specified size (tires: 225/
40R18, wheels: 18x8JJ +45 offset). For details, contact any
authorized Lexus dealer or repairer, or another duly quali-
fied and equipped professional.
Before driving the vehicle
Perform the following according to the driving conditions.
Do not try to forcibly open a window or move a wiper that
is frozen. Pour warm water over the frozen area to melt the
ice. Wipe away the water immediately to prevent it from
freezing.
To ensure proper operation of the climate control system
fan, remove any snow that has accumulated on the air inlet
vents in front of the windshield.
Remove any ice that has accumulated on the vehicle chas-
sis

223
2-5. Driving information
2
When driving
IS F_EE
Selecting tire chains
Tire chains can be mounted on 18-inch tires. They cannot be
mounted on 19-inch tires. Use the correct tire chain size when
mounting the snow chains.
Chain size is regulated for each tire size.
Side chain
(3 mm [0.12 in.] in diameter)
Cross chain
(4 mm [0.16 in.] in diameter)
Regulations on the use of snow chains
Regulations regarding the use of tire chains vary according to
location and type of road. Always check local regulations before
installing chains.
Install the chains on the rear tires.
Retighten the chains after driving 0.5 - 1.0 km (1/4 - 1/2 mile).
When driving the vehicle
Accelerate the vehicle slowly and drive at a reduced speed
suitable to road conditions.
When parking the vehicle
Park the vehicle and move the shift lever to P without setting
the parking brake. The parking brake may freeze up, prevent-
ing it from being released. If necessary, block the wheels to
prevent inadvertent sliding or creeping.

224
2-5. Driving information
IS F_EE
Tire chain installation
Observe the following precautions when installing and removing chains.
Install and remove tire chains in a safe location.
Install tire chains on the rear tires.
Install tire chains following the instructions provided in the accompany-
ing manual.
CAUTION
Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.
Use tires of the specified size.
Maintain the recommended level of air pressure.
Do not drive at speeds in excess of the speed limit or the speed limit spec-
ified for the snow tires being used.
Use snow tires on all, not just some wheels.
Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
Do not drive in excess of the speed limit specified for the tire chains being
used or 50 km/h (30 mph), whichever is lower.
Avoid driving on bumpy road surfaces or over potholes.
Avoid sudden turns and braking, as use of chains may adversely affect
vehicle handling.
Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.

225
2-5. Driving information
2
When driving
IS F_EE
Trailer towing
Lexus does not recommend towing a trailer with your vehicle. It is not
designed for trailer towing.

226
IS F_EE
3-1. Using the air conditioning
system and defogger
Automatic air
conditioning system ....... 228
Rear window and
outside rear view
mirror defoggers ............ 236
Windshield wiper de-icer . 237
3-2. Using the audio system
Audio system types .......... 238
Using the radio ................. 241
Using the CD player......... 245
Playing back MP3
and WMA discs ............. 252
Operating an iPod ............ 259
Operating a
USB memory ................. 266
Optimal use of the audio
system ............................ 273
Using the AUX port ......... 275
Using the steering wheel
audio switches................ 2763-3. Using the Bluetooth®
audio system
Bluetooth
® audio system . 279
Using the Bluetooth®
audio system .................. 283
Operating a Bluetooth
®
enabled portable
player ............................. 286
Setting up a Bluetooth
®
enabled portable
player ............................. 289
Bluetooth
® audio system
setup............................... 292
