trunk Lexus IS F 2011 Owner's Guide

47
1-2. Opening, closing and locking the doors and trunk
1
Before driving
IS F_EE
If the smart entry & start system does not operate properly
Locking and unlocking the doors and trunk: Use the mechanical key.
(P. 458)
Starting the engine:P. 4 6 0
When the electronic key battery is fully depleted
P. 3 8 8
Customization that can be configured at any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
It is possible to deactivate the operation signals of the system.
(Customizable features P. 484)
AlarmSituationCorrection procedure
Exterior alarm
sounds once for
10 secondsTried to lock the vehicle
using the entry function
while a door is openClose all of the doors
and lock the doors
again.
Interior alarm
sounds continu-
ouslyTried to open the door and
exit the vehicle without
shifting the shift lever to PShift the shift lever to
P.
Interior alarm
pings continu-
ously
Switched to ACCESSORY
mode while the driver's
door is open (Opened the
driver's door when the
“ENGINE START STOP”
switch is in ACCESSORY
mode.)
Close the driver's
door.
Turned the “ENGINE
START STOP” switch
OFF while the driver's
Close the driver's
door

48
1-2. Opening, closing and locking the doors and trunk
IS F_EE
Certification for the smart entry & start system
- Replace only with the same or equivalent type recommended by
the manufacturer.
- Dispose of used batteries according to the local laws.
Hereby, DENSO CORPORATION declares that this 14AAC/
14ABC/13BZK is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.

49
1-2. Opening, closing and locking the doors and trunk
1
Before driving
IS F_EE

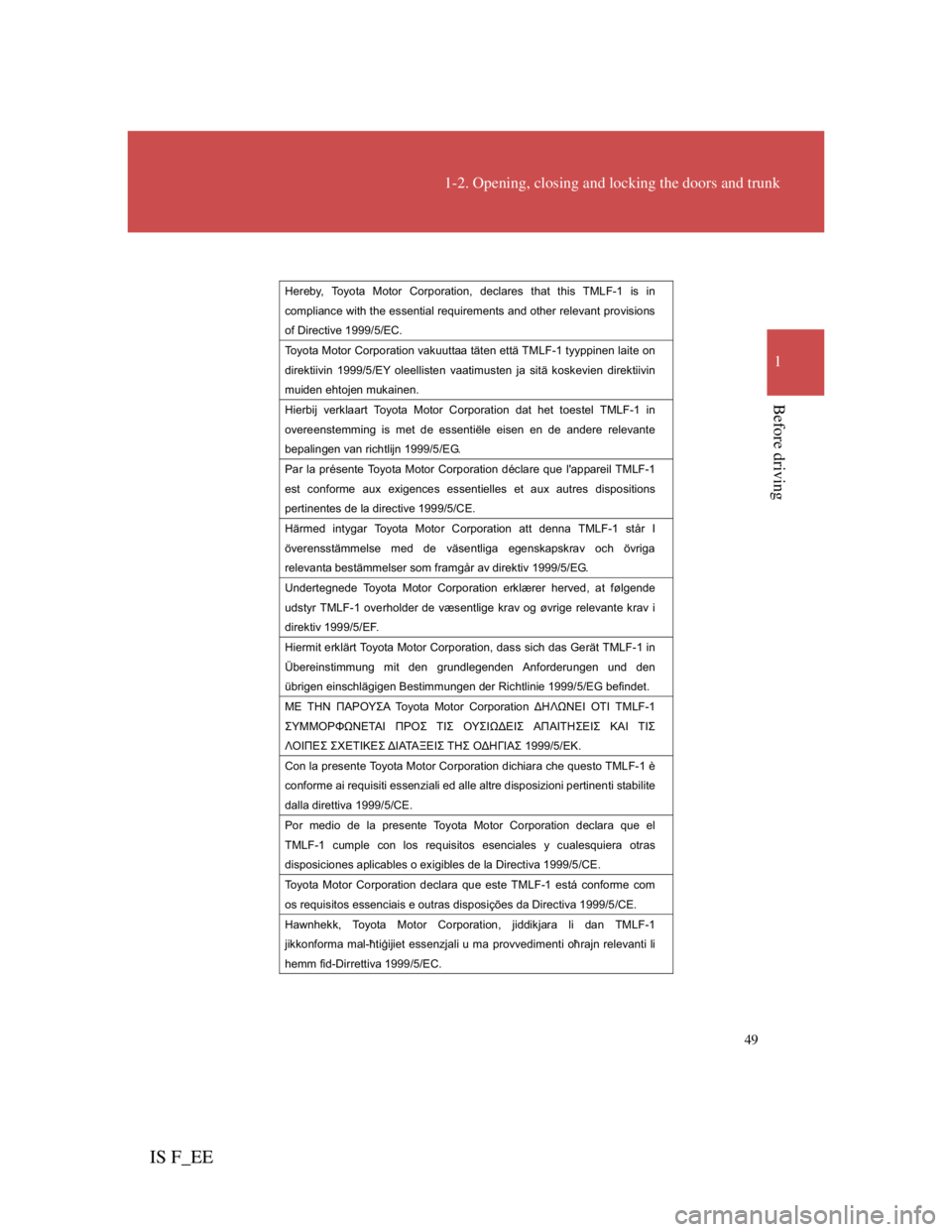

Hereby, Toyota Motor Corporation, declares that this TMLF-1 is in
compliance with the essential requirements and other relevant provisions
of Directive 1999/5/EC.:w
Toyota Motor Corporation vakuuttaa täten että TMLF-1 tyyppinen laite on
direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin
muiden ehtojen mukainen.:w
Hierbij verklaart Toyota Motor Corporation dat het toestel TMLF-1 in
overeenstemming is met de essentiële eisen en de andere relevante
bepalingen van richtlijn 1999/5/EG.:w
Par la présente Toyota Motor Corporation déclare que l'appareil TMLF-1
est conforme aux exigences essentielles et aux autres dispositions
pertinentes de la directive 1999/5/CE.:w
Härmed intygar Toyota Motor Corporation att denna TMLF-1 står I
överensstämmelse med de väsentliga egenskapskrav och övriga
relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Undertegnede Toyota Motor Corporation erklærer herved, at følgende
udstyr TMLF-1 overholder de væsentlige krav og øvrige relevante krav i
direktiv 1999/5/EF.
Hiermit erklärt Toyota Motor Corporation, dass sich das Gerät TMLF-1 in
Übereinstimmung mit den grundlegenden Anforderungen und den
übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.:w

ü
þ

50
1-2. Opening, closing and locking the doors and trunk
IS F_EE

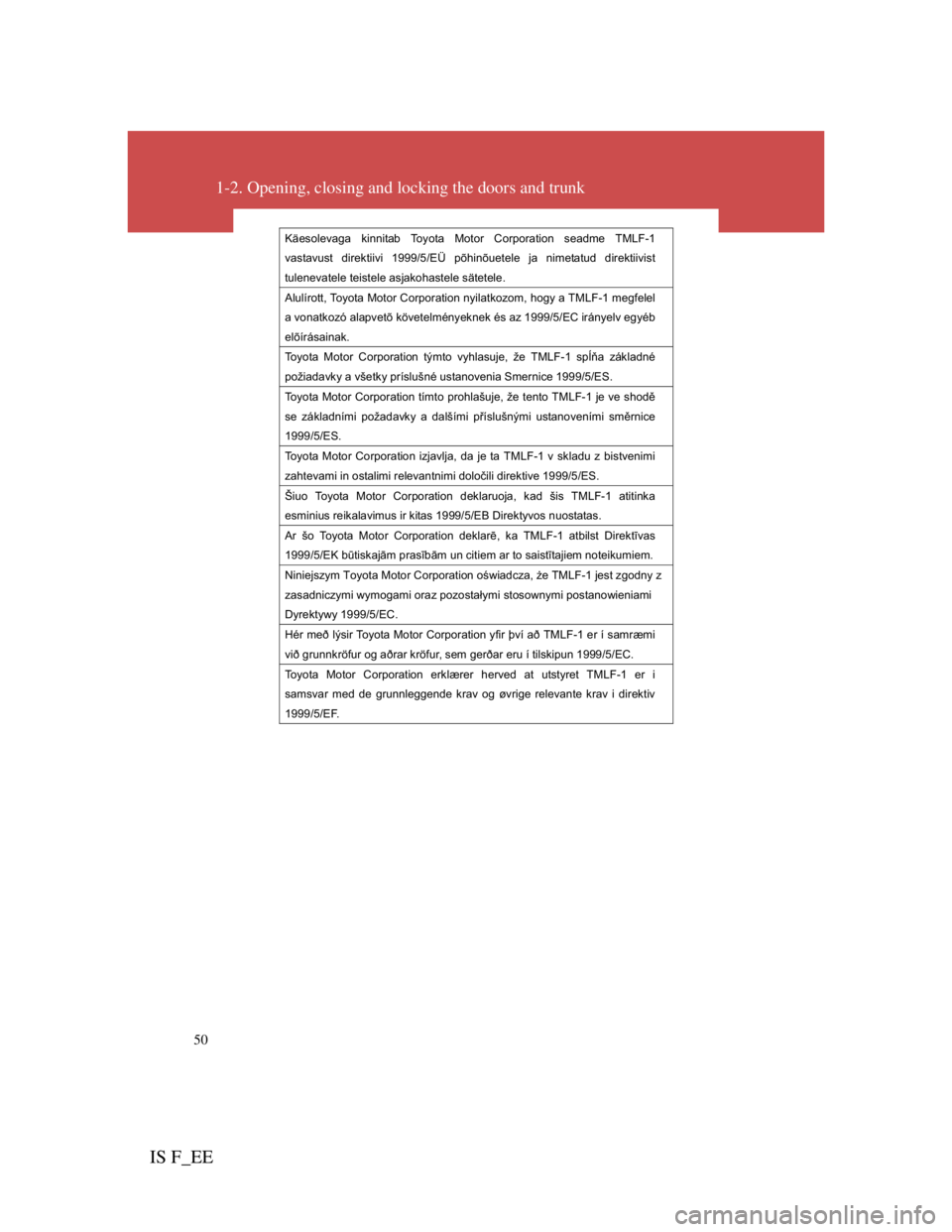

Käesolevaga kinnitab Toyota Motor Corporation seadme TMLF-1
vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist
tulenevatele teistele asjakohastele sätetele.
Alulírott, Toyota Motor Corporation nyilatkozom, hogy a TMLF-1 megfelel
a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb
elõírásainak.
Toyota Motor Corporation týmto vyhlasuje, že TMLF-1 sp

a základné
požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.
Toyota Motor Corporation tímto prohlašuje, že tento TMLF-1 je ve shod

se základními požadavky a dalšími p
íslušnými ustanoveními sm
rnice
1999/5/ES.
Toyota Motor Corporation izjavlja, da je ta TMLF-1 v skladu z bistvenimi
zahtevami in ostalimi relevantnimi doloþili direktive 1999/5/ES.
Šiuo Toyota Motor Corporation deklaruoja, kad šis TMLF-1 atitinka
esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Ar šo Toyota Motor Corporation deklar, ka TMLF-1 atbilst Direkt
¯vas
1999/5/EK b
Ìtiskaj
—m pras
¯b
—m un citiem ar to saist
¯tajiem noteikumiem.:w
Niniejszym Toyota Motor Corporation o
wiadcza,
*e TMLF-1 jest zgodny z
zasadniczymi wymogami oraz pozostaáymi stosownymi postanowieniami
Dyrektywy 1999/5/EC.
Hér með lýsir Toyota Motor Corporation yfir því að TMLF-1 er í samræmi
við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC.
Toyota Motor Corporation erklærer herved at utstyret TMLF-1 er i
samsvar med de grunnleggende krav og øvrige relevante krav i direktiv
1999/5/EF.

51
1-2. Opening, closing and locking the doors and trunk
1
Before driving
IS F_EE
CAUTION
Caution regarding interference with electronic devices
People with implanted pacemakers or cardiac defibrillators should main-
tain a reasonable distance between themselves and the smart entry & start
system antennas. (P. 3 8 )
The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional, for details,
such as the frequency of radio waves and timing of emitting the radio
waves. Then, consult your doctor to see if you should disable the entry
function.
User of any electrical medical device other than implanted pacemakers
and implanted cardiac defibrillators should consult the manufacturer of
the device for information about its operation under the influence of radio
waves.
Radio waves could have unexpected effects on the operation of such med-
ical devices.
Ask any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional, for details for disabling the entry function.

52
1-2. Opening, closing and locking the doors and trunk
IS F_EE
Wireless remote control
Operation signals
Doors: The emergency flashers flash to indicate that the doors have been
locked/unlocked. (Locked: Once; Unlocked: Twice)
Windows and moon roof: A buzzer sounds to indicate that the windows and
moon roof are operating.
Door lock buzzer
If a door is not fully closed, a buzzer sounds if an attempt to lock the door is
made. Fully close the door to stop the buzzer, and lock the vehicle once
more.
Alarm
Using the wireless remote control to lock the doors will set the alarm sys-
tem.
Electronic key battery depletion
P. 4 3
Security feature
P. 4 6
The wireless remote control can be used to lock and unlock the vehicle
and the trunk from outside the vehicle.
Locks all doors
Closes the windows and
moon roof (push and
hold)*
Unlocks all doors
Opens the windows and
moon roof (push and
hold)*
Unlocks the trunk
(push and hold)
*:This setting must be custom-
ized at any authorized Lexus

53
1-2. Opening, closing and locking the doors and trunk
1
Before driving
IS F_EE
When the electronic key battery is fully depleted
P. 3 8 8
Conditions affecting operation
P. 4 1
Customization that can be configured at any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
Settings (e.g. trunk unlocking function) can be changed.
(Customizable features P. 484)
Certification for wireless remote control
- Replace only with the same or equivalent type recommended by the manu-
facturer.
- Dispose of used batteries according to the local laws.
Hereby, DENSO CORPORATION declares that this 14AAC/14ABC/
13BZK is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
CAUTION
When closing the windows or moon roof using wireless remote control
Observe the following precautions.
Failing to do so may result in death or serious injury.
Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window or moon roof is
being operated.
To prevent inadvertent power windows and moon roof operation, never let
a small child have and use the wireless remote control.
Jam protection function
Never try jamming any part of your body to activate the jam protection
function intentionally.
The jam protection function may not work if something gets caught just
before the window or moon roof fully closes.

54
1-2. Opening, closing and locking the doors and trunk
IS F_EE
Doors
The vehicle can be locked and unlocked using the entry function,
wireless remote control or door lock switch.
Entry function
P. 37
Wireless remote control
P. 52
Door lock switch
Locks all doors
Unlocks all doors
Inside lock button
Locks the door
Unlocks the door
The front doors can be
opened by pulling the inside
handle even if the lock but-
tons are in the lock position.

55
1-2. Opening, closing and locking the doors and trunk
1
Before driving
IS F_EE
Locking the front doors from the outside without a key
Move the lock button to the lock position.
Close the door while pulling the door handle.
The door cannot be locked if the “ENGINE START STOP” switch
is in ACCESSORY or IGNITION ON mode, or the electronic key
is left inside the vehicle.
Depending on the position of the electronic key, the key may not be
detected correctly and the door may be locked.
Rear door child-protector lock
The door cannot be opened
from inside the vehicle when
the locks are set.
These locks can be set to pre-
vent children from opening the
rear doors. Push down on each
rear door switch to lock both
rear doors.
STEP1
STEP2

56
1-2. Opening, closing and locking the doors and trunk
IS F_EE

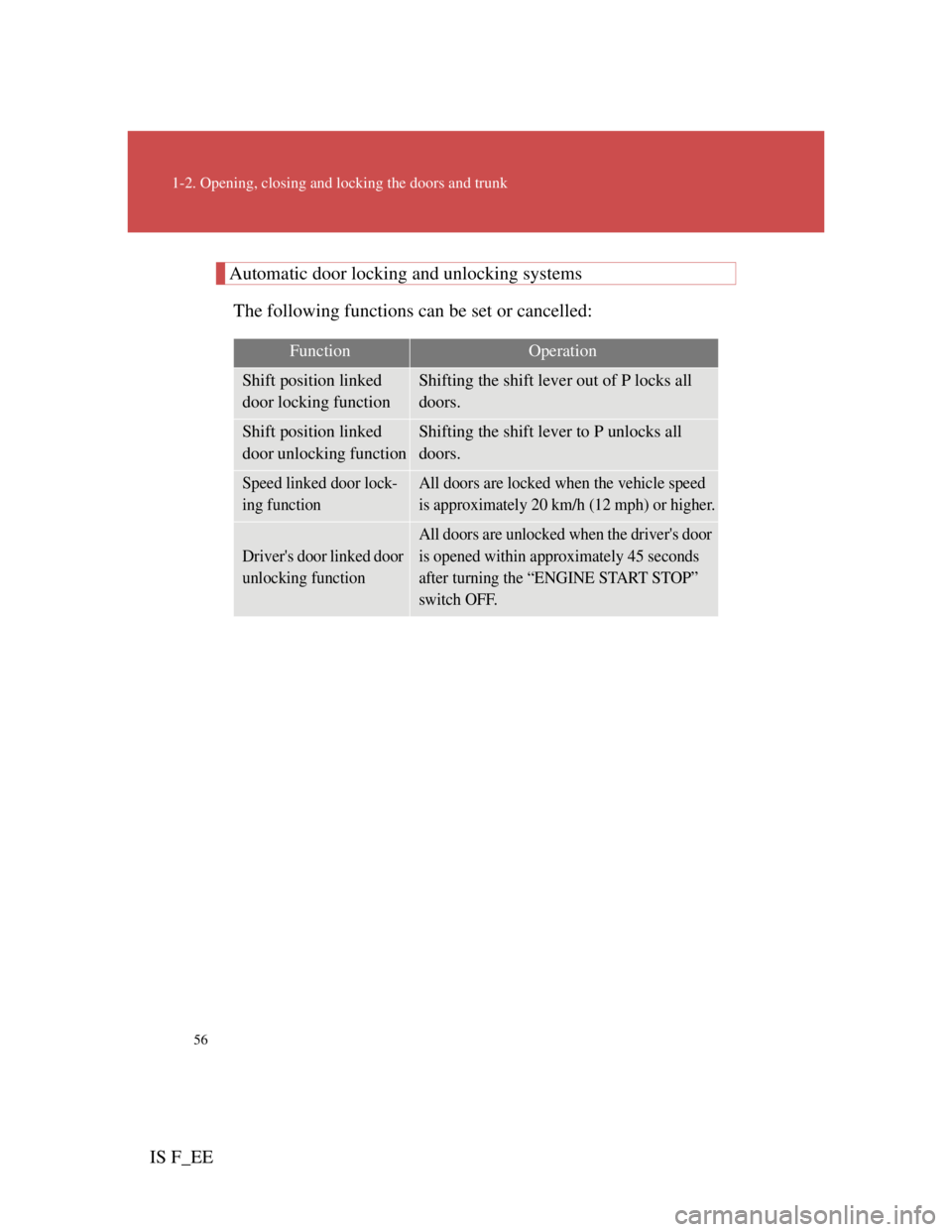

Automatic door locking and unlocking systems
The following functions can be set or cancelled:
FunctionOperation
Shift position linked
door locking functionShifting the shift lever out of P locks all
doors.
Shift position linked
door unlocking functionShifting the shift lever to P unlocks all
doors.
Speed linked door lock-
ing functionAll doors are locked when the vehicle speed
is approximately 20 km/h (12 mph) or higher.
Driver's door linked door
unlocking function
All doors are unlocked when the driver's door
is opened within approximately 45 seconds
after turning the “ENGINE START STOP”
switch OFF.
