Lexus IS F 2011 Owner's Manual

361
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_EE
CAUTION
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions.
When working on the engine compartment:
Keep hands, clothing, and tools away from the moving fan and engine
drive belt.
Be careful not to touch the engine, radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil and other fluids may also be hot.
Do not leave anything that may burn easily, such as paper or rags, in the
engine compartment.
Do not smoke, cause sparks or expose an open flame to fuel or the battery.
Fuel and battery fumes are flammable.
Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.
Take care because brake fluid can harm your hands or eyes and damage
painted surfaces.
If fluid gets on your hands or in your eyes, flush the affected area with
clean water immediately.
If you still experience discomfort, see a doctor.
When working near the electric cooling fan or radiator grille:
Be sure the “ENGINE START STOP” switch is OFF.
With the “ENGINE START STOP” switch in IGNITION ON mode, the
electric cooling fan may automatically start to run if the air conditioning is
on and/or the coolant temperature is high. (P. 374)
CAUTION
Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc.
from getting in the eyes.

362
4-3. Do-it-yourself maintenance
IS F_EE
NOTICE
If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air. Also a backfire could cause a fire in the engine com-
partment.
If the brake fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads
wear or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.

363
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_EE

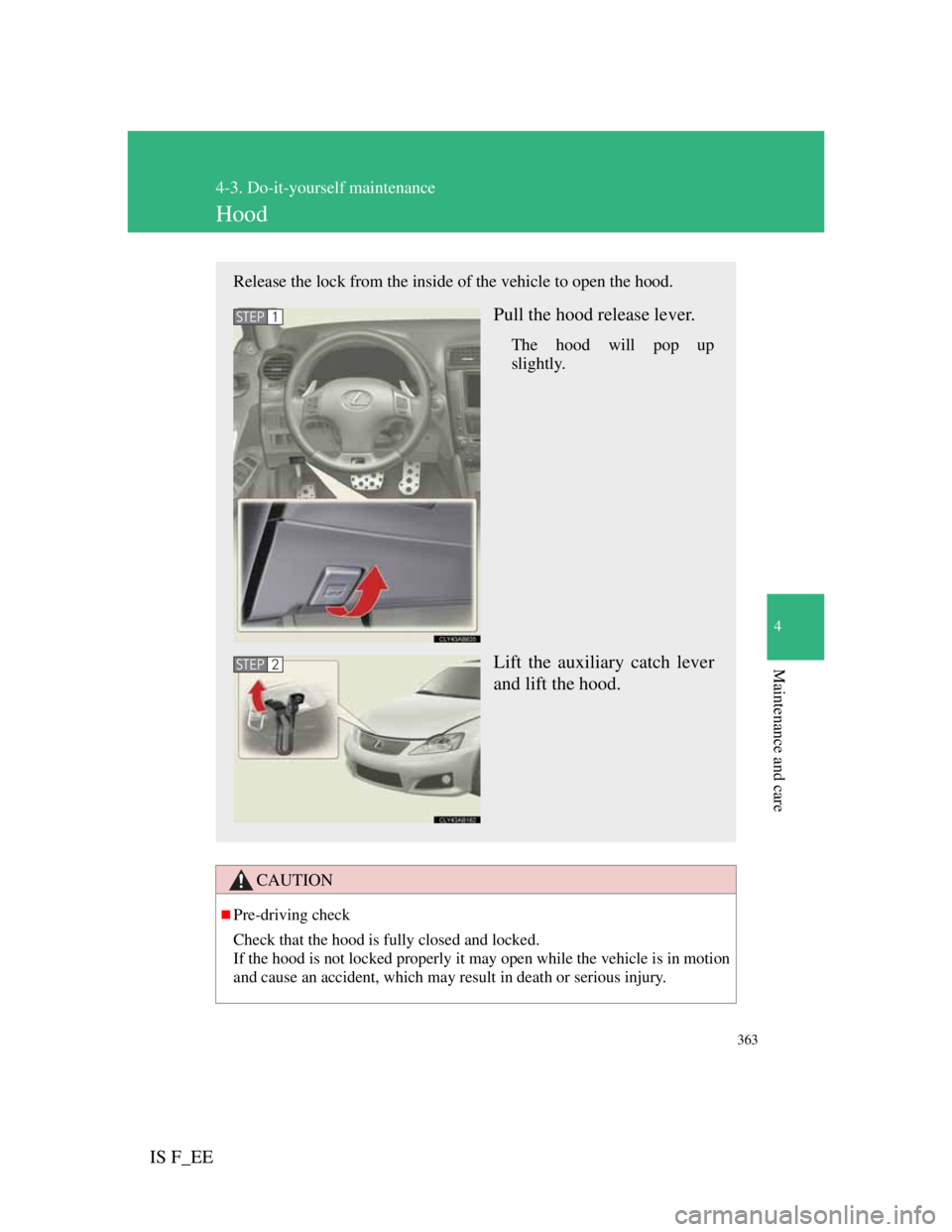

Hood
CAUTION
Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
Release the lock from the inside of the vehicle to open the hood.
Pull the hood release lever.
The hood will pop up
slightly.
Lift the auxiliary catch lever
and lift the hood.
STEP1
STEP2

364
4-3. Do-it-yourself maintenance
IS F_EE

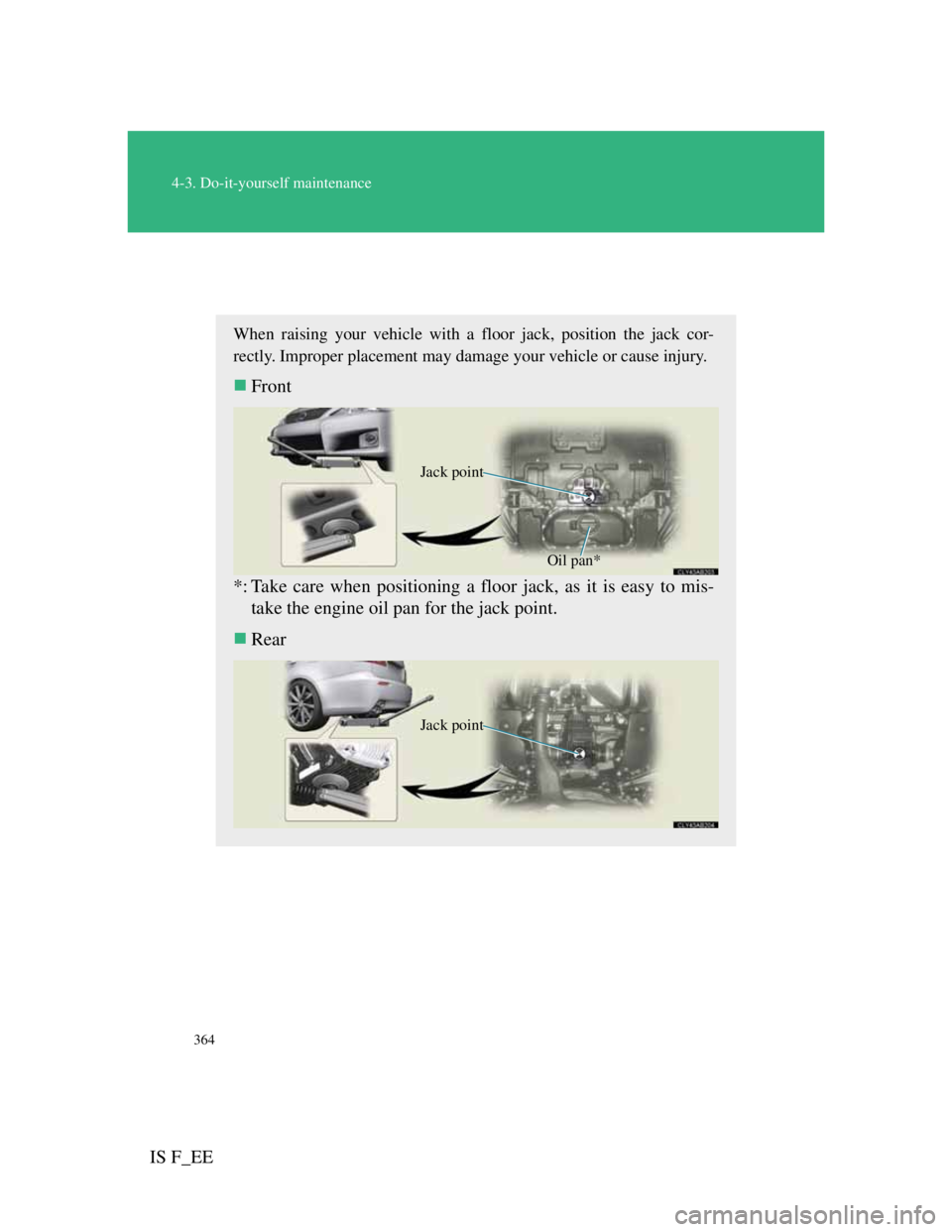

Positioning a floor jack
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause injury.
Front
*: Take care when positioning a floor jack, as it is easy to mis-
take the engine oil pan for the jack point.
Rear
Jack point
Oil pan*
Jack point

365
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_EE
CAUTION
When raising your vehicle:
Make sure to observe the following to reduce the possibility of death or seri-
ous injury.
When using a floor jack, follow the instructions of the manual provided
with the jack.
Do not use the jack that was supplied with your vehicle.
Do not put any part of your body or get underneath the vehicle supported
only by the floor jack.
Always use floor jack and/or automotive jack stands on a solid, flat, level
surface.
Do not start the engine while the vehicle is supported by the floor jack.
Stop the vehicle on level firm ground, firmly set the parking brake and put
the shift lever in P.
Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage
the vehicle and may cause the vehicle to fall off the floor jack.
Do not raise the vehicle while someone is in the vehicle.
When raising the vehicle, do not place any objects on top of or underneath
the floor jack.
Lift up the vehicle using a floor jack
such as the one shown in the illustra-
tion.

366
4-3. Do-it-yourself maintenance
IS F_EE
Engine compartment
*: For right-hand drive vehicles:
They are located on the opposite side of the engine compartment.
Battery (P. 374)
Engine oil level dipstick
(P. 369)
Engine oil filler cap
(P. 370)
Fuse boxes (P. 393)
Washer fluid tank(P. 378)Electric cooling fans
Condenser (P. 374)
Radiator (P. 374)
Engine coolant reservoir
(P. 372)
**

367
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_EE

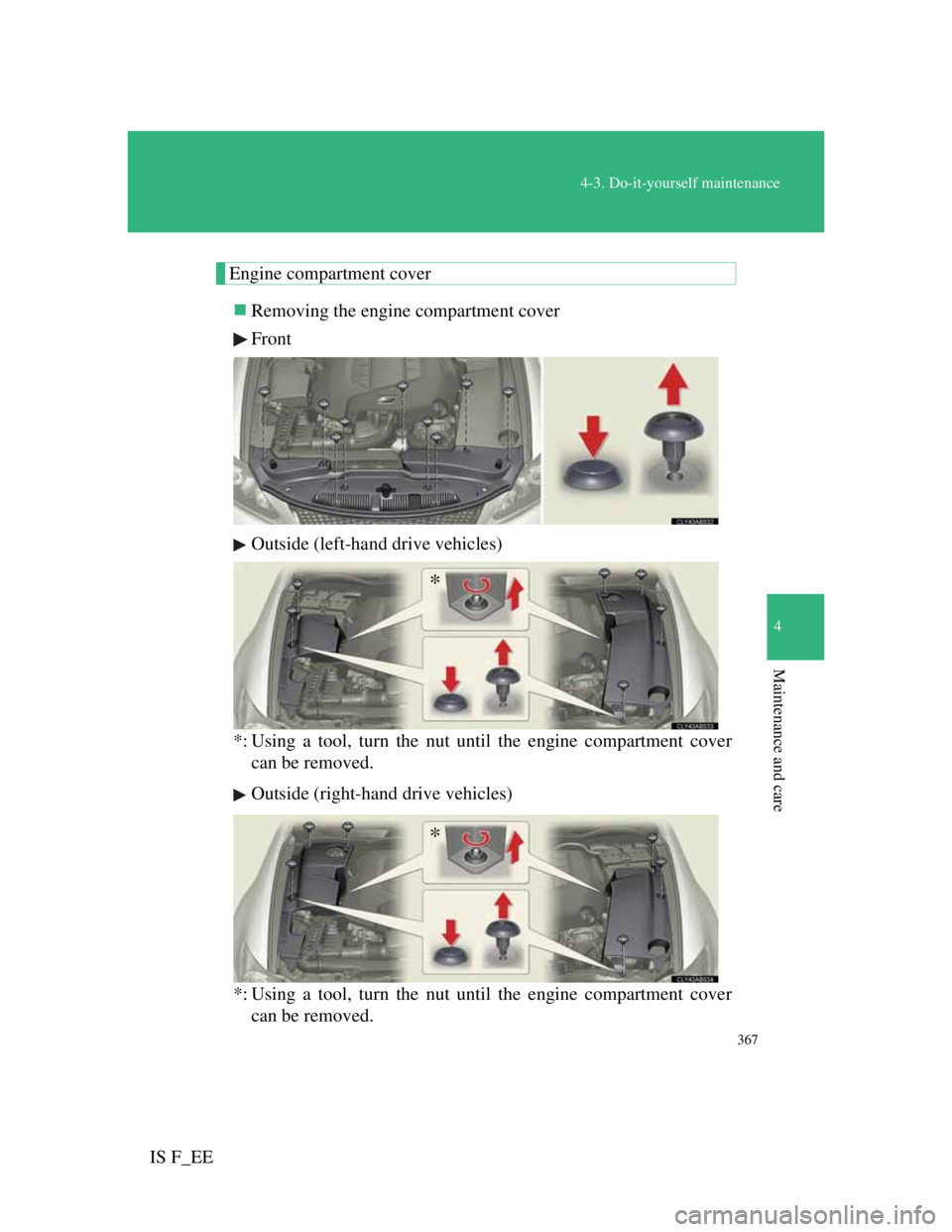

Engine compartment cover
Removing the engine compartment cover
Front
Outside (left-hand drive vehicles)
*: Using a tool, turn the nut until the engine compartment cover
can be removed.
Outside (right-hand drive vehicles)
*: Using a tool, turn the nut until the engine compartment cover
can be removed.
*
*

368
4-3. Do-it-yourself maintenance
IS F_EEInstalling the clips and nut
Press the tip of the clip
against a hard surface, such
as a desk, to allow the center
part of the clip to be pushed
up.
Insert
*: Push it down as far as it
will go.
Press
*
NOTICE
After installing an engine compartment cover
Make sure that the cover is securely installed in its original position.

369
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_EE
Engine oil
With the engine at operating temperature and turned off, check the
oil level on the dipstick.
Checking the engine oil
Park the vehicle on level ground. After warming up the
engine and turning it off, wait more than five minutes for
the oil to drain back into the bottom of the engine.
Hold a rag under the end and
pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check
the oil level.
STEP1
STEP2
STEP3
STEP4
STEP5

370
4-3. Do-it-yourself maintenance
IS F_EEWipe the dipstick and reinsert it fully.
Low
Full
Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as already
in the engine.
Make sure to check the oil type and prepare the items needed
before adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
STEP6
Engine oil
selectionP. 4 7 5
Oil quantity
(Low
 Full)1.5 L (1.6 qt., 1.3 Imp. qt.)
ItemsClean funnel
STEP1
STEP2
STEP3
