Lexus IS F 2011 Owner's Manual

323
3-5. Using the interior lights
3
Interior features
IS F_EE
Personal lights
Front (models without a moon roof)
On/off
Front (models with a moon roof)
On/off
Rear
On/off
Personal lights

324
IS F_EE
3-6. Using the storage features
List of storage features
CAUTION
Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this may
cause the following when cabin temperature becomes high:
Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Glove box
Bottle holders/door pockets
Cup holders
Console box/cup holder
Auxiliary box (if equipped)

325
3-6. Using the storage features
3
Interior features
IS F_EE
Glove box
Open (push button)
Lock with the mechanical
key
Unlock with the mechanical
key
Glove box light
The glove box light turns on when the “ENGINE START STOP” switch is
in IGNITION ON mode.
Trunk opener main switch
The trunk opener main switch is located in the glove box. (P. 5 9 )
CAUTION
Caution while driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
Glove box

326
3-6. Using the storage features
IS F_EE
Console box
Pull up the knob to release
the lock.
Slide the armrest.
Pull up the knob to release
the lock.
Lift the armrest to open.
Console box light
The console box light turns on when the “ENGINE START STOP” switch is
in IGNITION ON mode.
Using the console box to store CD cases
CAUTION
Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
Store a CD case with the hinged portion
facing either the front or back of the con-
sole box.
Console box

327
3-6. Using the storage features
3
Interior features
IS F_EE
Cup holders
Front (press-in type)
Press down and release the
front of the cup holder lid.
Front (slide type)
Pull up the knob to release
the lock.
Slide the armrest.
Rear
Press in and release the cup
holders on the rear center arm-
rest.
Cup holders

328
3-6. Using the storage features
IS F_EE
Bottle holders/door pockets
The door pockets can be
opened and closed.
When installing the bottle, close
the cap of the bottle.
Using the front cup holder (slide type) to store small items
CAUTION
Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury. If possible, cover hot drinks to prevent
burns.
When not in use
Keep the cup holders closed.
Injuries may result in the event of an accident or sudden braking.
Remove the cup holder insert by holding
the base part.
Cup holders and bottle holders/door pockets

329
3-6. Using the storage features
3
Interior features
IS F_EE
Auxiliary box (if equipped)
Push the back part of the lid to
open. Push the lid again to
close.
CAUTION
Caution while driving
Keep the door pockets closed.
Injuries may result in the event of an accident or sudden braking.
CAUTION
Caution while driving
Do not leave the auxiliary box open while driving.
Items stored in it may fall out and cause death or serious injury in case of an
accident or sudden stop.
Bottle holders/door pockets and auxiliary box

330
IS F_EE
3-7. Other interior features

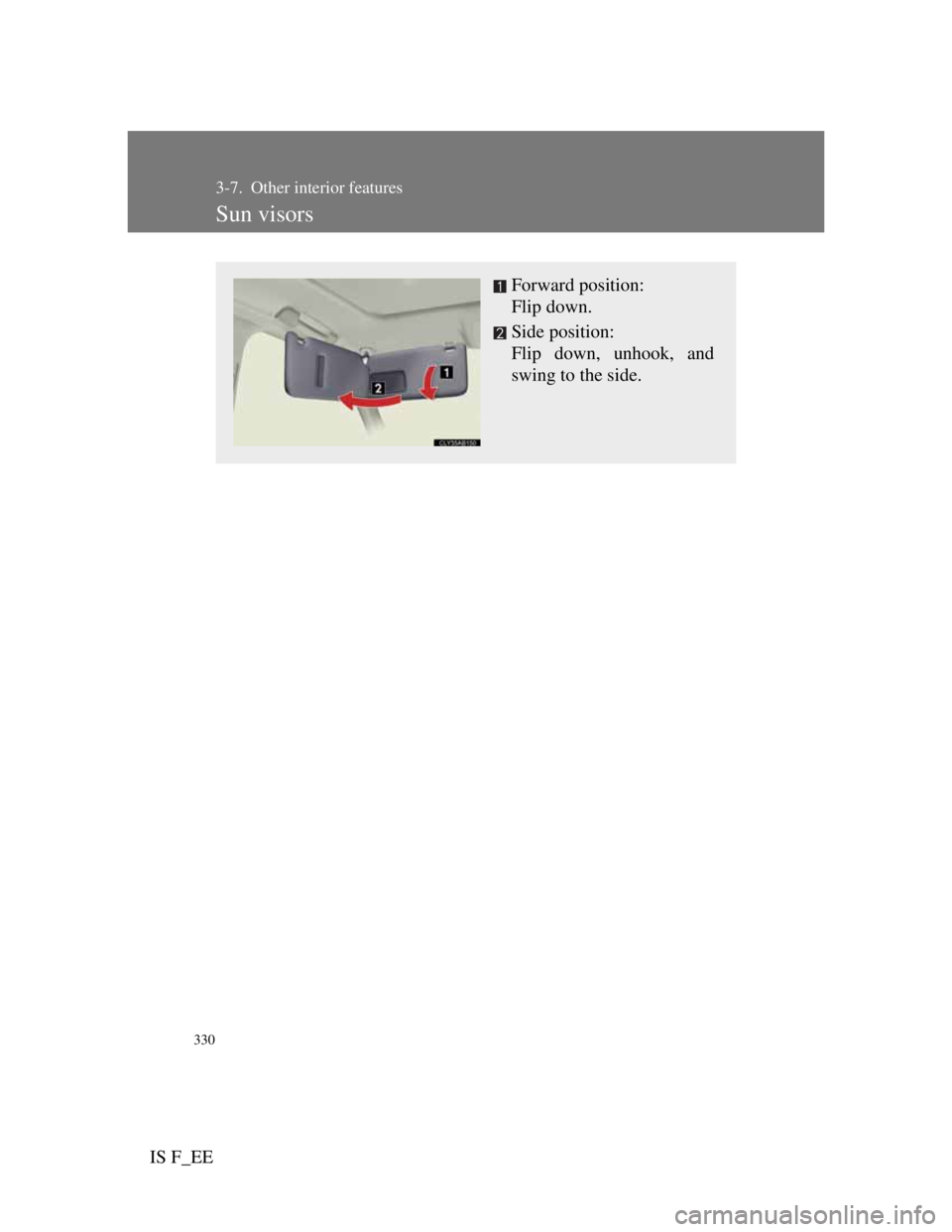

Sun visors
Forward position:
Flip down.
Side position:
Flip down, unhook, and
swing to the side.

331
3-7. Other interior features
3
Interior features
IS F_EE

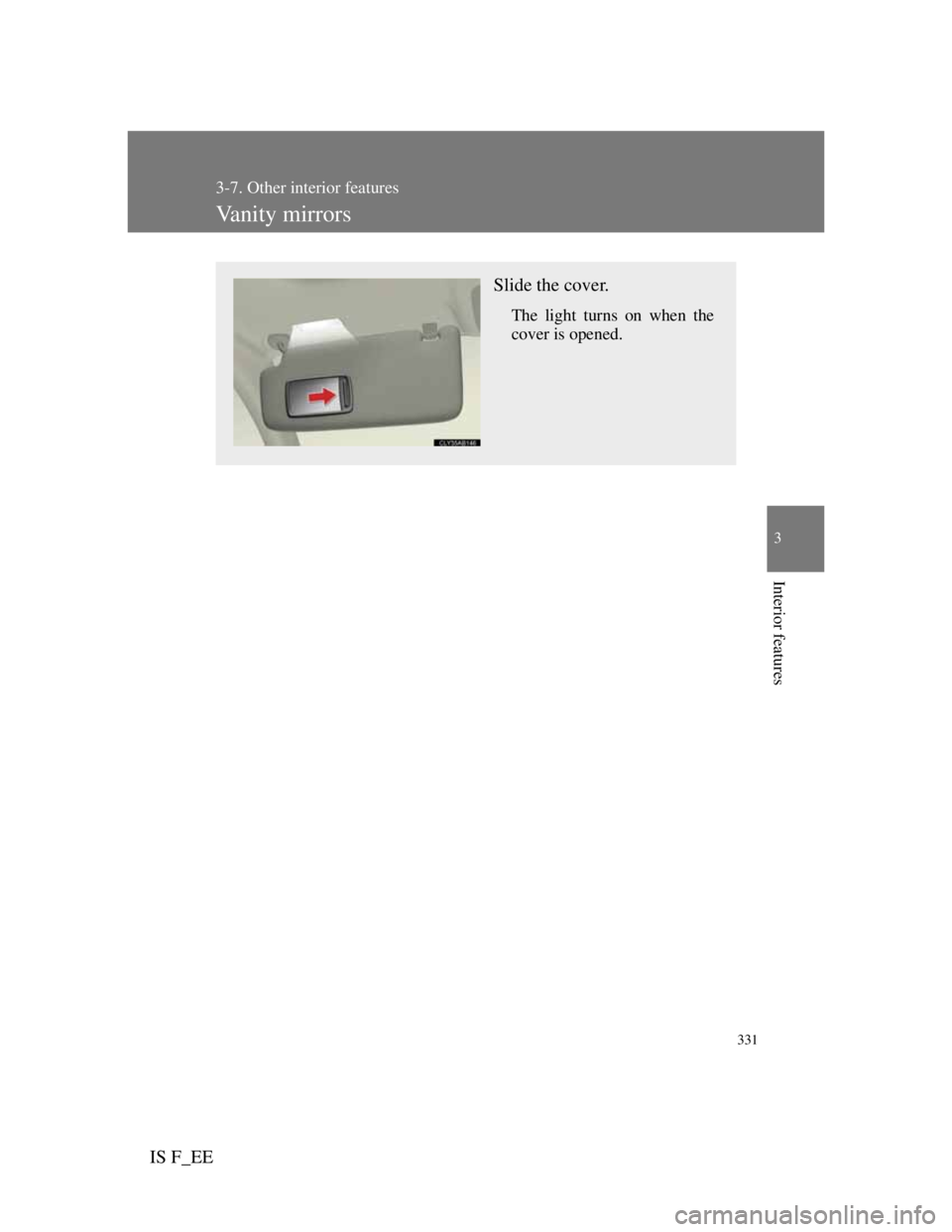

Vanity mirrors
Slide the cover.
The light turns on when the
cover is opened.

332
3-7. Other interior features
IS F_EE
Clock
The clock is displayed when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION
ON mode.
Adjusts the hour.
Adjusts the minutes.
Rounds to the nearest
hour.
*
*: e.g. 1:00 to 1:29 1:00
1:30 to 1:592:00
