ECU Lexus IS F 2011 Owner's Guide

346
3-7. Other interior features
IS F_EE
CAUTION
Observe the following precautions.
Failure to do so may cause the driver's floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it
may become difficult to stop the vehicle, leading to a serious accident.
When installing the driver's floor mat
Do not use floor mats designed for other models or different model year
vehicles, even if they are Lexus Genuine floor mats.
Only use floor mats designed for the driver's seat.
Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
Do not use two or more floor mats on top of each other.
Do not place the floor mat bottom-side up or upside-down.
Before driving
Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
With the engine stopped and the shift
lever in P, fully depress each pedal to
the floor to make sure it does not inter-
fere with the floor mat.

347
3-7. Other interior features
3
Interior features
IS F_EE
Trunk features
Cargo hooks
Cargo hooks are provided for
securing loose items.
Shopping bag hooks
First-aid kit storage belt
Loosen
Tighten

368
4-3. Do-it-yourself maintenance

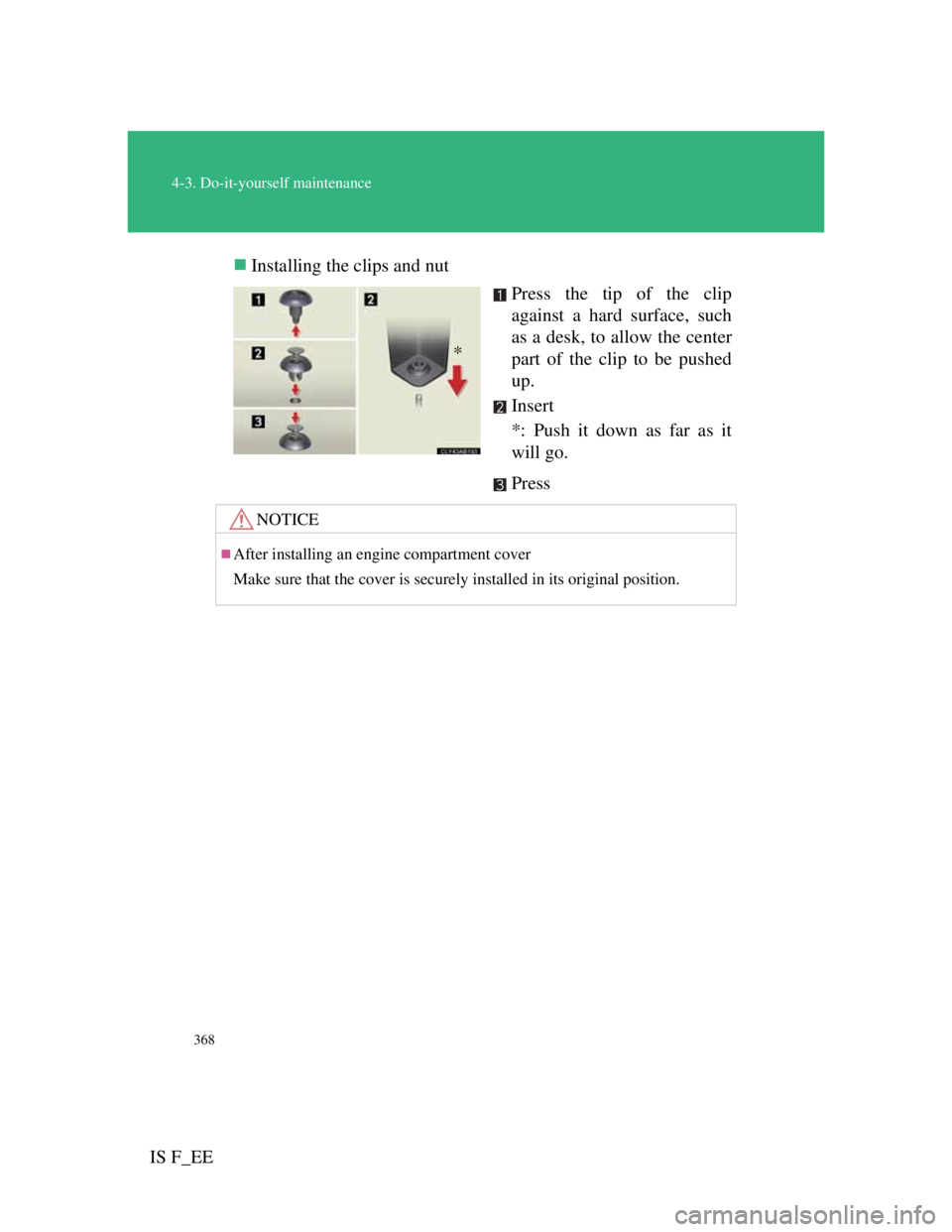

IS F_EEInstalling the clips and nut
Press the tip of the clip
against a hard surface, such
as a desk, to allow the center
part of the clip to be pushed
up.
Insert
*: Push it down as far as it
will go.
Press
*
NOTICE
After installing an engine compartment cover
Make sure that the cover is securely installed in its original position.

376
4-3. Do-it-yourself maintenance
IS F_EEAdding distilled water
Remove the vent plug.
Add distilled water.
If the “UPPER LEVEL” line cannot be seen, check the fluid level
by looking directly at the cell.
Put the vent plug back on and close securely.
Lo O.K
Before recharging
When recharging, the battery produces hydrogen gas which is flammable
and explosive. Therefore, before recharging:
If recharging with the battery installed on the vehicle, be sure to discon-
nect the ground cable.
Make sure the power switch on the charger is off when connecting and
disconnecting the charger cables to the battery.
After recharging/reconnecting the battery
In some cases, the engine may not start. Follow the procedure below to ini-
tialize the system.
Shift the shift lever to P, and turn the “ENGINE START STOP”
switch OFF.
Open and close any of the doors.
Start the engine. (If the engine does not start first time, repeat the
procedure.)
If the engine will not start even after multiple attempts at the above method,
contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3

398
4-3. Do-it-yourself maintenance
IS F_EE
7MPX-B10 A
Headlights, front fog lights, front
position lights, windshield washer,
horns, power door lock system,
power windows, power seats, elec-
tric tilt and telescopic steering col-
umn, meters and gauges, smart
entry & start system, outside rear
view mirrors, air conditioning sys-
tem, multiplex communication
system
8DOME10 AInterior lights, meters and gauges,
outer foot lights
9CDS10 AElectric cooling fans
10E/G-B60 AFR CTRL-B, ETCS, A/F, STR
LOCK, INJ2
11P/I-B60 AEFI, F/PMP, INJ
12ABS150 AVDIM
13RH J/B-B30 AFR DOOR RH, RR DOOR RH,
AM2
14VVT40 A
Multiport fuel injection system/
sequential multiport fuel injection
system
15MAIN30 AH-LP L LWR, H-LP R LWR,
headlight low beams
16STARTER30 ASmart entry & start system
17LH J/B-B30 AFR DOOR LH, RR DOOR LH,
SECURITY
18EPS80 AElectric power steering
FuseAmpereCircuit

399
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_EE
19ALT180 A
LH J/B-AM, E/G-AM, HEATER,
FAN1, FAN2, DEFOG, RH J/B-
AM, ABS2
20LH J/B-AM80 A
S/ROOF, FR P/SEAT LH, TV NO.
1,
A/C, F/OPN, PSB, RR FOG,
FR WIP, H-LP LVL, LH-IG,
ECU-IG LH, PANEL, TAIL,
TV NO. 2, FR S/HTR LH, MIR
HTR
21RH J/B-AM80 A
OBD, STOP SW, TI & TE, FR P/
SEAT RH, DOOR DL, RAD NO.
3,
ECU-IG RH, RH-IG, FR S/HTR
RH, ACC, CIG, PWR OUTLET
22ABS230 AVDIM
23DEFOG50 ARear window defogger
24FA N 240 AElectric cooling fans
25FA N 140 AElectric cooling fans
26HEATER50 ACDS, air conditioning system
27E/G-AM60 AH-LP CLN, FR CTRL AM,
DEICER
FuseAmpereCircuit

402
4-3. Do-it-yourself maintenance
IS F_EELeft side instrument panel
FuseAmpereCircuit
1FR P/SEAT LH30 APower seat
2A/C7.5 AAir conditioning system
3MIR HTR15 AOutside rear view mirror defoggers
4TV NO. 110 ADisplay
5FUEL OPEN10 AFuel filler door opener
6TV NO. 27.5 ALexus parking assist monitor
7PSB30 APre-crash seat belt
8S/ROOF25 AMoon roof
9TA I L10 ATail lights, license plate lights
10PANEL7.5 A
Switch illumination, air condition-
ing system, display, cigarette
lighter illumination, shift lever
light, instrument panel lights
11RR FOG7.5 ARear fog lights
12ECU-IG LH10 A
Cruise control, air conditioning
system, electric power steering,
shift lock system, moon roof,
Lexus parking assist monitor
13FR S/HTR LH15 ASeat heaters

403
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_EE
14RR DOOR LH20 APower windows
15FR DOOR LH20 APower windows, outside rear view
mirror (left)
16SECURITY7.5 ASmart entry & start system
17H-LP LVL7.5 AAutomatic headlight leveling sys-
tem
18LH-IG10 A
Charging system, headlight
cleaner, rear window defogger,
electric cooling fans, emergency
flashers, turn signal lights, back-up
lights, stop lights, outside rear
view mirror defoggers, seat belts,
Lexus parking assist-sensor, air
conditioning system
19FR WIP30 AWindshield wipers
FuseAmpereCircuit

405
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_EE
13FR DOOR RH20 APower windows, outside rear view
mirrors
14AM27.5 ASmart entry & start system
15RH-IG7.5 A
Seat belts, Lexus parking assist-
sensor, automatic transmission,
seat heaters, windshield wiper de-
icer
16FR S/HTR RH15 ASeat heaters
17ECU-IG RH10 A
Power seats, smart entry & start
system, VDIM, air conditioning
system, pre-crash seat belt, electric
tilt and telescopic steering column,
power windows, navigation sys-
tem, headlights, front fog lights,
front position lights, license plate
lights, windshield washer, outside
rear view mirrors
After a fuse is replaced
If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 407)
If the replaced fuse blows again, have the vehicle inspected by any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
FuseAmpereCircuit

409
4-3. Do-it-yourself maintenance
4
Maintenance and care

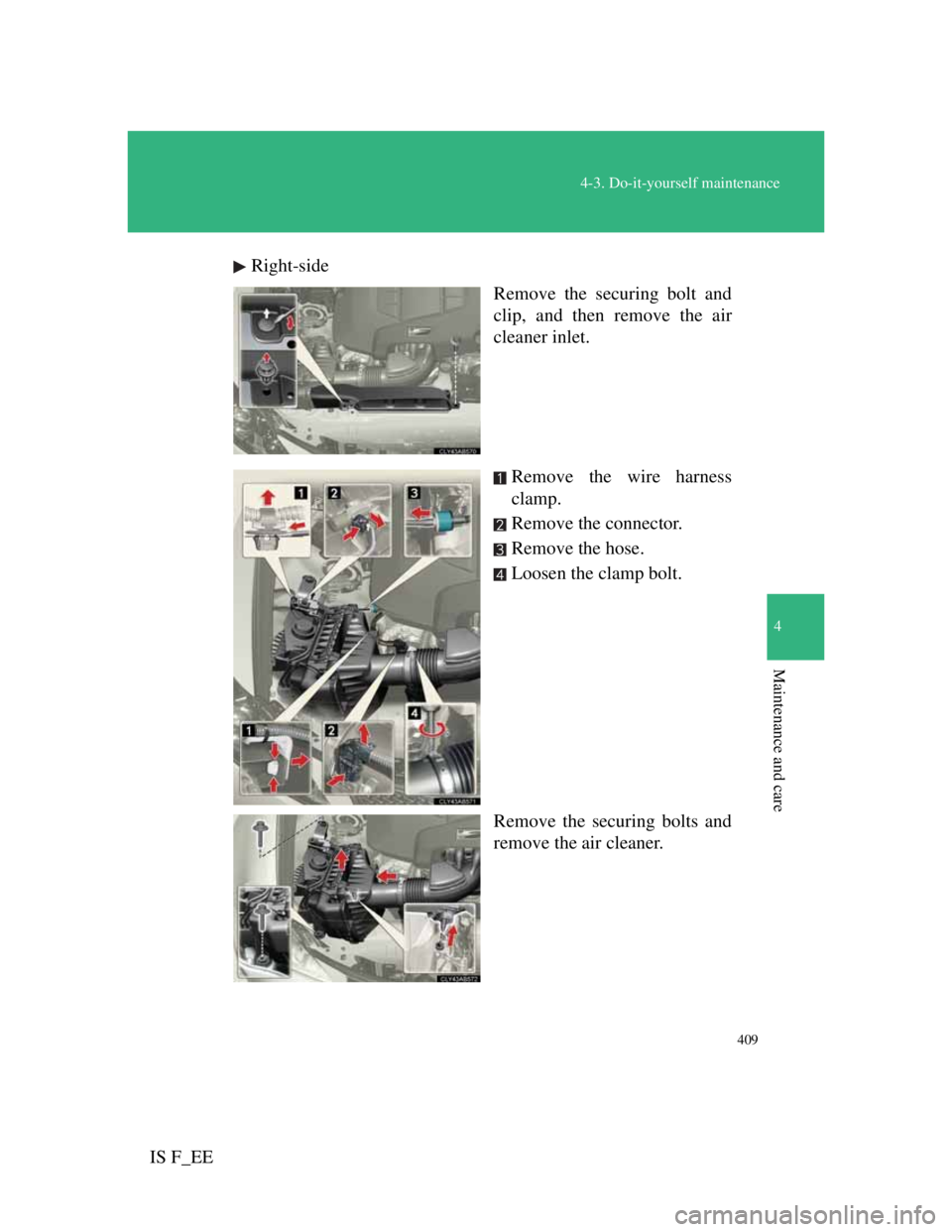

IS F_EERight-side
Remove the securing bolt and
clip, and then remove the air
cleaner inlet.
Remove the wire harness
clamp.
Remove the connector.
Remove the hose.
Loosen the clamp bolt.
Remove the securing bolts and
remove the air cleaner.
