442
5-2. Steps to take in an emergency
IS F_EE
Once(Comes on for 10 sec-
onds.)
(Flashing)
Indicates that
the key battery
is low.Replace the bat-
tery. (P. 390)

Indicates that
the “ENGINE
START STOP”
switch has been
turned twice to
ACCESSORY
mode without
starting the
engine when a
closed door is
opened.
Press the
“ENGINE
START STOP”
switch while
applying the
brakes.

(Flashing)
Indicates that
the steering lock
has not released
within 3 seconds
of pressing the
“ENGINE
START STOP”
switch.Press the
“ENGINE
START STOP”
switch again
while turning
the steering
wheel with the
brake pedal
depressed.
Inte-
rior
buzzerExte-
rior
buzzer
Warning messageDetailsCorrection
procedure

5
455
5-2. Steps to take in an emergency
When trouble arises
IS F_EE
Emergency start function
When the engine does not start, the following steps can be used as
an interim measure to start the engine if the “ENGINE START
STOP” switch is functioning normally:
Set the parking brake.
Put the shift lever in P.
Set the “ENGINE START STOP” switch to ACCESSORY
mode.
Press and hold the “ENGINE START STOP” switch for
about 15 seconds while depressing the brake pedal firmly.
Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle checked by any autho-
rized Lexus dealer or repairer, or another duly qualified and
equipped professional.
STEP1
STEP2
STEP3
STEP4

456
5-2. Steps to take in an emergency
IS F_EE
If the shift lever cannot be shifted from P
If the shift lever cannot be shifted with your foot on the brake, there
may be a problem with the shift lock system (a system to prevent acci-
dental operation of the shift lever). Have the vehicle inspected by any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional, immediately.
The following steps may be used as an emergency measure to ensure
that the shift lever can be shifted.
Set the parking brake.
Turn the “ENGINE START STOP” switch to IGNITION
ON mode.
Depress the brake pedal.
Press the shift lock override
button.
The shift lever can be shifted
while the button is pressed.
STEP1
STEP2
STEP3
STEP4

460
5-2. Steps to take in an emergency
IS F_EE
Changing “ENGINE START STOP” switch modes and starting the
engine
Shift the shift lever to P and apply the brakes.
Touch the Lexus emblem side
of the electronic key to the
“ENGINE START STOP”
switch.
An alarm will sound to indicate
that the start function cannot
detect the electronic key that is
touched to the “ENGINE
START STOP” switch if any of
the doors is opened and closed
while the key is touched to the
switch.
STEP1
STEP2

5
461
5-2. Steps to take in an emergency
When trouble arises
IS F_EETo change “ENGINE START STOP” switch modes: Within
10 seconds of the buzzer sounding, release the brake pedal
and press the “ENGINE START STOP” switch. Modes can
be changed each time the switch is pressed. (P. 147)
To start the engine: Press the “ENGINE START STOP”
switch within 10 seconds after the buzzer sounds, keeping
the brake pedal depressed.
In the event that the engine still cannot be started, contact any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
Stopping the engine
Shift the shift lever to P and press the “ENGINE START STOP” switch as
you normally do when stopping the engine.
Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery depletes.
(P. 390)
Alarm
Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set,
the alarm may be triggered.
STEP3

5
463
5-2. Steps to take in an emergency
When trouble arises
IS F_EE
Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
To prevent battery discharge
Turn off the headlights and the audio system while the engine is off.
Turn off any unnecessary electrical components when the vehicle is run-
ning at a low speed for an extended period, such as in heavy traffic, etc.
Charging the battery
The electricity stored in the battery will discharge gradually even when
the vehicle is not in use, due to natural discharge and the draining effects
of certain electrical appliances. If the vehicle is left for a long time, the
battery may discharge, and the engine may be unable to start. (The bat-
tery recharges automatically during driving.)
Start the engine of the second vehicle. Increase the
engine speed slightly and maintain at that level for
approximately 5 minutes to recharge the battery of your
vehicle.
Open and close any of the doors with the “ENGINE
START STOP” switch OFF.
Maintain the engine speed of the second vehicle and turn
the “ENGINE START STOP” switch to IGNITION ON
mode, then start the vehicle's engine.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
Once the engine starts, have the vehicle checked at any autho-
rized Lexus dealer or repairer, or another duly qualified and
id fil iblSTEP2
STEP3
STEP4
STEP5

5
465
5-2. Steps to take in an emergency
When trouble arises
IS F_EE
If your vehicle overheats
If your engine overheats:
Stop the vehicle in a safe place and turn off the automatic
air conditioning system.
Check to see if steam is coming out from under the hood.
If you see steam:
Stop the engine. Carefully lift the hood after the steam
subsides and then restart the engine.
If you do not see steam:
Leave the engine running and carefully lift the hood.
Check to see if the cooling fans are operating.
If the fans are operating:
Wait until the temperature of the engine (shown on the
instrument cluster) begins to fall and then stop the
engine.
If the fans are not operating:
Stop the engine immediately and call any authorized
Lexus dealer or repairer, or another duly qualified and
equipped professional.
After the engine has cooled
down sufficiently, check the
engine coolant level and
inspect the radiator core
(radiator) for any leaks.
If the engine compartment
cover needs to be removed:
STEP1
STEP2
STEP3
STEP4

468
5-2. Steps to take in an emergency
IS F_EE
If the vehicle becomes stuck
CAUTION
When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the sur-
rounding area is clear, to avoid striking other vehicles, objects or persons.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
NOTICE
To avoid damaging the transmission and other components
Avoid spinning the wheels and do not rev the engine.
If the vehicle remains stuck after trying these procedures, the vehicle may
require towing to be freed.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow.
Stop the engine. Set the parking brake and shift the shift
lever to P.
Remove the mud, snow, or sand from around the stuck
tire.
Place wood, stones or some other material to help pro-
vide traction under the tires.
Restart the engine.
Shift the shift lever to the D or R position, release the
parking brake and carefully apply the accelerator to free
the vehicle.STEP1
STEP2
STEP3
STEP4
STEP5

5
469
5-2. Steps to take in an emergency
When trouble arises
IS F_EE

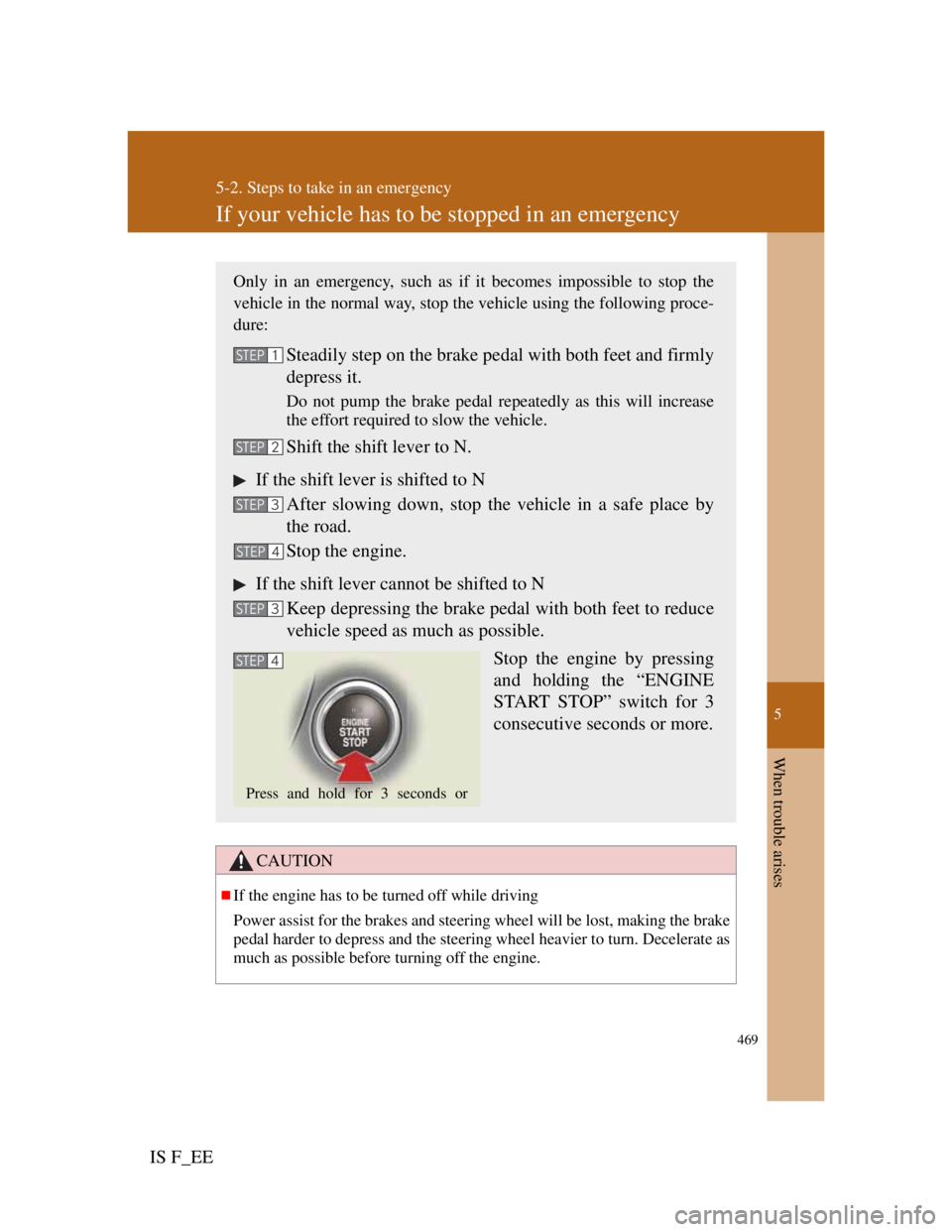

If your vehicle has to be stopped in an emergency
CAUTION
If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the brake
pedal harder to depress and the steering wheel heavier to turn. Decelerate as
much as possible before turning off the engine.
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following proce-
dure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase
the effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by
the road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
Stop the engine by pressing
and holding the “ENGINE
START STOP” switch for 3
consecutive seconds or more.
STEP1
STEP2
STEP3
STEP4
STEP3
Press and hold for 3 seconds or
STEP4

487
6-2. Customization
6
Vehicle specifica-
IS F_EE
*: This function cannot be customized unless power window operation
using the wireless remote control is enabled.
Windshield
wipers and
washer
(
P. 176)
Switching operation
when the vehicle is sta-
tionary
OnOff
Drip prevention func-
tionOnOff
Time elapsed before the
drip prevention func-
tion operatesVa r i a b l e
depending on
the vehicle
speed
3 seconds
Lexus park-
ing assist-
sensor
(
P. 199)
Back sensor operation
display and buzzerOnOff
Buzzer volumeLevel 3Level 1 to 5
Distance which a sensor
detects150 cm (4.9 ft.)60 cm (2.0 ft.)
Illumination
(
P. 320)
Time elapsed before
lights turn off15 seconds7.5 seconds
30 seconds
Operation when the
doors are unlockedOnOff
Operation after the
“ENGINE START
STOP” switch is turned
OFF
OnOff
Front footwell lightsOnOff
Shift lever lightOnOff
Outer foot lightsOnOff
ItemFunctionDefault settingCustomized
setting
