glove box Lexus IS200t 2015 User Guide

4647-3. Do-it-yourself maintenance
IS200t_EE(OM53D19E)
Turn the engine switch off.
Open the glove box. Lift up the side
with the stay, disconnect the stay
tabs and remove the partition by
pulling horizontally.
Press the tabs and remove the filter
cover.
Press the tabs and remove the filter
case.

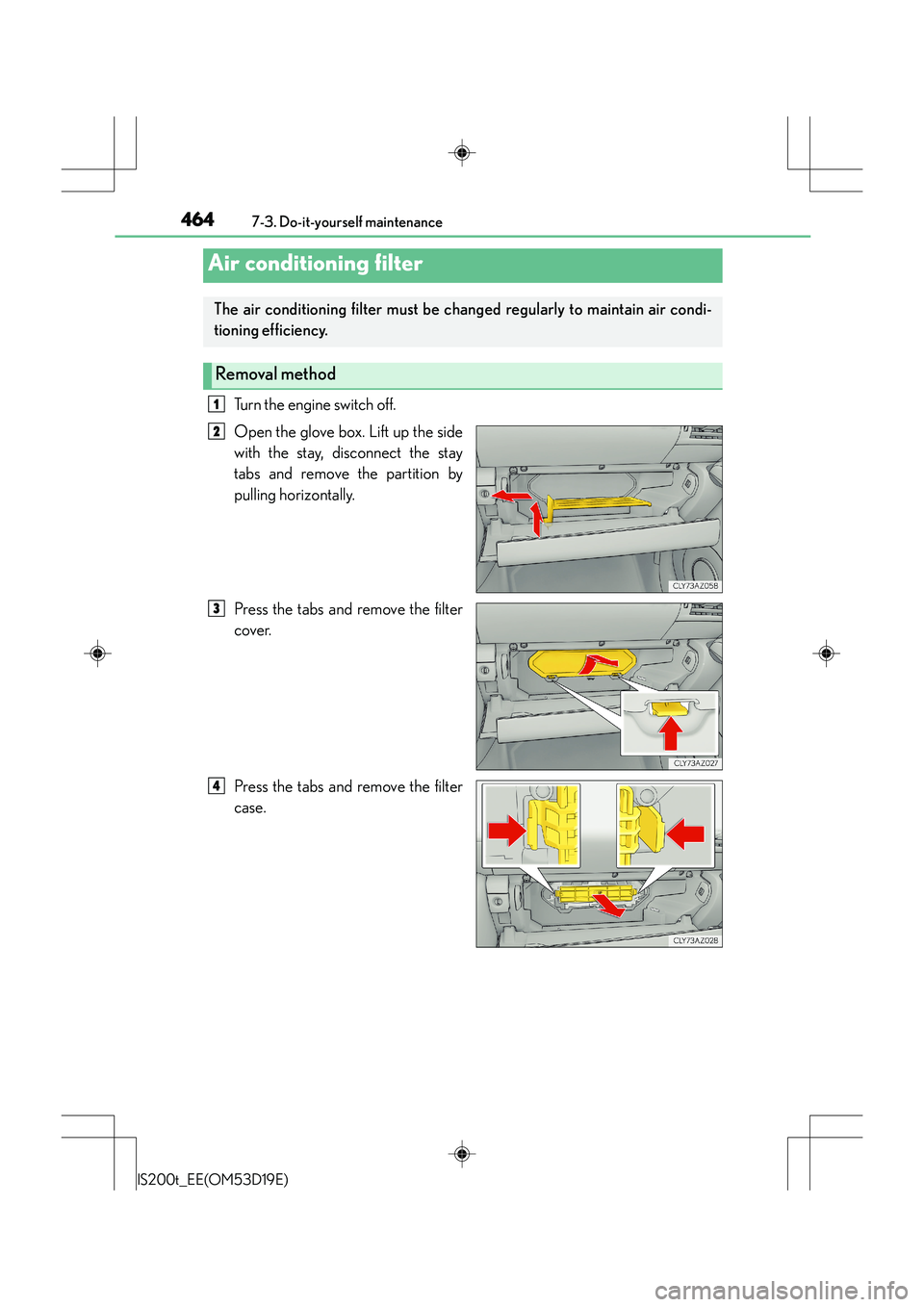

Air conditioning filter
The air conditioning filter must be changed regularly to maintain air condi-
tioning efficiency.
Removal method
1
2
3
4

598Alphabetical index
IS200t_EE(OM53D19E)
Fuel consumptionAverage fuel economy .................... 102
Current fuel consumption.............. 102
Fuel filler door ........................................ 227
If the fuel filler door cannot be opened ......................... 229
Refueling .................................................227
Fuel gauge .................................................. 95
Fuel pump shut off system ................. 499
Fuses .......................................................... 469
Gauges ........................................................95
Gear positions .......................................206
Glove box ................................................. 415
Glove box light ....................................... 415 Hands-free system
(for cellular phone) ........................... 366
Head restraints ....................................... 158
Headlight cleaner...................................219
Headlights .................................................210
Automatic High Beam system.................................................... 213
Discharge headlights precautions ....................................... 486
Follow me home system.................... 211
Light switch............................................. 210
Replacing light bulbs ....................... 485
Wattage ................................................. 573
Heaters ..................................................... 398 Air conditioning system ................. 398
Heated steering wheel ................... 409
Outside rear view mirrors ............ 404
Seat heaters............................................410
Hill-start assist control........................ 285
Hood .......................................................... 439 Open ....................................................... 439
Pop Up Hood ........................................ 54
Hooks
Cargo hooks .........................................418
Coat hooks........................................... 425
Retaining hooks (floor mat) .............32
Horn .............................................................162
G
H
