4547-3. Do-it-yourself maintenance
IS200t_EE(OM53D19E)
■When to replace your vehicle’s tires
Tires should be replaced if:
●The treadwear indicators are showing on a tire.
●You have tire damage such as cuts, splits, cracks deep enough to expose the fabric, and
bulges indicating internal damage
●A tire goes flat repeatedly or cannot be properly repaired due to the size or location of
a cut or other damage
If you are not sure, consult any authorized Lexus dealer or repairer, or another duly qual-
ified and equipped professional.
■Replacing tires and wheels (vehicles with a tire pressure warning system)
If the ID code of the tire pressure warning valve and transmitter is not registered, the tire
pressure warning system will not work properly. After driving for about 10 minutes, the
tire pressure warning light blinks for 1 minute and stays on to indicate a system malfunc-
tion.
■Tire life
Any tire over 6 years old must be checked by a qualified technician even if it has seldom
or never been used or damage is not obvious.
■Routine tire inflation pressure checks
The tire pressure warning system does not replace routine tire inflation pressure checks.
Make sure to check tire inflation pressure as part of your routine of daily vehicle checks.
■Low profile tires
Generally, low profile tires will wear more rapidly and tire grip performance will be
reduced on snowy and/or icy roads when compared to standard tires. Be sure to use
snow tires or tire chains
* on snowy and/or icy roads and drive carefully at a speed appro-
priate for road and weather conditions.
*: Tire chains cannot be mounted on the 18-inch tires. Snow tires should be used instead.
■If the tread on snow tires wears down below 4 mm (0.16 in.)
The effectiveness of the tire s as snow tires is lost.

4567-3. Do-it-yourself maintenance
IS200t_EE(OM53D19E)

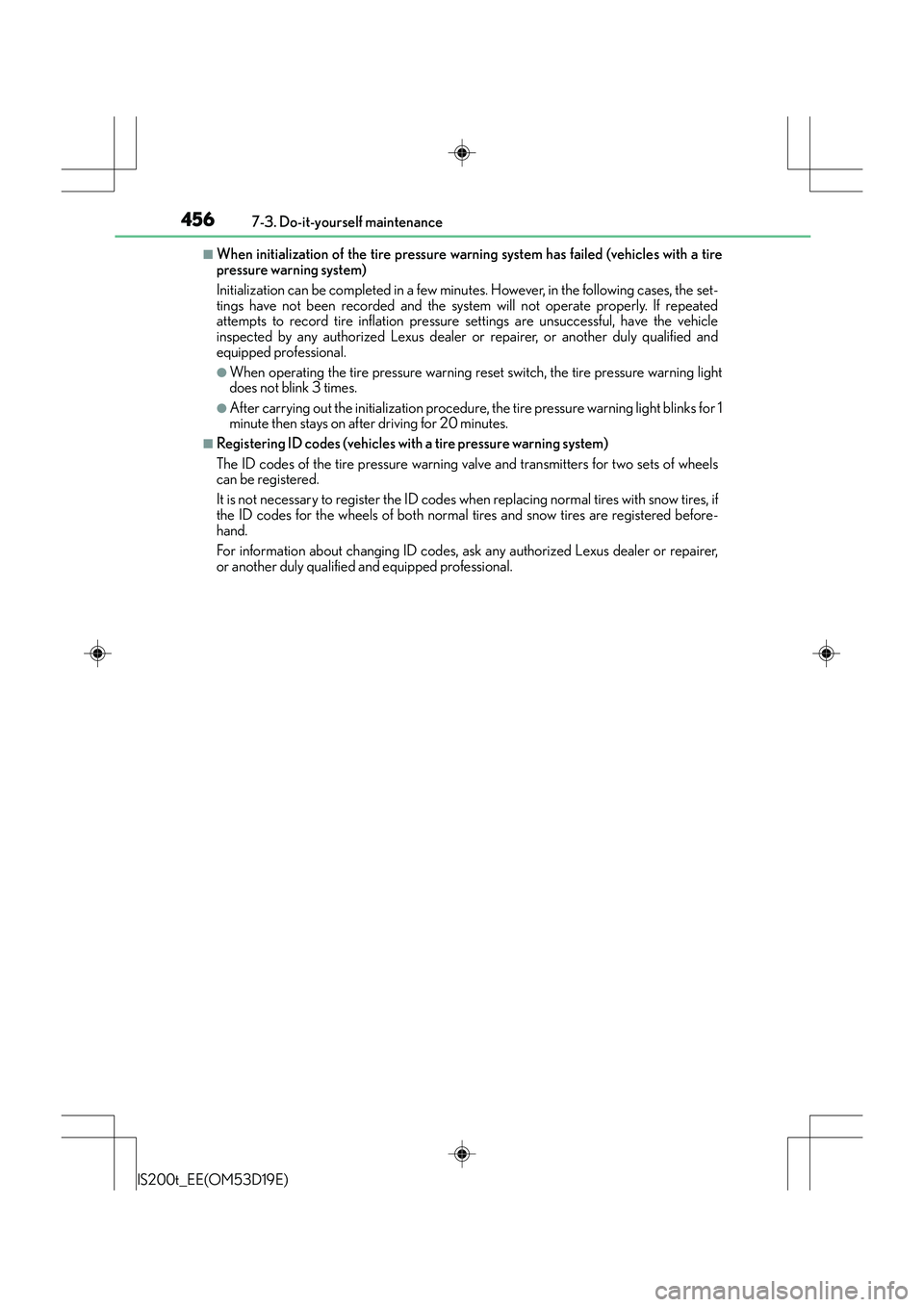

■When initialization of the tire pressure warning system has failed (vehicles with a tire
pressure warning system)
Initialization can be completed in a few minutes. However, in the following cases, the set-
tings have not been recorded and the syst em will not operate properly. If repeated
attempts to record tire inflation pressure settings are unsuccessful, have the vehicle
inspected by any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
●When operating the tire pressure warning reset switch, the tire pressure warning light
does not blink 3 times.
●After carrying out the initializat ion procedure, the tire pressure warning light blinks for 1
minute then stays on after driving for 20 minutes.
■Registering ID codes (vehicles with a tire pressure warning system)
The ID codes of the tire pressure warning valve and transmitters for two sets of wheels
can be registered.
It is not necessary to register the ID codes when replacing normal tires with snow tires, if
the ID codes for the wheels of both normal tires and snow tires are registered before-
hand.
For information about changing ID codes, ask any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional.

4587-3. Do-it-yourself maintenance
IS200t_EE(OM53D19E)
XFor vehicles sold in Serbia, the following also applies.
CAUTION
■When inspecting or replacing tires
Observe the following precautions to prevent accidents.
Failure to do so may cause damage to parts of the drivetrain as well as dangerous han-
dling characteristics, which may lead to an accident resulting in death or serious injury.
●Do not mix tires of different makes, models or tread patterns.
Also, do not mix tires of remarkably different treadwear.
●Do not use tire sizes other than those recommended by Lexus.
●Do not mix differently constructed tires (radial, bias-belted or bias-ply tires).
●Do not mix summer, all season and snow tires.
●Do not use tires that have been used on another vehicle.
Do not use tires if you do not know how they were used previously.
●Vehicles with a compact spare tire: Do not tow if your vehicle has a compact spare
tire installed.
●Vehicles with an emergency tire puncture repair kit: Do not tow anything if a tire that
has been repaired using the emergency tire puncture repair kit is installed. The load
on the tire may cause unexpected damage to the tire.
■When initializing the tire pressure warning system (vehicles with a tire pressure
warning system)
Do not operate the tire pressure warning reset switch without first adjusting the tire
inflation pressure to the specified level. Otherwise, the tire pressure warning light may
not come on even if the tire inflation pressu re is low, or it may come on when the tire
inflation pressure is actually normal.

489
8When trouble arises
IS200t_EE(OM53D19E)
8-1. Essential informationEmergency flashers...................490
If your vehicle has to be stopped
in an emergency ....................... 491 8-2. Steps to take
in an emergency
If your vehicle needs to be towed................................ 492
If you think something is wrong....................................... 498
Fuel pump shut off system ...... 499
If a warning light turns on or a warning buzzer
sounds......................................... 500

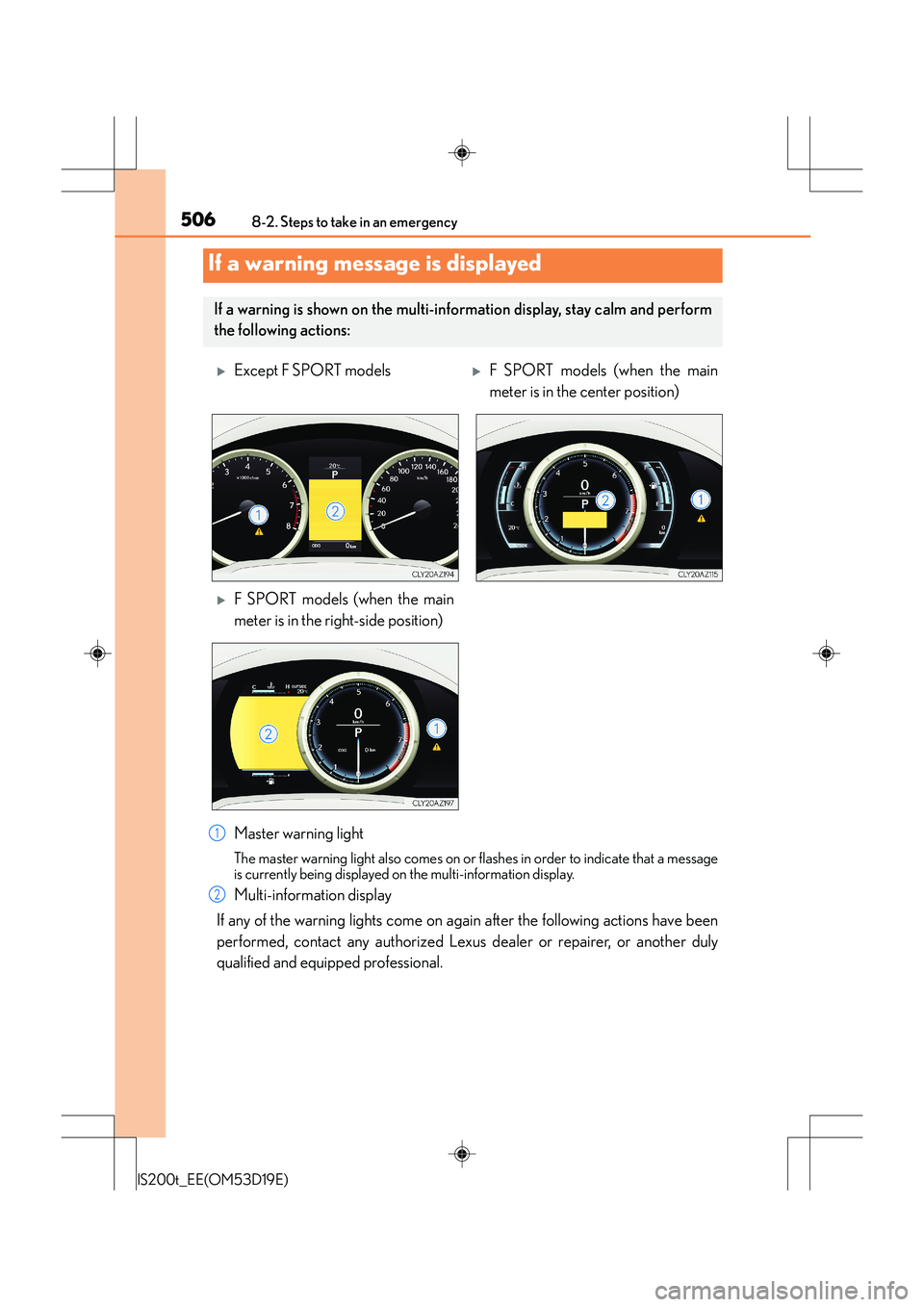

If a warning message is displayed ................................506
If you have a flat tire (vehicles with
a spare tire)................................ 522
If you have a flat tire (vehicles with emergency
tire puncture repair kit)......... 533
If the engine will not start ........ 547
If the shift lever cannot be shifted from P ..................... 549
If the electronic key does not operate properly .............550
If the vehicle battery is discharged ............................. 553
If your vehicle overheats ......... 557
If the vehicle becomes stuck ...............................................561

5008-2. Steps to take in an emergency
IS200t_EE(OM53D19E)

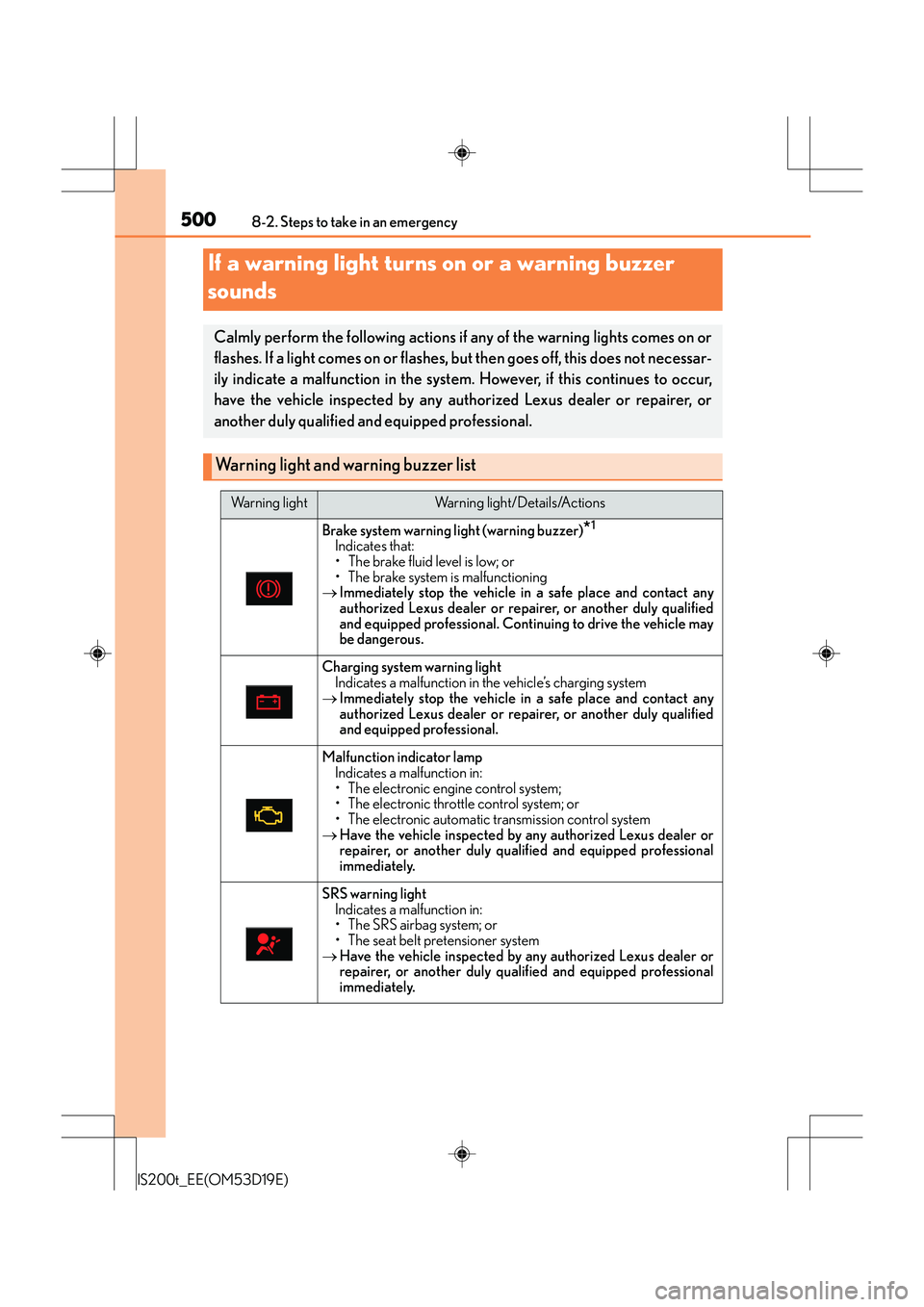

If a warning light turns on or a warning buzzer
sounds
Calmly perform the following actions if any of the warning lights comes on or
flashes. If a light comes on or flashes, but then goes off, this does not necessar-
ily indicate a malfunction in the system. However, if this continues to occur,
have the vehicle inspected by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Warning light and warning buzzer list
Warning lightWarning light/Details/Actions
Brake system warning light (warning buzzer)*1
Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning
→ Immediately stop the vehicle in a safe place and contact any
authorized Lexus dealer or repairer, or another duly qualified
and equipped professional. Continuing to drive the vehicle may
be dangerous.
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
→ Immediately stop the vehicle in a safe place and contact any
authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Malfunction indicator lamp
Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic automatic transmission control system
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.

5018-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D19E)

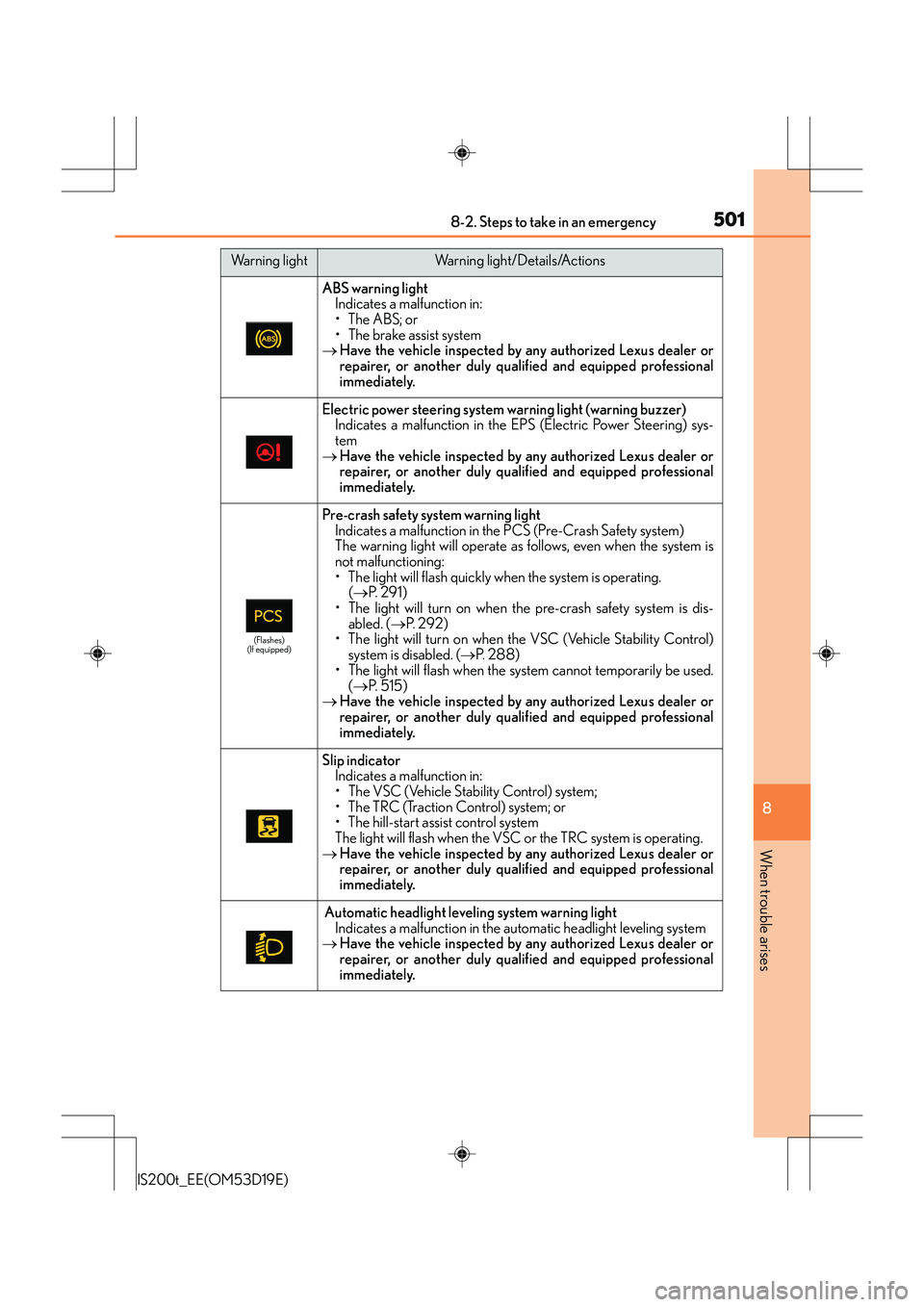

ABS warning lightIndicates a malfunction in:
•The ABS; or
• The brake assist system
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
Electric power steering system warning light (warning buzzer)
Indicates a malfunction in the EPS (Electric Power Steering) sys-
tem
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
(Flashes)
(If equipped)
Pre-crash safety system warning light Indicates a malfunction in the PCS (Pre-Crash Safety system)
The warning light will operate as follows, even when the system is
not malfunctioning:
• The light will flash quickly when the system is operating. (→ P. 2 9 1 )
• The light will turn on when the pre-crash safety system is dis- abled. ( →P. 2 9 2 )
• The light will turn on when the VSC (Vehicle Stability Control)
system is disabled. ( →P. 2 8 8 )
• The light will flash when the system cannot temporarily be used.
(→ P. 5 1 5 )
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
Slip indicator
Indicates a malfunction in:
• The VSC (Vehicle Stability Control) system;
• The TRC (Traction Control) system; or
• The hill-start assist control system
The light will flash when the VSC or the TRC system is operating.
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
Automatic headlight leveling system warning light
Indicates a malfunction in the au tomatic headlight leveling system
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
Warning lightWarning light/Details/Actions

5028-2. Steps to take in an emergency
IS200t_EE(OM53D19E)
*1: Parking brake engaged warning buzzer:→ P. 5 0 9
*2: Open door warning buzzer:
→ P. 5 0 8
Warning lightWarning light/Details/Actions
Open door warning light (warning buzzer)*2
Indicates that a door or the trunk is not fully closed
→ Check that all the doors and the trunk are closed.
Low fuel level warning light
Indicates that remaining fuel is a pproximately 10 L (2.6 gal., 2.2 Imp.
gal.) or less
→ Refuel the vehicle.
Driver’s and front passenger’s seat belt reminder light (warning
buzzer)
*3
Warns the driver and/or front passenger to fasten their seat belts
→ Fasten the seat belt.
If the front passenger’s seat is occupied, the front passenger’s
seat belt also needs to be fastened to make the warning light
(warning buzzer) turn off.
Rear passengers’ seat belt reminder lights (warning buzzer)*3
Warns the rear passengers to fasten their seat belts
→ Fasten the seat belt.
Master warning light
A buzzer sounds and the warning light comes on and flashes to
indicate that the master warning system has detected a malfunc-
tion.
→ P. 5 0 6
(If equipped)
Tire pressure warning light
When the light comes on:
Low tire inflation pressure such as
• Natural causes ( →P. 5 0 3 )
• Flat tire ( →P. 5 2 2 , 5 3 3 )
→ Adjust the tire inflation pre ssure to the specified level.
The light will turn off after a few minutes. In case the light does
not turn off even if the tire inflation pressure is adjusted, have the
system checked by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
When the light comes on af ter blinking for 1 minute:
Malfunction in the tire pressure warning system
→ Have the system checked by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.

5038-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D19E)

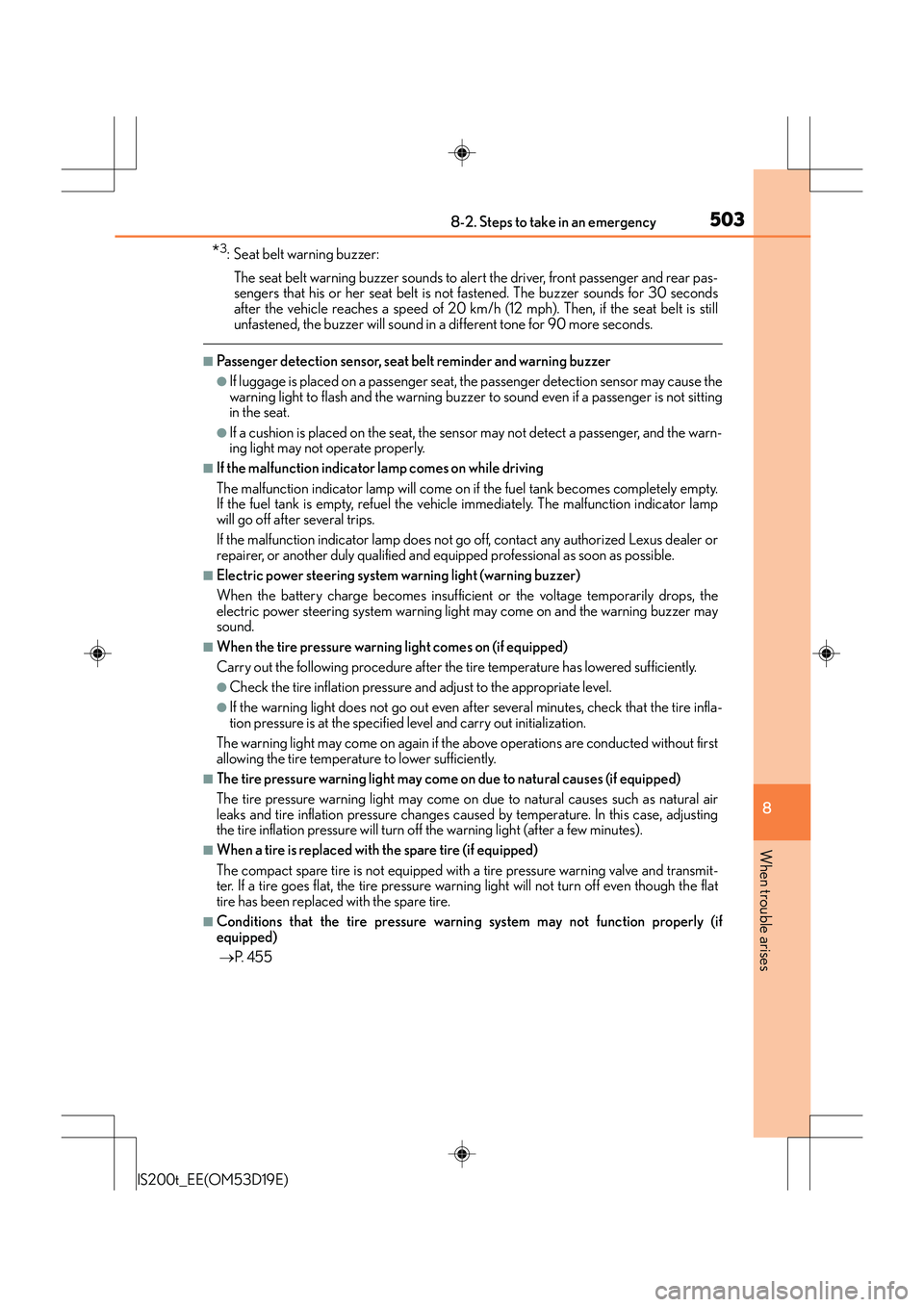

*3: Seat belt warning buzzer:The seat belt warning buzzer sounds to alert the driver, front passenger and rear pas-
sengers that his or her seat belt is not fastened. The buzzer sounds for 30 seconds
after the vehicle reaches a speed of 20 km/h (12 mph). Then, if the seat belt is still
unfastened, the buzzer will sound in a different tone for 90 more seconds.
■Passenger detection sensor, seat belt reminder and warning buzzer
●If luggage is placed on a passenger seat, the passenger detection sensor may cause the
warning light to flash and the warning buzzer to sound even if a passenger is not sitting
in the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger, and the warn-
ing light may not operate properly.
■If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes completely empty.
If the fuel tank is empty, refuel the vehicle immediately. The malfunction indicator lamp
will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional as soon as possible.
■Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficient or the voltage temporarily drops, the
electric power steering system warning lig ht may come on and the warning buzzer may
sound.
■When the tire pressure warning light comes on (if equipped)
Carry out the following procedure after the tire temperature has lowered sufficiently.
●Check the tire inflation pressure and adjust to the appropriate level.
●If the warning light does not go out even after several minutes, check that the tire infla-
tion pressure is at the specifie d level and carry out initialization.
The warning light may come on again if the above operations are conducted without first
allowing the tire temperature to lower sufficiently.
■The tire pressure warning light may come on due to natural causes (if equipped)
The tire pressure warning light may come on due to natural causes such as natural air
leaks and tire inflation pressure changes caused by temperature. In this case, adjusting
the tire inflation pressure will turn off the warning light (after a few minutes).
■When a tire is replaced with the spare tire (if equipped)
The compact spare tire is not equipped with a tire pressure warning valve and transmit-
ter. If a tire goes flat, the tire pressure warning light will not turn off even though the flat
tire has been replaced with the spare tire.
■Conditions that the tire pressure warnin g system may not function properly (if
equipped)
→ P. 4 5 5

5048-2. Steps to take in an emergency
IS200t_EE(OM53D19E)
■If the tire pressure warning light frequently comes on after blinking for 1 minute (if
equipped)
If the tire pressure warning light frequently comes on after blinking for 1 minute when the
engine switch is turned to IGNITION ON mode, have it checked by any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
■Warning buzzer
In some cases, the buzzer may not be heard due to being in a noisy location or audio
sound.
CAUTION
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized Lexus dealer
or repairer, or another duly qualified and equipped professional. The vehicle will
become extremely unstable during braking, and the ABS system may fail, which could
cause an accident resulting in death or serious injury.
■When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than us ual when operating, hold firmly and oper-
ate using more force than usual.
■If the tire pressure warning light comes on (if equipped)
Be sure to observe the following precautions. Failure to do so could cause a loss of
vehicle control and result in death or serious injury.
XVehicles with a compact spare tire
●Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pressure
immediately.
●If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you have a flat tire. Check the tires. If a tire is flat, change it
with the spare tire and have the flat tire repaired by the nearest authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could lose
control of the steering wheel or the brakes.
XVehicles with an emergency tire puncture repair kit
●Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pressure
immediately.
●If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you have a flat tire. Check the tires. If a tire is flat, repair the
flat tire by using emergency tire puncture repair kit.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could lose
control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

5068-2. Steps to take in an emergency
IS200t_EE(OM53D19E)
Master warning light
The master warning light also comes on or flashes in order to indicate that a message
is currently being displayed on the multi-information display.
Multi-information display
If any of the warning lights come on again after the following actions have been
performed, contact any authorized Lexu s dealer or repairer, or another duly
qualified and equipped professional.
If a warning message is displayed
If a warning is shown on the multi-information display, stay calm and perform
the following actions:
XExcept F SPORT modelsXF SPORT models (when the main
meter is in the center position)
XF SPORT models (when the main
meter is in the right-side position)
1
2
