tow Lexus IS200t 2015 Workshop Manual

4978-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D19E)

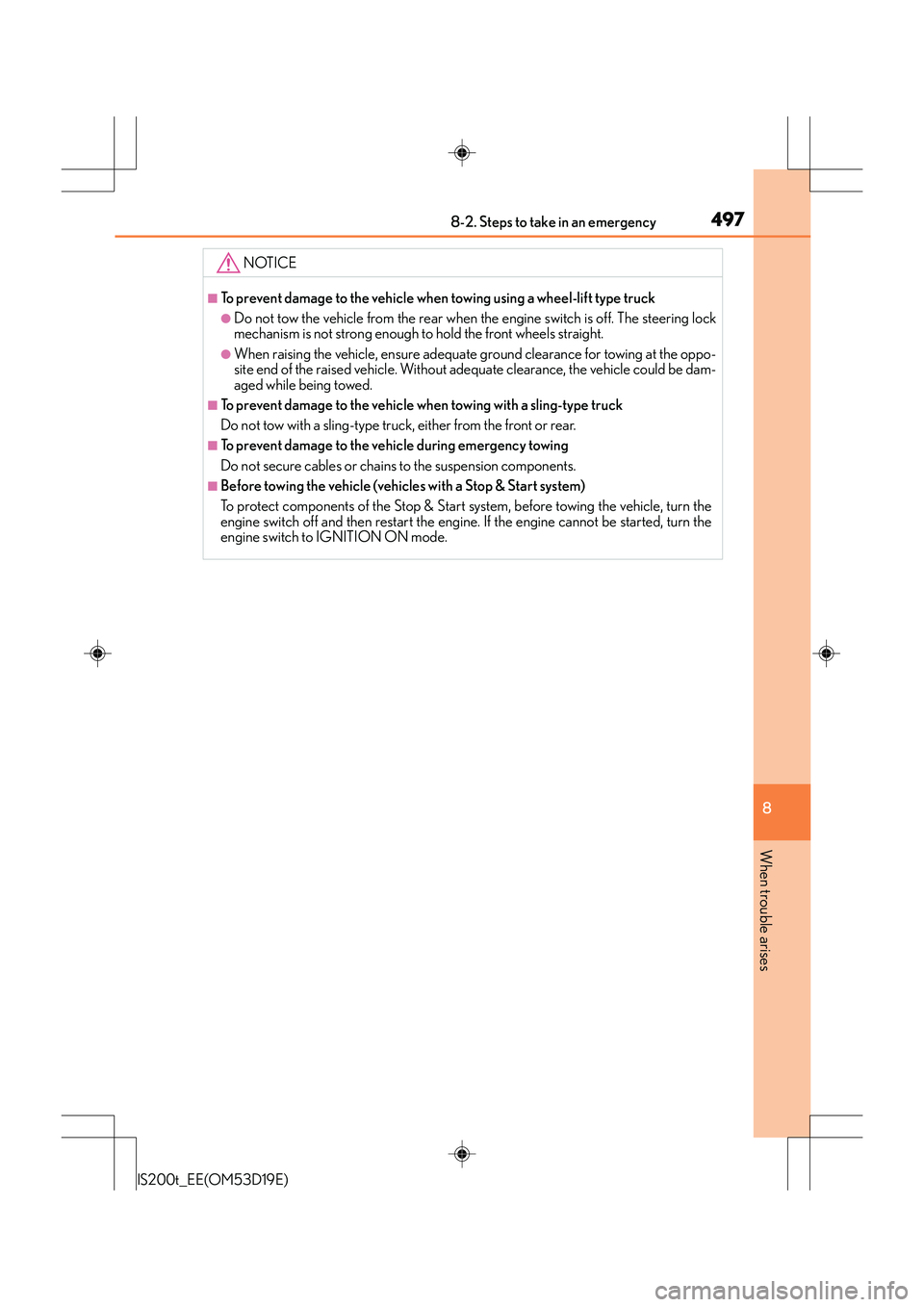

NOTICE
■To prevent damage to the vehicle when towing using a wheel-lift type truck
●Do not tow the vehicle from the rear when the engine switch is off. The steering lock
mechanism is not strong enough to hold the front wheels straight.
●When raising the vehicle, ensure adequate ground clearance for towing at the oppo-
site end of the raised vehicle. Without adequate clearance, the vehicle could be dam-
aged while being towed.
■To prevent damage to the vehicle when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
■To prevent damage to the vehicle during emergency towing
Do not secure cables or chains to the suspension components.
■Before towing the vehicle (vehicles with a Stop & Start system)
To protect components of the Stop & Start system, before towing the vehicle, turn the
engine switch off and then restart the engine. If the engine cannot be started, turn the
engine switch to IGNITION ON mode.

5238-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D19E)

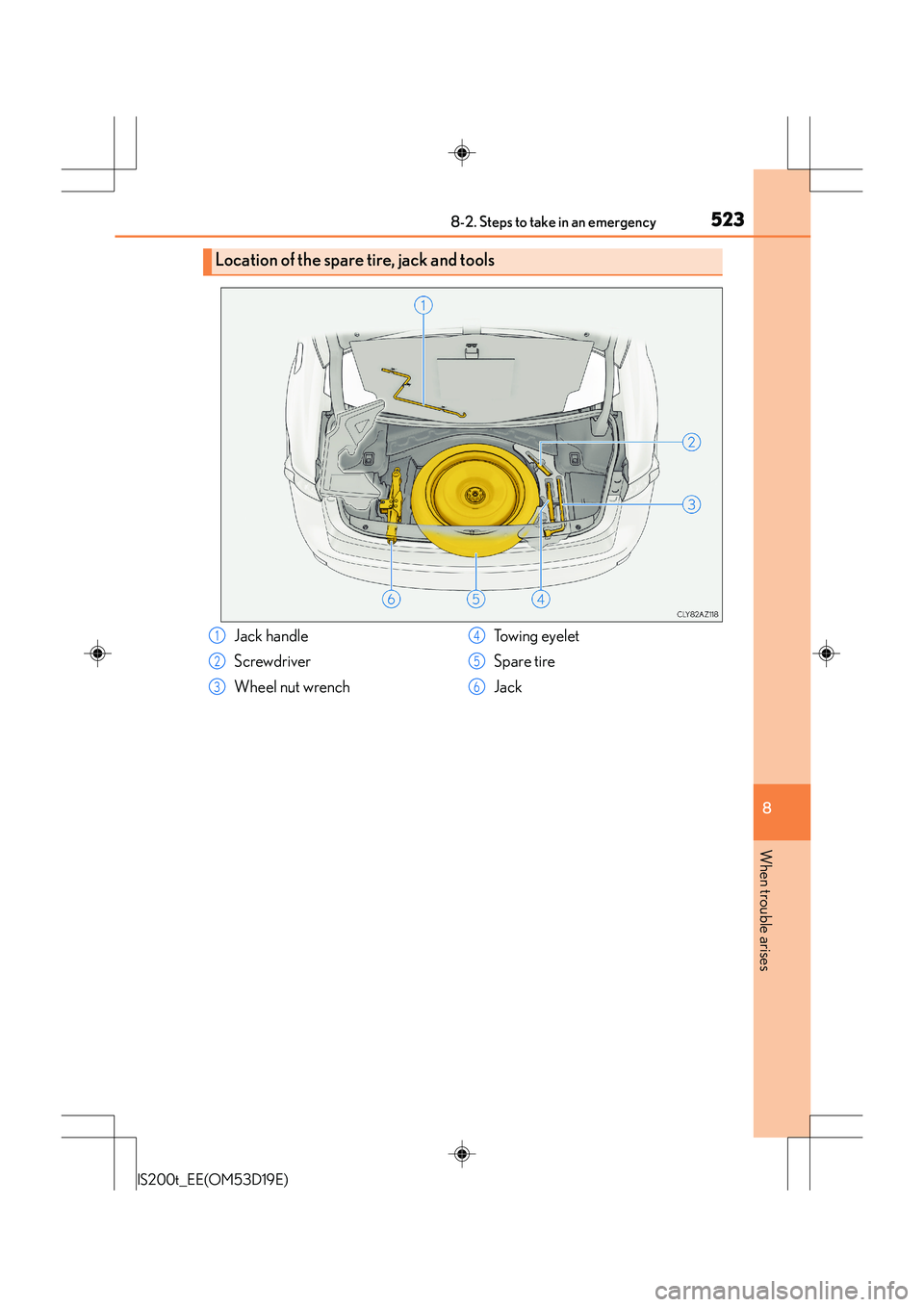

Location of the spare tire, jack and tools
Jack handle
Screwdriver
Wheel nut wrenchTowing eyelet
Spare tire
Jack1
2
3
4
5
6

5298-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D19E)

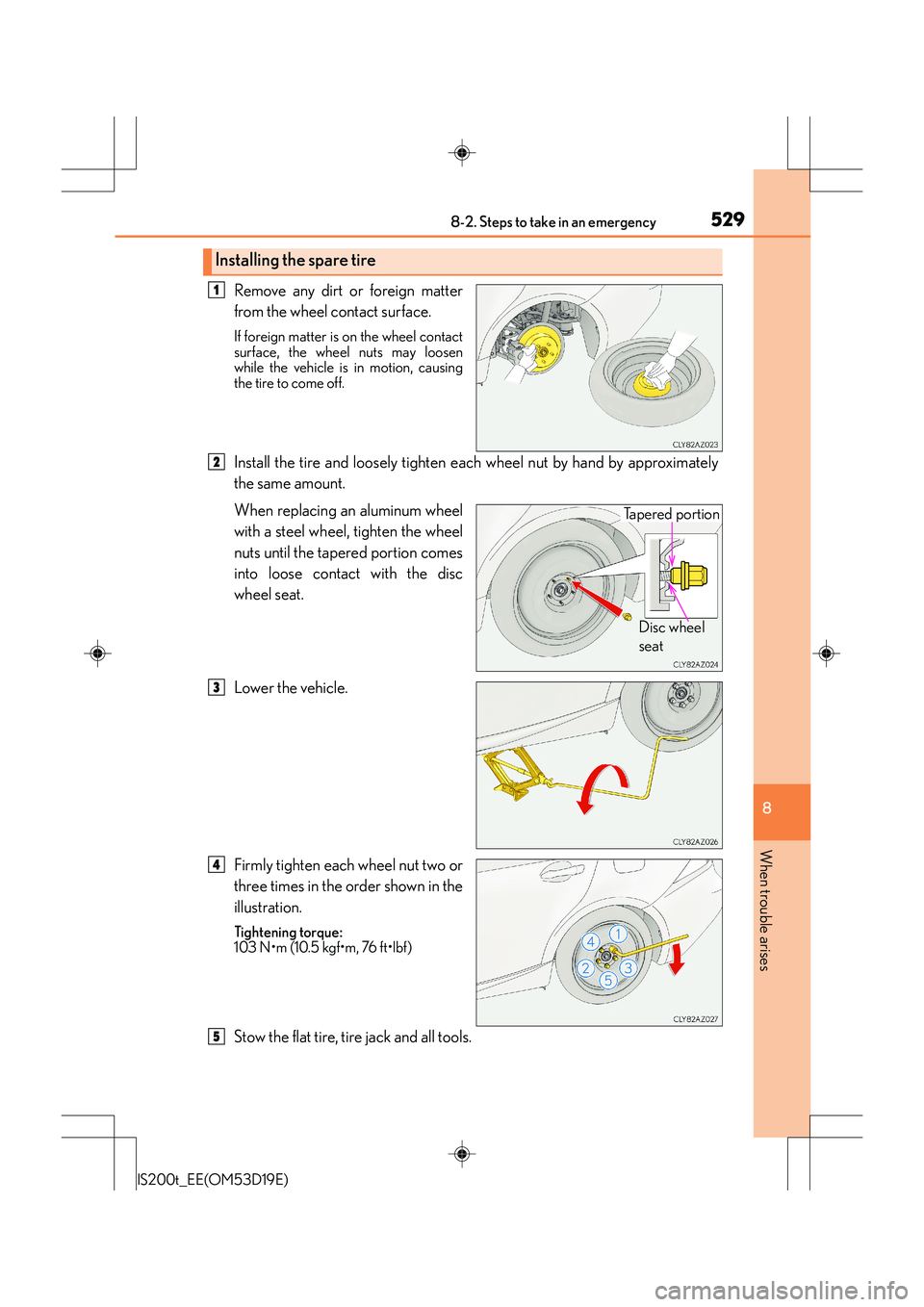

Remove any dirt or foreign matter
from the wheel contact surface.
If foreign matter is on the wheel contact
surface, the wheel nuts may loosen
while the vehicle is in motion, causing
the tire to come off.
Install the tire and loosely tighten each wheel nut by hand by approximately
the same amount.
When replacing an aluminum wheel
with a steel wheel, tighten the wheel
nuts until the tapered portion comes
into loose contact with the disc
wheel seat.
Lower the vehicle.
Firmly tighten each wheel nut two or
three times in the order shown in the
illustration.
Tightening torque:
103 N•m (10.5 kgf•m, 76 ft•lbf)
Stow the flat tire, tire jack and all tools.
Installing the spare tire
1
2
Disc wheel
seat
Tapered portion
3
4
5

5348-2. Steps to take in an emergency
IS200t_EE(OM53D19E)
*: Use of the jack (→P. 5 2 6 )

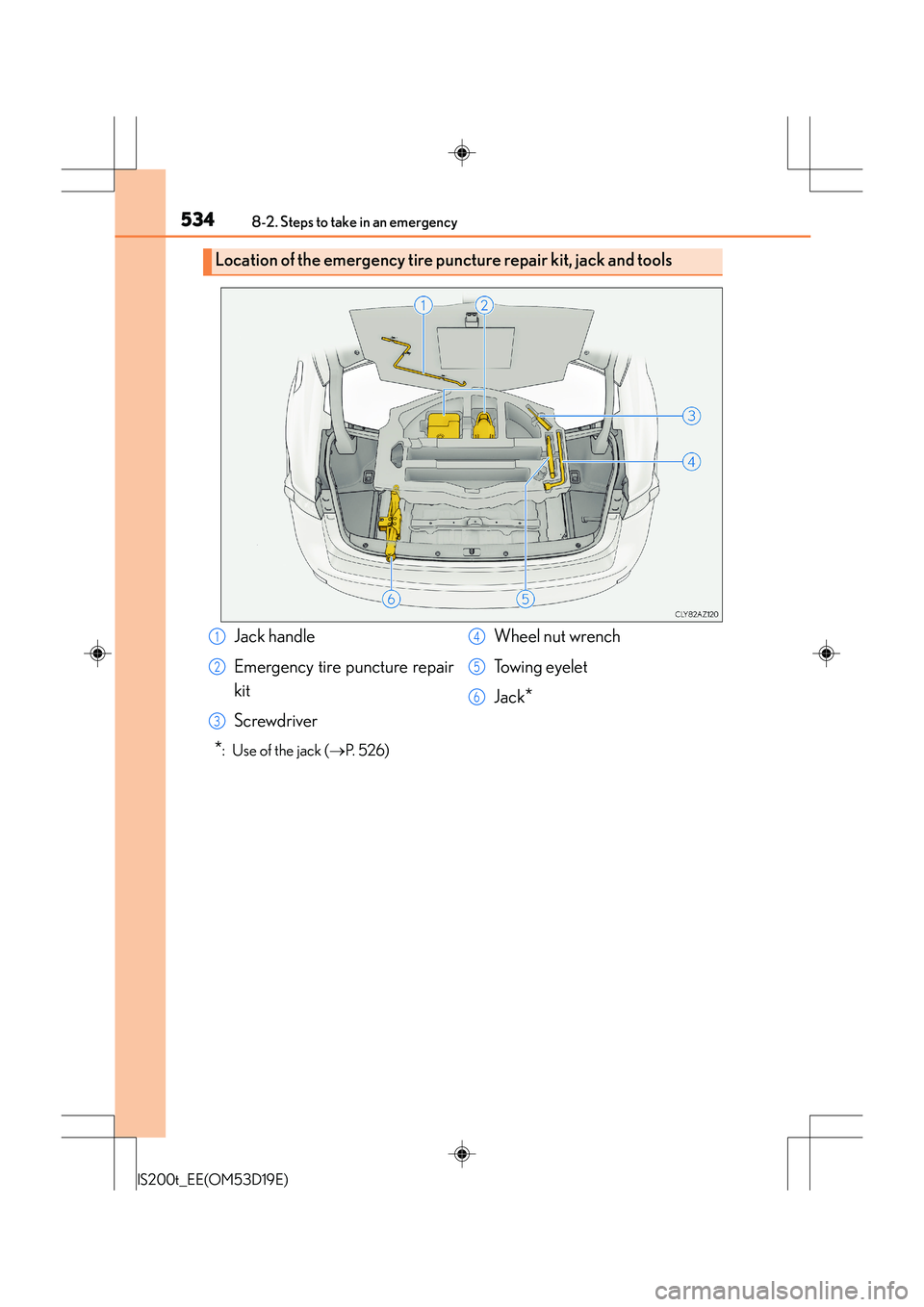

Location of the emergency tire puncture repair kit, jack and tools
Jack handle
Emergency tire puncture repair
kit
Screwdriver Wheel nut wrench
Towing eyelet
Jack
*
1
2
3
4
5
6

5628-2. Steps to take in an emergency
IS200t_EE(OM53D19E)
XVehicles without Stop & Start system
Press to turn off TRC.
CAUTION
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding
area is clear to avoid striking other vehi cles, objects or people. The vehicle may also
lunge forward or lunge back suddenly as it becomes free. Use extreme caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an acci-
dent resulting in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the rear wheels and depressing the accelerator pedal more than nec-
essary.
●If the vehicle remains stuck even after these procedures are performed, the vehicle
may require towing to be freed.

564
IS200t_EE(OM53D19E)9-1. Specifications
*1:Unladen vehicle
*2: Vehicles with 255/35R18 tires
*3: Vehicles with a towing package
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length 4665 mm (183.7 in.)
Overall width 1810 mm (71.3 in.)
Overall height*11430 mm (56.3 in.)
Wheelbase 2800 mm (110.2 in.)
Tr e a d*1Front 1535 mm (60.4 in.)
Rear
1550 mm (61.0 in.)
1540 mm (60.6 in.)*2
Gross vehicle mass*32125 kg (4685 lb.)
Maximum permissi-
ble axle capacity
*3
Front 1090 kg (2403 lb.)
Rear 1200 kg (2646 lb.)
Drawbar load*375 kg (165 lb.)
Towing capacity*3With brake 1500 kg (3307 lb.)
Witho ut brake 750 kg (1653 lb.)

573
9
9-1. Specifications
Vehicle specifications
IS200t_EE(OM53D19E)

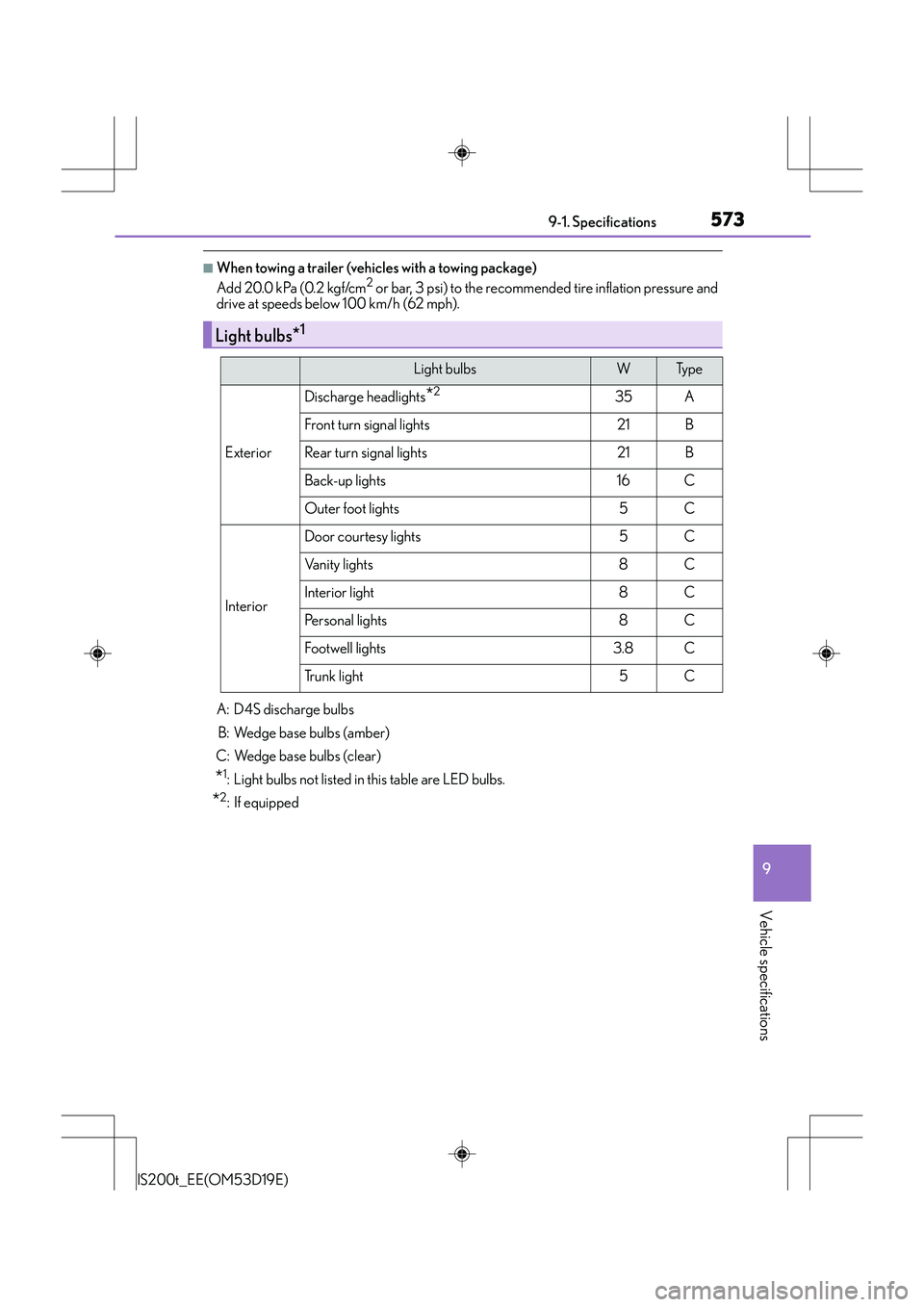

■When towing a trailer (vehicles with a towing package)
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation pressure and
drive at speeds below 100 km/h (62 mph).

Light bulbs*1
Light bulbsWTy p e
Exterior
Discharge headlights*235A
Front turn signal lights21B
Rear turn signal lights21B
Back-up lights16C
Outer foot lights5C
Interior
Door courtesy lights5C
Vanity lights8C
Interior light8C
Personal lights8C
Footwell lights3.8C
Trunk light5C
A: D4S discharge bulbs
B: Wedge base bulbs (amber)
C: Wedge base bulbs (clear)
*1: Light bulbs not listed in this table are LED bulbs.
*2: If equipped

596Alphabetical index
IS200t_EE(OM53D19E)
E-mail ......................................................... 374
Eco drive mode .....................................283
Eco Driving Indicator ........................... 107
Eco Driving Indicator Light ............... 104
Elapsed time ............................................ 102
Electric Power Steering (EPS)........285Function ..................................................285
Warning light ........................................ 501
Electronic key............................................ 116
Battery-saving function.................... 135
If the electronic key does not operate properly ........................... 550
Replacing the battery.......................466
Emergency, in case of If a warning message is
displayed ........................................... 506
If the electronic key does not
operate properly ........................... 550
If the engine will not start ............... 547
If the shift lever cannot be shifted from P ...................................549
If the vehicle battery is discharged.........................................553
If the warning buzzer sounds ..... 500
If the warning light turns on ......... 500
If you have a flat tire ..............522, 533
If you think something is wrong.............................................. 498
If your vehicle becomes stuck...... 561
If your vehicle has to be stopped in an emergency............491
If your vehicle needs to be towed............................................. 492
If your vehicle overheats ................557 Emergency brake signal.................... 286
Emergency flashers ............................. 490
Emergency tire puncture
repair kit ................................................ 533
Engine ....................................................... 566 ACCESSORY mode ....................... 197
Compartment ....................................... 441
Engine switch ........................................ 196
Hood ....................................................... 439
How to start the engine ................... 196
Identification number.......................565
If the engine will not start ............... 547
Ignition switch (engine switch) ..... 196
Overheating ........................................ 557
Engine coolant....................................... 445 Capacity................................................. 569
Checking ............................................... 445
Preparing and checking
before winter.................................... 309
Engine coolant temperature
gauge ........................................................ 95
Engine immobilizer system .................. 77
Engine oil ................................................. 442 Capacity................................................. 567
Checking ................................................442
Preparing and checking
before winter.................................... 309
Engine oil maintenance data ........... 444
Engine switch ...........................................196
EPS (Electric Power Steering) ....... 285
Function.................................................. 285
Warning light.........................................501
E

608Alphabetical index
IS200t_EE(OM53D19E)
Tire pressure warning system ......... 452Function .................................................. 452
Initializing................................................453
Installing tire pressure warning
valves and transmitters................ 452
Registering ID codes .......................453
Tire pressure warning reset switch....................................................453
Warning light .......................................502
Tires ............................................................. 451
Chains ...................................................... 310
Checking .................................................451
Emergency tire puncture repair kit ..............................................533
If you have a flat tire ..............522, 533
Inflation pressure................................ 572
Replacing ............................................... 522
Rotating tires ........................................ 452
Size............................................................ 572
Snow tires ................................................. 311
Spare tire................................................ 522
Tire pressure warning system ..... 452
Warning light .......................................502 Tools................................................523, 534
Top strap ......................................................72
Towing ...................................................... 492
Emergency towing ........................... 492
Towing capacity................................. 564
Towing eyelet ...................................... 495
Trailer towing ....................................... 188
Traction Control (TRC) ..................... 285
Trailer towing .......................................... 188
Transmission.............................................201
Automatic transmission.................... 201
Driving mode select switch.......... 283
If the shift lever cannot be shifted from P................................... 549
M mode.................................................. 204
Paddle shift switches........................ 203
TRC (Traction Control) ..................... 285
Trip meters ................................................. 95
