Lexus IS200t 2017 s Owners Manual

912. Instrument cluster
2
Instrument cluster
IS200t_EE(OM53D77E)
*1: These lights turn on when the engine switch is turned to IGNITION ON mode toindicate that a system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if a light does
not come on, or turn off. Have the vehicle inspected by any authorized Lexus retailer
or Lexus authorized repairer, or any reliable repairer.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off.
*4: In order to confirm operation, the BSM outside rear view mirror indicators illuminate in the following situations:
• When the engine switch is turned to IGNITION ON mode while the BSM main switch is set to ON.
• When the BSM main switch is set to ON while the engine switch is in IGNITION
ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators will
turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction in the system.
If this occurs, have the vehicle inspected by any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.
*4, 5
(if equipped)
BSM (Blind Spot Monitor)
outside rear view mirror
indicators ( P. 324)*8Eco drive mode indicator
( P. 338)
*6Security indicator
( P. 75, 81)*9Eco drive mode indicator
( P. 338)
*7Low outside temperature
indicator ( P. 93)*8“SPORT” indicator
( P. 338)
*1Eco Driving Indicator Light
( P. 113)*9“SPORT” indicator
( P. 338)
*1
(if equipped)
Stop & Start indicator
( P. 290)Snow mode indicator
( P. 210)
*1, 3
(if equipped)
Stop & Start cancel
indicator ( P. 292)
*1, 6“PASSENGER AIR
BAG” indicator
( P. 51)

922. Instrument cluster
IS200t_EE(OM53D77E)

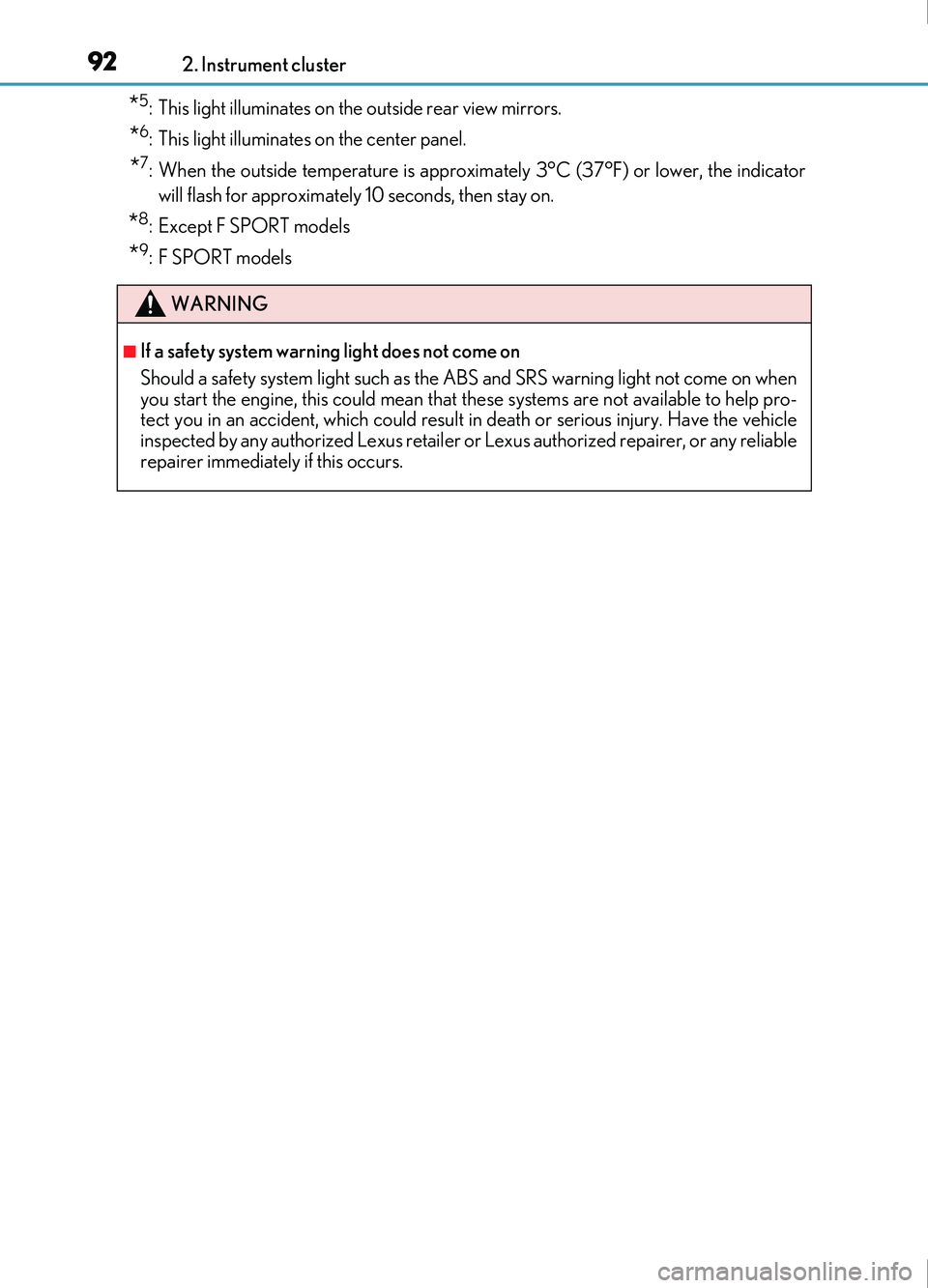

*5: This light illuminates on the outside rear view mirrors.
*6: This light illuminates on the center panel.
*7: When the outside temperature is approximately 3°C (37°F) or lower, the indicatorwill flash for approximately 10 seconds, then stay on.
*8: Except F SPORT models
*9: F SPORT models
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on when
you start the engine, this could mean that these systems are not available to help pro-
tect you in an accident, which could result in death or serious injury. Have the vehicle
inspected by any authorized Lexus retailer or Lexus authorized repairer, or any reliable
repairer immediately if this occurs.

932. Instrument cluster
2
Instrument cluster
IS200t_EE(OM53D77E)

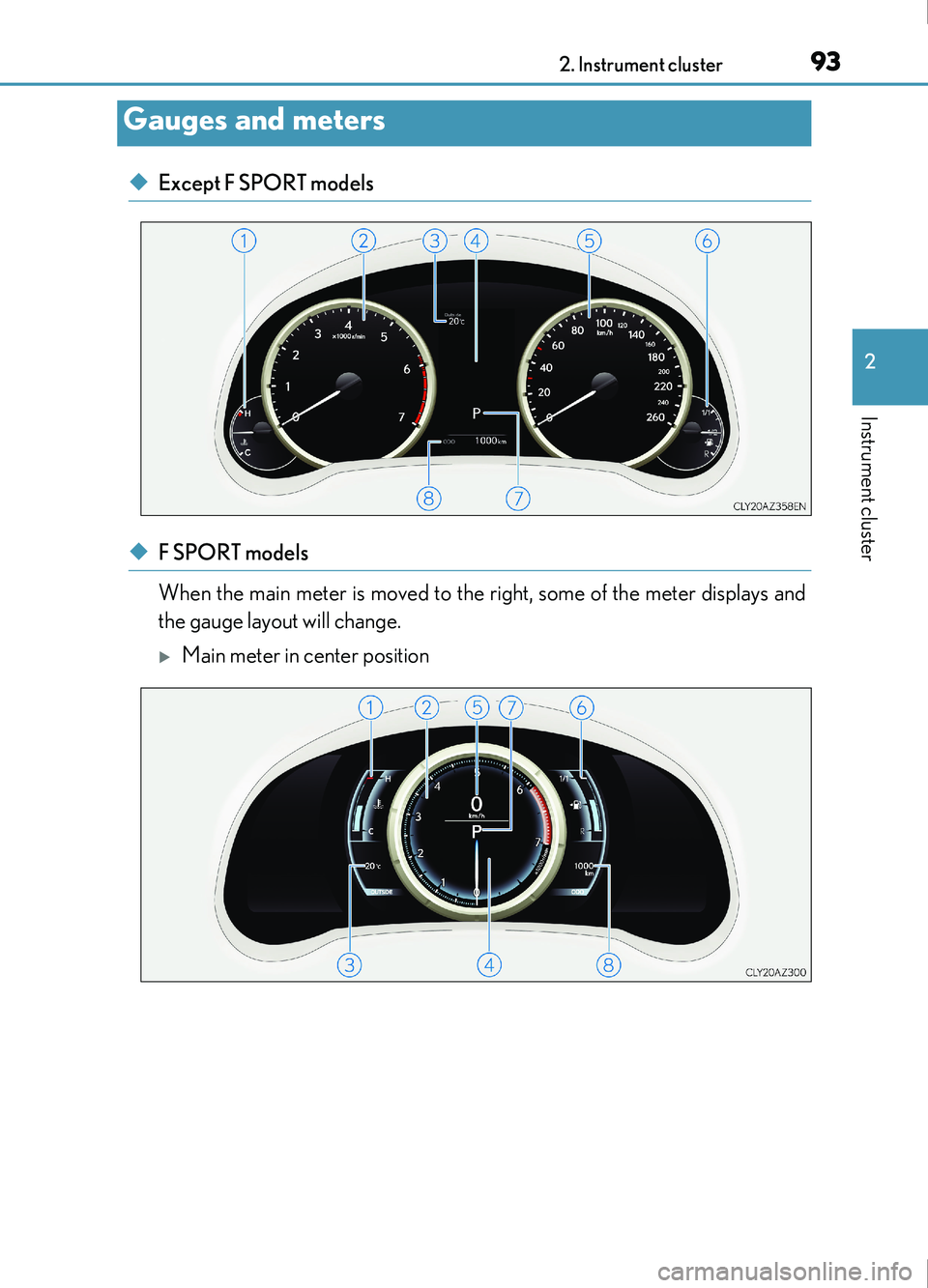

◆Except F SPORT models
◆F SPORT models
When the main meter is moved to the right, some of the meter displays and
the gauge layout will change.
Main meter in center position
Gauges and meters

942. Instrument cluster
IS200t_EE(OM53D77E)

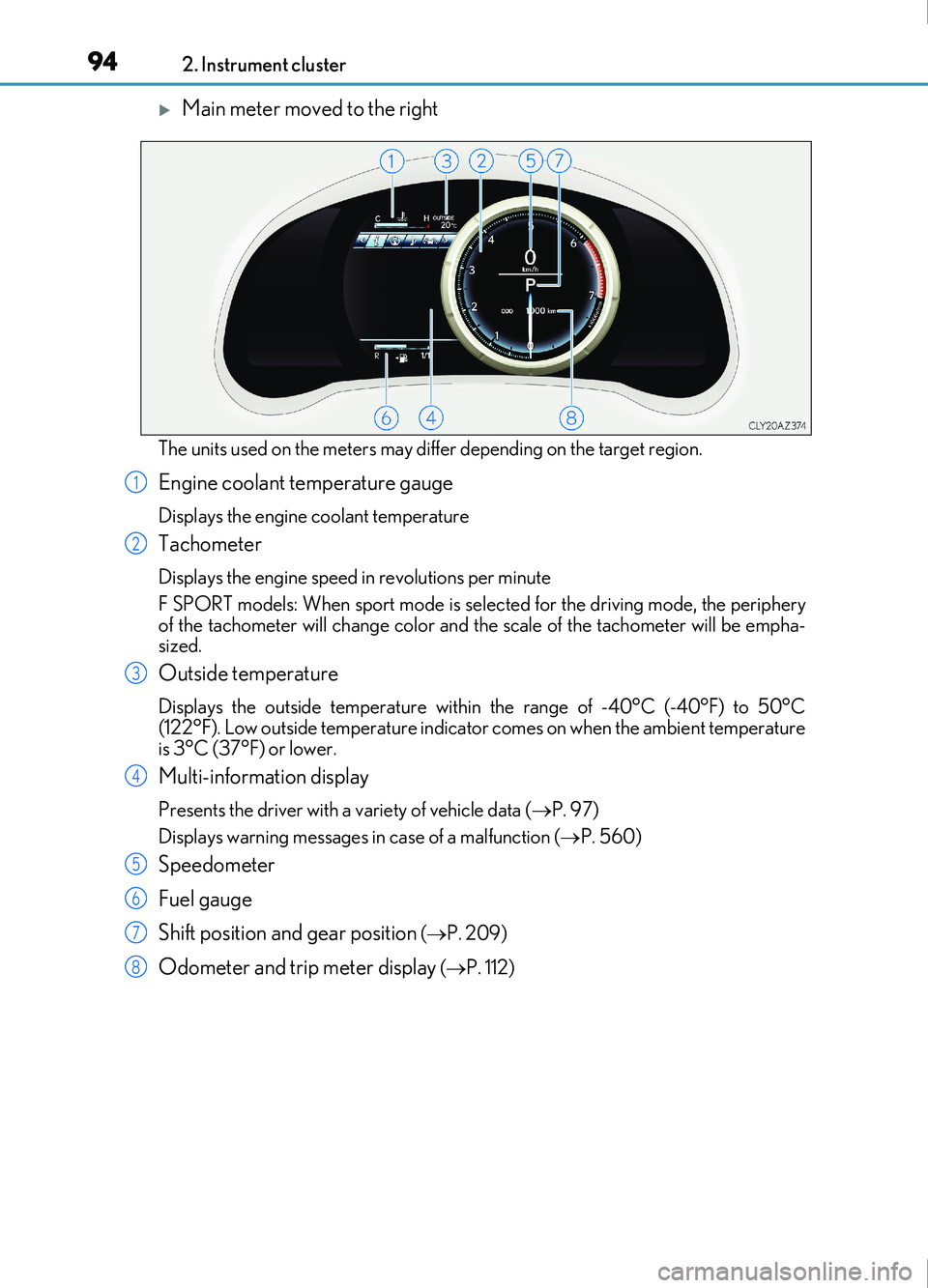

Main meter moved to the right
The units used on the meters may differ depending on the target region.
Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer
Displays the engine speed in revolutions per minute
F SPORT models: When sport mode is selected for the driving mode, the periphery
of the tachometer will change color and the scale of the tachometer will be empha-
sized.
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C
(122°F). Low outside temperature indicator comes on when the ambient temperature
is 3°C (37°F) or lower.
Multi-information display
Presents the driver with a variety of vehicle data ( P. 97)
Displays warning messages in case of a malfunction (P. 560)
Speedometer
Fuel gauge
Shift position and gear position
( P. 209)
Odometer and trip meter display ( P. 112)
1
2
3
4
5
6
7
8

952. Instrument cluster
2
Instrument cluster
IS200t_EE(OM53D77E)

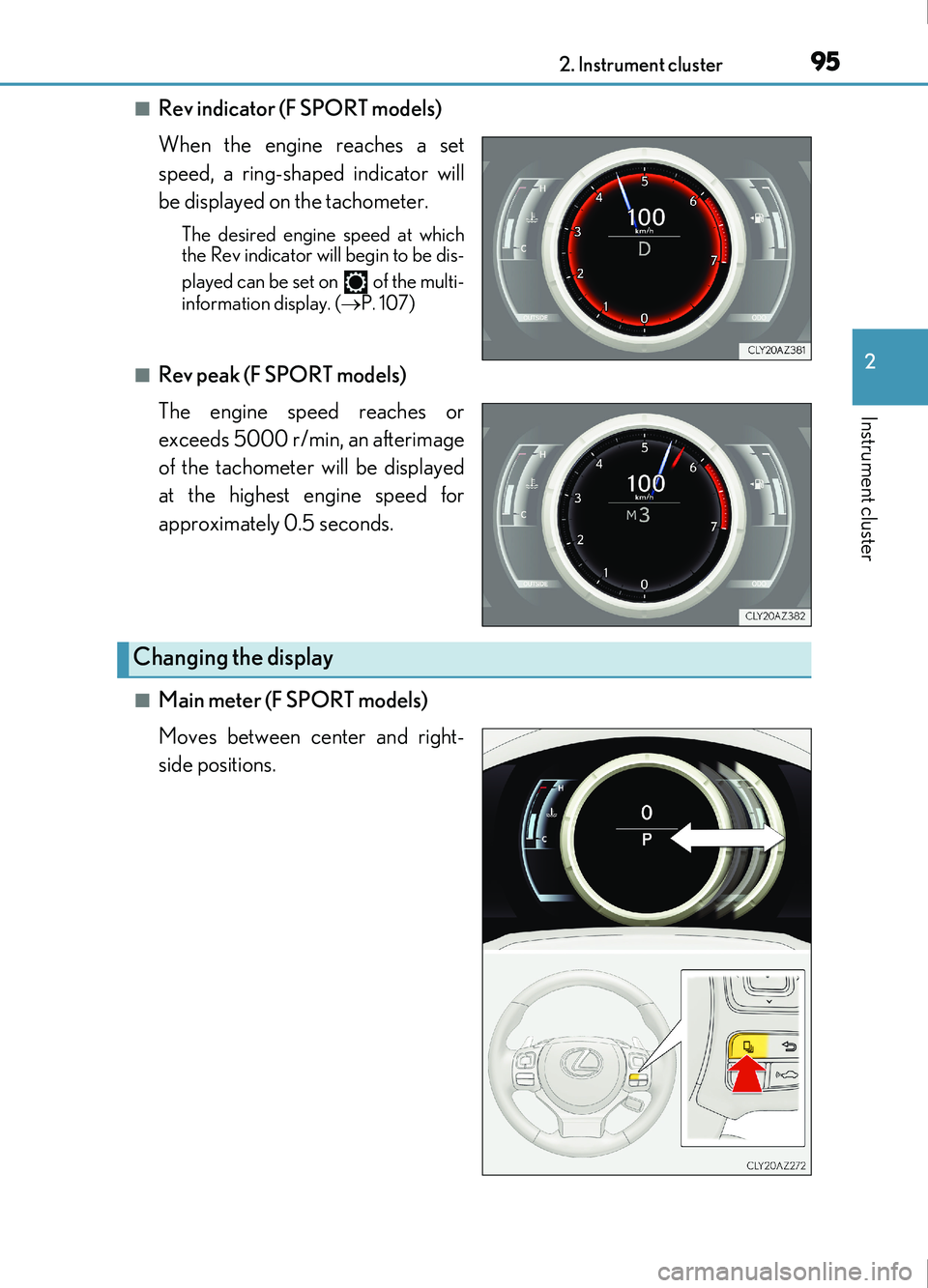

■Rev indicator (F SPORT models)
When the engine reaches a set
speed, a ring-shaped indicator will
be displayed on the tachometer.
The desired engine speed at which
the Rev indicator will begin to be dis-
played can be set on of the multi-
information display. (P. 107)
■Rev peak (F SPORT models)
The engine speed reaches or
exceeds 5000 r/min, an afterimage
of the tachometer will be displayed
at the highest engine speed for
approximately 0.5 seconds.
■Main meter (F SPORT models)
Moves between center and right-
side positions.
Changing the display

962. Instrument cluster
IS200t_EE(OM53D77E)
The brightness of the instrument panel lights can be adjusted.Darker
Brighter
■The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■Instrument panel brightness adjustment
The instrument panel brightness levels when th e tail lights are on and off can be adjusted
individually. However, when the surroundings ar e bright (daytime, etc.), turning on the tail
lights will not change the in strument panel brightness.
■Outside temperature display
In the following situations, the correct outside temperature may not be displayed, or the
display may take longer than normal to change.
●When stopped, or driving at low sp eeds (less than 20 km/h [12 mph])
●When the outside temperature has changed suddenly (at the entrance/exit of a garage,
tunnel, etc.)
■Pop-up display
●In some situations, such as when a switch operation is performed, a pop-up display will
be temporarily displayed on the multi-information display or the odometer/trip meter
screen (F SPORT models).
●Some pop-up displays can be set on/off. ( P. 107)
■Customization
The meter display can be customized on the multi-information display. (P. 107)
Instrument panel light control
1
2
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indicates
the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the red
zone (H). In this case, immediately stop the vehicle in a safe place, and check the
engine after it has cooled completely. ( P. 622)

972. Instrument cluster
2
Instrument cluster
IS200t_EE(OM53D77E)

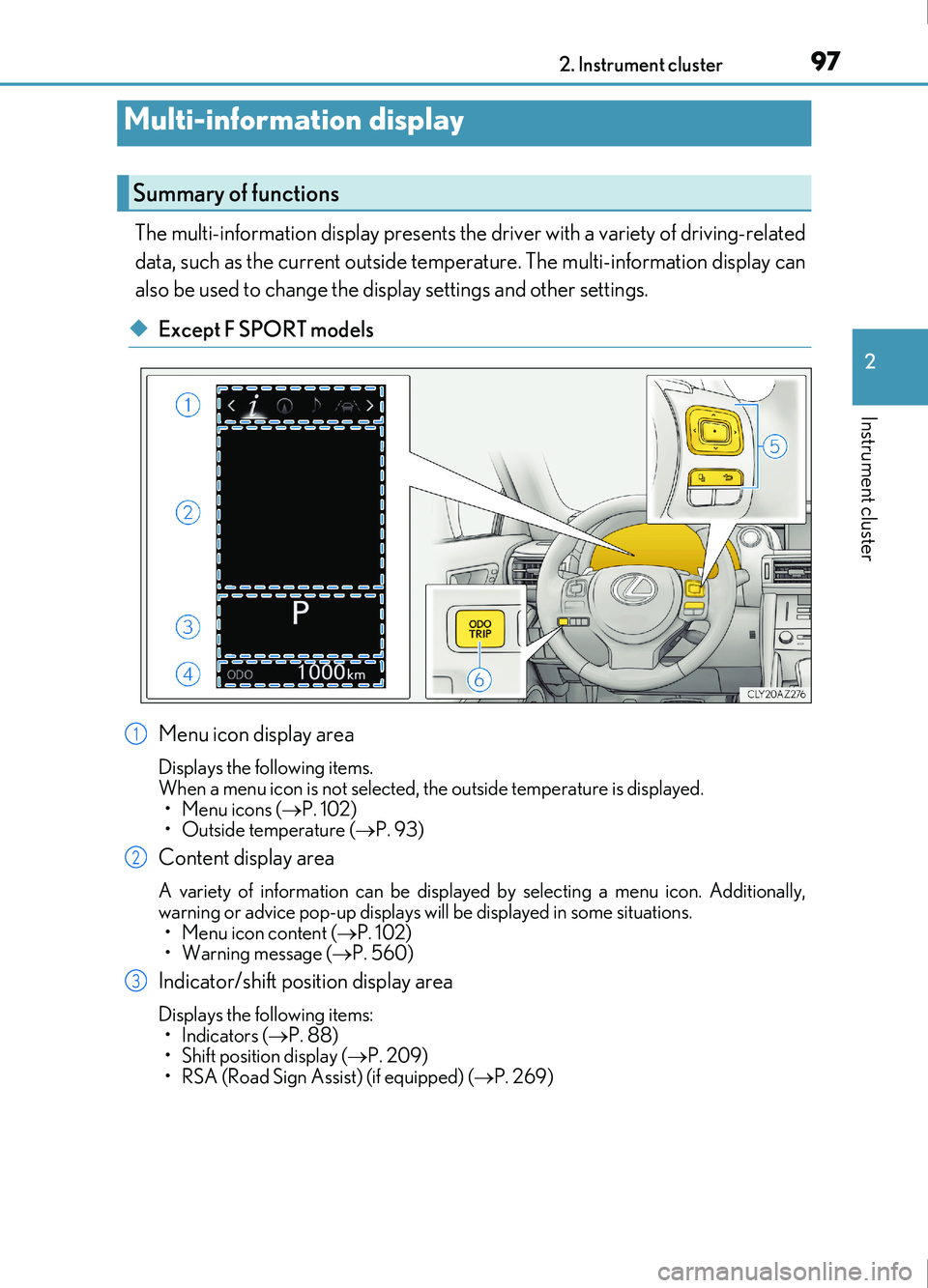

The multi-information display presents the driver with a variety of driving-related
data, such as the current outside temperature. The multi-information display can
also be used to change the display settings and other settings.
◆Except F SPORT models
Menu icon display area
Displays the following items.
When a menu icon is not selected, the outside temperature is displayed. •Menu icons ( P. 102)
• Outside temperature ( P. 93)
Content display area
A variety of information can be displayed by selecting a menu icon. Additionally,
warning or advice pop-up displays wi ll be displayed in some situations.
• Menu icon content ( P. 102)
• Warning message ( P. 560)
Indicator/shift position display area
Displays the following items:
•Indicators ( P. 88)
• Shift position display ( P. 209)
• RSA (Road Sign Assist) (if equipped) ( P. 269)
Multi-information display
Summary of functions
1
2
3

982. Instrument cluster
IS200t_EE(OM53D77E)
Odometer/trip meter display area ( P. 112)
Displays the following items:
• Odometer/trip meter
• Distance until next engine oil change
• Stop & Start system operation time (current) (if equipped)
• Speed warning
Meter control switches ( P. 100)
Odometer/trip meter and trip meter reset button ( P. 101)
◆F SPORT models
Main meter in center position
Main meter moved to the right
4
5
6

992. Instrument cluster
2
Instrument cluster
IS200t_EE(OM53D77E)
Outside temperature (P. 93)
Indicator/shift position display area
Displays the following items: •Indicators ( P. 88)
• Shift position display ( P. 209)
• RSA (Road Sign Assist) (if equipped) ( P. 269)
Content display area
Main meter in center position:
Displays various drive information on the ma in meter. Additionally, warning or advice
pop-up displays will be disp layed in some situations.
• Drive information ( P. 103)
• Warning message ( P. 560)
Main meter moved to the right:
A variety of information can be displayed by selecting a menu icon. Additionally,
warning or advice pop-up displays wi ll be displayed in some situations.
• Menu icon content ( P. 102)
• Warning message ( P. 560)
Odometer/trip meter display area ( P. 112)
Displays the following items:
• Odometer/trip meter
• Distance until next engine oil change
• Stop & Start system operation time (current) (if equipped)
• Speed warning
Menu icons ( P. 102)
Meter control switches ( P. 100)
Odometer/trip meter and trip meter reset button ( P. 101)
1
2
3
4
5
6
7

1002. Instrument cluster
IS200t_EE(OM53D77E)

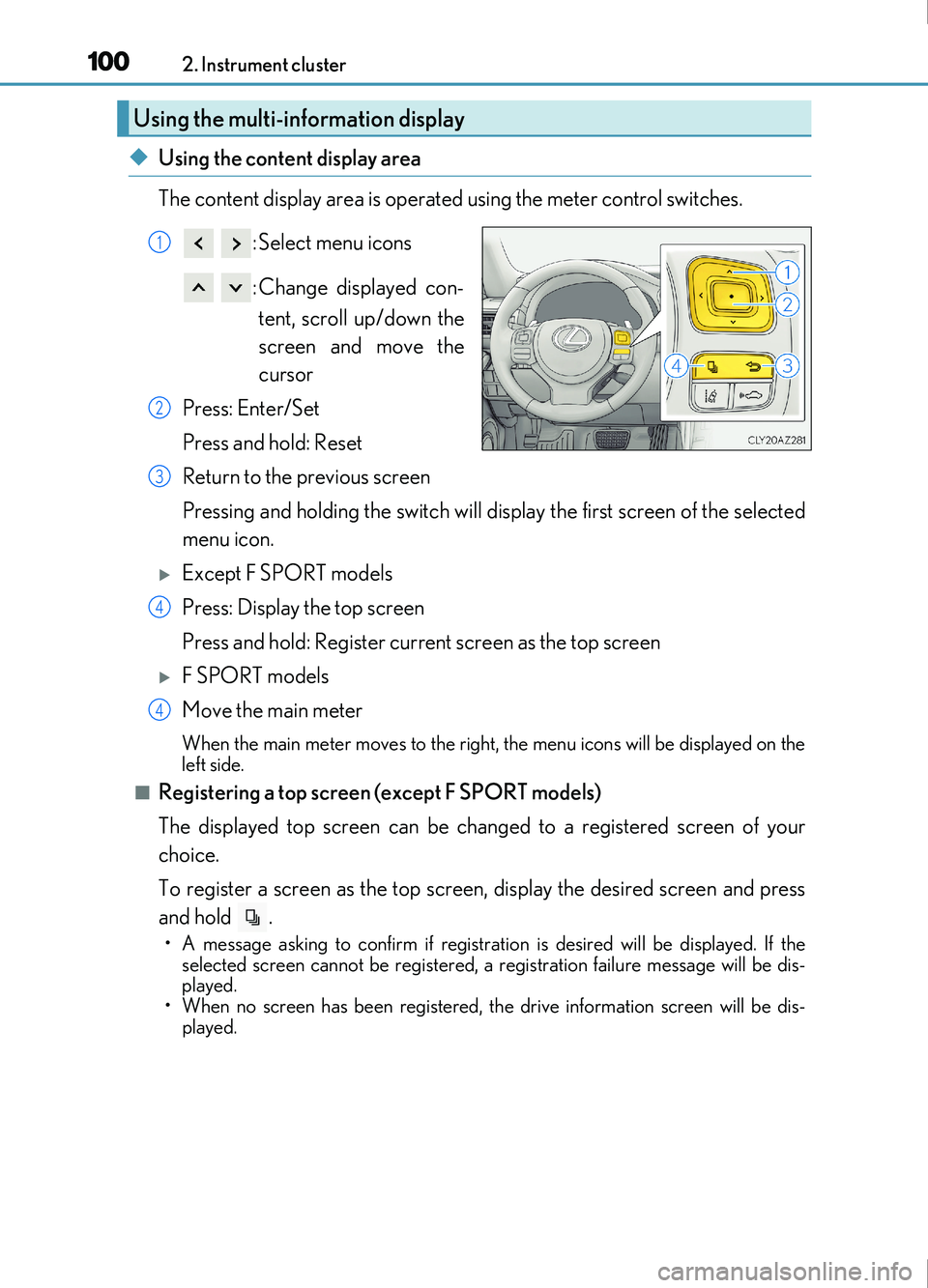

◆Using the content display area
The content display area is operated using the meter control switches. : Select menu icons
: Change displayed con-tent, scroll up/down the
screen and move the
cursor
Press: Enter/Set
Press and hold: Reset
Return to the previous screen
Pressing and holding the switch will display the first screen of the selected
menu icon.
Except F SPORT models
Press: Display the top screen
Press and hold: Register current screen as the top screen
F SPORT models
Move the main meter
When the main meter moves to the right, the menu icons will be displayed on the
left side.
■Registering a top screen (except F SPORT models)
The displayed top screen can be changed to a registered screen of your
choice.
To register a screen as the top screen, display the desired screen and press
and hold .
• A message asking to confirm if registrati on is desired will be displayed. If the
selected screen cannot be registered, a registration failure message will be dis-
played.
• When no screen has been registered, th e drive information screen will be dis-
played.
Using the multi-information display
1
2
3
4
4
