2164-2. Driving procedures
IS200t_EE(OM53D77E)
The lever will return to its original position immediately after operation.Right turn
Lane change to the right (move the
lever partway and release it)
The right hand signals will flash 3 times.
Lane change to the left (move the
lever partway and release it)
The left hand signals will flash 3 times.
Left turn
■If the turn signals do not stop flashing after turning left or right, or if you want
to stop them flashing
Operate the lever in the opposite direction to either position or .
If you move the lever to either position or , the selected turn signals will
flash.
■Turn signals can be operated when
The engine switch is in IGNITION ON mode.
■If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
■If the turn signals stop flashing before a lane change has been performed
Operate the lever again.
■Customization
The number of times the turn signals flash during a lane change can be changed.
(Customizable feature P. 641)
Turn signal lever
Operating instructions
1
2
3
4
23
14

2324-3. Operating the lights and wipers
IS200t_EE(OM53D77E)
■The windshield wiper and washer can be operated when
The engine switch is in IGNITION ON mode.
■Dripping prevention wiper sweep
After performing a washing and wiping operation several times, the wipers operate one
more time after a short delay to prevent dripping.
However, this final wiper operation will not be perfor med while driving.
■Effects of vehicle speed on wiper operation (vehicles with rain-sensing windshield wip-
ers)
Vehicle speed affects the following even when the wipers are not in AUTO mode.
●Intermittent wiper interval
●Wiper operation when the washer is being used (delay until dr ip prevention wiper
sweep occurs)
With low speed windshield wi per operation selected, wiper operation will be switched
from low speed to intermittent wiper operat ion only when the vehicle is stationary.
■Raindrop sensor (vehicles with rain-sensing windshield wipers)
●If the wiper is turned to AUTO mode while the engine switch is in IGNITION ON
mode, the wipers will operate once to show that AUTO mode is activated.
●If the temperature of the raindrop sensor is 85°C (185°F) or higher, or -30°C (-22°F)
or lower, automatic operation may not occur. In this case, operate the wipers in any
mode other than AUTO mode.
■When the windshield wipers are in temporary operation (vehicles with rain-sensing
windshield wipers)
AUTO mode cannot be activated even if is pressed.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the windshield
washer fluid reservoir.
●The raindrop sensor judges the amount of
raindrops.
An optical sensor is adopted. It may not oper-
ate properly when sunlight from the rising or
setting of the sun intermittently strikes the
windshield, or if bugs etc. are present on the
windshield.

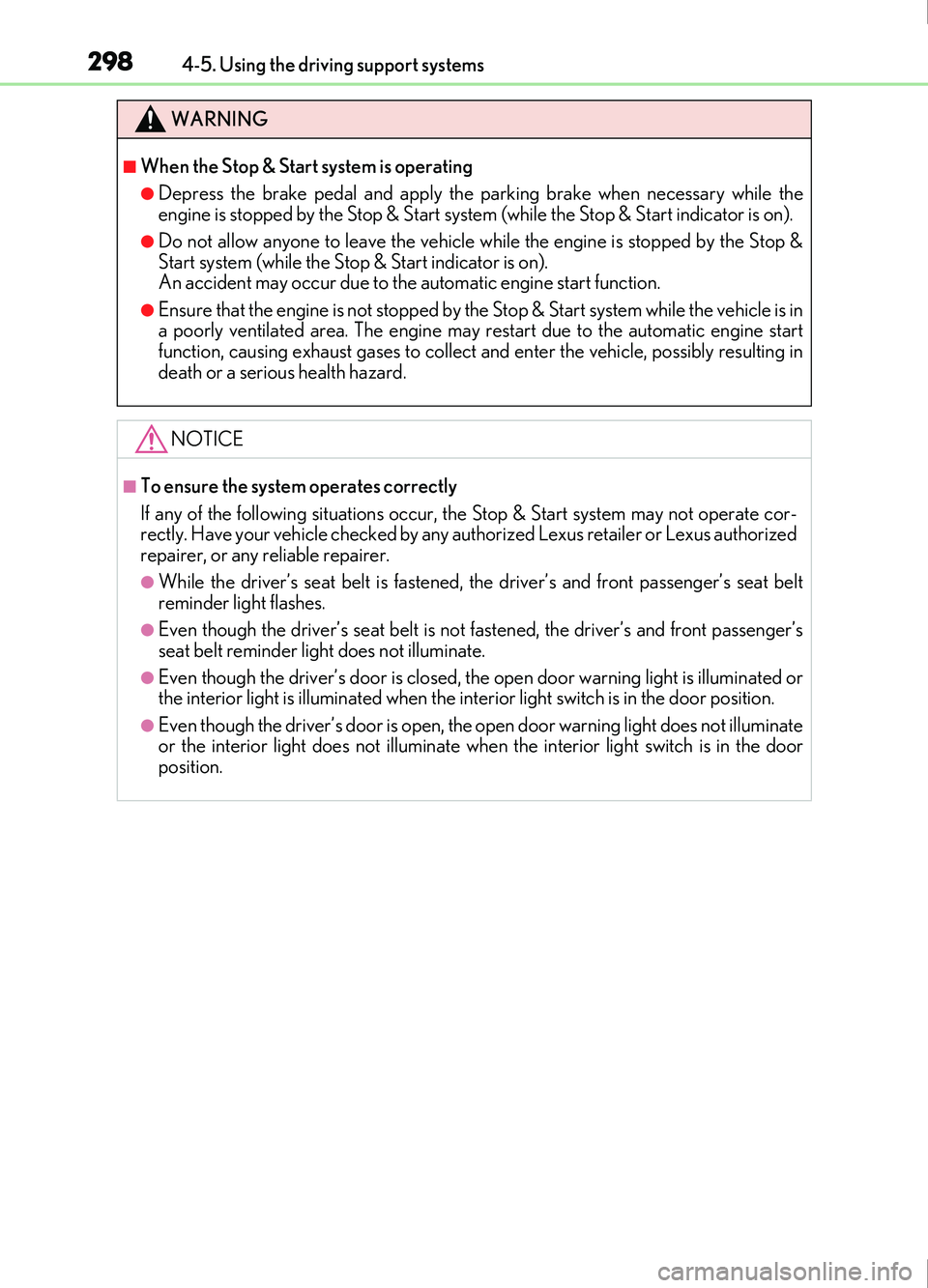

2984-5. Using the driving support systems
IS200t_EE(OM53D77E)
WARNING
■When the Stop & Start system is operating
●Depress the brake pedal and apply the parking brake when necessary while the
engine is stopped by the Stop & Start system (while the Stop & Start indicator is on).
●Do not allow anyone to leave the vehicle while the engine is stopped by the Stop &
Start system (while the Stop & Start indicator is on).
An accident may occur due to the automatic engine start function.
●Ensure that the engine is not stopped by the Stop & Start system while the vehicle is in
a poorly ventilated area. The engine may restart due to the automatic engine start
function, causing exhaust gases to collect and enter the vehicle, possibly resulting in
death or a serious health hazard.
NOTICE
■To ensure the system operates correctly
If any of the following situations occur, the Stop & Start system may not operate cor-
rectly. Have your vehicle checked by any authorized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.
●While the driver’s seat belt is fastened, the driver’s and front passenger’s seat belt
reminder light flashes.
●Even though the driver’s seat belt is not fastened, the driver’s and front passenger’s
seat belt reminder light does not illuminate.
●Even though the driver’s door is closed, the open door warning light is illuminated or
the interior light is illuminated when the interior light switch is in the door position.
●Even though the driver’s door is open, the open door warning light does not illuminate
or the interior light does not illuminate when the interior light switch is in the door
position.

3064-5. Using the driving support systems
IS200t_EE(OM53D77E)
WARNING
■When using the Lexus parking assist-sensor
Observe the following precautions.
Failing to do so may result in the vehicle being unable to be driven safely and possibly
cause an accident.
●Do not use the sensor at speeds in excess of 10 km/h (6 mph).
●The sensors’ detection areas and reaction times are limited. When moving forward or
reversing, check the areas surrounding the vehicle (especially the sides of the vehi-
cle) for safety, and drive slowly, using the brake to control the vehicle’s speed.
●Do not install accessories within the sensors’ detection areas.
■Sensor detection information
●The sensor’s detection areas are limited to the areas around the vehicle’s bumper.
●Certain vehicle conditions and surrounding environments, such as the following, may
affect the ability of the sensors to correctly detect objects. Pay particular attention in
the following situations. Failure to do so may result in the vehicle being driven
unsafely, possibly leading to an accident.
• There is dirt, snow or ice on the sensor. (Wiping the sensors will resolve this prob- lem.)
• The sensor is frozen. (Thawing th e area will resolve this problem.)
In especially cold weather, if a sensor is frozen the screen may show an abnormal
display, or obstacles may not be detected.
• The sensor is covered in any way.
• The vehicle is leaning considerably to one side.
• On an extremely bumpy road, on an incline, on grav el, or on grass.
• The vicinity of the vehicle is noisy due to vehicle horns, motorcycle engines, air
brakes of large vehicles, or other lo ud noises producing ultrasonic waves.
• There is another vehicle equipped with parking assist sensors in the vicinity.
• The sensor is coated with a sheet of spray or heavy rain.
• The vehicle is equipped with a fender pole or wireless antenna.
• Towing eyelets are installed.
• The bumper or sensor receives a strong impact.
• The vehicle is approaching a tall or curved curb.
• In harsh sunlight or intense cold weather.
• The area directly under the bumpers is not detected.
• If obstacles draw too close to the sensor.
• A non-genuine Lexus suspension (lowered suspension etc.) is installed.
• People may not be detected if they are wearing certain types of clothing.
In addition to the examples above, there are instances in which, because of their
shape, signs and other objects may be judged by a sensor to be closer than they are.

346
IS200t_EE(OM53D77E)4-6. Driving tips
●Use fluids that are appropriate to the prevailing outside temperatures.
•Engine oil
• Engine coolant
• Washer fluid
●Have a service technician inspect the condition of the battery.
●Have the vehicle fitted with four snow tires or purchase a set of tire chains for
the rear tires.
*
Ensure that all tires are the specified size and brand, and that chains match the size
of the tires.
*: Tire chains cannot be mounted on the 18-inch tires.
Perform the following according to the driving conditions:
●Do not try to forcibly open a window or move a wiper that is frozen. Pour
warm water over the frozen area to melt the ice. Wipe away the water imme-
diately to prevent it from freezing.
●To ensure proper operation of the climate control system fan, remove any
snow that has accumulated on the air inlet vents in front of the windshield.
●Check for and remove any excess ice or snow that may have accumulated on
the exterior lights, vehicle’s roof, chassi s, around the tires or on the brakes.
●Remove any snow or mud from the bottom of your shoes before getting in the
vehicle.
Accelerate the vehicle slowly, keep a safe distance between you and the vehicle
ahead, and drive at a reduced speed suitable to road conditions.
Winter driving tips
Carry out the necessary preparations and inspections before driving the vehi-
cle in winter. Always drive the vehicle in a manner appropriate to the prevail-
ing weather conditions.
Preparation for winter
Before driving the vehicle
When driving the vehicle

485
7Maintenance and care
IS200t_EE(OM53D77E)
7-1. Maintenance and careCleaning and protecting the vehicle exterior ................486
Cleaning and protecting the vehicle interior..................490
7-2. Maintenance Maintenance requirements ............................ 493
7-3. Do-it-yourself maintenance
Do-it-yourself service precautions................................ 495
Hood ............................................... 497
Positioning a floor jack ............498
Engine compartment ............... 499
Tires .................................................509
Tire inflation pressure ............... 521
Wheels ........................................... 523
Air conditioning filter ............... 525
Electronic key battery.............. 527
Checking and replacing fuses..............................................530
Light bulbs..................................... 534

5588-2. Steps to take in an emergency
IS200t_EE(OM53D77E)
*3: Seat belt warning buzzer:The seat belt warning buzzer sounds to al ert the driver, front passenger and rear pas-
sengers that his or her seat belt is not fastened. The buzzer sounds for 30 seconds
after the vehicle reaches a speed of 20 km/h (12 mph). Then, if the seat belt is still
unfastened, the buzzer will sound in a different tone for 90 more seconds.
■Front passenger detection sensor, seat belt reminder and warning buzzer
●If luggage is placed on the front passenger seat, the front passenger detection sensor
may cause the warning light to flash and the warning buzzer to sound even if a passen-
ger is not sitting in the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger, and the warn-
ing light may not operate properly.
■If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes completely empty.
If the fuel tank is empty, refuel the vehicle immediately. The malfunction indicator lamp
will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer as soon as possible.
■Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficien t or the voltage temporarily drops, the
electric power steering system warning lig ht may come on and the warning buzzer may
sound.
■When the tire pressure warning light comes on
Carry out the following procedure after the tire temperature has lowered sufficiently.
●Check the tire inflation pressure and adjust to the appropriate level.
●If the warning light does not go out even afte r several minutes, check that the tire infla-
tion pressure is at the specified level and carry out initialization.
The warning light may come on again if the above operations are conducted without first
allowing the tire temperature to lower sufficiently.
■The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as natural air
leaks and tire inflation pressure changes caused by temperature. In this case, adjusting
the tire inflation pressure will turn off the warning light (after a few minutes).
■When a tire is replaced with the spare tire (if equipped)
The compact spare tire is not equipped with a tire pressure warning valve and transmit-
ter. If a tire goes flat, the tire pressure warning light will not turn off even though the flat
tire has been replaced with the spare tire.
■Conditions that the tire pressure warning system may not function properly
 P. 513
■If the tire pressure warning light frequently comes on after blinking for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1 minute when the
engine switch is turned to IGNITION ON mode, have it checked by any authorized
Lexus retailer or Lexus authorized repairer, or any reliable repairer.

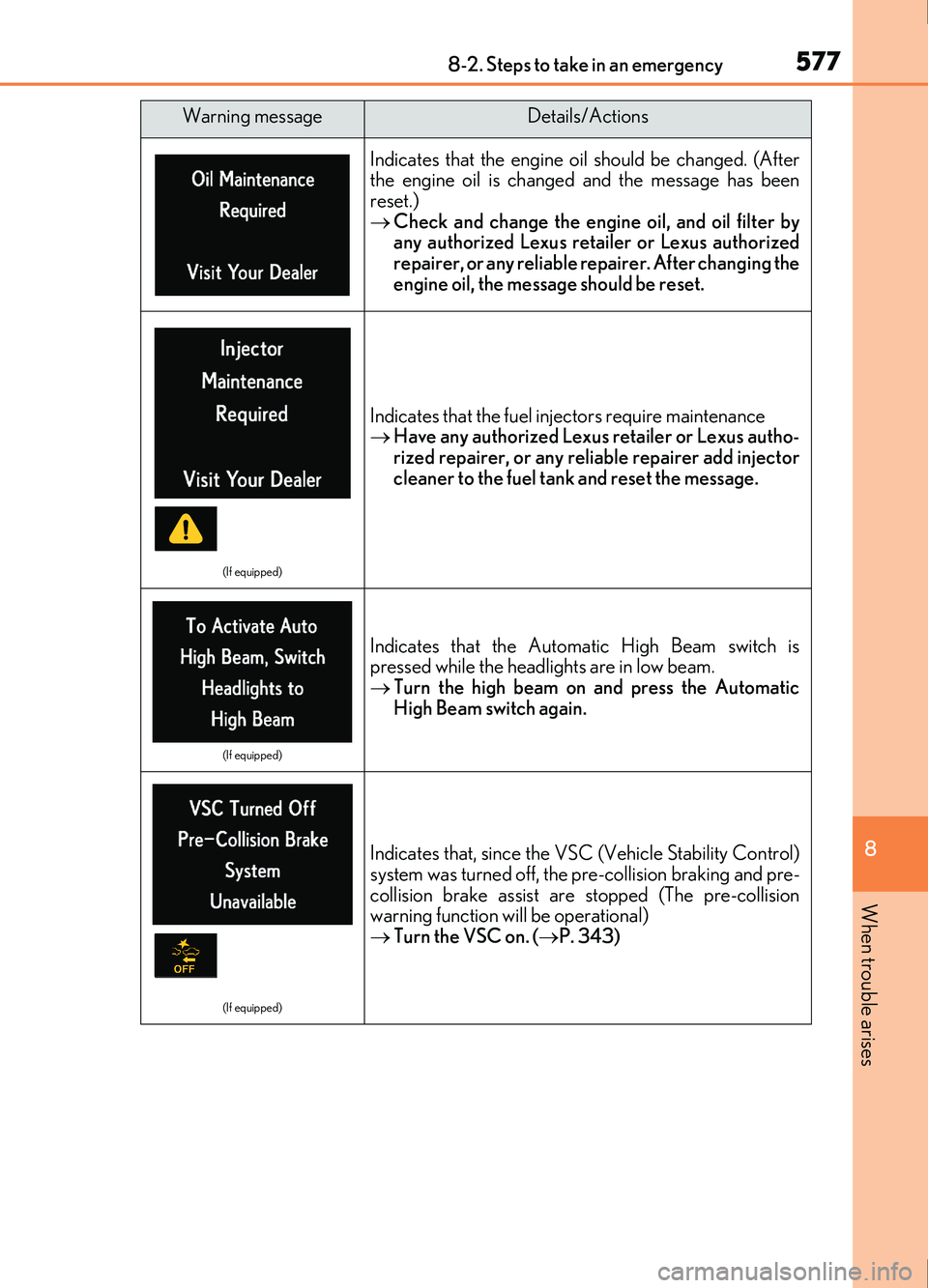

5778-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D77E)
Indicates that the engine oil should be changed. (After
the engine oil is changed and the message has been
reset.)
Check and change the engine oil, and oil filter by
any authorized Lexus retailer or Lexus authorized
repairer, or any reliable repairer. After changing the
engine oil, the message should be reset.
(If equipped)
Indicates that the fuel injectors require maintenance
Have any authorized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer add injector
cleaner to the fuel tank and reset the message.
(If equipped)
Indicates that the Automatic High Beam switch is
pressed while the headlights are in low beam.
Turn the high beam on and press the Automatic
High Beam switch again.
(If equipped)
Indicates that, since the VSC (Vehicle Stability Control)
system was turned off, the pre-collision braking and pre-
collision brake assist are stopped (The pre-collision
warning function will be operational)
 Turn the VSC on. ( P. 343)
Warning messageDetails/Actions

660Alphabetical index
IS200t_EE(OM53D77E)
E-mail .......................................................... 413
Eco drive mode .................................... 338
Eco Driving Indicator .............................113
Elapsed time .............................................. 116
Electric Power Steering (EPS)........340Warning light ...................................... 555
Electronic key...........................................122
Battery-saving function..................... 142
If the electronic key does not operate properly ............................. 615
Replacing the battery....................... 527
Emergency, in case of If a warning message is
displayed ........................................... 560
If the electronic key does not
operate properly ............................. 615
If the engine will not start .................613
If the vehicle battery is discharged.......................................... 618
If the warning buzzer sounds ......554
If the warning light turns on ..........554
If you have a flat tire .............. 586, 601
If you think something is wrong...............................................552
If your vehicle becomes stuck..... 626
If your vehicle has to be stopped in an emergency..........545
If your vehicle needs to be towed.............................................546
If your vehicle overheats ................ 622 Emergency brake signal......................341
Emergency flashers ............................. 544
Emergency tire puncture
repair kit ................................................ 586
Engine ....................................................... 632 ACCESSORY mode ..................... 205
Compartment ..................................... 499
Engine switch ...................................... 204
Hood ....................................................... 497
How to start the engine ................. 204
Identification number......................... 631
If the engine will not start ................. 613
Ignition switch (engine switch) ... 204
Overheating .........................................622
Engine coolant....................................... 503 Capacity................................................. 635
Checking ............................................... 503
Preparing and checking
before winter.................................... 346
Engine coolant temperature
gauge ........................................................ 93
Engine immobilizer system ..................75
Engine oil .................................................500 Capacity................................................. 633
Checking .............................................. 500
Preparing and checking
before winter.................................... 346
Engine oil maintenance data ........... 502
Engine switch ......................................... 204
EPS (Electric Power Steering) ....... 340
Warning light.......................................555
ERA-GLONASS .................................480
E

663Alphabetical index
IS200t_EE(OM53D77E)
IdentificationEngine........................................................631
Vehicle ......................................................631
Ignition switch (engine switch) ........204
Illuminated entry system .................... 466
Indicators.....................................................90
Initialization Engine oil maintenance data .......502
Moon roof .............................................. 183
Multi-information display .................107
Power windows....................................178
Tire pressure warning system ..................................................... 511
Inside door handle lights .................... 465
Inside rear view mirror .......................... 171
Instrument panel light control ............ 96
Intercooler ...............................................504
Intercooler coolant ............................. 503 Capacity .................................................635
Checking .............................................. 503
Preparing and checking
before winter .................................... 346
Interior lights ........................................... 466
Wattage..................................................639
Intrusion sensor and tilt sensor ..........84
ISOFIX rigid anchors............................. 65
Jack
Positioning the jack.......................... 498
Vehicle-equipped jack ......588, 602
Jack handle ..................................588, 602
Jam protection function Moon roof .............................................. 182
Power window ......................................178 Keyless entry
Smart entry & start system......................................... 128, 135
Wireless remote control ...... 128, 135
Keys.............................................................. 122
Battery-Saving Function .................. 142
Electronic key........................................ 122
Engine switch ...................................... 204
If the electronic key does not operate properly ..............................615
Key number plate ................................ 122
Keyless entry............................... 128, 135
Mechanical key .................................... 123
Replacing the battery .......................527
Warning buzzer................................... 129
Wireless remote control ................. 122
Knee airbags ............................................... 41
I
J
K
