5518-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D77E)

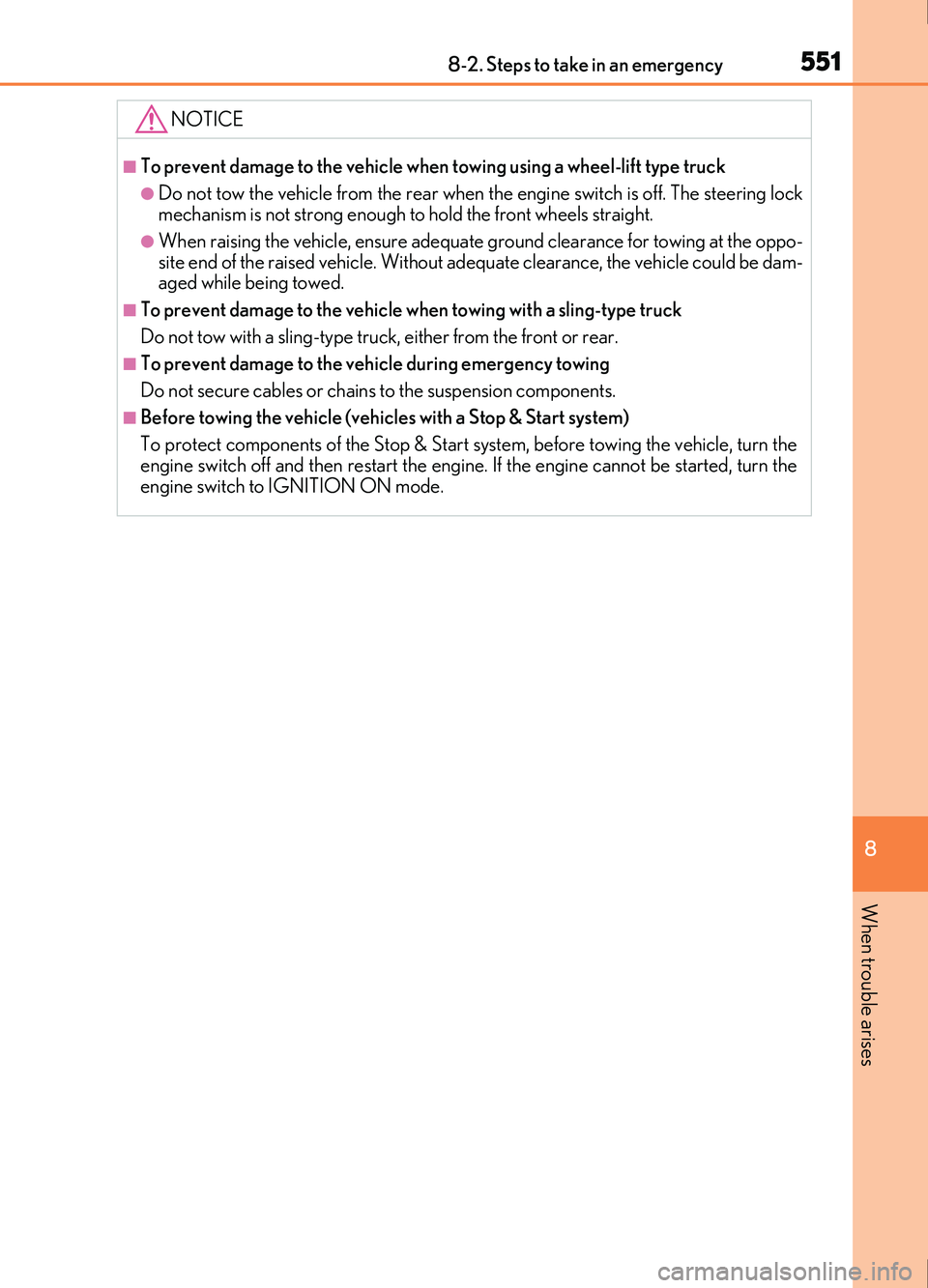

NOTICE
■To prevent damage to the vehicle when towing using a wheel-lift type truck
●Do not tow the vehicle from the rear when the engine switch is off. The steering lock
mechanism is not strong enough to hold the front wheels straight.
●When raising the vehicle, ensure adequate ground clearance for towing at the oppo-
site end of the raised vehicle. Without adequate clearance, the vehicle could be dam-
aged while being towed.
■To prevent damage to the vehicle when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
■To prevent damage to the vehicle during emergency towing
Do not secure cables or chains to the suspension components.
■Before towing the vehicle (vehicles with a Stop & Start system)
To protect components of the Stop & Start system, before towing the vehicle, turn the
engine switch off and then restart the engine. If the engine cannot be started, turn the
engine switch to IGNITION ON mode.

5528-2. Steps to take in an emergency
IS200t_EE(OM53D77E)
●Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is normal.)
●Flat-looking tires or uneven tire wear
●Engine coolant temperature gauge needle continually points higher than nor-
mal.
●Changes in exhaust sound
●Excessive tire squeal when cornering
●Strange noises related to the suspension system
●Pinging or other noises related to the engine
●Engine missing, stumbling or running roughly
●Appreciable loss of power
●Vehicle pulls heavily to one side when braking
●Vehicle pulls heavily to one side when driving on a level road
●Loss of brake effectiveness, spongy feeling, pedal almost touches the floor

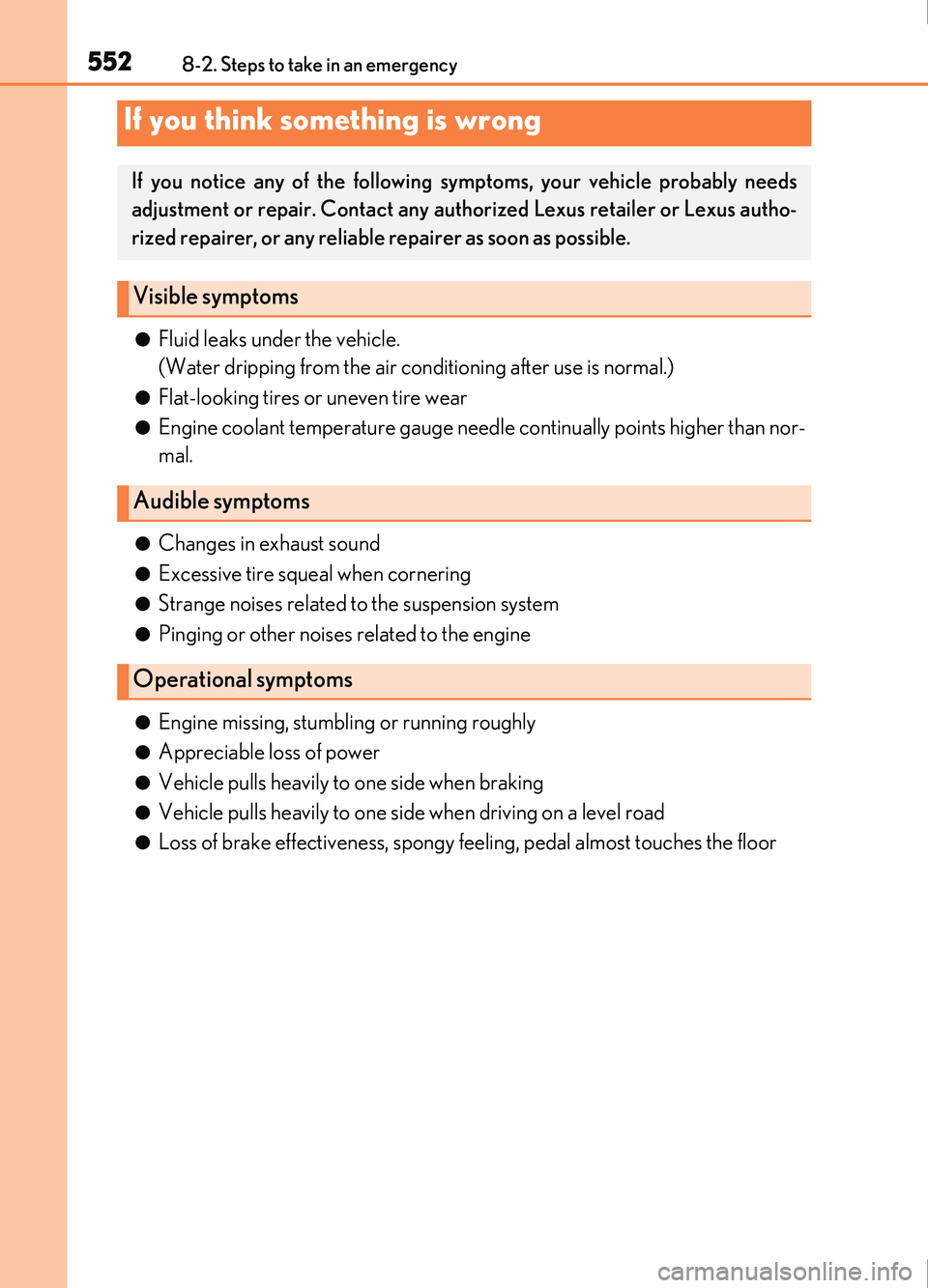

If you think something is wrong
If you notice any of the following sy mptoms, your vehicle probably needs
adjustment or repair. Contact any authorized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer as soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms

5538-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D77E)

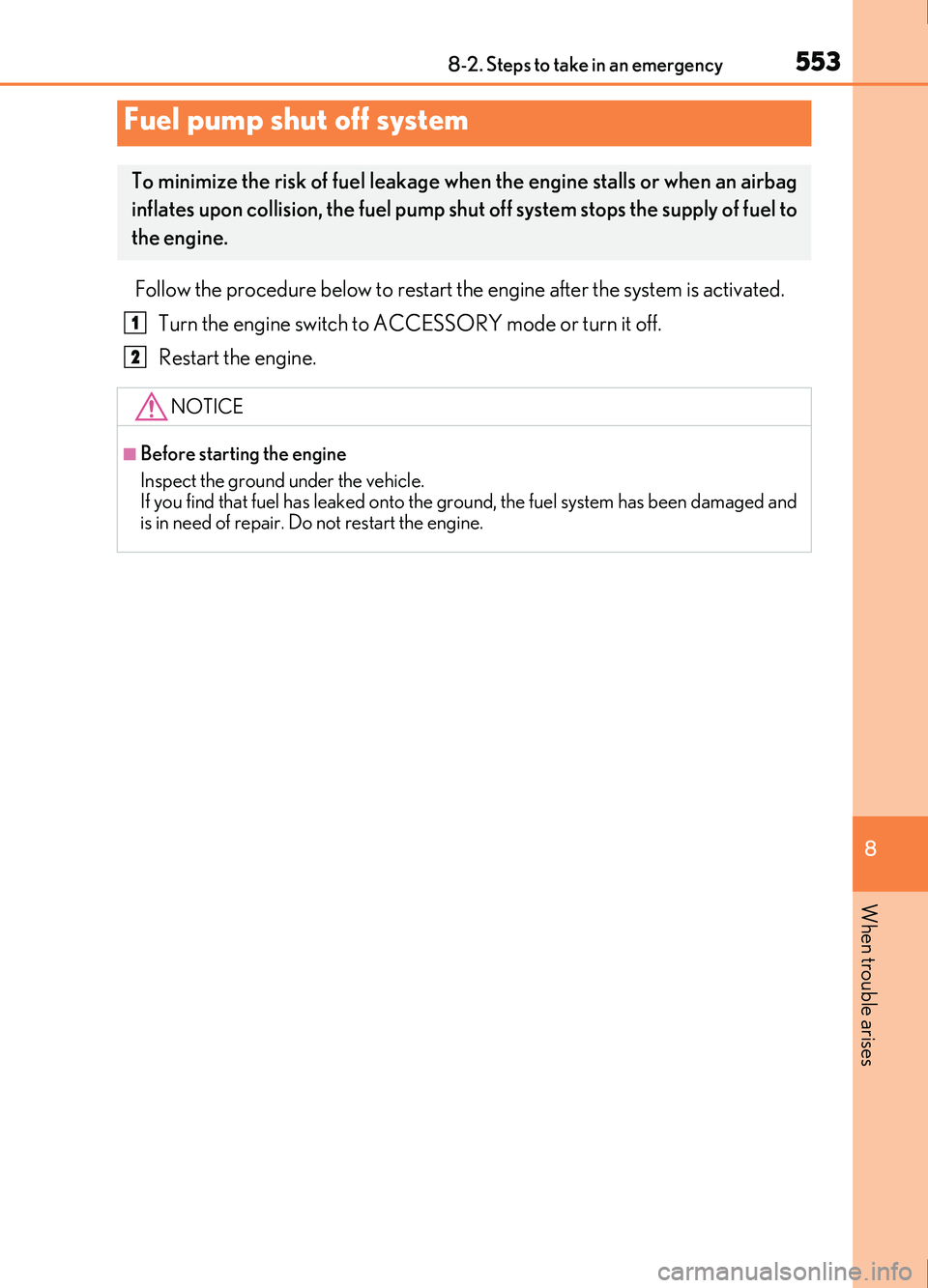

Follow the procedure below to restart the engine after the system is activated.Turn the engine switch to ACCESSORY mode or turn it off.
Restart the engine.
Fuel pump shut off system
To minimize the risk of fuel leakage when the engine stalls or when an airbag
inflates upon collisio n, the fuel pump shut off system stops the supply of fuel to
the engine.
NOTICE
■Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been damaged and
is in need of repair. Do not restart the engine.
1
2

5548-2. Steps to take in an emergency
IS200t_EE(OM53D77E)

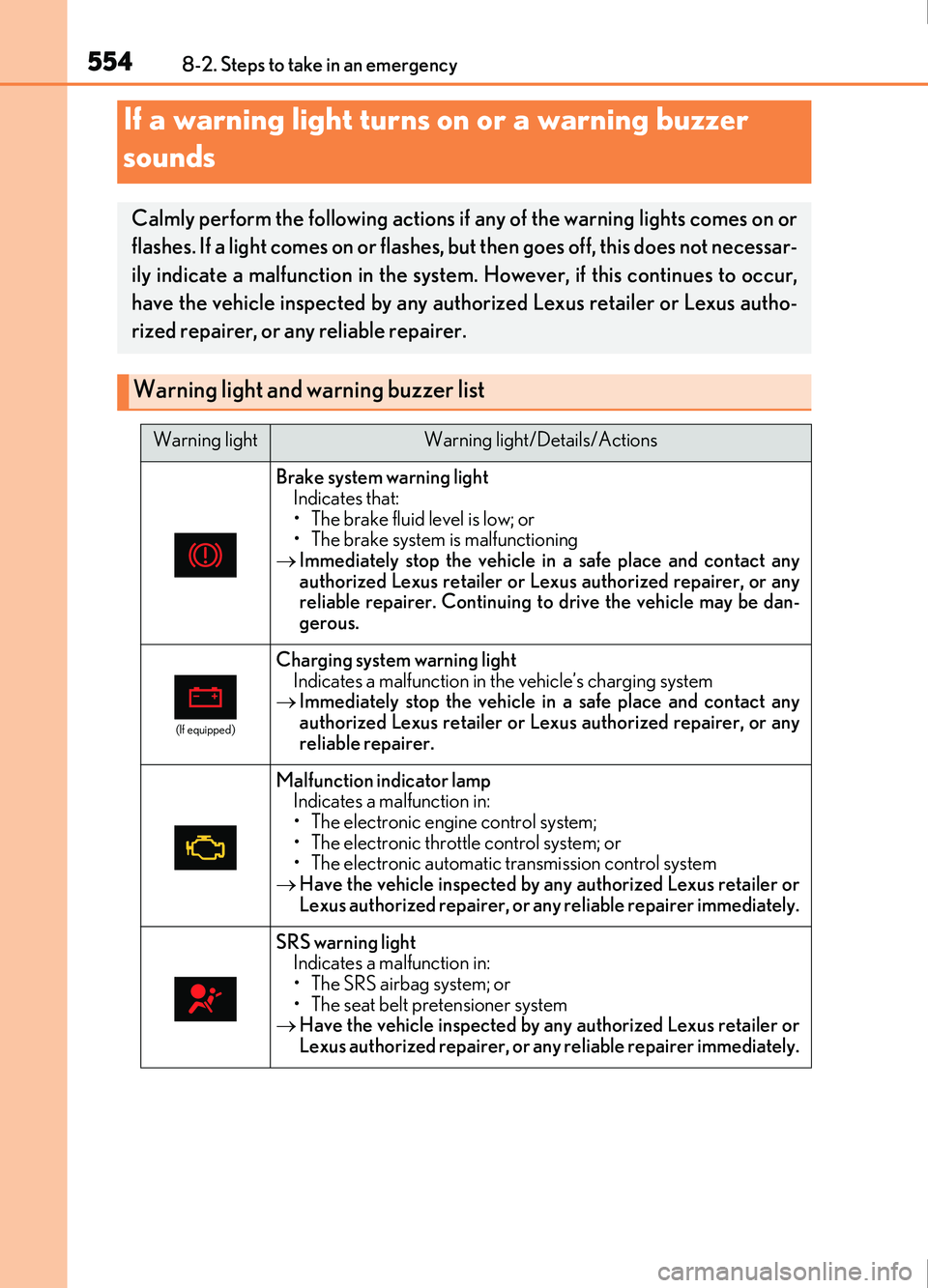

If a warning light turns on or a warning buzzer
sounds
Calmly perform the following actions if any of the warning lights comes on or
flashes. If a light comes on or flashes, but then goes off, this does not necessar-
ily indicate a malfunction in the system. However, if this continues to occur,
have the vehicle inspected by any authorized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer.
Warning light and warning buzzer list
Warning lightWarning light/Details/Actions
Brake system warning light Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning
 Immediately stop the vehicle in a safe place and contact any
authorized Lexus retailer or Lexus authorized repairer, or any
reliable repairer. Continuing to drive the vehicle may be dan-
gerous.
(If equipped)
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
 Immediately stop the vehicle in a safe place and contact any
authorized Lexus retailer or Lexus authorized repairer, or any
reliable repairer.
Malfunction indicator lamp
Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic automatic transmission control system
 Have the vehicle inspected by an y authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer immediately.
SRS warning light Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
 Have the vehicle inspected by an y authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer immediately.

5558-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D77E)

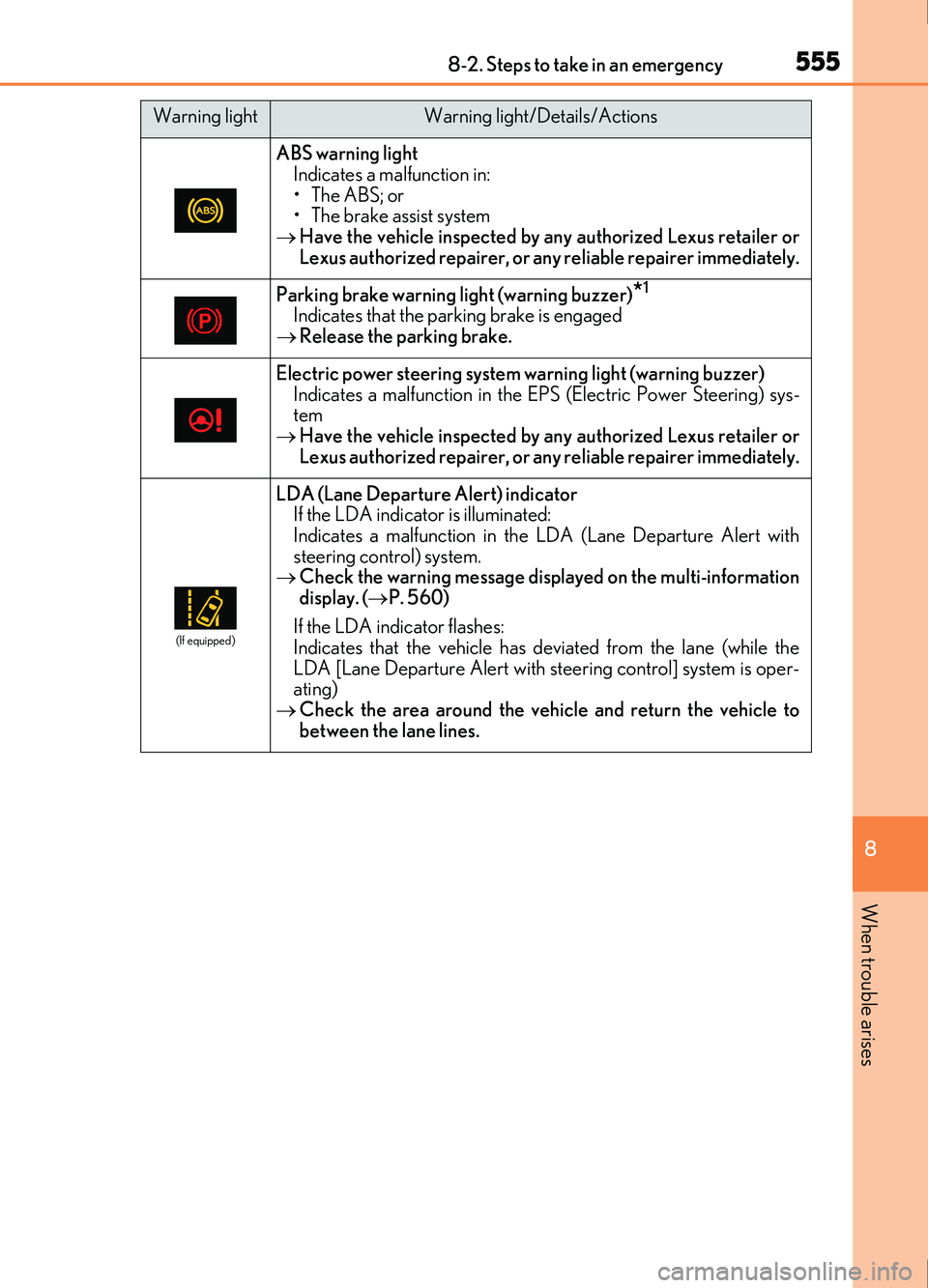

ABS warning lightIndicates a malfunction in:
•The ABS; or
• The brake assist system
 Have the vehicle inspected by an y authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer immediately.
Parking brake warning light (warning buzzer)*1
Indicates that the parking brake is engaged
 Release the parking brake.
Electric power steering system warning light (warning buzzer)
Indicates a malfunction in the EPS (Electric Power Steering) sys-
tem
 Have the vehicle inspected by an y authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer immediately.
(If equipped)
LDA (Lane Departure Alert) indicator If the LDA indicato r is illuminated:
Indicates a malfunction in the LDA (Lane Departure Alert with
steering control) system.
 Check the warning message displa yed on the multi-information
display. ( P. 560)
If the LDA indicator flashes:
Indicates that the vehicle has deviated from the lane (while the
LDA [Lane Departure Alert with stee ring control] system is oper-
ating)
 Check the area around the vehi cle and return the vehicle to
between the lane lines.
Warning lightWarning light/Details/Actions

5568-2. Steps to take in an emergency
IS200t_EE(OM53D77E)
(If equipped)
PCS warning lightWhen the warning light flashes (and a buzzer sounds):
Indicates a malfunction in the PCS (Pre-Collision System)
 Have the vehicle inspected by an y authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer immediately.
When the warning light flashes (and a buzzer does not sound):
Indicates that the PCS (Pre-Collision System) is temporarily
unavailable, possibly due to either of the following:
• An area around the radar sensor or camera sensor being dirty or covered with condensation, ice, stickers, etc.
 Clear the dirt, condensation, ice, stickers, etc.
( P. 240, 241)
• Radar sensor or camera sensor operational conditions (such as
temperature etc.) being not met
 Driving is possible in this case. The PCS (Pre-Collision System)
will be enabled if the operationa l conditions (such as tempera-
ture etc.) are met again.
When the warning light is illuminated:
Either the VSC (Vehicle Stability Control) system or PCS (Pre-
Collision System) is disabled or both are disabled.
 To enable the PCS, enable both the VSC system and PCS.
( P. 250, 343)
Slip indicator
Indicates a malfunction in:
• The VSC (Vehicle Stability Control) system;
• The TRC (Traction Control) system; or
• The hill-start assist control system
The light will flash when the VSC or the TRC system is operating.
 Have the vehicle inspected by an y authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer immediately.
(Flashes)
(If equipped)
Stop & Start cancel indicator
Indicates a malfunction in the Stop & Start system
(The Stop & Start cancel indicator will come on when the system is
canceled.: P. 292)
 Have the vehicle inspected by an y authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer immediately.
Warning lightWarning light/Details/Actions

5578-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D77E)
*1: Parking brake engaged warning buzzer: P. 564
*2: Open door warning buzzer:
 P. 562

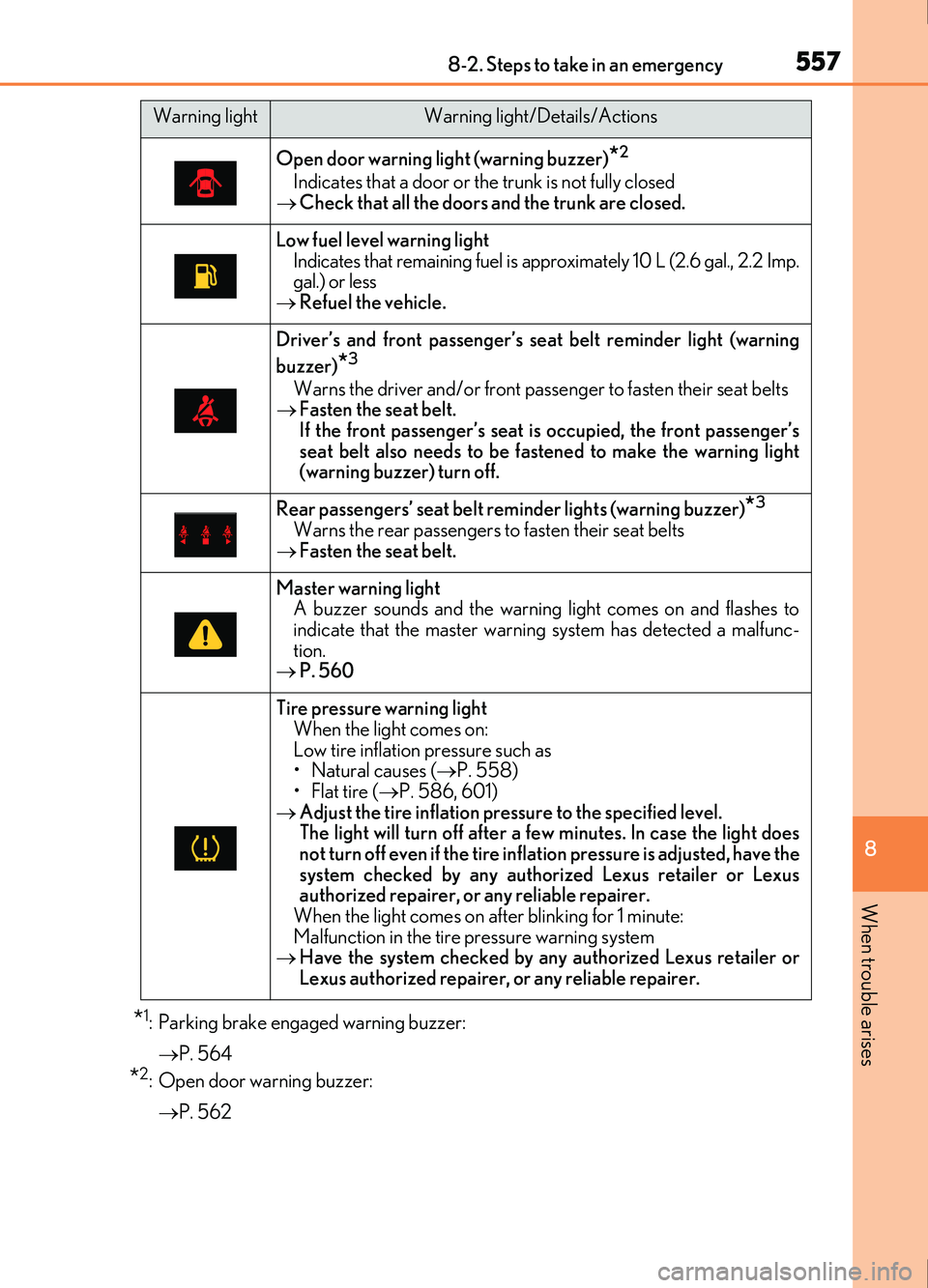

Warning lightWarning light/Details/Actions
Open door warning light (warning buzzer)*2
Indicates that a door or the trunk is not fully closed
 Check that all the doors and the trunk are closed.
Low fuel level warning light
Indicates that remaining fuel is approximately 10 L (2.6 gal., 2.2 Imp.
gal.) or less
 Refuel the vehicle.
Driver’s and front passenger’s seat belt reminder light (warning
buzzer)
*3
Warns the driver and/or front passe nger to fasten their seat belts
 Fasten the seat belt.
If the front passenger’s seat is occupied, the front passenger’s
seat belt also needs to be fastened to make the warning light
(warning buzzer) turn off.
Rear passengers’ seat belt reminder lights (warning buzzer)*3
Warns the rear passengers to fasten their seat belts
 Fasten the seat belt.
Master warning light
A buzzer sounds and the warning light comes on and flashes to
indicate that the master warnin g system has detected a malfunc-
tion.
 P. 560
Tire pressure warning light
When the light comes on:
Low tire inflation pressure such as
• Natural causes ( P. 558)
• Flat tire ( P. 586, 601)
 Adjust the tire inflation pres sure to the specified level.
The light will turn off after a few minutes. In case the light does
not turn off even if the tire inflation pressure is adjusted, have the
system checked by any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.
When the light comes on af ter blinking for 1 minute:
Malfunction in the tire pressure warning system
 Have the system checked by an y authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer.

5588-2. Steps to take in an emergency
IS200t_EE(OM53D77E)
*3: Seat belt warning buzzer:The seat belt warning buzzer sounds to al ert the driver, front passenger and rear pas-
sengers that his or her seat belt is not fastened. The buzzer sounds for 30 seconds
after the vehicle reaches a speed of 20 km/h (12 mph). Then, if the seat belt is still
unfastened, the buzzer will sound in a different tone for 90 more seconds.
■Front passenger detection sensor, seat belt reminder and warning buzzer
●If luggage is placed on the front passenger seat, the front passenger detection sensor
may cause the warning light to flash and the warning buzzer to sound even if a passen-
ger is not sitting in the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger, and the warn-
ing light may not operate properly.
■If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes completely empty.
If the fuel tank is empty, refuel the vehicle immediately. The malfunction indicator lamp
will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer as soon as possible.
■Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficien t or the voltage temporarily drops, the
electric power steering system warning lig ht may come on and the warning buzzer may
sound.
■When the tire pressure warning light comes on
Carry out the following procedure after the tire temperature has lowered sufficiently.
●Check the tire inflation pressure and adjust to the appropriate level.
●If the warning light does not go out even afte r several minutes, check that the tire infla-
tion pressure is at the specified level and carry out initialization.
The warning light may come on again if the above operations are conducted without first
allowing the tire temperature to lower sufficiently.
■The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as natural air
leaks and tire inflation pressure changes caused by temperature. In this case, adjusting
the tire inflation pressure will turn off the warning light (after a few minutes).
■When a tire is replaced with the spare tire (if equipped)
The compact spare tire is not equipped with a tire pressure warning valve and transmit-
ter. If a tire goes flat, the tire pressure warning light will not turn off even though the flat
tire has been replaced with the spare tire.
■Conditions that the tire pressure warning system may not function properly
 P. 513
■If the tire pressure warning light frequently comes on after blinking for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1 minute when the
engine switch is turned to IGNITION ON mode, have it checked by any authorized
Lexus retailer or Lexus authorized repairer, or any reliable repairer.

5598-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D77E)

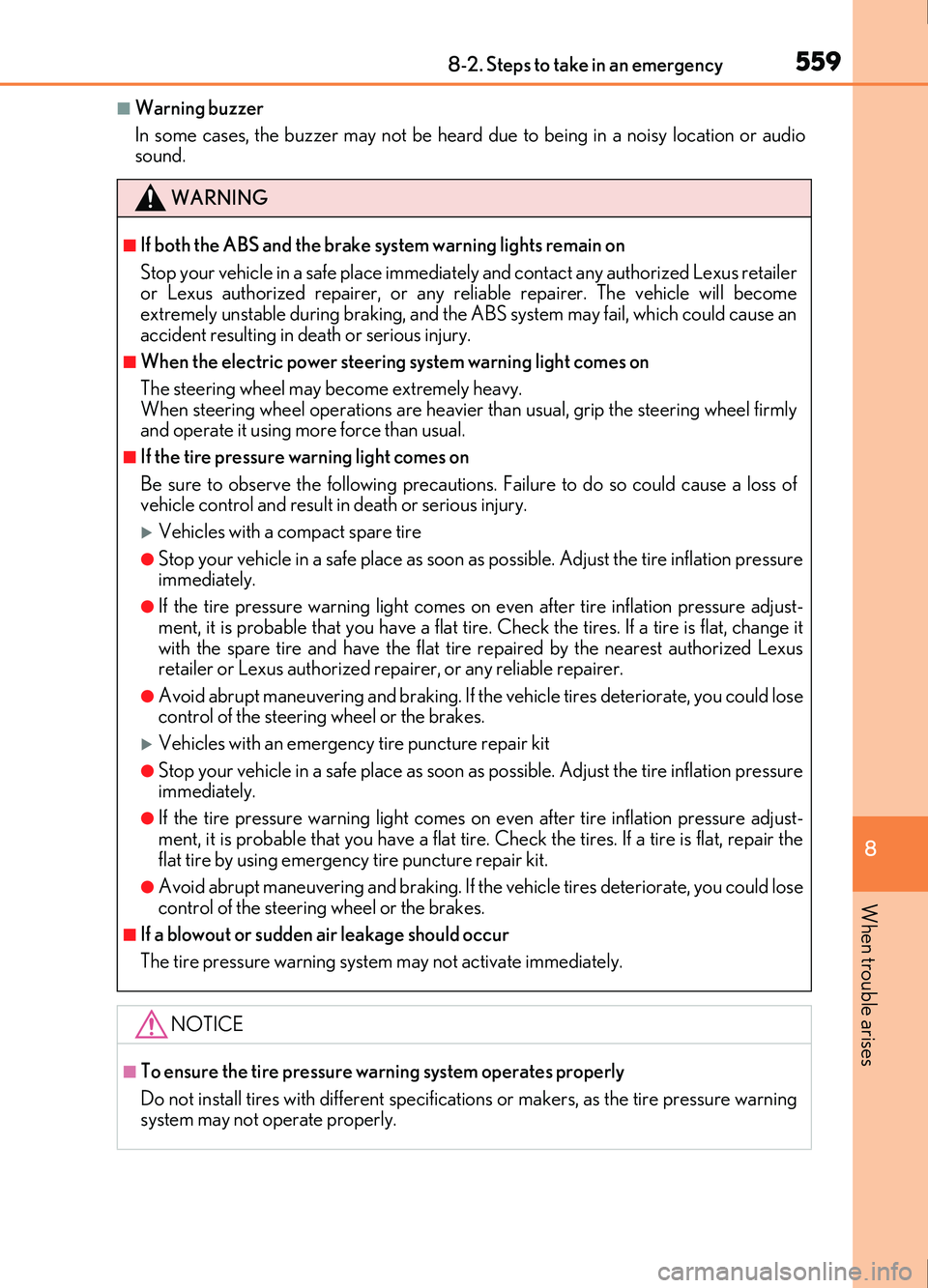

■Warning buzzer
In some cases, the buzzer may not be heard due to being in a noisy location or audio
sound.
WARNING
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized Lexus retailer
or Lexus authorized repairer, or any reliable repairer. The vehicle will become
extremely unstable during braking, and the ABS system may fail, which could cause an
accident resulting in death or serious injury.
■When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
When steering wheel operations are heavier than usual, grip the steering wheel firmly
and operate it using more force than usual.
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause a loss of
vehicle control and result in death or serious injury.
Vehicles with a compact spare tire
●Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pressure
immediately.
●If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you have a flat tire. Check the tires. If a tire is flat, change it
with the spare tire and have the flat tire repaired by the nearest authorized Lexus
retailer or Lexus authorized repa irer, or any reliable repairer.
●Avoid abrupt maneuvering and braking. If th e vehicle tires deteriorate, you could lose
control of the steering wheel or the brakes.
Vehicles with an emergency tire puncture repair kit
●Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pressure
immediately.
●If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you have a flat tire. Check the tires. If a tire is flat, repair the
flat tire by using emergency tire puncture repair kit.
●Avoid abrupt maneuvering and braking. If th e vehicle tires deteriorate, you could lose
control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.
NOTICE
■To ensure the tire pressure warning system operates properly
Do not install tires with different specifications or makers, as the tire pressure warning
system may not operate properly.

5608-2. Steps to take in an emergency
IS200t_EE(OM53D77E)
Master warning light
The master warning light also comes on or flashes in order to indicate that a message
is currently being displayed on the multi-information display.
Multi-information display
If any of the warning lights come on again after the following actions have been
performed, contact any authorized Lexus retailer or Lexus authorized repairer,
or any reliable repairer.

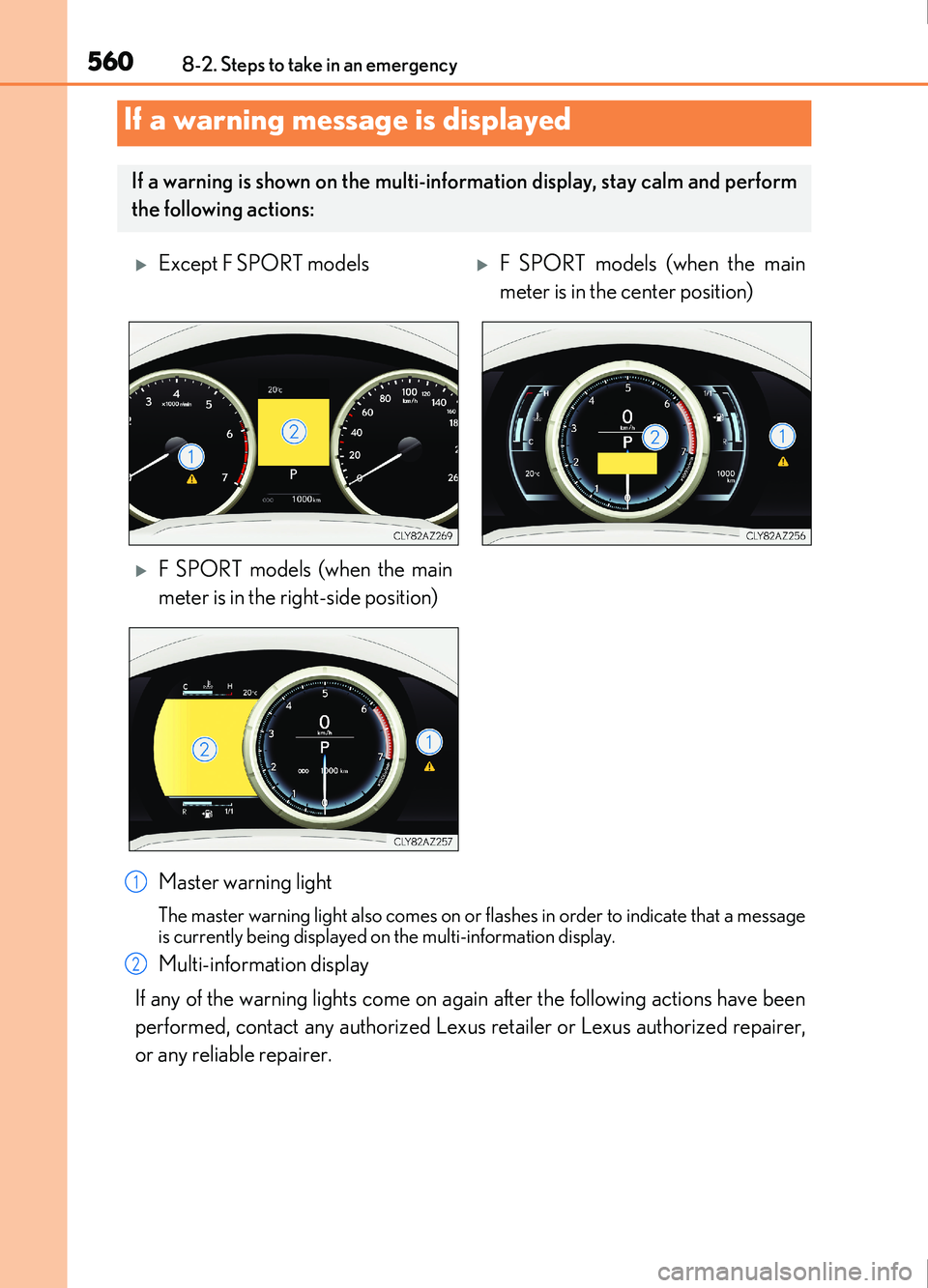

If a warning message is displayed
If a warning is shown on the multi-information display, stay calm and perform
the following actions:
Except F SPORT modelsF SPORT models (when the main
meter is in the center position)
F SPORT models (when the main
meter is in the right-side position)
1
2
