9-1. Specifications
Vehicle specifications
IS200t_EE(OM53D77E)

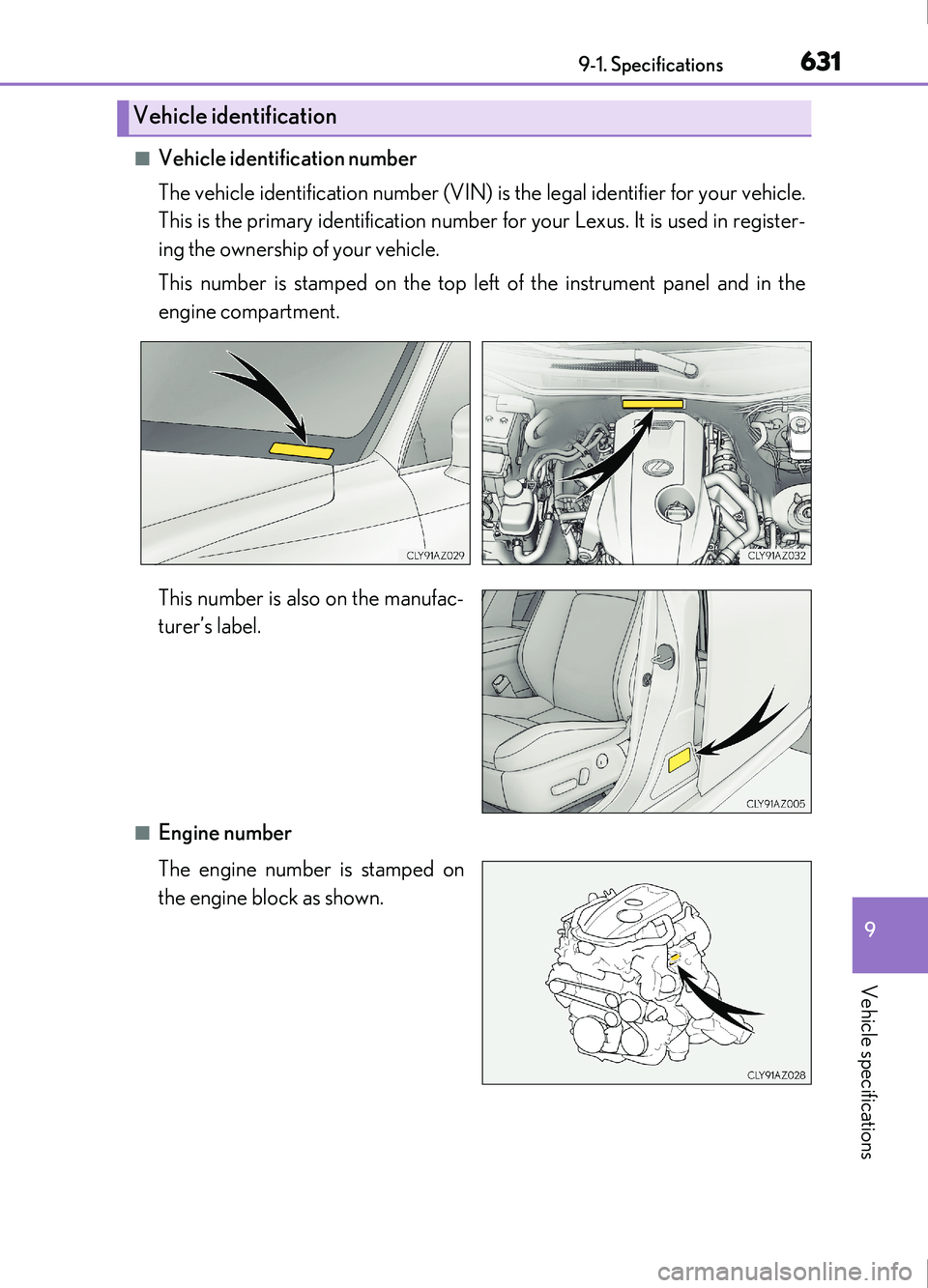

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number for your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and in the
engine compartment.
This number is also on the manufac-
turer’s label.
■Engine number
The engine number is stamped on
the engine block as shown.
Vehicle identification

6329-1. Specifications
IS200t_EE(OM53D77E)

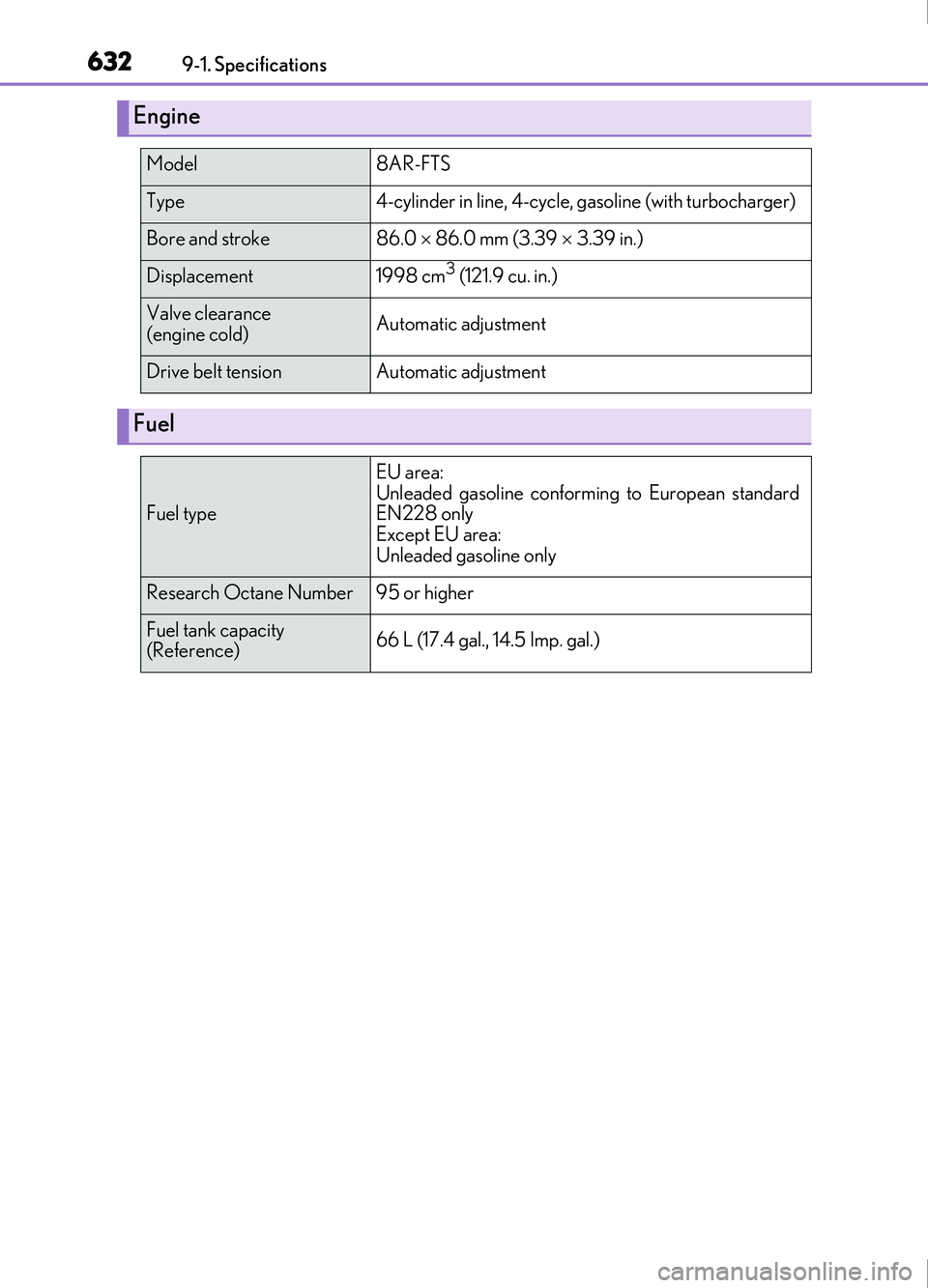

Engine
Model 8AR-FTS
Type4-cylinder in line, 4-cycle, gasoline (with turbocharger)
Bore and stroke 86.0  86.0 mm (3.39  3.39 in.)
Displacement 1998 cm3 (121.9 cu. in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel
Fuel type
EU area:
Unleaded gasoline conforming to European standard
EN228 only
Except EU area:
Unleaded gasoline only
Research Octane Number95 or higher
Fuel tank capacity
(Reference)66 L (17.4 gal., 14.5 Imp. gal.)

633
9
9-1. Specifications
Vehicle specifications
IS200t_EE(OM53D77E)
■Oil capacity (Drain an
d refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil SAE 0W -20 for Downsized Turbo Gasoline
Engines” is used in your Lexus vehicl e. Use Lexus approved “Toyota Genuine
Motor Oil SAE 0W-20 for Downsized Turbo Gasoline Engines” or equiva-
lent to satisfy the following grade and viscosity.
Oil grade:
“Toyota Genuine Motor Oil SAE 0W -20 for Downsized Turbo Gasoline
Engines” or API grade SL “Energy-Co nserving”, SM “Energy-Conserving” or
SN “Resource-Conserving”; or ILSAC multigrade engine oil
Viscosity grade:
SAE 0W-20 and 5W-30
Recommended viscosity (SAE):
“Toyota Genuine Motor Oil SAE
0W-20 for Downsized Turbo Gaso-
line Engines” is filled into your Lexus
vehicle at manufacturing, and SAE
0W-20 is the best choice for good
fuel economy and good starting in
cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used. How-
ever, it should be replaced with SAE
0W-20 at the next oil change.
Lubrication system
With filter4.6 L (4.9 qt., 4.0 Imp. qt.)
Without filter4.3 L (4.5 qt., 3.8 Imp. qt.)
Temperature range anticipated
before next oil change Preferred

6349-1. Specifications
IS200t_EE(OM53D77E)

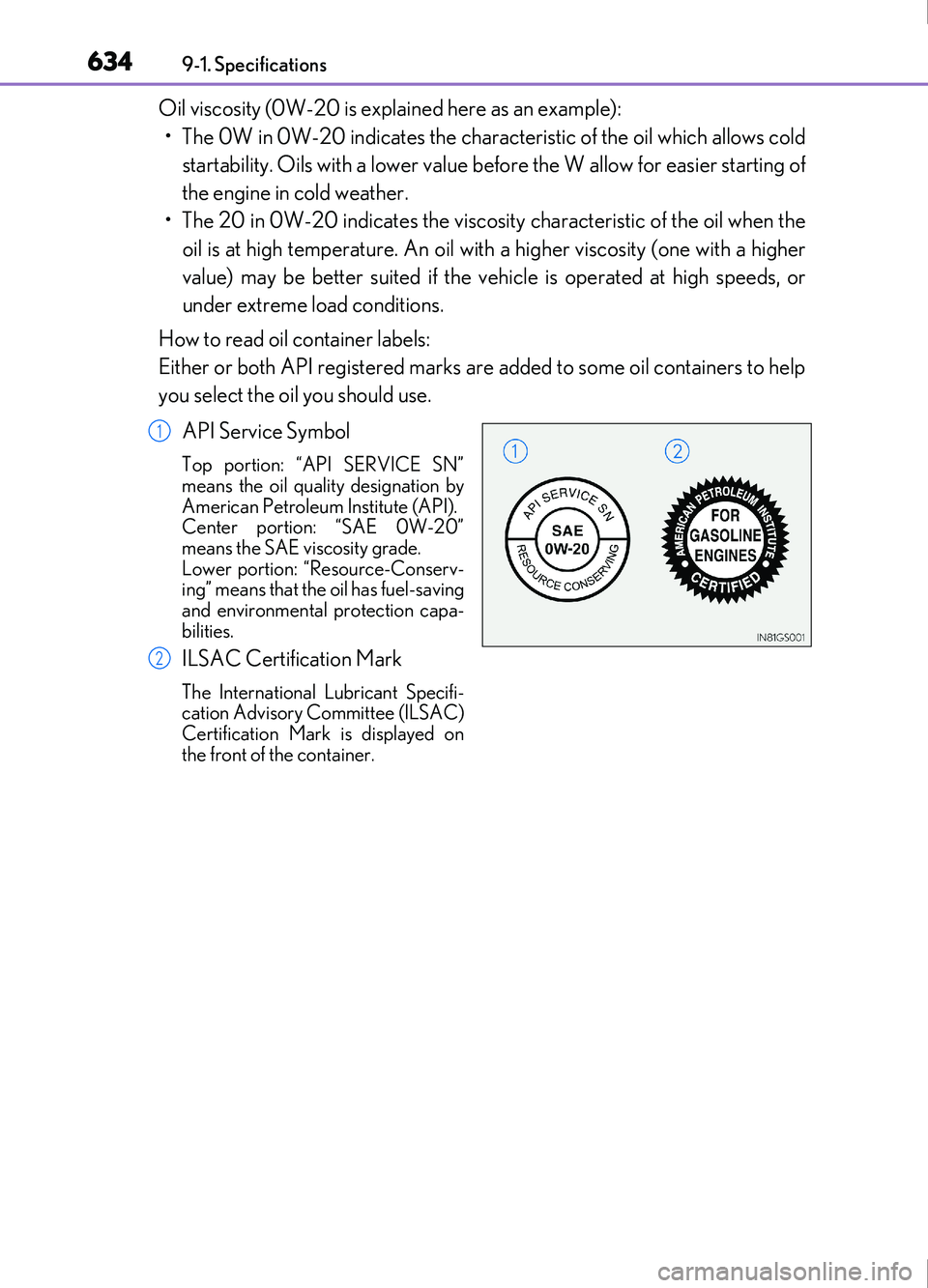

Oil viscosity (0W-20 is explained here as an example): • The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers to help
you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designation by
American Petroleum Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Conserv-
ing” means that the oil has fuel-saving
and environmental protection capa-
bilities.
ILSAC Certification Mark
The International Lubricant Specifi-
cation Advisory Committee (ILSAC)
Certification Mark is displayed on
the front of the container.
1
2

635
9
9-1. Specifications
Vehicle specifications
IS200t_EE(OM53D77E)
*1: Vehicles without a Stop & Start system
*2: Vehicles with a Stop & Start system
Cooling system
Capacity
Engine
7.8 L (8.2 qt., 6.9 Imp. qt.)
*1
7.9 L (8.3 qt., 7.0 Imp. qt.)*2
Intercooler
3.0 L (3.2 qt., 2.6 Imp. qt.)
Coolant type
Use either of the following: • “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non- amine, non-nitrite, and non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Ignition system (Spark plug)
Make NGK DILFR7K9G
Gap0.9 mm (0.035 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

6369-1. Specifications
IS200t_EE(OM53D77E)
*: The fluid capacity is a reference quantity. If replacement is necessary, contact any authorized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer.

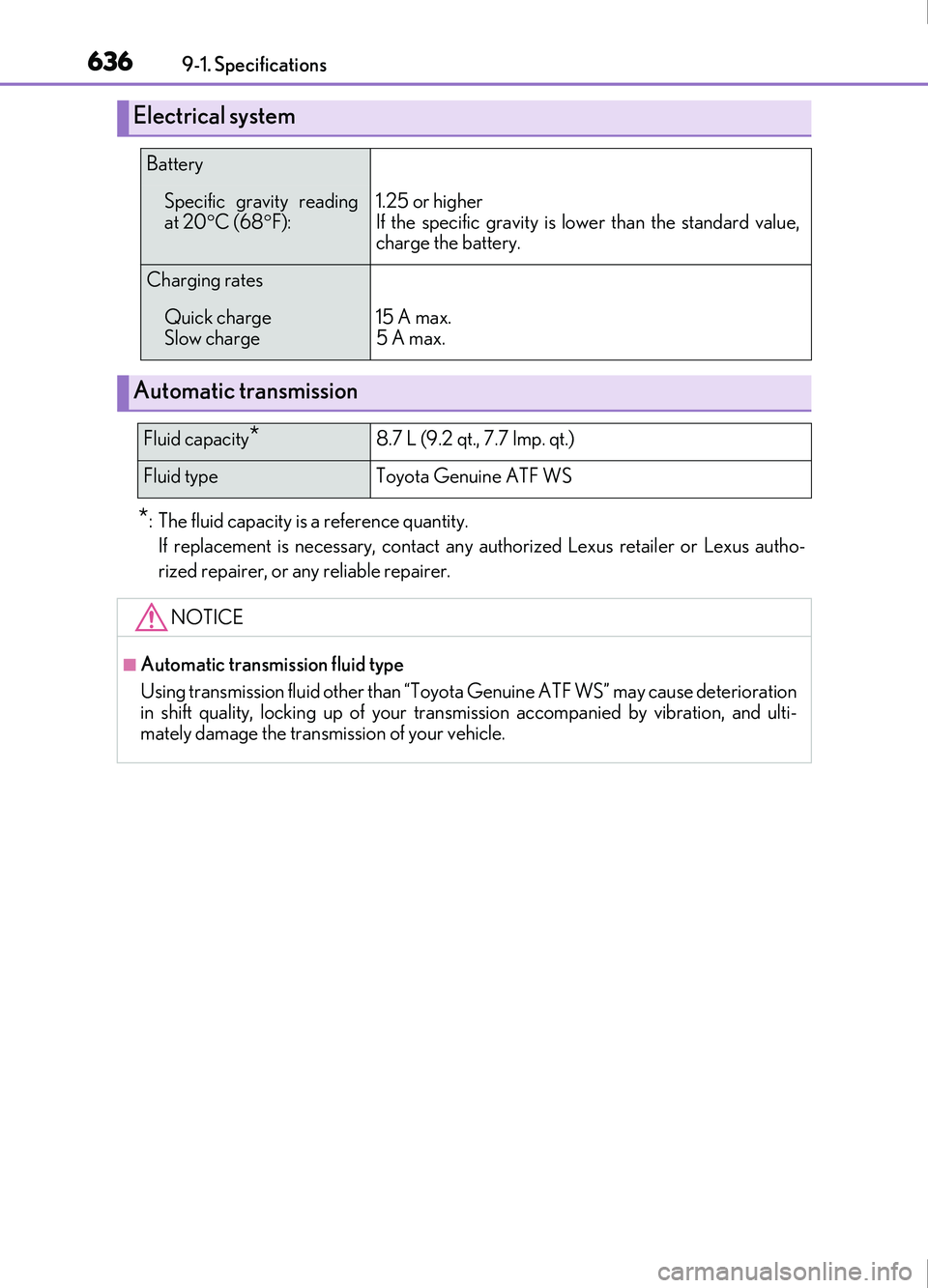

Electrical system
Battery
Specific gravity reading
at 20 C (68 F):1.25 or higher
If the specific gravity is lower than the standard value,
charge the battery.
Charging rates
Quick charge
Slow charge15 A max.
5 A max.
Automatic transmission
Fluid capacity*8.7 L (9.2 qt., 7.7 Imp. qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Automatic transmission fluid type
Using transmission fluid other than “Toyot a Genuine ATF WS” may cause deterioration
in shift quality, locking up of your transm ission accompanied by vibration, and ulti-
mately damage the transmission of your vehicle.

637
9
9-1. Specifications
Vehicle specifications
IS200t_EE(OM53D77E) Your Lexus vehicle is filled with “Toyota Ge
nuine Differential Gear Oil” at the factory.
Use Lexus approved “Toyota Genuine Differentia l Gear Oil” or an equivalent of match-
ing quality to satisfy the above specification. Please contact any authorized Lexus retailer
or Lexus authorized repairer, or any reliable repairer for further details.
*1: Minimum pedal clearance when depressed with a force of 500 N (51.0 kgf, 112.4 lbf)
while the engine is running.
*2: Parking brake pedal travel when depressed with a force of 300 N (30.6 kgf, 67.4 lbf)
Differential
Oil capacity1.35 L (1.42 qt., 1.19 Imp. qt.)
Oil type and viscosityToyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
Brakes
Pedal clearance*1107 mm (4.2 in.) Min.
Pedal free play1.0 — 6.0 mm (0.04 — 0.24 in.)
Parking brake pedal travel*27 - 10 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3 or,
SAE J1704 or FMVSS No. 116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)

6389-1. Specifications
IS200t_EE(OM53D77E)
17-inch tires
18-inch tires
Compact spare tire
■When towing a trailer (vehicles with a towing package)
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommend ed tire inflation pressure, and
drive at speeds below 100 km/h (62 mph).
Tires and wheels
Tire size225/45R17 91W
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)Vehicle speedFront wheel
kPa (kgf/cm2 or
bar, psi)Rear wheel
kPa (kgf/cm2 or
bar, psi)
More than 190 km/h
(118 mph)290 (2.9, 42)290 (2.9, 42)
190 km/h (118 mph)
or less250 (2.5, 36)250 (2.5, 36)
Wheel size17  7 1/2J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size225/40R18 88Y, 255/35R18 90Y
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)Vehicle speedFront wheel
kPa (kgf/cm2 or
bar, psi)Rear wheel
kPa (kgf/cm2 or
bar, psi)
More than 220 km/h
(137 mph)260 (2.6, 38)260 (2.6, 38)
220 km/h (137 mph)
or less250 (2.5, 36)250 (2.5, 36)
Wheel size18  8J (225/40R18), 18  8 1/2J (255/35R18)
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire sizeT125/70D17 98M
Tire inflation pressure
(Recommended cold tire
inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size17  4T
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

639
9
9-1. Specifications
Vehicle specifications
IS200t_EE(OM53D77E)

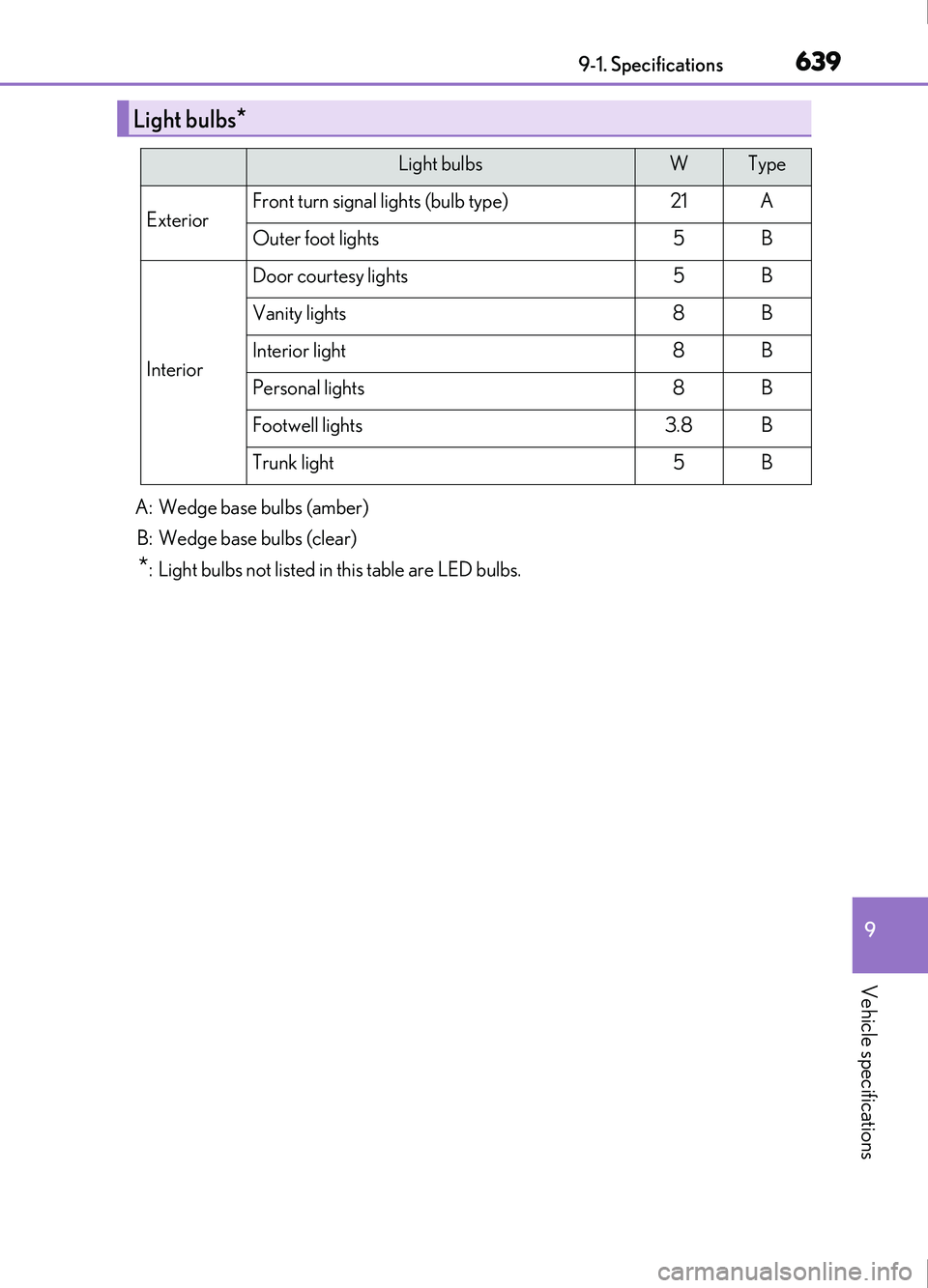

Light bulbs*
Light bulbsWType
ExteriorFront turn signal lights (bulb type)21A
Outer foot lights5B
Interior
Door courtesy lights5B
Vanity lights8B
Interior light8B
Personal lights8B
Footwell lights3.8B
Trunk light5B
A: Wedge base bulbs (amber)
B: Wedge base bulbs (clear)
*: Light bulbs not listed in this table are LED bulbs.

6409-1. Specifications
IS200t_EE(OM53D77E)
■Use of ethanol blended gasoline in a gasoline engine
Lexus allows the use of ethanol blended gasoline where the ethanol content is up to 10%.
Make sure that the ethanol blended gasoline to be used has a Research Octane Number
that follows the above.
■If your engine knocks
●Consult any authorized Lexus retailer or Le xus authorized repairer, or any reliable
repairer.
●You may occasionally notice light knocking for a short time while accelerating or driv-
ing uphill. This is normal and there is no need for concern.

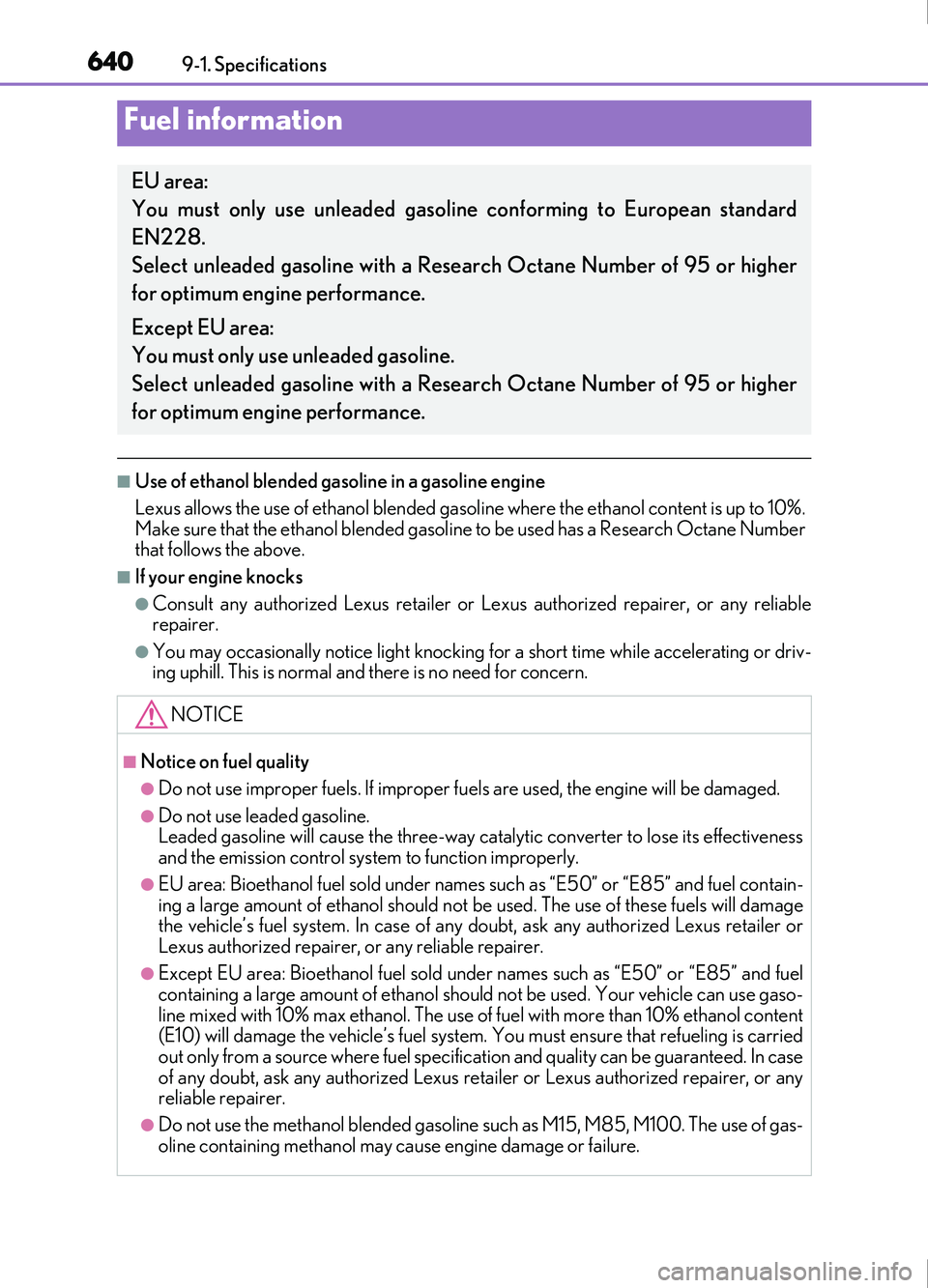

Fuel information
EU area:
You must only use unleaded gasoline conforming to European standard
EN228.
Select unleaded gasoline with a Rese arch Octane Number of 95 or higher
for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Rese arch Octane Number of 95 or higher
for optimum engine performance.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine will be damaged.
●Do not use leaded gasoline.
Leaded gasoline will cause the three-way cata lytic converter to lose its effectiveness
and the emission control system to function improperly.
●EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuel contain-
ing a large amount of ethanol should not be used. The use of these fuels will damage
the vehicle’s fuel system. In case of any doubt, ask any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer.
●Except EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuel
containing a large amount of ethanol should not be used. Your vehicle can use gaso-
line mixed with 10% max ethanol. The use of fuel with more than 10% ethanol content
(E10) will damage the vehicle’s fuel system. You must ensure that refueling is carried
out only from a source where fuel specification and quality can be guaranteed. In case
of any doubt, ask any authorized Lexus retailer or Lexus authorized repairer, or any
reliable repairer.
●Do not use the methanol blended gasoline such as M15, M85, M100. The use of gas-
oline containing methanol may cause engine damage or failure.
