6218-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D77E)

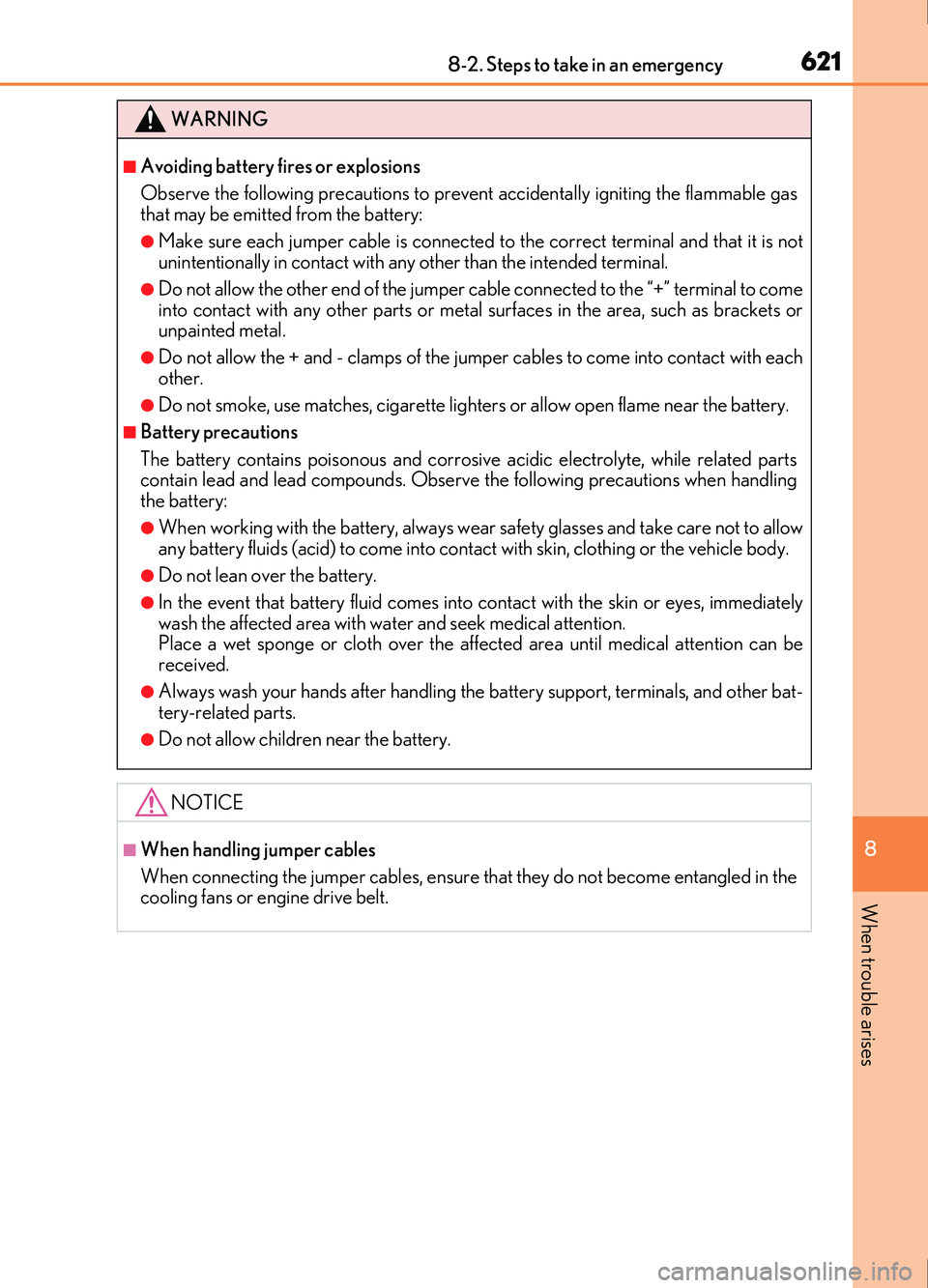

WARNING
■Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flammable gas
that may be emitted from the battery:
●Make sure each jumper cable is connected to the correct terminal and that it is not
unintentionally in contact with any other than the intended terminal.
●Do not allow the other end of the jumper cable connected to the “+” terminal to come
into contact with any other parts or metal surfaces in the area, such as brackets or
unpainted metal.
●Do not allow the + and - clamps of the jumper cables to come into contact with each
other.
●Do not smoke, use matches, cigarette lighters or allow open flame near the battery.
■Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while related parts
contain lead and lead compounds. Observe the following precautions when handling
the battery:
●When working with the battery, always wear safety glasses and take care not to allow
any battery fluids (acid) to come into contact with skin, clothing or the vehicle body.
●Do not lean over the battery.
●In the event that battery fluid comes into contact with the skin or eyes, immediately
wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention can be
received.
●Always wash your hands after handling the battery support, terminals, and other bat-
tery-related parts.
●Do not allow children near the battery.
NOTICE
■When handling jumper cables
When connecting the jumper cables, ensure that they do not become entangled in the
cooling fans or engine drive belt.

6228-2. Steps to take in an emergency
IS200t_EE(OM53D77E)
●The needle of the engine coolant temperature gauge (P. 93) enters the red
zone or a loss of engine power is experienced. (For example, the vehicle
speed does not increase.)
●“Engine Coolant Temp High Stop in a Safe Place See Owner’s Manual” is
shown on the multi-information display.
●Steam comes out from under the hood.
Stop the vehicle in a safe place and turn off the air conditioning system, and
then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the engine has cooled down
sufficiently, inspect the hoses and
radiator core (radiator) for any
leaks.
Radiator
Cooling fans
If a large amount of coolant leaks,
immediately contact any authorized
Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

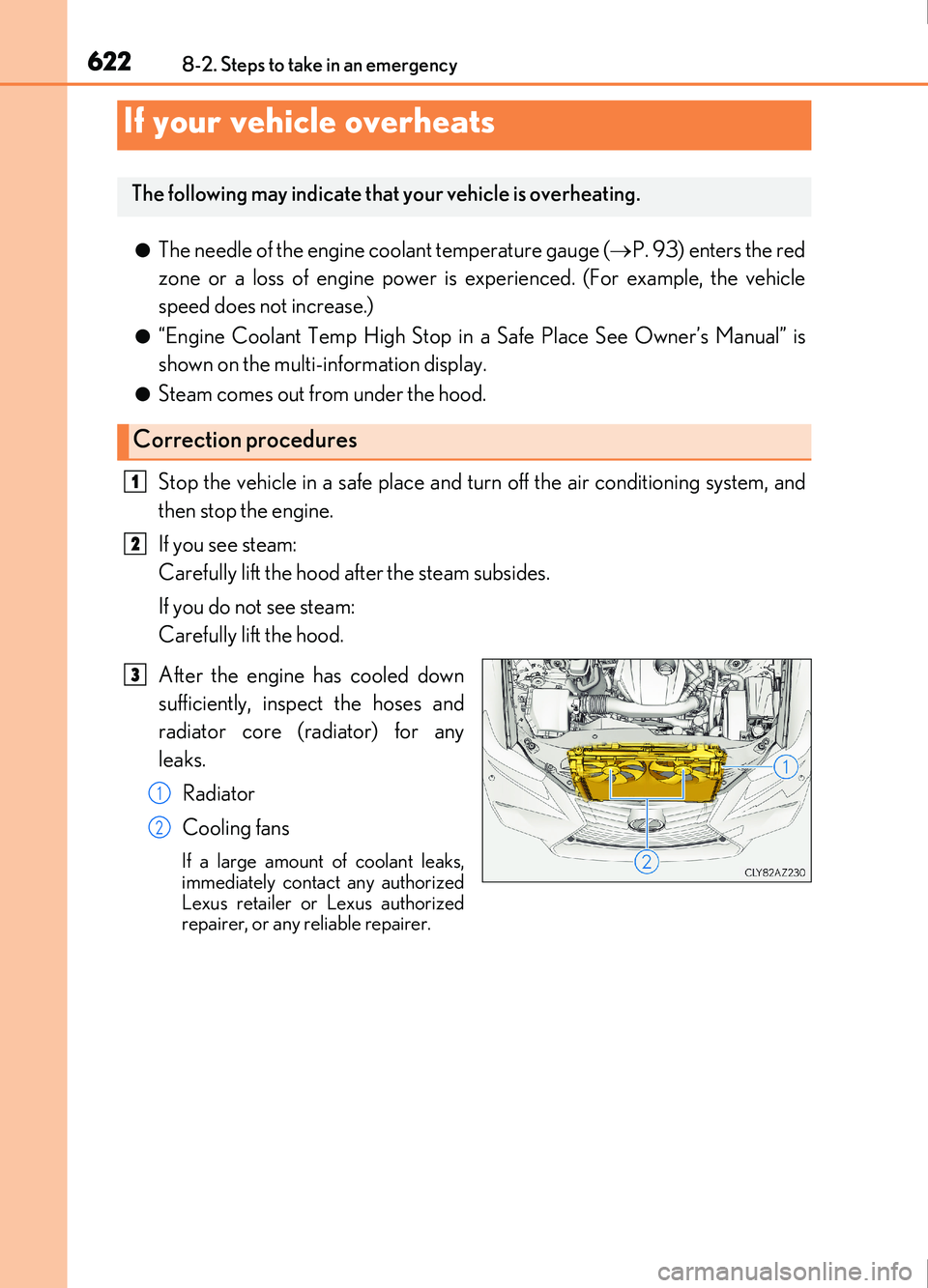

If your vehicle overheats
The following may indicate that your vehicle is overheating.
Correction procedures
1
2
3
1
2

6238-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D77E)

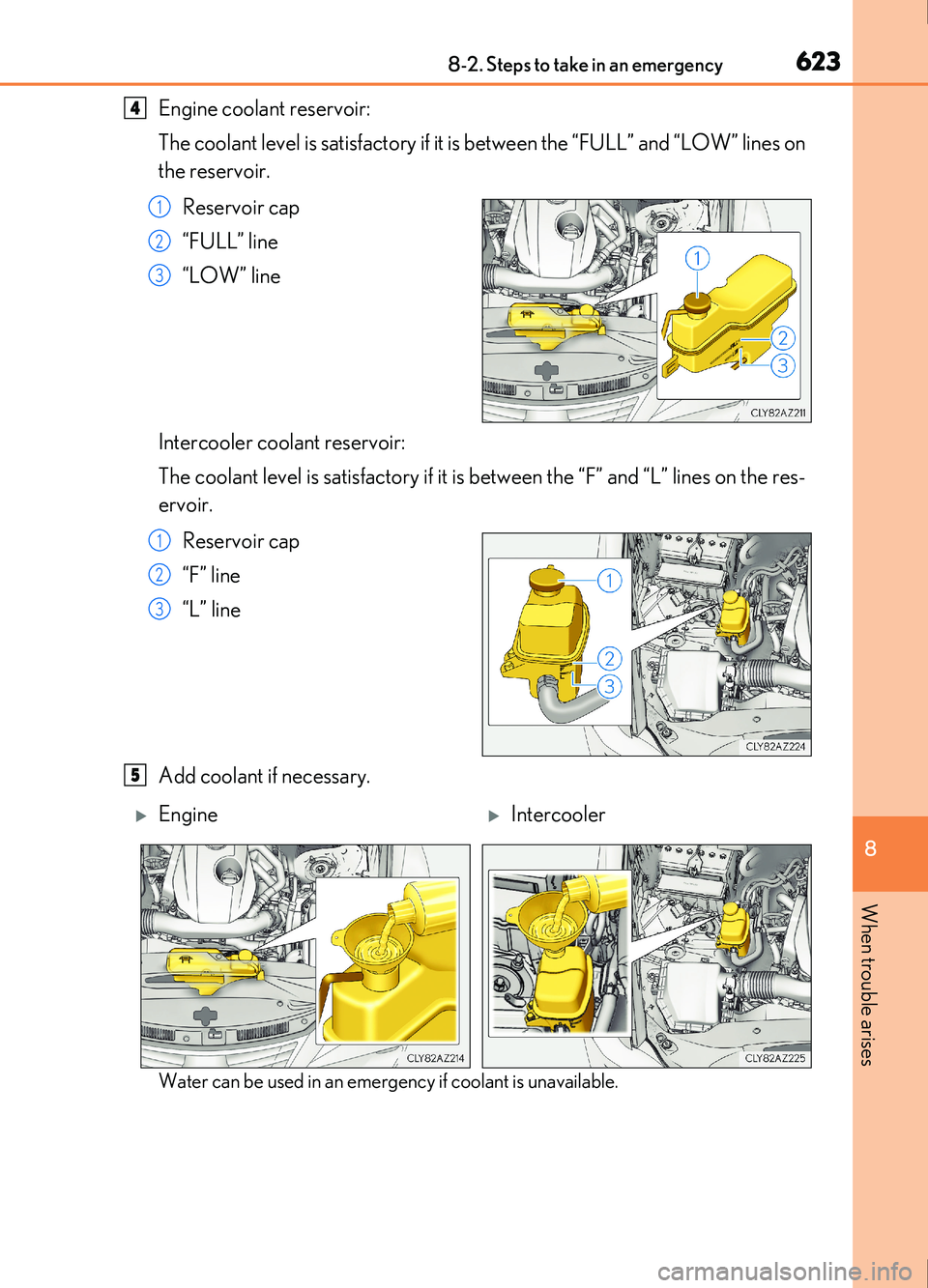

Engine coolant reservoir:
The coolant level is satisfactory if it is between the “FULL” and “LOW” lines on
the reservoir.Reservoir cap
“FULL” line
“LOW” line
Intercooler coolant reservoir:
The coolant level is satisfactory if it is between the “F” and “L” lines on the res-
ervoir. Reservoir cap
“F” line
“L” line
Add coolant if necessary.
Water can be used in an emergency if coolant is unavailable.
4
1
2
3
1
2
3
5
EngineIntercooler

6248-2. Steps to take in an emergency
IS200t_EE(OM53D77E)
Start the engine and turn the air conditioning system on to check that the radi-
ator cooling fans operate and to check for coolant leaks from the radiator or
hoses.
The fans operate when the air conditioning system is turned on immediately after a
cold start. Confirm that the fans are operating by checking the fan sound and air flow.
If it is difficult to check these, turn the air conditioning system on and off repeatedly.
(The fans may not operate in freezing temperatures.)
If the fans are not operating:
Stop the engine immediately and contact any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer.
If the fans are operating:
Have the vehicle inspected at the nearest authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.
Check if “Engine Coolant Temp High Stop in a Safe Place See Owner’s Man-
ual” is shown on the multi-information display.
If the message does not disappear:
Stop the engine and contact any author ized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer.
If the message is not displayed:
Have the vehicle inspected at the nearest authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.
6
7
8

6258-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D77E)

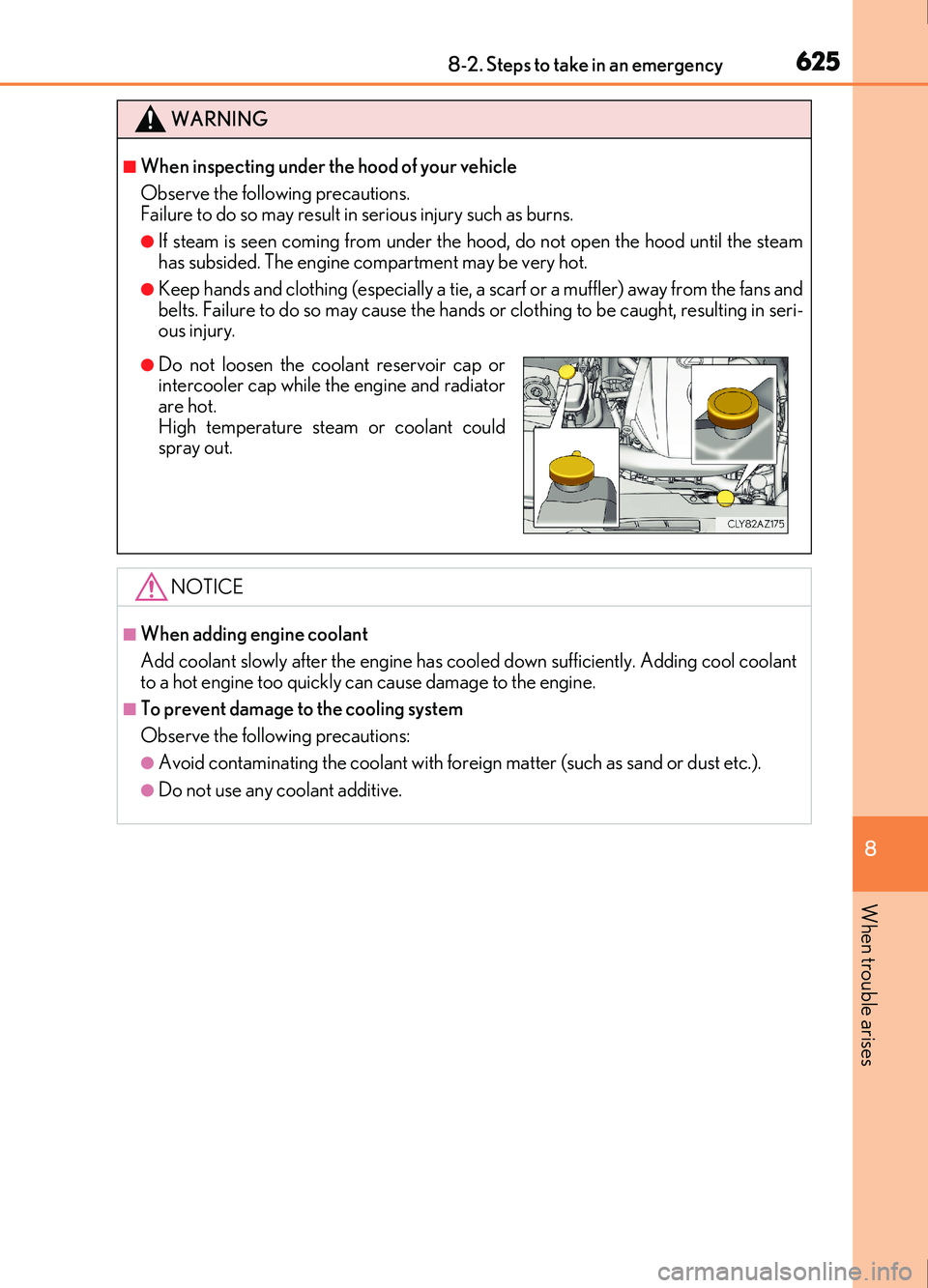

WARNING
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until the steam
has subsided. The engine compartment may be very hot.
●Keep hands and clothing (especially a tie, a scarf or a muffler) away from the fans and
belts. Failure to do so may cause the hands or clothing to be caught, resulting in seri-
ous injury.
NOTICE
■When adding engine coolant
Add coolant slowly after the engine has cool ed down sufficiently. Adding cool coolant
to a hot engine too quickly can cause damage to the engine.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additive.
●Do not loosen the coolant reservoir cap or
intercooler cap while the engine and radiator
are hot.
High temperature steam or coolant could
spray out.

6268-2. Steps to take in an emergency
IS200t_EE(OM53D77E)
Stop the engine. Set the parking brake and shift the shift lever to P.
Remove the mud, snow or sand from around the rear wheels.
Place wood, stones or some other material under the rear wheels to help pro-
vide traction.
Restart the engine.
Shift the shift lever to D or R and rele ase the parking brake. Then, while exer-
cising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Vehicles without Stop & Start system
If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:
Press to turn off TRC.
1
2
3
4
5

6278-2. Steps to take in an emergency
8
When trouble arises
IS200t_EE(OM53D77E)
Vehicles with Stop & Start system
Press to turn off TRC.
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding
area is clear to avoid striking other vehi cles, objects or people. The vehicle may also
lunge forward or lunge back suddenly as it becomes free. Use extreme caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an acci-
dent resulting in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the rear wheels and depressing the accelerator pedal more than nec-
essary.
●If the vehicle remains stuck even after these procedures are performed, the vehicle
may require towing to be freed.

6288-2. Steps to take in an emergency
IS200t_EE(OM53D77E)

629
9Vehicle specifications
IS200t_EE(OM53D77E)
9-1. SpecificationsMaintenance data (fuel, oil level, etc.) ..................630
Fuel information.......................... 640
9-2. Customization Customizable features ..............641
9-3. Initialization Items to initialize .........................650

630
IS200t_EE(OM53D77E)9-1. Specifications
*1: Unladen vehicle
*2: Vehicles with 255/35R18 tires
*3: Vehicles with a towing package
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length
4680 mm (184.3 in.)
Overall width1810 mm (71.3 in.)
Overall height*11430 mm (56.3 in.)
Wheelbase 2800 mm (110.2 in.)
Tread*1Front1535 mm (60.4 in.)
Rear1550 mm (61.0 in.)
1540 mm (60.6 in.)*2
Gross vehicle mass*32125 kg (4685 lb.)
Maximum permissi-
ble axle capacity
*3
Front
1090 kg (2403 lb.)
Rear1200 kg (2646 lb.)
Drawbar load*375 kg (165 lb.)
Towing capacity*3With brake 1500 kg (3307 lb.)
Without brake 750 kg (1653 lb.)
