fuse Lexus IS250 2006 Instrument cluster / LEXUS 2006 IS350/250 THROUGH APRIL 2006 PROD. OWNER'S MANUAL (OM53508U)

TABLE OF CONTENTSIndex
• Bottle holders/door pockets ......................................... 209
3-5. Other interior features............. 211 Sun visors............................................ 211
Vanity mirror ................................... 212
Clock .................................................. 213
Satellite switch es ........................... 214
Ashtrays ............................................ 217
Cigarette lighter ............................ 218
Power outlet .................................... 219
Seat heaters .................................... 220
Seat heaters and ve ntilators .... 222
Armrest ............................................ 224
Rear sunshade ............................... 225
Extended trunk.............................. 227
Coat hooks ..................................... 228
Floor mat.......................................... 229
Trunk features............................... 230
Garage door opener .................. 233
Compass......................................... 238
4-1. Maintenance and care............ 244 Cleaning and protecting the vehicle exterior................... 244
Cleaning and protecting the vehicle interior .................... 246 4-2. Maintenance.............................. 249
Maintenance requirements ..... 249
General maintena nce ................. 251
Emission inspection and maintenance (I/M)
programs ...................................... 254
4-3. Do-it-yourself maintenance............................ 255
Do-it-yourself service precautions .................................. 255
Hood................................................. 258
Positioning the jack ..................... 259
Engine compartment................... 261
Tires ................................................... 275
Tire inflation pressure................ 285
Wheels............................................. 289
Air conditioning filter................... 291
Electronic key battery ................ 293
Checking and replacing fuses ................................................ 295
Headlight aim................................ 309
Light bulbs ........................................ 310
5-1. Essential information ................ 318 If your vehicle needs to be towed ........................................ 318
If you think something is wrong ............................................. 325
4Maintenance and care
5When trouble arises

219
3-5. Other interior features
3
Interior features

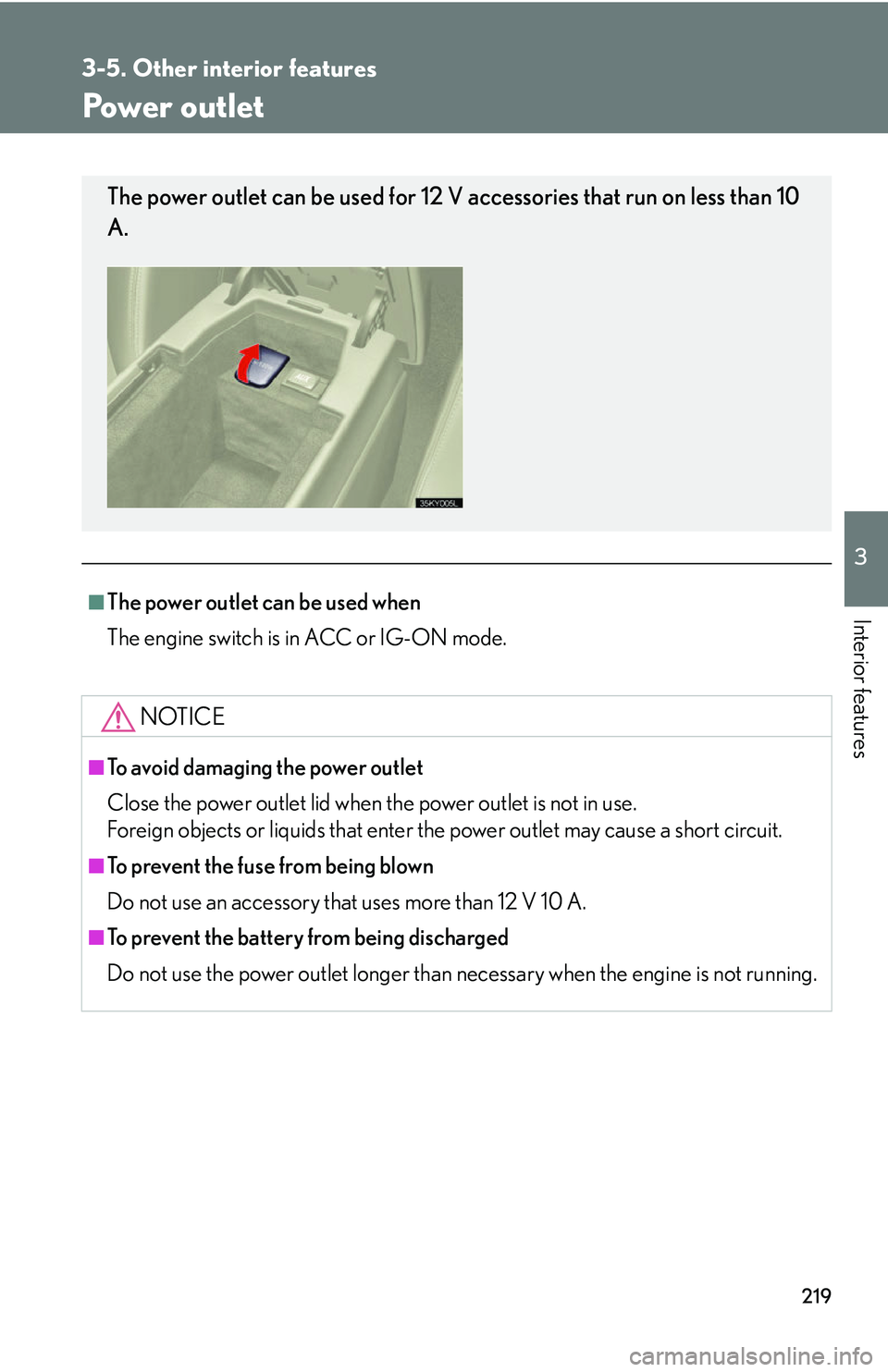

Power outlet
■The power outlet can be used when
The engine switch is in ACC or IG-ON mode.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short circuit.
■To prevent the fuse from being blown
Do not use an accessory that uses more than 12 V 10 A.
■To prevent the battery from being discharged
Do not use the power outlet longer than necessary when the engine is not running.
The power outlet can be used for 12 V accessories that run on less than 10
A.

Maintenance and care4
243
4-1. Maintenance and care ......... 244Cleaning and protecting the vehicle exterior ................ 244
Cleaning and protecting the vehicle interior ................. 246
4-2. Maintenance ........................... 249 Maintenance requirements ............................ 249
General maintena nce .............. 251
Emission inspection and maintenance (I/M)
programs ................................... 254
4-3. Do-it-yourself maintenance ......................... 255
Do-it-yourself service precautions ............................... 255
Hood.............................................. 258
Positioning the jack................... 259
Engine compartment................. 261
Tires ................................................. 275
Tire inflation pressure.............. 285
Wheels........................................... 289 Air conditioning filter ............... 291
Electronic key battery ............. 293
Checking and replacing
fuses ............................................. 295
Headlight aim ............................. 309
Light bulbs..................................... 310

256
4-3. Do-it-yourself maintenance

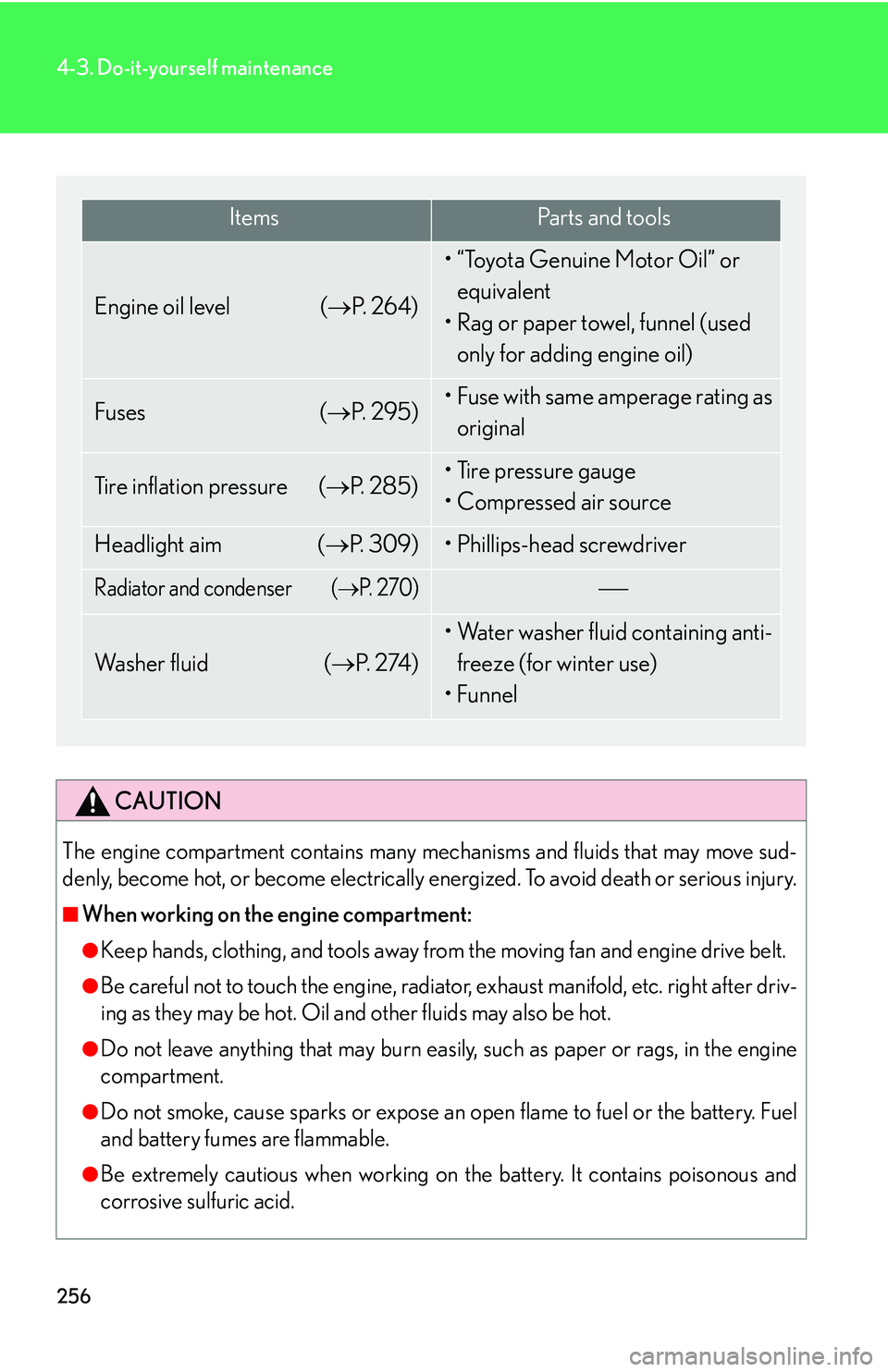

CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious injury.
■When working on the engine compartment:
●Keep hands, clothing, and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, radiator , exhaust manifold, etc. right after driv-
ing as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easi ly, such as paper or rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel
and battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and
corrosive sulfuric acid.
ItemsPa r t s a n d t o o l s
Engine oil level ( P. 2 6 4 )
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel, funnel (used only for adding engine oil)
Fuses ( P. 2 9 5 )• Fuse with same amperage rating as
original
Tire inflation pressure ( P. 2 8 5 )• Tire pressure gauge
• Compressed air source
Headlight aim ( P. 3 0 9 )• Phillips-head screwdriver
Radiator and condenser (P. 2 7 0 )
Wa s h e r f l u i d ( P. 2 74 )
• Water washer fluid containing anti-
freeze (for winter use)
•Funnel

261
4-3. Do-it-yourself maintenance
4
Maintenance and care
Engine compartment
Battery (P. 271)
Engine oil level dipstick (P. 2 6 4 )
Engine oil filler cap (P. 2 6 4 )
Brake fluid reservoir (P. 270)
Fuse boxes ( P. 295)Washer fluid tank
(P. 2 74 )
Electric cooling fans
Condenser ( P. 2 7 0 )
Radiator ( P. 2 7 0 )
Engine coolant reservoir (P. 2 6 8 )
IS350

262
4-3. Do-it-yourself maintenance
Battery (P. 271)
Engine oil level dipstick (P. 2 6 4 )
Engine oil filler cap (P. 2 6 4 )
Brake fluid reservoir
( P. 2 7 0)
Fuse boxes ( P. 295)
Washer fluid tank
(P. 2 74 )
Electric cooling fans
Condenser ( P. 2 7 0 )
Radiator ( P. 2 7 0 )
Engine coolant reservoir (P. 2 6 8 )
IS250

295
4-3. Do-it-yourself maintenance
4
Maintenance and care
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the engine switch OFF.
Remove the engine compartment cover.
P. 2 6 3
Open the fuse box cover.
Engine compartment
(type A)
Push the tabs in and lift the lid
off.
Engine compartment
(type B)
Push the tabs in and lift the lid
off.STEP1
STEP2
STEP3

296
4-3. Do-it-yourself maintenance

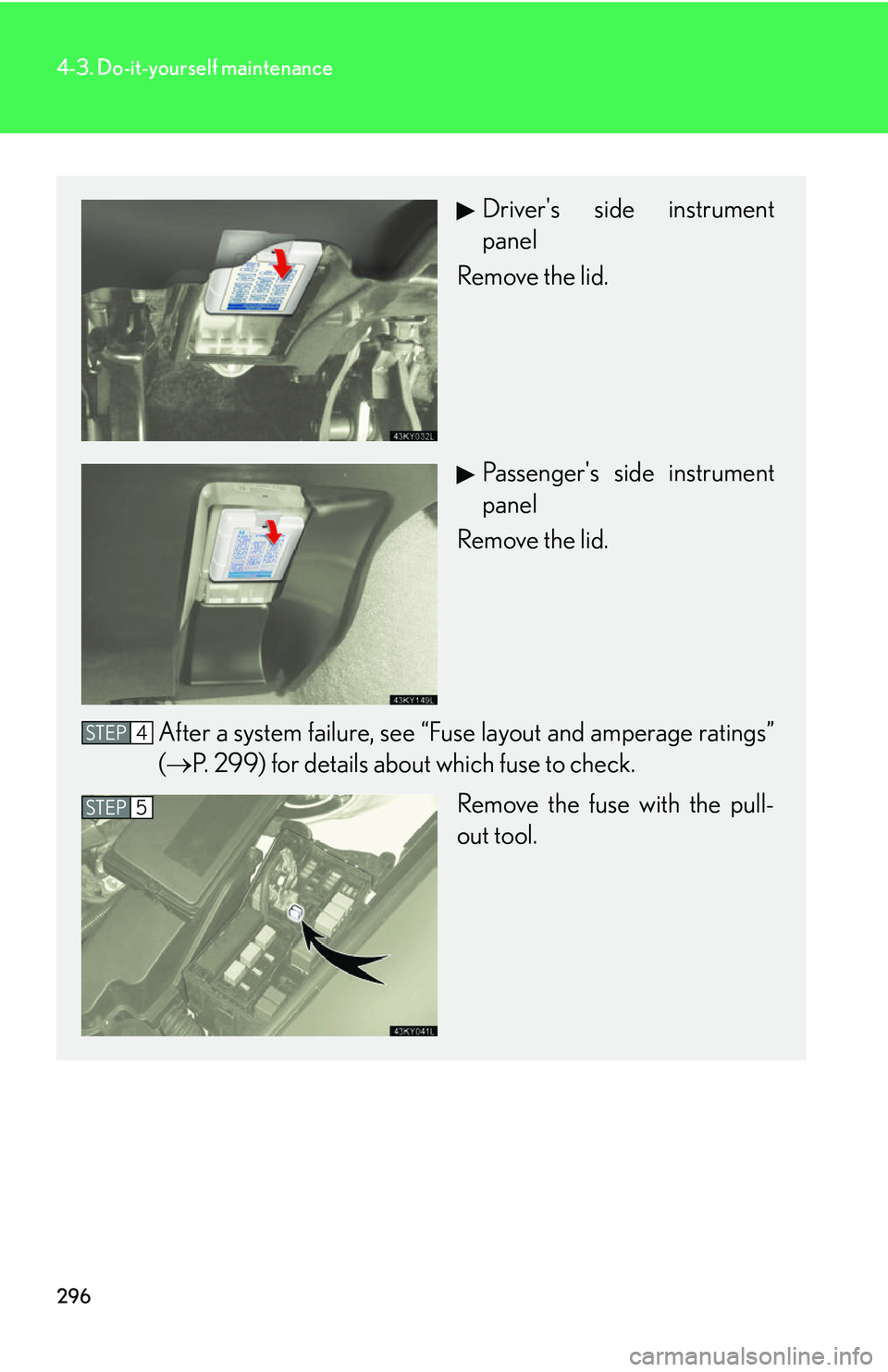

Driver's side instrument
panel
Remove the lid.
Passenger's side instrument
panel
Remove the lid.
After a system failure, see “Fuse layout and amperage ratings”
( P. 299) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
STEP4
STEP5

297
4-3. Do-it-yourself maintenance
4
Maintenance and care
Check if the fuse has blown.Ty p e A
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Ty p e B
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Ty p e C
Normal fuse
Blown fuse
Contact your Lexus dealer.
Ty p e D
Normal fuse
Blown fuse
Contact your Lexus dealer.
STEP6

299
4-3. Do-it-yourself maintenance
4
Maintenance and care

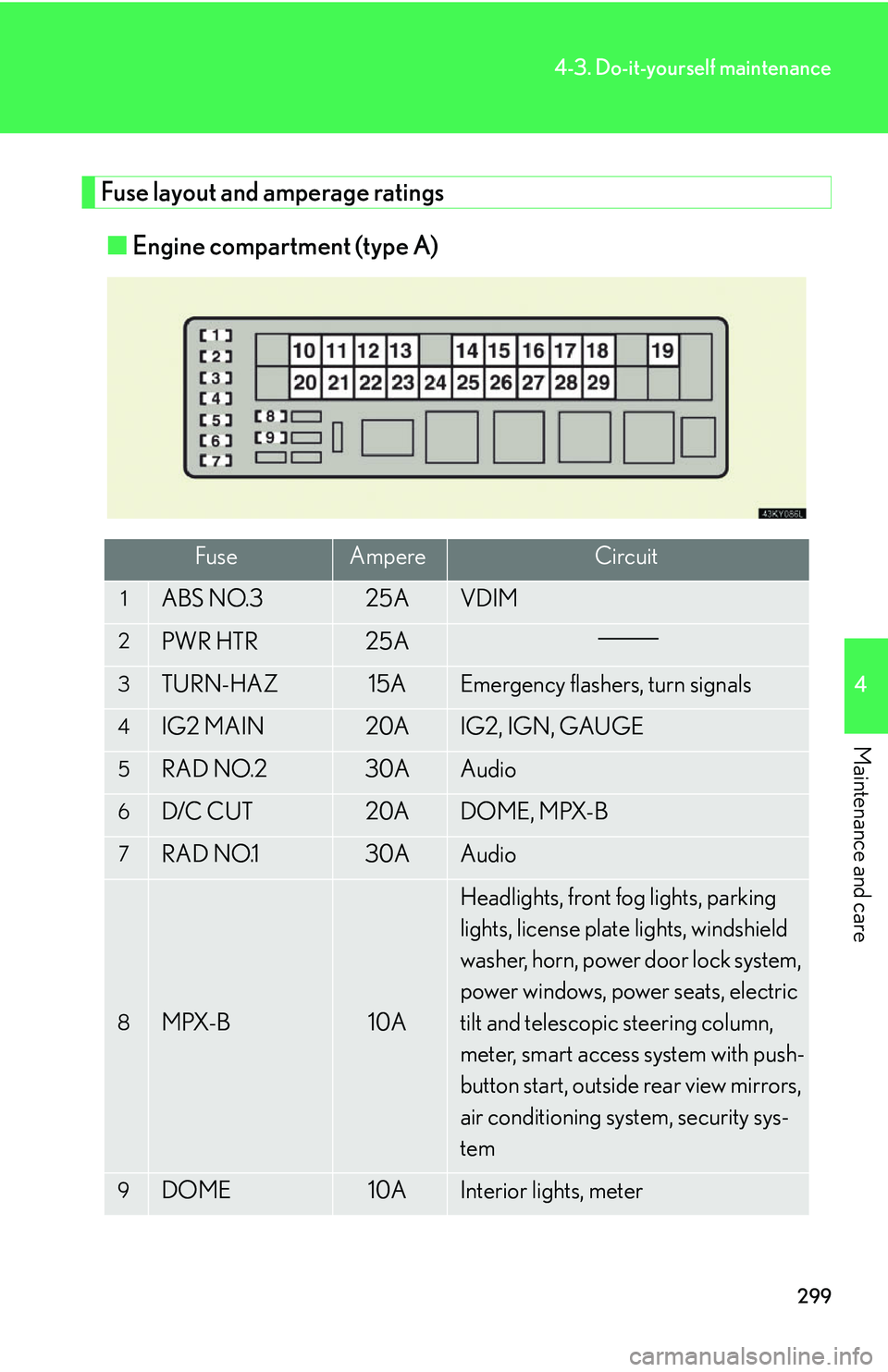

Fuse layout and amperage ratings■ Engine compartment (type A)
FuseAmpereCircuit
1ABS NO.325AVDIM
2PWR HTR25A
3TURN-HAZ15AEmergency flashers, turn signals
4IG2 MAIN20AIG2, IGN, GAUGE
5RAD NO.230AAudio
6D/C CUT20ADOME, MPX-B
7RAD NO.130AAudio
8MPX-B10A
Headlights, front fog lights, parking
lights, license plate lights, windshield
washer, horn, power door lock system,
power windows, power seats, electric
tilt and telescopic steering column,
meter, smart access system with push-
button start, outside rear view mirrors,
air conditioning system, security sys-
tem
9DOME10AInterior lights, meter
