4-3. Do-it-yourself maintenance
FuseAmpereCircuit
27GLW PLG250 APTC heater
28E/G-AM60 AHeadlight cleaners, front fog lights,
parking lights, air conditioning system
29LH J/B-AM80 A
S/ROOF, FR P/SEAT LH, TV NO.1,
A/C, FUEL/OPEN, PSB, FR WIP,
H-LP LVL, LH-IG, ECU-IG LH,
PA N E L , TA I L , M I R H T R ,
FR S/HTR LH

311
4-3. Do-it-yourself maintenance
4
Maintenance and care
■Engine compartment (type B)
FuseAmpereCircuit
1FR CTRL-B25AHeadlight high beam, horn
2A/F15AExhaust system
3ETCS10A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
4ALT-S7. 5 ACharging system
5STR LOCK25ASteering lock
6H-LP CLN30AHeadlight cleaner
7A/C COMP7. 5 AAir conditioning system
8DEICER25A
9FR CTRL-AM30AFront fog lights, parking lights, wind-
shield washer
10IG210AIgnition system
11EFI NO.210AFuel system, exhaust system
12H-LP R LWR15AHeadlight low beam (right)
13H-LP L LWR15AHeadlight low beam (left)

312
4-3. Do-it-yourself maintenance
FuseAmpereCircuit
14F/ P M P25AFuel system
15EFI25A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
16INJ20A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
17H-LP UPR15AHeadlight high beams
18HORN10AHorns
19WA S H E R20AWindshield washer
20FR TAIL10AParking lights
21FR FOG15AFront fog lights

313
4-3. Do-it-yourself maintenance
4
Maintenance and care
■Driver’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT LH30APo w e r s e a t
2A/C7. 5 AAir conditioning system
3MIR HTR15AOutside rear view mirror defoggers
4TV NO.110ADisplay
5FUEL OPEN10AFuel filler door opener
6TV NO.27. 5 A
7PSB30APre-collision seat belt
8S/ROOF25AElectric moon roof
9TA I L10ATail lights, license plate lights, parking
lights
10PA N E L7. 5 ASwitch illumination, air conditioning
system, display
11RR FOG7. 5 A
12ECU-IG LH10A
Cruise control, air conditioning sys-
tem, power steering, rain sensor, anti-
glare inside rear view mirror, shift lock
system, moon roof, tire inflation pres-
sure warning system
13FR S/HTR LH15ASeat heaters and ventilators

314
4-3. Do-it-yourself maintenance
FuseAmpereCircuit
14RR DOOR LH20APo w e r w i n d o w s
15FR DOOR LH20APo w e r w i n d o w s
16SECURITY7. 5 ASmart access system with push-button
start
17H-LP LVL7. 5 AAFS
18LH-IG10A
Charging system, headlight cleaner,
rear window defogger, electric cool-
ing fans, emergency flashers, turn sig-
nal lights, back-up lights, stop lights,
mirror heaters, sun shade, seat belts,
Lexus parking assist-sensor, cruise
control, air conditioning system, PTC
heater
19FR WIP30AWindshield wipers

315
4-3. Do-it-yourself maintenance
4
Maintenance and care
■Passenger’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT RH30APo w e r s e a t
2DOOR DL15A
3OBD7. 5 AOn-board diagnosis system
4STOP SW7. 5 AStop lights
5TI & TE20AElectric tilt and telescopic steering
column
6RAD NO.310AAudio
7GAUGE7. 5 AMeter
8IGN10ASRS airbag system, cruise control,
steering lock system, fuel system
9ACC7. 5 A
Lexus link system, clock, air condition-
ing system, audio, display, outside rear
view mirrors, smart access system
with push-button start
10CIG15ACigarette lighter
11PWR OUTLET15APo w e r o u t l e t
12RR DOOR RH20APo w e r w i n d o w s

316
4-3. Do-it-yourself maintenance
FuseAmpereCircuit
13FR DOOR RH20APower windows, outside rear view
mirrors
14AM215ASmart access system with push-button
start
15RH-IG7. 5 A
Seat belts, Lexus parking assist-sen-
sor, automatic transmission, seat
heater and ventilator
16FR S/HTR RH15ASeat heaters and ventilators
17ECU-IG RH10A
Power seats, smart access system with
push-button start, AWD system, out-
side rear view mirrors, VDIM, VSC,
air conditioning system, pre-collision
seat belt, electric tilt and telescopic
steering, power windows, navigation
system
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (P. 3 1 9 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.

318

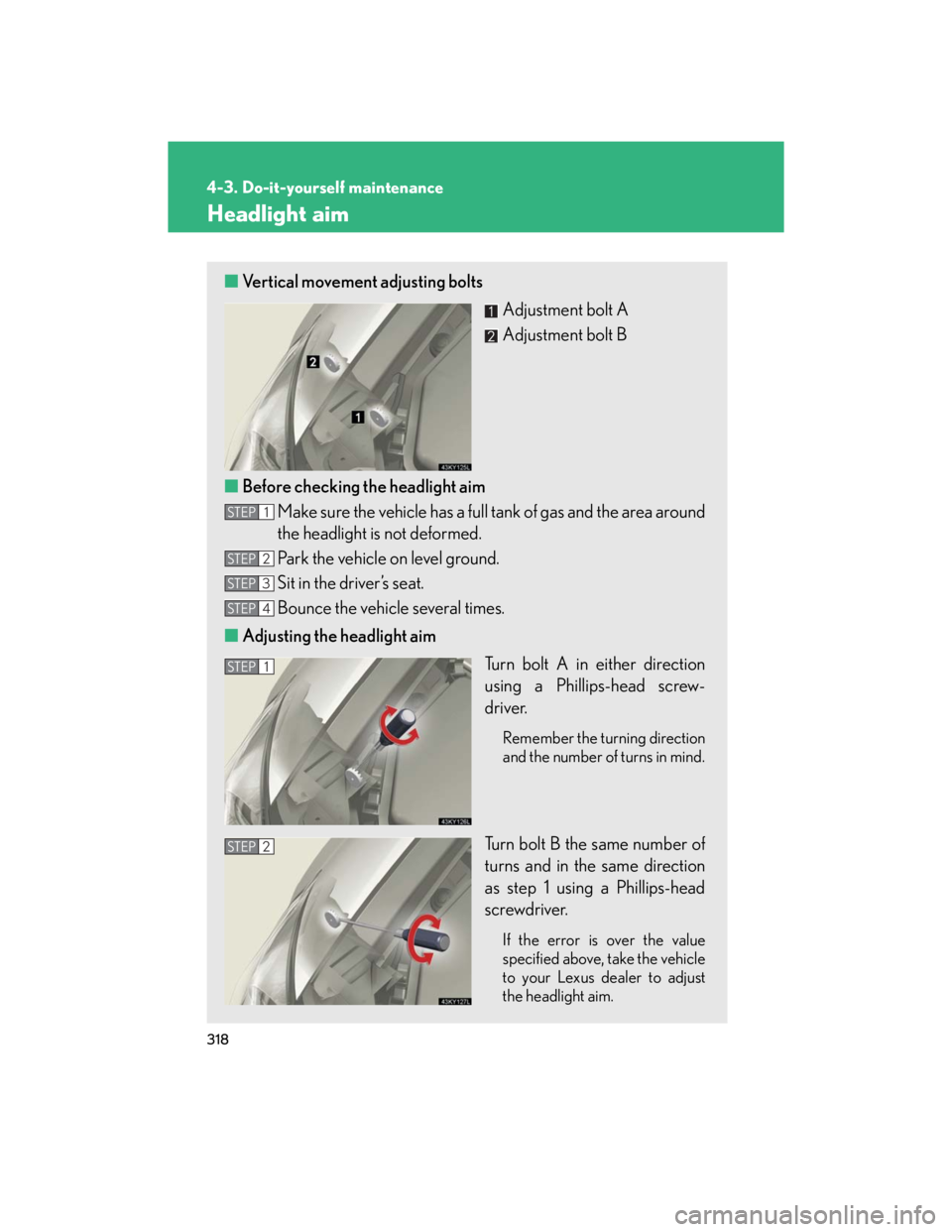

4-3. Do-it-yourself maintenance
Headlight aim
■Vertical movement adjusting bolts
Adjustment bolt A
Adjustment bolt B
■Before checking the headlight aim
Make sure the vehicle has a full tank of gas and the area around
the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
■Adjusting the headlight aim
Turn bolt A in either direction
using a Phillips-head screw-
driver.
Remember the turning direction
and the number of turns in mind.
Turn bolt B the same number of
turns and in the same direction
as step 1 using a Phillips-head
screwdriver.
If the error is over the value
specified above, take the vehicle
to your Lexus dealer to adjust
the headlight aim.
STEP1
STEP2
STEP3
STEP4
STEP1
STEP2

319
4-3. Do-it-yourself maintenance
4
Maintenance and care
Light bulbs
You may replace the following bulbs yourself. For more information about
replacing other light bulbs, contact your Lexus dealer.
■Preparing a replacement light bulb
Check the wattage of the light bulb being replaced. (P. 394)
■Removing the engine compartment cover
P. 2 7 1
■Front bulb locations
■Rear bulb locations
Parking light
Headlight
high beam
Rear turn signal light Back-up light

320
4-3. Do-it-yourself maintenance
Replacing light bulbs
■Headlight high beams
Release the lock and remove the
cover.
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
STEP1
STEP2
STEP3
