Lexus IS250 2014 Navigation Manual

281
1. SPEECH COMMAND SYSTEM OPERATION
SPEECH COMMAND SYSTEM
IS300h/250_Navi_EE
5
zWhen a contact has multiple telephone
numbers registered in the contact list, a
candidate list will be displayed. If the
desired telephone number is not displayed
on the top of the screen, say the number of
the desired telephone number from the
candidate list to select a telephone number
from the candidate list.
3Say or select “Dial” to call the telephone
number.
1Press the talk switch.
z“Dial ” is displayed in the
“Shortcuts” screen.
zWhen “Dial ” on the “Shortcuts”
screen is dimmed, the telephone number
voice recognition cannot be used. Check
the Bluetooth
® phone connection.
2Say the telephone number.
zIn the same manner as it is displayed on the
screen, “Dial ”, after saying “Dial”
say the telephone number.
zSay the telephone number one digit at a
time.
For example, if the telephone number is
2345678:
Say “two three four five six seven eight”
zAs the system cannot recognize additional
numbers, say the complete number without
stopping.
zWhen the system recognizes multiple tele-
phone numbers, a telephone number can-
didate list will be displayed on the screen. If
the desired telephone number is not dis-
played on the top of the screen, say the
number of the desired telephone number
from the candidate list to select a telephone
number from the candidate list.
3Say or select “Dial” to call the telephone
number.
SPEECH COMMAND
EXAMPLE: DIAL NUMBER
IS_Navi_EE_53C71E.book 281 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

282
1. SPEECH COMMAND SYSTEM OPERATION
IS300h/250_Navi_EE
2. COMMAND LIST
zFrequently used commands are listed in the following tables.
zFor devices that are not installed in the vehicle, the related commands will not be dis-
played in the “Shortcuts” screen. Also, according to conditions, other commands may
not be displayed in the “Shortcuts” screen.
zThe functions available may vary according to the system installed.
zCommands that have “O” in the shortcuts menu column can be recognized from the
“Shortcuts” screen.
XBasic
XNavi*
1
*1: With navigation function
*2: For example; “Restaurant”, “Hospital” etc.
Recognizable speech commands and their actions are shown below.
zVoice recognition language can be changed. (→P. 7 5 )
CommandAction
“Help”Prompts voice guidance to offer examples of commands
and operation methods
“Go back”Returns to the previous screen
CommandActionShortcuts
menu
“Find nearby ”Displays a list of near the cur-
rent positionO
“Enter an address”Enables setting a destination by saying the ad-
dressO
“Go home”Displays the route to homeO
IS_Navi_EE_53C71E.book 282 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

283
1. SPEECH COMMAND SYSTEM OPERATION
SPEECH COMMAND SYSTEM
IS300h/250_Navi_EE
5
XTelephone
XAudio
CommandActionShortcuts
menu
“Call ”Places a call to the said telephone type of the
contact from the contact listO
“Dial ”Places a call to the said telephone numberO
CommandActionShortcuts
menu
“Play artist ”Plays tracks from the selected artistO
“Play album ”Plays tracks from the selected albumO
“Play song ”Plays the selected trackO
“Play playlist ”Plays tracks from the selected playlistO
IS_Navi_EE_53C71E.book 283 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

284
IS300h/250_Navi_EE1. LEXUS PARKING ASSIST
MONITOR ............................................. 286
DRIVING PRECAUTIONS .............................. 286
SCREEN DISPLAY ............................................... 288
USING THE SYSTEM WHEN
PERPENDICULAR PARKING.................... 289
USING THE SYSTEM WHEN
PARALLEL PARKING..................................... 290
SWITCHING THE PARKING MODE
SCREEN.................................................................... 291
2. PERPENDICULAR PARKING
(ESTIMATED COURSE LINE
DISPLAY MODE) ................................ 292
SCREEN DESCRIPTION .................................. 292
PARKING .................................................................. 293
1LEXUS PARKING ASSIST
MONITOR
IS_Navi_EE_53C71E.book 284 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

6
285
IS300h/250_Navi_EE
6 2
1
3
4
5
7
8
3. PERPENDICULAR PARKING
(PARKING ASSIST GUIDE LINE
DISPLAY MODE)................................ 294
SCREEN DESCRIPTION ................................... 294
PARKING ................................................................... 295
4. PARALLEL PARKING .......................... 296
VEHICLE MOVEMENT
PROCEDURE ...................................................... 296
PARKING ................................................................... 297
NARROW MODE ................................................ 302
5. LEXUS PARKING ASSIST
MONITOR
PRECAUTIONS................................... 304
AREA DISPLAYED ON SCREEN................ 304
THE CAMERA ........................................................ 305
DIFFERENCES BETWEEN
THE SCREEN AND
THE ACTUAL ROAD...................................... 306
WHEN APPROACHING
THREE-DIMENSIONAL OBJECTS ........ 308
6. THINGS YOU SHOULD KNOW ..... 310
IF YOU NOTICE ANY SYMPTOMS ........... 310
1. LEXUS PARKING
ASSIST-SENSOR .................................. 312
TYPES OF SENSORS ........................................... 312
LEXUS PARKING ASSIST-SENSOR
SWITCH.................................................................... 312
DISPLAY ...................................................................... 313
THE DISTANCE DISPLAY AND
BUZZER ................................................................... 314
DETECTION RANGE OF
THE SENSORS ..................................................... 315
SENSOR DETECTION
INFORMATION................................................... 315
LEXUS PARKING ASSIST-SENSOR
FAILURE WARNING ........................................ 317
2. LEXUS PARKING ASSIST
SETTING .................................................. 319
SETTING AN ALERT VOLUME ................... 320
SETTING A PARKING SONAR
DISPLAY ................................................................ 320
SETTING A DISPLAY AND
TONE INDICATION ......................................... 321
2LEXUS PARKING ASSIST-
SENSOR
PERIPHERAL MONITORING SYSTEM
IS_Navi_EE_53C71E.book 285 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

286
IS300h/250_Navi_EE
1. LEXUS PARKING ASSIST MONITOR
1. LEXUS PARKING ASSIST MONITOR*
The parking assist monitor assists the
driver by displaying an image of the view
behind the vehicle while backing up, for
example while parking.
The parking assist monitor assists with
the following 2 backing-up operations:
(1) Perpendicular parking (parking in a
garage, etc.)
(2) Parallel parking (parking at the side
of the road, etc.)
INFORMATION
●The screen illustrations used in this text
are intended as examples, and may differ
from the image that is actually displayed
on the screen.
*: If equipped
DRIVING PRECAUTIONS
The parking assist monitor is a supple-
mental device intended to assist the
driver when backing up. When backing
up, be sure to visually check all around
the vehicle both directly and using the
mirrors before proceeding. If you do
not, you may hit another vehicle, and
could possibly cause an accident.
Pay attention to the following precau-
tions when using the parking assist mon-
itor.
CAUTION
●Never depend on the parking assist mon-
itor entirely when backing up. The image
and the position of the guide lines dis-
played on the screen may differ from the
actual state.
Use caution, just as you would when
backing up any vehicle.
●Be sure to back up slowly, depressing the
brake pedal to control vehicle speed.
●If you seem likely to hit nearby vehicles,
obstacles, people or mount the shoulder,
depress the brake pedal to stop the vehi-
cle, then disable the assist system by
selecting on the screen to cancel
the system.
IS_Navi_EE_53C71E.book 286 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

287
1. LEXUS PARKING ASSIST MONITOR
PERIPHERAL MONITORING SYSTEM
IS300h/250_Navi_EE
6
CAUTION
●The instructions given are only guidelines.
When and how much to turn the steering
wheel will vary according to traffic condi-
tions, road surface conditions, vehicle
condition, etc. when parking. It is neces-
sary to be fully aware of this before using
the parking assist system.
●When parking, be sure to check that the
parking space will accommodate your
vehicle before maneuvering into it.
●Do not use the parking assist monitor sys-
tem in the following cases:
• On icy or slick road surfaces, or in snow
•When using tyre chains
• When the trunk is not closed com-
pletely
• On roads that are not flat or straight,
such as curves or slopes
●In low temperatures, the screen may
darken or the image may become faint.
The image could distort when the vehicle
is moving, or you may become unable to
see the image on the screen. Be sure to
visually check all around the vehicle both
directly and using the mirrors before pro-
ceeding.
●If the tyre sizes are changed, the position
of the guide lines displayed on the screen
may change.
●The camera uses a special lens. The dis-
tances between objects and pedestrians
that appear in the image displayed on the
screen will differ from the actual dis-
tances. (→P. 3 0 6 )
IS_Navi_EE_53C71E.book 287 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

288
1. LEXUS PARKING ASSIST MONITOR
IS300h/250_Navi_EE
zThe parking assist monitor displays the last-used parking mode first.
XPerpendicular parkingXParallel parking
zWhen the shift lever is shifted to the “R” position and any mode button (such as
“MENU”) is pressed
¨The parking assist monitor is canceled, and the screen is switched to the mode of the
button that was pressed.
SCREEN DISPLAY
The parking assist monitor screen will be displayed if the shift lever is shifted to the “R”
position while the engine switch is in IGNITION ON mode.
No.DisplayFunction
Display mode switch screen but-
tonSwitches the display mode.
Parking mode switch screen but-
tonSwitches the parking mode (between perpendic-
ular parking and parallel parking assist screens)
Narrow mode screen on-off but-
tonSwitch the narrow mode on and off. (→P.291)
Lexus parking assist-sensorIf an obstacle is detected while the Lexus parking
assist-sensor is on, a display is shown in the top
right corner of the screen.
CANCELING LEXUS PARKING ASSIST MONITOR
The parking assist monitor is canceled when the shift lever is shifted into any position
other than the “R” position.
IS_Navi_EE_53C71E.book 288 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

289
1. LEXUS PARKING ASSIST MONITOR
PERIPHERAL MONITORING SYSTEM
IS300h/250_Navi_EE
6
XEstimated course line display mode
(→P.292)XParking assist guide line display mode
(→P.294)
XDistance guide line display mode
USING THE SYSTEM WHEN
PERPENDICULAR PARKING
Use any of the following modes when
perpendicular parking (for example,
when parking in a garage).
Estimated course lines are displayed
which move in accordance with the op-
eration of the steering wheel.
The steering wheel return points (park-
ing assist guide lines) are displayed.
Distance guide lines only are displayed.
IS_Navi_EE_53C71E.book 289 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

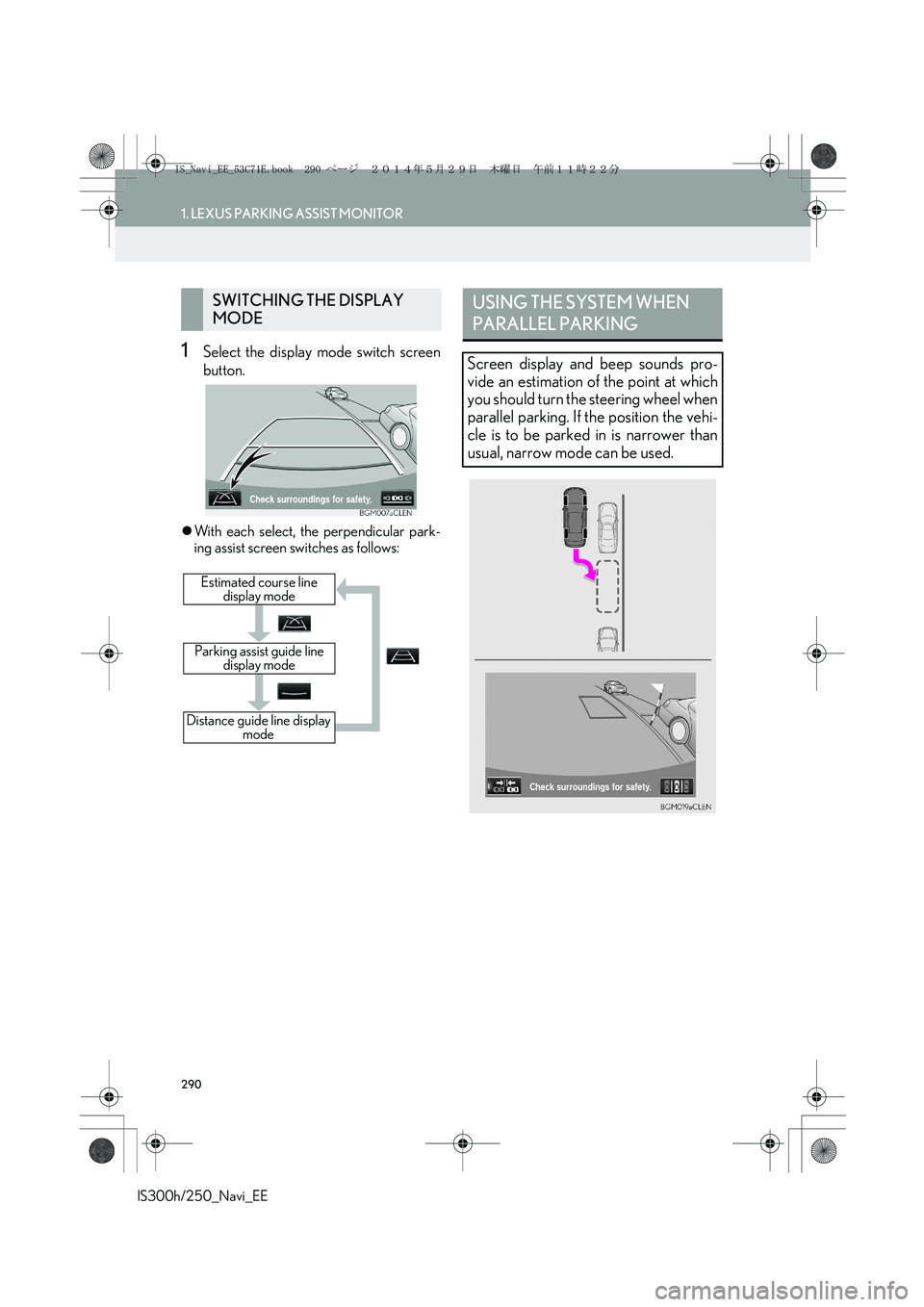

290
1. LEXUS PARKING ASSIST MONITOR
IS300h/250_Navi_EE
1Select the display mode switch screen
button.
zWith each select, the perpendicular park-
ing assist screen switches as follows:
SWITCHING THE DISPLAY
MODE
Distance guide line display
mode
Parking assist guide line
display mode
Estimated course line
display mode
USING THE SYSTEM WHEN
PARALLEL PARKING
Screen display and beep sounds pro-
vide an estimation of the point at which
you should turn the steering wheel when
parallel parking. If the position the vehi-
cle is to be parked in is narrower than
usual, narrow mode can be used.
IS_Navi_EE_53C71E.book 290 ページ ２０１４年５月２９日　木曜日　午前１１時２２分
