oil temperature Lexus IS250 2015 Owner's Manual

260
IS350/250_U (OM53C50U)4-6. Driving tips
●Use fluids that are appropriate to the prevailing outside temperatures.
•Engine oil
• Engine coolant
•Washer fluid
●Have a service technician inspect the condition of the battery.
●Have the vehicle fitted with four snow tires or purchase a set of tire chains for
the rear tires.
*
Ensure that all tires are the specified size and brand, and that chains match the size
of the tires.
*: Tire chains cannot be mounted on the 18-inch tires.
Perform the following according to the driving conditions:
●Do not try to forcibly open a window or move a wiper that is frozen. Pour
warm water over the frozen area to melt the ice. Wipe away the water imme-
diately to prevent it from freezing.
●To ensure proper operation of the climate control system fan, remove any
snow that has accumulated on the air inlet vents in front of the windshield.
●Check for and remove any excess ice or snow that may have accumulated on
the exterior lights, vehicle’s roof, chassis, around the tires or on the brakes.
●Remove any snow or mud from the bottom of your shoes before getting in the
vehicle.
Accelerate the vehicle slowly, keep a safe distance between you and the vehicle
ahead, and drive at a reduced speed suitable to road conditions.
Winter driving tips
Carry out the necessary preparations and inspections before driving the vehi-
cle in winter. Always drive the vehicle in a manner appropriate to the prevail-
ing weather conditions.
Preparation for winter
Before driving the vehicle
When driving the vehicle

4107-3. Do-it-yourself maintenance
IS350/250_U (OM53C50U)

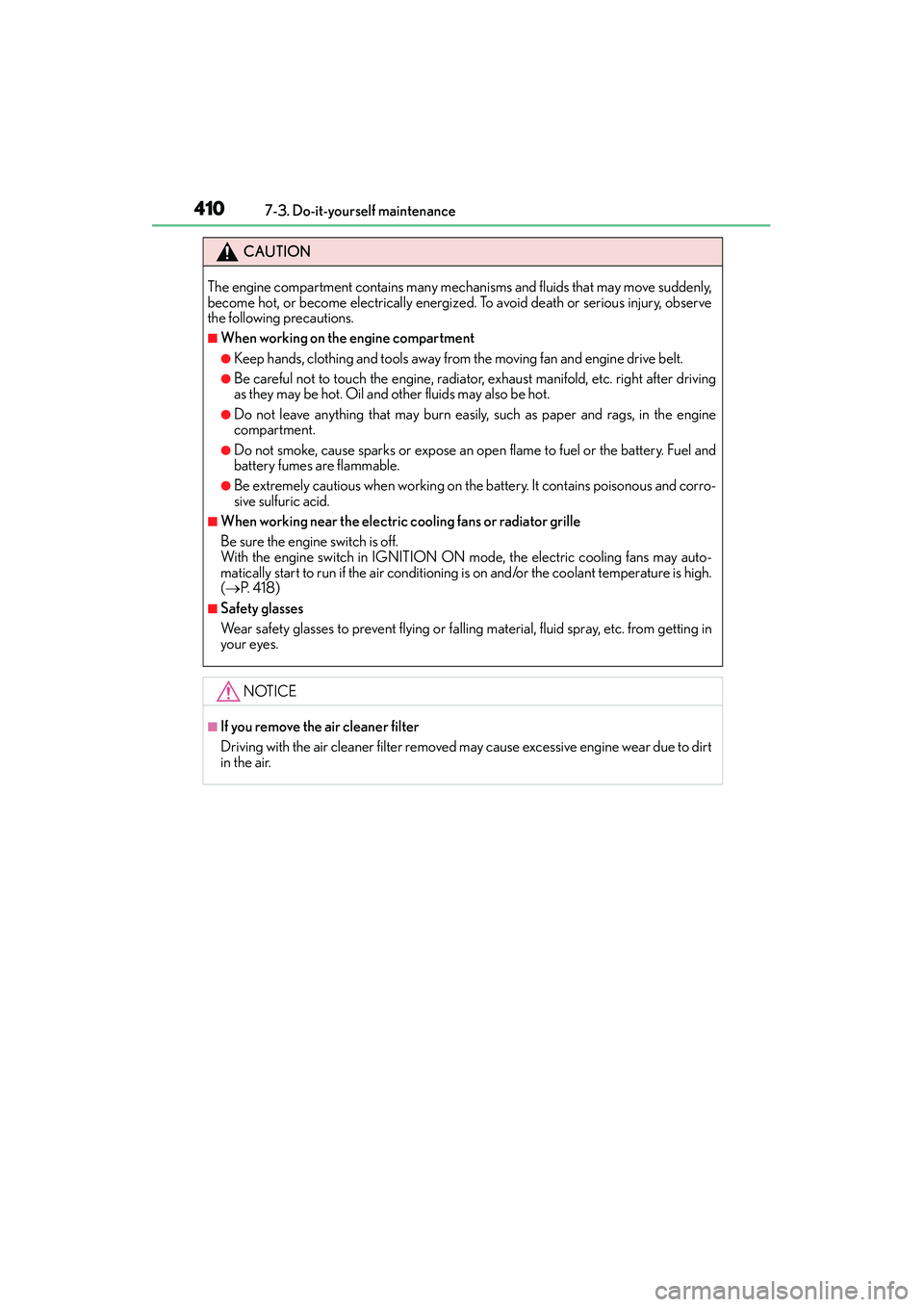

CAUTION
The engine compartment contains many mechan isms and fluids that may move suddenly,
become hot, or become electrically energize d. To avoid death or serious injury, observe
the following precautions.
■When working on the engine compartment
●Keep hands, clothing and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, radiator, exhaust manifold, etc. right after driving
as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper and rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel and
battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and corro-
sive sulfuric acid.
■When working near the electric cooling fans or radiator grille
Be sure the engine switch is off.
With the engine switch in IGNITION ON mode, the electric cooling fans may auto-
matically start to run if the air conditioning is on and/or the coolant temperature is high.
( → P. 4 1 8 )
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from getting in
your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to dirt
in the air.

4147-3. Do-it-yourself maintenance
IS350/250_U (OM53C50U)
With the engine at operating temperature and turned off, check the oil level on
the dipstick.
■Checking the engine oil Park the vehicle on level ground. Afte r warming up the engine and turning
it off, wait more than 5 minutes for the oil to drain back into the bottom of
the engine.
Holding a rag under the end, pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull
the dipstick out and check the oil
level.
Low
Normal
Excessive
The shape of the dipstick may dif-
fer depending on the type of vehi-
cle or engine.
Wipe the dipstick and reinsert it fully.
Engine oil
1
2
3
4
5
1
2
3
6

4768-2. Steps to take in an emergency
IS350/250_U (OM53C50U)
(If equipped)
Indicates that the LDA (Lane Departure Alert) system is
suspended (The camera sensor temperature is higher
than the operation temperature range)A buzzer also sounds.
→ Restart the LDA after driving for a while.
(If equipped)
Indicates that a Blind Spot Monitor sensor or the sur-
rounding area on the bumper is dirty or covered with ice
A buzzer also sounds.
→ Clean the sensor and its surrounding area on the
bumper.
Indicates a malfunction in:
• The cruise control system; or
• The dynamic radar cruise control system (if equipped)
Press the “ON/OFF” button once to deactivate the
system, and then press the button again to reactivate
the system.
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the LDA (Lane Departure
Alert) system
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the PCS (Pre-Collision Sys-
tem)
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the BSM (Blind Spot Monitor)
system A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Indicates abnormal engine oil pressure
A buzzer also sounds.
→ Immediately stop the vehicle in a safe place and
contact your Lexus dealer.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)

5159-1. Specifications
9
Vehicle specifications
IS350/250_U (OM53C50U)

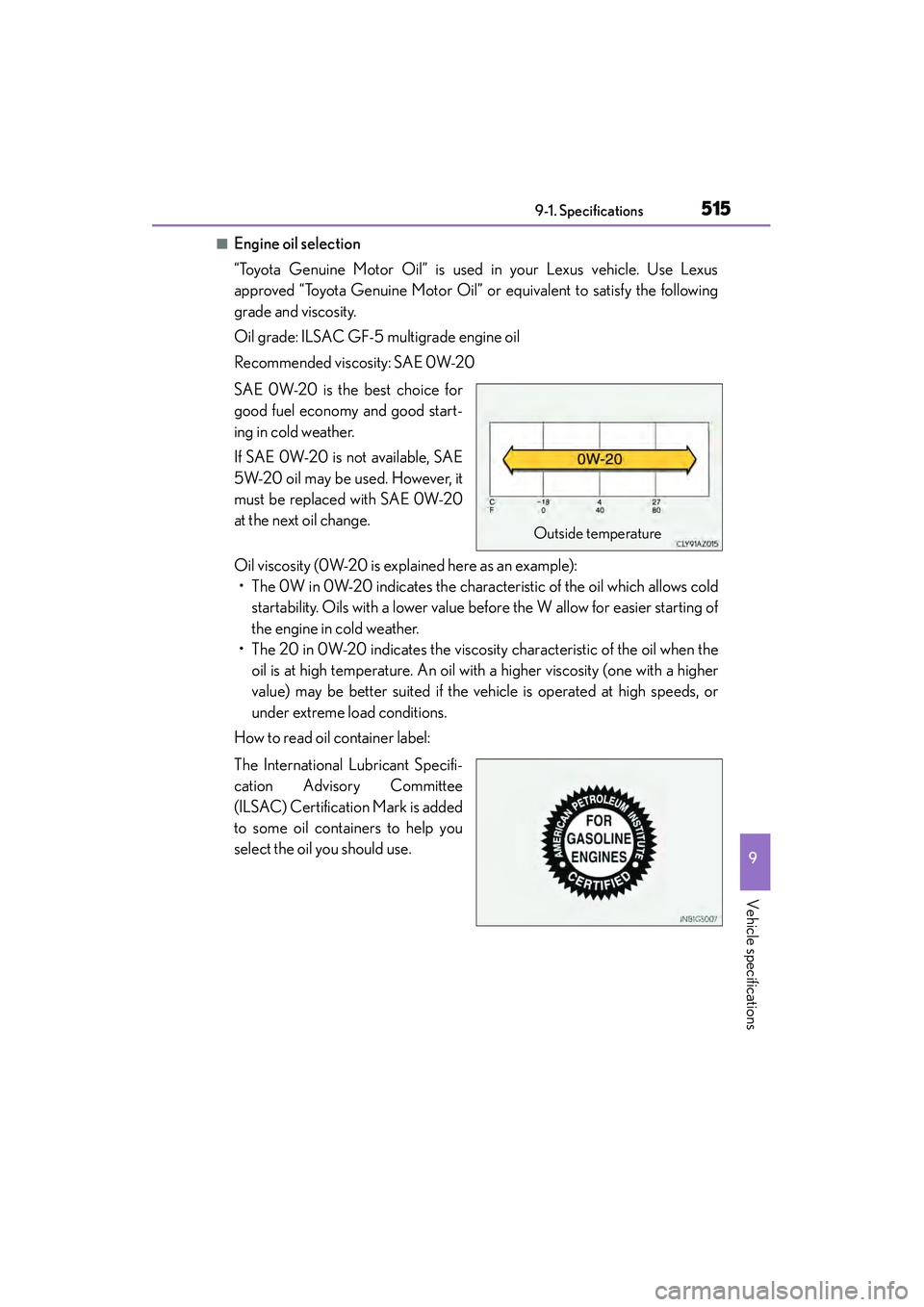

■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container label:
The International Lubricant Specifi-
cation Advisory Committee
(ILSAC) Certification Mark is added
to some oil containers to help you
select the oil you should use.
Outside temperature

570Alphabetical index
IS350/250_U (OM53C50U)
Emergency flashers ............................. 456
Engine .........................................................514ACCESSORY mode....................... 160
Compartment ....................................... 413
Engine switch ........................................ 159
Hood ........................................................... 411
How to start the engine ................... 159
Identification number ........................ 513
If the engine will not start............... 496
Ignition switch (engine switch)..... 159
Overheating ........................................ 506
Engine coolant......................................... 417
Capacity .................................................. 516
Checking..................................................417
Preparing and checking before winter ................................... 260
Engine coolant temperature gauge ..........................................................81
Engine immobilizer system ................. 69
Engine oil ...................................................414 Capacity .................................................. 514
Checking................................................. 414
Preparing and checking before winter ................................... 260
Engine switch .......................................... 159
Enhanced VSC ..................................... 240
EPS (Electronic Power Steering) ..........241
Function ....................................................241
Warning light ....................................... 467
Event data recorder (EDR) ...................10 First-aid kit storage belt......................374
Flat tire ...................................................... 486
Floor mats....................................................26
Fluid
Automatic transmission.................... 517
Brake......................................................... 518
Washer ................................................... 422
Fog lights..................................................... 181 Replacing light bulbs ....................... 452
Switch ......................................................... 181
Wattage ...................................................521
Footwell light .......................................... 368 Wattage ...................................................521
Front passenger occupant classification system ............................ 47
Front personal lights ........................... 369 Wattage ...................................................521
Front seats................................................. 120 Adjustment..............................................120
Cleaning................................................. 399
Correct driving posture .................... 28
Driving position memory................. 123
Head restraints .....................................128
Power easy access system ............. 123
Seat heaters .......................................... 367
Seat position memory ....................... 123
Seat ventilators.................................... 367F

575Alphabetical index
IS350/250_U (OM53C50U)
Odometer ....................................................81
OilEngine oil................................................. 514
Front differential oil............................. 517
Rear differential oil .............................. 517
Opener Hood ........................................................... 411
Trunk ......................................................... 109
Outer foot lights
Location ................................................. 368
Replacing light bulbs ........................452
Wattage ................................................... 521
Outside rear view mirrors ................. 135
Adjusting and folding........................ 135
Blind spot monitor ............................. 252
Linked mirror function when reversing ................................. 136
Mirror position memory ...................123
Outside rear view mirror defoggers ............................362
Outside temperature...............................81
Overheating, Engine .......................... 506 Paddle shift switches............................. 166
Parking assist sensors
(intuitive parking assist).................... 214
Parking brake .......................................... 172
Parking lights ........................................... 173 Light switch............................................. 173
Replacing light bulbs ....................... 452
PCS (Pre-Collision System).............246 Function .................................................. 246
PCS OFF switch .................................247
Warning light ....................................... 467
Personal lights ....................................... 369 Wattage ...................................................521
Pop-up display ......................................... 88
Power easy access system ................. 123
Power outlet ........................................... 378
Power steering (Electric power steering system) .................................. 241Warning light ....................................... 467
Power windows.......................................138 Door lock linked
window operation ...........................140
Jam protection function....................139
Operation............................................... 138
Window lock switch ......................... 138
Pre-Collision System (PCS).............246 Function .................................................. 246
PCS OFF switch .................................247
Warning light ....................................... 467
OP
*: For vehicles with a navigation system, refer to the
“NAVIGATION SYSTEM OWNER’S MANUAL”.
