AUDIO
218
20L039

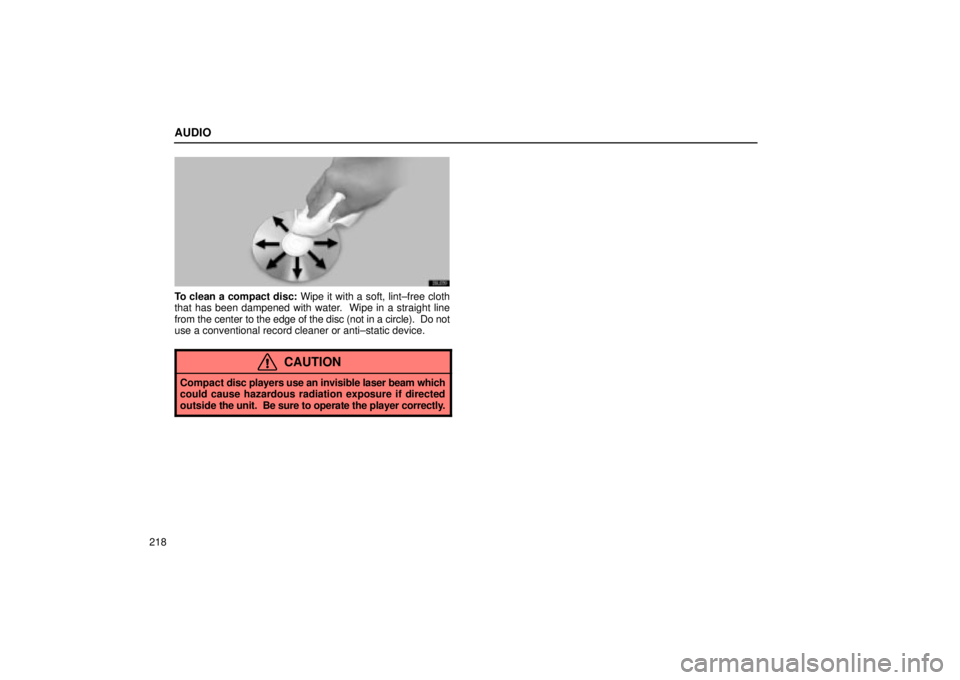

To clean a compact disc: Wipe it with a soft, lint±free cloth
that has been dampened with water. Wipe in a straight line
from the center to the edge of the disc (not in a circle). Do not
use a conventional record cleaner or anti±static device.
CAUTION
Compact disc players use an invisible laser beam which
could cause hazardous radiation exposure if directed
outside the unit. Be sure to operate the player correctly.

SECTION 3 ± 1
219
STARTING AND DRIVING
Starting and driving
Three±way catalytic converter220
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine exhaust caution 221
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Before starting the engine 222
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch with steering lock 223
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking brake 224
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
How to start the engine 225
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission 226
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manual transmission 235
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Electronic controlled transmission 237
. . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise control 237
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Traction control system 240
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle skid control system 244
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electronic throttle control system 246
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system 246
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Brake pad wear indicators 250
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Types of tires 251
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . Limited ±slip differential
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252

STARTING AND DRIVING
220
THREE±WAY CATALYTICCONVERTER
SV31040
Three±way catalytic converters are emission control
devices installed in the exhaust system.
It looks somewhat like a muffler, but its purpose is to reduce
pollutants in the exhaust gas.
CAUTION
Keep people and combustible materials away from
the exhaust pipe while the engine is running. The
exhaust gas is very hot.
 Do not drive, idle or park your vehicle over anything
that might burn easily such as grass, leaves, paper or
rags.
NOTICE
A large amount of unburned gases flowing into the three±way catalytic converter may cause it to overheatand create a fire hazard. To prevent this and otherdamage, observe the following precautions:
Use only unleaded gasoline.
Do not drive with an extremely low fuel level; runningout of fuel could cause the engine to misfire, creatingan excessive load on the three±way catalyticconverter.
Do not allow the engine to run at idle speed for morethan 20 minutes.
Avoid racing the engine.
Do not push±start or pull±start your vehicle.
Do not turn off the ignition while the vehicle ismoving.
Keep your engine in good running order.Malfunctions in the engine electrical system,electronic ignition system or fuel system could cause
an extremely high three±way catalytic converter temperature.
If the engine becomes difficult to start or stallsfrequently, take your vehicle in for a check±up assoon as possible. Remember, your Lexus dealer
knows your vehicle and its three±way catalyticconverter system best.

STARTING AND DRIVING
221

To ensure that the three±way catalytic converter and
the entire emission control system operate properly,your vehicle must receive the periodic inspectionsrequired by the Lexus Maintenance Schedule . Forscheduled maintenance information, refer to theºOwner's Manual Supplement/ScheduledMaintenance º.ENGINE EXHAUST CAUTION

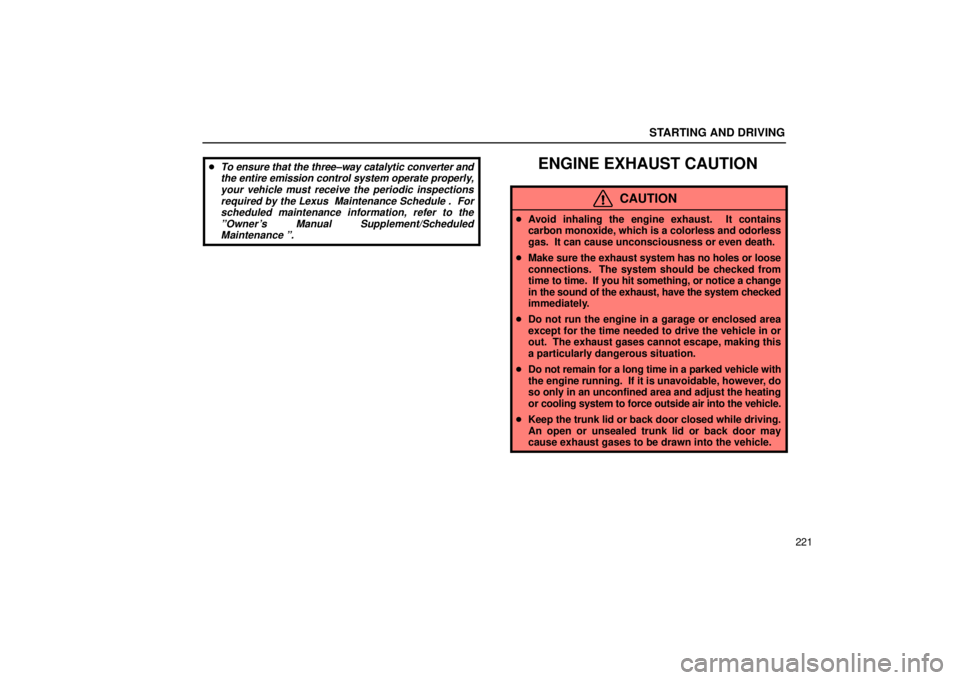

CAUTION
 Avoid inhaling the engine exhaust. It contains
carbon monoxide, which is a colorless and odorless
gas. It can cause unconsciousness or even death.
 Make sure the exhaust system has no holes or loose
connections. The system should be checked from
time to time. If you hit something, or notice a change
in the sound of the exhaust, have the system checked
immediately.
 Do not run the engine in a garage or enclosed area
except for the time needed to drive the vehicle in or
out. The exhaust gases cannot escape, making this
a particularly dangerous situation.
 Do not remain for a long time in a parked vehicle with
the engine running. If it is unavoidable, however, do
so only in an unconfined area and adjust the heating
or cooling system to force outside air into the vehicle.
 Keep the trunk lid or back door closed while driving.
An open or unsealed trunk lid or back door may
cause exhaust gases to be drawn into the vehicle.

STARTING AND DRIVING
222

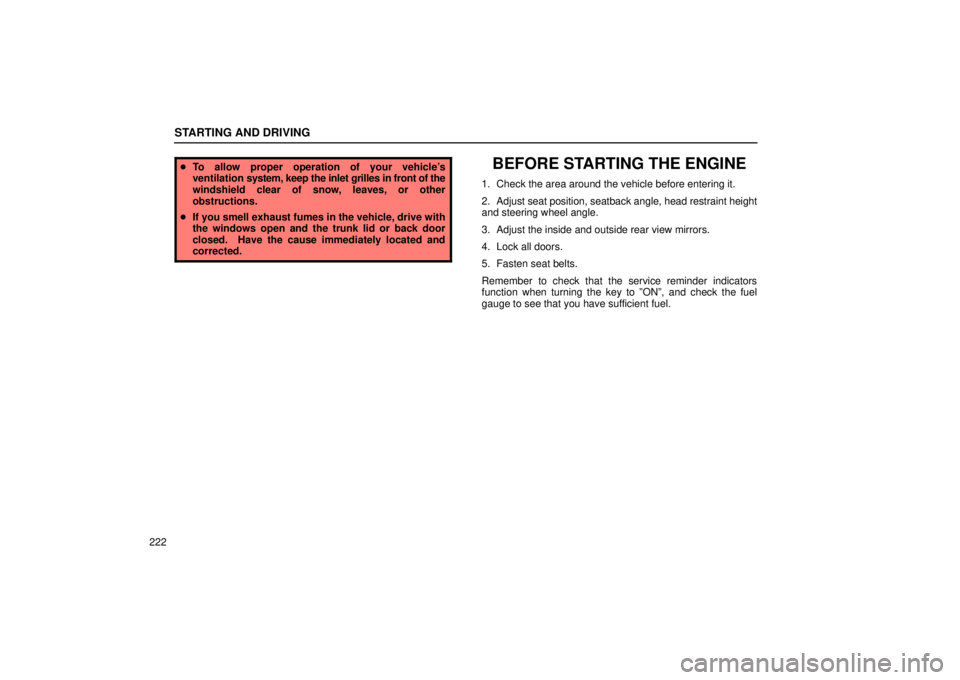

To allow proper operation of your vehicle's
ventilation system, keep the inlet grilles in front of the
windshield clear of snow, leaves, or other
obstructions.
 If you smell exhaust fumes in the vehicle, drive with
the windows open and the trunk lid or back door
closed. Have the cause immediately located and
corrected.BEFORE STARTING THE ENGINE
1. Check the area around the vehicle before entering it.
2. Adjust seat position, seatback angle, head restraint height
and steering wheel angle.
3. Adjust the inside and outside rear view mirrors.
4. Lock all doors.
5. Fasten seat belts.
Remember to check that the service reminder indicators
function when turning the key to ºONº, and check the fuel
gauge to see that you have sufficient fuel.

STARTING AND DRIVING
223
IGNITION SWITCH WITH STEERINGLOCK
SS31002
ºSTARTº ± Starter motor on. The key will return to the
ºONº position when released.
For starting tips, see page 225.
ºONº ± Engine on and all accessories on.
This is the normal driving position.
NOTICE
Do not leave the key in the ºONº position if the engine
is not running. The battery will discharge and theelectronic ignition system could be damaged.
ºACCº ± Accessories such as the radio operate, but the
engine is off. If you leave the key in the ºACCº or ºLOCKº position and open
the driver's door, a buzzer will remind you to remove the key.*
NOTE: *The volume or interval of beep sound can be
changed. Ask your Lexus dealer for details.
SS31003
ºLOCKº ± Engine is off and the steering wheel is locked.
The ignition key can be removed only at this position.
Manual transmission: To turn the key from ºACCº to the
ºLOCKº position, you must push in the key.
Automatic transmission: To turn the key from ºACCº to the
ºLOCKº position you must put the transmission selector lever
in the ºPº position and you must push in the key.
Once you remove the key, the engine immobiliser system is
automatically set. See ºEngine immobiliser systemº on page
11 .

STARTING AND DRIVING
224When starting the engine, the key may seem stuck at the
ºLOCKº position. To free it, first be sure the key is pushed all
the way in, and then rock the steering wheel slightly while
turning the key gently.
If, in an emergency, you must turn the engine off while the
vehicle is moving, turn the key only to ºACCº.
CAUTION
For manual transmission:
Never remove the key when the vehicle is moving, as
this will lock the steering wheel and result in loss of
steering control.

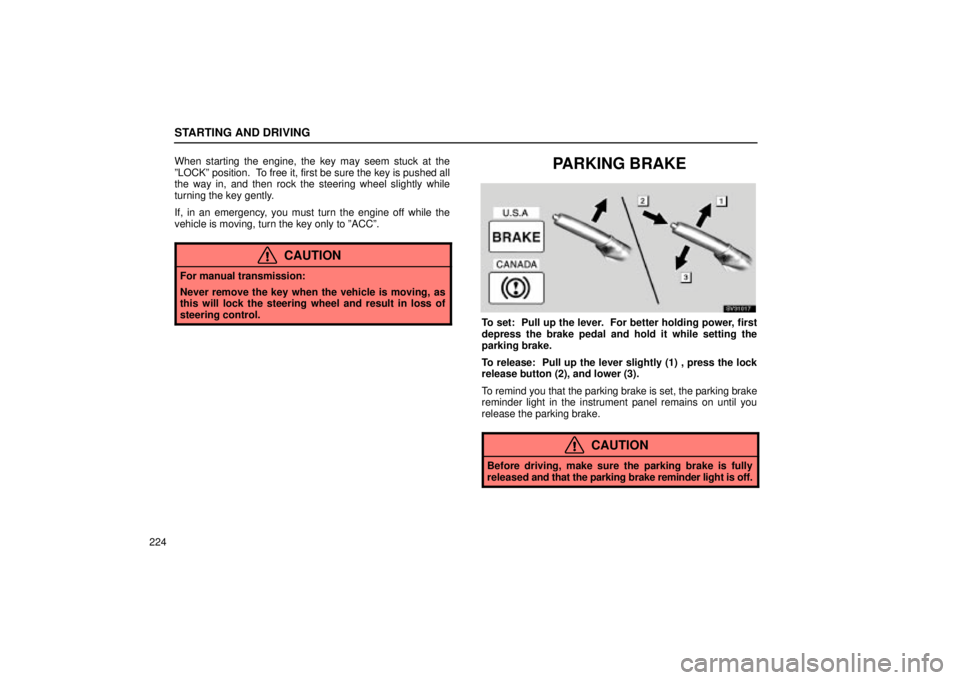

PARKING BRAKE
SV31017
To set: Pull up the lever. For better holding power, first
depress the brake pedal and hold it while setting the
parking brake.
To release: Pull up the lever slightly (1) , press the lock
release button (2), and lower (3).
To remind you that the parking brake is set, the parking brake
reminder light in the instrument panel remains on until you
release the parking brake.
CAUTION
Before driving, make sure the parking brake is fully
released
and that the parking brake reminder light is off.

STARTING AND DRIVING
225
HOW TO START THE ENGINE
Before cranking
1. Apply the parking brake firmly.
2. Turn off unnecessary lights and accessories.
3.Manual transmission : Press the clutch pedal to the floor
and shift the transmission into neutral. Hold the clutch pedal
to the floor until the engine is started. A starter safety device
will prevent the starter from operating if the clutch pedal is not
fully depressed.
Automatic transmission : Put the selector lever in ºPº. If you
need to restart the engine while the vehicle is moving, put the
selector lever in ºNº. A starter safety device will prevent the
starter from operating if the selector lever is in any drive
position.
4. For automatic transmission only :Depress the brake
pedal and hold it to the floor until driving off.
Starting the engine
Before starting the engine, be sure to follow the instructions in
ºBefore crankingº.
Normal starting procedure
The multiport fuel injection system/sequential multiport fuel
injection system in your engine automatically controls the
proper air±fuel mixture for starting. You can start a cold or hot
engine as follows:
1. With your foot off the accelerator pedal, crank the engine by
turning the key to ºSTARTº. Release it when the engine starts. 2. After the engine runs for about 10 seconds, you are ready
to drive.
If the weather is below freezing, let the engine warm up for a
few minutes before driving. Do not leave the vehicle while the
engine is warming up.
If the engine stalls ...
Simply restart it , using the correct procedure given in normal
starting.
If the engine will not start
See ºIf your vehicle will not startº on page 263.
NOTICE
Do not crank for more than 30 seconds at a time. This
may overheat the starter and wiring systems.
Do not race a cold engine.
If the engine becomes difficult to start or stallsfrequently, have the engine checked immediately.

STARTING AND DRIVING
226
AUTOMATIC TRANSMISSION
Your automatic transmission has a shift lock system to
minimize the possibility of incorrect operation. This
means you can only shift out of ºPº position when the
brake pedal is depressed with the ignition switch in ºONº
position. ()
SV31020

The shift position is displayed on the instrument
cluster.
P: Parking, engine starting and key removal position
R: Reverse position
N: Neutral position
D: Normal driving position (Shifting into overdrive
possible)
M: Position for manual shifting up or downshifting
When the cruise control is being used, even if you
downshift from º5º to º4º, engine braking will not be
enabled because the cruise control is not cancelled. For
the operation to decrease the vehicle speed, see page
239.
3, 2: Position for more powerful engine braking
L: Position for maximum engine braking

STARTING AND DRIVING
227
Correct use of the automatic transmission is explained in
the following parts.
(a) Normal driving
(b) Driving in M mode
(c) Using engine braking
(d) Using the º3º, º2º and ºLº positions
(e) Backing up
(f) Parking
(g) Good driving practice
(h) Rocking your vehicle if stuck
(i) If you cannot shift the selector lever
(j) If the ºECT PWRº indicator light flashes

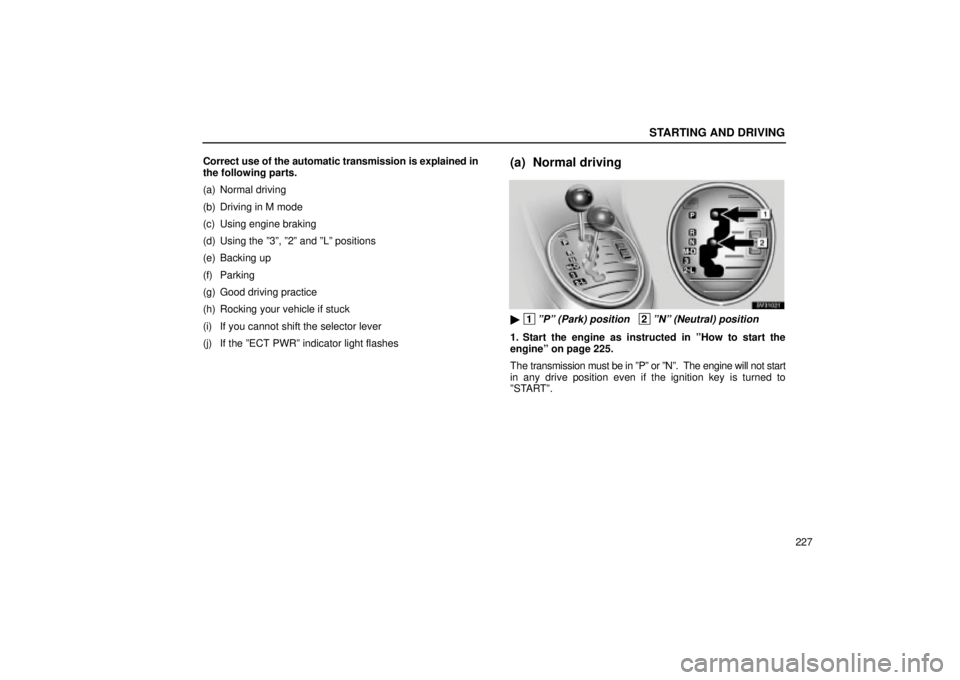

(a) Normal driving
SV31021

1ºPº (Park) position 2ºNº (Neutral) position
1. Start the engine as instructed in ºHow to start the
engineº on page 225.
The transmission must be in ºPº or ºNº. The engine will not start
in any drive position even if the ignition key is turned to
ºSTARTº.
