AIR CONDITIONING
188

SECTION 2 ± 2
189
AIR CONDITIONING AND AUDIO
Audio
Audio system190
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .

AUDIO
190
AUDIO SYSTEM

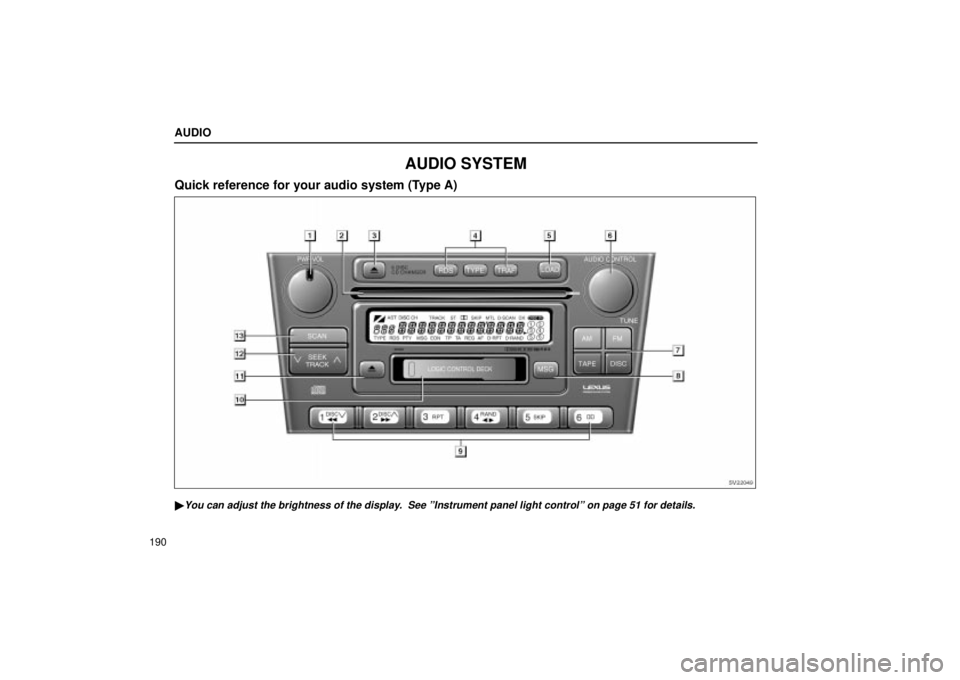

Quick reference for your audio system (Type A)
SV22049

You can adjust the brightness of the display. See ºInstrument panel light controlº on page 51 for details.

AUDIO
191
1Turning the system on and adjusting the volume
(See page 194 for details.)
2Compact disc slot
(See page 207 for details.)
3Ejecting a compact disc
(See page 208 for details.)
4Radio data system/Traffic announcement/
Program type
(See page 200 for details.)
5Compact disc pre±load button
(See page 207 for details.)
6Audio control knob/Frequency tuning
(See page 195 for details.)
7Mode selectors
(See page 194 for details.)
8Message
(See page 203 for details.)
9Function buttons
1 ± 6: Station selector buttons
(See page 198 for details.)
:Disc selection
(See page 210 for details.)
RPT: Automatic repeat
(See page 206 or 212 for details.) RAND:
Random access
(See page 213 for details.)
SKIP: Automatic skip of blank portions of tape
(See page 206 for details.)
 :Rewinding or reversing
(See page 205 or 212 for details.)


:Fast forwarding
(See page 205 or 212 for details.)
:


: Side change
(See page 205 for details.)
DOLBY NR button(See page 205 for details.)
10Cassette tape slot
(See page 204 for details.)
11Ejecting a cassette tape
(See page 204 for details.)
12Radio mode: Frequency tuning
(See page 197 for details.)
TAPE mode: Direct access to a desired program
(See page 206 for details.)
CD mode: Direct access to a desired program
(See page 212 for details.)
13Scan tuning button
(See page 199 for details.)

AUDIO
192
Quick reference for your audio system (Type B)
SV22045

You can adjust the brightness of the display. See ºInstrument panel light controlº on page 51 for details.

AUDIO
193
1Turning the system on and adjusting the volume
(See page 194 for details.)
2Compact disc slot
(See page 207 for details.)
3Ejecting a compact disc
(See page 208 for details.)
4Audio control knob/Frequency tuning
(See page 195 for details.)
5Mode selectors
(See page 194 for details.)
6Cassette tape slot
(See page 204 for details.)
7Function buttons
1 ± 6: Station selector buttons
(See page 198 for details.)
:Disc selection
(See page 210 for details.)
RPT: Automatic repeat
(See page 206 or 212 for details.)
RAND: Random access
(See page 213 for details.)
SKIP: Automatic skip of blank portions of tape
(See page 206 for details.)
:Rewinding or reversing
(See page 205 or 212 for details.)


:Fast forwarding
(See page 205 or 212 for details.)
:


: Side change
(See page 205 for details.)
DOLBY NR button
(See page 205 for details.)
8Ejecting a cassette tape
(See page 204 for details.)
9Radio mode: Frequency tuning
(See page 197 for details.)
TAPE mode: Direct access to a desired program
(See page 206 for details.)
CD mode: Direct access to a desired program
(See page 212 for details.)
10Scan tuning button
(See page 199 for details.)

AUDIO
194
Using your audio system: some basics
This section describes some of the basic features of the Lexus
audio system. Some information may not pertain to your
system.
Your audio system works when the ignition key is in the ºACCº
or ºONº position.
NOTICE
To prevent the battery from being discharged, do not leave the car audio on longer than necessary when theengine is not running.
(a) Turning the system on and off
SV22050
Push this knob to turn the audio system on and off. Turn
this knob to adjust the volume.
The system turns on in the last mode used.
SV22051
Push ºAMº, ºFMº, ºT APEº or ºDISCº to turn on that mode.
The selected mode turns on directly.
Push these buttons if you want to switch from one mode to
another.
If the tape or disc is not set, the cassette player or compact disc
player does not turn on.
You can turn off the cassette player by ejecting the cassette
tape. If the audio system was previously off, then the entire
audio system will be turned off when you eject the cassette
tape. If another function was previously playing, it will come on
again.

AUDIO
195
SV22039
In the ºTAPEº or ºCDº mode, the applicable functions are
shown in the lowest part of the display. Push the switch
just below to turn on each function.
(b) Tone and balance
How good an audio program sounds to you is largely
determined by the mix of the treble, mid±range, and bass
levels. In fact, different kinds of music and vocal programs
usually sound better with different mixes of treble, mid±range,
and bass.
A good balance of the left and right stereo channels and of the
front and rear sound levels is also important.
Keep in mind that if you are listening to a stereo recording or
broadcast, changing the right/left balance will increase the
volume of one group of sounds while decreasing the volume
of another.
SV22041
Each time you push the ºAUDIO CONTROLº knob, the
display changes as in the following. To adjust the tone
and balance, turn the knob.
BAS: Adjusts low±pitched tones.
MID: Adjusts mid±pitched tones.
TRE: Adjusts high±pitched tones.
FADE: Adjusts the sound balance between the front and rear
speakers.
BAL: Adjusts the sound balance between the right and left
speakers.

AUDIO
196(c) Your radio antenna
To remove an antenna, carefully turn it counterclockwise.
NOTICE
To prevent damage to the antenna, make sure it is
removed before driving your vehicle through anautomatic car wash.
(d) Your cassette player
When you insert a cassette, the exposed tape should be to the
right.
NOTICE
Do not oil any part of the cassette player, and do not insert anything except a cassette tape into the slot.
(e) Your automatic changer (Type A only)
SV22052
Your automatic changer can be store up to 6 discs and play
selected discs or continuously play all the discs set in the
player.
When you set discs into the player, make sure their labels face
up. If not, the player will display ºERR 1º and the disc number.
NOTICE
Never try to disassemble or oil any part of the compact disc player. Do not insert anything except acompact disc into the slot.
Do not insert a disc upon another one.
The player is intended for use with 12 cm (4.7 in.) discs only.

AUDIO
197
Radio operation
(a) Listening to the radio
SV22051
Push these buttons to choose either an AM or FM station.
ºAMº, ºFM1º or ºFM2º appears on the display.
SV22037
Turn the knob clockwise to step up the frequency. Turn
the knob counterclockwise to step down the frequency.
Your radio automatically changes to stereo reception when a
stereo broadcast is received. ºSTº appears on the display. If
the signal becomes weak, the radio reduces the amount of
channel separation to prevent the weak signal from creating
noise. If the signal becomes extremely weak, the radio
switches from stereo to mono reception. In this case, ºSTº
disappears from the display.
