IN CASE OF AN EMERGENCY
268
IF YOU HAVE A FLAT TIRE
1. Reduce your speed gradually, keeping a straight line.
Move cautiously off the road to a safe place ± well away from
the traffic. Avoid stopping on the center divider of a highway.
Park on a level spot with firm ground.
2. Stop the engine and turn on your emergency flashers.
3. Firmly set the parking brake and put the transmission in ºPº
(automatic) or reverse (manual).
4. Have everyone get out of the vehicle on the side away from
traffic.
5. Read the following instructions thoroughly.
CAUTION
When jacking, be sure to observe the following to
reduce the possibility of personal injury:
 Follow jacking instructions.
 Do not put any part of your body under a vehicle
supported by a jack. Personal injury may occur.
 Do not start or run the engine while your vehicle is
supported by the jack.
Stop the vehicle on a level firm ground, firmly set the
parking brake and put the transmission in ºPº
(automatic) or reverse (manual). Block the wheel
diagonally opposite to the one being changed if
necessary.
 Make sure to set the jack properly in the jack point.
Raising the vehicle with jack improperly positioned
will damage the vehicle or may allow the vehicle to fall
off the jack and cause personal injury.
 Never get under the vehicle when the vehicle is
supported by the jack alone.
 Use the jack only for lifting your vehicle during wheel
changing.
 Do not raise the vehicle with someone in the vehicle.
 When raising the vehicle, do not put an object on or
under the jack.
 Raise the vehicle only high enough to remove and
change the tire.
NOTICE
Do not continue driving with a deflated tire. Driving
even a short distance can damage a tire and wheelbeyond repair.

IN CASE OF AN EMERGENCY
269
Compact spare tire (Some models)
SV64025
The compact spare tire is designed for temporary
emergency use only.
The compact spare tire is identified by the distinctive wheel
design and color and special wording ºTEMPORARY USE
ONLYº molded into the side wall of the tire.
The standard tire should be repaired and replaced as soon as
possible.
To keep the compact spare tire noticeable, do not hide the
wheel by a wheel cover or such.
The compact spare tire saves space in your luggage
compartment, and its lighter weight helps to improve fuel
economy and permits easier installation in case of a flat tire.The compact spare tire can be used many times, if necessary.
It has tread life of up to 4800 km (3000 miles) depending on
road conditions and your driving habits. When tread wear
indicators appear on the tire, replace the tire. (See ºChecking
and replacing tiresº on page 326.)
CAUTION

The compact spare tire was designed especially for
your Lexus. Do not use it on any other vehicle.
 Do not exceed 80 km/h (50 mph) when driving with the
compact spare tire.
 Avoid sudden acceleration, sudden deceleration and
sharp turns with the compact spare tire.
NOTICE
Your ground clearance is reduced when the compact
spare tire is installed so avoid driving over obstaclesand drive slowly on rough, unpaved roads and speedbumps. Also, do not attempt to go through an automatic
car wash as the vehicle may get caught, resulting in damage.

IN CASE OF AN EMERGENCY
270
Access to spare tire (SportCross)
SV41029
1. Pull up the deck board.
SV41030
2. Take off the hook at the rear of the deck board.
3. Lift up the back side of the board and secure the board
by hooking it at the top of the back door opening with the
hook at the edge of the strap.
Make sure the board is secured and does not fall down.

IN CASE OF AN EMERGENCY
271

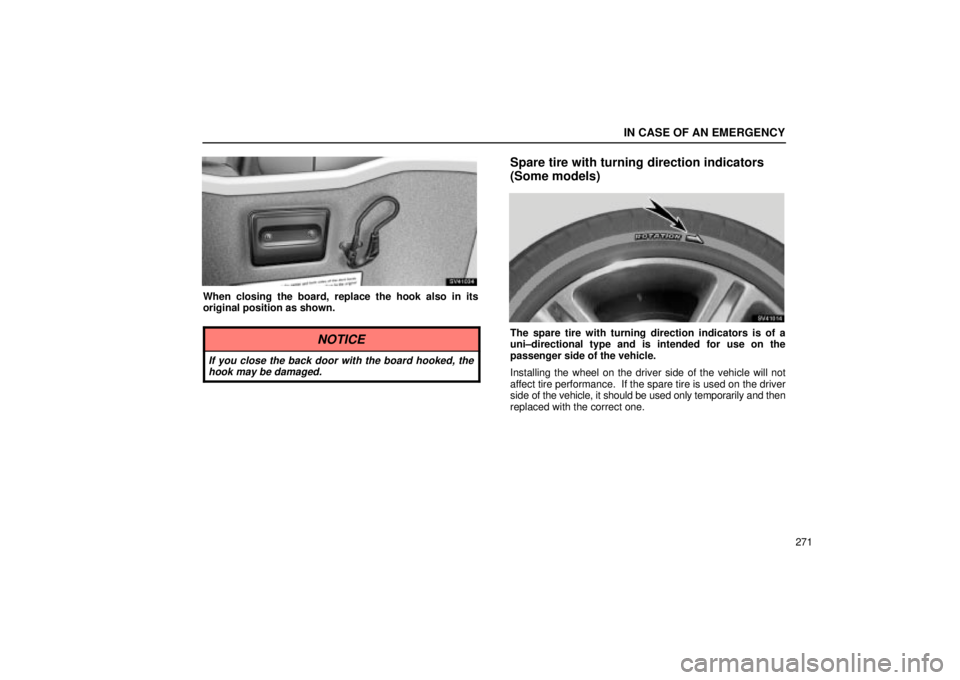

SV41034
When closing the board, replace the hook also in its
original position as shown.
NOTICE
If you close the back door with the board hooked, thehook may be damaged.
Spare tire with turning direction indicators
(Some models)
SV41014
The spare tire with turning direction indicators is of a
uni±directional type and is intended for use on the
passenger side of the vehicle.
Installing the wheel on the driver side of the vehicle will not
affect tire performance. If the spare tire is used on the driver
side of the vehicle, it should be used only temporarily and then
replaced with the correct one.

IN CASE OF AN EMERGENCY
272

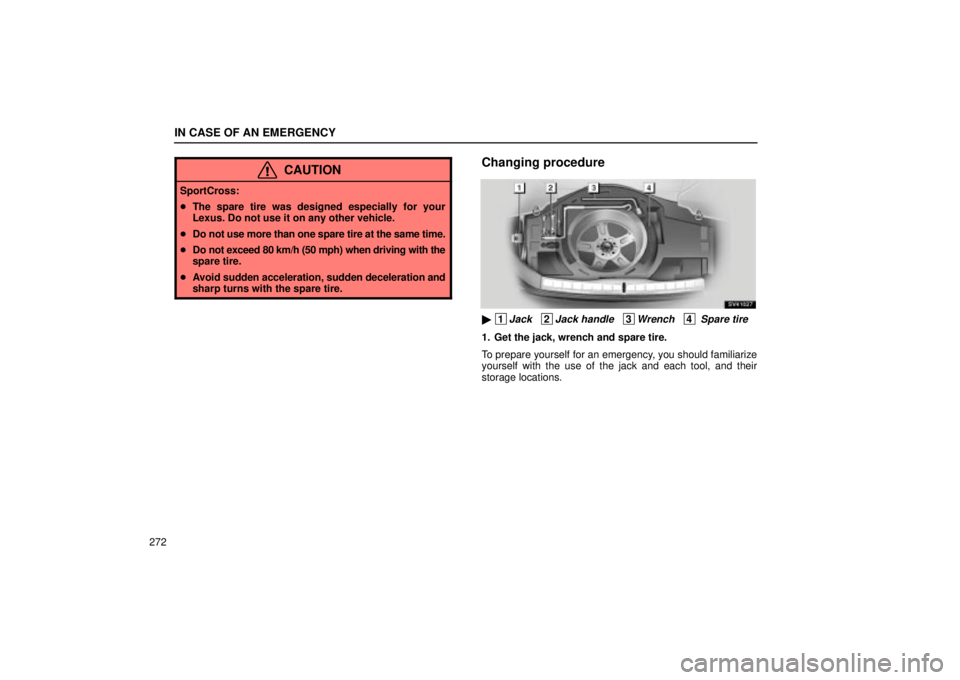

CAUTION
SportCross:
The spare tire was designed especially for your
Lexus. Do not use it on any other vehicle.
 Do not use more than one spare tire at the same time.
 Do not exceed 80 km/h (50 mph) when driving with the
spare tire.
 Avoid sudden acceleration, sudden deceleration and
sharp turns with the spare tire.
Changing procedure
SV41027

1Jack 2Jack handle 3Wrench 4 Spare tire
1. Get the jack, wrench and spare tire.
To prepare yourself for an emergency, you should familiarize
yourself with the use of the jack and each tool, and their
storage locations.

IN CASE OF AN EMERGENCY
273

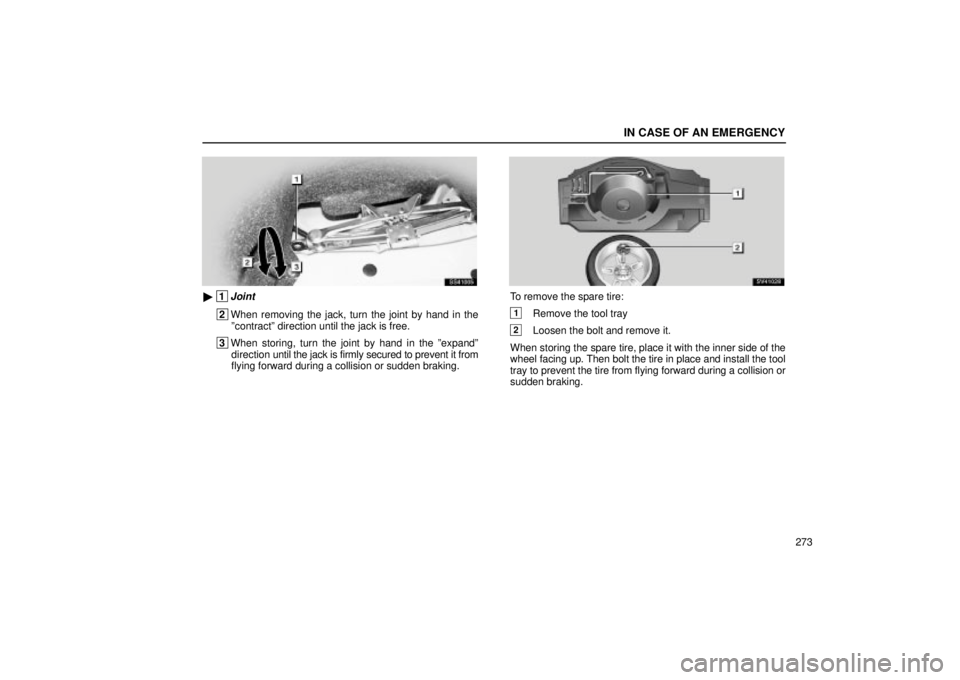

SS41005

1Joint
2When removing the jack, turn the joint by hand in the
ºcontractº direction until the jack is free.
3 When storing, turn the joint by hand in the ºexpandº
direction u ntil the jack is firmly secured to prevent it from
flying forward during a collision or sudden braking.
SV41028
To remove the spare tire:
1Remove the tool tray
2Loosen the bolt and remove it.
When storing the spare tire, place it with the inner side of the
wheel facing up. Then bolt the tire in place and install the tool
tray to prevent the tire from flying forward during a collision or
sudden braking.

IN CASE OF AN EMERGENCY
274
SV41033
2. Block the wheel diagonally opposite the flat tire to keep
the vehicle from rolling when it is jacked up.
When blocking the wheel, place a wheel block in front of the
front wheels or behind the rear wheels.
SS41008
3. Loosen all the wheel nuts.
Always loosen the wheel nuts before raising the vehicle.
Turn the wheel nuts counterclockwise to loosen them. To get
maximum leverage, fit the wrench to the nut so that the handle
is on the right side, as shown above. Grab the wrench near the
end of the handle and pull up on the handle. Be careful that the
wrench does not slip off the nut.
Do not remove the nuts yet ± just unscrew them about one±half
turn.

IN CASE OF AN EMERGENCY
275
SV04003
4. Position the jack at the jack points as shown.
Make sure the jack is positioned on a level and solid surface.
SV41031
5. After making sure no one is in the vehicle, raise it high
enough so that the spare tire can be installed.
Allow for the fact that you need more ground clearance when
putting on the spare tire than when removing the flat tire.
To raise the vehicle, insert the jack handle into the jack (it is a
loose fit) and turn it clockwise. As the jack touches the vehicle
and begins to lift, double±check that it is properly positioned.
CAUTION
Never get under the vehicle when the vehicle is
supported by the jack alone.

IN CASE OF AN EMERGENCY
276

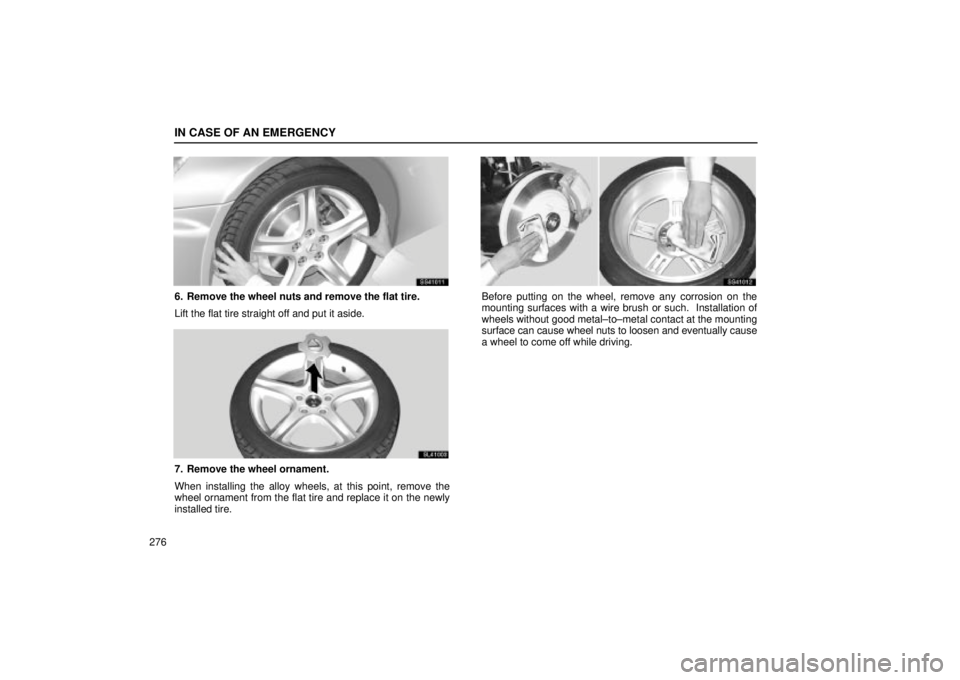

SS41011
6. Remove the wheel nuts and remove the flat tire.
Lift the flat tire straight off and put it aside.
SL41003
7. Remove the wheel ornament.
When installing the alloy wheels, at this point, remove the
wheel ornament from the flat tire and replace it on the newly
installed tire.
SS41012
Before putting on the wheel, remove any corrosion on the
mounting surfaces with a wire brush or such. Installation of
wheels without good metal±to±metal contact at the mounting
surface can cause wheel nuts to loosen and eventually cause
a wheel to come off while driving.

IN CASE OF AN EMERGENCY
277
SS41013
8. Reinstall all the wheel nuts finger tight.
Align the holes in the wheel with the bolts. Then lift up the
wheel and get at least the top bolt started through its hole.
Wiggle the tire and press it back over the other bolts.
Reinstall the wheel nuts and tighten them as much as you can
by hand. Press the tire back and see if you can tighten them
more.
SS41014
9. Lower the vehicle completely and tighten the wheel
nuts.
Turn the jack handle counterclockwise to lower the vehicle.
Use only the wheel nut wrench to tighten the nuts. Do not use
other tools or any additional leverage other than your hands,
such as a hammer, pipe or your foot. Make sure the wrench
is securely engaged over the nut.
Tighten each nut a little at a time in the order shown. Repeat
the process until all the nuts are tight.
CAUTION
 When lowering the vehicle, make sure all portions of
your body and all other persons around will not be
injured as the vehicle is lowered to the ground.
 As soon as possible after changing wheels, have the
wheel nuts tightened by torque wrench at 103 N´m
(10.5 kgf´m, 76 ft´lbf.).
