COMFORT ADJUSTMENT
11 8
SV16072

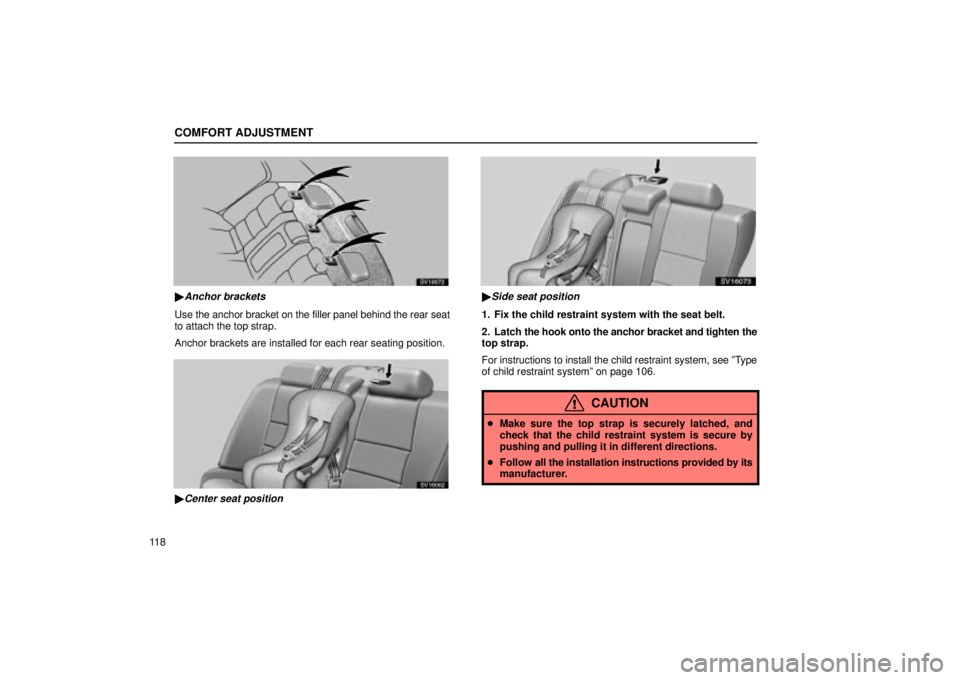

Anchor brackets
Use the anchor bracket on the filler panel behind the rear seat
to attach the top strap.
Anchor brackets are installed for each rear seating position.
SV16062

Center seat position
SV16073

Side seat position
1. Fix the child restraint system with the seat belt.
2. Latch the hook onto the anchor bracket and tighten the
top strap.
For instructions to install the child restraint system, see ºType
of child restraint systemº on page 106.
CAUTION
 Make sure the top strap is securely latched, and
check that the child restraint system is secure by
pushing and pulling it in different directions.
 Follow all the installation instructions provided by its
manufacturer.

SECTION 1 ± 7
11 9
INSTRUMENTS AND CONTROLS
Theft deterrent
Theft deterrent system120
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft prevention labels 121
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

THEFT DETERRENT
120
THEFT DETERRENT SYSTEM
To deter theft of the vehicle, this system is designed to
sound an alarm if any of the doors, trunk or hood is
forcibly unlocked or the battery terminal is disconnected
and then reconnected while the vehicle is locked.*
NOTE: *The system operating condition can be changed.Ask your Lexus dealer for details.
The alarm blows the horn intermittently and flashes the
headlights, tail lights and other exterior lights.
SV17002
Setting the system
1. Turn the ignition key to the ºLOCKº position and
remove it.
The engine immobiliser system causes the indicator light to
flash. 2. Close and lock all the doors, trunk and hood using an
ignition key or wireless remote control.
The flashing indicator light will remain on when all the doors,
trunk and hood are closed and locked.
3. After 30 seconds, the indicator starts flashing and the
system is set.
Cancelling the system
When you unlock any door or trunk using an ignition key
or wireless remote control, the system is cancelled.
Activating the system
The alarm sounds for 60 seconds if any of the following are
operated:


Unlocking any door or trunk without using an ignition key or
wireless remote control.

Opening the hood forcibly.

Reconnecting the battery.
If any door is unlocked and the ignition key is not in the ignition
switch during the alarm sounding, its door is automatically
locked.
To stop the alarm: Use either of the following methods.

Unlock the door or trunk using an ignition key or wireless
remote control.

Turn the ignition switch on.

THEFT DETERRENT
121
Testing the system
1. Open all the windows.
2. Set the system as described above.
The front doors should be locked with the ignition key or
wireless remote control. Be sure to wait until the indicator light
starts flashing.
3. Unlock one of the doors from the inside.
The system should activate the alarm.
4. Unlock any of the doors with a key or the wireless
remote control to cancel the system.
5. Repeat this operation for the other doors and hood.
When testing the hood, also check that the system is activated
when the battery terminal is disconnected and then
reconnected.
If the system does not work properly, have it checked by your
Lexus dealer.
NOTICE
Disconnecting the battery may result in the erasure of information you have set in the computer memory. After
reconnecting the battery, check that the memorized data has been retained. If it has been erased, input it into
the computer once more.
THEFT PREVENTION LABELS
17L002
Your new vehicle carries theft prevention labels which are
approximately 56 mm (2.20 in.) by 16 mm (0.63 in.).
The purpose of these labels is to reduce the incidence of
vehicle thefts by facilitating the tracing and recovery of parts
from stolen vehicles. The label is designed so that once it is
applied to a surface, any attempt to remove it will result in
destroying the integrity of the label. Transferring these labels
intact from one part to another will be impossible.
NOTICE
You should not attempt to remove the theft prevention labels as it may violate certain state or federal laws.

THEFT DETERRENT
122

SECTION 2 ± 1
123
AIR CONDITIONING AND AUDIO
Air conditioningAutomatic air c
onditioning controls
. . . . . . . . . . . . . . . . . . . . . . . . . 124

AIR CONDITIONING
124
AUTOMATIC AIR CONDITIONING CONTROLS
SV21009

You can adjust the brightness of the display. SeeºInstrument panel light controlº on page 46 for details.
The automatic air conditioning automatically maintains
the set temperature.
In the automatic operation mode, the air conditioning selects
the most suitable fan speed, air flow, air intake and on±off of
the air conditioning according to the temperature.
The ignition key must be in the ºONº position.
NOTICE
To prevent the battery from being discharged, do notleave the air conditioning on longer than necessarywhen the engine is not running.

AIR CONDITIONING
125
1Automatic air flow control position
2Air flow control dial
3Air intake control button
4Temperature control dial
5Automatic fan speed control position
6Air conditioning on±off button
7Fan speed control dial

AIR CONDITIONING
126
SV21006

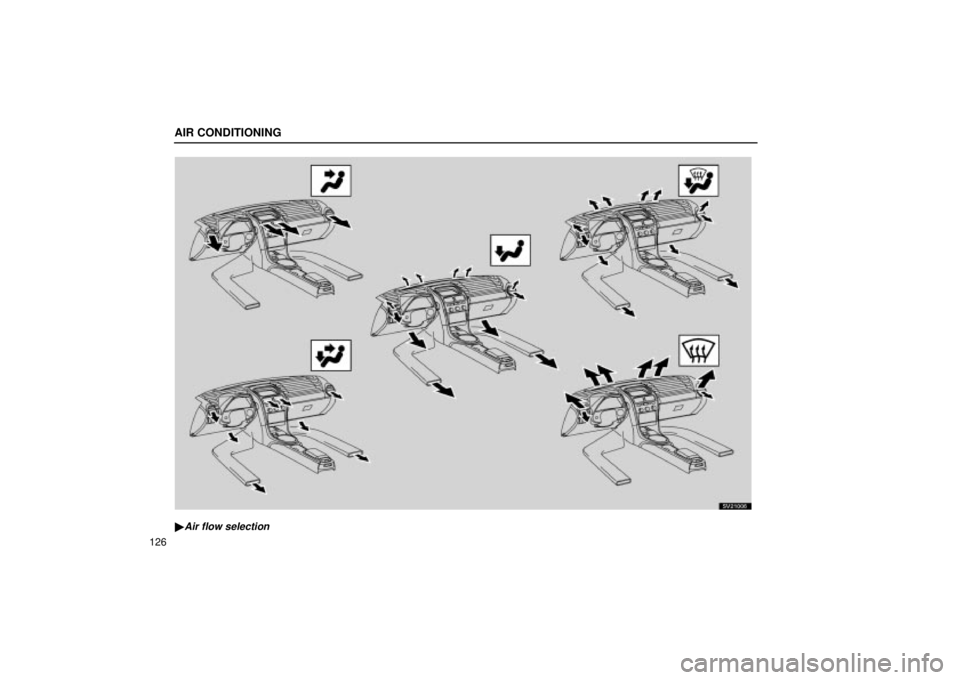

Air flow selection

AIR CONDITIONING
127

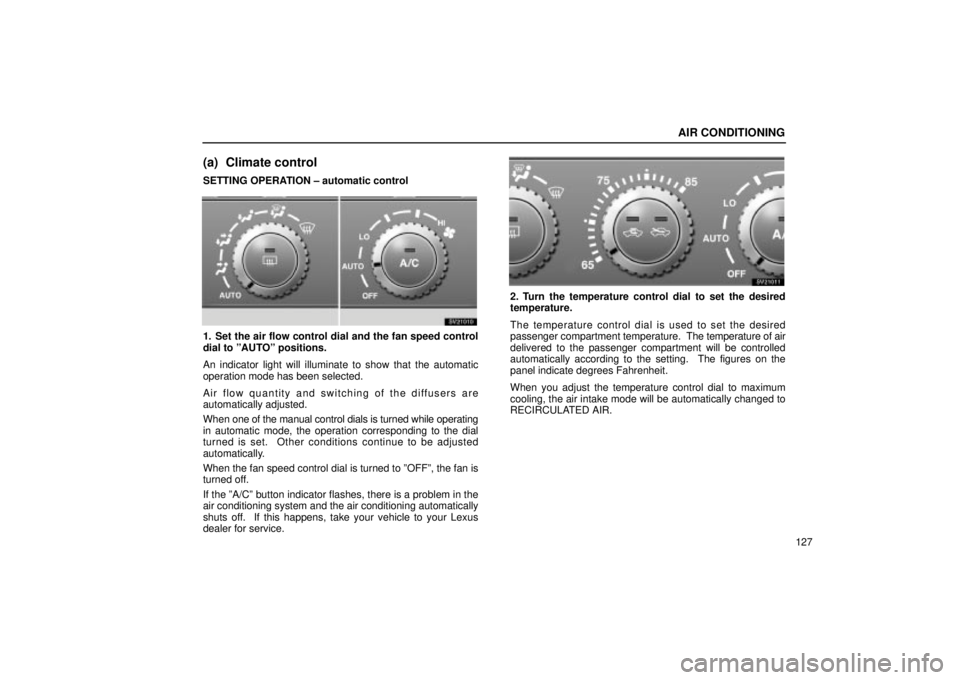

(a) Climate control
SETTING OPERATION ± automatic control
SV21010
1. Set the air flow control dial and the fan speed control
dial to ºAUTOº positions.
An indicator light will illuminate to show that the automatic
operation mode has been selected.
Air flow quantity and switching of the diffusers are
automatically adjusted.
When one of the manual control dials is turned while operating
in automatic mode, the operation corresponding to the dial
turned is set. Other conditions continue to be adjusted
automatically.
When the fan speed control dial is turned to ºOFFº, the fan is
turned off.
If the ºA/Cº button indicator flashes, there is a problem in the
air conditioning system and the air conditioning automatically
shuts off. If this happens, take your vehicle to your Lexus
dealer for service.
SV21011
2. Turn the temperature control dial to set the desired
temperature.
The temperature control dial is used to set the desired
passenger compartment temperature. The temperature of air
delivered to the passenger compartment will be controlled
automatically according to the setting. The figures on the
panel indicate degrees Fahrenheit.
When you adjust the temperature control dial to maximum
cooling, the air intake mode will be automatically changed to
RECIRCULATED AIR.
