AUDIO
158(h) If the player malfunctions
If the player or another unit equipped with the player
malfunctions, your audio system will display one of the four
following error messages.
If ºERR 1º appears on the display:
It indicates that the disc
is dirty, damaged, or it was inserted up±side down. Clean the
disc or insert it correctly.
If ºERR 3º or ºERR 4º appears on the display: It indicates
there is a trouble inside the system. Eject the disc.
If the malfunction is not rectified: Take your vehicle to your
Lexus dealer.
Car audio system operating hints
NOTICE
To ensure correct audio system operations:
Be careful not to spill beverages over the audio system.
Do not put anything other than a cassette tape orcompact disc into the cassette tape slot or compact
disc slot.
The use of a cellular phone inside or near the vehiclemay cause a noise from the speakers of the audiosystem which you are listening to. However, thisdoes not indicate a malfunction.
Radio reception
Usually, the problem with radio reception does not mean there
is a problem with your radio ± it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and terrain can interfere with
FM reception. Power lines or telephone wires can interfere
with AM signals. And of course, radio signals have a limited
range. The farther you are from a station, the weaker its signal
will be. In addition, reception conditions change constantly as
your vehicle moves.
Here are some common reception problems that probably do
not indicate a problem with your radio:

AUDIO
159
FM
Fading and drifting stations
± Generally, the effective range
of FM is about 40 km (25 miles). Once outside this range, you
may notice fading and drifting, which increase with the
distance from the radio transmitter. They are often
accompanied by distortion.
Multi±path ± FM signals are reflective, making it possible for
two signals to reach your antenna at the same time. If this
happens, the signals will cancel each other out, causing a
momentary flutter or loss of reception.
Static and fluttering ± These occur when signals are blocked
by buildings, trees, or other large objects. Increasing the bass
level may reduce static and fluttering.
Station swapping ± If the FM signal you are listening to is
interrupted or weakened, and there is another strong station
nearby on the FM band, your radio may tune in the second
station until the original signal can be picked up again. AM
Fading
± AM broadcasts are reflected by the upper
atmosphere ± especially at night. These reflected signals can
interfere with those received directly from the radio station,
causing the radio station to sound alternately strong and weak.
Station interference ± When a reflected signal and a signal
received directly from a radio station are very nearly the same
frequency, they can interfere with each other, making it dif ficult
to hear the broadcast.
Static ± AM is easily affected by external sources of electrical
noise, such as high tension power lines, lightening, or electrical
motors. This results in static.

AUDIO
160Caring for your cassette player and tapes
For the best performance for your cassette player and tapes:
Clean the tape head and other parts regularly.

A dirty tape head or tape path can decrease sound quality
and tangle your cassette tapes. The easiest way to clean
them is by using a cleaning tape. (A wet type is
recommended.) Use high±quality cassettes:

Low±quality cassette tapes can cause many problems,
including poor sound, inconsistent playing speed, and
constant auto±reversing. They can also get stuck or
tangled in the cassette player.
 Do not use a cassette if it has been damaged or tangled or
if its label is peeling off.
 Do not leave a cassette in the player if you are not listening
to it, especially if it is hot outside.
 Store cassettes in their cases and out of direct sunlight.
 Avoid using cassettes with a total playing time longer than
100 minutes (50 minutes per side). The tape used in these
cassettes is thin and could get stuck or tangled in the
cassette player.

AUDIO
161
Caring for your compact disc player and discs
20L037

Use only compact discs labeled as shown above. CD±R
(CD±Recordable), CD±RW (CD±Re±writable) and
personal computer use CD±ROMs may not be playable on
your compact disc player.
 Your compact disc player is intended for use with 12 cm (4.7
in.) discs only.
 Extremely high temperature can keep your compact disc
player from working. On hot days, use air conditioning to
cool the vehicle interior before you listen to a disc.
 Bumpy roads or other vibrations may make your compact
disc player skip.
 If moisture gets into your compact disc player, you may not
hear any sound even though your compact disc player
appears to be working. Eject all discs from the player and
wait until it dries.
SS22072a

AUDIO
162Your automatic changer cannot play special shaped or
low±quality compact discs such as those shown here. Do not
use them as the changer could be damaged.
20L038

Correct
Wrong

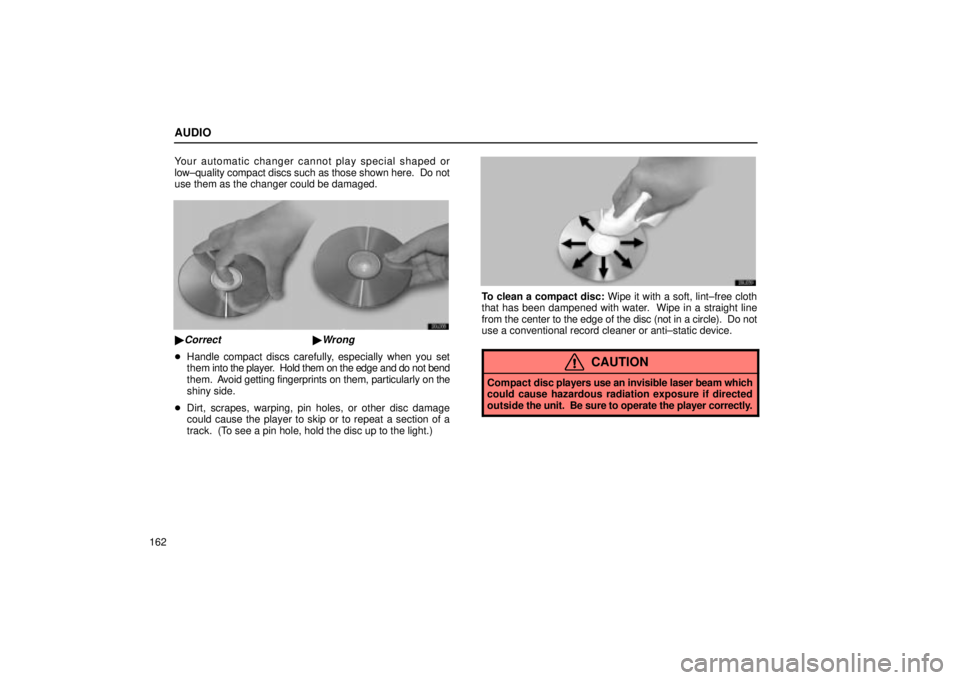

Handle compact discs carefully, especially when you set
them into the player. Hold them on the edge and do not bend
them. A void getting fingerprints on them, particularly on the
shiny side.
 Dirt, scrapes, warping, pin holes, or other disc damage
could cause the player to skip or to repeat a section of a
track. (To see a pin hole, hold the disc up to the light.)
20L039
To clean a compact disc: Wipe it with a soft, lint±free cloth
that has been dampened with water. Wipe in a straight line
from the center to the edge of the disc (not in a circle). Do not
use a conventional record cleaner or anti±static device.
CAUTION
Compact disc players use an invisible laser beam which
could cause hazardous radiation exposure if directed
outside the unit. Be sure to operate the player correctly.

SECTION 3 ± 1
163
STARTING AND DRIVING
Starting and driving
Three±way catalytic converter164
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine exhaust caution 165
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Before starting the engine 166
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch with steering lock 167
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking brake 168
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
How to start the engine 168
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission 169
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electronic throttle control system 179
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise control 180
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Traction control system 183
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system 184
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Brake pad wear indicators 188
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Types of tires 188
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . Limited ±slip differential
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

STARTING AND DRIVING
164
THREE±WAY CATALYTICCONVERTER
SV31032
Three±way catalytic converters are emission control
devices installed in the exhaust system.
It looks somewhat like a muffler, but its purpose is to reduce
pollutants in the exhaust gas.
CAUTION
Keep people and combustible materials away from
the exhaust pipe while the engine is running. The
exhaust gas is very hot.
 Do not drive, idle or park your vehicle over anything
that might burn easily such as grass, leaves, paper or
rags.
NOTICE
A large amount of unburned gases flowing into the three±way catalytic converter may cause it to overheatand create a fire hazard. To prevent this and otherdamage, observe the following precautions:
Use only unleaded gasoline.
Do not drive with an extremely low fuel level; runningout of fuel could cause the engine to misfire, creatingan excessive load on the three±way catalyticconverter.
Do not allow the engine to run at idle speed for morethan 20 minutes.
Avoid racing the engine.
Do not push±start or pull±start your vehicle.
Do not turn off the ignition while the vehicle ismoving.
Keep your engine in good running order.Malfunctions in the engine electrical system,electronic ignition system or fuel system could cause
an extremely high three±way catalytic converter temperature.
If the engine becomes difficult to start or stallsfrequently, take your vehicle in for a check±up assoon as possible. Remember, your Lexus dealer
knows your vehicle and its three±way catalyticconverter system best.

STARTING AND DRIVING
165

To ensure that the three±way catalytic converter and
the entire emission control system operate properly,your vehicle must receive the periodic inspectionsrequired by the Lexus Maintenance Schedule. Forscheduled maintenance information, refer to theºOwner's Manual Supplement/ScheduledMaintenanceº.ENGINE EXHAUST CAUTION
CAUTION
 Avoid inhaling the engine exhaust. It contains
carbon monoxide, which is a colorless and odorless
gas. It can cause unconsciousness or even death.
 Make sure the exhaust system has no holes or loose
connections. The system should be checked from
time to time. If you hit something, or notice a change
in the sound of the exhaust, have the system checked
immediately.
 Do not run the engine in a garage or enclosed area
except for the time needed to drive the vehicle in or
out. The exhaust gases cannot escape, making this
a particularly dangerous situation.
 Do not remain for a long time in a parked vehicle with
the engine running. If it is unavoidable, however, do
so only in an unconfined area and adjust the heating
or cooling system to force outside air into the vehicle.
 Keep the trunk lid closed while driving. An open or
unsealed trunk lid may cause exhaust gases to be
drawn into the vehicle.

STARTING AND DRIVING
166
To allow proper operation of your vehicle's
ventilation system, keep the inlet grilles in front of the
windshield clear of snow, leaves, or other
obstructions.
 If you smell exhaust fumes in the vehicle, drive with
the windows open and the trunk lid closed. Have the
cause immediately located and corrected.BEFORE STARTING THE ENGINE
1. Check the area around the vehicle before entering it.
2. Adjust seat position, seatback angle, head restraint height
and steering wheel angle.
3. Adjust the inside and outside rear view mirrors.
4. Lock all doors.
5. Fasten seat belts.
Remember to check that the service reminder indicators
function when turning the key to ºONº, and check the fuel
gauge to see that you have sufficient fuel.

STARTING AND DRIVING
167
IGNITION SWITCH WITH STEERINGLOCK
SS31002
ºSTARTº ± Starter motor on. The key will return to the
ºONº position when released.
For starting tips, see page 168.
ºONº ± Engine on and all accessories on.
This is the normal driving position.
NOTICE
Do not leave the key in the ºONº position if the engine
is not running. The battery will discharge and theelectronic ignition system could be damaged.
ºACCº ± Accessories such as the radio operate, but the
engine is off. If you leave the key in the ºACCº or ºLOCKº position and open
the driver's door, a buzzer will remind you to remove the key.*
NOTE: *The volume or interval of beep sound can be
changed. Ask your Lexus dealer for details.
SS31003
ºLOCKº ± Engine is off and the steering wheel is locked.
The ignition key can be removed only at this position.
To turn the key from ºACCº to the ºLOCKº position you must put\
the transmission selector lever in the ºPº position and you must
push in the key.
Once you remove the key, the engine immobiliser system is
automatically set. See ºEngine immobiliser systemº on page
10.
When starting the engine, the key may seem stuck at the
ºLOCKº position. To free it, first be sure the key is pushed all
the way in, and then rock the steering wheel slightly while
turning the key gently.
If, in an emergency, you must turn the engine off while the
vehicle is moving, turn the key only to ºACCº.
