PICTORIAL INDEX
xi

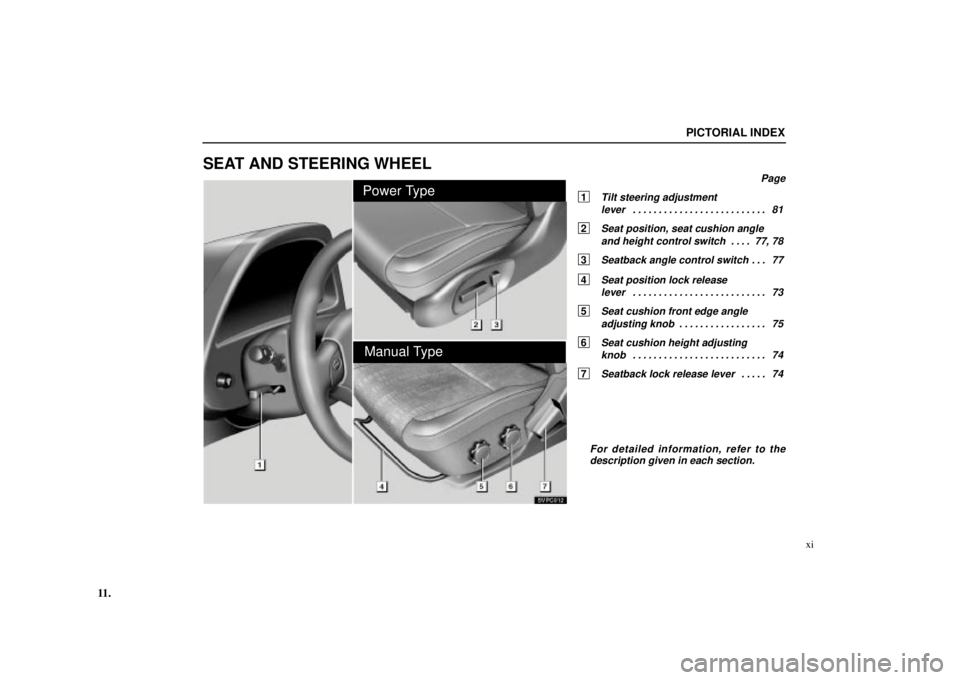

SEAT AND STEERING WHEEL
Page
1 Tilt steering adjustmentlever 81 . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Seat position, seat cushion angle
and height control switch 77, 78 . . . .
3 Seatback angle control switch 77 . . .
4 Seat position lock release
lever 73 . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Seat cushion front edge angle
adjusting knob 75 . . . . . . . . . . . . . . . . .
6 Seat cushion height adjusting
knob 74 . . . . . . . . . . . . . . . . . . . . . . . . . .
7 Seatback lock release lever 74 . . . . .
For detailed information, refer to the description given in each section.

12.
SVPC013
PICTORIAL INDEX
xii
EXTERIOR VIEW
Page

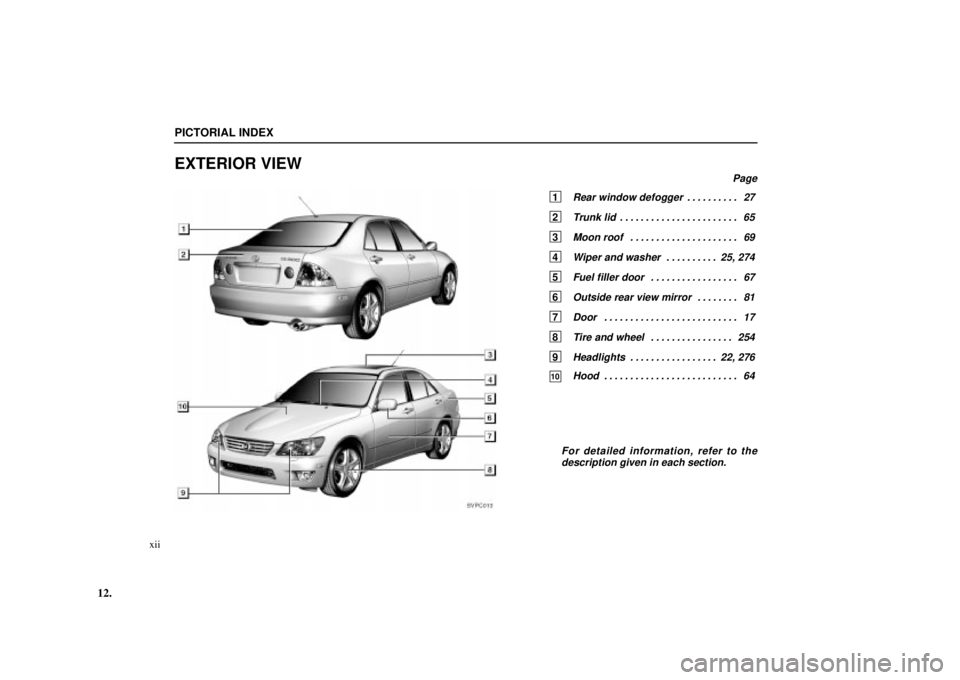

1 Rear window defogger27
. . . . . . . . . .
2 Trunk lid 65
. . . . . . . . . . . . . . . . . . . . . . .
3 Moon roof 69
. . . . . . . . . . . . . . . . . . . . .
4 Wiper and washer 25, 274
. . . . . . . . . .
5 Fuel filler door 67
. . . . . . . . . . . . . . . . .
6 Outside rear view mirror 81
. . . . . . . .
7 Door 17
. . . . . . . . . . . . . . . . . . . . . . . . . .
8 Tire and wheel 254
. . . . . . . . . . . . . . . .
9 Headlights 22, 276
. . . . . . . . . . . . . . . . .
10 Hood 64
. . . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the description given in each section.

13.
PICTORIAL INDEX
xiii

BASIC OPERATION
1
QUICK REFERENCE
Driver's seat2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Steering wheel 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Automatic transmission 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Headlight and turn signal switch 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiper switch 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .

BASIC OPERATION ± QUICK REFERENCE
2
1. DRIVER'S SEAT
SVBA012
SVBA011
Power TypeManual Type
Seat
position
Seatback angle
Seat cushion height
Seat cushion angle
Head restraint height
Head restraint angle
Seat
position
Seat cushion angle
Seatback angle
Head restraint height
Head restraint angle

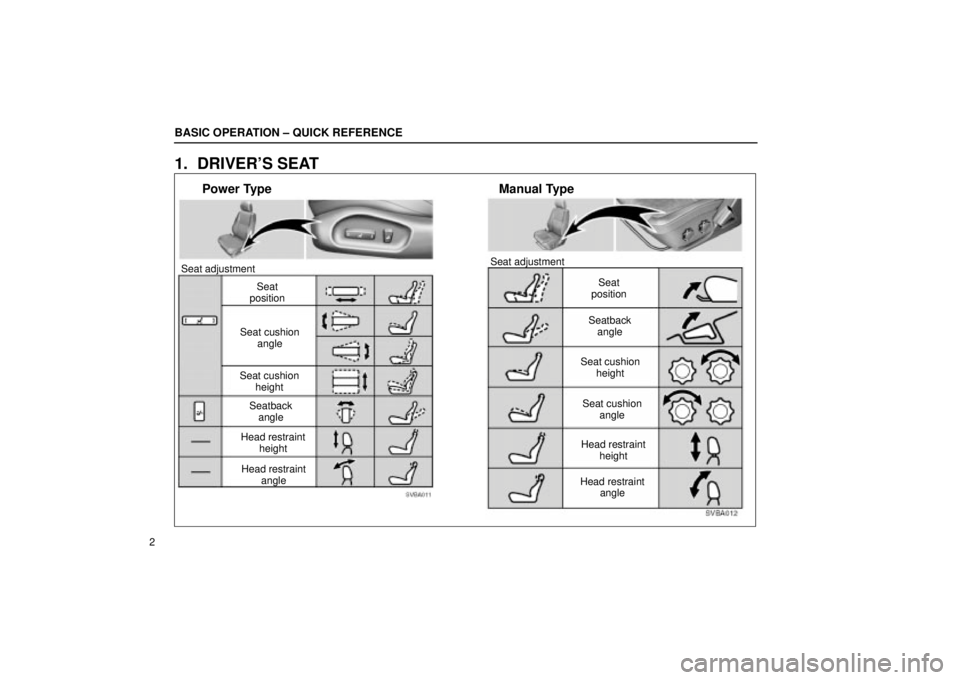

Seat adjustment Seat adjustment
Seat cushion height

BASIC OPERATION ± QUICK REFERENCE
3
2. STEERING WHEEL

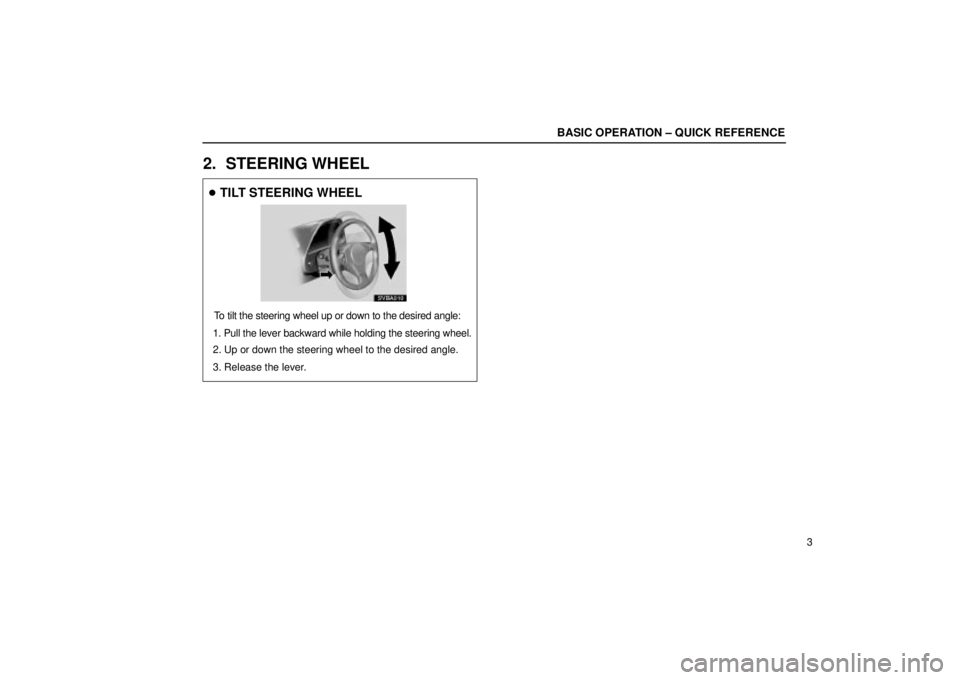

To tilt the steering wheel up or down to the desired angle:
1. Pull the lever backward while holding the steering wheel.
2. Up or down the steering wheel to the desired angle.
3. Release the lever.

TILT STEERING WHEEL
SVBA010

OPERATION OF SELECTOR LEVER

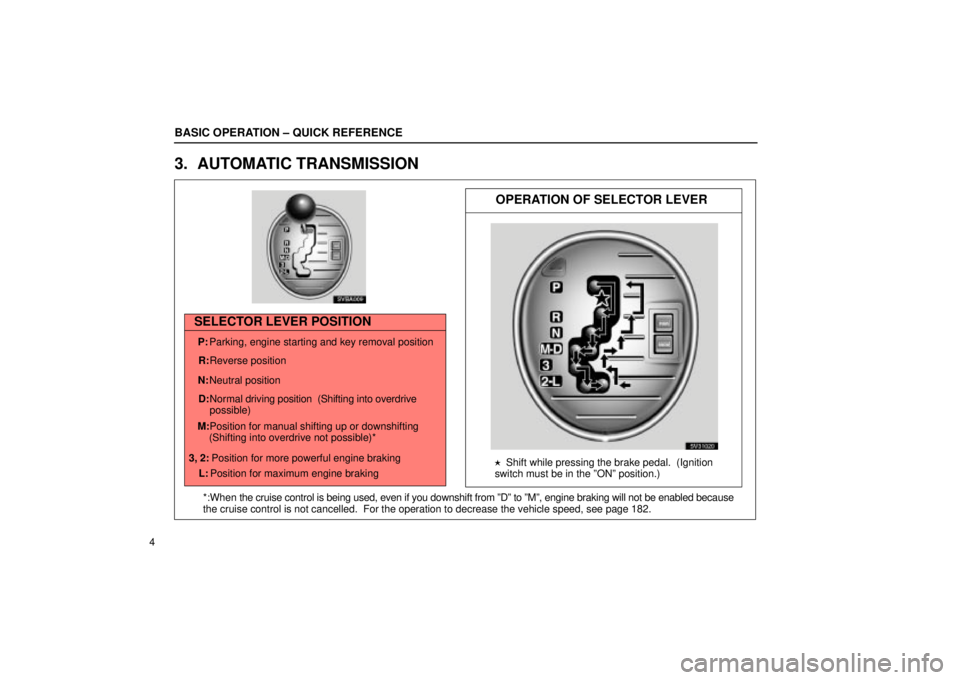

SELECTOR LEVER POSITION
P: Parking, engine starting and key removal position
R: Reverse position
N: Neutral position
D: Normal driving position (Shifting into overdrive
possible)
M: Position for manual shifting up or downshifting
(Shifting into overdrive not possible)*
3, 2: Position for more powerful engine braking
L: Position for maximum engine braking
SVBA009
Shift while pressing the brake pedal. (Ignition
switch must be in the ºONº position.)
*:When the cruise control is being used, even if you downshift from ºDº t\
o ºMº, engine braking will not be enabled because
the cruise control is not cancelled. For the operation to decrease the \
vehicle speed, see page 182.
SV31020
BASIC OPERATION ± QUICK REFERENCE
4
3. AUTOMATIC TRANSMISSION

BASIC OPERATION ± QUICK REFERENCE
5
4. HEADLIGHT AND TURN SIGNAL
SWITCH
SSBA010b
SSBS010b

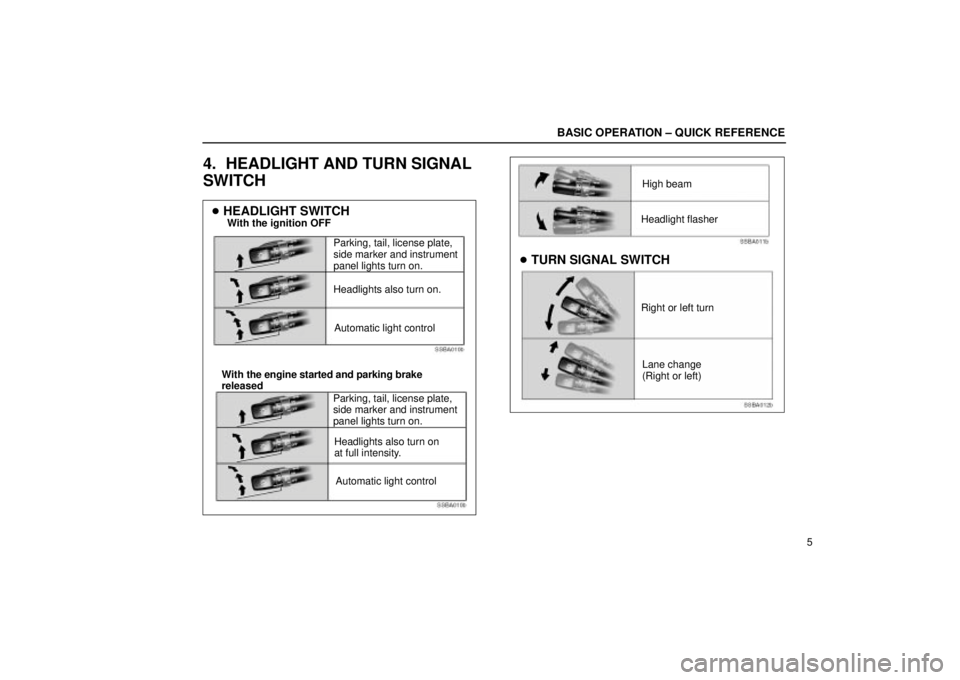

HEADLIGHT SWITCHWith the ignition OFF
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Automatic light control
Headlights also turn on.
With the engine started and parking brake
released Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights also turn on
at full intensity.
Automatic light control
SSBA012b
SSBA011b
Right or left turn
Lane change
(Right or left) High beam
Headlight flasher

TURN SIGNAL SWITCH

BASIC OPERATION ± QUICK REFERENCE
6
5. WIPER SWITCH
SSBA013b

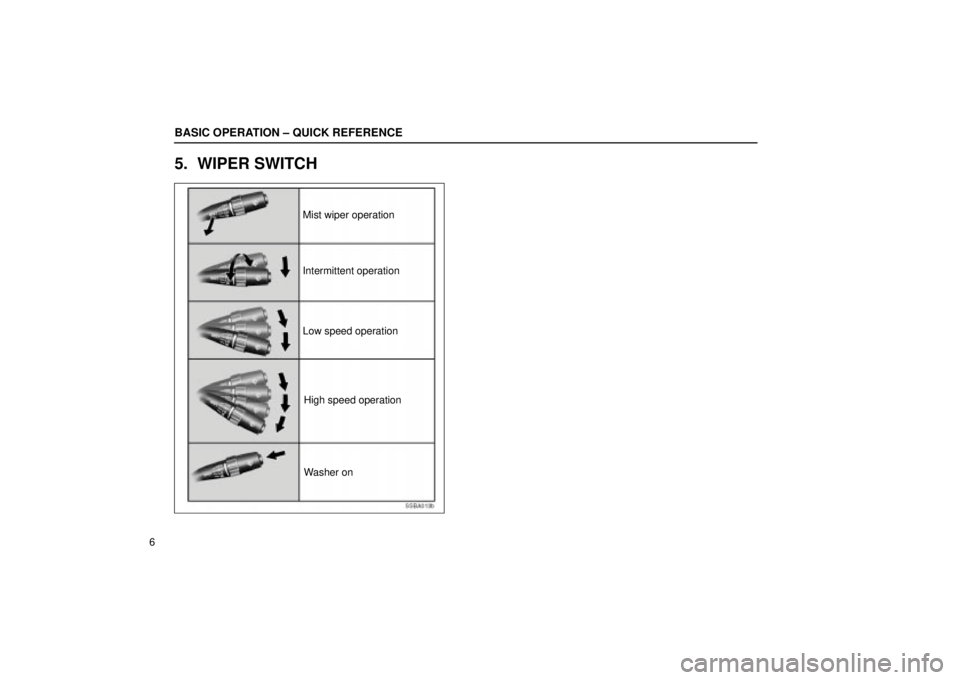

Mist wiper operation
Intermittent operation
Low speed operationHigh speed operation
Washer on

SECTION 1 ± 1
7
INSTRUMENTS AND CONTROLS
Keys and doors
Keys8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . .
Engine immobiliser system 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Doors 17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
