KEYS AND DOORS
18
CAUTION
Before driving, make sure the doors are closed and
locked, especially when small children are in the
vehicle. Along with the proper use of seat belts, locking
the doors helps prevent the driver and passengers from
being thrown out from the vehicle during an accident.
It also helps prevent the doors from being opened
unintentionally.
Locking with power door lock switch
SV11006

1Lock 2Unlock
To lock all the doors simultaneously, push the power door
lock switch on the front side. Pushing on the rear side will
unlock them.
The same switch is also located on the front passenger's side.

KEYS AND DOORS
19

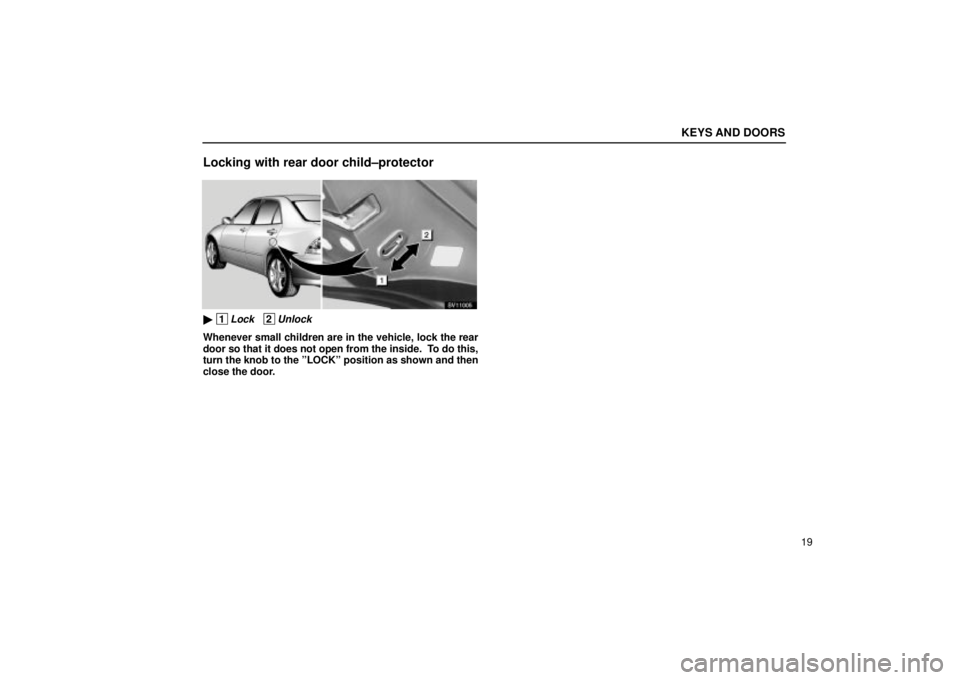

Locking with rear door child±protector
SV11005

1Lock 2Unlock
Whenever small children are in the vehicle, lock the rear
door so that it does not open from the inside. To do this,
turn the knob to the ºLOCKº position as shown and then
close the door.

KEYS AND DOORS
20

SECTION 1 ± 2
21
INSTRUMENTS AND CONTROLS
Switches
Headlight switch22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Headlight dimmer and turn signal switch 24
. . . . . . . . . . . . . . . . . . . . .
Fog light switch 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Windshield wiper and washer switch 25
. . . . . . . . . . . . . . . . . . . . . . . . .
Headlight cleaner switch 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger switch 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power window switches 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat heater switches 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.

SWITCHES
22
HEADLIGHT SWITCH
SS12002a
To turn the lights on, twist the knob on the end of the lever.
FIRST CLICKSTOP: Only the parking, tail, license plate, side
marker and instrument panel lights turn on.
SECOND CLICKSTOP: Headlights also turn on.
THIRD CLICKSTOP (ºAUTOº): The headlights and all other
lights automatically turn on depending on the darkness of the
surroundings.*
Manually twist the knob to the second clickstop to turn on
the headlights if they are needed immediately when
entering a dark tunnel, parking structure, etc.
When the headlight switch is turned to the first or second
clickstop, the brightness of the instrument cluster will be
reduced slightly unless the instrument panel light control knob
is turned fully on.
NOTE: *The operating condition or sensitivity can be changed. Ask your Lexus dealer for details.
SV12021
The automatic light control sensor is on top of the driver's side
instrument panel.
Do not place anything on the instrument panel, and/or do not
affix anything on the windshield to block this sensor.
When the headlights come on, the lights automatically turn off
about 30 seconds after any of the doors is opened and closed
with the ignition key turned to the ºACCº or ºLOCKº position\
.*
When only the taillights come on: The lights automatically turn
off with the driver's door opened and the ignition key turned to
the ºACCº or ºLOCKº position.
To turn them on again, turn the ignition key to the ºONº position,
or turn the headlight switch off and then twist the knob until the
first or second clickstop. If you are going to park for over one
week, make sure the headlight switch is off.
NOTE: *The time before turning off the lights can be changed. Ask your Lexus dealer for details.

SWITCHES
23
Daytime Running Light System
The headlights turn on at reduced intensity when the parking
brake is released with the engine started, even with the light
switch in the ºOFFº position. They will not go off until the
ignition switch is turned off.
To turn on the other exterior lights and instrument panel lights,
twist the knob to the first clickstop.
Twist
the knob to the second clickstop to turn on the headlights
to full intensity for driving at night.
When setting the knob to the third clickstop (ºAUTOº), the
headlights will automatically adjust to full intensity and/or turn
on the other lights depending on the darkness of the
surroundings. Likewise, as the surroundings become brighter,
the headlights will turn to reduced intensity, ultimately turning
off the other lights.
NOTICE
To prevent the battery from being discharged, do not leave the lights on longer than necessary when theengine is not running.

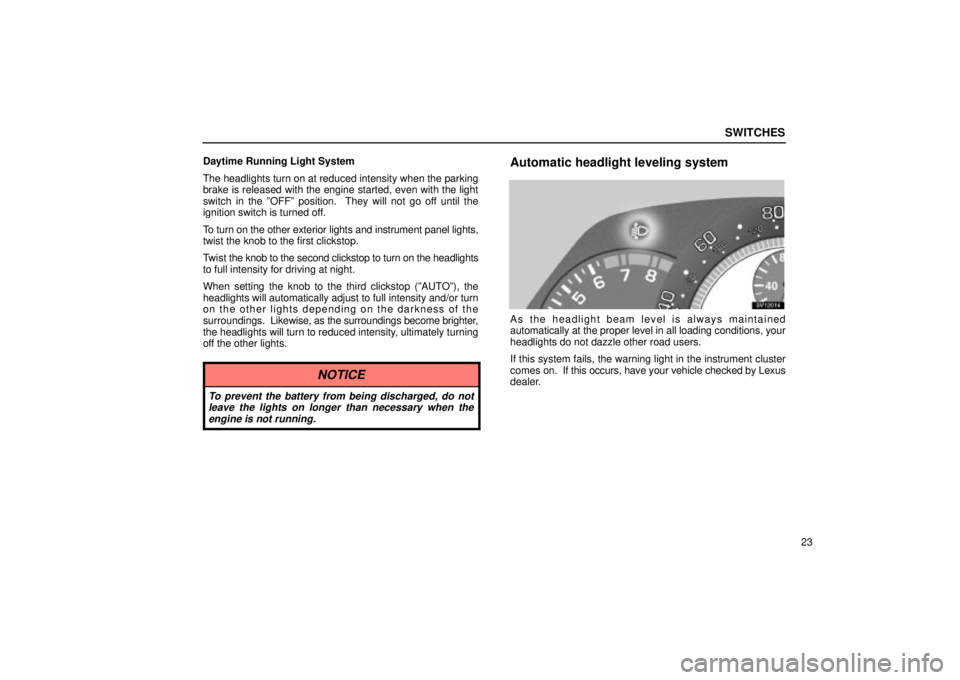

Automatic headlight leveling system
SV12014
As the headlight beam level is always maintained
automatically at the proper level in all loading conditions, your
headlights do not dazzle other road users.
If this system fails, the warning light in the instrument cluster
comes on. If this occurs, have your vehicle checked by Lexus
dealer.

SWITCHES
24

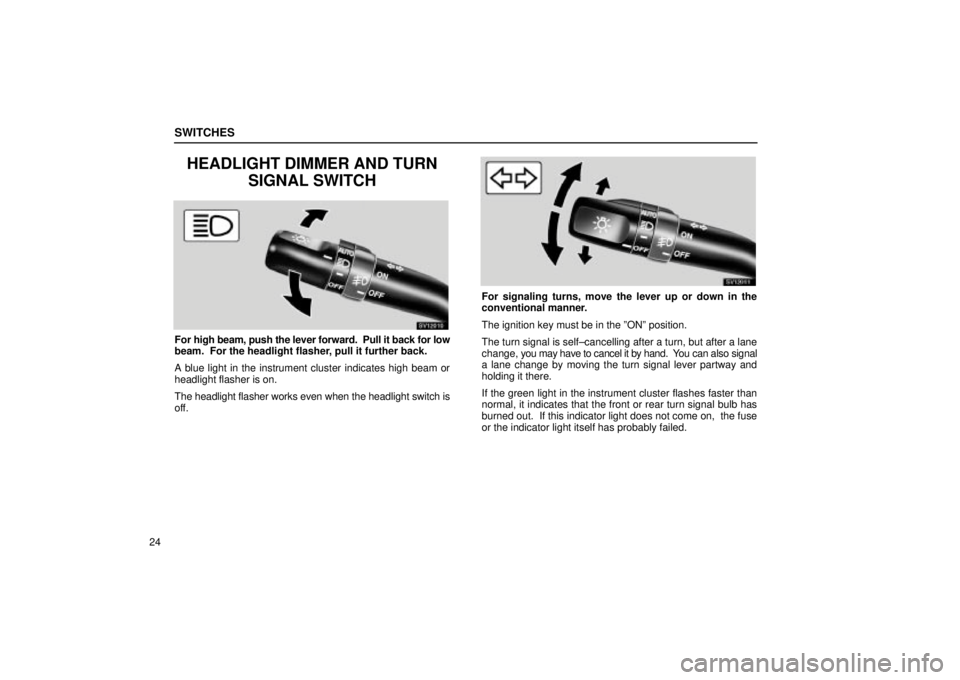

HEADLIGHT DIMMER AND TURNSIGNAL SWITCH
SV12010
For high beam, push the lever forward. Pull it back for low
beam. For the headlight flasher, pull it further back.
A blue light in the instrument cluster indicates high beam or
headlight flasher is on.
The headlight flasher works even when the headlight switch is
off.
SV12011
For signaling turns, move the lever up or down in the
conventional manner.
The ignition key must be in the ºONº position.
The turn signal is self±cancelling after a turn, but after a lane
change, you may have to cancel it by hand. You can also signal
a lane change by moving the turn signal lever partway and
holding it there.
If the green light in the instrument cluster flashes faster than
normal, it indicates that the front or rear turn signal bulb has
burned out. If this indicator light does not come on, the fuse
or the indicator light itself has probably failed.

SWITCHES
25

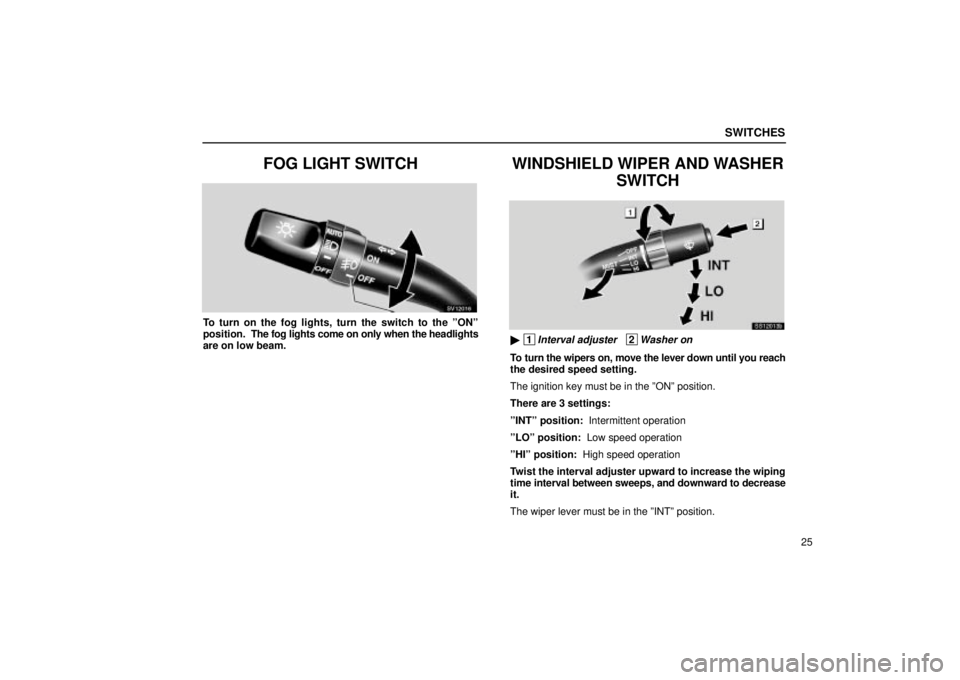

FOG LIGHT SWITCH
SV12016
To turn on the fog lights, turn the switch to the ºONº
position. The fog lights come on only when the headlights
are on low beam.
WINDSHIELD WIPER AND WASHERSWITCH
SS12013b

1Interval adjuster 2Washer on
To turn the wipers on, move the lever down until you reach
the desired speed setting.
The ignition key must be in the ºONº position.
There are 3 settings:
ºINTº position: Intermittent operation
ºLOº position: Low speed operation
ºHIº position: High speed operation
Twist the interval adjuster upward to increase the wiping
time interval between sweeps, and downward to decrease
it.
The wiper lever must be in the ºINTº position.

SWITCHES
26For mist wiper operations (a single wipe), pull the lever
toward you and release it.
To make the washer squirt, push the button on the end of
the lever.
For information on adding washer fluid, see ºAdding washer
fluidº on page 274.
In cold weather, warm the windshield with the defroster before
using the washer. This will help prevent icing, which could
block your vision.
NOTICE
Do not operate the wipers if the windshield is dry. It may
scratch the glass.
HEADLIGHT CLEANER SWITCH
SV12007
To spray fluid on the headlights, push the switch with the
headlights on.
The ignition key must be in the ºONº position.
Check the fluid level frequently as headlight cleaner uses fluid
a lot. For information on adding washer fluid, see ºAdding
washer fluidº on page 274.
NOTICE
Do not turn the headlight cleaner on with the washerfluid tank empty. It may cause the cleaner motor tooverheat.

SWITCHES
27

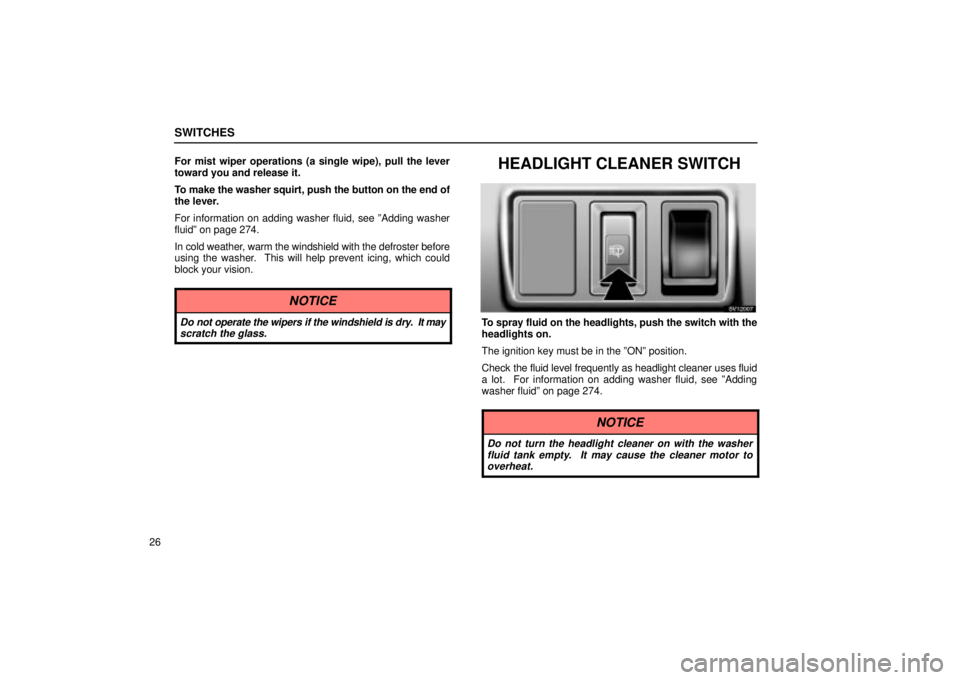

REAR WINDOW DEFOGGERSWITCH
SK12006
To turn the electric rear window defogger on, push the
switch.
The ignition key must be in the ºONº position.
The thin heater wires on the inside of the rear window will
quickly clear the surface. An indicator light is on when the
defogger is operating.
The system will automatically shut off when the defogger has
operated about 15 minutes.
If further defrosting or defogging is desired, simply actuate the
switch again. When the surface has cleared, push the switch
once again to turn the defogger off. Continuous use may cause
the battery to discharge, especially during stop±and±go
driving. The defogger is not designed to dry rain water or to
melt snow.
NOTICE
When cleaning the inside of the rear window, be
careful not to scratch or damage the heater wires orconnectors.
To prevent the battery from being discharged, do notoperate the defogger continuously longer thannecessary.
