STARTING AND DRIVING
165

To ensure that the three±way catalytic converter and
the entire emission control system operate properly,your vehicle must receive the periodic inspectionsrequired by the Lexus Maintenance Schedule. Forscheduled maintenance information, refer to theºOwner's Manual Supplement/ScheduledMaintenanceº.ENGINE EXHAUST CAUTION

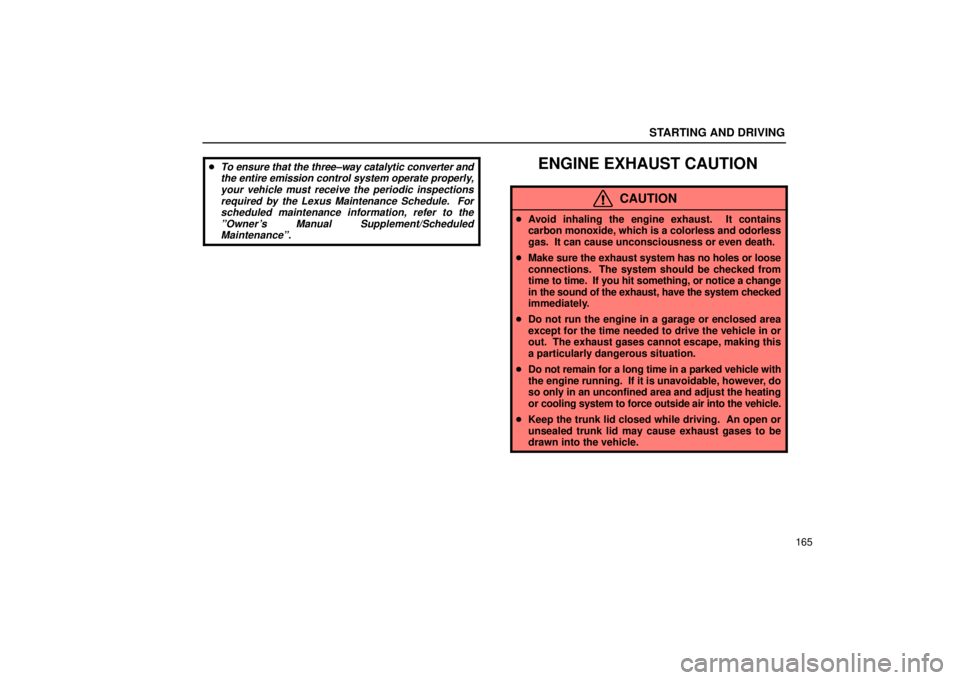

CAUTION
 Avoid inhaling the engine exhaust. It contains
carbon monoxide, which is a colorless and odorless
gas. It can cause unconsciousness or even death.
 Make sure the exhaust system has no holes or loose
connections. The system should be checked from
time to time. If you hit something, or notice a change
in the sound of the exhaust, have the system checked
immediately.
 Do not run the engine in a garage or enclosed area
except for the time needed to drive the vehicle in or
out. The exhaust gases cannot escape, making this
a particularly dangerous situation.
 Do not remain for a long time in a parked vehicle with
the engine running. If it is unavoidable, however, do
so only in an unconfined area and adjust the heating
or cooling system to force outside air into the vehicle.
 Keep the trunk lid closed while driving. An open or
unsealed trunk lid may cause exhaust gases to be
drawn into the vehicle.

STARTING AND DRIVING
166

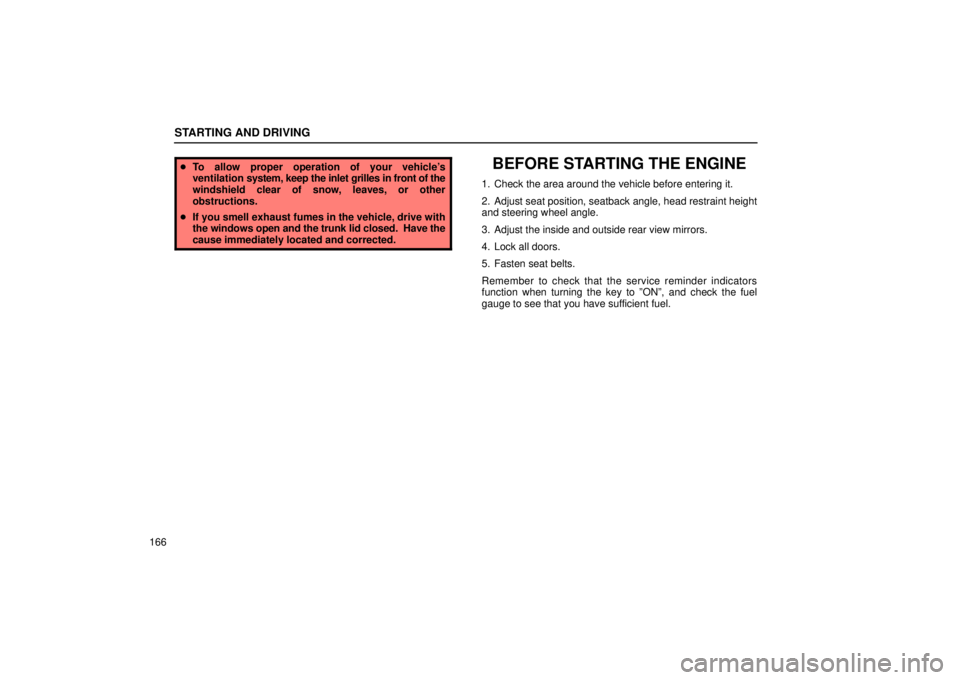

To allow proper operation of your vehicle's
ventilation system, keep the inlet grilles in front of the
windshield clear of snow, leaves, or other
obstructions.
 If you smell exhaust fumes in the vehicle, drive with
the windows open and the trunk lid closed. Have the
cause immediately located and corrected.BEFORE STARTING THE ENGINE
1. Check the area around the vehicle before entering it.
2. Adjust seat position, seatback angle, head restraint height
and steering wheel angle.
3. Adjust the inside and outside rear view mirrors.
4. Lock all doors.
5. Fasten seat belts.
Remember to check that the service reminder indicators
function when turning the key to ºONº, and check the fuel
gauge to see that you have sufficient fuel.

STARTING AND DRIVING
169
If the weather is below freezing, let the engine warm up for a
few minutes before driving. Do not leave the vehicle while the
engine is warming up.
If the engine stalls ...
Simply restart it , using the correct procedure given in normal
starting.
If the engine will not start
See ºIf your vehicle will not startº on page 200.
NOTICE
Do not crank for more than 30 seconds at a time. This
may overheat the starter and wiring systems.
Do not race a cold engine.
If the engine becomes difficult to start or stallsfrequently, have the engine checked immediately.
AUTOMATIC TRANSMISSION
Your automatic transmission has a shift lock system to
minimize the possibility of incorrect operation. This
means you can only shift out of ºPº position when the
brake pedal is depressed with the ignition switch in ºONº
position. ( )
SV31020

STARTING AND DRIVING
183
TRACTION CONTROL SYSTEM
The traction control system automatically help control the
spinning of the rear wheels which may occur when
accelerating on slippery road surfaces, thus assisting
driver control the driving power of the rear wheels. When
you turn the ignition switch on, the traction control
system always turns on automatically, and the slip
indicator light w ill come on. The indicator lights will go off
after a few seconds.

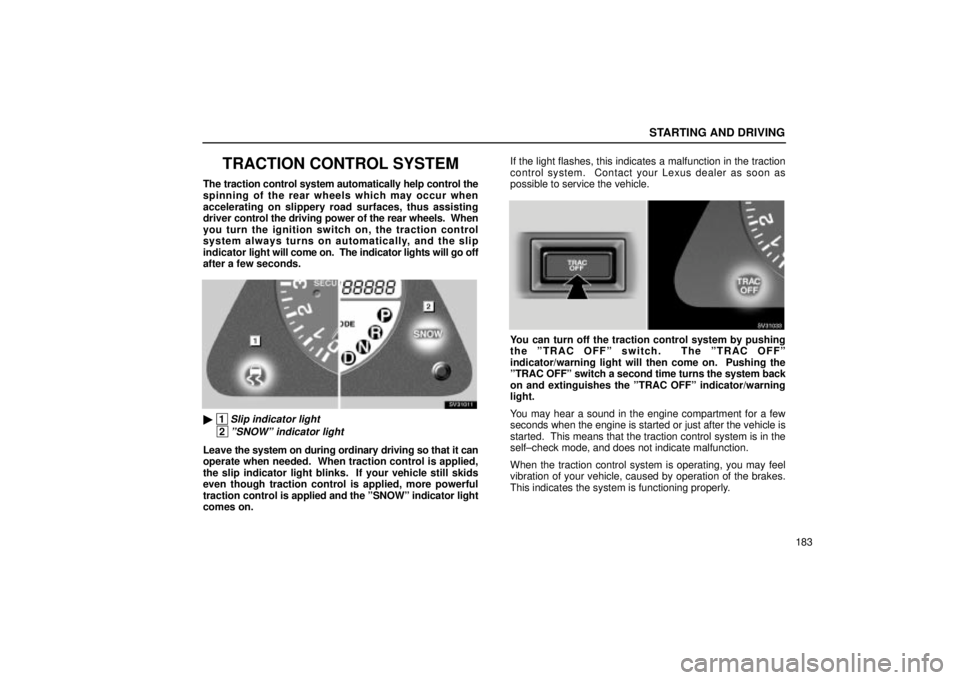

SV31011

1Slip indicator light
2ºSNOWº indicator light
Leave the system on during ordinary driving so that it can
operate when needed. When traction control is applied,
the slip indicator light blinks. If your vehicle still skids
even though traction control is applied, more powerful
traction control is applied and the ºSNOWº indicator light
comes on. If the light flashes, this indicates a malfunction in the traction
control system. Contact your Lexus dealer as soon as
possible to service the vehicle.
SV31033
You can turn off the traction control system by pushing
the ºTRAC OFFº switch. The ºTRAC OFFº
indicator/warning light will then come on. Pushing the
ºTRAC OFFº switch a second time turns the system back
on and extinguishes the ºTRAC OFFº indicator/warning
light.
You may hear a sound in the engine compartment for a few
seconds when the engine is started or just after the vehicle is
started. This means that the traction control system is in the
self±check mode, and does not indicate malfunction.
When the traction control system is operating, you may feel
vibration of your vehicle, caused by operation of the brakes.
This indicates the system is functioning properly.

STARTING AND DRIVING
185
Anti±lock brake system
The anti±lock brake system is designed to automatically
help prevent lock±up of the wheels during a sudden
braking or braking on slippery road surfaces. This assists
in providing directional stability and steering
performance of the vehicle under these circumstances.
Effective way to press the ABS brake pedal: When the
anti±lock brake system function is in action, you may feel the
brake pedal pulsating and hear a noise. In this situation, to
let the anti±lock brake system work for you, just hold the
brake pedal down more firmly. Do not pump the brake in a
panic stop. This will result in reduced braking performance.
The anti±lock brake system becomes operative after the
vehicle has accelerated to a speed in excess of approximately
10 km/h (6 mph). It stops operating when the vehicle
decelerates to a speed below approximately 5 km/h (3 mph).
Depressing the brake pedal on slippery road surfaces such as
on the manhole cover, the steel plate under the construction,
joints in the bridge, etc. on a rainy day tends to activate the
anti±lock brake system.
You may hear a click or motor sound in the engine
compartment for a few seconds when the engine is started or
just after the vehicle is started. This means that the anti±lock
brake system is in the self±check mode, and does not indicate
a malfunction.
When the anti±lock brake system is activated, the
following conditions may occur. They do not indicate a
malfunction of the system:
You may hear the anti±lock brake system operating and feel
the brake pedal pulsating and the vibrations of the vehicle
body and steering wheel. You may also hear the motor
sound in the engine compartment even after the vehicle is
stopped.
 At the end of the anti±lock brake system activation, the
brake pedal may move a little forward.
CAUTION
Do not overestimate the anti±lock brake system:
Although the anti±lock brake system assists in
providing vehicle control, it is still important to drive
with all due care and maintain a moderate speed and
safe distance from the vehicle in front of you, because
there are limits to the vehicle stability and effectiveness
of steering wheel operation even with the anti±lock
brake system on.
If tires grip performance exceeds its capability, or if
hydroplaning occurs during high speed driving in the
rain, the anti±lock brake system does not provide
vehicle control.
Anti±lock brake system is not designed to shorten the
stopping distance: Always drive at the moderate speed
and maintain a safe distance from the vehicle in front of
you. Compared with vehicles without an anti±lock
brake system, your vehicle may require a longer
stopping distance in the following cases:

DRIVING TIPS
193
TIPS FOR DRIVING IN VARIOUSCONDITIONS

Always slow down in gusty crosswinds. This will allow you
much better control.

Drive slowly onto curbs and, if possible, at a right angle.
Avoid driving onto high, sharp±edged objects and other
road hazards. Failure to do so can lead to severe tire
damage resulting in tire bursts.

When parking on a hill, turn the front wheels until they touch
the curb so that the vehicle will not roll. Apply the parking
brake, and place the transmission in ºPº. If necessary, block
the wheels.

Washing your vehicle or driving through deep water may get
the brakes wet. To see whether they are wet, check that
there is no traffic near you and then press the pedal lightly.
If you do not feel a normal braking force, the brakes are
probably wet. To dry them, drive the vehicle cautiously while
lightly pressing the brake pedal with the parking brake
applied. If they still do not work safely, pull to the side of the
road and call a Lexus dealer for assistance.

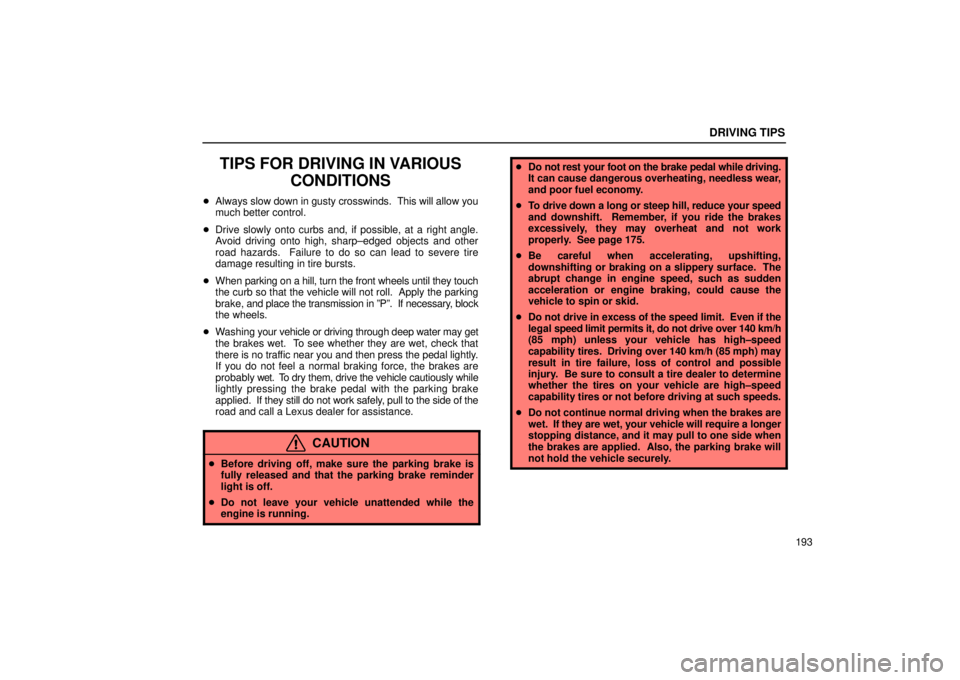

CAUTION

Before driving off, make sure the parking brake is
fully released and that the parking brake reminder
light is off.

Do not leave your vehicle unattended while the
engine is running.

Do not rest your foot on the brake pedal while driving.
It can cause dangerous overheating, needless wear,
and poor fuel economy.

To drive down a long or steep hill, reduce your speed
and downshift. Remember, if you ride the brakes
excessively, they may overheat and not work
properly. See page 175.

Be careful when accelerating, upshifting,
downshifting or braking on a slippery surface. The
abrupt change in engine speed, such as sudden
acceleration or engine braking, could cause the
vehicle to spin or skid.

Do not drive in excess of the speed limit. Even if the
legal speed limit permits it, do not drive over 140 km/h
(85 mph) unless your vehicle has high±speed
capability tires. Driving over 140 km/h (85 mph) may
result in tire failure, loss of control and possible
injury. Be sure to consult a tire dealer to determine
whether the tires on your vehicle are high±speed
capability tires or not before driving at such speeds.

Do not continue normal driving when the brakes are
wet. If they are wet, your vehicle will require a longer
stopping distance, and it may pull to one side when
the brakes are applied. Also, the parking brake will
not hold the vehicle securely.

DRIVING TIPS
194
WINTER DRIVING TIPS
Make sure you have a proper freeze protection of engine
coolant.
Your coolant must contain ethylene±glycol type coolant for a
proper corrosion protection of aluminum components. Use
ºToyota Long Life Coolantº or equivalent. See ºChecking the
engine coolant levelº on page 245 for instructions.
NOTICE
Do not use alcohol type antifreeze or plain water alone.
When it is extremely cold, we recommend to use 60% solution
for your Lexus, to provide protection down to about ±50C
(±58 F). Do not use more than 70% solution for better coolant
performance.
Check the condition of the battery and cables.
Cold temperatures reduce the capacity of any battery, so it
must be in top shape to provide enough power for winter
starting. Page 268 tells you how to visually inspect the battery.
Your Lexus dealer and most service stations will be pleased to
check the battery charge level.
Make sure the engine oil viscosity is suitable for the cold
weather.
See page 244 for recommended viscosity. Leaving a heavy
summer oil in your vehicle during winter months may cause
harder starting. If you are not sure about which oil to use, call
your Lexus dealer ± they will be pleased to help. Check the electronic ignition system for loose
connections or obvious damage.
Keep the door locks from freezing.
Squirt
lock de±icer or glycerine into the locks to keep them from
freezing.
Use a washer fluid containing an antifreeze solution.
This product is available at your Lexus dealer and most auto
parts stores. Follow the manufacturer's directions for how
much to mix with water.
NOTICE
Do not use engine antifreeze or any other substitute because it may damage your vehicle's paint.
Do not use your parking brake when there is a possibility
it could freeze.
When parking, put the transmission into ºPº and block the front
wheels. Do not use the parking brake, or snow or water
accumulated in and around the parking brake mechanism may
freeze the parking brake, making it hard to release.
Keep ice and snow from accumulating under the fenders.
Ice and snow built up under your fenders can make steering
difficult. During bad winter driving, stop and check under the
fenders occasionally.

DRIVING TIPS
196
TRAILER TOWING
SV32001
Lexus does not recommend towing a trailer with your
vehicle. It is not designed for trailer towing.
HOW TO SAVE FUEL AND MAKEYOUR VEHICLE LAST LONGER
Improving fuel economy is easy ± just take it easy. It will help
make your vehicle last longer, too. Here are some specific tips
on how to save money on both fuel and repairs:

Keep your tires inflated at the correct pressure. Check
the pressure every two weeks, or at least once a month.
Underinflation causes tire wear and wastes fuel.

Do not carry unneeded weight in your vehicle. Excess
weight puts a heavier load on the engine, causing greater
fuel consumption.

Avoid lengthy warm±up idling. Once the engine is
running smoothly, begin driving ± but gently. Remember,
however, that on cold winter days this may take a little
longer.

Accelerate slowly and smoothly. Avoid jackrabbit starts.

Avoid long engine idling. If you have a long wait and you
are not in traffic, it is better to turn off the engine and start
again later.

Avoid engine over±revving. Use a gear position suitable
for the road on which you are traveling.

Avoid continuous speeding up and slowing down.
Stop±and±go driving wastes fuel.

IN CASE OF AN EMERGENCY
200
IF YOUR ENGINE STALLS WHILEDRIVING
If your engine stalls while driving . . . .
1. Reduce your speed gradually, keeping a straight line. Move
cautiously off the road to a safe place.
2. Turn on your emergency flashers.
3. Try starting the engine again.
If the engine will not start, see ºIf your vehicle will not startº\
.

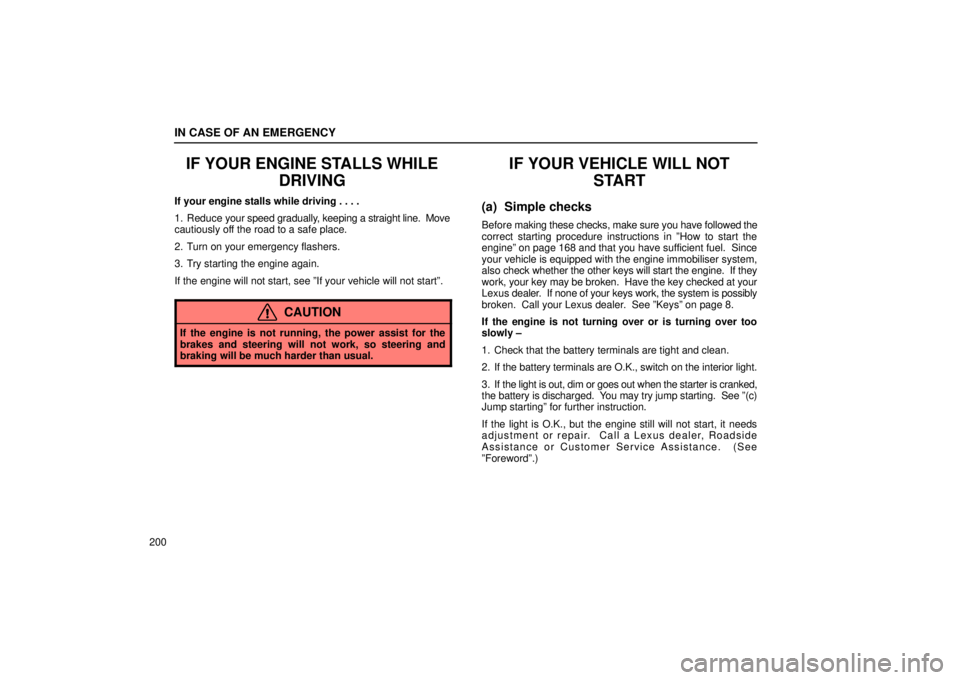

CAUTION
If the engine is not running, the power assist for the
brakes and steering will not work, so steering and
braking will be much harder than usual.
IF YOUR VEHICLE WILL NOT START
(a) Simple checks
Before making these checks, make sure you have followed the
correct starting procedure instructions in ºHow to start the
engineº on page 168 and that you have sufficient fuel. Since
your vehicle is equipped with the engine immobiliser system,
also check whether the other keys will start the engine. If they
work, your key may be broken. Have the key checked at your
Lexus dealer. If none of your keys work, the system is possibly
broken. Call your Lexus dealer. See ºKeysº on page 8.
If the engine is not turning over or is turning over too
slowly ±
1. Check that the battery terminals are tight and clean.
2. If the battery terminals are O.K., switch on the interior light.
3. If the light is out, dim or goes out when the starter is cranked,
the battery is discharged. You may try jump starting. See º(c)
Jump startingº for further instruction.
If the light is O.K., but the engine still will not start, it needs
adjustment or repair. Call a Lexus dealer, Roadside
Assistance or Customer Service Assistance. (See
ºForewordº.)

IN CASE OF AN EMERGENCY
204
CAUTION
When making the connections, to avoid serious injury,
do not lean over the battery or accidentally let the
jumper cables or clamps touch anything except the
correct battery terminals or the ground.
5. Start your engine in the normal way. After starting, run it at
about 2000 rpm for several minutes with the accelerator pedal
lightly depressed.
6. Carefully disconnect the cables in the exact reverse order:
the negative cable and then the positive cable.
7. Carefully di spose of the battery cover cloths which may now
contain sulfuric acid.
8. If removed, replace all the battery vent plugs.
If the cause of your battery discharging is not apparent (for
example, lights left on), you should have it checked.
IF YOUR VEHICLE OVERHEATS
If your engine coolant temperature gauge indicates
overheating, if you experience a loss of power, or if you
hear a loud knocking or pinging noise, the engine has
probably overheated.
When the engine overheats
Pull safely off the road, stop the vehicle and turn on your
emergency flashers. Put the transmission in ºPº and apply the
parking brake.
A: If steam is coming from your engine:
Turn off the engine. Leave the hood closed until there is no sign
of steam or coolant. Your engine could have been seriously
damaged already. Call your Lexus dealer for assistance.
CAUTION
To help avoid personal injury, keep the hood closed until
there is no steam. Escaping steam or coolant is sign of
very high pressure.
