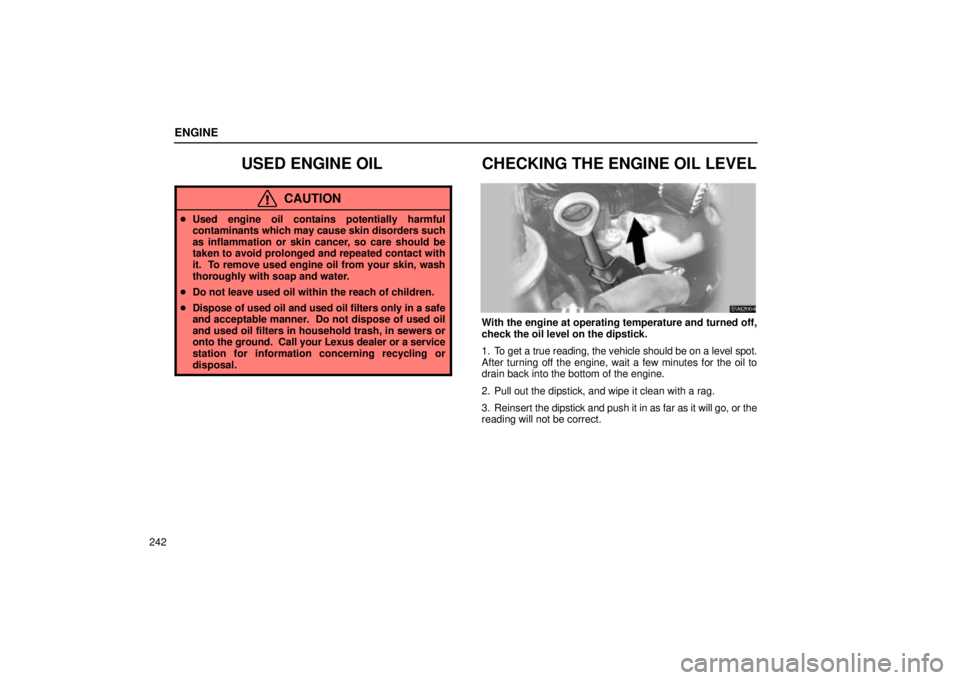

USED ENGINE OIL
CAUTION
Used engine oil contains potentially harmful
contaminants which may cause skin disorders such
as inflammation or skin cancer, so care should be
taken to avoid prolonged and repeated contact with
it. To remove used engine oil from your skin, wash
thoroughly with soap and water.
 Do not leave used oil within the reach of children.
 Dispose of used oil and used oil filters only in a safe
and acceptable manner. Do not dispose of used oil
and used oil filters in household trash, in sewers or
onto the ground. Call your Lexus dealer or a service
station for information concerning recycling or
disposal.
CHECKING THE ENGINE OIL LEVEL
SV62004
With the engine at operating temperature and turned off,
check the oil level on the dipstick.
1. To get a true reading, the vehicle should be on a level spot.
After turning off the engine, wait a few minutes for the oil to
drain back into the bottom of the engine.
2. Pull out the dipstick, and wipe it clean with a rag.
3. Reinsert the dipstick and push it in as far as it will go, or the
reading will not be correct.

ENGINE
243
SV62002

1Add oil 2O.K. 3Too full

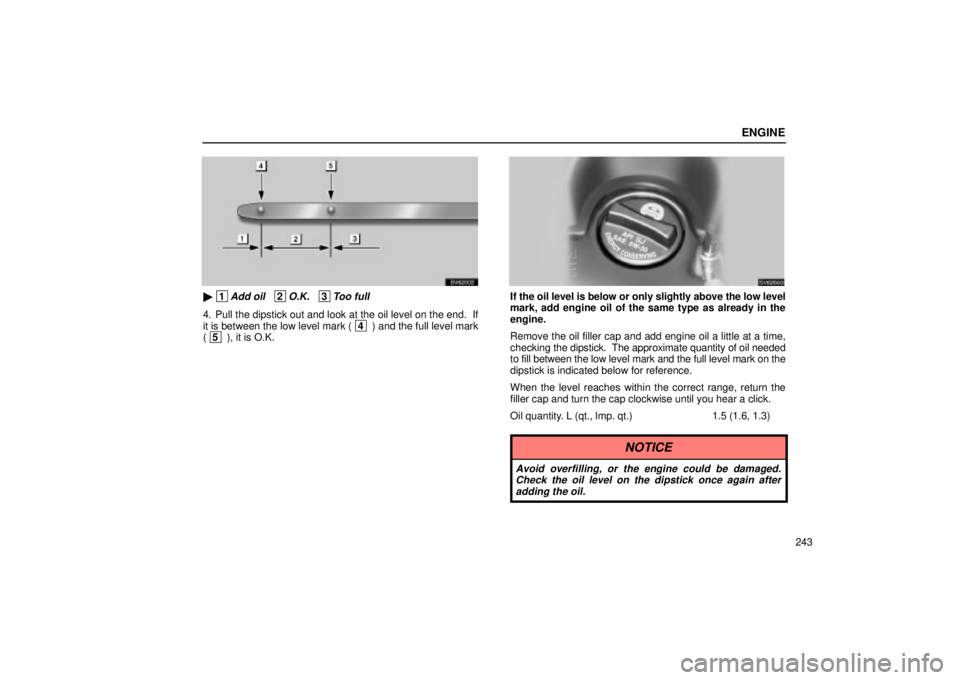

4. Pull the dipstick out and look at the oil level on the end. If
it is between the low level mark ( 4 ) and the full level mark
( 5 ), it is O.K.
SV62003
If the oil level is below or only slightly above the low level
mark, add engine oil of the same type as already in the
engine.
Remove the oil filler cap and add engine oil a little at a time,
checking the dipstick. The approximate quantity of oil needed
to fill between the low level mark and the full level mark on the
dipstick is indicated below for reference.
When the level reaches within the correct range, return the
filler cap and turn the cap clockwise until you hear a click.
Oil quantity. L (qt., lmp. qt.) 1.5 (1.6, 1.3)
NOTICE
Avoid overfilling, or the engine could be damaged. Check the oil level on the dipstick once again afteradding the oil.

ENGINE
245

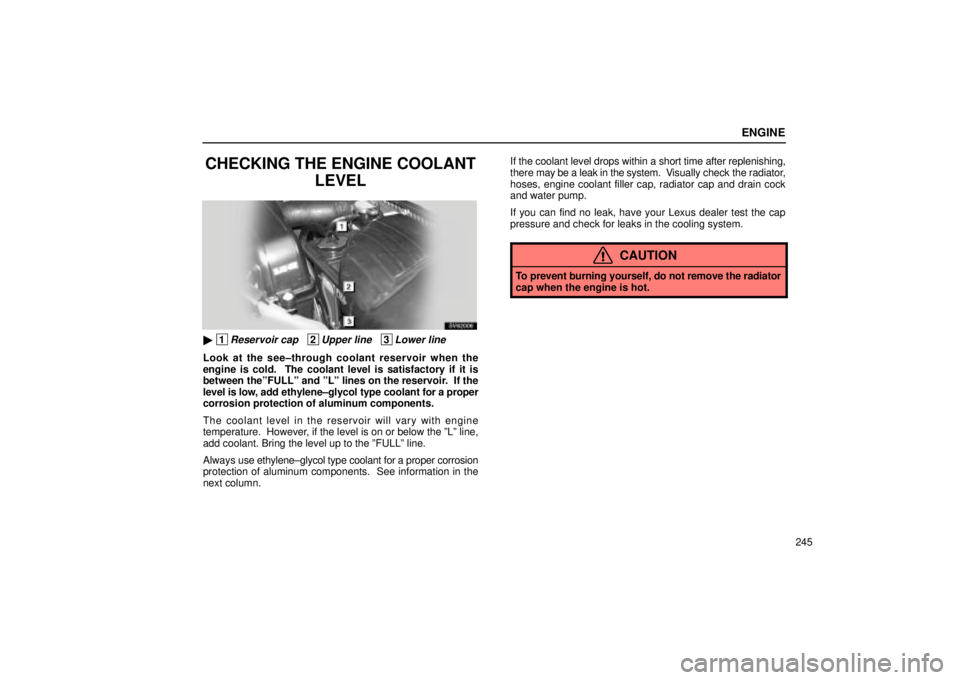

CHECKING THE ENGINE COOLANTLEVEL
SV62006

1Reservoir cap 2Upper line 3Lower line
Look at the see±through coolant reservoir when the
engine is cold. The coolant level is satisfactory if it is
between theºFULLº and ºLº lines on the reservoir. If the
level is low, add ethylene±glycol type coolant for a proper
corrosion protection of aluminum components.
The coolant level in the reservoir will vary with engine
temperature. However, if the level is on or below the ºLº line,
add coolant. Bring the level up to the ºFULLº line.
Always use ethylene±glycol type coolant for a proper corrosion
protection of aluminum components. See information in the
next column. If the coolant level drops within a short time after replenishing,
there
may be a leak in the system. V isually check the radiator,
hoses, engine coolant filler cap, radiator cap and drain cock
and water pump.
If you can find no leak, have your Lexus dealer test the cap
pressure and check for leaks in the cooling system.
CAUTION
To prevent burning yourself, do not remove the radiator
cap when the engine is hot.

CHASSIS
253

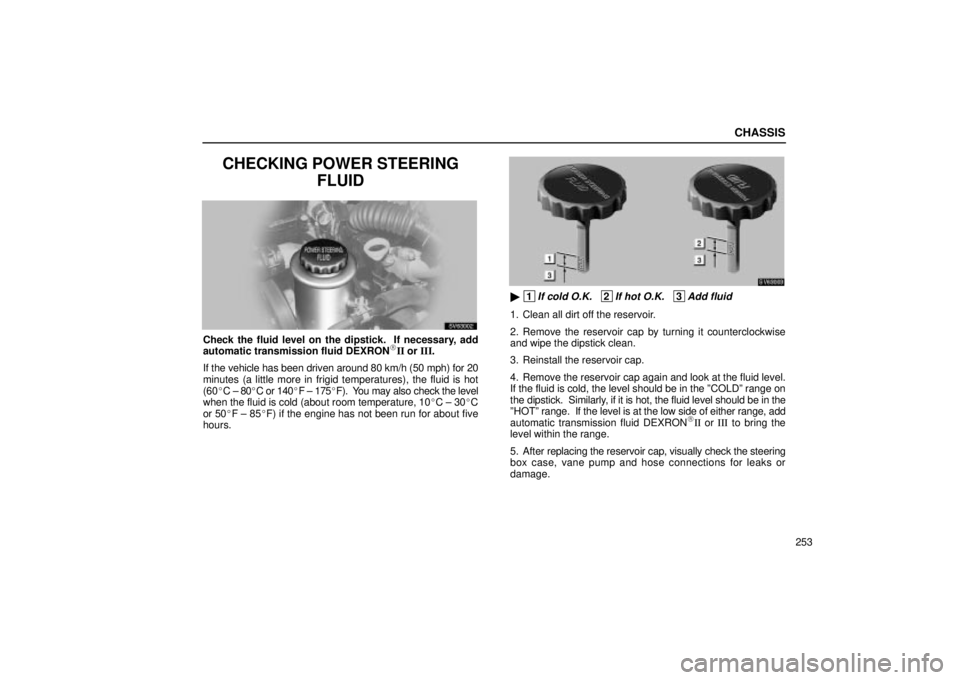

CHECKING POWER STEERINGFLUID
SV63002
Check the fluid level on the dipstick. If necessary, add
automatic transmission fluid DEXRONII or III.
If the vehicle has been driven around 80 km/h (50 mph) for 20
minutes (a little more in frigid temperatures), the fluid is hot
(60 C ± 80C or 140F ± 175F). You may also check the level
when the fluid is cold (about room temperature, 10 C ± 30C
or 50F ± 85F) if the engine has not been run for about five
hours.
SV63003

1If cold O.K. 2If hot O.K. 3Add fluid
1. Clean all dirt off the reservoir.
2. Remove the reservoir cap by turning it counterclockwise
and wipe the dipstick clean.
3. Reinstall the reservoir cap.
4. Remove the reservoir cap again and look at the fluid level.
If the fluid is cold, the level should be in the ºCOLDº range on
the dipstick. Similarly, if it is hot, the fluid level should be in the
ºHOTº range. If the level is at the low side of either range, add
automatic transmission fluid DEXRON
II or III to bring the
level within the range.
5. After replacing the reservoir cap, visually check the steering
box case, vane pump and hose connections for leaks or
damage.

ELECTRICAL COMPONENTS
269

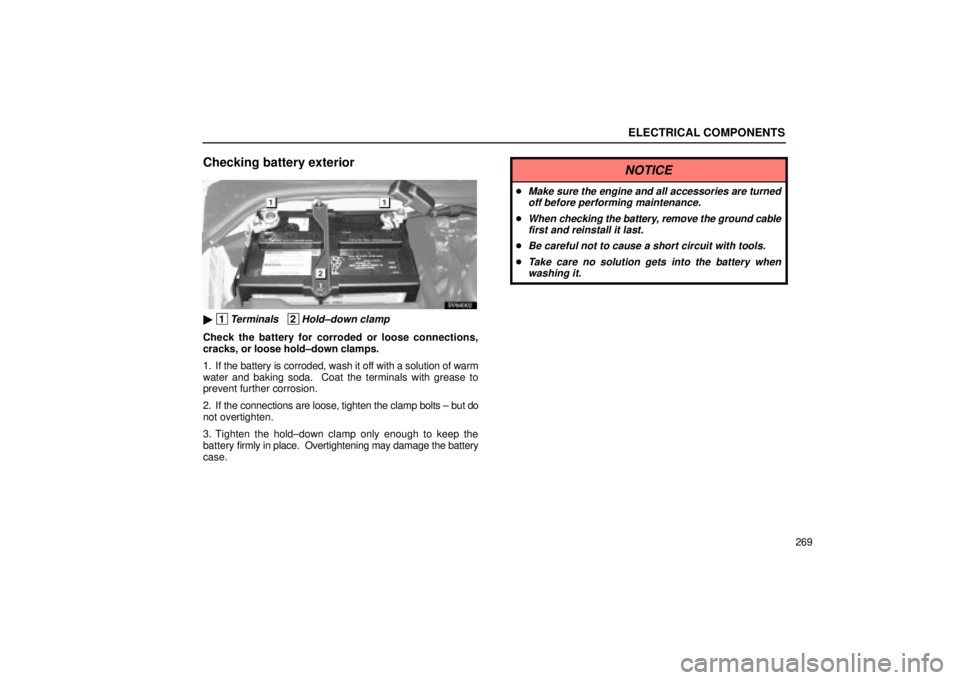

Checking battery exterior
SV64002

1Terminals 2Hold±down clamp
Check the battery for corroded or loose connections,
cracks, or loose hold±down clamps.
1. If the battery is corroded, wash it off with a solution of warm
water and baking soda. Coat the terminals with grease to
prevent further corrosion.
2. If the connections are loose, tighten the clamp bolts ± but do
not overtighten.
3. Tighten the hold±down clamp only enough to keep the
battery firmly in place. Overtightening may damage the battery
case.
NOTICE
Make sure the engine and all accessories are turned off before performing maintenance.
When checking the battery, remove the ground cable
first and reinstall it last.
Be careful not to cause a short circuit with tools.
Take care no solution gets into the battery when washing it.

ELECTRICAL COMPONENTS
270
Checking battery fluid
Checking by hydrometer
SV64016

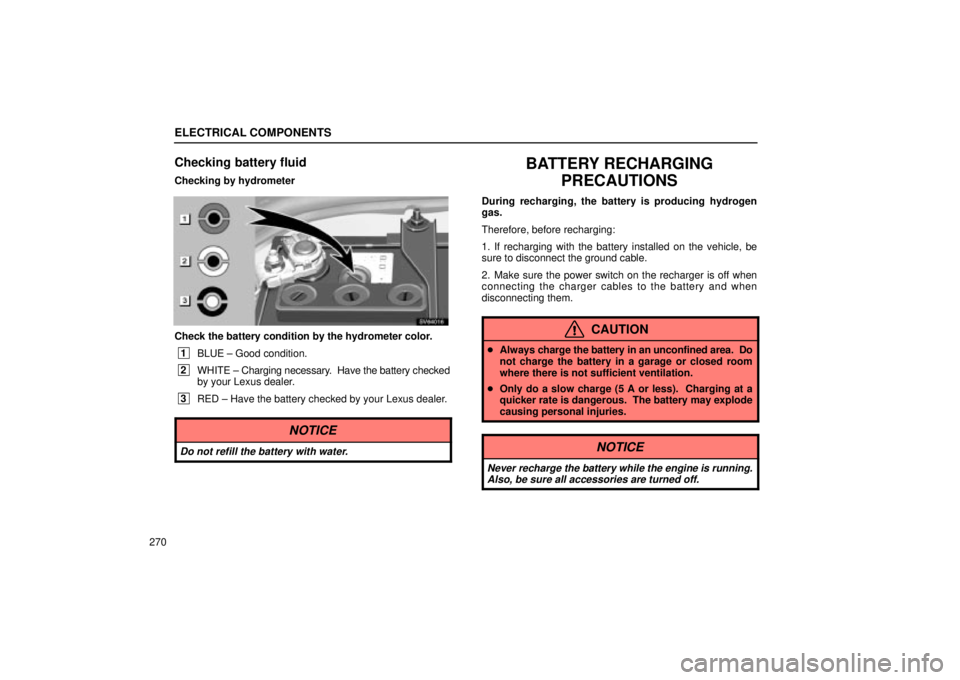

Check the battery condition by the hydrometer color.
1BLUE ± Good condition.
2WHITE ± Charging necessary. Have the battery checked
by your Lexus dealer.
3RED ± Have the battery checked by your Lexus dealer.
NOTICE
Do not refill the battery with water.
BATTERY RECHARGING
PRECAUTIONS
During recharging, the battery is producing hydrogen
gas.
Therefore, before recharging:
1. If recharging with the battery installed on the vehicle, be
sure to disconnect the ground cable.
2. Make sure the power switch on the recharger is off when
connecting the charger cables to the battery and when
disconnecting them.
CAUTION
Always charge the battery in an unconfined area. Do
not charge the battery in a garage or closed room
where there is not sufficient ventilation.
 Only do a slow charge (5 A or less). Charging at a
quicker rate is dangerous. The battery may explode
causing personal injuries.
NOTICE
Never recharge the battery while the engine is running.
Also, be sure all accessories are turned off.

ELECTRICAL COMPONENTS
271
CHECKING AND REPLACING THEBLADE TYPE FUSES
SS64009

Driver's side kick panel
SS64012a

Passenger's side kick panel
SV64017

Engine compartment 1Spare fuses 2Pull±out tool
1. Turn the ignition switch off and open the fuse box lid.
Determine which fuse may be causing the problem. The lid of
the fuse box shows the name of the circuit for each fuse.

3
GAS STATION INFORMATION

Fuel selection:
Select premium unleaded gasoline with an Octane Rat-
ing of 91 (Research Octane Number 96) or higher for
optimum engine performance. However, if such pre-
mium type cannot be obtained, you may temporarily use
unleaded gasoline with an Octane Rating as low as 87
(Research Octane Number 91).

Fuel tank capacity:
66 L (17.5 gal., 14.5 lmp.gal.)

Engine oil:
API SJ, ºEnergy±Conservingº multigrade engine oil or
ILSAC multigrade engine oil.
Recommend oil viscosity ± SAE 5W±30 if normal
temperatures are below 38 C (100F)
Oil capacity: L (qt., lmp.qt.)
Drain and refill with filter 5.4 (5.7, 4.8)
without filter 5.1 (5.4, 4.5)
See page 242 for detailed information.

Engine coolant:
Capacity: 7.5 L (7.9 qt., 6.6 lmp.qt.)
Coolant type ± ºToyota Long Life Coolantº or equivalent
With ethylene±glycol type coolant for a proper corrosion
protection of aluminum components For checking the engine coolant, see page 245.
Do not use alcohol type antifreeze or plain water alone.

Automatic transmission:
Fluid type ± Automatic transmission fluid Type T±IV
See page 248 for detailed information.

Tire information:
See page 254 through 260 for detailed information.

Tire pressure:
Tire size: 215/45ZR17 or P205/55R16 89V
Tire pressure: cold tires
kPa (kgf/cm
2 or bar, psi)
Ti
re sizeFrontRear
215/45ZR17 230 (2.3, 33) 230 (2.3, 33)
P205/55R16 89V 230 (2.3, 33) 230 (2.3, 33)
For sustained high speeds above 160 km/h (100 mph), in
countries where such speeds are permitted by law, add the
tire pressure given below to the front tires and rear tires, but
never exceed the maximum cold tire pressure molded on the
tire sidewall.
215/45ZR17 70kPa (0.8 kgf/cm
2, 0.7 bar, 10 psi)
P205/55R16 89V 70kPa (0.8 kgf/cm2, 0.7 bar, 10 psi)
