OCCUPANT RESTRAINT SYSTEMS
134
Improperly seated and/or restrained infants and
children can be killed or seriously injured by the
deploying airbags. An infant or child who is too small
to use a seat belt should be properly secured using
a child restraint system. Lexus strongly recommends
that all infants and children be placed in the rear seats
of the vehicle and properly restrained. The rear seats
are the safest for infants and children. For
instructions concerning the installation of a child
restraint system, see ªChild restraintº on page 141.
SV16179

1Collision from the side to the vehicle body other
than the passenger compartment
2Collision from the side at an angle
The SRS side airbag and curtain shield airbag system may
not activate if the vehicle is subjected to a collision from
the side at certain angles, or a collision to the side of the
vehicle body other than the passenger compartment as
shown in the illustration.
The SRS side airbags and curtain shield airbags are designed
to inflate when the passenger compartment area suffers a
severe impact from the side.
Always wear your seat belts properly.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
135

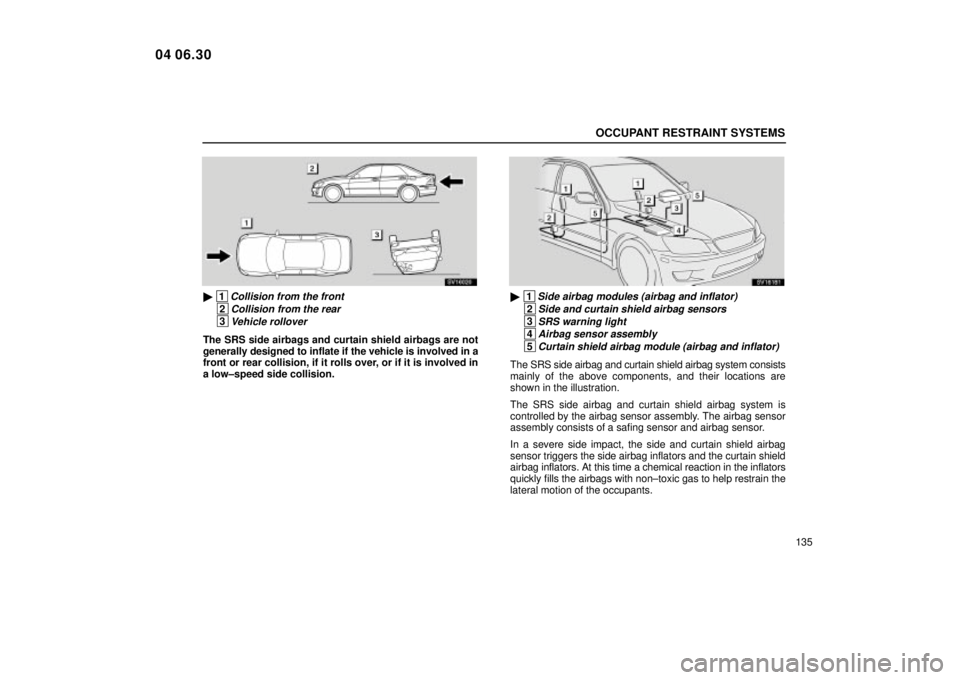

SV16020

1Collision from the front
2Collision from the rear
3Vehicle rollover
The SRS side airbags and curtain shield airbags are not
generally designed to inflate if the vehicle is involved in a
front or rear collision, if it rolls over, or if it is involved in
a low±speed side collision.
SV16181

1Side airbag modules (airbag and inflator)
2Side and curtain shield airbag sensors
3SRS warning light
4Airbag sensor assembly
5Curtain shield airbag module (airbag and inflator)
The SRS side airbag and curtain shield airbag system consists
mainly of the above components, and their locations are
shown in the illustration.
The SRS side airbag and curtain shield airbag system is
controlled by the airbag sensor assembly. The airbag sensor
assembly consists of a safing sensor and airbag sensor.
In a severe side impact, the side and curtain shield airbag
sensor triggers the side airbag inflators and the curtain shield
airbag inflators. At this time a chemical reaction in the inflators
quickly fills the airbags with non±toxic gas to help restrain the
lateral motion of the occupants.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
136When the airbags inflate, they produce a fairly loud noise and
release some smoke and residue along with non±toxic gas.
This
does not indicate a fire. This smoke may remain inside the
vehicle for some time, and may cause some minor irritation to
the eyes, skin or breathing. Be sure to wash off any residue as
soon as possible to prevent any potential skin irritation with
soap and water. If you can safely exit from the vehicle, you
should do so immediately.
Deployment of the airbags happens in a fraction of a second,
so the airbags must inflate with considerable force. While the
system is designed to reduce serious injuries, it may also
cause minor burns abrasions and swelling.
Front seats as well as parts of the front and rear pillars, and roof
side rail may be hot for several minutes, but the airbags
themselves will not be hot. The airbags are designed to inflate
only once.
CAUTION
SRS side airbags and curtain shield airbags inflate with
considerable force. To reduce the possibility of death or
serious injury when they inflate, the driver and front
passenger must:
 Wear their seat belts properly.
 Remain properly seated with their backs upright and
against the seats at all times.

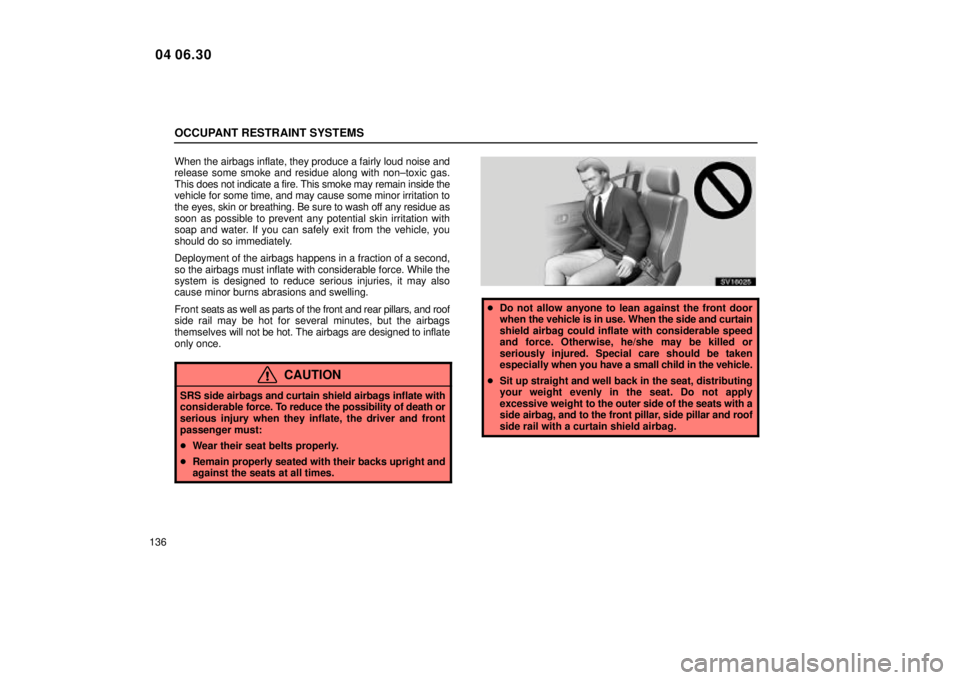

SV16025
Do not allow anyone to lean against the front door
when the vehicle is in use. When the side and curtain
shield airbag could inflate with considerable speed
and force. Otherwise, he/she may be killed or
seriously injured. Special care should be taken
especially when you have a small child in the vehicle.
 Sit up straight and well back in the seat, distributing
your weight evenly in the seat. Do not apply
excessive weight to the outer side of the seats with a
side airbag, and to the front pillar, side pillar and roof
side rail with a curtain shield airbag.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
137

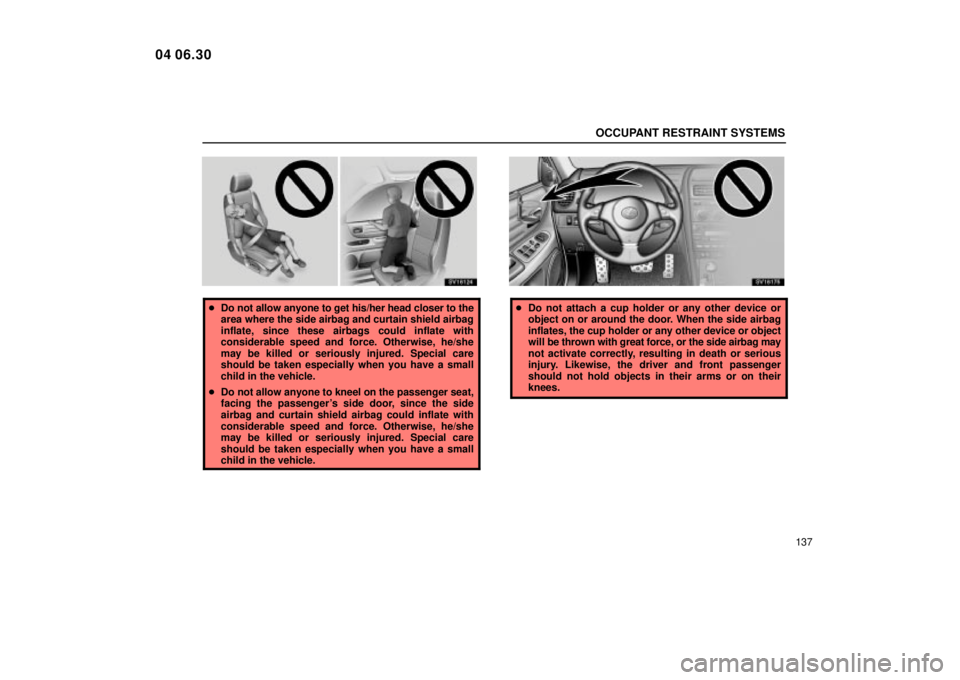

SV16124
Do not allow anyone to get his/her head closer to the
area where the side airbag and curtain shield airbag
inflate, since these airbags could inflate with
considerable speed and force. Otherwise, he/she
may be killed or seriously injured. Special care
should be taken especially when you have a small
child in the vehicle.
 Do not allow anyone to kneel on the passenger seat,
facing the passenger's side door, since the side
airbag and curtain shield airbag could inflate with
considerable speed and force. Otherwise, he/she
may be killed or seriously injured. Special care
should be taken especially when you have a small
child in the vehicle.
SV16175
Do not attach a cup holder or any other device or
object on or around the door. When the side airbag
inflates, the cup holder or any other device or object
will be thrown with great force, or the side airbag may
not activate correctly, resulting in death or serious
injury. Likewise, the driver and front passenger
should not hold objects in their arms or on their
knees.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
138
SV16150
Do not attach a microphone or any other device or
object around the area where the curtain shield air-
bag activates such as on the windshield glass, side
door glass, front and side pillars, roof side rail and
assist grips. When the curtain shield airbag inflates,
the microphone or other device or object will be
thrown away with great force or the curtain shield
airbag may not activate correctly, resulting in death
or serious injury.
Do not use seat accessories which cover the parts
where the side air bags inflate. Such accessories may
prevent the side airbags from activating correctly,
causing death or serious injury.
 Do not modify or replace the seats or upholstery of
the seats with side airbags. Such changes may
prevent the side airbag system from activating
correctly, disable the system or cause the side
airbags to inflate accidentally, resulting in death or
serious injury.
 Do not disassemble or repair the front and side pillars
and roof side rails containing the curtain shield
airbags. Such changes may disable the system or
cause the curtain shield airbags to inflate
accidentally, resulting in death or serious injury.
Failure to follow these instructions can result in death
or serious injury. Consult your Lexus dealer about any
repair and modification.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
139
NOTICE
Do not perform any of the following changes withoutconsulting your Lexus dealer. Such changes caninterfere with proper operation of the SRS side airbagand curtain shield airbag system in some cases.
Installation of electronic devices such as a mobiletwo±way radio, cassette tape player or compact disc
player.
Modification of the suspension system.
Modification of the side structure of the passenger compartment.
Repairs made on or near the console or front seat.
SV16061
The indicator comes on when the ignition switch is turned
to the ªACCº or ªONº position. It goes off after about 6
seconds. This means the SRS side airbags and curtain
shield airbags are operating properly.
The warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensors, seat belt pretensioner assemblies, inflators, warning
light, interconnecting wiring and power sources. (For details,
see ªService reminder indicators and warning buzzersº on
page 48.)
If any of the following conditions occurs, this indicates a
malfunction of the airbags or seat belt pretensioners. Contact
your Lexus dealer as soon as possible.
 The light does not come on when the ignition key is turned
to the ªACCº or ªONº position or remains on for more than 6 seconds or flashes.
 The light comes on or flashes while driving.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
140If the light stays on, it indicates that the front airbags have a
problem. If the light flashes, the side and curtain shield airbags
have a problem.

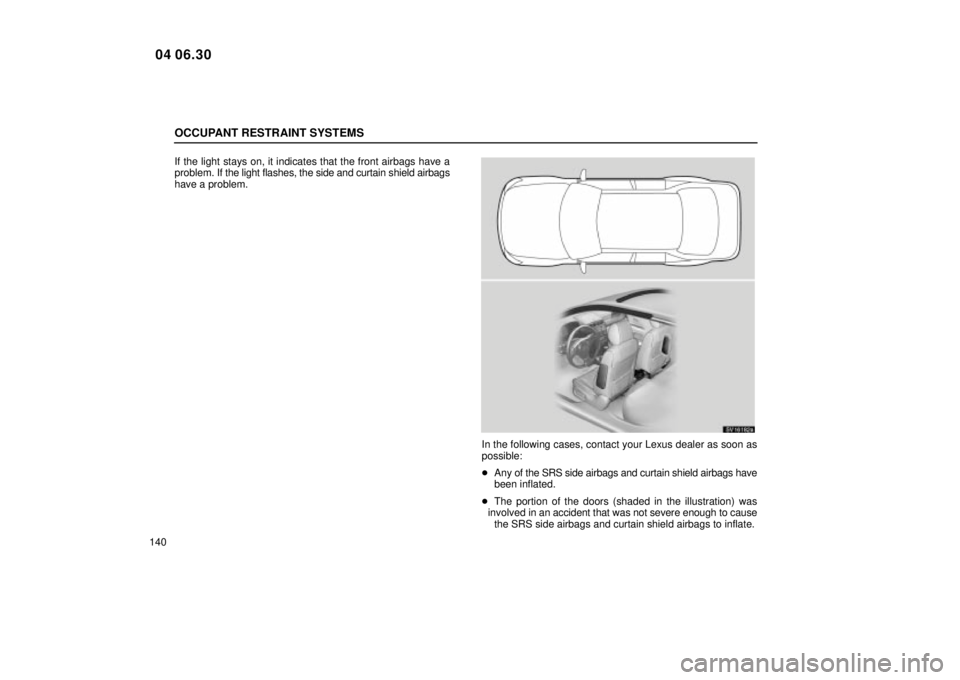

SV16182a
In the following cases, contact your Lexus dealer as soon as
possible:

Any of the SRS side airbags and curtain shield airbags have
been inflated.
 The portion of the doors (shaded in the illustration) was
involved in an accident that was not severe enough to cause the SRS side airbags and curtain shield airbags to inflate.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
141

The surface of the seats with the side airbag (shaded in the
illustration) is scratched, cracked, or otherwise damaged.
 The portion of the front pillars, side pillars or roof side rail
garnishes (padding) containing the curtain shield airbags
inside (shaded in the illustration) is scratched, cracked, or otherwise damaged.
NOTICE
Do not disconnect the battery cables before contactingyour Lexus dealer.
CHILD RESTRAINT
Child restraint precautions
Lexus strongly urges the use of appropriate child
restraint systems for children.
The laws of all 50 states in the U.S.A. and Canada now require
the use of a child restraint system.
Your vehicle conforms to SAE J1819.
If a child is too large for a child restraint system, the child should
sit in the rear seat and must be restrained using the vehicle's
seat belt. See ªSeat beltsº on page 110 for details.
CAUTION
 For effective protection in automobile accidents and
sudden stops, a child must be properly restrained,
using a seat belt or child restraint system depending
on age and size of the child. Holding a child in your
arms is not a substitute for a child restraint system.
In an accident, the child can be crushed against the
windshield, or between you and the vehicle's interior.
 Lexus strongly urges use of a proper child restraint
system which conforms to the size of the child,
installed on the rear seat. According to accident
statistics, the child is safer when properly restrained
in the rear seat than in the front seat.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
142

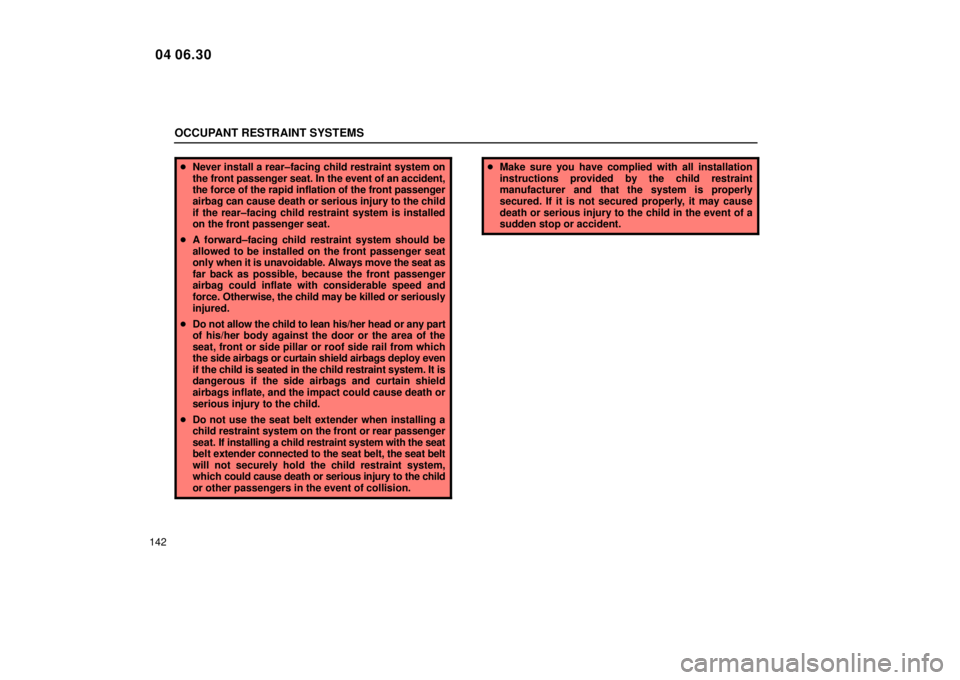

Never install a rear±facing child restraint system on
the front passenger seat. In the event of an accident,
the force of the rapid inflation of the front passenger
airbag can cause death or serious injury to the child
if the rear±facing child restraint system is installed
on the front passenger seat.
 A forward±facing child restraint system should be
allowed to be installed on the front passenger seat
only when it is unavoidable. Always move the seat as
far back as possible, because the front passenger
airbag could inflate with considerable speed and
force. Otherwise, the child may be killed or seriously
injured.
 Do not allow the child to lean his/her head or any part
of his/her body against the door or the area of the
seat, front or side pillar or roof side rail from which
the side airbags or curtain shield airbags deploy even
if the child is seated in the child restraint system. It is
dangerous if the side airbags and curtain shield
airbags inflate, and the impact could cause death or
serious injury to the child.
 Do not use the seat belt extender when installing a
child restraint system on the front or rear passenger
seat. If installing a child restraint system with the seat
belt extender connected to the seat belt, the seat belt
will not securely hold the child restraint system,
which could cause death or serious injury to the child
or other passengers in the event of collision. Make sure you have complied with all installation
instructions provided by the child restraint
manufacturer and that the system is properly
secured. If it is not secured properly, it may cause
death or serious injury to the child in the event of a
sudden stop or accident.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
143
Child restraint system
A child restraint system for a small child or baby must
itself be properly restrained on the seat with the lap
portion of the lap/shoulder belt. You must carefully
consult the manufacturer's instructions which
accompany the child restraint system.
To provide proper restraint, use a child restraint system
following the manufacturer's instructions about the
appropriate age and size of the child for the child restraint
system.
Install the child restraint system correctly following the
instructions provided by its manufacturer. General directions
are also provided under the following illustrations.
The child restraint system should be installed on the rear seat.
According to accident statistics, the child is safer when
properly restrained in the rear seat than in the front seat.
When not using the child restraint system, keep it secured with
the seat belt or place it in the trunk or somewhere other than
the passenger compartment. This will prevent it from injuring
passengers in the event of a sudden stop or accident. Types of child restraint system
Child
restraint systems are classified into the following 3 types
depending on the child's age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following the instructions
provided by its manufacturer.
Your vehicle has anchor brackets for securing the top strap of
a child restraint system.
For instructions about how to use the anchor bracket, see
ªUsing a top strapº on page 156, 161 or 167.
The child restraint lower anchorages approved for your vehicle
may also be used. See ªInstallation with child restraint lower
anchoragesº on page 159 or 174.
04 06.30
